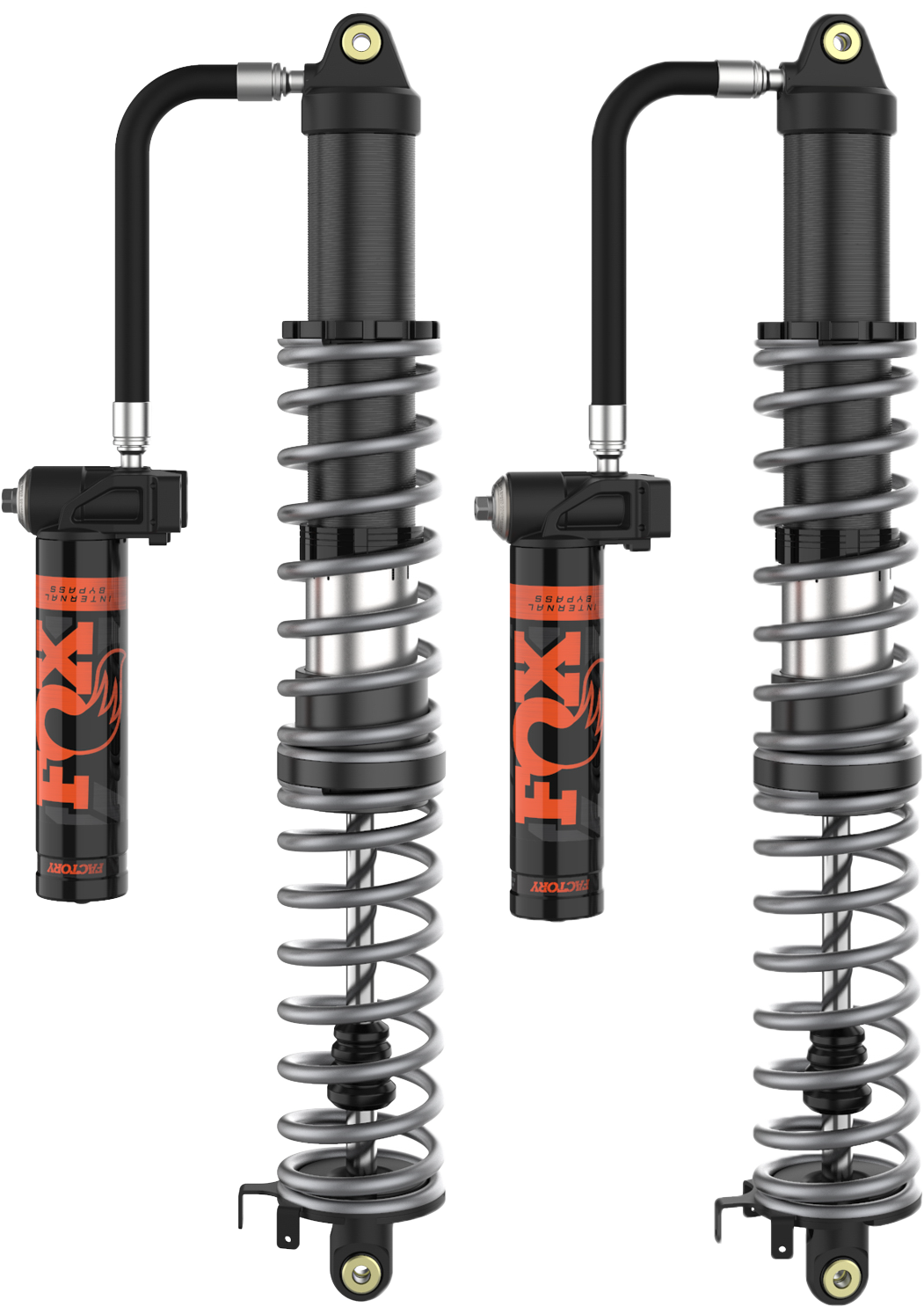

FOX Factory Race Series 3.0 Podium IBP RC2 Rear Shocks – Polaris RZR XP 1000 & XP Turbo

Upgrade your suspension to race-level performance with the FOX Factory Race Series 3.0 Podium Internal Bypass RC2 Rear Shocks for Polaris RZR XP 1000 and XP Turbo. Built with the same position-sensitive damping technology used in trophy truck racing, these shocks deliver unmatched control, durability, and high-speed stability for aggressive off-road driving.

Designed as a direct bolt-on replacement, these FOX Factory Race Series shocks upgrade the factory rear suspension by increasing the shock bore size from 2.5” to a massive 3.0”. The larger bore dramatically improves heat capacity and damping performance, preventing fade during long desert runs and helping your suspension handle repeated impacts from whoops, g-outs, and rough terrain.

What truly sets these shocks apart is FOX’s patented Internal Bypass (IBP) technology, which allows damping to change depending on the piston’s position inside the shock. This delivers a smoother ride through mid-stroke terrain while significantly increasing damping near full compression to resist harsh bottom-outs during aggressive riding.

📦 Need it fast? Contact us for current availability and estimated lead times before ordering.

Key Features

• FOX Factory Race Series 3.0 Podium IBP RC2 shocks
• Internal Bypass (IBP) position-sensitive damping
• Large 3.0" aluminum shock body
• Independent high- and low-speed compression adjusters
• Wide-range rebound adjuster
• Carbon black dual-rate race springs with crossover
• 7/8" hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings
• Hard-anodized aluminum body and reservoir
• Velocity-sensitive high-flow damping piston
• Fully rebuildable race-ready shock design

Internal Bypass Technology

FOX’s patented Internal Bypass (IBP) technology allows damping control to change based on the piston’s location inside the shock body.

This provides three performance zones:

Mid-stroke control
Softer damping improves ride comfort over rocks, chatter, and whoops while maintaining body control.

Bottom-out resistance
Damping increases dramatically during full compression to prevent harsh bottoming out during aggressive hits or high-speed terrain.

Top-out protection
Additional damping near full extension prevents damage when the suspension unloads during jumps or large impacts.

Combined with velocity-sensitive damping, these shocks adapt instantly to both terrain and speed.

Race-Level Adjustability

FOX Factory Race Series shocks include advanced adjusters so you can dial in your suspension for your specific riding style.

Adjustments include:

• High-Speed Compression
• Low-Speed Compression
• Wide-Range Rebound Adjustment
• Dual-Rate Spring Crossover Adjustment

These allow riders to tune suspension performance based on:

• Terrain conditions
• Vehicle load
• Driving style
• Race or recreation use

Built for Extreme Durability

FOX Factory Race Series shocks are designed for the toughest off-road environments.

Durability features include:

• Hard-anodized aluminum shock bodies and reservoirs
• 7/8” induction-hardened chrome shafts
• Race-grade sealing systems
• Fully rebuildable construction

These shocks are built to survive aggressive racing conditions while maintaining consistent performance.

Specifications

• Series: FOX Factory Race
• Shock Type: Internal Bypass RC2
• Shock Bore: 3.0 in
• Travel: 12.2 in
• Extended Length: 34.3 in
• Compressed Length: 22.1 in
• Top Mount: Eyelet
• Bottom Mount: Eyelet

Fitment

Compatible with Polaris RZR XP 1000 and XP Turbo models (Rear position) including:

• Polaris RZR XP 1000
• Polaris RZR XP 1000 EPS
• Polaris RZR XP 1000 Premium
• Polaris RZR XP 1000 Sport
• Polaris RZR XP 1000 Ultimate
• Polaris RZR XP 1000 High Lifter
• Polaris RZR XP 1000 Trails & Rocks
• Polaris RZR XP Turbo
• Polaris RZR XP Turbo EPS
• Polaris RZR XP Turbo S

Fits 2014–2025 models with HD spring package.

FAQ

What makes FOX Internal Bypass shocks different?
Internal Bypass shocks change damping depending on piston position, providing smoother ride quality through mid-stroke terrain and stronger resistance to bottom-outs.

Do these shocks fit both 2-seat and 4-seat RZR XP models?
Yes. These shocks fit both 2-seat and 4-seat Polaris RZR XP 1000 and XP Turbo models.

Are these shocks adjustable?
Yes. They feature independent high- and low-speed compression adjusters plus rebound tuning for precise suspension setup.

Are FOX Factory Race Series shocks rebuildable?
Yes. These shocks are fully rebuildable and serviceable, making them ideal for racing and aggressive riding.

Upgrade Your RZR Suspension

Push your Polaris RZR XP 1000 or XP Turbo to the next level with FOX Factory Race Series 3.0 Podium IBP RC2 rear shocks. Designed for racers and aggressive riders, these shocks deliver unmatched control, durability, and trophy-truck-level suspension technology.

Order today from Dunes 2 Dezert SXS and experience race-proven FOX performance on your RZR. 🏁
