Ibp Factory Series 3.0 Rear Can Am 2 Seat

FOX

FOX Factory Race Series 3.0 IBP Rear Shocks | Maverick X3

Sale price $3,499.99

Shipping calculated at checkout

Low stock

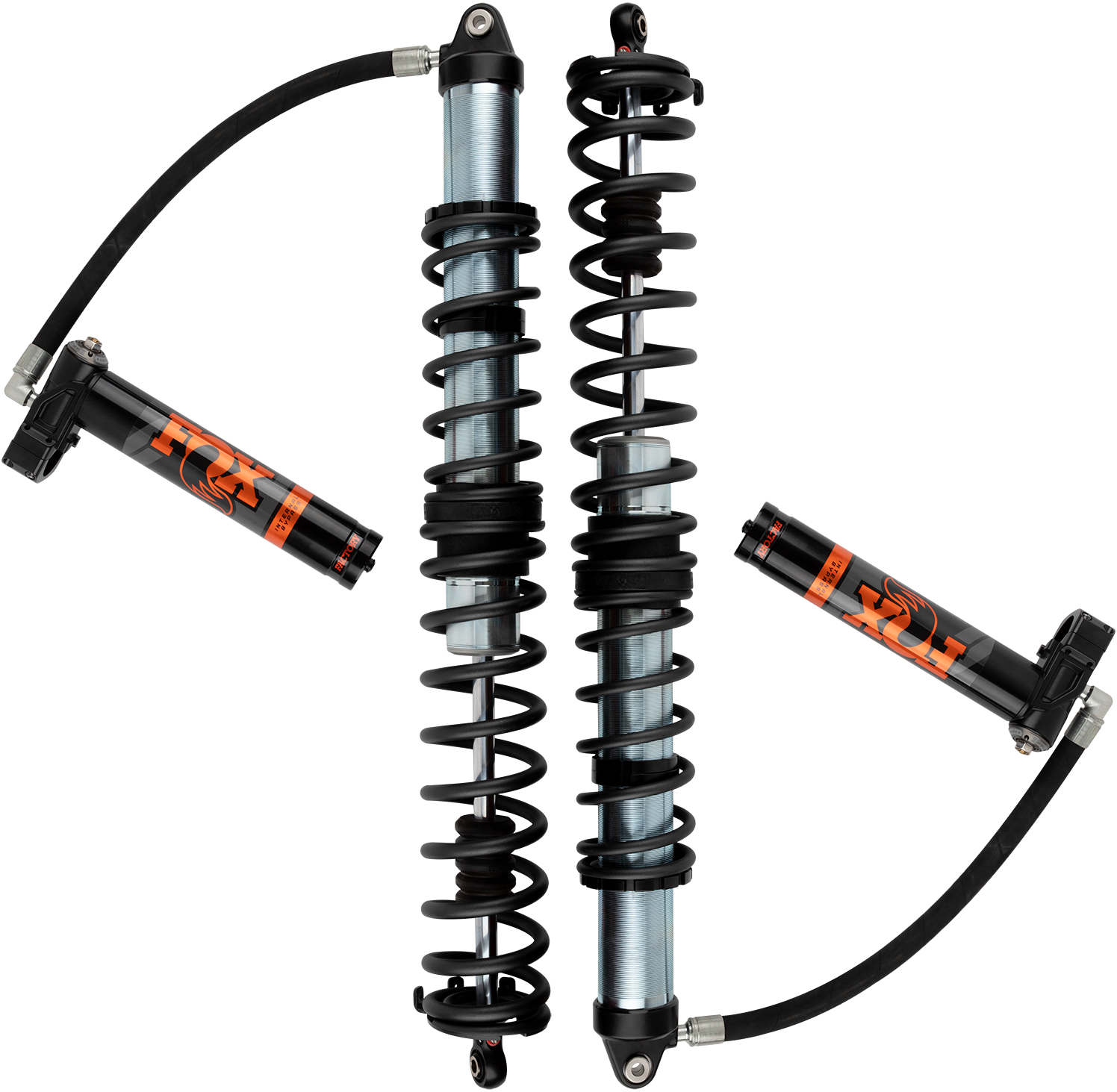

FOX Factory Race Series 3.0 Podium IBP RC2 Rear Shocks – Can-Am Maverick X3

Take your suspension to race-ready performance with the FOX Factory Race Series 3.0 Podium Internal Bypass RC2 Rear Shocks for the Can-Am Maverick X3. Designed for aggressive riders and racers, these shocks deliver the same race-proven suspension technology used by FOX trophy truck teams, packaged into a bolt-on upgrade for your Maverick X3.

These Factory Race Series 3.0 shocks increase the rear shock bore diameter to 3.0 inches, dramatically improving damping capacity, heat control, and bottom-out resistance. The larger shock body helps prevent fade during long high-speed desert runs and allows the suspension to handle repeated impacts from whoops, g-outs, and rough terrain.

At the heart of the system is FOX’s patented Internal Bypass (IBP) technology, which adjusts damping based on the piston’s position inside the shock. This provides a smoother ride across mid-stroke terrain while delivering massive resistance near full compression to prevent harsh bottoming during aggressive driving.

📦 Need it fast? Contact us for current availability and estimated lead times before ordering.

Key Features

  • FOX Factory Race Series 3.0 Podium IBP RC2 shocks
  • Position-sensitive Internal Bypass damping technology
  • Dual Speed Compression (DSC) adjustment
  • Wide-range rebound adjustment
  • 3.0” zinc-coated steel shock bodies
  • Aluminum remote reservoirs
  • Velocity-sensitive high-flow damping piston
  • 7/8” hard-chromed induction-hardened shaft
  • High-temperature Viton rubber seals
  • Schrader valves for pressure stability
  • Fully rebuildable and re-valvable shock design
  • Race-tuned suspension performance

Internal Bypass Technology

FOX’s Internal Bypass (IBP) system allows damping force to change depending on where the piston is located within the shock body.

This provides three key performance zones:

Mid-Stroke Comfort
Lighter damping smooths out rocks, chatter bumps, and whoops while maintaining vehicle control.

Bottom-Out Resistance
As the shock reaches full compression, damping increases dramatically to prevent harsh bottoming during aggressive impacts.

Top-Out Protection
Additional damping near full extension protects suspension components when the vehicle unloads over jumps or rough terrain.

Combined with velocity-sensitive damping, these shocks automatically adapt to both terrain and driving speed.

Race-Level Adjustability

FOX Factory Race Series shocks include advanced tuning features so you can dial in your suspension for specific riding conditions.

Adjustments include:

  • Dual Speed Compression (DSC) – quickly adjust compression damping
  • Wide-Range Rebound Adjustment – fine-tune suspension recovery speed

These adjustments allow riders to tune suspension based on:

  • Terrain conditions
  • Vehicle weight and load
  • Driving style
  • Racing vs recreational riding

Built for Extreme Durability

FOX engineered these shocks for the harshest racing conditions.

Durability features include:

  • Zinc-coated steel shock bodies
  • Aluminum remote reservoirs
  • 7/8” induction-hardened chrome shafts
  • High-temperature Viton seals
  • Fully rebuildable construction

This race-ready design ensures consistent performance even under extreme heat and repeated impacts.

Specifications

  • Series: FOX Factory Race
  • Shock Type: Podium Internal Bypass RC2
  • Shock Bore: 3.0 in
  • Travel: 14.79 in
  • Extended Length: 41.79 in
  • Compressed Length: 27 in
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet
  • Reservoir Type: Remote reservoir

Fitment

Compatible with Can-Am Maverick X3 X rs Turbo R and Turbo RR models (Rear position) including:

  • 2017 Can-Am Maverick X3 X rs Turbo R
  • 2018 Can-Am Maverick X3 X rs Turbo R
  • 2019 Can-Am Maverick X3 X rs Turbo R
  • 2020 Can-Am Maverick X3 X rs Turbo RR
  • 2021 Can-Am Maverick X3 X rs Turbo RR
  • 2022 Can-Am Maverick X3 X rs Turbo RR
  • 2023 Can-Am Maverick X3 X rs Turbo RR
  • 2024 Can-Am Maverick X3 X rs Turbo RR
  • 2025 Can-Am Maverick X3 X rs Turbo RR

FAQ

What makes FOX Internal Bypass shocks different?
Internal Bypass shocks change damping depending on piston position, providing smoother mid-stroke performance and stronger resistance during heavy impacts.

Are these shocks adjustable?
Yes. These shocks feature Dual Speed Compression adjustment and rebound tuning for precise suspension setup.

Are FOX Factory Race Series shocks rebuildable?
Yes. These shocks are fully rebuildable and re-valvable, making them ideal for racing and aggressive off-road riding.

Do these shocks improve ride quality?
Yes. Updated bypass porting and race-tuned damping improve control, stability, and comfort during high-speed off-road driving.

Upgrade Your Maverick X3 Suspension

Push your Can-Am Maverick X3 to the next level with FOX Factory Race Series 3.0 Podium IBP RC2 rear shocks. Designed for racers and aggressive riders, these shocks deliver unmatched control, durability, and trophy-truck-level suspension technology.

Order today from Dunes 2 Dezert SXS and experience championship-level FOX suspension performance. 🏁
