Ibp Factory Series 2.5 Front Pol 2 Seat

FOX

FOX Factory Race Series 2.5 IBP Front Shocks | RZR XP 1000

Sale price $2,599.99

Shipping calculated at checkout

Low stock

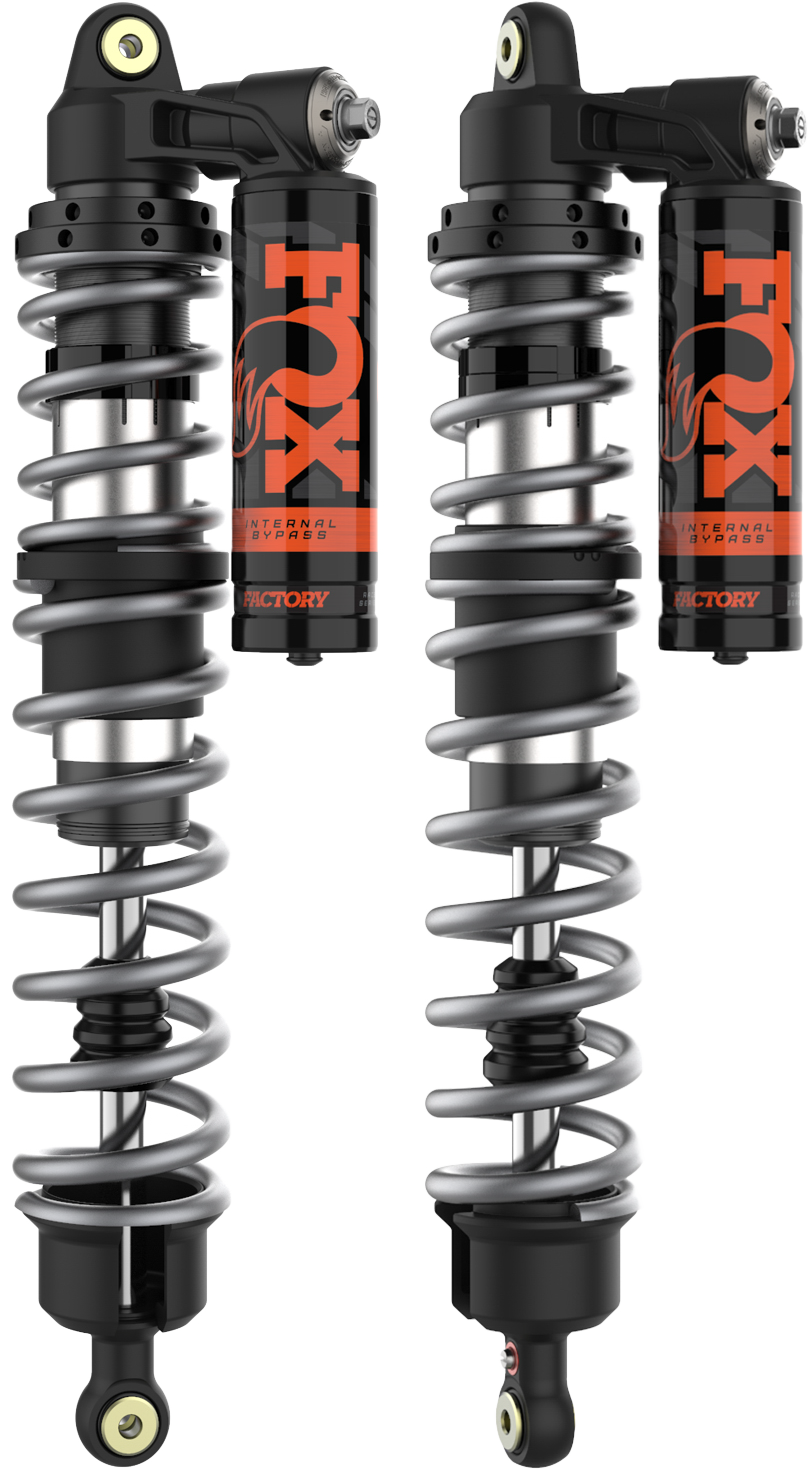

FOX Factory Race Series 2.5 Podium IBP RC2 Front Shocks – Polaris RZR XP 1000 & XP Turbo

Take your suspension performance to race level with the FOX Factory Race Series 2.5 Podium IBP RC2 Front Shocks for Polaris RZR XP 1000 and XP Turbo. Built with the same position-sensitive damping technology used in trophy truck racing, these shocks transform your RZR from capable to competition-ready.

Designed as a direct bolt-on upgrade, the FOX 2.5 Internal Bypass shocks replace the stock shocks on both 2-seat and 4-seat RZR XP 1000 and XP Turbo models. The larger 2.5-inch bore dramatically improves damping capacity compared to the factory 2.0-inch shocks, helping eliminate fade during long, high-speed runs through desert terrain, dunes, and rough trails.

What truly separates these shocks from the competition is FOX’s patented Internal Bypass (IBP) technology, which delivers position-sensitive damping. This system allows the shock to provide smoother ride quality through mid-stroke terrain like rocks and whoops while significantly increasing damping force near the end of travel to prevent harsh bottom-outs.

📦 Need it fast? Contact us for current availability and estimated lead times before ordering.

Key Features

  • FOX Factory Race Series 2.5 Podium shocks
  • Internal Bypass (IBP) position-sensitive damping
  • 2.5" aluminum shock body and piggyback reservoir
  • Independent high- and low-speed compression adjusters
  • Wide-range rebound adjuster
  • Dual-rate race springs with adjustable crossover
  • 7/8" hard-chromed induction-hardened shaft
  • PTFE-lined spherical bearings
  • Kashima-coated aluminum body and reservoir
  • Velocity-sensitive high-flow damping piston
  • Fully rebuildable race-level shock design

Internal Bypass Technology

FOX’s patented Internal Bypass (IBP) technology allows the shock to change damping characteristics depending on where the piston is located within the shock body.

This gives you three performance zones:

  • Mid-stroke: Softer damping for smoother control through rocks and whoops
  • Bottom-out zone: Dramatically increased damping to resist harsh impacts
  • Top-out zone: Increased rebound resistance to prevent topping out on jumps

Combined with velocity-sensitive damping, this system allows the suspension to adapt to both terrain and speed, delivering exceptional control whether you're blasting desert whoops or crawling through technical terrain.

Race-Level Adjustability

These shocks include multiple tuning options so you can dial in suspension performance for your exact riding conditions.

Adjustments include:

  • High-Speed Compression
  • Low-Speed Compression
  • Wide-range Rebound Adjustment
  • Dual-Rate Spring Crossover Adjustment

This gives riders the ability to tune suspension behavior based on:

  • Terrain
  • Load weight
  • Driving style
  • Race vs recreation use

Built for Extreme Durability

FOX Factory Race Series shocks are engineered to withstand the harshest environments.

Durability features include:

  • Kashima-coated aluminum shock bodies
  • Hard-anodized reservoirs
  • 7/8" hard-chromed shafts
  • Race-proven seal systems
  • Fully rebuildable service design

This construction ensures long-term reliability even under extreme racing conditions.

Specifications

  • Series: FOX Factory Race
  • Shock Type: Internal Bypass RC2
  • Shock Bore: 2.5 in
  • Travel: 8.44 in
  • Extended Length: 25.04 in
  • Compressed Length: 16.6 in
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet
  • Reservoir Type: Piggyback

Fitment

Compatible with Polaris RZR XP 1000 and XP Turbo models (Front position) including:

  • Polaris RZR XP 1000
  • Polaris RZR XP 1000 EPS
  • Polaris RZR XP 1000 Premium
  • Polaris RZR XP 1000 Sport
  • Polaris RZR XP 1000 Ultimate
  • Polaris RZR XP 1000 High Lifter
  • Polaris RZR XP 1000 Trails & Rocks
  • Polaris RZR XP 1000 Desert Edition
  • Polaris RZR XP Turbo
  • Polaris RZR XP Turbo EPS
  • Polaris RZR XP Turbo S

Fits 2014–2025 models with HD spring package.

FAQ

What makes FOX Internal Bypass shocks different?
Internal Bypass shocks adjust damping depending on piston position in the shock, giving smoother ride quality mid-stroke and stronger resistance to bottom-outs.

Do these shocks fit both 2-seat and 4-seat RZR XP models?
Yes. These shocks fit both 2-seat and 4-seat Polaris RZR XP 1000 and XP Turbo models.

Are these shocks adjustable?
Yes. They feature independent high- and low-speed compression adjusters plus rebound tuning for precise suspension setup.

Are FOX Factory Race Series shocks rebuildable?
Yes. These shocks are fully rebuildable and serviceable, making them ideal for racing or heavy off-road use.

Upgrade Your RZR Suspension

Push your Polaris RZR XP 1000 or XP Turbo to the next level with FOX Factory Race Series 2.5 Internal Bypass RC2 shocks. Designed for racers and aggressive riders, these shocks deliver unmatched control, durability, and race-proven performance.

Order today from Dunes 2 Dezert SXS and experience trophy-truck level suspension technology on your RZR. 🏁
