Ibp Factory Series 2.5 Front Can Am 2 Seat

FOX

FOX Factory Race Series 2.5 IBP Shocks | Maverick X3

Sale price $2,699.99

Shipping calculated at checkout

In stock

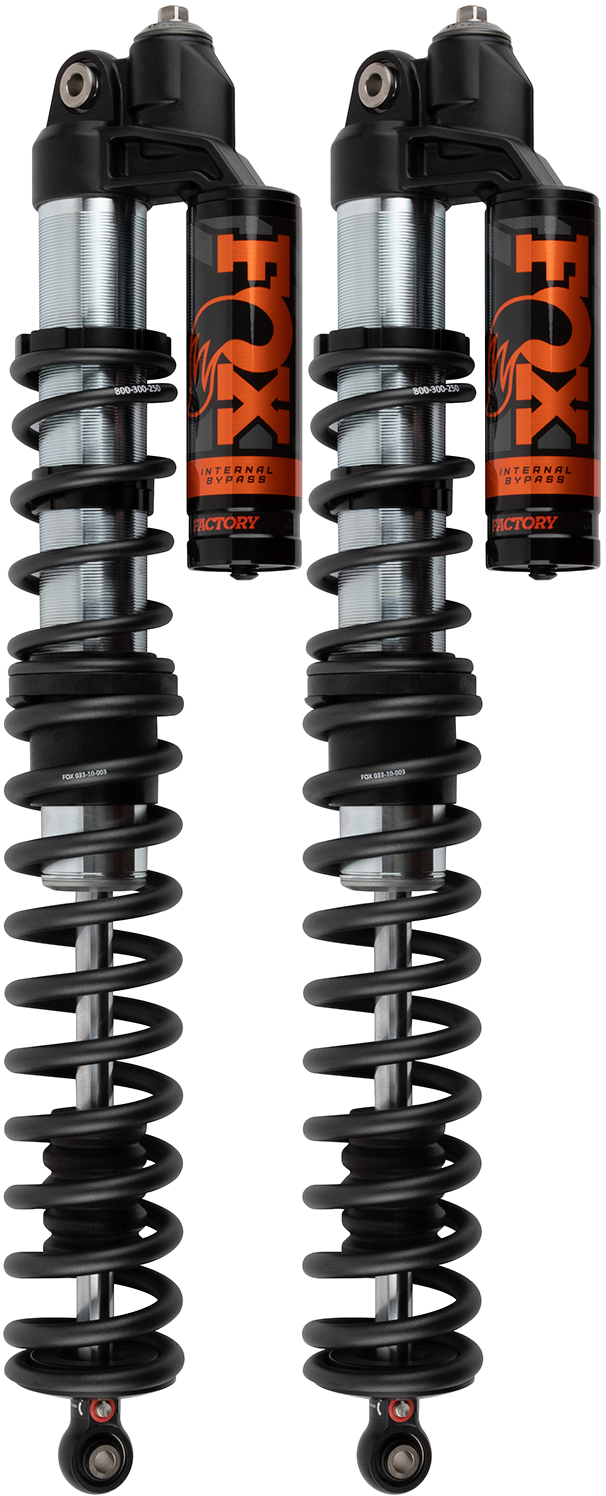

FOX Factory Race Series 2.5 RC2 Podium IBP Front Shocks – Can-Am Maverick X3

Take your suspension to race-ready performance with the FOX Factory Race Series 2.5 RC2 Podium Internal Bypass Front Shocks for the Can-Am Maverick X3. Built for riders who demand the same race-winning technology used by FOX motorsports teams, these shocks deliver smoother ride quality, increased roll control, and unmatched adjustability in a direct bolt-on upgrade.

Designed specifically for Can-Am Maverick X3 X rs Turbo R and Turbo RR models, these shocks feature FOX Internal Bypass (IBP) technology, which allows damping to change based on piston position inside the shock body. This means lighter damping through mid-stroke terrain like rocks and whoops while dramatically increasing resistance near full compression to prevent bottoming out during aggressive riding.

FOX engineers also improved the bypass inner body ports to create a smoother ride with better vehicle control. Combined with race-spec higher-rate springs, these shocks reduce unwanted body motion and maintain stability at high speeds across dunes, desert terrain, and rough trails.

📦 Need it fast? Contact us for current availability and estimated lead times before ordering.

Key Features

  • FOX Factory Race Series 2.5 Podium IBP RC2 shocks
  • Internal Bypass position-sensitive damping technology
  • Dual Speed Compression (DSC) adjuster
  • Wide-range rebound adjustment
  • Piggyback reservoir for improved damping control
  • Dual-rate race springs with adjustable crossover
  • High-flow velocity-sensitive damping piston
  • 7/8" induction-hardened hard-chromed shaft
  • PTFE-lined spherical bearings
  • Zinc-coated 2.5" steel shock bodies
  • Aluminum piggyback reservoirs
  • Fully rebuildable and re-valvable shock design

Internal Bypass Technology

FOX’s Internal Bypass (IBP) system delivers position-sensitive damping to improve suspension performance across the entire shock stroke.

This creates three performance zones:

Mid-Stroke Comfort
Lighter damping smooths out chatter bumps, rocks, and whoops while maintaining vehicle stability.

Bottom-Out Control
Damping increases significantly during full compression to prevent harsh bottoming out during aggressive driving.

Top-Out Protection
Additional damping near full extension protects suspension components when the vehicle unloads over jumps or large terrain changes.

Combined with velocity-sensitive damping, these shocks adapt instantly to both terrain and driving speed.

Race-Level Adjustability

FOX Factory Race Series shocks include advanced tuning options so riders can dial in the perfect suspension setup.

Adjustments include:

  • Dual Speed Compression (DSC) – quick click adjustments for terrain tuning
  • Wide-Range Rebound Adjustment – fine-tune how quickly the suspension recovers
  • Dual-Rate Spring Crossover Adjustment – adjust spring progression

This allows riders to tune suspension performance based on:

  • Terrain type
  • Vehicle load
  • Driving style
  • Race vs recreational riding

Built for Extreme Durability

FOX designed these shocks for aggressive off-road use and racing environments.

Durability features include:

  • Zinc-coated steel shock bodies
  • Aluminum piggyback reservoirs
  • 7/8” hard-chromed shafts
  • High-temperature Viton seals
  • Schrader valves for pressure stability
  • Fully rebuildable construction

These race-proven components ensure long-lasting reliability under extreme heat and pressure.

Specifications

  • Series: FOX Factory Race
  • Shock Type: Podium Internal Bypass RC2
  • Shock Bore: 2.5 in
  • Travel: 11.64 in
  • Extended Length: 32.04 in
  • Compressed Length: 20.4 in
  • Spring Type: Dual spring
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet
  • Reservoir Type: Piggyback

Fitment

Compatible with Can-Am Maverick X3 X rs Turbo R and Turbo RR models (Front position - 2 Seat) including:

  • 2017 Can-Am Maverick X3 X rs Turbo R
  • 2018 Can-Am Maverick X3 X rs Turbo R
  • 2019 Can-Am Maverick X3 X rs Turbo R
  • 2020 Can-Am Maverick X3 X rs Turbo RR
  • 2021 Can-Am Maverick X3 X rs Turbo RR
  • 2022 Can-Am Maverick X3 X rs Turbo RR
  • 2023 Can-Am Maverick X3 X rs Turbo RR
  • 2024 Can-Am Maverick X3 X rs Turbo RR
  • 2025 Can-Am Maverick X3 X rs Turbo RR

FAQ

What makes FOX Internal Bypass shocks different?
Internal Bypass shocks adjust damping based on piston position inside the shock, providing smoother ride quality in mid-stroke terrain and increased resistance during heavy impacts.

Are these shocks adjustable?
Yes. These shocks feature Dual Speed Compression adjustment and rebound tuning, allowing riders to dial in suspension performance for different terrain conditions.

Are these shocks rebuildable?
Yes. FOX Factory Race Series shocks are fully rebuildable and re-valvable, making them ideal for racing and aggressive off-road riding.

Do these shocks improve ride quality?
Yes. Updated bypass porting and race-spec springs help improve ride comfort, stability, and roll control during high-speed riding.

Upgrade Your Maverick X3 Suspension

Push your Can-Am Maverick X3 to race-level performance with the FOX Factory Race Series 2.5 Podium IBP RC2 front shocks. Designed by the same engineers supporting FOX race teams, these shocks deliver unmatched control, durability, and adjustability for aggressive off-road driving.

Order today from Dunes 2 Dezert SXS and experience championship-level FOX suspension technology on your Maverick X3. 🏁
