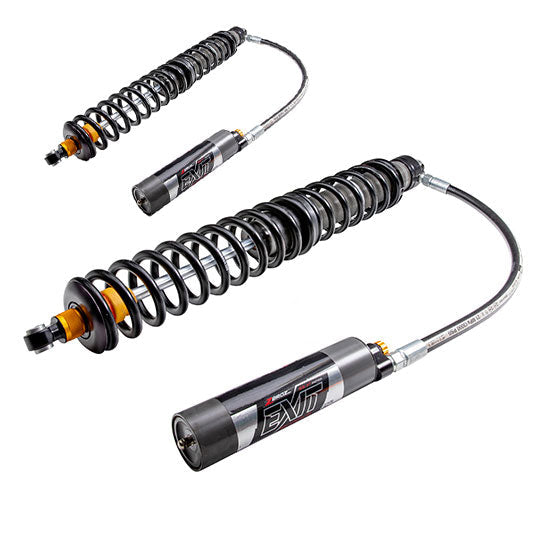

Maverick X3 MAX 72" 2.5" X2 Rear Remote EXIT Shocks by ZBroz Racing

Top-tier rear suspension for your 4-door MAX. The ZBroz X2 Series Maverick X3 MAX 72 rear remote EXIT shocks use a remote reservoir design that frees the shock body from heat soak under sustained high-speed pounding — critical when you're loaded up with 4 occupants and gear. With 2.5" bore, dual-rate springs, adjustable crossover rings, and BOTH tool-free compression and rebound adjusters, these Maverick X3 MAX shocks deliver race-bred damping tuned specifically for the longer-wheelbase MAX chassis.

Key Features

• Direct bolt-on replacement for OEM X3 MAX 72" rear shocks
• 2.5" O.D. billet shock body with 2.5" O.D. remote reservoir
• Remote reservoir design — cooler shock oil under sustained high-speed pounding
• Dual-rate spring setup with adjustable billet crossover rings
• Tool-free billet compression adjuster (26-click)
• Tool-free spherical rebound adjuster
• Performance high-flow piston, precisely valved and tuned
• 7/8" chrome rear shaft, PTFE-lined spherical bearings
• Progressive closed-cell bump stop
• Tuned for MAX chassis weight and length
• Made in the USA
• Custom-built, valved, and tuned per application (2-4 week build time)

Specifications

• Series: X2 Series (top tier)
• Position: Rear
• Body: 2.5" O.D. billet
• Reservoir: 2.5" O.D. REMOTE reservoir
• Adjustability: 26-click compression + spherical rebound, both tool-free
• Springs: Dual-rate with adjustable billet crossover rings
• Shaft: 7/8" chrome
• Application: Can-Am Maverick X3 MAX 72" (4-door)

Fitment

These X3 MAX 72 rear shocks fit Can-Am Maverick X3 MAX 72" (4-door, 2017-current). For 2-door X3 72" rears, see K76-CA1001-TR.

Frequently Asked Questions

Why a remote reservoir on MAX rears?

The remote reservoir shocks design is especially valuable on the MAX, which carries more weight (passengers + gear) and runs the rear shocks harder. Moving the reservoir off the shock body keeps the oil cooler and damping consistent over long, fast runs.

Are these MAX-specific?

Yes — these Maverick X3 MAX 72 4-door rear remote EXIT shocks are custom-valved for the longer-wheelbase, heavier MAX chassis, not just 2-door shocks with different mounts.

What's the difference between X2 and X1?

X2 adds: 2.5" bore (vs 2.2"), dual-rate springs with crossover rings, rebound adjuster, and remote reservoir on rears.

Will they fit my 2-door X3?

No — these are MAX-specific. For 2-door X3 72" rears use K76-CA1001-TR.

How long is the build time?

2-4 weeks — all EXIT shocks are custom-built, valved, and tuned per application.

Why ZBroz Racing

The X2 Series is the race-bred standard for serious UTV damping. The 2.5 inch X2 Series remote reservoir shocks for X3 MAX are the same caliber shock used on race-winning machines. The ultimate race-grade Can-Am Maverick X3 MAX 2.5 rear shocks for any 4-door 72" MAX owner who's serious about ride quality. The X2 Series shocks deliver true dual-rate UTV shocks performance — these are dual-rate compression rebound adjustable X3 MAX rear shocks at their best.

Order Yours Today

Race-spec rears for your MAX. Add the ZBroz X2 Series Maverick X3 MAX 72 rear remote EXIT shocks to your order. Shop/Order from Dunes 2 Dezert SXS.
