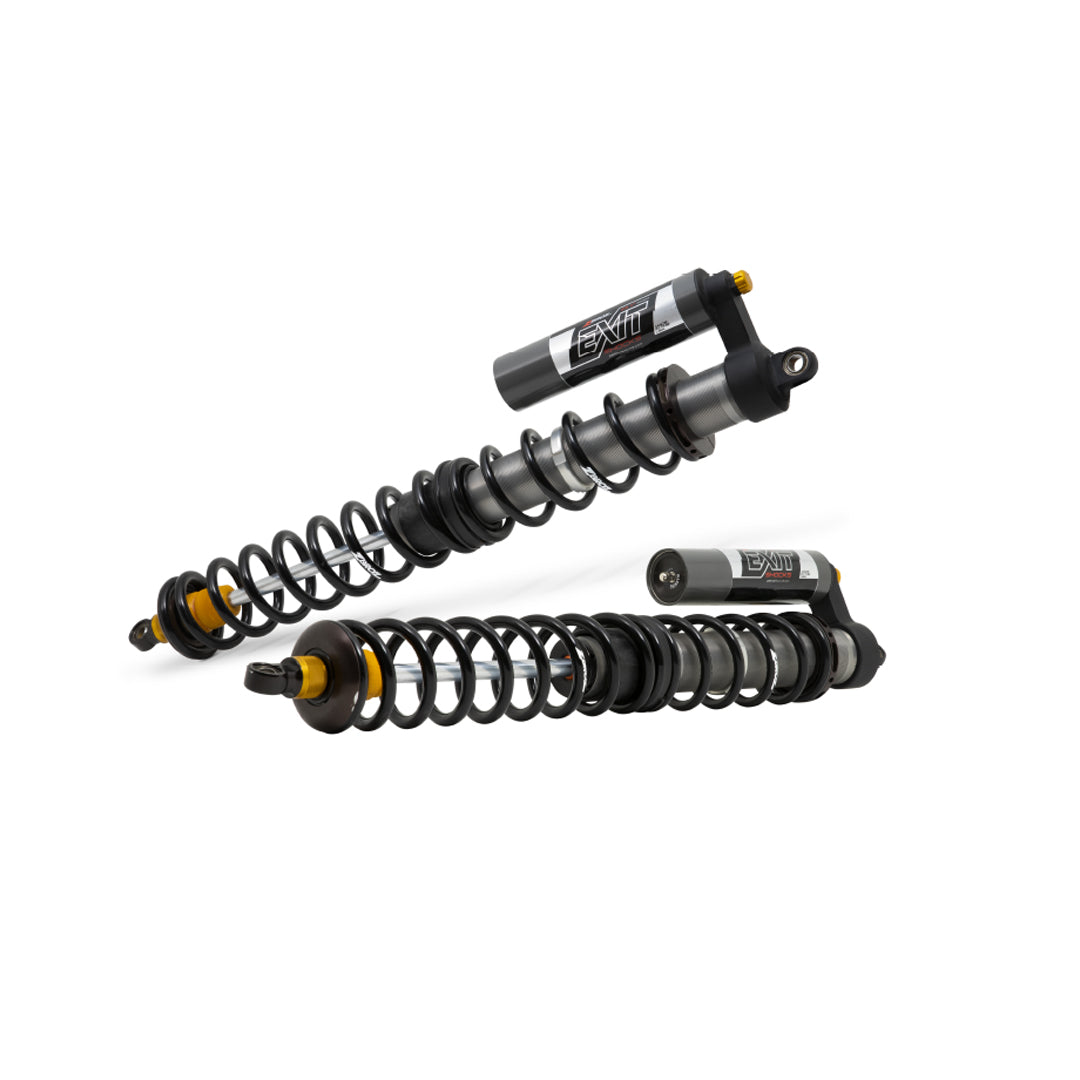

Maverick X3 MAX 72" 2.5" X2 Front EXIT Shocks by ZBroz Racing

Race-grade damping for your 4-door MAX. The ZBroz X2 Series Maverick X3 MAX 72 front EXIT shocks are the top-tier ZBroz shock platform tuned specifically for the longer-wheelbase MAX chassis. 2.5" bore, dual-rate springs with adjustable crossover rings, plus tool-free compression and rebound adjusters — these Maverick X3 MAX shocks deliver the comfort, control, and bottoming resistance demanded by desert rally and rock crawling at MAX weight.

Key Features

• Direct bolt-on replacement for OEM X3 MAX 72" front shocks
• 2.5" O.D. billet shock body with 2.5" O.D. piggyback reservoir
• Dual-rate spring setup with adjustable billet crossover rings
• Tool-free billet compression adjuster (26-click)
• Tool-free spherical rebound adjuster
• Performance high-flow piston, precisely valved and tuned
• 3/4" chrome shaft, PTFE-lined spherical bearings
• Progressive closed-cell bump stop
• Shot-peened pre-set chrome silicone wire springs
• Tuned for MAX chassis weight and length
• Made in the USA
• Custom-built, valved, and tuned per application (2-4 week build time)

Specifications

• Series: X2 Series (top tier)
• Position: Front
• Body: 2.5" O.D. billet
• Reservoir: 2.5" O.D. piggyback
• Adjustability: 26-click compression + spherical rebound, both tool-free
• Springs: Dual-rate with adjustable billet crossover rings
• Shaft: 3/4" chrome
• Application: Can-Am Maverick X3 MAX 72" (4-door)

Fitment

These X3 MAX 72 front shocks fit Can-Am Maverick X3 MAX 72" (4-door, 2017-current). For 2-door X3 72" fronts, see K76-CA1000-TR.

Frequently Asked Questions

What's the difference between X2 and X1 Series?

X2 jumps to a 2.5" bore (vs 2.2"), uses dual-rate springs with adjustable crossover rings, and adds tool-free rebound adjustability on top of compression.

Are these tuned specifically for the MAX?

Yes — these Maverick X3 MAX 72 4-door front EXIT shocks are custom-valved for the MAX chassis weight and longer wheelbase, NOT just a 2-door shock with a different mount.

Will they fit my 2-door X3?

No — these are MAX-specific. For 2-door X3 72" use K76-CA1000-TR.

What does dual-rate buy me?

The dual-rate UTV shocks setup with crossover rings gives soft small-bump comfort plus progressive big-hit control in one shock.

How long is the build time?

2-4 weeks — all EXIT shocks are custom-built, valved, and tuned per application.

Why ZBroz Racing

The X2 Series is the same race-bred platform used by ZBroz-equipped teams at the top of UTV racing. The 2.5 inch X2 Series front shocks for X3 MAX deliver tunable damping built to MAX-chassis specs. As Can-Am X3 MAX EXIT shocks, this is the ultimate race-grade Can-Am Maverick X3 MAX 2.5 front shocks upgrade. The X2 Series shocks are full dual-rate compression rebound adjustable X3 MAX shocks for the longer-wheelbase MAX.

Order Yours Today

Race-spec damping for your MAX. Add the ZBroz X2 Series Maverick X3 MAX 72 front EXIT shocks to your order. Shop/Order from Dunes 2 Dezert SXS.
