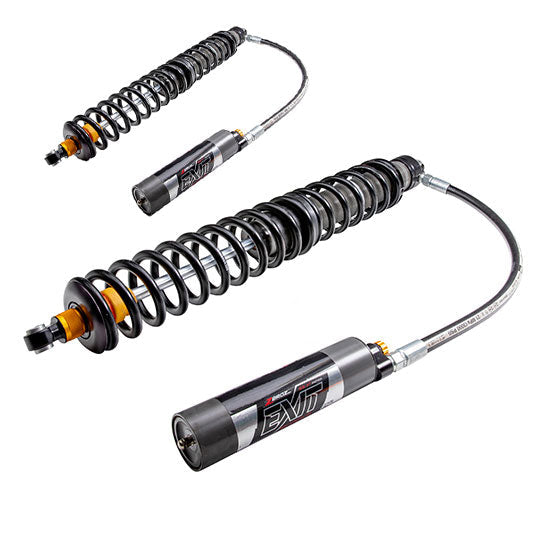

Maverick X3 72" 2.5" X2 Rear Remote EXIT Shocks by ZBroz Racing

Race-bred rear suspension for your 2-door X3 72". The ZBroz X2 Series Maverick X3 72 rear remote EXIT shocks step up to a remote reservoir design, freeing the shock body from heat soak under sustained high-speed pounding. With 2.5" bore, dual-rate springs, adjustable crossover rings, and BOTH tool-free compression and rebound adjusters, these Maverick X3 shocks deliver the kind of damping control demanded by desert racers and dune riders alike.

Key Features

• Direct bolt-on replacement for OEM X3 72" rear shocks
• 2.5" O.D. billet shock body with 2.5" O.D. remote reservoir
• Remote reservoir design separates shock oil from heat for sustained performance
• Dual-rate spring setup with adjustable billet crossover rings
• Tool-free billet compression adjuster (26-click)
• Tool-free spherical rebound adjuster
• Performance high-flow piston, precisely valved and tuned
• 7/8" chrome rear shaft, PTFE-lined spherical bearings
• Progressive closed-cell bump stop
• Made in the USA
• Custom-built, valved, and tuned per application (2-4 week build time)

Specifications

• Series: X2 Series (top tier)
• Position: Rear
• Body: 2.5" O.D. billet
• Reservoir: 2.5" O.D. REMOTE reservoir (not piggyback)
• Adjustability: 26-click compression + spherical rebound, both tool-free
• Springs: Dual-rate with adjustable billet crossover rings
• Shaft: 7/8" chrome
• Application: Can-Am Maverick X3 72" 2-door

Fitment

These X3 72 rear shocks fit Can-Am Maverick X3 72" 2-door (2017-current). For X3 MAX 72" (4-door) rears, see K76-CA1003-TR.

Frequently Asked Questions

Why a remote reservoir on the rears?

The remote reservoir shocks design moves the reservoir away from the shock body, which keeps the shock oil cooler under sustained high-speed pounding. This is critical for rear shocks, which see more heat than fronts.

What's the difference between X2 and X1?

X2 adds: 2.5" bore (vs 2.2"), dual-rate springs with crossover rings, rebound adjuster (X1 has compression only), and (for rears) a remote reservoir. X2 is the race-bred top tier.

Will they fit my MAX?

No — these Maverick X3 72 2-door rear remote EXIT shocks are 2-door specific. For X3 MAX 72" rears use K76-CA1003-TR.

What does the dual-rate spring give me?

The dual-rate UTV shocks setup with crossover rings gives soft small-bump comfort and progressive big-hit control in one shock.

How long is the build time?

2-4 weeks — all EXIT shocks are custom-built, valved, and tuned per application.

Why ZBroz Racing

The X2 Series is the shock that wins races for ZBroz-equipped teams. The 2.5 inch X2 Series remote reservoir shocks for X3 and other X2 platforms deliver tunable damping that holds up to the worst the desert dishes out. The ultimate race-grade Can-Am Maverick X3 2.5 rear shocks upgrade for any 72" X3. The X2 Series shocks deliver true dual-rate compression rebound adjustable X3 rear shocks performance.

Order Yours Today

Race-spec damping for your X3. Add the ZBroz X2 Series Maverick X3 72 rear remote EXIT shocks to your order. Shop/Order from Dunes 2 Dezert SXS.
