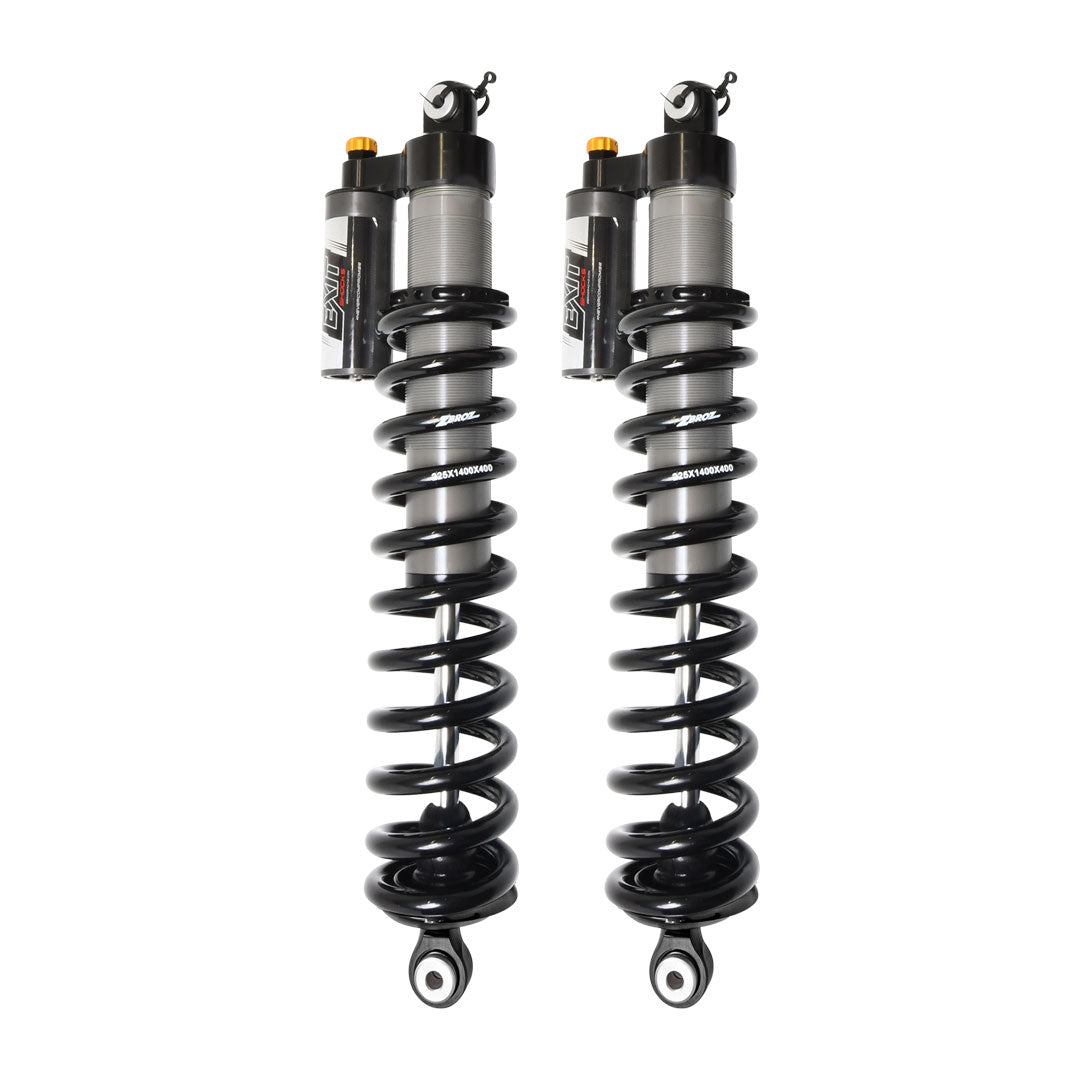

Defender 2-Door HD10 Limited/XMR 2.2" X1 Front EXIT Shocks by ZBroz Racing

Race-bred damping for your Limited or XMR. The ZBroz X1 Series Defender 2-door HD10 Limited XMR front EXIT shocks replace the OEM front shocks on your 2-door Can-Am Defender HD10 Limited or XMR trim — trims that came with upgraded factory shocks but still leave room for serious improvement. With 26-click external compression adjustability, 2.2" billet body, piggyback reservoir, and up to 2" of true suspension lift, these Defender Limited shocks upgrade the already-upgraded.

Key Features

• 26-click external compression adjuster — dial damping trailside, tool-free
• Direct bolt-on replacement for OEM 2-door HD10 Limited/XMR front shocks
• Adds up to 2" of true suspension lift
• 2.2" O.D. billet body with 2.2" O.D. piggyback reservoir
• Performance high-flow piston, precisely valved and tuned
• 5/8" chrome shaft, PTFE-lined spherical bearings
• Single-rate spring, fully adjustable pre-load
• Tuned for Limited/XMR trim weight and feature set
• Fully serviceable — every 1,500 miles or 24 months
• Made in the USA
• Custom-built, valved, and tuned per application (2-4 week build time)

Specifications

• Series: X1 Series
• Position: Front
• Bore: 2.2" true bore
• Body: Billet construction with piggyback reservoir
• Compression adjustability: 26-click external adjuster (tool-free)
• Pre-load: Threaded fully adjustable
• Spring: Single-rate
• Lift: Up to 2" true suspension lift
• Application: 2020-2026 Can-Am Defender 2-door HD10 Limited and XMR trims

Fitment

These fit the 2-door Can-Am Defender HD10 with Limited or XMR trim (2020-2026). For MAX (4-seat) Limited/XMR, see K75-CA1021-SR. For 2-door HD10 DPS, see K75-CA1000-SR. Does NOT fit XT models.

Frequently Asked Questions

What trims does this fit?

These Defender HD10 Limited shocks fit the 2-door HD10 Limited and XMR trims only. For DPS, see K75-CA1000-SR.

Will they fit my MAX?

No — these Defender XMR shocks are 2-door specific. For MAX (4-seat) Limited/XMR, use K75-CA1021-SR.

What's the difference vs the DPS X1 shocks?

Same X1 Series platform, but valved and configured for the heavier Limited/XMR trim and its upgraded factory features. The 26-click compression adjustable Defender Limited XMR front shocks are tuned specifically for these trims.

What does the 26-click adjuster do?

It lets you change compression damping in 26 distinct increments — soften for comfort, firm up for loads or aggressive driving.

How long is the build time?

2-4 weeks — custom-built per application.

Why ZBroz Racing

The off-road Can-Am Defender Limited XMR compression adjustable front shocks bring race-bred damping to even the higher-trim Defenders. As 2020-2026 Can-Am Defender Limited XMR 2.2 bore X1 front shocks, they deliver damping control tuned specifically for these trims. The Can-Am Defender Limited XMR 2-door X1 front shocks upgrade worth running. As X1 Series shocks, they're true compression adjustable shocks for HD10 Limited/XMR owners.

Order Yours Today

Upgrade your Limited or XMR's front damping. Add the ZBroz X1 Series Defender 2-door HD10 Limited XMR front EXIT shocks to your order. Shop/Order from Dunes 2 Dezert SXS.
