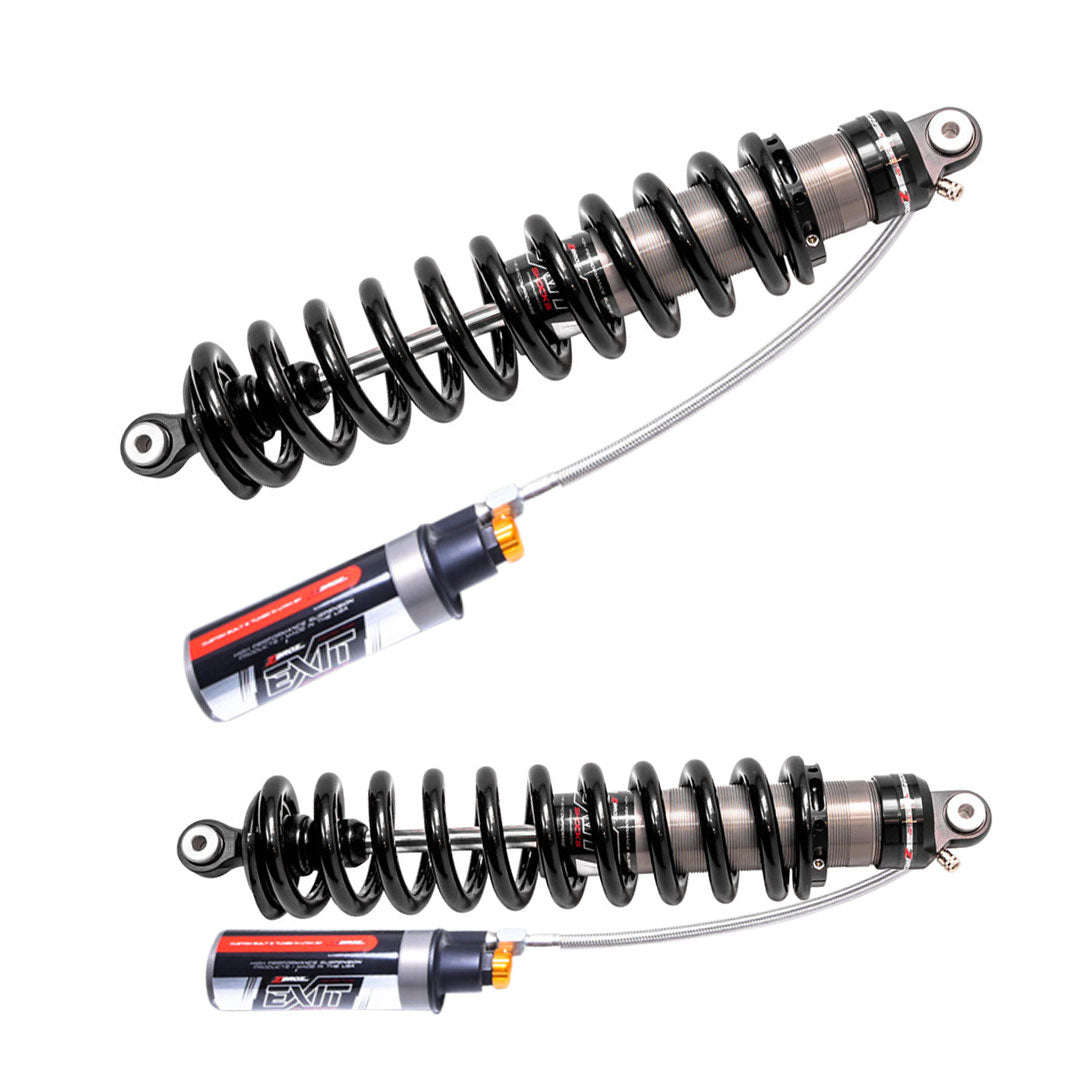

Defender MAX HD10 Limited/XMR 2.2" X1 Remote Rear EXIT Shocks by ZBroz Racing

Top-tier rear suspension for your 4-seat Limited or XMR. The ZBroz X1 Series Defender MAX HD10 Limited XMR remote rear EXIT shocks use a remote reservoir design that frees the shock body from heat soak under sustained loads — combined with 26-click compression adjustability, 2.2" bore, and up to 2" of suspension lift, all valved specifically for the MAX Limited/XMR trim. These Defender MAX Limited shocks are the rear-suspension answer for 4-seat HD10 Limited and XMR owners who demand the best damping control.

Key Features

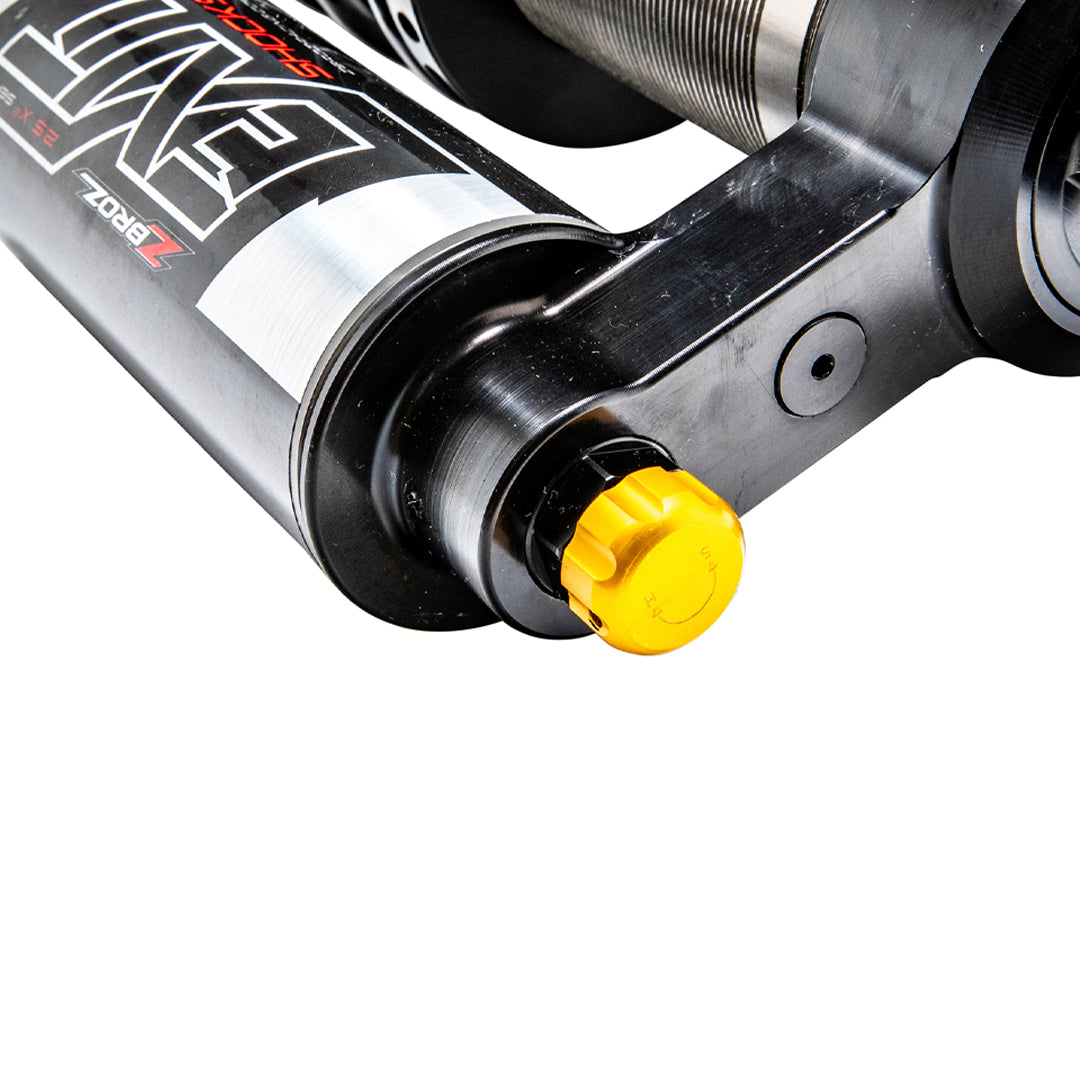

• 26-click external compression adjuster — tool-free trail-side tuning
• Direct bolt-on replacement for OEM MAX HD10 Limited/XMR rear shocks
• Remote reservoir design — cooler shock oil under sustained loads
• Adds up to 2" of true suspension lift
• 2.2" O.D. billet body with 2.2" O.D. remote reservoir
• Performance high-flow piston, precisely valved and tuned
• 5/8" chrome shaft, PTFE-lined spherical bearings
• MAX-specific tuning for heavier 4-passenger rear loads
• Tuned for Limited/XMR trim
• Single-rate spring, fully adjustable pre-load
• Fully serviceable — every 1,500 miles or 24 months
• Made in the USA
• Custom-built, valved, and tuned per application (2-4 week build time)

Specifications

• Series: X1 Series
• Position: Rear
• Bore: 2.2" true bore
• Body: Billet construction with REMOTE reservoir
• Compression adjustability: 26-click external adjuster (tool-free)
• Pre-load: Threaded fully adjustable
• Application: 2020-2026 Can-Am Defender MAX HD10 Limited and XMR (4-seat)

Fitment

These fit the Can-Am Defender MAX (4-seat) HD10 with Limited or XMR trim (2020-2026). For 2-door HD10 Limited/XMR rears, see K75-CA1020-SR. For MAX HD10 DPS rears, see K75-CA1010-SR.

Frequently Asked Questions

What trims does this fit?

These fit the 4-seat MAX HD10 Limited and XMR trims only. For DPS, see K75-CA1010-SR.

Why a remote reservoir?

The remote reservoir shocks design moves the reservoir off the shock body, keeping shock oil cooler under sustained loads — critical on the heavier-trim MAX rear that carries passengers and cargo.

Will they fit my 2-door?

No — these Defender MAX XMR rear shocks are MAX (4-seat) specific.

What does the 26-click adjuster do?

These 26-click compression adjustable Defender MAX Limited XMR rear shocks let you change compression damping in 26 distinct increments.

How long is the build time?

2-4 weeks — custom-built per application.

Why ZBroz Racing

The off-road Can-Am Defender MAX Limited XMR remote reservoir rear shocks deliver damping control most stock shocks can't match — even on the higher-trim MAX Defenders. As 2020-2026 Can-Am Defender MAX Limited XMR 2.2 bore X1 rear shocks, they're the rear-suspension answer for serious MAX HD10 Limited/XMR owners. The Can-Am Defender MAX Limited XMR X1 remote rear shocks upgrade worth running. As X1 Series shocks, these are true compression adjustable shocks for MAX Limited/XMR owners.

Order Yours Today

Upgrade your MAX Limited or XMR's rear damping. Add the ZBroz X1 Series Defender MAX HD10 Limited XMR remote rear EXIT shocks to your order. Shop/Order from Dunes 2 Dezert SXS.
