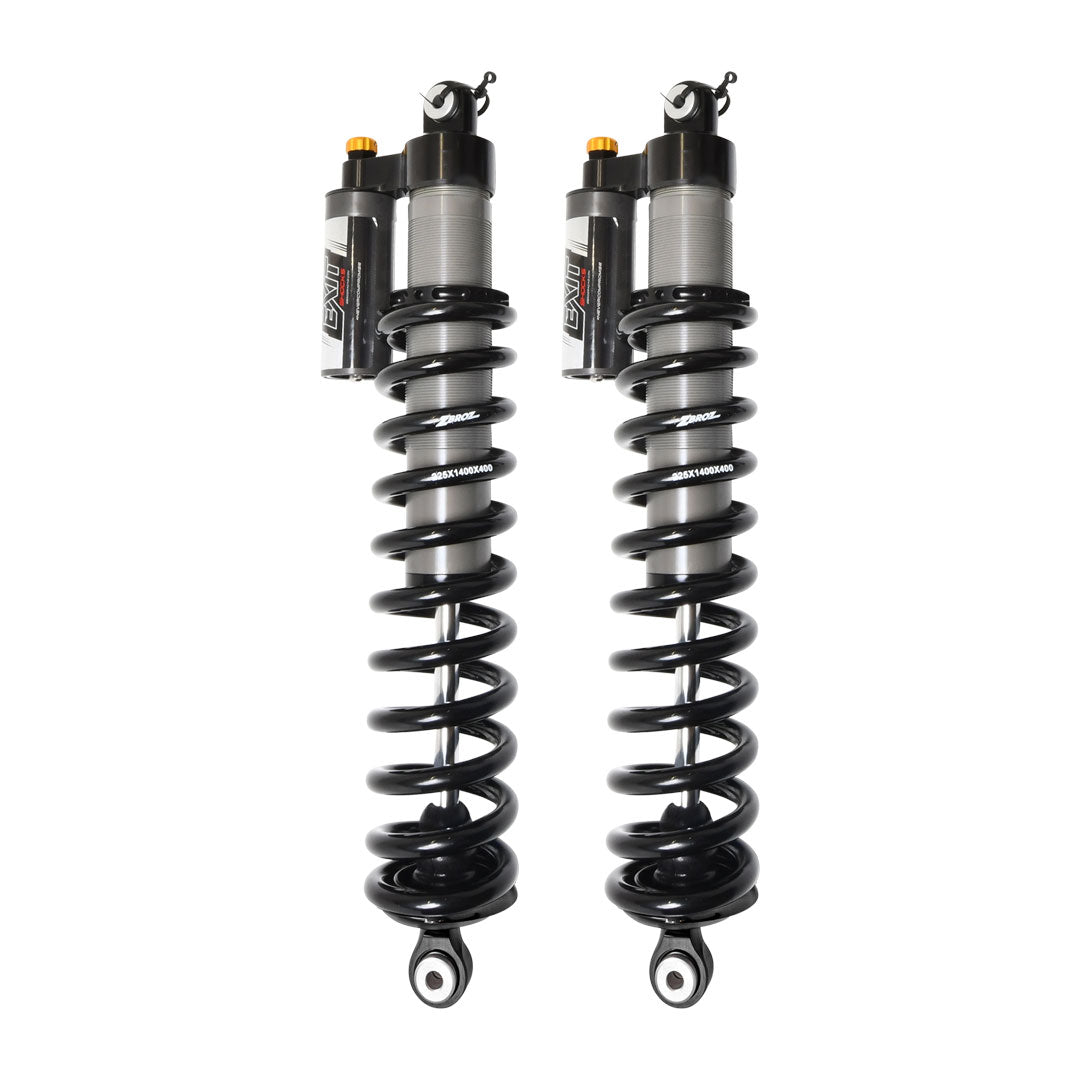

Defender MAX HD10 Limited/XMR 2.2" X1 Front EXIT Shocks by ZBroz Racing

Race-bred damping for your 4-seat Limited or XMR. The ZBroz X1 Series Defender MAX HD10 Limited XMR front EXIT shocks replace the OEM front shocks on your MAX (4-seat) HD10 Limited or XMR — trims that came with upgraded factory shocks but still leave room for serious improvement. With 26-click external compression adjustability, 2.2" billet body, piggyback reservoir, and up to 2" of true suspension lift, these Defender MAX Limited shocks upgrade the already-upgraded with MAX-specific tuning.

Key Features

• 26-click external compression adjuster — tool-free trail-side tuning
• Direct bolt-on replacement for OEM MAX HD10 Limited/XMR front shocks
• Adds up to 2" of true suspension lift
• 2.2" O.D. billet body with 2.2" O.D. piggyback reservoir
• Performance high-flow piston, precisely valved and tuned
• 5/8" chrome shaft, PTFE-lined spherical bearings
• MAX-specific tuning for the longer wheelbase and 4-passenger weight
• Tuned for Limited/XMR trim weight and feature set
• Single-rate spring, fully adjustable pre-load
• Fully serviceable — every 1,500 miles or 24 months
• Made in the USA
• Custom-built, valved, and tuned per application (2-4 week build time)

Specifications

• Series: X1 Series
• Position: Front
• Bore: 2.2" true bore
• Body: Billet construction with piggyback reservoir
• Compression adjustability: 26-click external adjuster (tool-free)
• Pre-load: Threaded fully adjustable
• Application: 2020-2026 Can-Am Defender MAX HD10 Limited and XMR (4-seat)

Fitment

These fit the Can-Am Defender MAX (4-seat) HD10 with Limited or XMR trim (2020-2026). For 2-door HD10 Limited/XMR, see K75-CA1019-SR. For MAX HD10 DPS, see K75-CA1009-SR.

Frequently Asked Questions

What trims does this fit?

These Defender MAX XMR shocks fit the 4-seat MAX HD10 Limited and XMR trims only. For DPS, see K75-CA1009-SR.

Will they fit my 2-door Defender?

No — these are MAX (4-seat) specific. For 2-door Limited/XMR, use K75-CA1019-SR.

What does the 26-click adjuster do?

These 26-click compression adjustable Defender MAX Limited XMR front shocks let you change compression damping in 26 distinct increments — soften for comfort, firm up for loads or aggressive driving.

How much lift do they add?

Up to 2" of true suspension lift via threaded pre-load adjustment.

How long is the build time?

2-4 weeks — all EXIT shocks are custom-built per application.

Why ZBroz Racing

The off-road Can-Am Defender MAX Limited XMR compression adjustable front shocks bring race-bred damping to even the higher-trim MAX Defenders. As 2020-2026 Can-Am Defender MAX Limited XMR 2.2 bore X1 front shocks, they deliver damping control tuned specifically for these trims on the MAX chassis. The Can-Am Defender MAX Limited XMR X1 front shocks upgrade serious 4-seat Limited/XMR owners run. As X1 Series shocks, these are real compression adjustable shocks bringing tunable performance to the Defender MAX front shocks conversation.

Order Yours Today

Upgrade your MAX Limited or XMR's front damping. Add the ZBroz X1 Series Defender MAX HD10 Limited XMR front EXIT shocks to your order. Shop/Order from Dunes 2 Dezert SXS.
