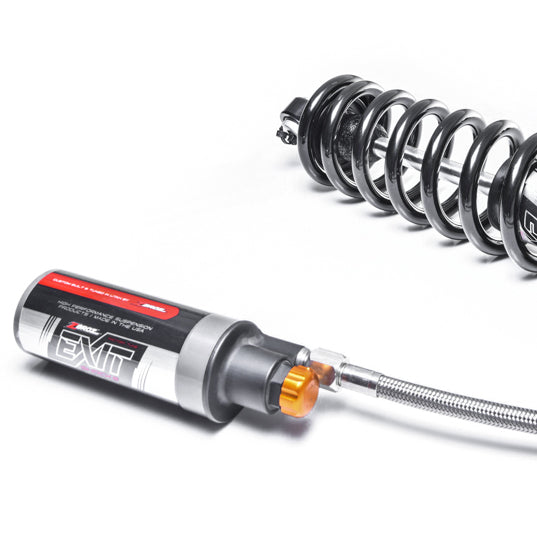

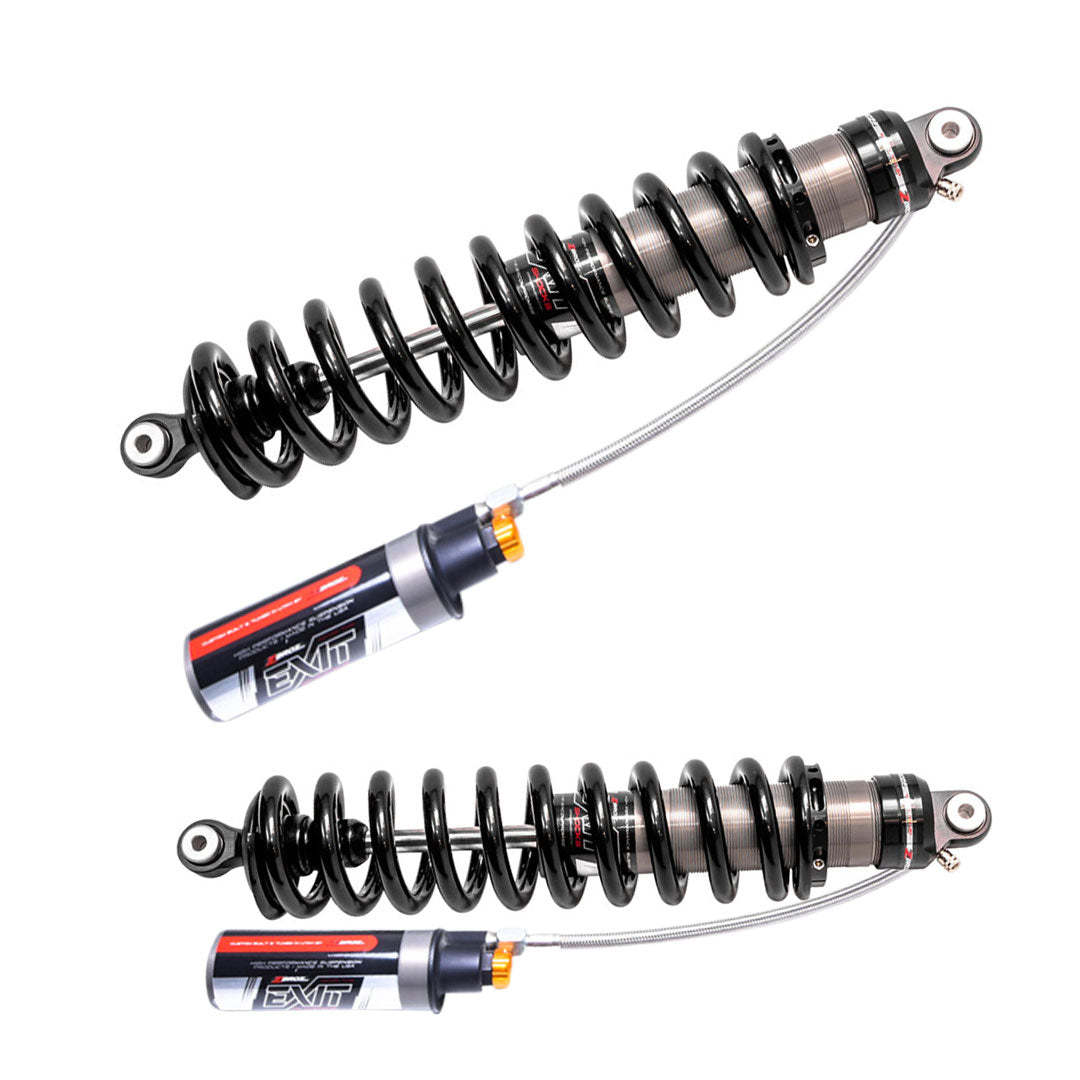

Defender MAX HD10 2.2" X1 Remote Rear EXIT Shocks 2018-2026 by ZBroz Racing

Top-tier rear suspension for your 4-seat MAX. The ZBroz X1 Series Defender MAX HD10 remote rear EXIT shocks use a remote reservoir design that frees the shock body from heat soak under sustained pounding — critical on the heavier MAX rear that carries passengers and cargo. Combined with 26-click external compression adjustability, 2.2" bore, and up to 2" of true suspension lift, these Defender MAX shocks deliver race-bred damping for serious 4-seat owners.

Key Features

• 26-click external compression adjuster — tool-free trail-side tuning
• Direct bolt-on replacement for OEM MAX HD10 rear shocks
• Remote reservoir design — cooler shock oil under sustained loads
• Adds up to 2" of true suspension lift
• 2.2" O.D. billet body with 2.2" O.D. remote reservoir
• Performance high-flow piston, precisely valved and tuned
• 5/8" chrome shaft, PTFE-lined spherical bearings
• MAX-specific tuning for heavier rear loads
• Single-rate spring, fully adjustable pre-load
• Fully serviceable — every 1,500 miles or 24 months
• Made in the USA
• Custom-built, valved, and tuned per application (2-4 week build time)

Specifications

• Series: X1 Series
• Position: Rear
• Bore: 2.2" true bore
• Body: Billet construction with REMOTE reservoir
• Compression adjustability: 26-click external adjuster (tool-free)
• Pre-load: Threaded fully adjustable
• Spring: Single-rate
• Shaft: 5/8" chrome
• Lift: Up to 2" true suspension lift
• Application: 2018-2026 Can-Am Defender MAX HD10 (4-seat)

Fitment

These fit the Can-Am Defender MAX (4-seat) HD10 (2018-2026). For 2-door HD10 DPS rears, see K75-CA1001-SR. For MAX HD10 Limited/XMR rears, see K75-CA1022-SR.

Frequently Asked Questions

Why a remote reservoir on the rears?

The remote reservoir shocks design moves the reservoir away from the shock body, keeping the shock oil cooler under sustained loads. Especially important on the MAX rear that carries passengers and cargo.

What's the difference between X0-IFP and X1?

X1 adds a 26-click external compression adjuster and remote reservoir on top of the X0-IFP foundation.

Will they fit my 2-door?

No — these Defender HD10 MAX rear shocks are MAX (4-seat) specific.

What does the 26-click adjuster do?

These 26-click compression adjustable Defender MAX rear shocks let you change compression damping in 26 distinct increments.

How long is the build time?

2-4 weeks — custom-built per application.

Why ZBroz Racing

The off-road Can-Am Defender MAX compression adjustable rear EXIT shocks deliver damping control most stock and aftermarket shocks can't match. As 2018-2026 Can-Am Defender MAX 2.2 bore X1 rear shocks, they're the rear-suspension answer for serious MAX HD10 owners. The Can-Am Defender MAX HD10 X1 remote rear shocks upgrade your 4-seat MAX deserves. As X1 Series shocks, they bring true compression adjustable shocks performance with remote reservoir thermal stability.

Order Yours Today

Tune your MAX's rear ride. Add the ZBroz X1 Series Defender MAX HD10 remote rear EXIT shocks to your order. Shop/Order from Dunes 2 Dezert SXS.
