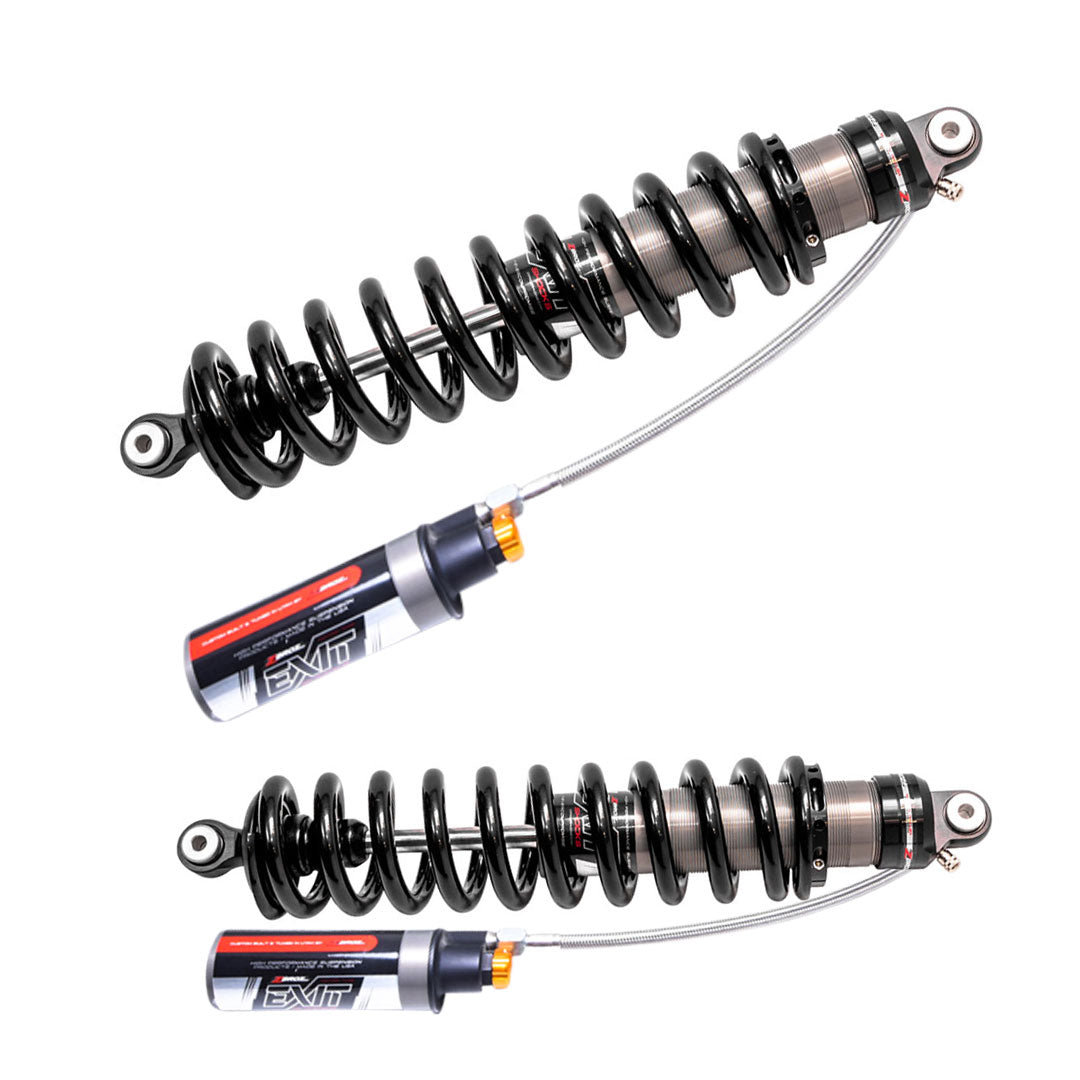

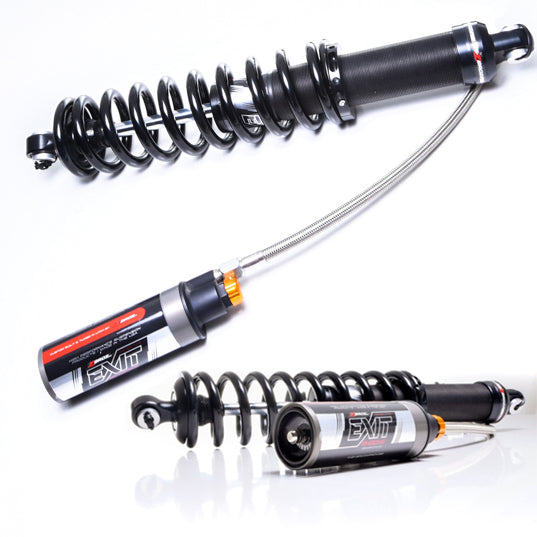

Defender 2-Door HD10 DPS 2.2" X1 Remote Rear EXIT Shocks 2018-2026 by ZBroz Racing
Top-tier rear suspension for your Defender. The ZBroz X1 Series Defender 2-door HD10 DPS remote rear EXIT shocks use a remote reservoir design that frees the shock body from heat soak under sustained pounding — critical when you're loaded up for work or hauling cargo. Combined with 26-click external compression adjustability, 2.2" bore, and up to 2" of true suspension lift, these Defender EXIT shocks deliver race-bred damping tuned specifically for the 2-door Defender HD10 DPS chassis.
Key Features
- 26-click external compression adjuster — tool-free trail-side tuning
- Direct bolt-on replacement for OEM 2-door Defender HD10 DPS rear shocks

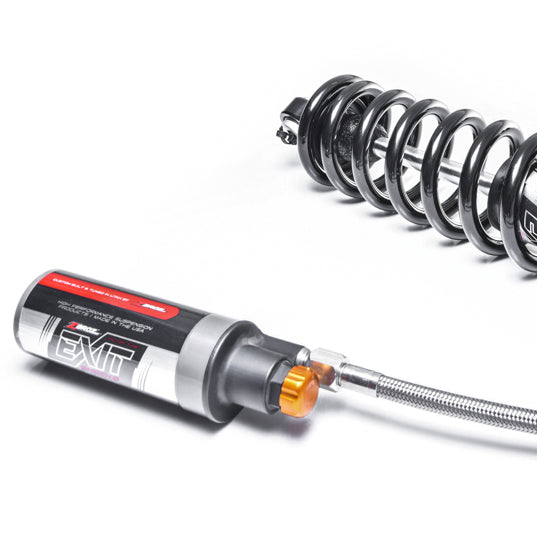

- Remote reservoir design — cooler shock oil under sustained loads
- Adds up to 2" of true suspension lift
- 2.2" O.D. billet body with 2.2" O.D. remote reservoir
- Performance high-flow piston, precisely valved and tuned
- 5/8" chrome shaft, PTFE-lined spherical bearings
- Single-rate spring, fully adjustable pre-load
- Progressive closed-cell bump stop
- Fully serviceable — every 1,500 miles or 24 months
- Made in the USA
- Custom-built, valved, and tuned per application (2-4 week build time)
Specifications
- Series: X1 Series
- Position: Rear
- Bore: 2.2" true bore
- Body: Billet construction with REMOTE reservoir
- Compression adjustability: 26-click external adjuster (tool-free)
- Pre-load: Threaded fully adjustable
- Spring: Single-rate
- Shaft: 5/8" chrome
- Lift: Up to 2" true suspension lift
- Application: 2018-2026 Can-Am Defender 2-door HD10 DPS
- Service interval: 1,500 miles or 24 months
Fitment
These Defender HD10 rear shocks fit the Can-Am Defender 2-door HD10 with DPS trim (2018-2026). Does NOT fit XT models. For Limited/XMR rears, see K75-CA1020-SR. For MAX (4-seat) DPS rears, see K75-CA1010-SR.
Frequently Asked Questions
Why a remote reservoir on the rears?
The remote reservoir shocks design moves the reservoir away from the shock body, which keeps the shock oil cooler under sustained pounding. This is especially valuable on rear shocks that carry load and run harder than fronts.
What's the difference between X0-IFP and X1?
X1 adds a 26-click external compression adjuster and a remote reservoir on top of the X0-IFP foundation, giving you tunable damping plus thermal stability.
Will they fit my HD10 XT or Limited?
No — these are sized for the DPS trim. For Limited/XMR rears, see K75-CA1020-SR.
What does the 26-click adjuster do?
These 26-click compression adjustable Defender rear shocks let you change compression damping in 26 distinct increments — soften for comfort, firm up for loads or aggressive driving.
How long is the build time?
2-4 weeks — custom-built, valved, and tuned per application.
Why ZBroz Racing
These off-road Can-Am Defender compression adjustable rear EXIT shocks deliver the damping control most stock and even some aftermarket shocks can't match. As 2018-2026 Can-Am Defender 2.2 bore X1 rear shocks, they're the rear-suspension answer for serious HD10 DPS owners. The Can-Am Defender HD10 DPS 2-door X1 remote rear shocks upgrade your Defender deserves. As X1 Series shocks, these bring true compression adjustable shocks performance to the rear.
