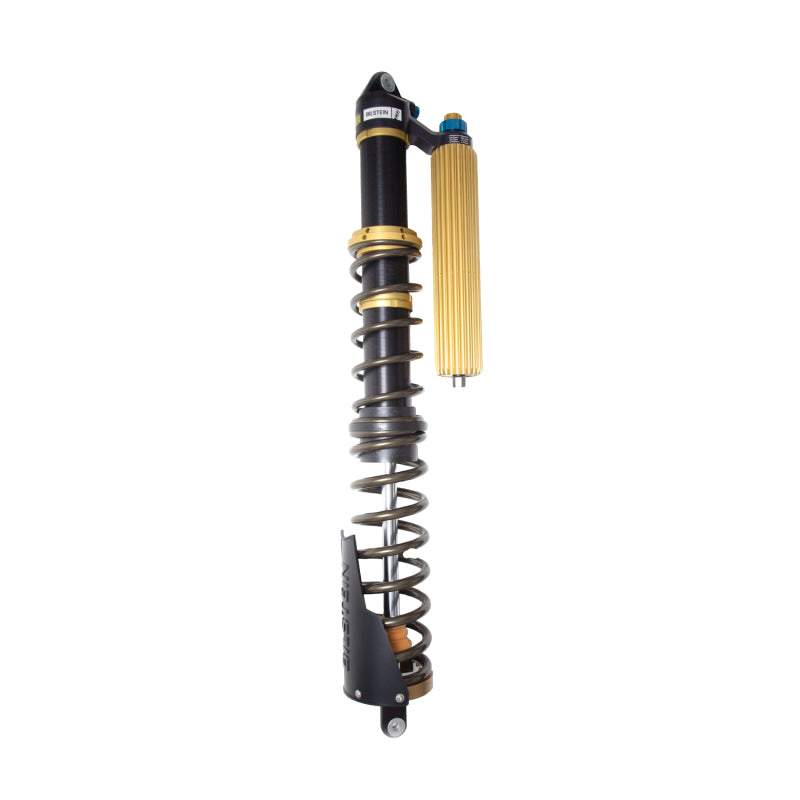

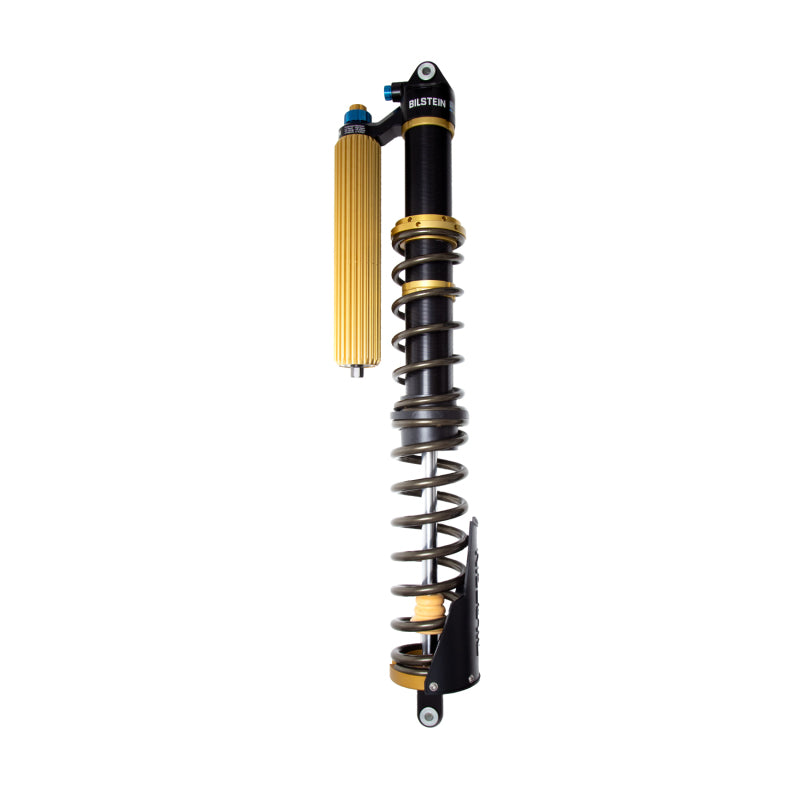

Bilstein Black Hawk Rear Right Coilover – Polaris RZR Pro R 4 (2022–2024)
Upgrade your suspension performance with the Bilstein Black Hawk Powersports Rear Right Shock & Coil Spring Assembly for Polaris RZR Pro R 4. Specifically engineered for high-performance UTV applications, this direct-fit coilover delivers advanced damping technology, race-ready durability, and full suspension tuning capability.
Featuring Bilstein’s patented ZoneControl® position-sensitive damping, the Black Hawk system contains five independently tuned damping zones—three compression and two rebound—allowing the suspension to react differently throughout the stroke. The result is improved comfort over rough terrain, enhanced stability at speed, and exceptional bottom-out control.
With 4-way adjustable damping, dual-rate coil springs, and a precision-engineered 70mm rear right corner module, these shocks allow riders to fine-tune suspension performance for dunes, desert runs, trails, or aggressive off-road racing.
📦 Need it fast? Contact us for current availability and estimated lead times before ordering.
Key Features
- Direct-fit rear right coilover for Polaris RZR Pro R 4
- Bilstein ZoneControl® position-sensitive damping technology
- 5 damping zones (3 compression / 2 rebound)
- 4-way adjustable damping system
- Dual-rate coil springs with crossover nuts
- Internal Jounce Cut Off (JCO) hydraulic bump stop
- Rebound Cut Off (RCO) droop control system
- All-aluminum shock body construction
- Gold finned remote reservoirs for improved cooling
- Fully serviceable race-ready design
- 70mm rear right corner module
Advanced Suspension Technology
ZoneControl® Position-Sensitive Damping
Bilstein’s ZoneControl CR technology divides suspension travel into multiple damping zones, allowing the shock to respond differently depending on where it is in the stroke.
Benefits include:
- Improved comfort over small bumps
- Better control during aggressive impacts
- Increased stability at high speeds
Internal Jounce Cut Off (JCO)
The JCO hydraulic bump stop system functions as a two-stage internal bump stop designed to control harsh bottom-outs.
Features include:
- 10-position clicker adjustment
- Precise bottom-out tuning
- Increased durability during aggressive riding
Rebound Cut Off (RCO)
The RCO system controls rebound at full suspension extension, stabilizing the vehicle when the suspension reaches full droop.
Benefits include:
- Smoother suspension extension
- Increased damper protection
- Eliminates the need for external limit straps
4-Way Adjustable Suspension
Bilstein Black Hawk coilovers provide four external adjustments for precision tuning:
- High-Speed Compression
- Low-Speed Compression
- Rebound
- Jounce Cut Off (Hydraulic Bump Stop)
These adjustments are easily accessible, allowing riders to quickly adjust suspension settings based on terrain or riding style.
Dual-Rate Spring System
Each coilover includes dual-rate coil springs and crossover nuts, allowing easy adjustment of:
- Ride height
- Spring preload
- Suspension progression
This flexibility helps riders dial in the ideal suspension setup for different terrains and riding conditions.
Built for Race Conditions
Bilstein Black Hawk coilovers are designed to perform in the toughest off-road environments with:
- All-aluminum shock bodies
- Gold finned reservoirs for improved heat dissipation
- Fully rebuildable and serviceable components
- Race-ready durability right out of the box
Fitment
Compatible with:
- 2022 Polaris RZR Pro R 4 Premium
- 2023 Polaris RZR Pro R 4 Premium
- 2024 Polaris RZR Pro R 4 Premium
- 2022 Polaris RZR Pro R 4 Sport
- 2022 Polaris RZR Pro R 4 Ultimate
- 2023 Polaris RZR Pro R 4 Ultimate
- 2024 Polaris RZR Pro R 4 Ultimate
- 2022 Polaris RZR Pro R 4 Ultimate Launch Edition
FAQ
What makes Bilstein Black Hawk shocks different?
They use ZoneControl position-sensitive damping, allowing the suspension to adapt throughout the travel range for better comfort and control.
Are these shocks adjustable?
Yes. They feature 4-way external adjustability, allowing you to tune compression, rebound, and bottom-out control.
Are these shocks race-ready?
Yes. Bilstein engineered the Black Hawk system to handle extreme off-road conditions and competitive racing environments.
Are they rebuildable?
Yes. Bilstein Black Hawk coilovers are fully serviceable and rebuildable.
Take Your RZR Pro R Suspension to the Next Level
Experience unmatched suspension control with the Bilstein Black Hawk Rear Right Coilover for Polaris RZR Pro R 4.
Order today from Dunes 2 Dezert SXS and unlock race-ready suspension performance, superior comfort, and bottomless ride capability. 🏁
