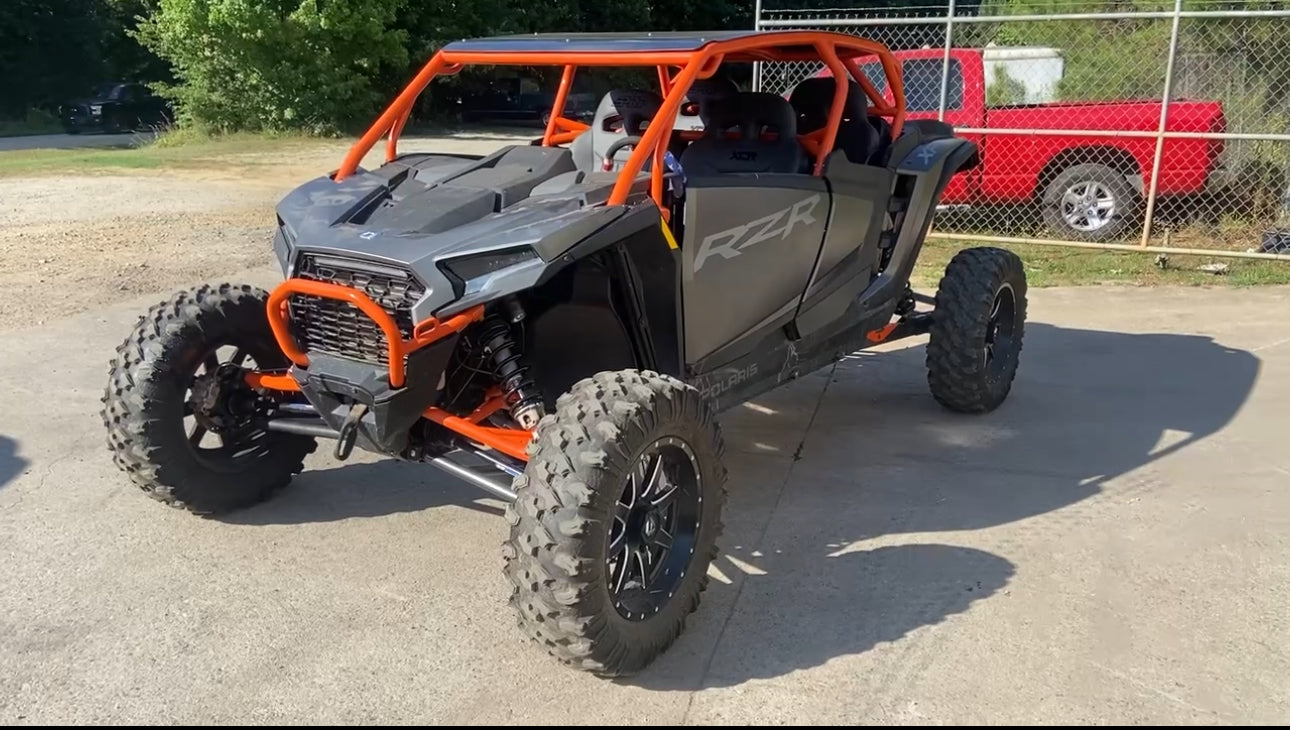

2024 Polaris RZR XP 1000 72" Long Travel Kit

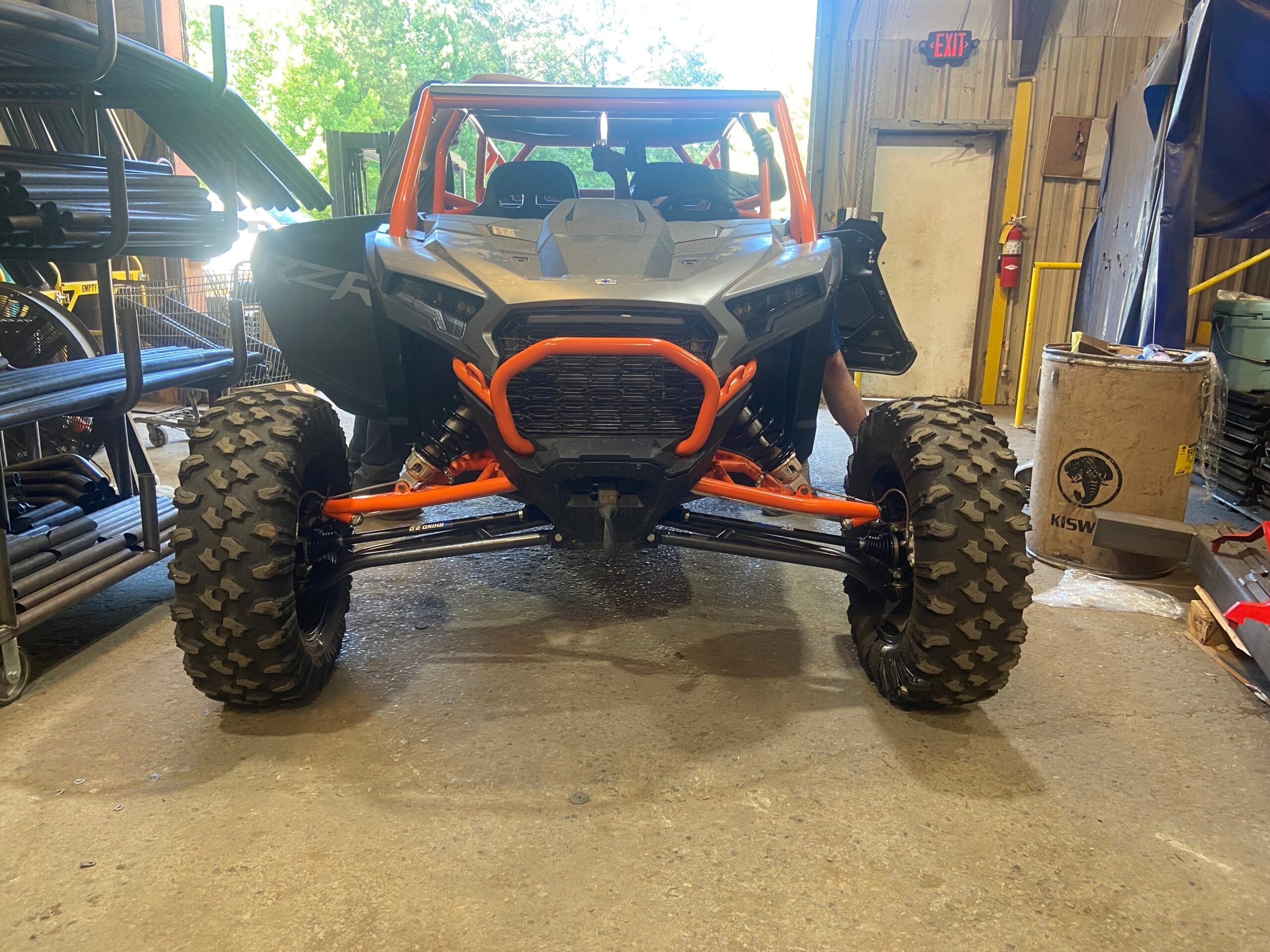

Transform your machine with the 2024 Polaris RZR XP 1000 Long Travel Kit, engineered to widen your factory 64” XP 1000 to a full 72” stance using stock offset wheels. This 2024 RZR XP 1000 72-inch long travel kit delivers increased stability, improved handling, and a more aggressive footprint for trail, dune, and desert riding.

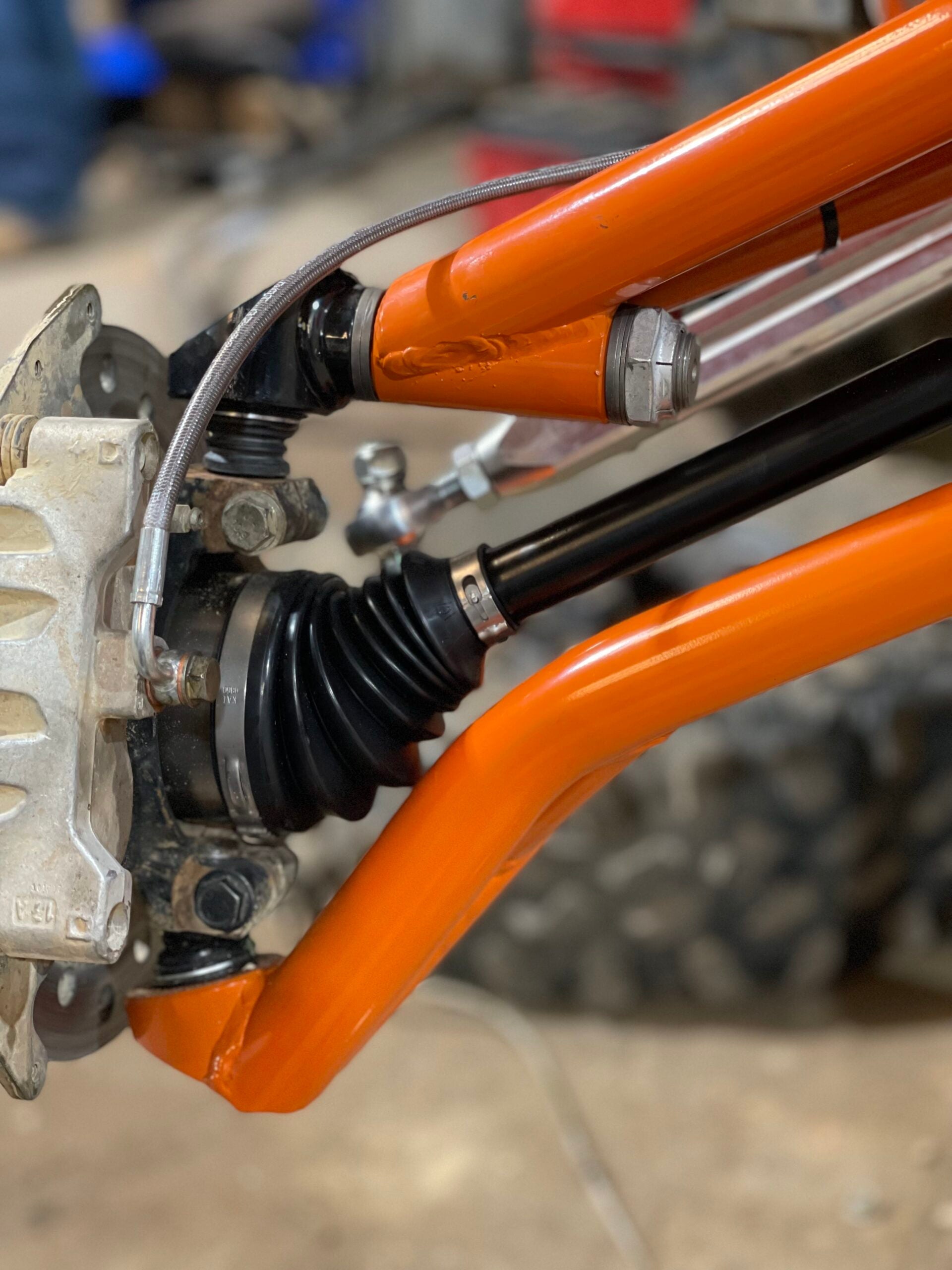

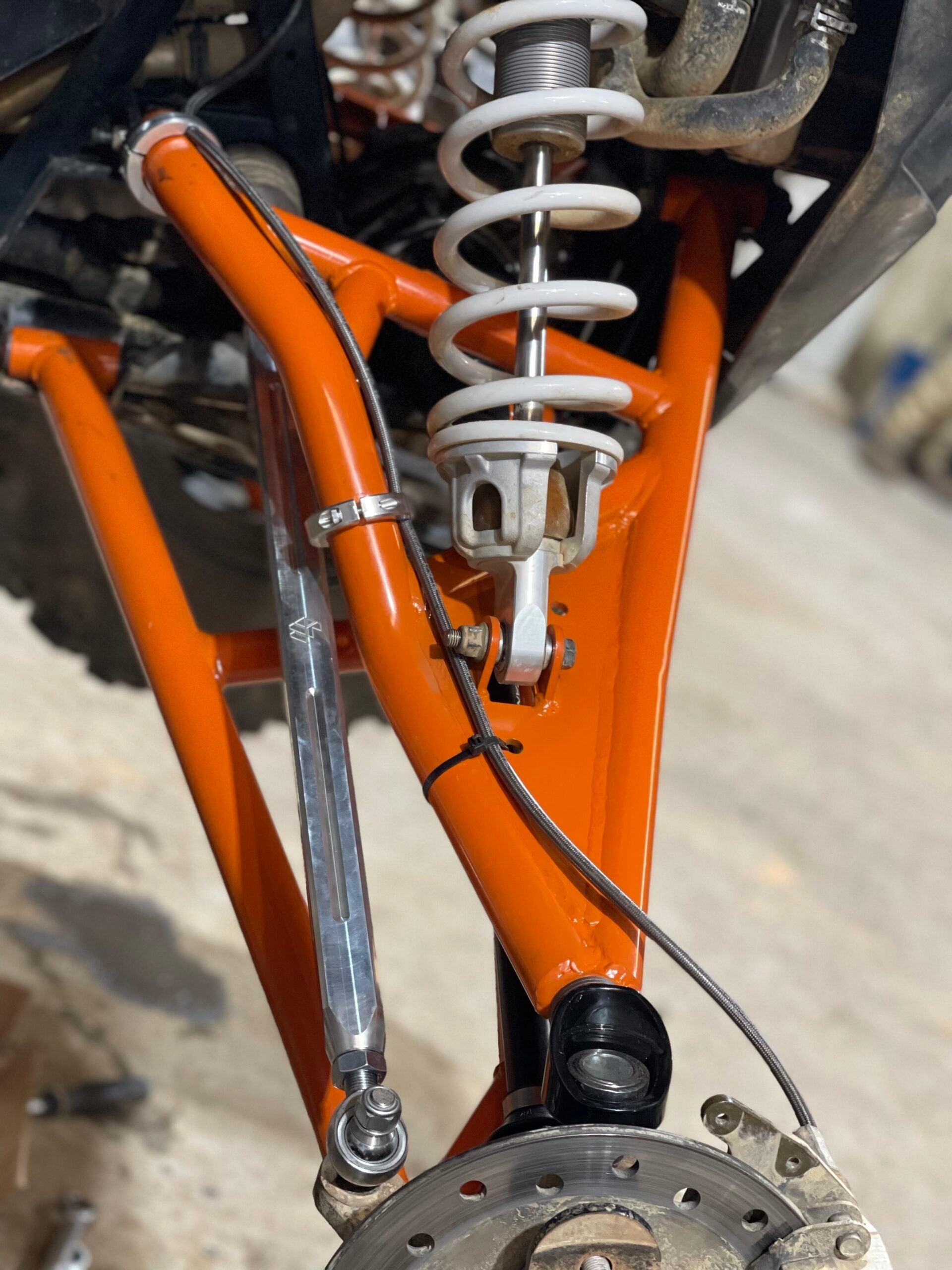

This bolt-on long travel kit requires no drilling and maintains factory shock locations front and rear. The system features 1.75” forward offset front A-arms built from 1.5” DOM tubing with a high-clearance design for improved ground clearance and geometry correction.
Designed for strength and serviceability, the kit allows use of factory A-arm bushings and factory-sized ball joints (stock size only — not compatible with Mega Ball Joints). Rear components include heavy-duty high-clearance steel trailing arms and billet aluminum adjustable radius rods.
If you're looking for a 2024 RZR XP 1000 suspension width upgrade that delivers stability, clearance, and aggressive stance without cutting or fabrication, this long travel system is built to perform.
Key Specifications
- Fits 2024 Polaris RZR XP 1000
- Converts 64” width to 72” with stock offset wheels
- Adds 4” per side

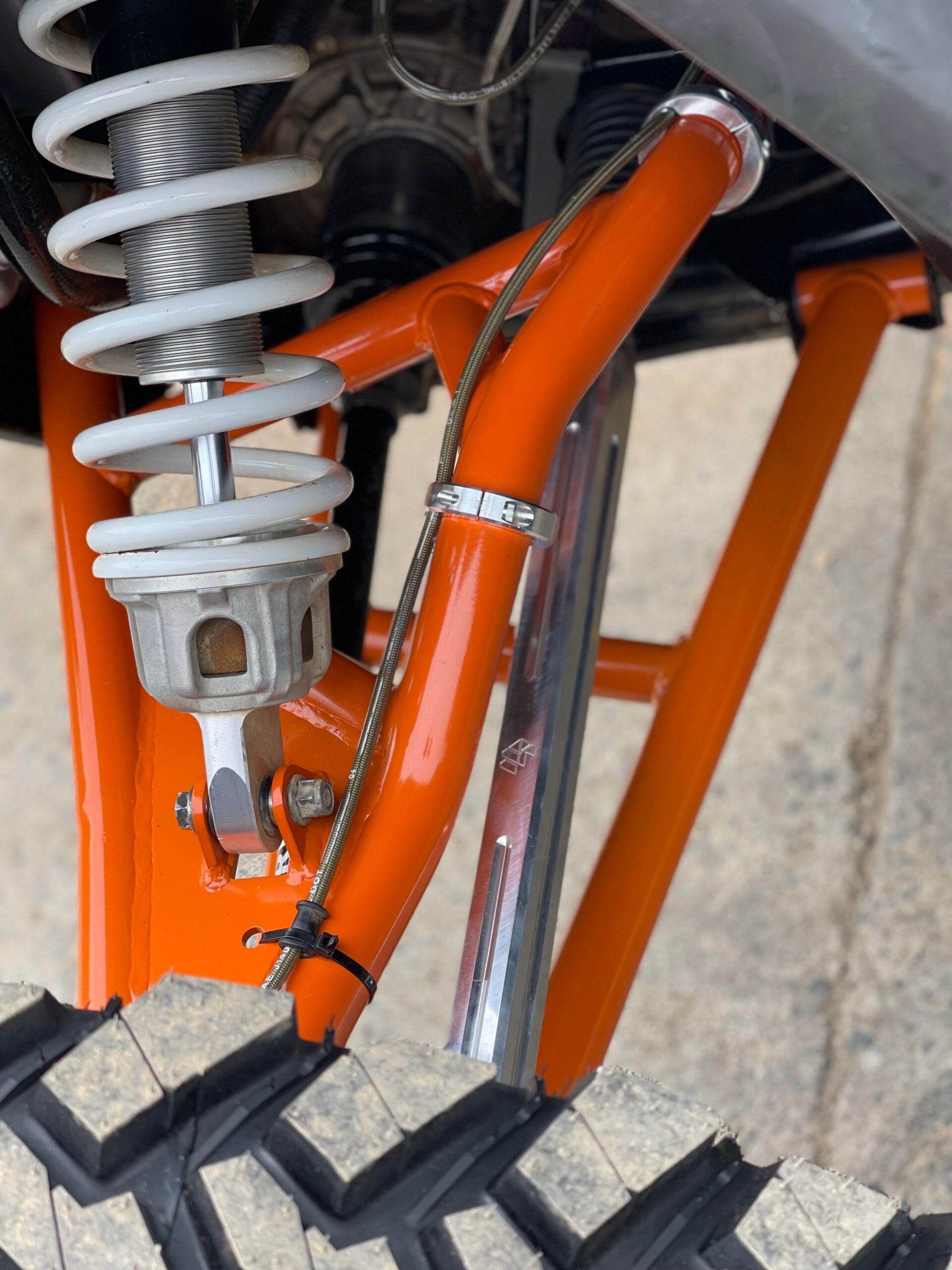

- 1.75” forward offset front A-arms
- A-arms constructed from 1.5” DOM tubing
- High-clearance design front and rear
- Retains factory shock mounting locations
- Bolt-on installation — no drilling required
- Uses factory A-arm bushings
- Uses factory-sized ball joints (no Mega Ball Joints)
Wheel & Axle Requirements
- Must run 15” wheels OR use 1” wheel spacers
- Requires Rhino 2.0 XP Long Travel Axles
- SATV Part #: AX-1-102-F-LT4-DT
- Axles not included

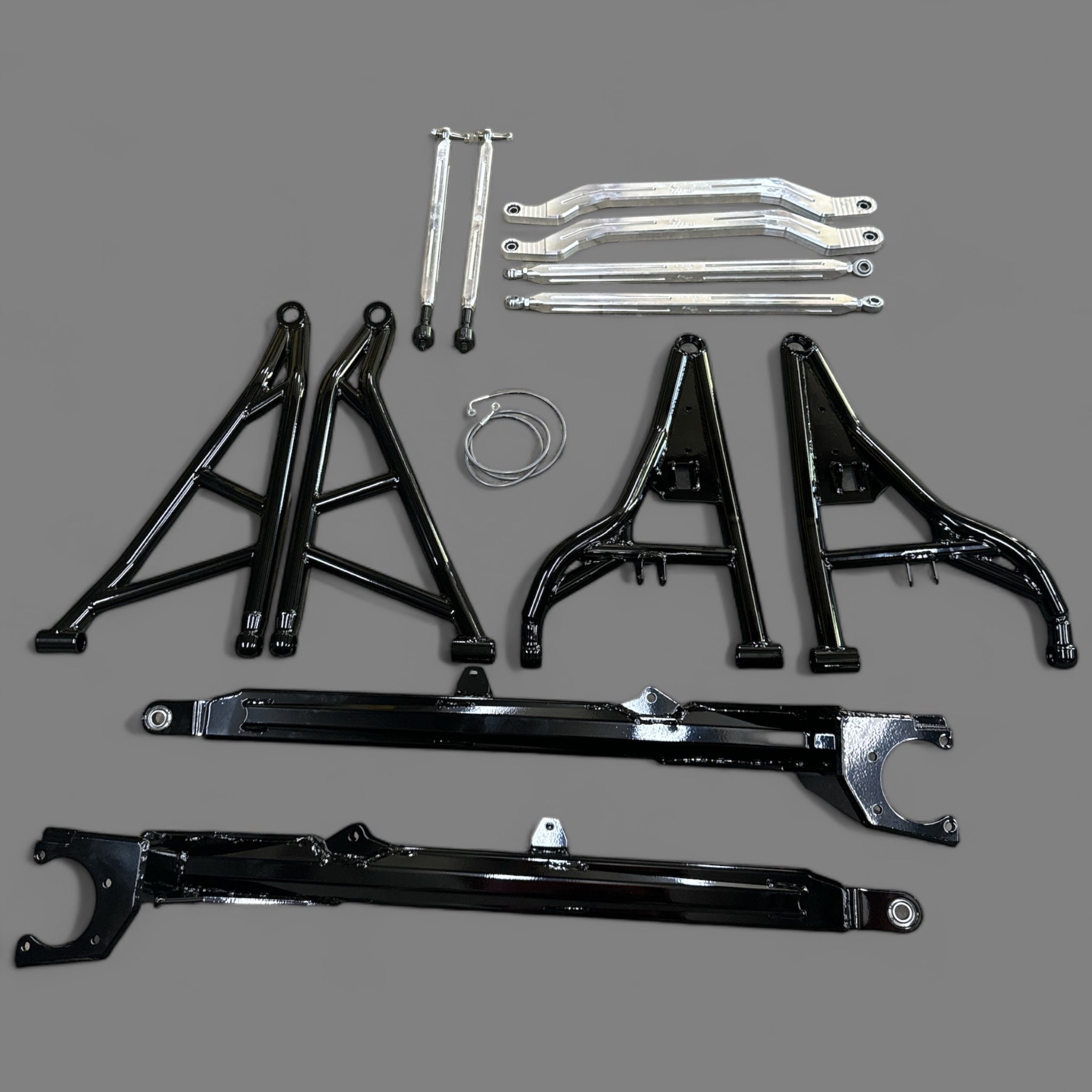

What’s Included
- 1.75” Forward Front Upper & Lower A-Arms (Uppers Adjustable)
- Heavy-Duty Tie Rod Set with L&W HD Rebuildable Inner Joints

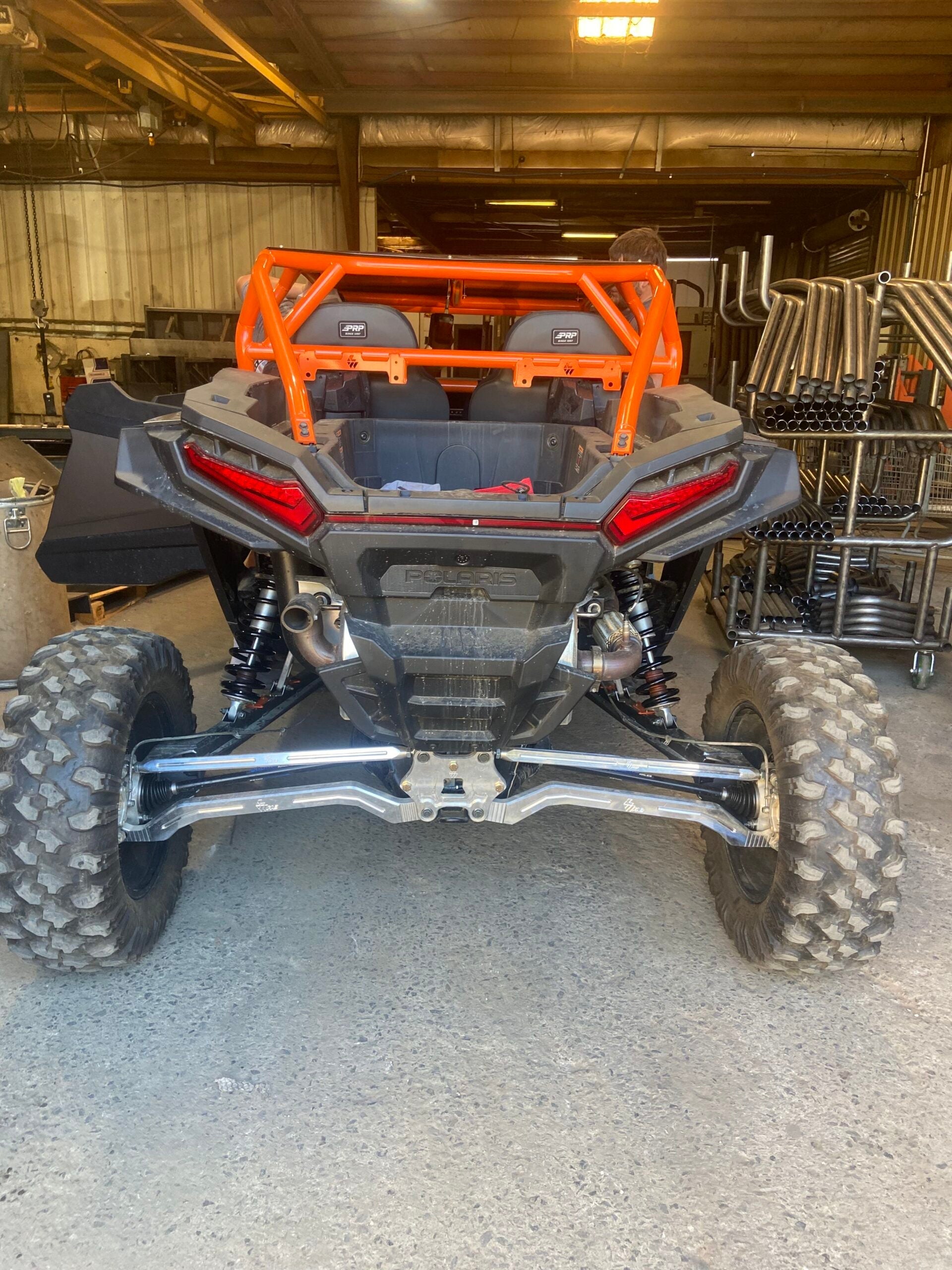

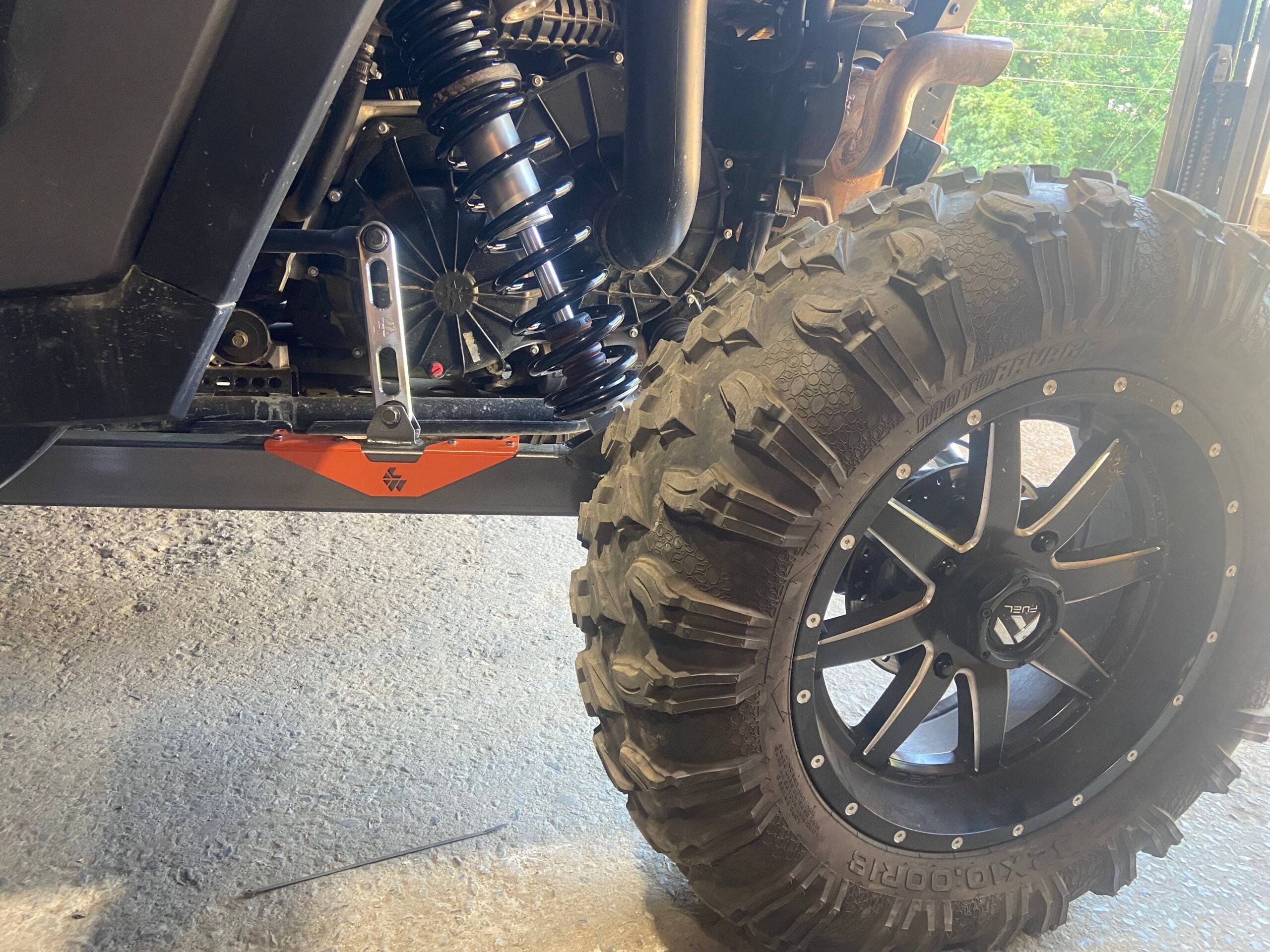

- High-Clearance Steel HD Trailing Arms

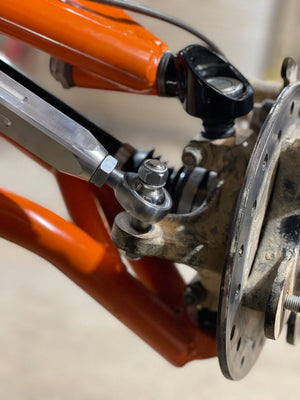

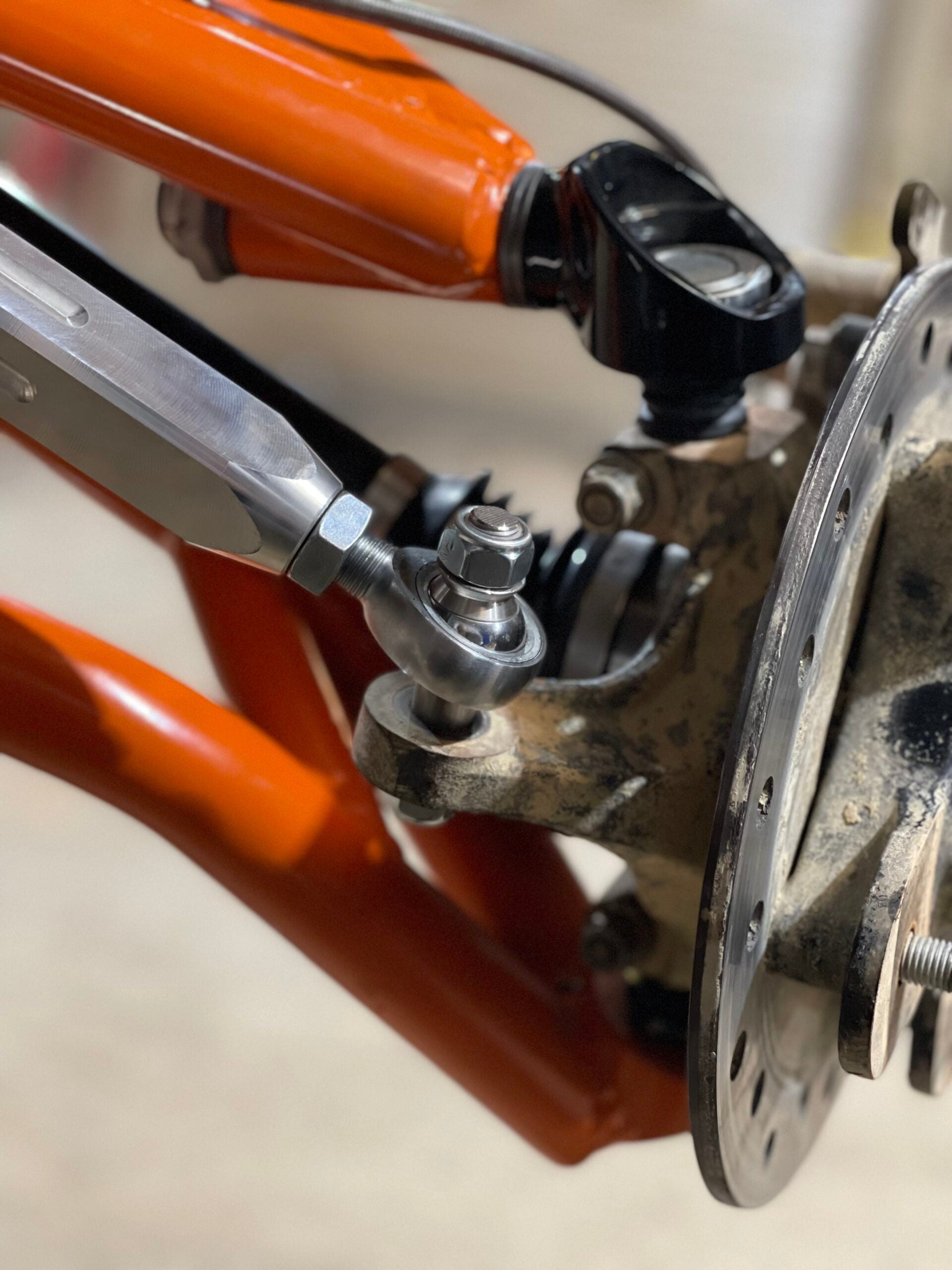

- High-Clearance Billet Aluminum Radius Rods (Adjustable Uppers)

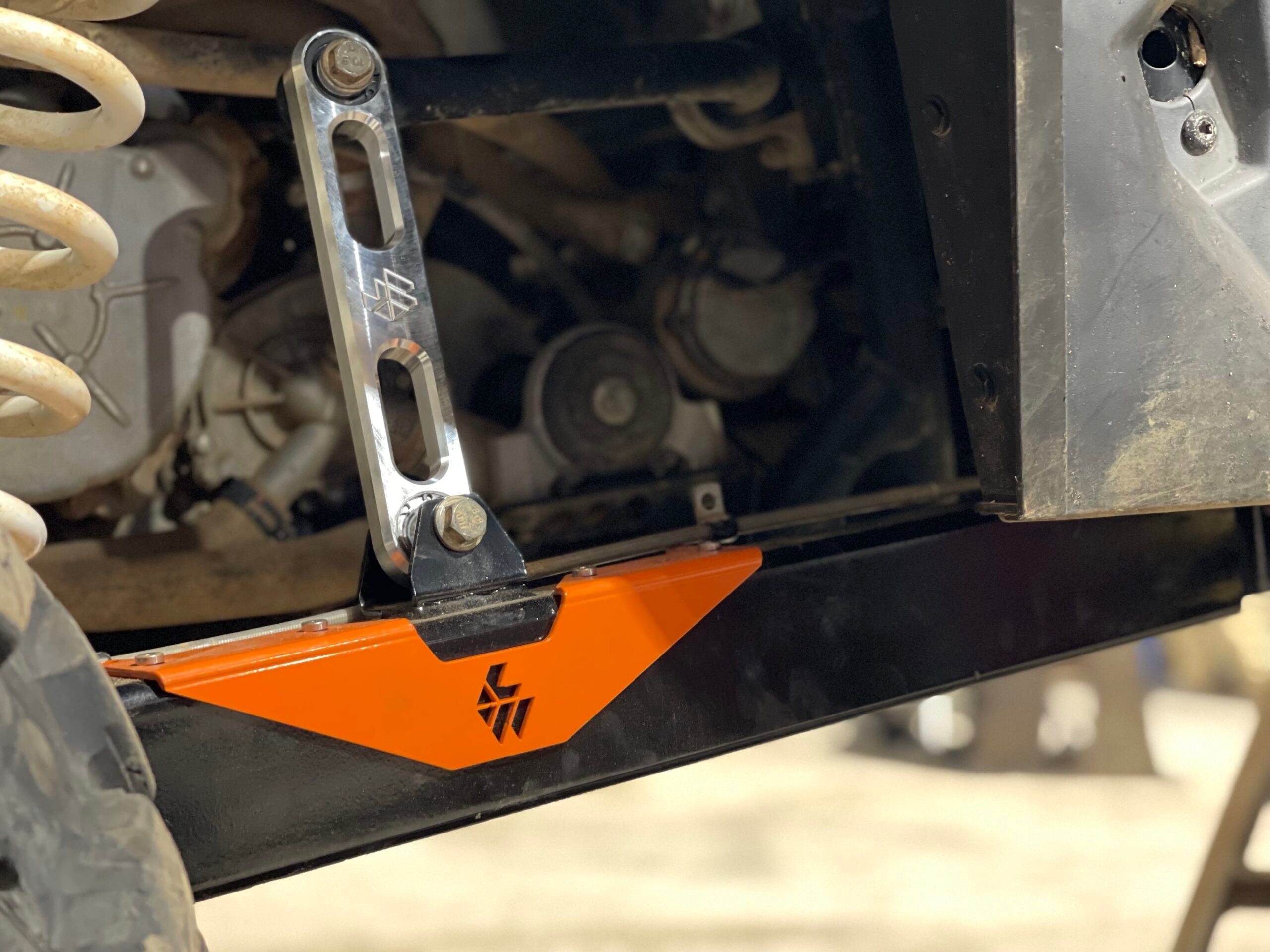

- Rear Sway Bar Links
- (1) Extended Front Passenger Brake Line
Only steel parts (A-arms and trailing arms) come powder coated standard. Powder coating radius rods available for additional charge.
Important Notes
- THIS KIT ONLY COMES WITH FORWARD A-ARMS
- Stock size ball joints only
- Not compatible with Mega Ball Joints
- All sales are final
Best For
- Riders converting 64” XP 1000 to 72” width
- Running larger 32”+ tires
- Dune and desert stability upgrades
- Aggressive trail builds
- XP 1000 owners seeking high-clearance long travel suspension
FAQs
How wide does this make my 2024 RZR XP 1000?
It widens the machine from 64” to 72” using stock offset wheels.
Is this a bolt-on kit?
Yes. No drilling required.
Do I need new axles?
Yes. Rhino 2.0 XP Long Travel axles are required and sold separately.
Will this work with Mega Ball Joints?
No. This kit is designed for stock-size ball joints only.
Do I need different wheels?
You must run 15” wheels or use 1” wheel spacers.
