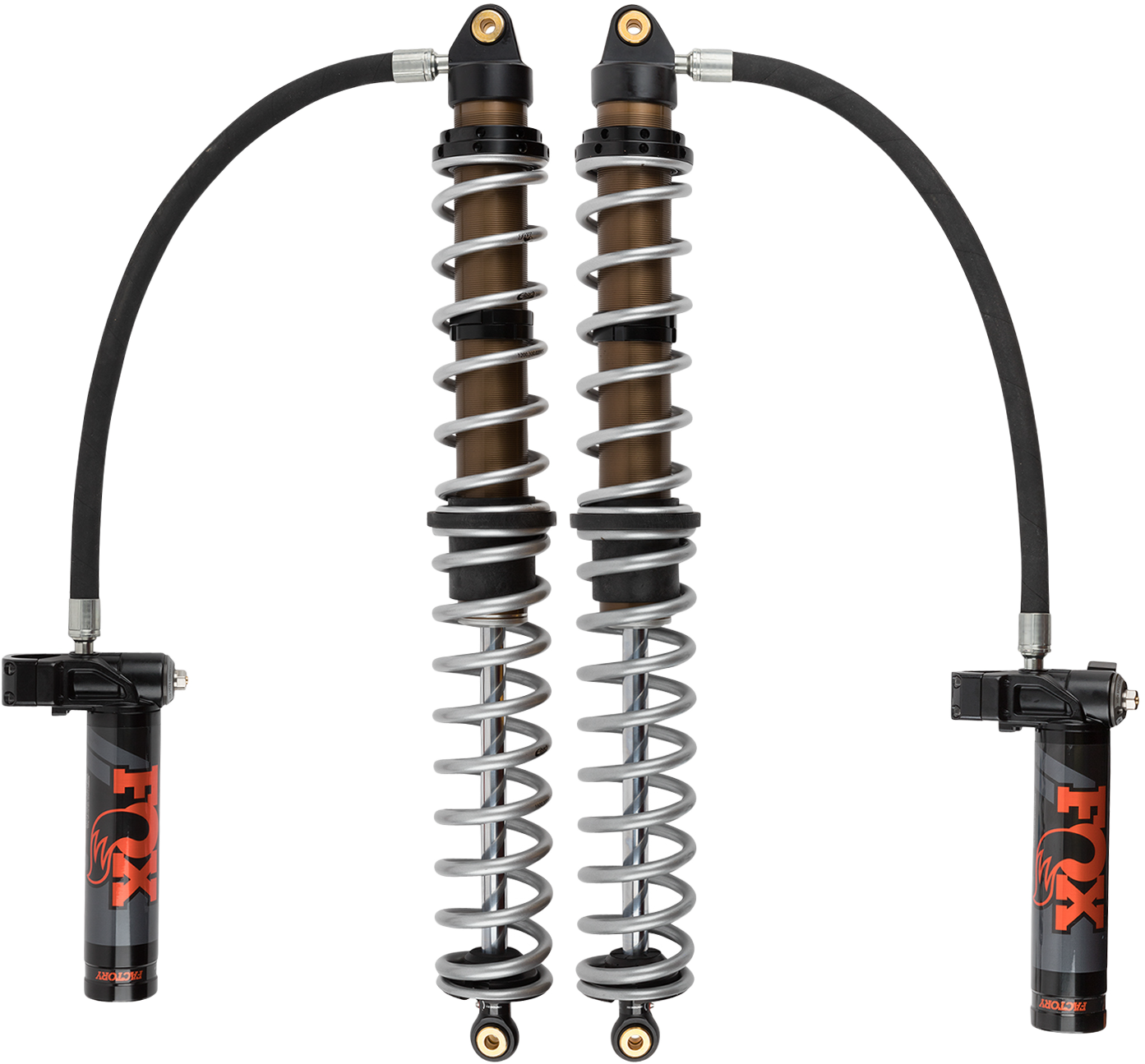

FOX 2.5 Podium RC2 Rear Shocks for Polaris RZR XP 4
Product Description
The FOX 2.5 Podium RC2 rear shocks for Polaris RZR XP 4 deliver race-proven suspension performance designed to improve handling, traction, and durability for aggressive off-road driving. Built on FOX’s legendary 2.5-inch race shock platform, these Performance Elite Series shocks are engineered to make the RZR XP 4 more stable, more responsive, and more capable across rough terrain.
FOX engineers focused heavily on bottom-out control while maintaining ride comfort. These shocks use a true dual-stage spring system with adjustable crossover rings, allowing the suspension to remain soft during the early portion of travel for improved comfort and traction, while the second stage provides additional support deeper in the stroke to absorb larger impacts and harsh landings.
To further improve impact resistance, FOX incorporated a bottom-out cup system that engages a secondary piston during the final portion of suspension travel. This dramatically increases compression damping during the last 25% of travel to prevent harsh bottom-outs when landing jumps or blasting through whoops.
Handling performance was also improved with a refined shock tune that reduces body roll and increases stability through sweeping corners and rapid direction changes. The result is a more planted feel and increased driver confidence at speed.
The RC2 piggyback reservoir adjusters provide wide-range high-speed and low-speed compression tuning, allowing drivers to adjust the suspension based on terrain conditions and vehicle load distribution. Combined with wide-range rebound adjustment, these shocks provide precise control over tire contact and traction across rough terrain.
Built for durability, these shocks feature Kashima-coated aluminum bodies, 7/8-inch hard-chromed shafts, and corrosion-resistant components designed to perform in harsh off-road environments. FOX shocks are also fully rebuildable and re-valvable, allowing long-term serviceability and custom suspension tuning.
Technical Specifications
Product: FOX Performance Elite Series 2.5 Podium RC2
Vehicle Fitment: Polaris RZR XP 4 1000 / RZR XP 4 Turbo
Position: Rear
Shock Body Diameter: 2.5 in
Compression Adjustment: RC2 Dual-Speed Compression (High & Low Speed)
Rebound Adjustment: Wide-range adjustable rebound
Reservoir Type: Piggyback reservoir
Shock Body Finish: Kashima-coated aluminum
Shaft Size: 7/8 in hard-chromed shaft
Spring Setup: Dual-stage springs with adjustable crossover rings
Serviceability: Fully rebuildable and re-valvable
Sold As: Pair
Key Features
• Dual-Speed Compression (RC2) high and low-speed adjustability
• Wide-range rebound adjustment for traction tuning
• Dual-stage springs with adjustable crossover rings
• Bottom-out cup system for improved impact control
• Piggyback reservoirs increase oil capacity and cooling
• Kashima-coated aluminum shock bodies for reduced friction
• 7/8-inch hard-chromed shafts for durability
• PTFE-lined spherical bearings for smooth articulation
• Fully rebuildable and re-valvable FOX shock design
Ideal Riding Conditions
These shocks are engineered for RZR XP 4 drivers who want maximum suspension performance.
Best suited for:
• Desert and dune riding
• High-speed trail riding
• Whoops and rough terrain
• Aggressive recreational riding
• Performance racing applications
Specifications
Series: FOX Performance Elite Series
Shock Type: Podium RC2
Shock Bore: 2.5 in
Reservoir Bore: 2.25 in
Top Mount: Eyelet
Bottom Mount: Eyelet
Fitment
Compatible with the following Polaris models:
- Polaris RZR XP 4 1000 (2014–2024)
- Polaris RZR XP 4 1000 Premium
- Polaris RZR XP 4 1000 Sport
- Polaris RZR XP 4 1000 Ultimate
- Polaris RZR XP 4 1000 High Lifter Edition
Also fits:
- Polaris RZR XP 4 Turbo (2016–2021)
- Polaris RZR XP 4 Turbo S (2019–2020)
Configuration: 4-Seat Models
Position: Rear
Sold as a pair
Frequently Asked Questions
Are these shocks sold individually or as a set?
These FOX Podium RC2 shocks are sold as a pair for the rear suspension.
What is RC2 compression adjustment?
RC2 provides independent high-speed and low-speed compression adjustment, allowing precise suspension tuning for terrain conditions and driving style.
What advantage does the dual-stage spring setup provide?
Dual-stage springs allow softer suspension response early in the stroke for comfort and traction while providing stronger support deeper in the travel to handle large impacts.
Are FOX RC2 shocks rebuildable?
Yes. FOX Podium RC2 shocks are fully rebuildable and can be serviced or custom-valved for specific riding applications.
Upgrade Your Polaris RZR XP 4 Suspension
Upgrade your Polaris RZR XP 4 suspension with FOX 2.5 Podium RC2 rear shocks for improved control, traction, and race-level performance.
