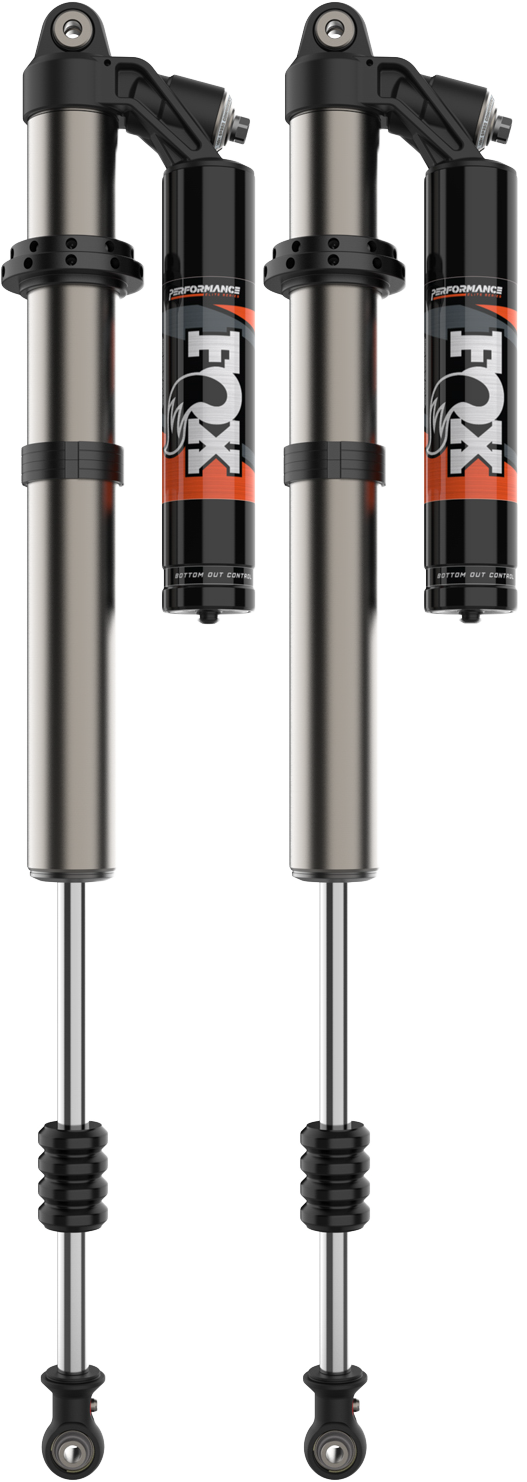

FOX 2.5 Performance Elite Rear Shocks for Polaris RZR Pro XP 4
Product Description
The FOX 2.5 Performance Elite rear shocks for Polaris RZR Pro XP 4 deliver race-inspired suspension performance with exceptional durability and advanced adjustability. Designed as a direct bolt-on suspension upgrade, these shocks significantly improve ride quality, traction, and control across aggressive off-road terrain.
FOX Performance Elite shocks feature Dual-Speed Compression (DSC) adjustment, allowing drivers to independently tune both high-speed and low-speed compression damping. This enables precise suspension tuning based on terrain conditions, vehicle load, and driving style.
The 2.5-inch aluminum shock bodies increase internal oil capacity while efficiently dissipating heat, helping maintain consistent damping performance during demanding rides. FOX’s race-developed high-flow damping pistons improve small bump compliance while maintaining strong bottom-out resistance during large impacts.
The piggyback reservoir increases oil capacity and houses an Internal Floating Piston (IFP) that separates nitrogen gas from the shock oil. This prevents oil aeration and maintains consistent damping performance during aggressive off-road use.
FOX also incorporates Bottom-Out Control (BOC) technology which increases compression damping during the final portion of suspension travel. This helps absorb heavy hits while maintaining comfort and control during normal riding conditions.
With wide-range rebound adjustment and adjustable spring preload, riders can fine-tune suspension response, traction, and ride height for optimal off-road performance.
FOX Performance Elite shocks are engineered for drivers who want race-level suspension performance with durability and precise tuning capability.
Technical Specifications
Product: FOX Performance Elite Series 2.5 Shocks
Vehicle Fitment: Polaris RZR Pro XP 4
Position: Rear
Shock Body Diameter: 2.5 in
Compression Adjustment: Dual-Speed Compression (DSC)
Rebound Adjustment: Wide-range adjustable rebound
Reservoir Type: Piggyback with Internal Floating Piston (IFP)
Shock Body Material: Hard-anodized aluminum
Shaft Size: 7/8 in hard-chromed shaft
Serviceability: Fully rebuildable and re-valvable
Sold As: Pair
Key Features
• Dual-Speed Compression (DSC) adjustable damping
• Bottom-Out Control (BOC) technology for heavy impacts
• Wide-range rebound adjustment for improved traction
• Piggyback reservoir increases oil capacity and cooling
• 2.5-inch aluminum shock bodies improve heat dissipation
• FOX race-developed high-flow damping pistons
• Adjustable spring preload for ride height tuning
• 7/8-inch hard-chromed shafts for durability and seal life
• Fully rebuildable and re-valvable FOX shock design
Ideal Riding Conditions
These shocks are designed for RZR Pro XP 4 drivers seeking improved suspension performance across demanding terrain.
Best suited for:
• Desert riding
• Sand dunes
• Aggressive trail riding
• Rocky terrain
• High-speed off-road driving
Specifications
Part Number: 885-08-512-4
Series: FOX Performance Elite Series
Travel: 13.55 in
Extended Length: 39 in
Compressed Length: 25.45 in
Top Mount: Eyelet
Bottom Mount: Eyelet
Fitment
Compatible with the following Polaris models:
- Polaris RZR Pro XP 4 (2020–2025)
- Polaris RZR Pro XP 4 Premium
- Polaris RZR Pro XP 4 Sport
- Polaris RZR Pro XP 4 Orange Madness LE
Position: Rear
Sold as a pair
Frequently Asked Questions
Are these shocks sold individually or as a pair?
These FOX Performance Elite shocks are sold as a pair for the rear suspension.
What does Dual-Speed Compression (DSC) adjustment do?
DSC allows independent adjustment of high-speed and low-speed compression damping so drivers can fine-tune suspension performance for terrain and riding style.
What is the benefit of the piggyback reservoir?
Piggyback reservoirs increase oil capacity and cooling, helping shocks maintain consistent damping performance during aggressive riding.
Are FOX Performance Elite shocks rebuildable?
Yes. FOX shocks are fully rebuildable and can be serviced or custom-valved for specific riding applications.
Upgrade Your RZR Suspension
Upgrade your Polaris RZR Pro XP 4 suspension with FOX 2.5 Performance Elite rear shocks for improved traction, durability, and off-road control.
