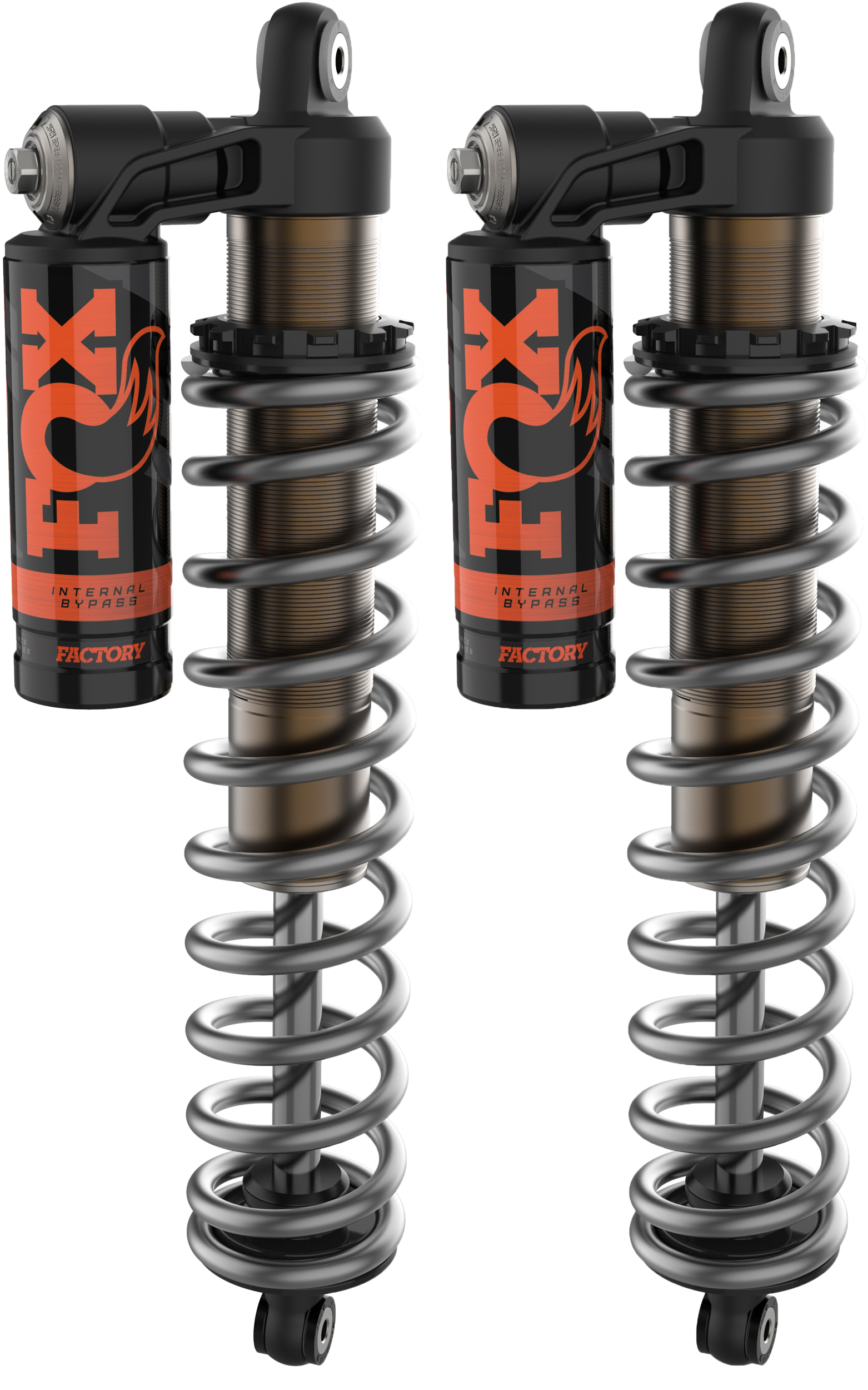

FOX 2.5 Performance Elite Front Shocks for Polaris General 4 & RZR S4
Product Description
The FOX 2.5 Performance Elite front shocks for Polaris General 4 and RZR S4 models deliver race-inspired suspension performance with advanced adjustability and exceptional durability. Designed as a direct bolt-on suspension upgrade, these shocks significantly improve ride quality, traction, and stability across demanding off-road terrain.
FOX Performance Elite shocks feature Dual-Speed Compression (DSC) adjustment, allowing riders to independently tune both high-speed and low-speed compression damping. This provides precise suspension tuning based on terrain conditions, vehicle load, and driving style.
The 2.5-inch aluminum shock bodies increase oil capacity and improve heat dissipation, allowing the shocks to maintain consistent damping performance even during aggressive riding. FOX’s race-developed high-flow damping pistons provide improved small-bump compliance while maintaining strong bottom-out resistance during large impacts.
A piggyback reservoir increases oil capacity and houses an Internal Floating Piston (IFP) that separates nitrogen from the shock oil. This prevents aeration and ensures consistent damping performance during extended off-road driving.
FOX also incorporates Bottom-Out Control (BOC) technology that increases compression damping during the final portion of suspension travel. This provides additional protection during hard impacts while maintaining ride comfort across normal terrain.
With wide-range rebound adjustment and adjustable spring preload, drivers can fine-tune suspension response, traction, and ride height for maximum off-road performance.
FOX Performance Elite shocks are engineered for riders who want race-level suspension performance combined with durability and precise tuning capability.
Technical Specifications
Product: FOX Performance Elite Series 2.5 Shocks
Vehicle Fitment: Polaris General 4 1000 / Polaris RZR S4 900 / Polaris RZR S4 1000
Position: Front
Shock Body Diameter: 2.5 in
Compression Adjustment: Dual-Speed Compression (DSC)
Rebound Adjustment: Wide-range adjustable rebound
Reservoir Type: Piggyback with Internal Floating Piston (IFP)
Shock Body Material: Hard-anodized aluminum
Shaft Size: 7/8 in hard-chromed shaft
Serviceability: Fully rebuildable and re-valvable
Sold As: Pair
Key Features
• Dual-Speed Compression (DSC) adjustable damping
• Bottom-Out Control (BOC) for additional protection during hard impacts
• Wide-range rebound adjustment for improved traction
• Piggyback reservoir increases oil capacity and cooling
• 2.5-inch aluminum shock bodies for improved heat dissipation
• FOX race-developed high-flow damping pistons
• Adjustable spring preload for ride height tuning
• 7/8-inch hard-chromed shafts for durability and long seal life
• Fully rebuildable and re-valvable FOX shock design
Ideal Riding Conditions
These shocks are designed for Polaris riders looking to maximize suspension performance across varied terrain.
Best suited for:
• Trail riding
• Desert riding
• Sand dunes
• Rocky terrain
• Performance recreation
Specifications
Part Number: 885-08-097-4
Series: FOX Performance Elite Series
Travel: 6.75 in
Extended Length: 22.6 in
Compressed Length: 15.85 in
Top Mount: Eyelet
Bottom Mount: Eyelet
Fitment
Compatible with the following Polaris models:
- Polaris General 4 1000 (2017–2025)
- Polaris General 4 1000 Deluxe
- Polaris General 4 1000 Premium
- Polaris General 4 1000 Sport
Also fits:
- Polaris RZR S4 900 (2018–2019)
- Polaris RZR S4 1000 (2019–2020)
Position: Front
Sold as a pair
Frequently Asked Questions
Are these shocks sold individually or as a pair?
These FOX Performance Elite shocks are sold as a pair for the front suspension.
What does Dual-Speed Compression (DSC) adjustment do?
DSC allows independent adjustment of high-speed and low-speed compression damping so riders can tune suspension performance for different terrain and driving styles.
What is the benefit of the piggyback reservoir?
Piggyback reservoirs increase oil capacity and cooling, helping maintain consistent damping performance during aggressive riding.
Are FOX Performance Elite shocks rebuildable?
Yes. FOX shocks are fully rebuildable and can be serviced or custom-valved for specific riding applications.
Upgrade Your Polaris Suspension
Upgrade your Polaris General 4 or RZR S4 suspension with FOX 2.5 Performance Elite front shocks for improved traction, durability, and off-road control.
