SS5 Sport LED Pods (Pair) – Diode Dynamics

Sale price $499.95 Regular price $539.95
On Sale

Shipping calculated at checkout

Color: Yellow
Beam Pattern

In stock

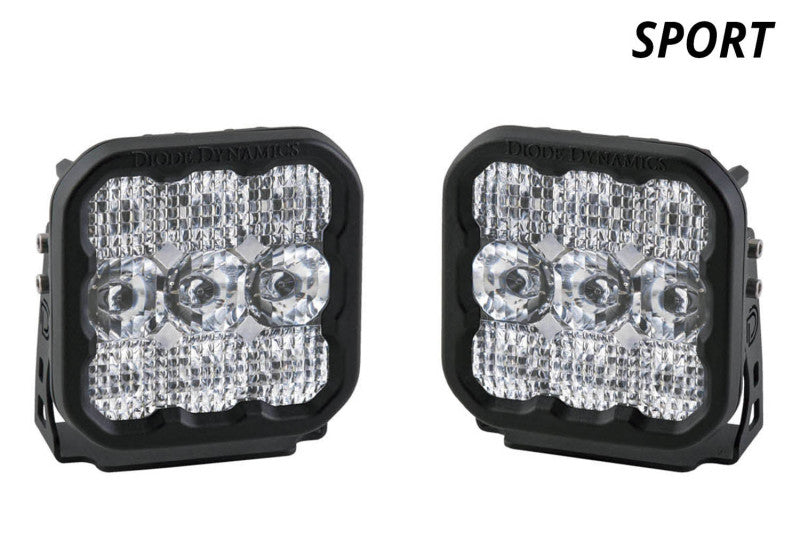

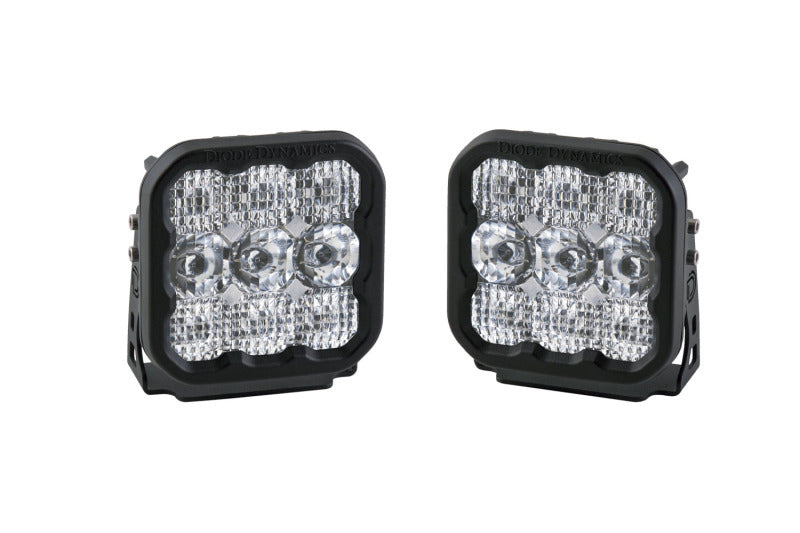

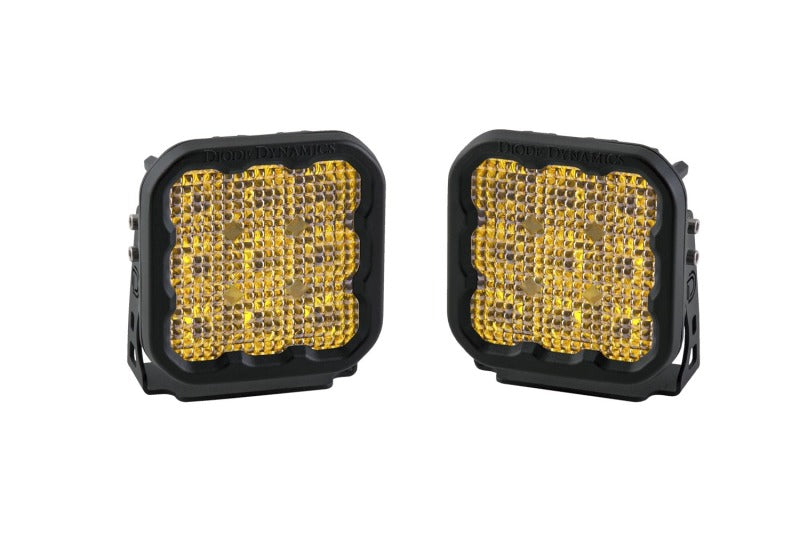

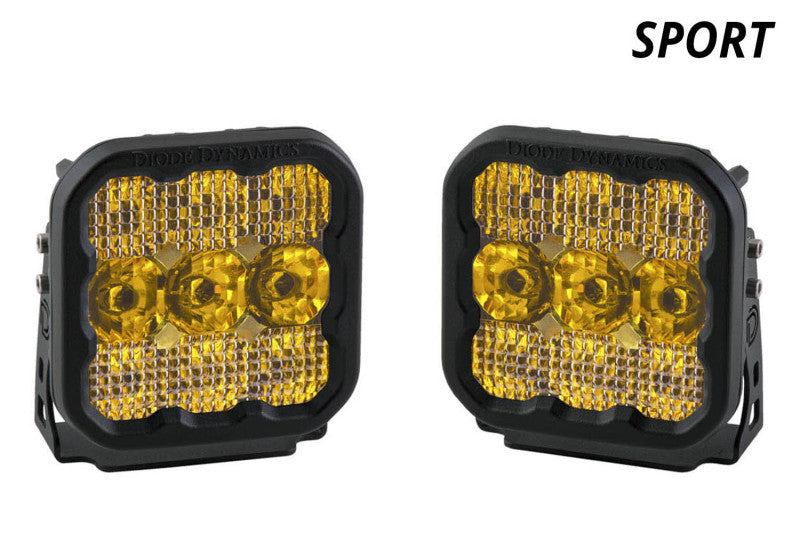

Diode Dynamics SS5 Sport 5” LED Pods – Pair

The Diode Dynamics SS5 Sport 5” LED Pods (Pair) are engineered for serious off-road performance with industry-leading TIR optics, a selectable 8-color backlight, and rugged CrossLink™ linking capability. Offering 406,000 candela of focused output, the Sport model delivers 40W of power per pod—perfect for drivers seeking clarity, coverage, and compact form without sacrificing reliability.

Built to endure, tested to extremes, and proudly assembled in the USA.


Key Features:

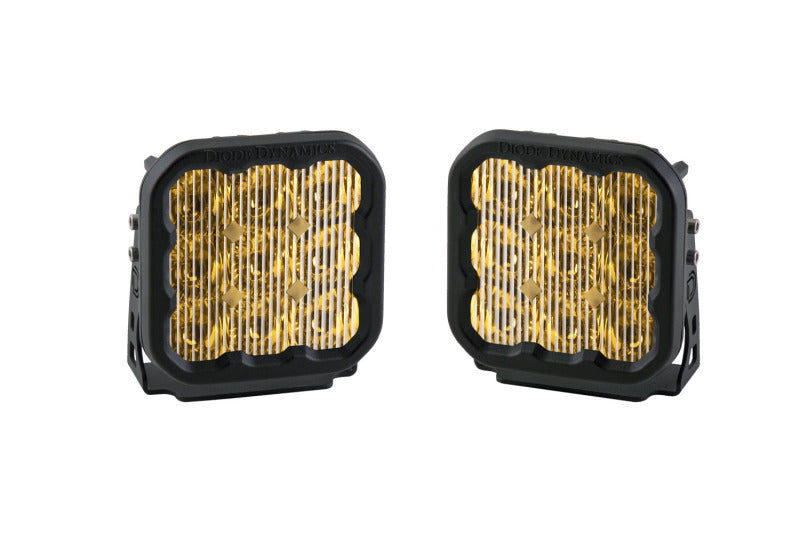

  • Two (2) 5” SS5 Sport LED Pods
  • Selectable 8-color backlight (amber, red, green, blue, white, teal, pink, purple)
  • Built-in CrossLink™ system—link up to 8 pods for a custom bar
  • Advanced TIR optics maximize beam control and reduce glare
  • Rugged powdercoated aluminum construction

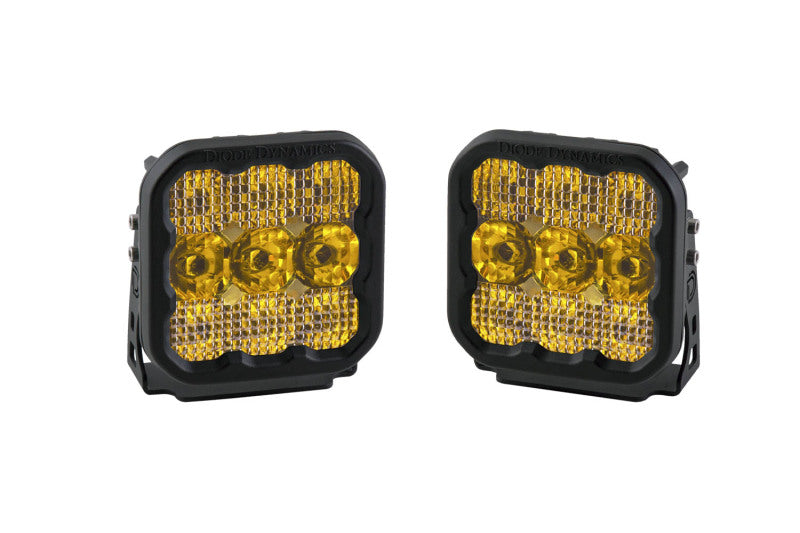

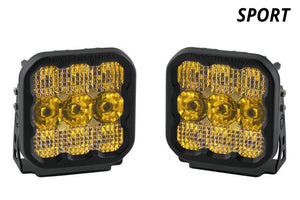

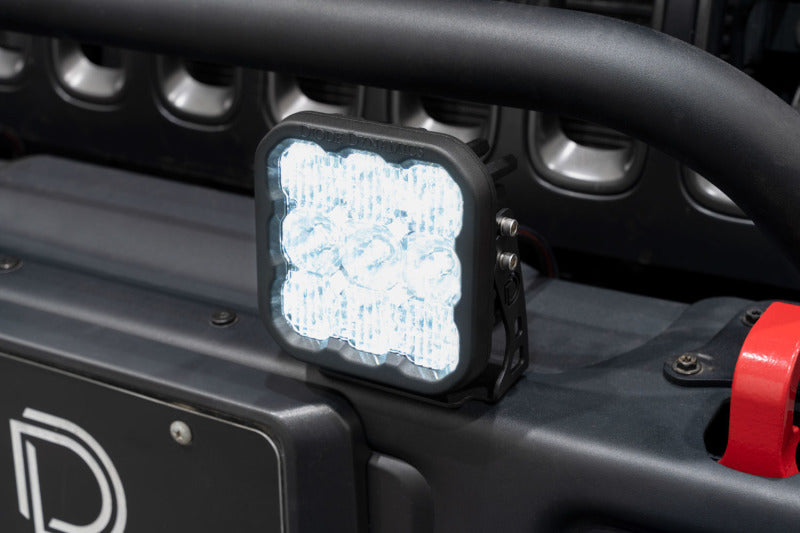

  • Available output colors: Cool White (6000K) or Selective Yellow (3000K)
  • Modular mount design with Deutsch-style waterproof connectors
  • Tested to SAE standards for vibration, weather, and corrosion resistance

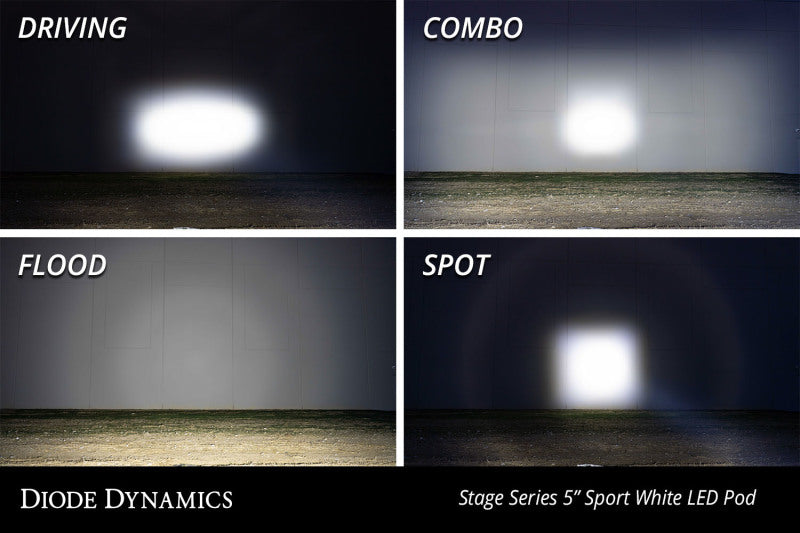

Beam Pattern Options:

  • Driving: 30° x 20° beam for high-speed road illumination
  • Combo: Wide 70° x 30° beam with central driving + outer flood optics

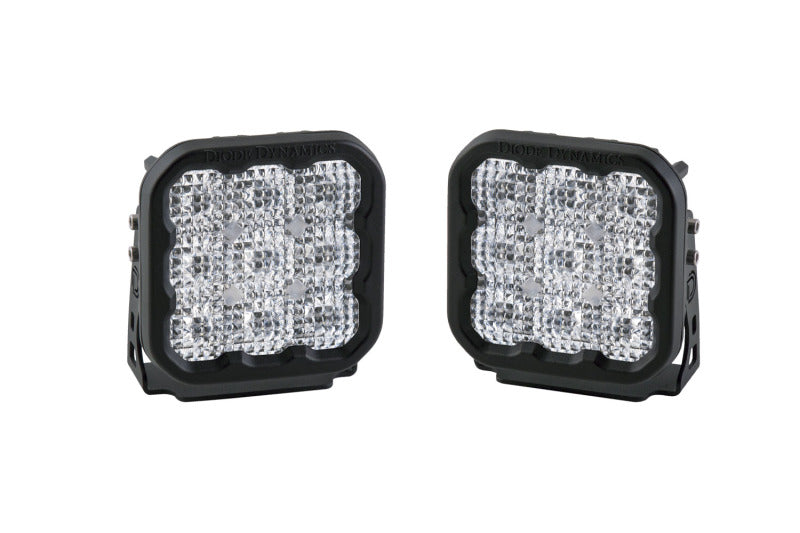

  • Flood: Even 70° x 55° beam ideal for low-speed utility, trailers, worksites

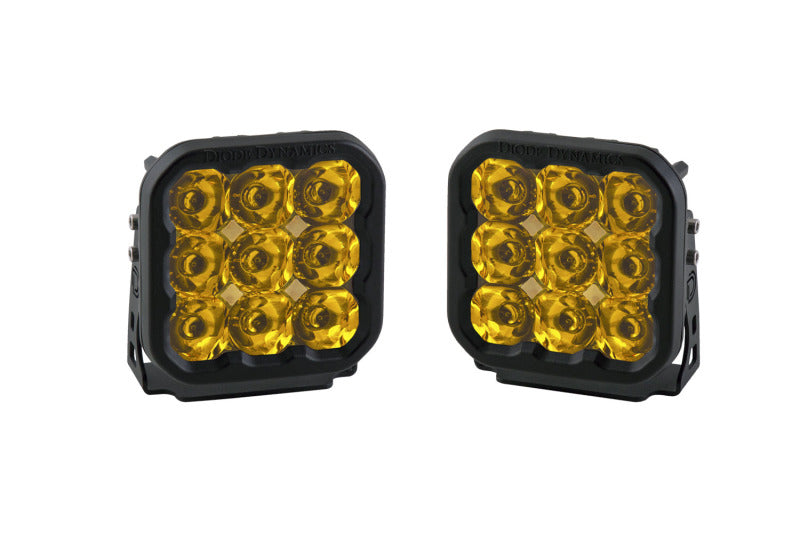

  • Spot: Narrow 15° beam—throws a mile ahead (¼ lux at 406,000 candela)

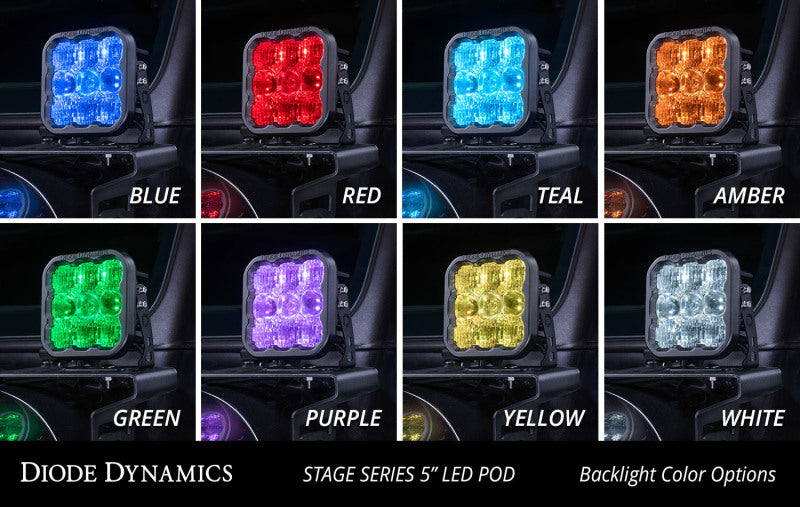

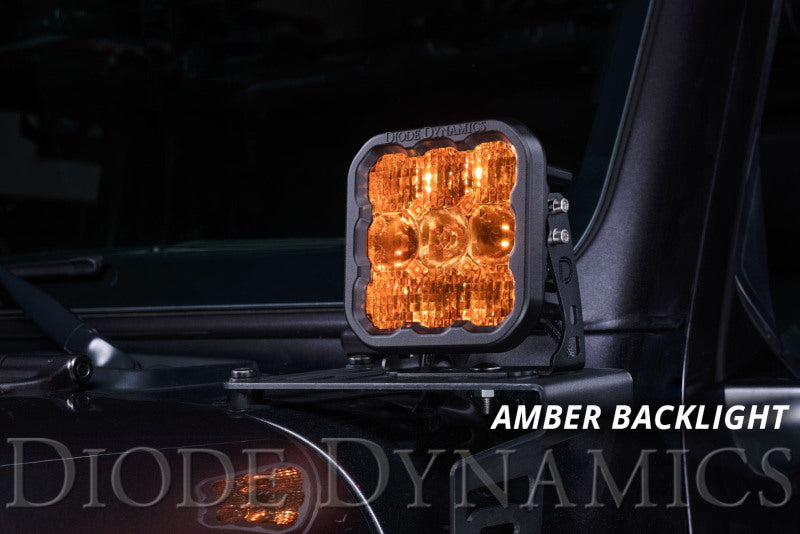

Selectable Backlight:

  • Eight built-in color options
  • Easy on/off toggle switching—no controller required
  • Fully lights the TIR optic for a premium look and added visibility

CrossLink™ Compatibility:

  • Use with optional CNC aluminum links to build custom straight or curved lightbars
  • Threaded side mounts eliminate need for special bar versions
  • Turn your pod setup into a full-blown light system

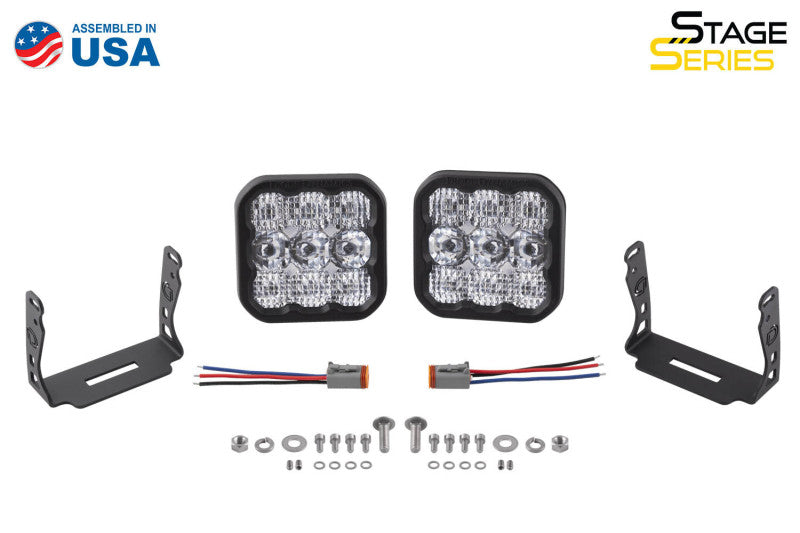

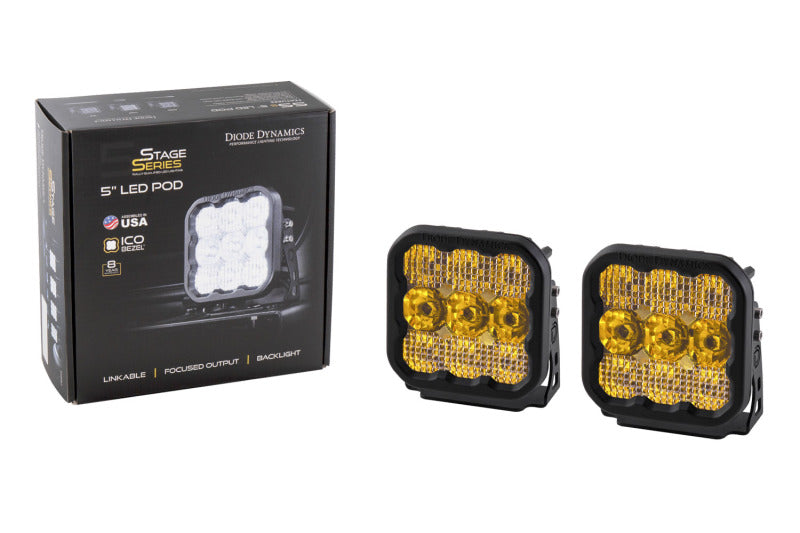

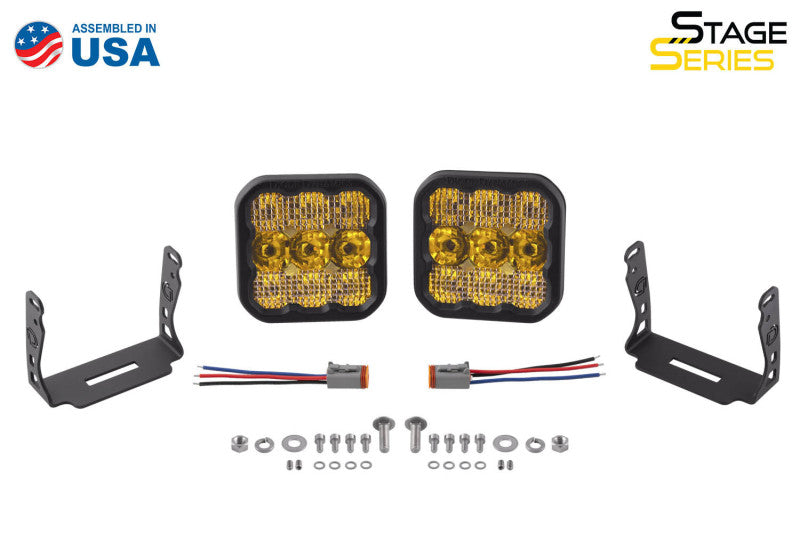

In the Box:

  • Two (2) SS5 Sport 5” LED Pods
  • Two (2) Deutsch-style wire pigtails
  • Two (2) Mounting brackets and hardware

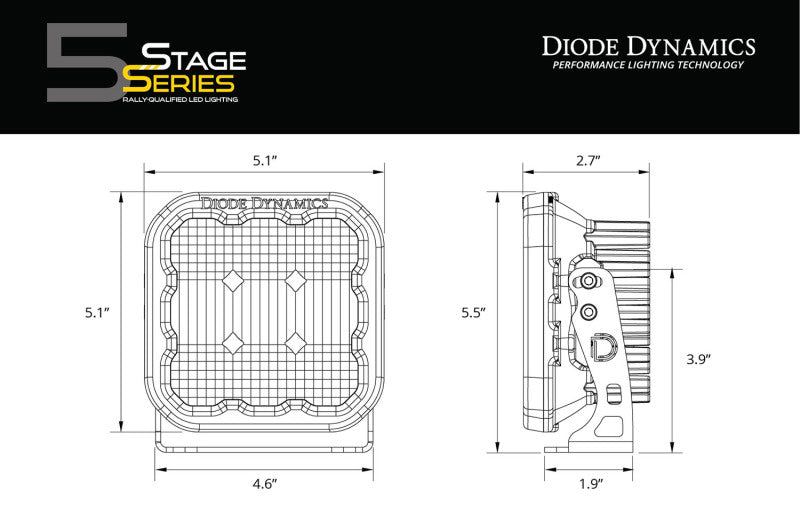

Specifications:

  • Power: 40 watts per pod (Sport model)
  • Beam Options: Driving, Combo, Flood, Spot
  • Output Color: 6000K White or 3000K Yellow
  • Construction: Aluminum housing, polycarbonate lens
  • Waterproof: IP68/IP69K rated

Warranty: Lifetime
Returns: 30-day, no restocking fee
Satisfaction Guarantee: 100%


Light smarter. Drive farther. The SS5 Sport LED Pod Pair gives you pro-level performance and visual impact in a package that’s built to dominate both the road and the trail.
