RAM Twist-Lock Suction Cup Base with Ball
Shipping calculated at checkout
In stock

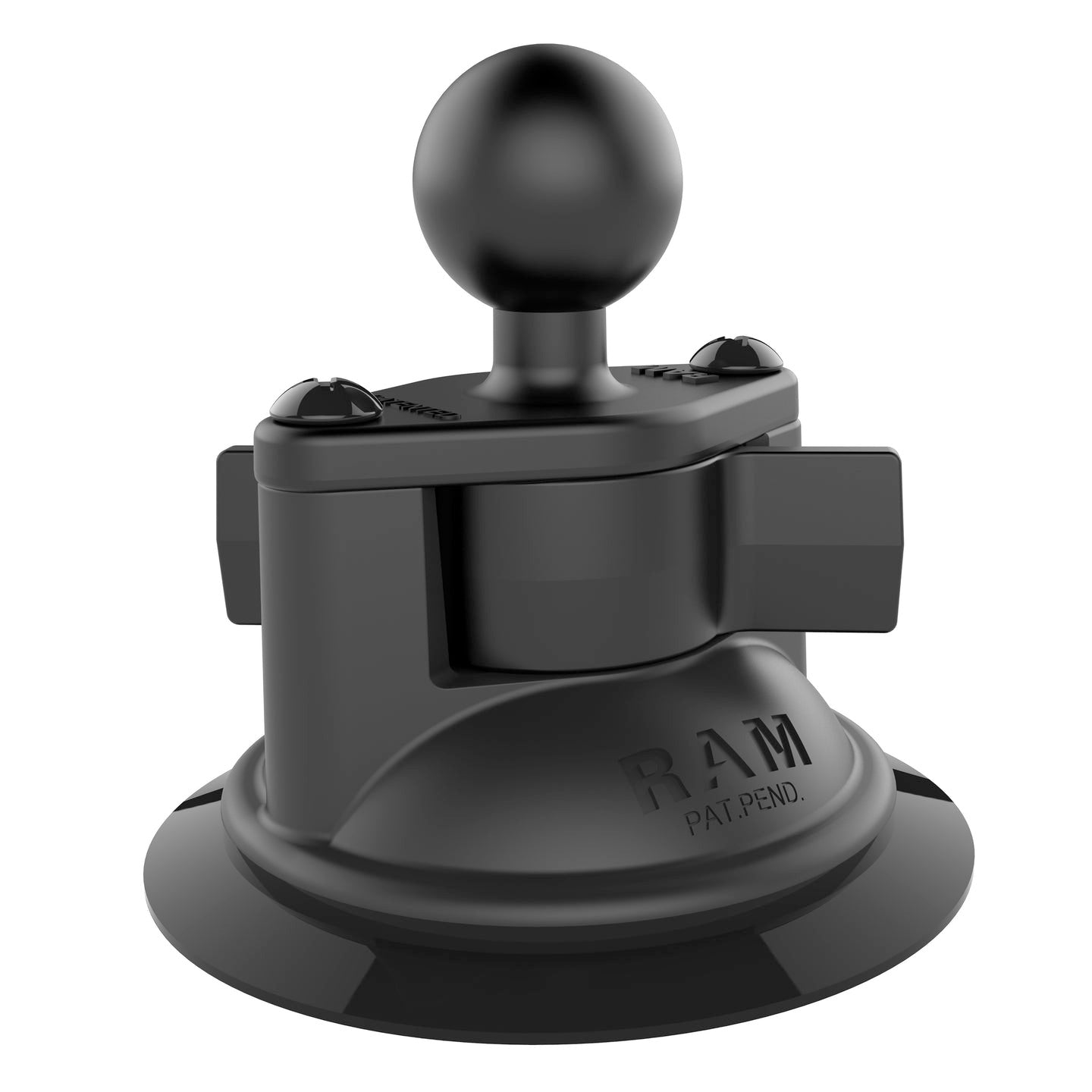

RAM Mounts RAM-B-224-1U Twist-Lock Suction Cup Base with Ball
The RAM-B-224-1U suction cup base consists of a 3.3" diameter RAM Twist-Lock suction cup connected to a RAM-B-238U diamond base with a 1" B size ball — providing a removable, tool-free mounting solution for windshields, smooth dash surfaces, and windows. The Twist-Lock mechanism creates significantly more suction force than standard lever-style cups, making it one of the most secure removable vehicle mount bases available. Compatible with all RAM B size arms and device holders.
Key Features & Benefits

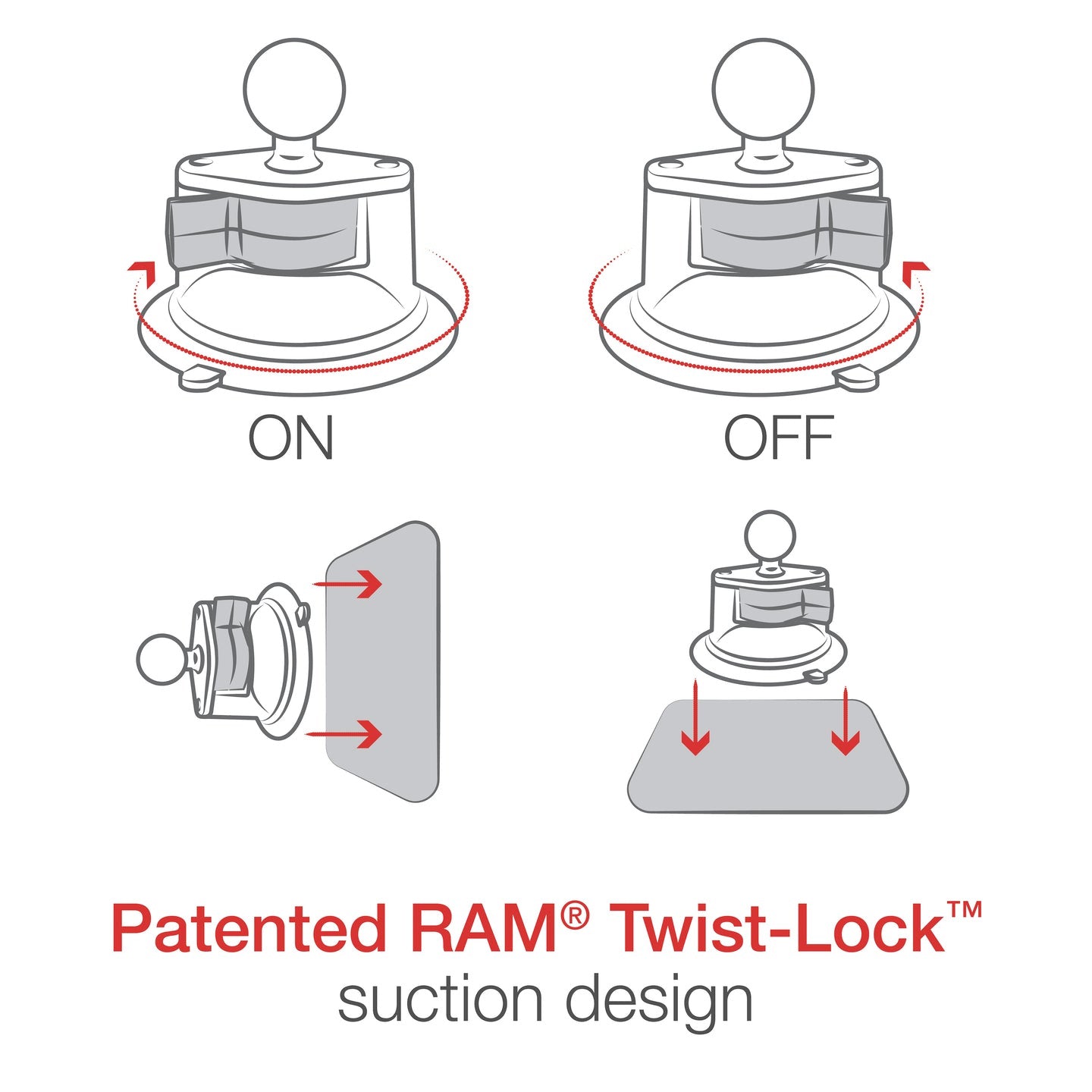

- Twist-Lock Mechanism — Twist-to-lock creates substantially more suction force than standard lever suction cups — holds firmly even on rough roads and off-road trails
- 3.3" Diameter Suction Cup — Large contact surface distributes load and maintains adhesion across temperature swings and vibration
- Includes RAM-B-238U Diamond Base — The diamond base adds a rigid connection point between the suction cup and the B size ball for a stable, wobble-free mount
- 1" B Size Ball — Full RAM B size system compatibility — works with all B size double socket arms and device holders
- Removable Without Tools — Releases quickly when needed — no permanent mounting hardware required
Specs & Fitment
| Spec | Detail |
|---|---|
| SKU | RAM-B-224-1U |

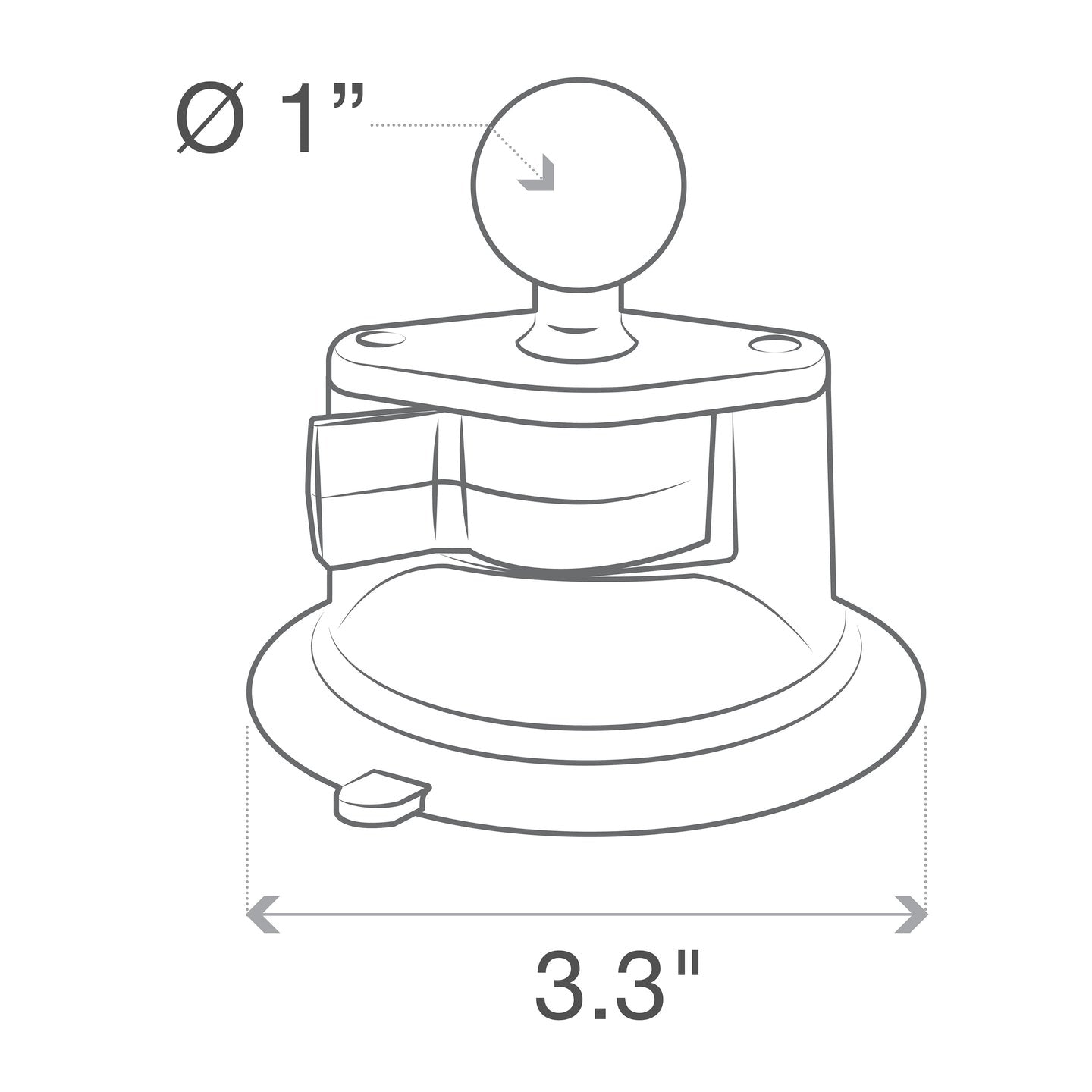

| Suction Cup Diameter | 3.3" |
| Suction Mechanism | Twist-Lock |
| Base Included | RAM-B-238U diamond base |
| Ball Size | 1" B size |
| Manufacturer | RAM Mounts |
Recommended Mounting Surfaces:

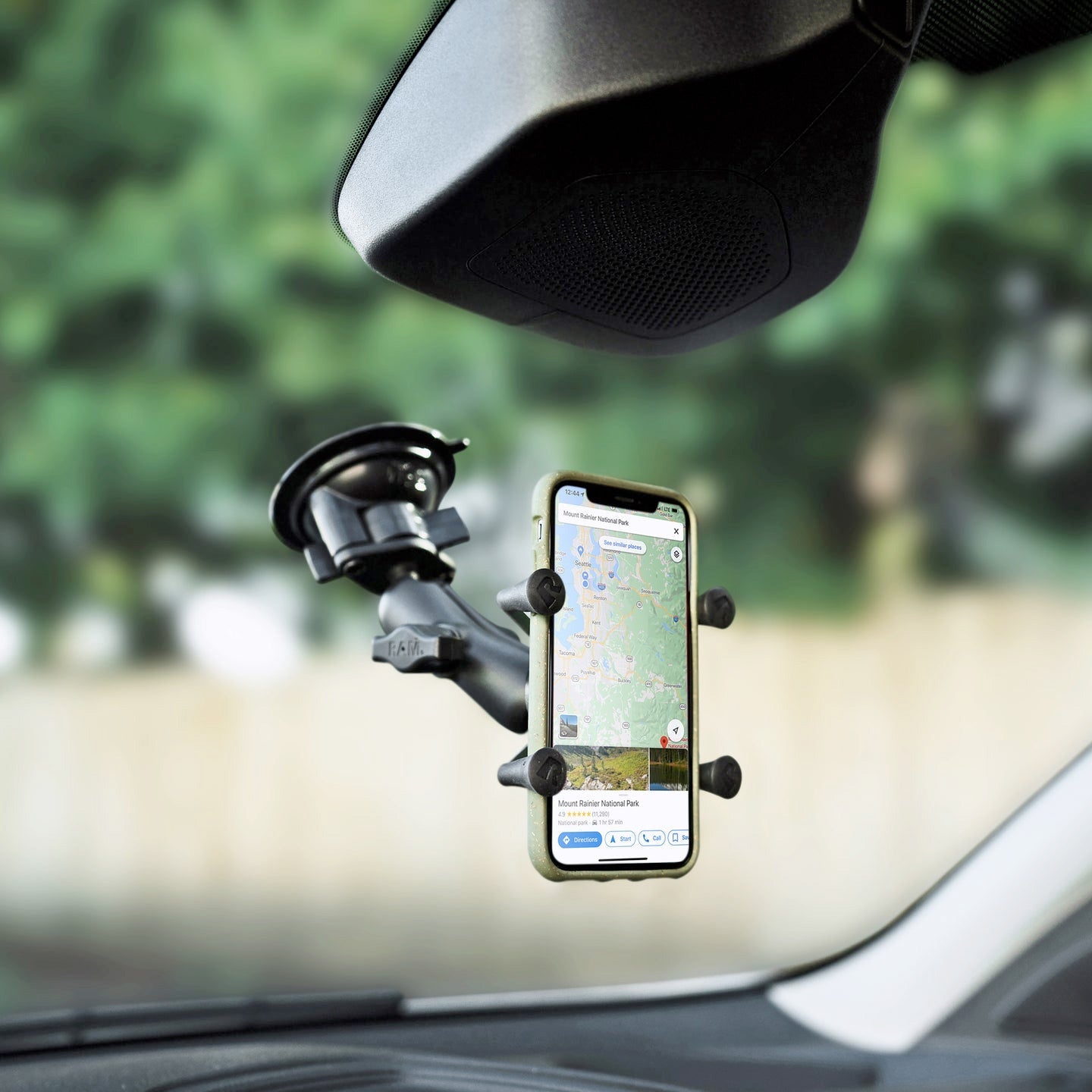

- Windshields and side windows
- Smooth, non-porous dash surfaces
- Smooth interior panels
Frequently Asked Questions
Is a suction cup base secure enough for off-road and UTV use?
The RAM Twist-Lock mechanism is significantly more secure than standard lever-style cups. For smooth, clean surfaces it holds very well under off-road vibration. For the most secure installation on UTVs, a permanent base like the RAM Round Plate (RAM-B-202U) or Diamond Base (RAM-B-238U) bolted to an AJK dash panel is recommended. The suction cup is best for vehicles where permanent mounting is not desired.
What surfaces does the suction cup not work on?
Textured, porous, or rough surfaces — most factory UTV dashes, soft-touch surfaces, or any surface with visible texture. Clean, smooth glass or hard plastic surfaces work best.
How do I release the suction cup?
Twist to unlock — the suction releases with a quarter-turn of the cup. Pull the release tab to break suction cleanly without yanking.
Can I use this with the RAM Double Socket Arm?

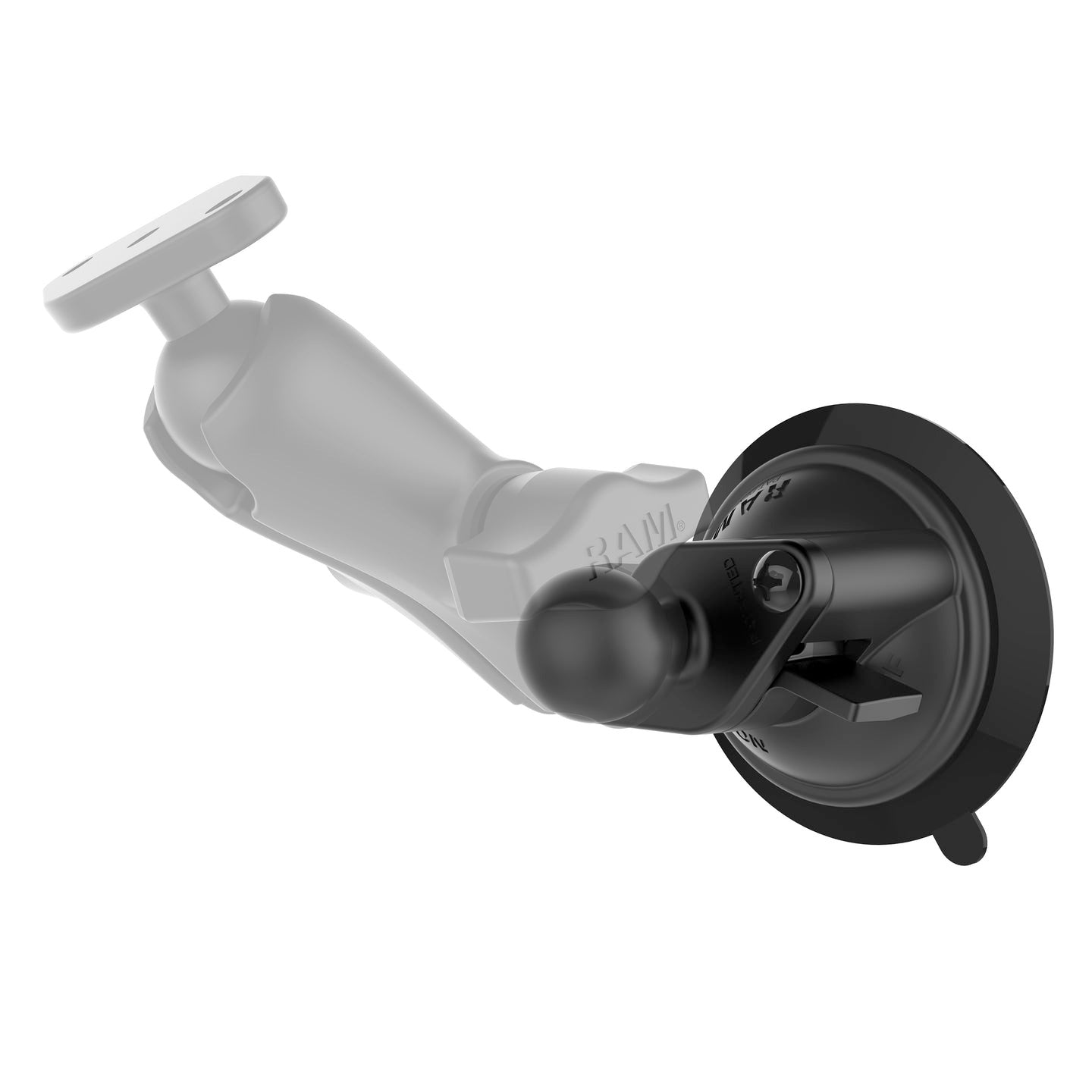

Yes — the 1" B size ball on this suction cup base connects directly to any RAM B size double socket arm (RAM-B-201U or RAM-B-201U-C) and any B size device holder.
Does this work in cold weather?
Suction cup performance can decrease in extreme cold. RAM recommends cleaning the cup and mounting surface before use in cold conditions for best adhesion.
Mount your device anywhere with the RAM Twist-Lock Suction Cup Base — available now at Dunes 2 Dezert SXS, your Desert Southwest source for RAM Mounts, mounting solutions, and UTV device accessories.
