AJK Offroad Tubing Disconnect – 3-Tier Interlocking

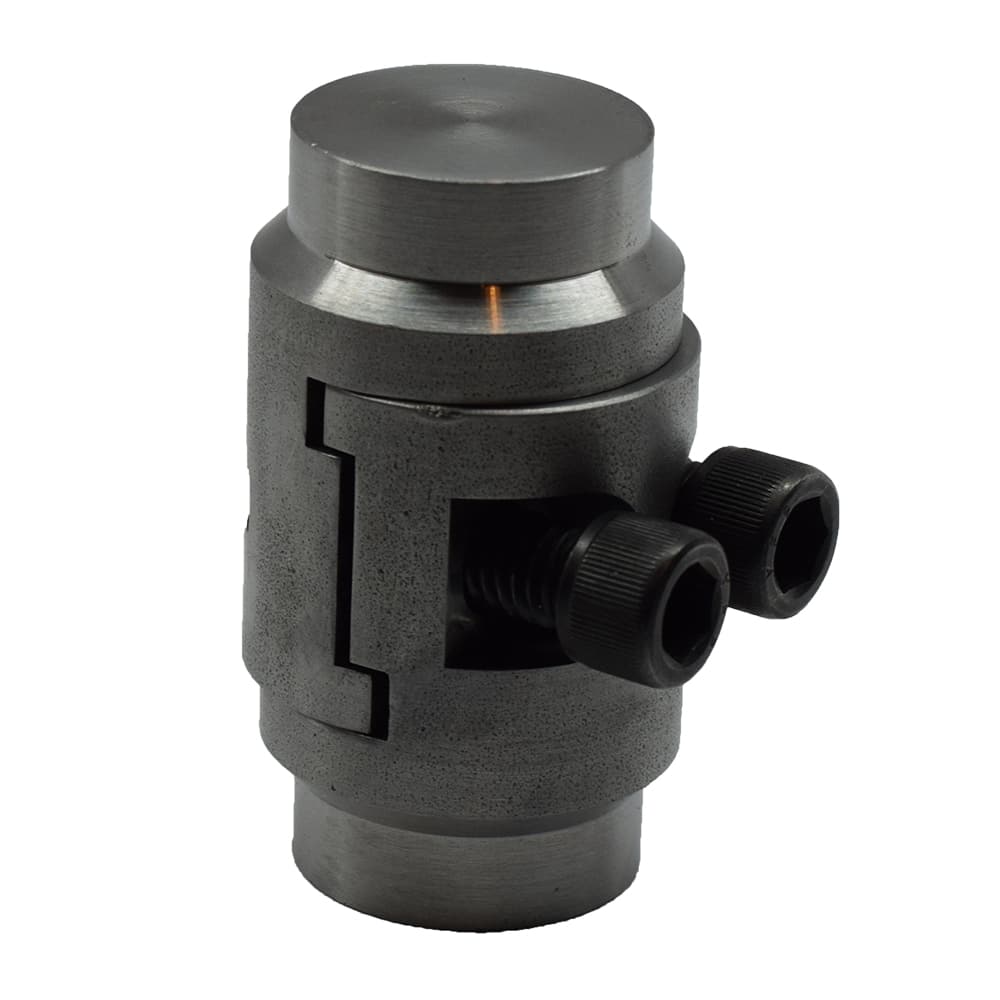

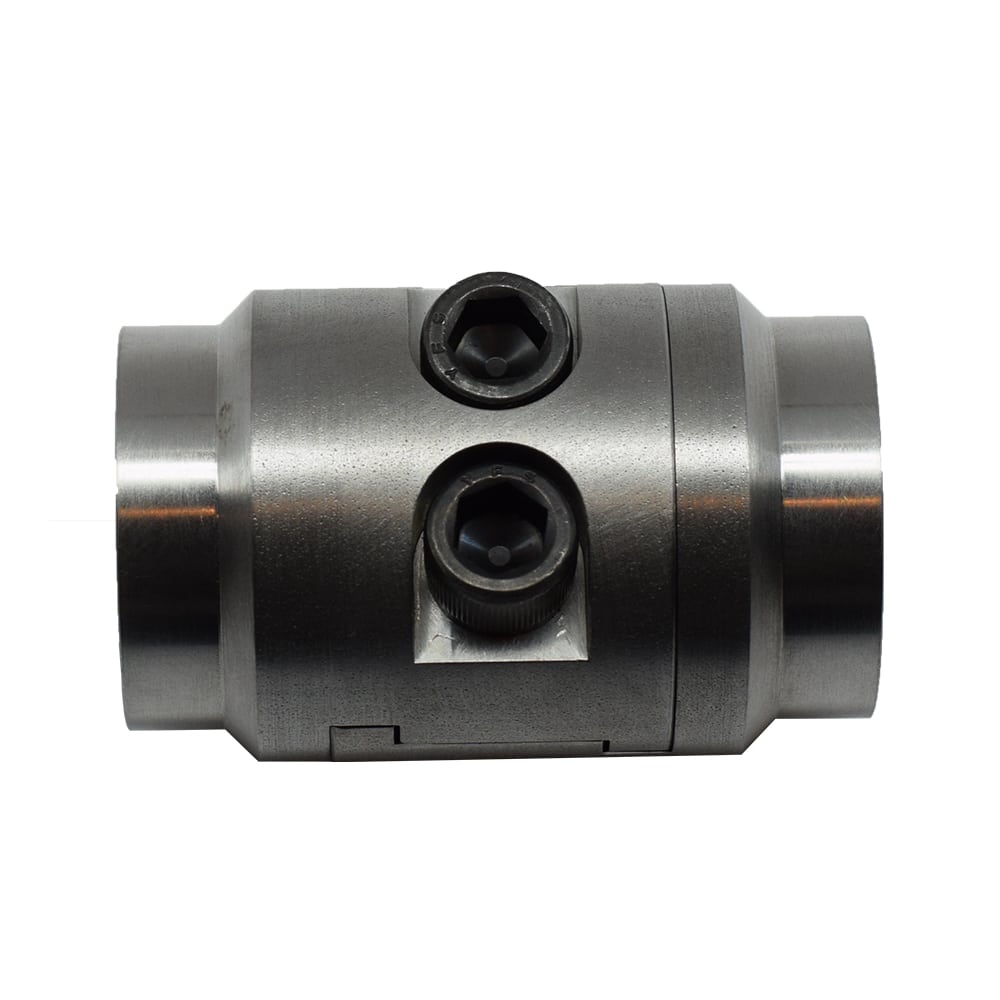

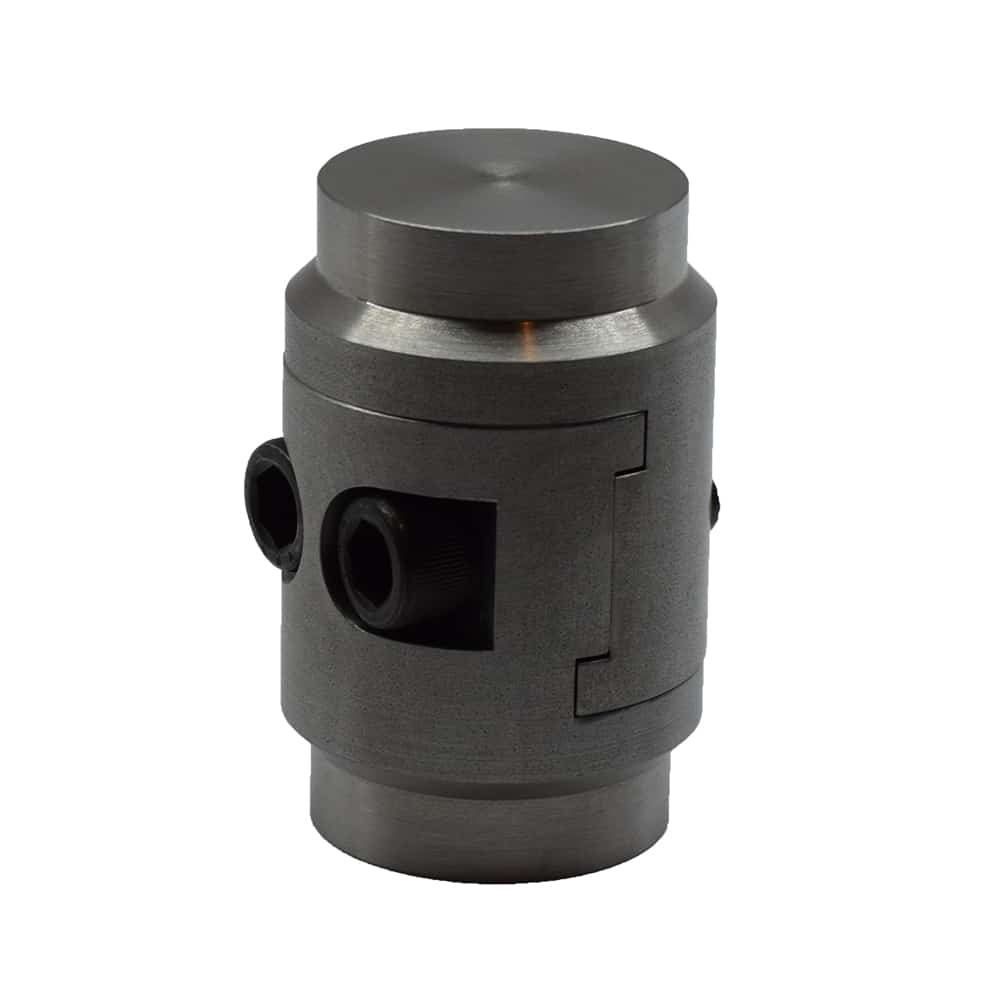

The AJK Offroad Tubing Disconnect is a CNC machined 1018 mild steel interlocking tubing disconnect that creates a removable, bolt-together tube joint for bumpers, cage braces, and custom tube structures. The 3-tier interlocking design mechanically engages the two halves when bolted together — providing a stronger, more rattle-free connection than flat-face disconnects by mechanically locking the joint against rotation and side-load. Available in 1.50" and 1.75" tube diameters.
Key Features & Benefits

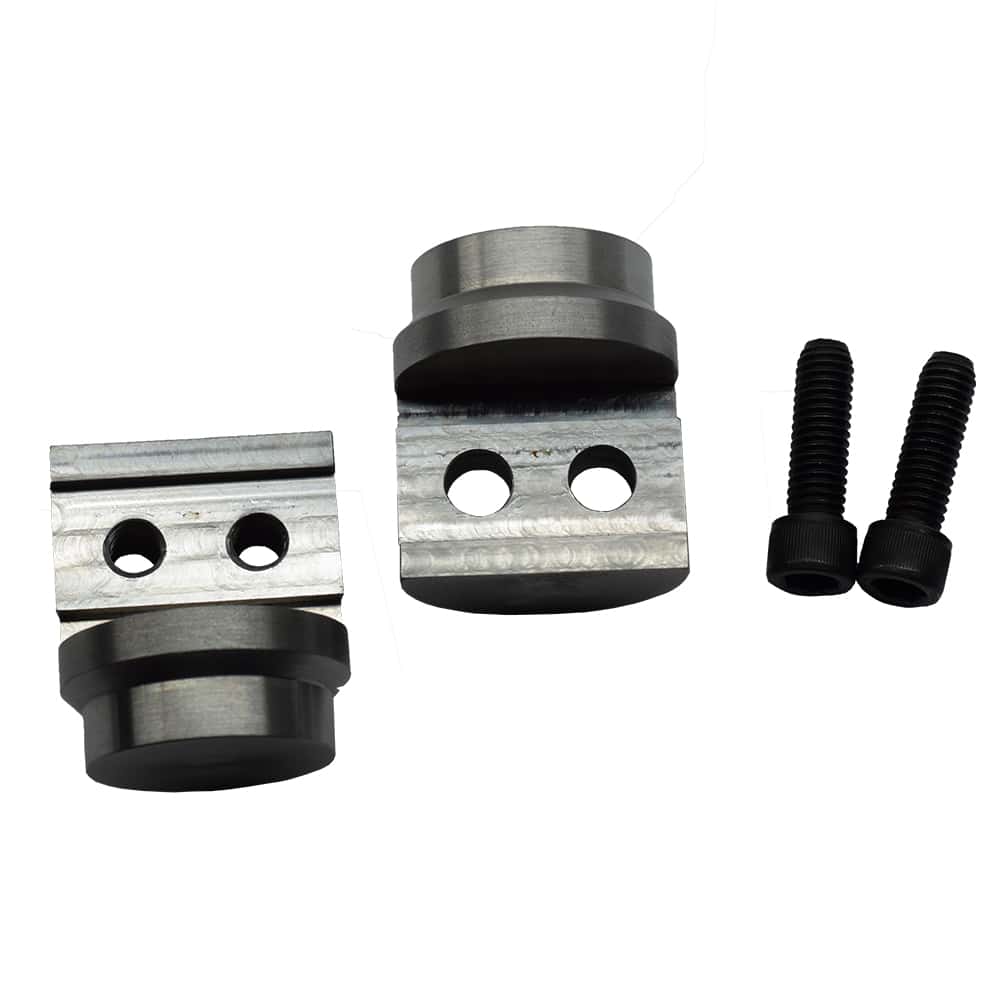

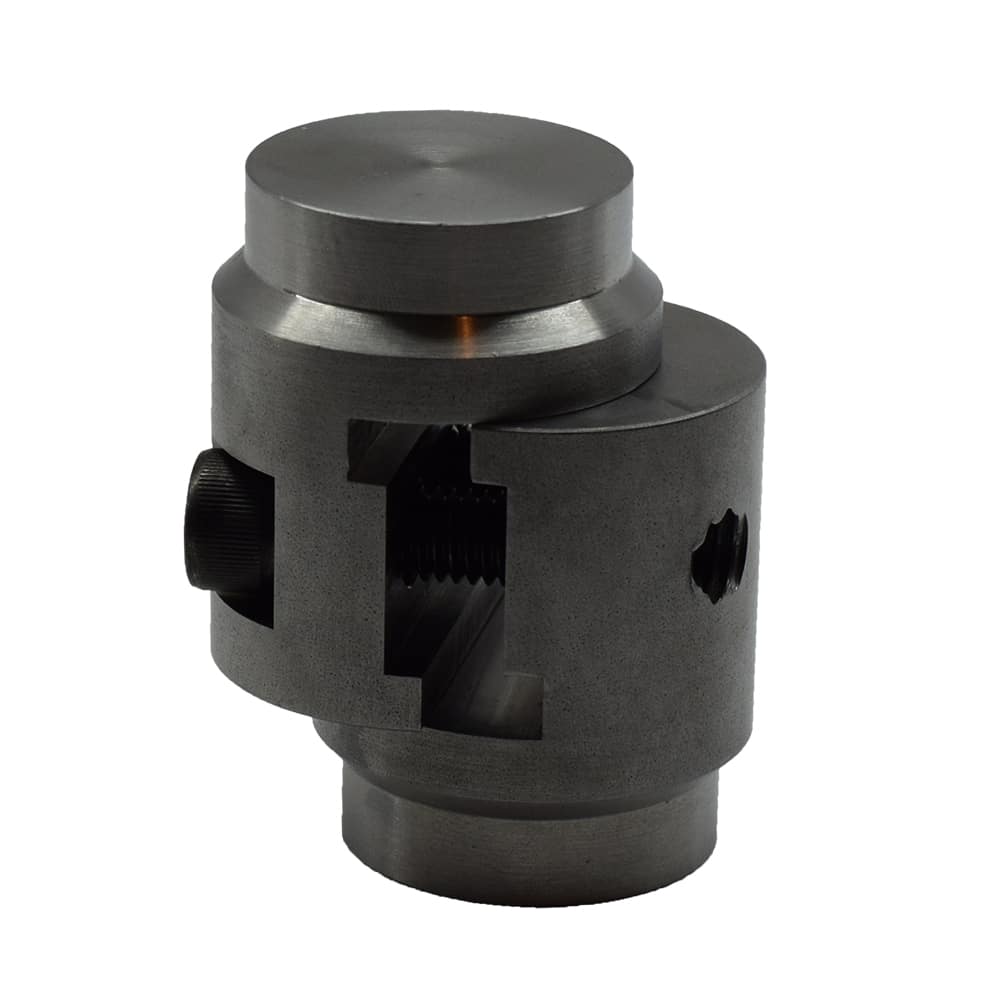

- 3-Tier Interlocking Design — mechanical engagement when bolted prevents rotation and rattle better than flat-face disconnects
- 1.50" & 1.75" Options — the two most common bumper and cage tube OD sizes
- 1018 Mild Steel — strong, weldable American steel
- CNC Machined — precision fit for consistent assembly and disassembly

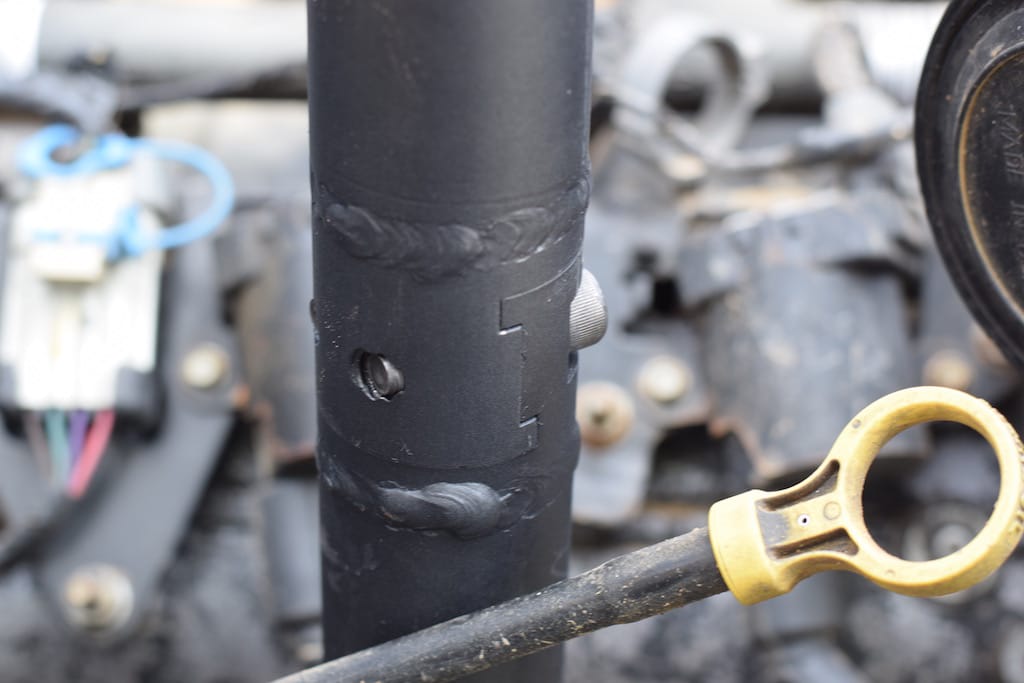

- Weld-In Design — welds into tube ends for a permanent base with a removable bolt connection
Specs & Fitment
| Tube OD | SKU |
|---|---|
| 1.50" | 200113 |
| 1.75" | 200112 |
⚠️ Note: Welding required. Sold individually; order two for a complete disconnect joint.
Build rattle-free removable tube joints with the AJK Offroad Tubing Disconnect — available now from Dunes 2 Dezert SXS.
