KraftWerks YXZ 1000R Supercharger Kit – 140+ HP

Kraftwerks Supercharger Kit – Yamaha YXZ 1000R (2019–2023)
75 HP Gain. Zero Lag. Fully Sealed Power System.

Built for riders who demand predictable, linear power and high durability in extreme terrain, the Kraftwerks Supercharger System for the 2019–2023 Yamaha YXZ 1000R delivers up to 140 wheel horsepower—a staggering 75 HP gain over stock. This bolt-on system offers instant throttle response, cooler intake temps, and off-road-ready reliability, making it a superior alternative to turbocharging.

At its heart is the Rotrex C15-60 centrifugal supercharger, known for its ultra-efficient frictional planetary roller drive. It produces 7.5 psi of boost (up from previous 5.5 psi systems), thanks to stronger GYTR connecting rods in this generation of YXZ.

Whether you're climbing rock-laden trails or blasting across dunes, the sealed belt drive system, custom intercooler shroud, and independent supercharger oil cooler ensure performance and protection in the harshest environments.

💥 Performance Highlights:

• +75 WHP Gain (140+ HP Total Output)
• +7.5 PSI Boost with upgrade-ready pulley
• 60% power increase over factory tune

🔧 Key Features:

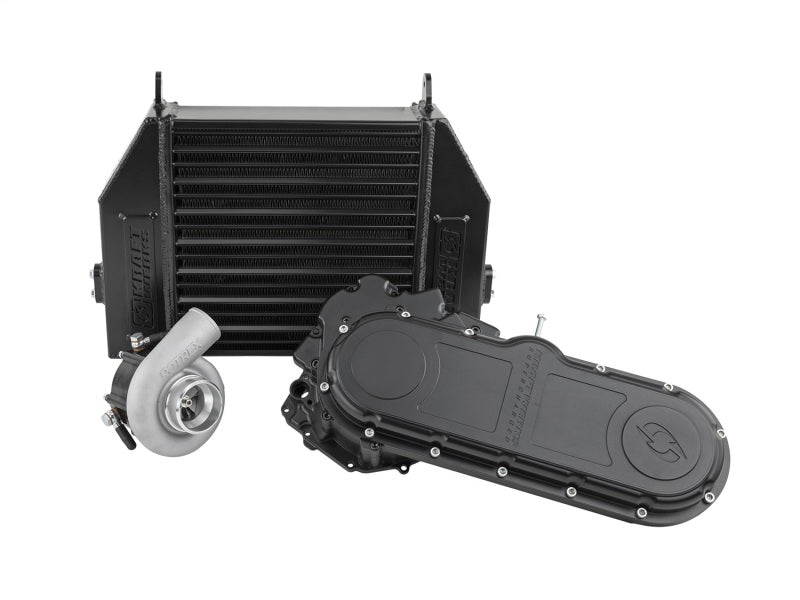

• Rotrex C15-60 Supercharger Unit
  • Efficient, low-heat boost with zero lag
  • Sealed and oil-cooled for long-term reliability

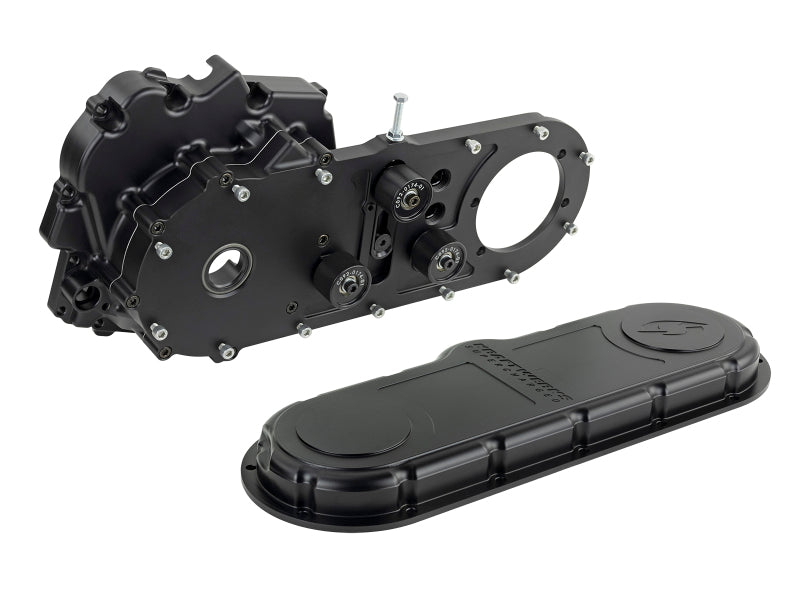

• Environmentally Sealed CNC Billet Mount System
  • Water and mud submersible
  • Keeps dirt, debris, and moisture out

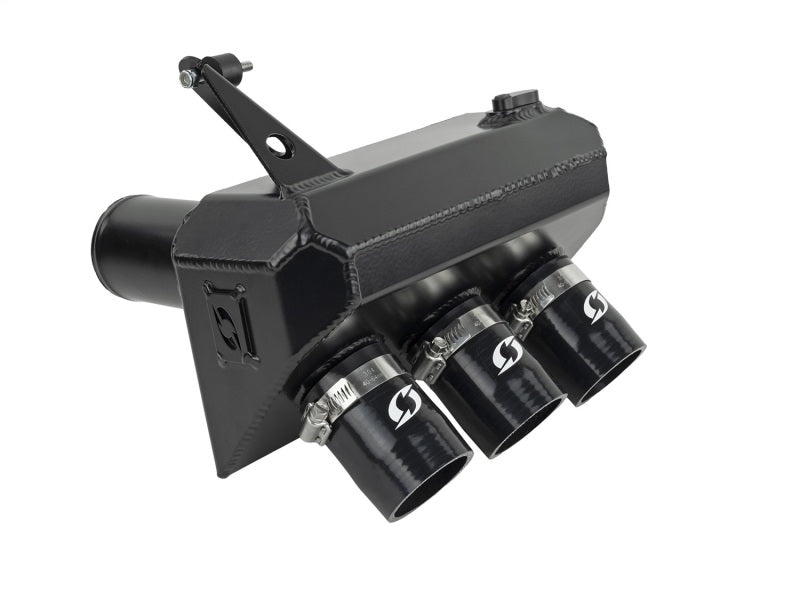

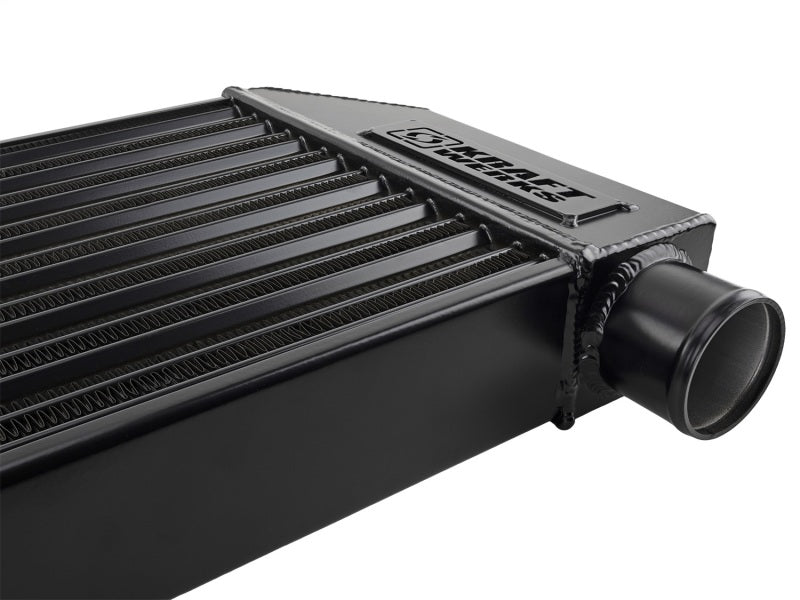

• High-Efficiency Air-to-Air Intercooler
  • TIG-welded and optimized with FRP airflow shroud
  • Shroud is paint-ready black gel coat (carbon fiber upgrade optional)
• Independent Supercharger Oil Cooling System
  • Maintains optimal operating temps, even under sustained load
• Bosch 1” Blow-Off Valve
  • Prevents compressor surge during high-RPM shifts or let-off
• Donaldson Air Box with Reusable Filter
  • Improved filtration and airflow vs. stock
  • Protects compressor from particulate damage

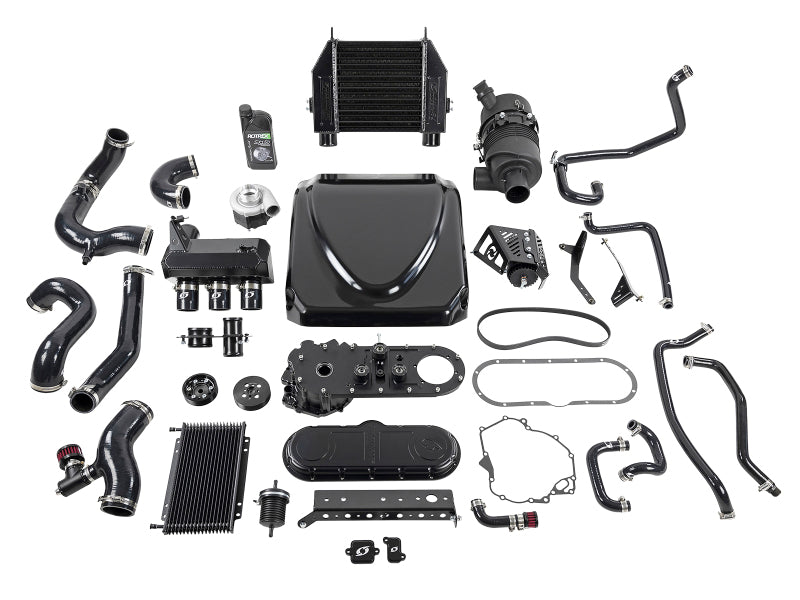

• Complete Hardware Kit
  • All hoses, clamps, fittings, and install instructions included
  • Bolt-on install – no drilling, cutting, or welding required
  • Installation time: 5–8 hours

🛠 Vehicle Fitment:

• Yamaha YXZ 1000R
  • Model Years: 2019, 2020, 2021, 2022, 2023
