Device Mounting Arm Kit for GPS, Tablets & Devices

The Device Mounting Arm Kit for GPS, Tablets & Devices is the most rigid, adjustable, and versatile device mounting system available for off-road and powersports applications.

Built for UTVs, boats, overland rigs, and race vehicles, this adjustable mounting arm allows you to securely position tablets, GPS units, marine electronics, and more exactly where you need them.

How the Device Mounting Arm System Works

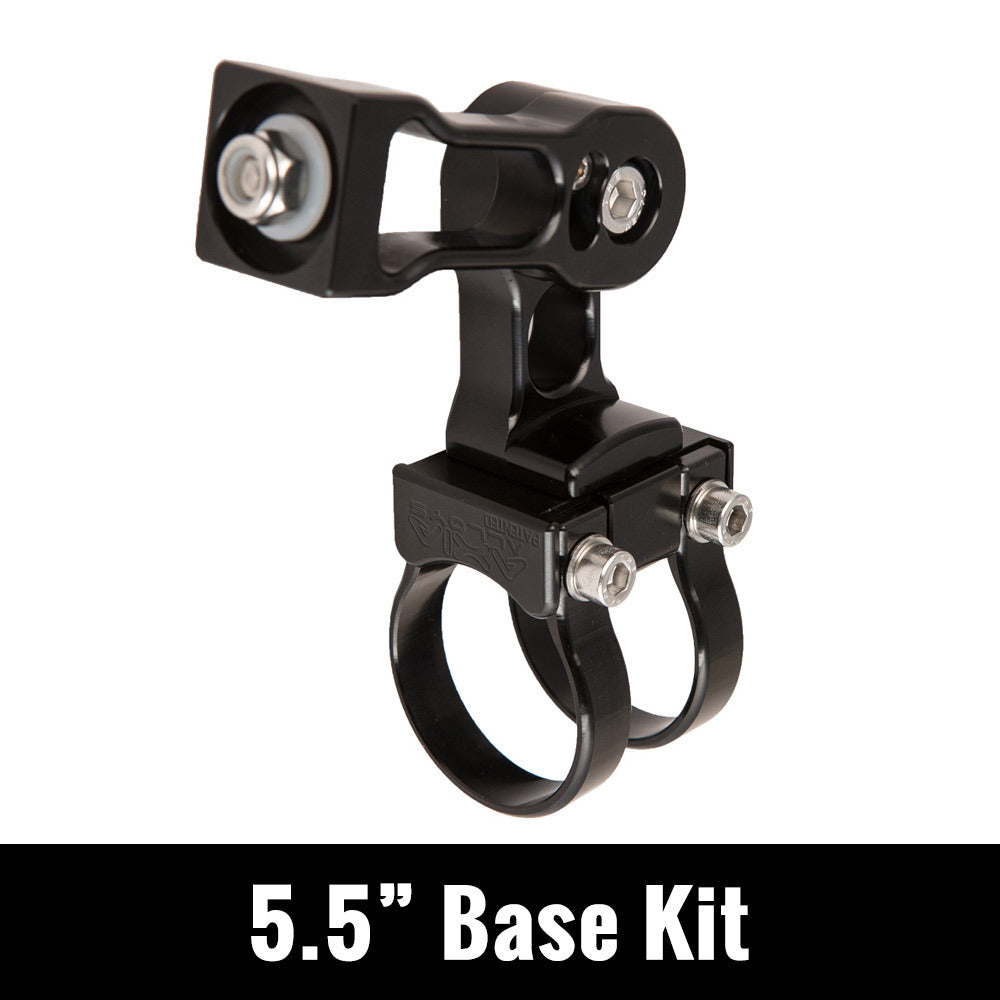

Start with the Device Arm Base Kit, which extends:

5.5″ from the leading edge of the mounting bar to the back of the device

Then customize:

• Select your clamp size
• Add optional 4.0″ or 6.0″ extensions
• Choose the correct end adapter for your device

This modular design allows you to build the exact mounting solution your setup requires.

Maximum Adjustability & Rigidity

All pivot points feature:

• Adjustable angle
• Adjustable tension
• Lock-out capability for zero movement
• Nylon washers for smooth pivoting

You can:

• Lock all pivot points for extreme off-road conditions
• Leave them adjustable for shared driver/passenger viewing
• Install optional socket head bolts to eliminate movement
• Remove bolts to restore smooth pivot functionality

The base clamp rotates a full 360° upon installation (locks into position during install).

The end adapter also rotates 360° and includes:

• Nylon washer
• O-ring protection
• Smooth, weather-resistant movement

Mount vertically, horizontally, or on angled bars.

Device Compatibility

This adjustable device mounting arm works with:

AMPS Standard (30mm x 38mm / 1.181″ x 1.496″)

Common for:

• Garmin GPS units
• Magellan TRX7
• iPad Mini cradles
• RAM Mount cradles
• Many handheld GPS devices

VESA 75mm (75mm x 75mm)

Used for:

• Larger tablets
• iPad cases
• Rugged tablet housings

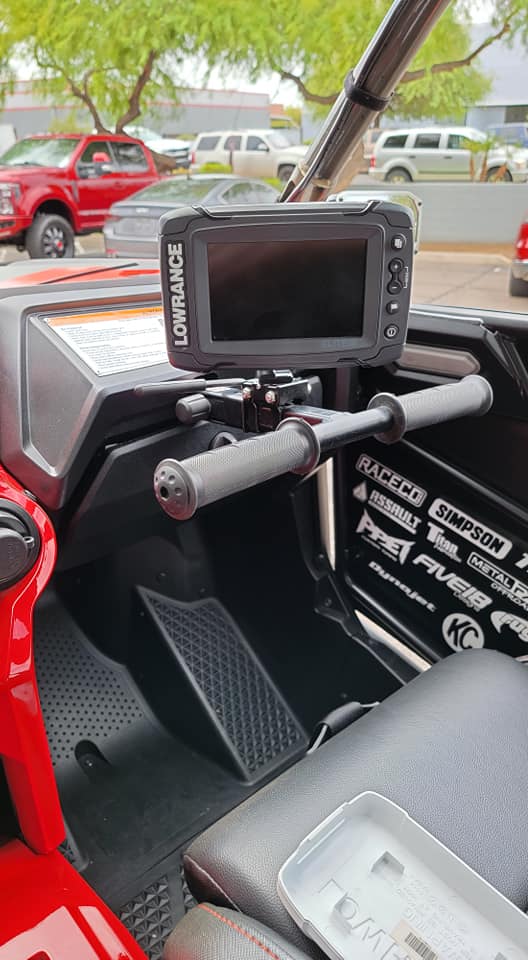

Lowrance Rear Clip Mount

Compatible with:

• Lowrance Trophy 5M
• Elite-5
• Mark-5
• Hook-5
• Elite 7 Ti

Marine Electronics Multi-Drilled Plate

Compatible with:

• Garmin
• Simrad
• Navtronics
• Chartplotters
• Fish finders

Bolt patterns include:

• 2-7/8″ x 1-1/4″
• 3-1/2″ x 1-1/4″
• 4-3/8″ x 3/4″
• 4-1/2″ x 1-1/2″
• 5-1/2″ x 1-1/4″

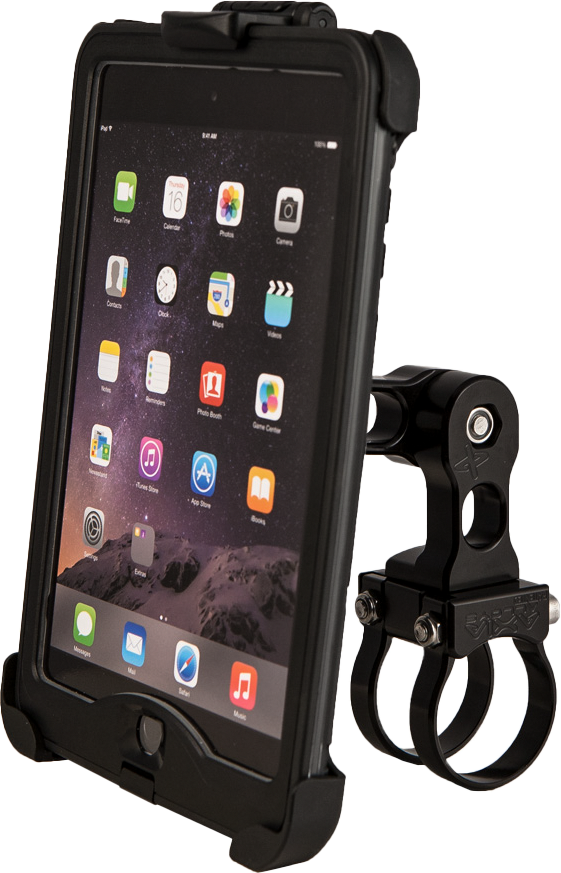

iPad / Tablet Adjustable Cradle

• Machined aluminum construction
• Fits multiple tablet sizes
• Four thumb screws for quick install and removal

If needed, you can also drill custom bolt patterns to match your device.

Features

• Modular adjustable device mounting arm system
• Base extends 5.5″ from mounting bar
• Optional 4″ and 6″ extensions available
• Full 360° base rotation
• Lockable pivot points
• Adjustable tension system
• Nylon washers for smooth articulation
• Weather-protected end adapter
• AMPS compatible
• VESA 75mm compatible
• Lowrance rear clip compatible
• Marine electronics multi-drilled plate option
• Mounts vertically, horizontally, or angled

Best For

• UTV GPS mounting
• Off-road race navigation systems
• Overland tablet installs
• Marine chartplotters and fish finders
• Powersports display mounting
• Rugged trail builds

FAQs

How far does the base kit extend?

The base kit extends 5.5″ from the mounting bar to the back of the device.

Can the arm be locked into position?

Yes. All pivot points can be locked for zero movement in extreme environments.

Does it rotate?

Yes. The base rotates 360° upon installation, and the end adapter also rotates 360°.

What mounting standards are supported?

AMPS, VESA 75mm, Lowrance rear clip, and multiple marine bolt patterns.

Can it mount large tablets?

Yes. With the VESA adapter or adjustable tablet cradle.
