Infrared Belt Temp Sensor

r Elite FS GPS display. Designed for riders who demand reliability and performance, this sensor provides critical data to help protect your belt, fine-tune clutching, and adjust driving style before excessive heat causes failure.

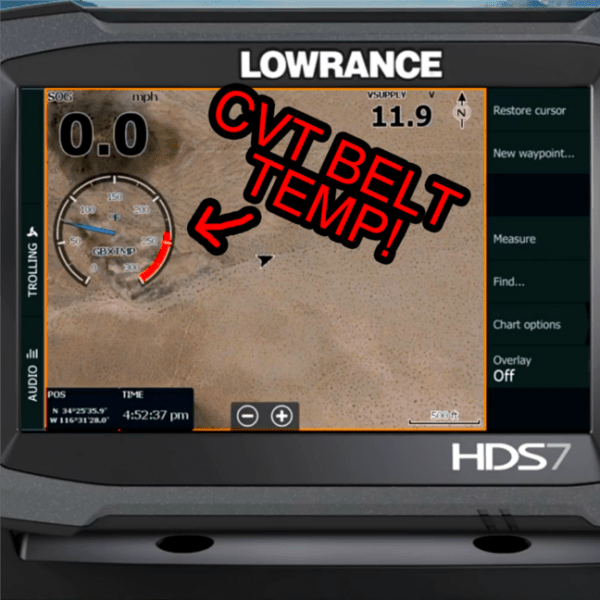

This infrared belt temperature sensor connects directly to your NMEA 2000 (N2K) network, just like a Lowrance Point-1 or Baja antenna, and displays belt temperature seamlessly on your GPS screen. Whether you’re trail riding, rock crawling, dune riding, or racing, keeping belt temperatures in check is essential for extending CVT belt life and preventing costly breakdowns.

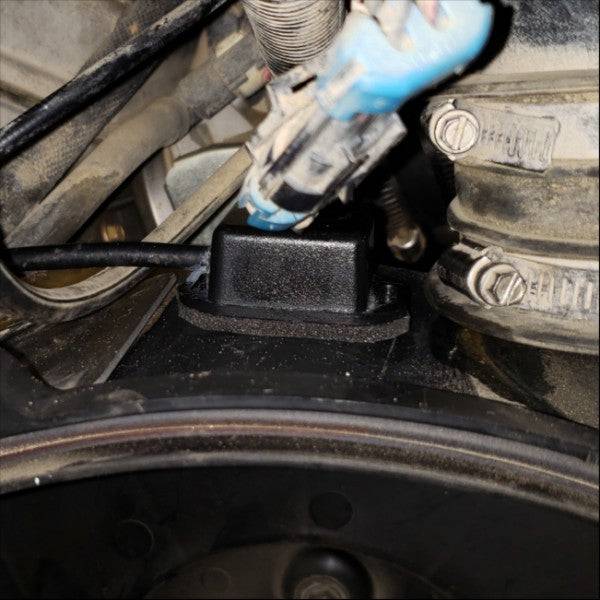

Installation is quick and straightforward. Simply drill a 3/8”–1/2” hole in the plastic belt cover above the center of the belt and adhere the compact sensor cube using the pre-installed 3M high-strength waterproof adhesive. The sensor features 3/16” thick waterproof closed-cell foam, allowing it to contour perfectly to the belt cover for accurate readings and long-term durability.

🧰 Key Features

• Real-time CVT belt temperature monitoring
• Displays directly on Lowrance GPS screens
• Infrared, non-contact temperature sensing

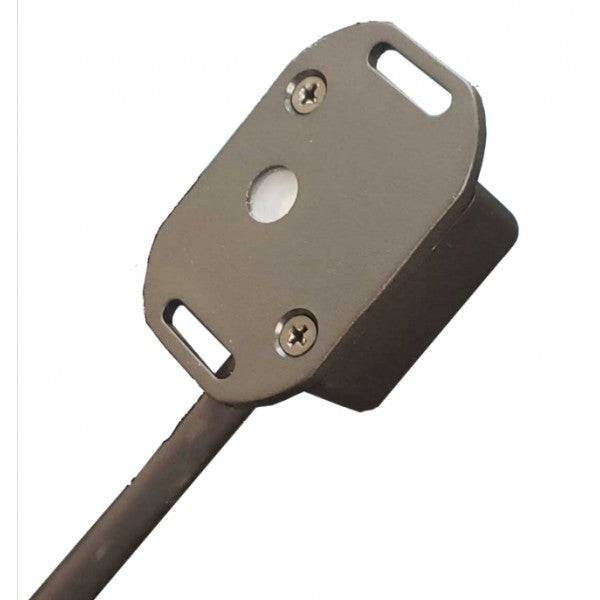

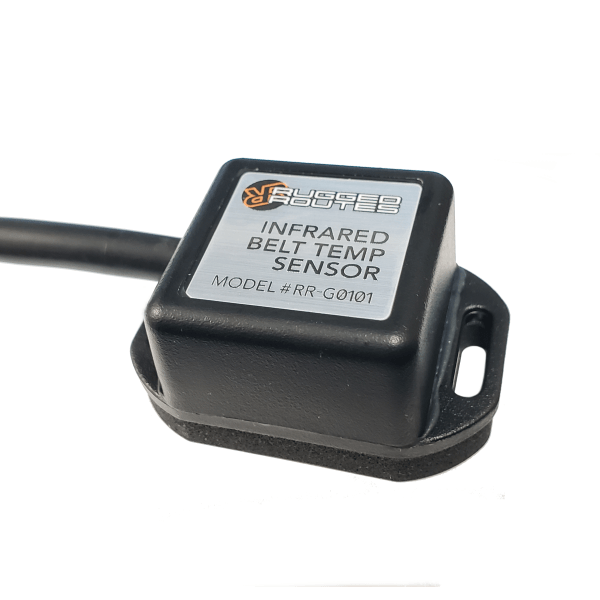

• Compact sensor cube design
• Waterproof closed-cell foam backing
• High-strength 3M waterproof adhesive
• Simple NMEA 2000 plug-and-play integration

📟 GPS Compatibility

Compatible With:

• Lowrance HDS Gen 2 & newer
• Lowrance Elite FS units
• Elite units 7” screen or larger

Not Compatible With:

• Elite-5 Ti
• Trophy models

🔧 Installation Notes

• Drill a 3/8”–1/2” hole in the plastic CVT belt cover
• Clean surface thoroughly before install
• Press sensor firmly for 30 seconds
• Allow 24 hours for adhesive to fully cure
• Sensor mounts externally—no internal CVT disassembly required

🎥 Installation video available (see product tab)

📦 What’s Included

• (1) Infrared CVT Belt Temperature Sensor

⚠ Important Notes:

• Sensor only — does NOT include NMEA connectors, extension cables, or power cables
• Optional version available with Lowrance Network Starter Kit

🔌 Network Starter Kit (Optional)

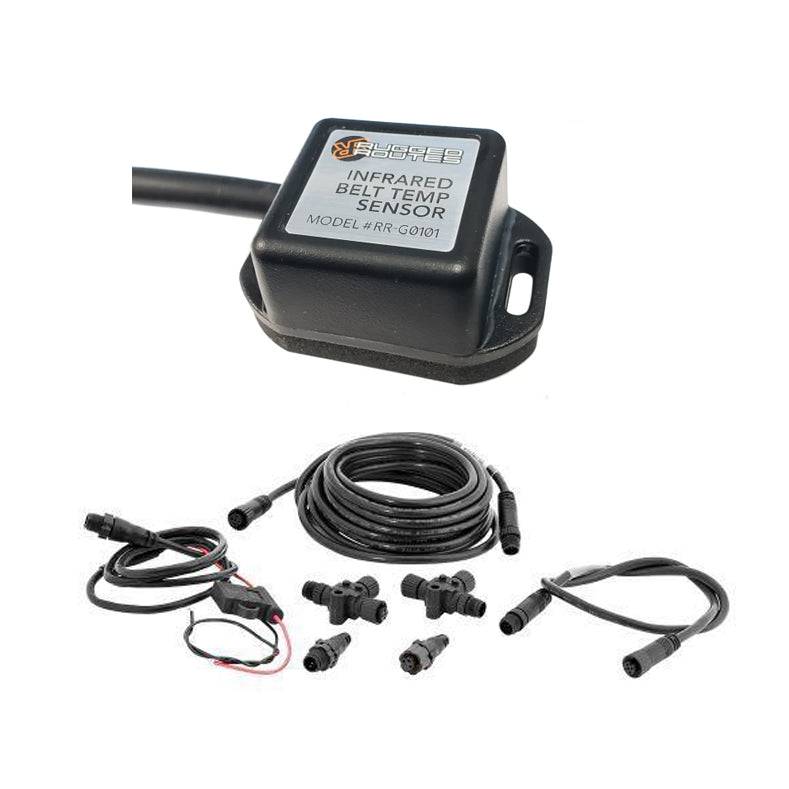

If selected, the Lowrance Network Starter Kit includes:

• NMEA 2000 T-connector
• 15’ extension cable
• Power cable

Setup Guidance:

• If you already have an external antenna:
  Connect the T-connector and extension cable inline with your existing N2K network
• If you do not have an external antenna:
  Use the Network Starter Kit to supply power to the sensor

🏁 Why Monitor CVT Belt Temperature?

• Prevent belt overheating and failure
• Extend belt and clutch life
• Improve clutch tuning accuracy
• Adjust driving style in real time
• Ideal for performance and heavy-use UTVs
