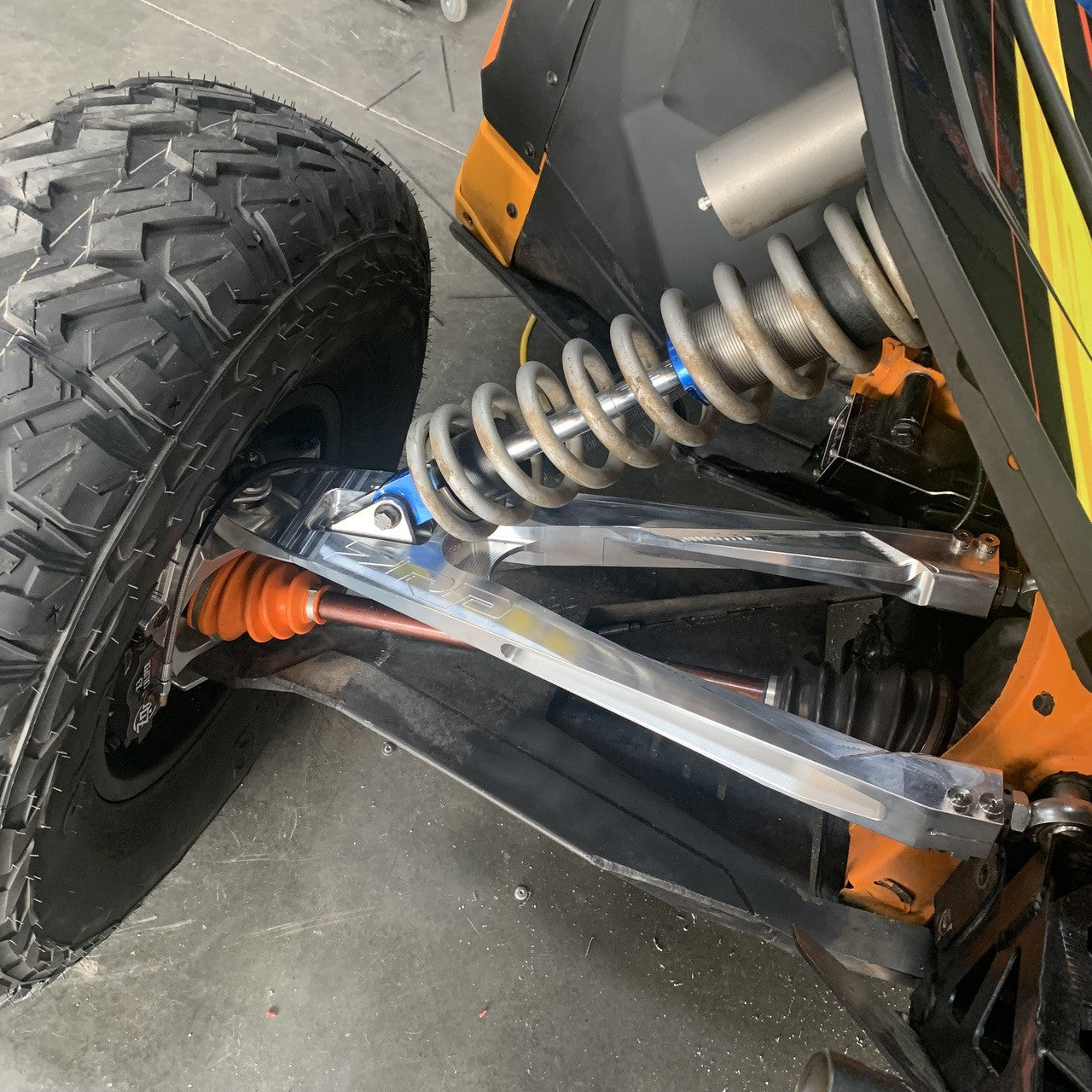

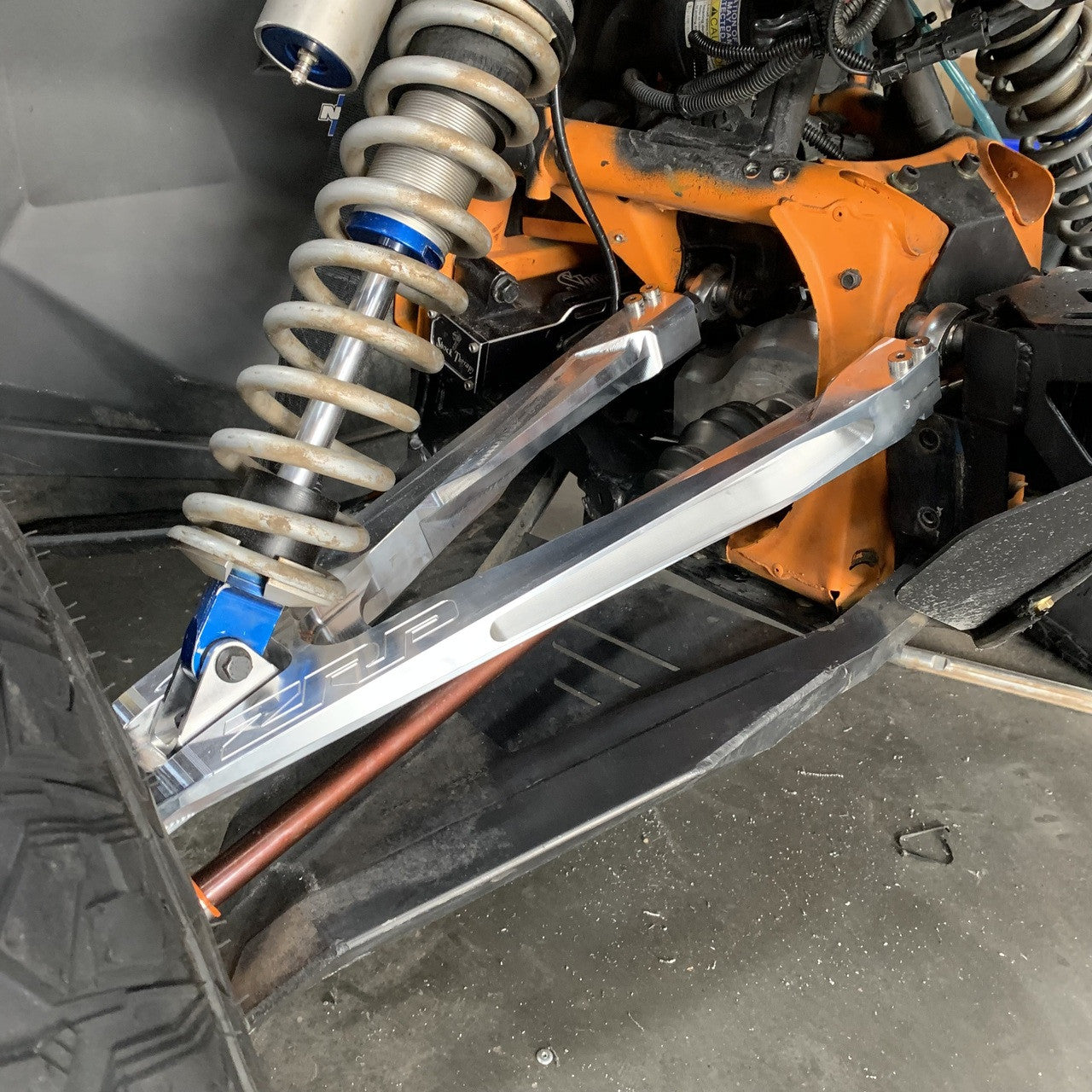

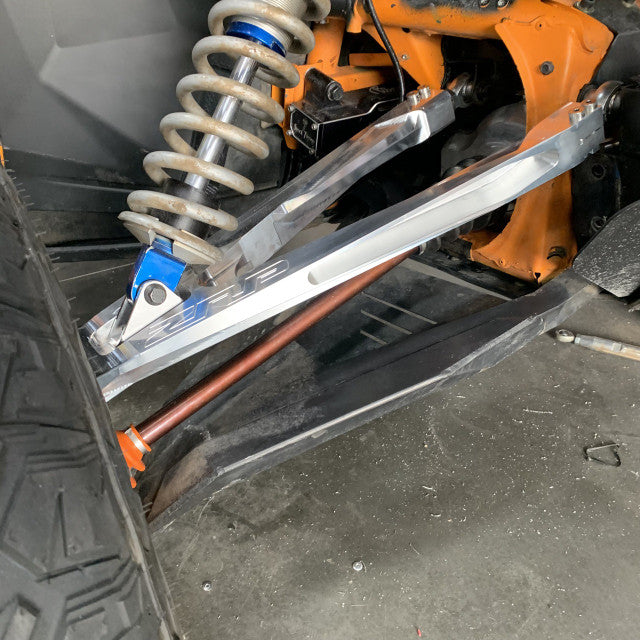

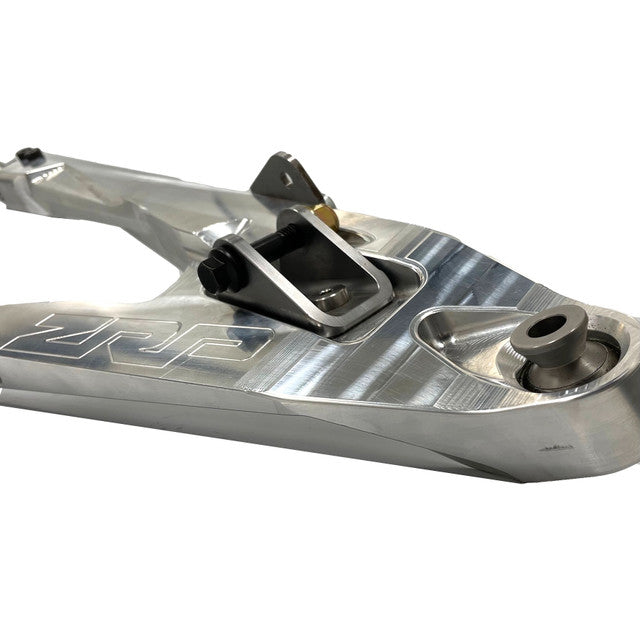

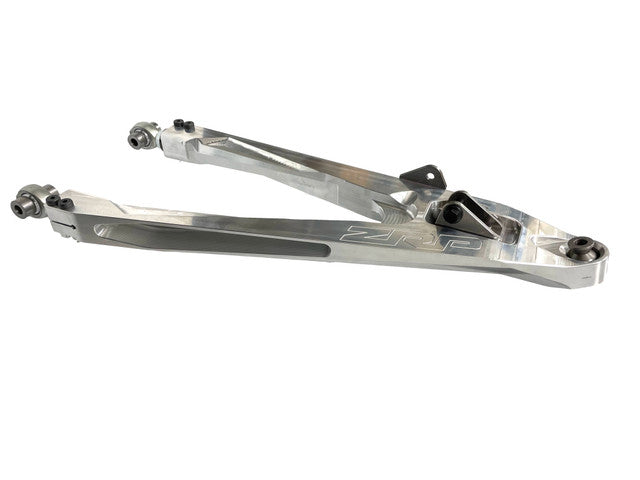

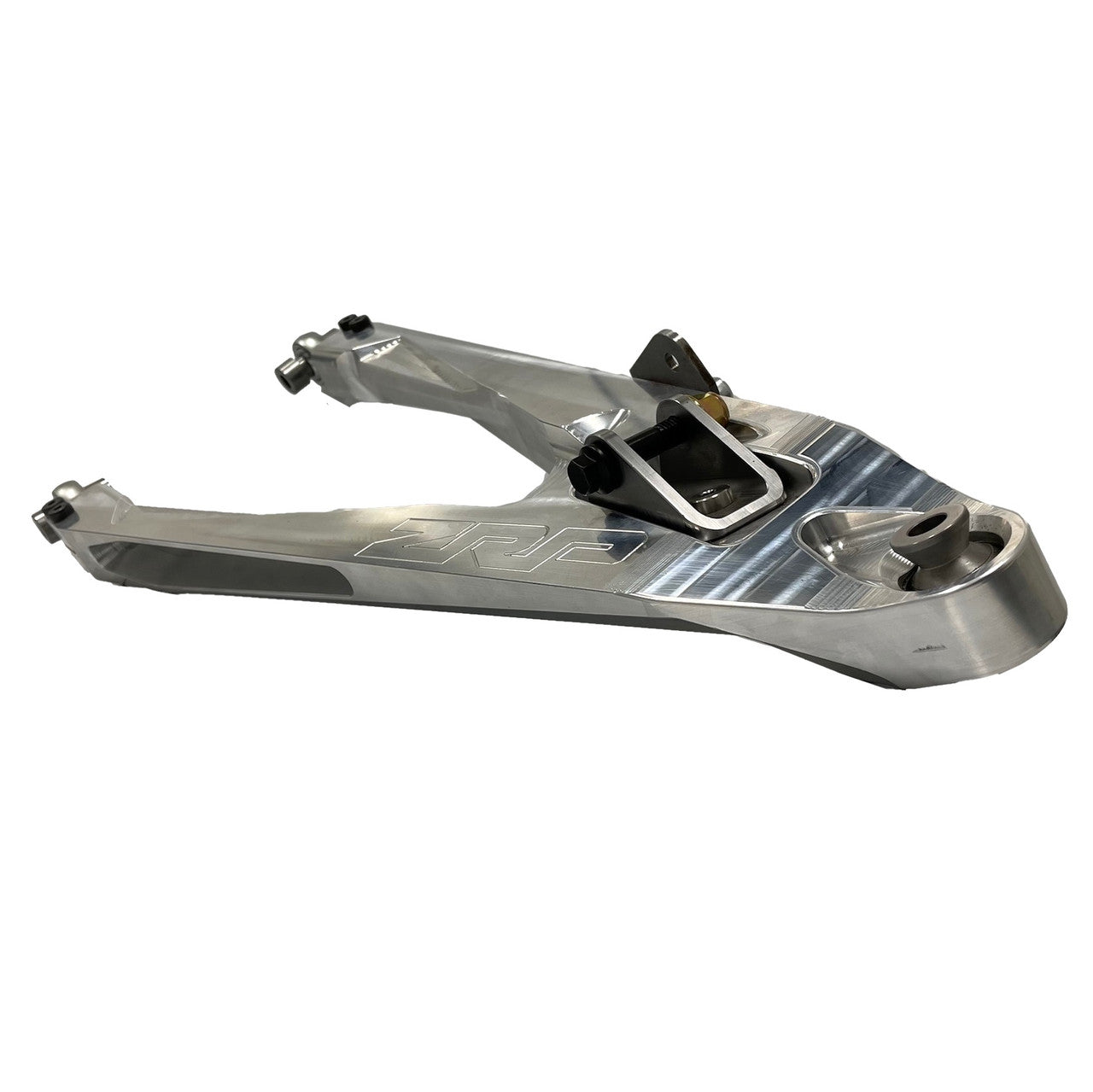

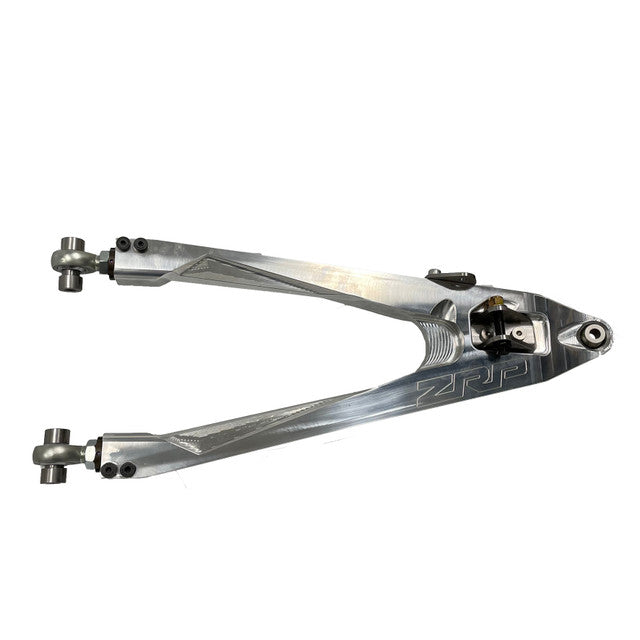

X3 72” Billet Upper Control Arm
The ZRP Can-Am X3 72” Billet 7075 Upper Control Arm is the ultimate upper arm upgrade for aggressive riders and racers who demand maximum precision, strength, and adjustability. Designed specifically for 2017–2022 Can-Am Maverick X3 RS (72”) models, this arm has been race-tested for over two years in extreme off-road environments.
Fully precision-machined from aircraft-grade 7075 billet aluminum, this upper control arm delivers unmatched rigidity and weight savings while providing on-car caster and camber adjustment—allowing you to dial in your suspension setup without removing the arm.
Not compatible with Smart-Shox models
Ball joints will NOT work with this arm
🏁 Race-Proven Billet Design
- Tested and trusted in desert racing and extreme trail abuse
- Fully billet construction for superior precision and durability
- Designed to pair with Double Shear Knuckles or Uni-Ball Pins
- Eliminates weak OEM ball joint limitations
🔧 Premium Materials & Hardware
- Material: Precision-machined 7075 billet aluminum
- Outer Joint: 7/8” FK Uni-Ball for maximum strength and articulation

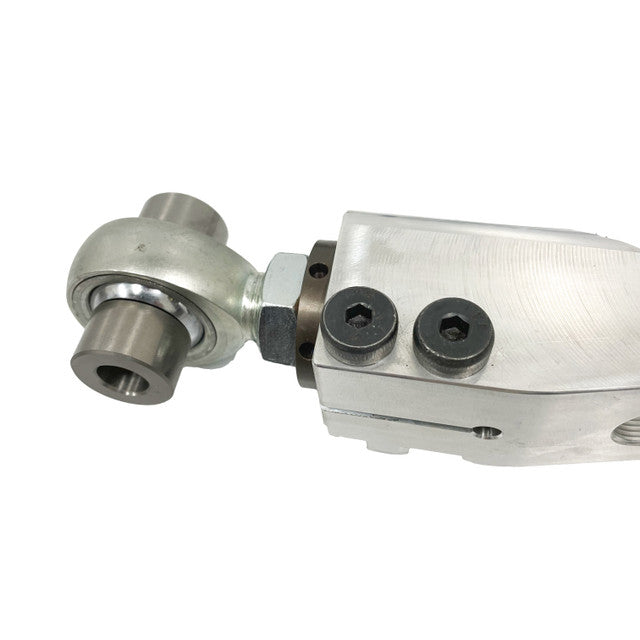

- Chassis Mounts: 3/4” FK rod ends – strong, serviceable, and race-ready
⚠️ Not compatible with standard ball joint knuckles
⚙️ Advanced Adjustability & Features
- On-car caster and camber adjustment – no arm removal required
- Built-in removable limit strap tabs
- Optimized geometry for high-performance suspension tuning
- Classic ZRP race-inspired finish and design
Made in the USA + Lifetime Warranty
- Designed, tested, and manufactured in the USA
- Backed by the ZRP Lifetime Warranty
- Built to withstand racing, desert punishment, and aggressive driving
📦 What’s Included
- (1) ZRP 7075 Billet Upper Control Arm
- FK Uni-Ball and FK Rod Ends pre-installed/configured
- Integrated limit strap tabs
🚗 Fitment
- 2017–2022 Can-Am Maverick X3 RS (72”)
- ❌ Not compatible with Smart-Shox
- ❌ Not compatible with ball joint knuckles
🎨 Finish Options
- Standard: Raw aluminum
- Optional anodizing available (additional cost & lead time)
📞 Call (760) 996-5695 for anodizing options and current lead times.
🏆 Why Choose the ZRP X3 Billet Upper Control Arm?
If you want race-level precision, easy alignment tuning, and a bulletproof upper arm built to survive real abuse, this is the best upper control arm available for the Can-Am X3 RS 72”.
