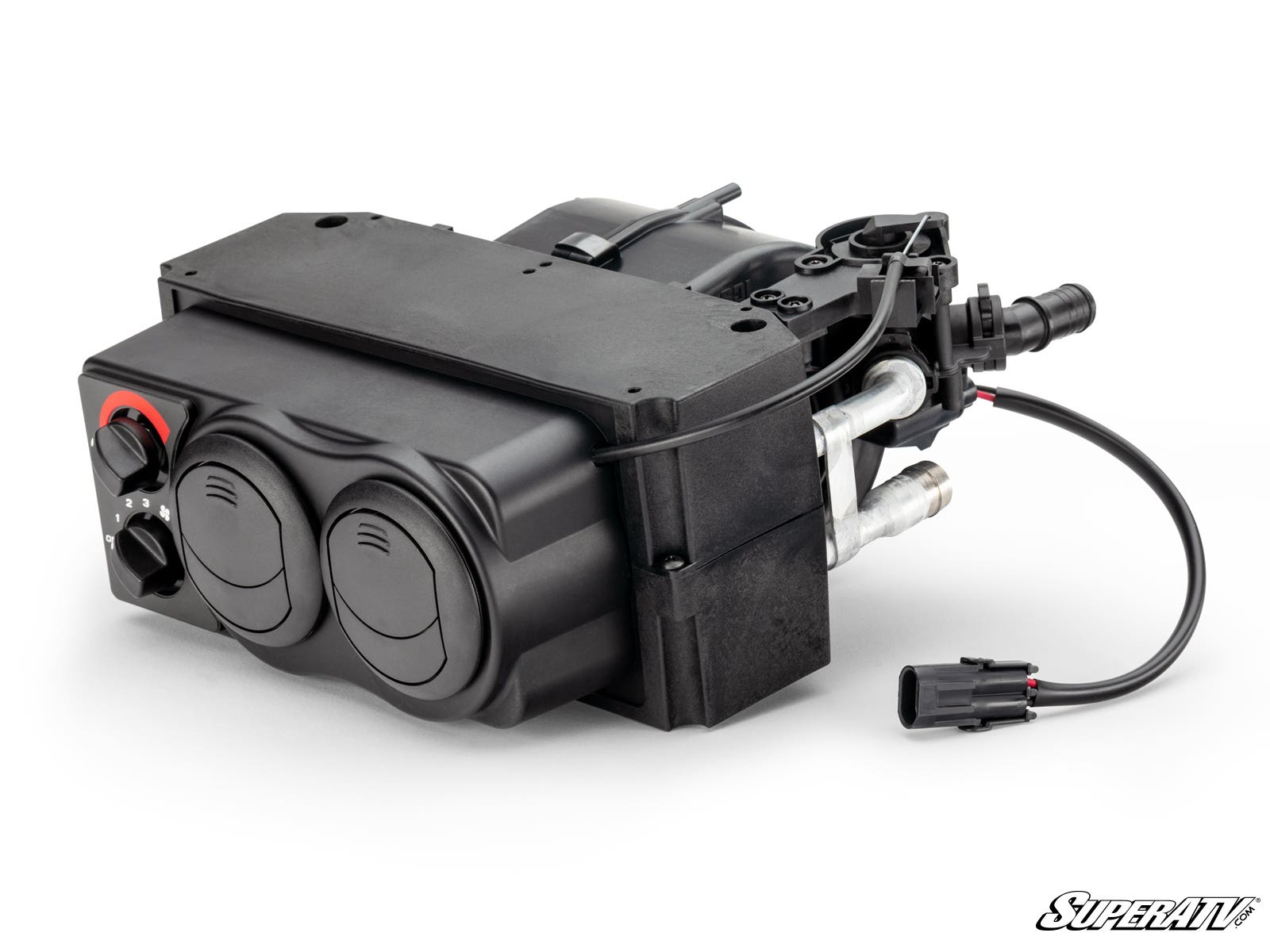

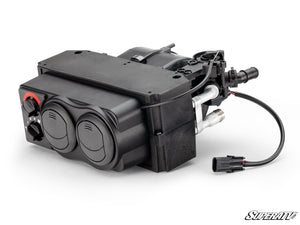

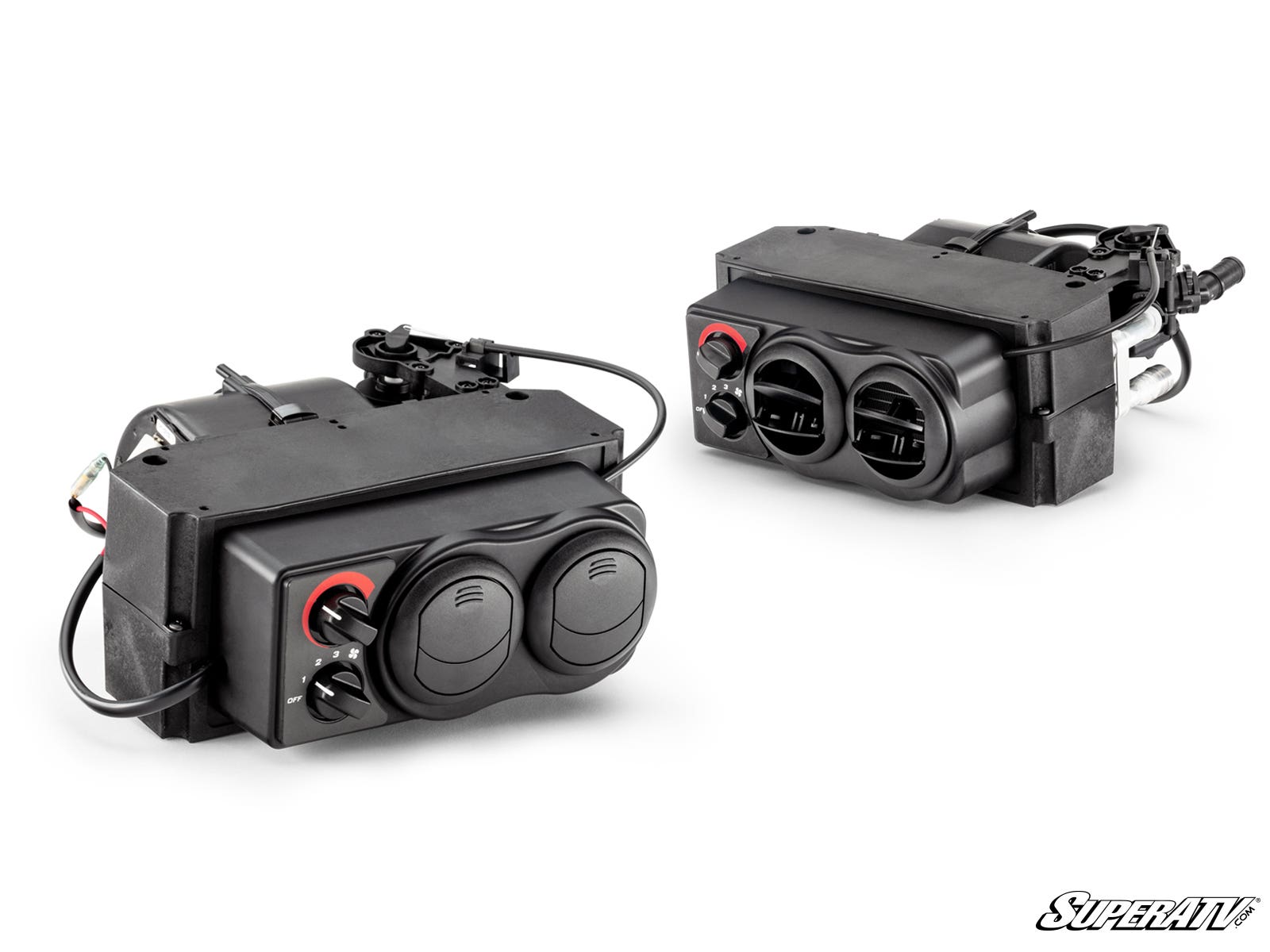

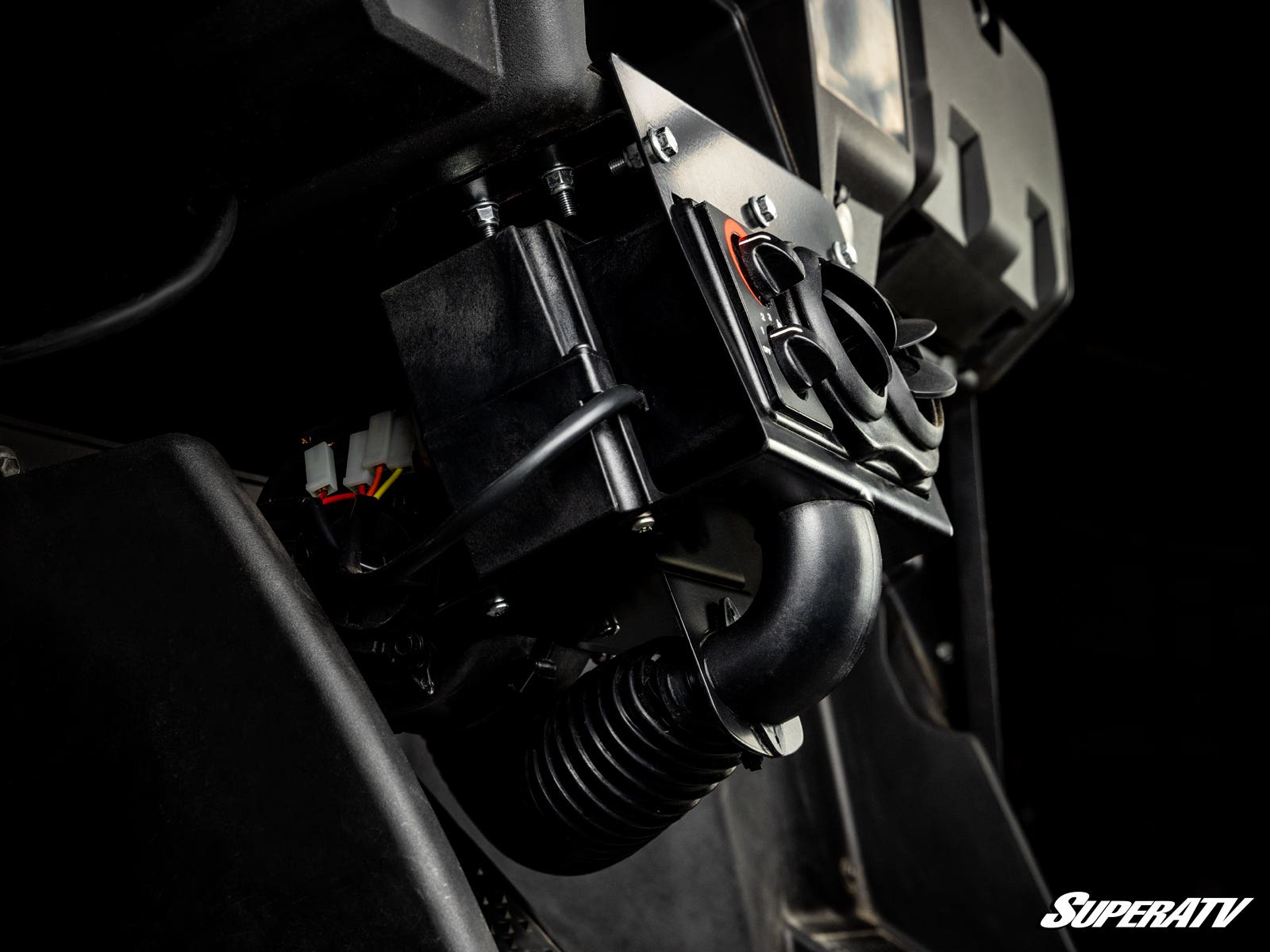

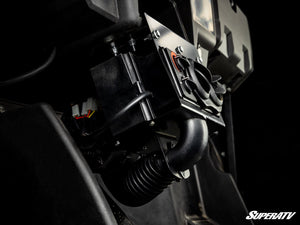

The SuperATV Yamaha Viking cab heater draws heat from the engine coolant lines to warm your cab like a car heater. It mounts below the dash, out of the way, with adjustable temperature and fan speeds and defrost vents to keep the windshield clear.
One heater kit covers the Viking models in the fitment list. Add a quick-start flow valve or idle flow pump for faster heat.
Key Features

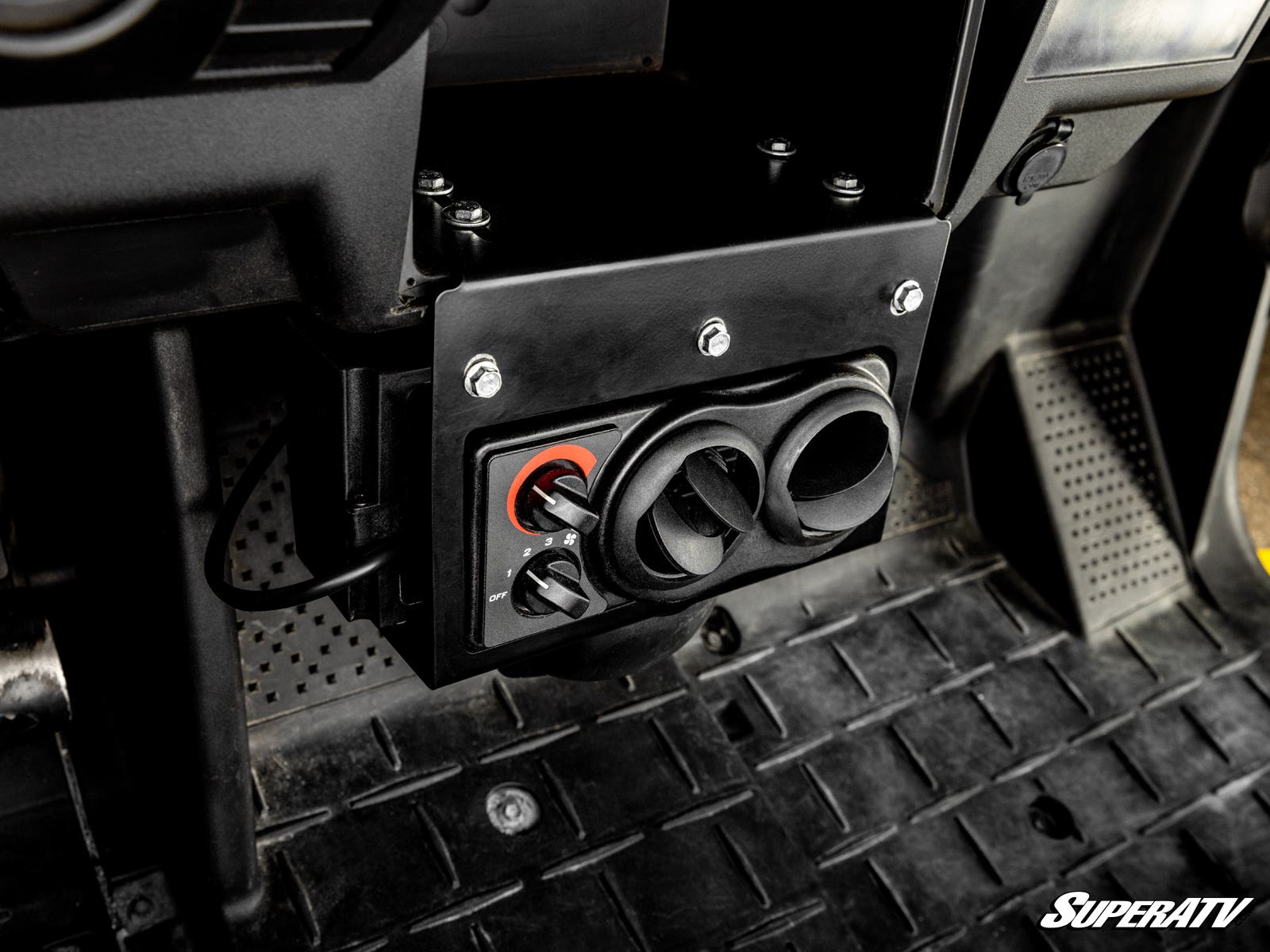

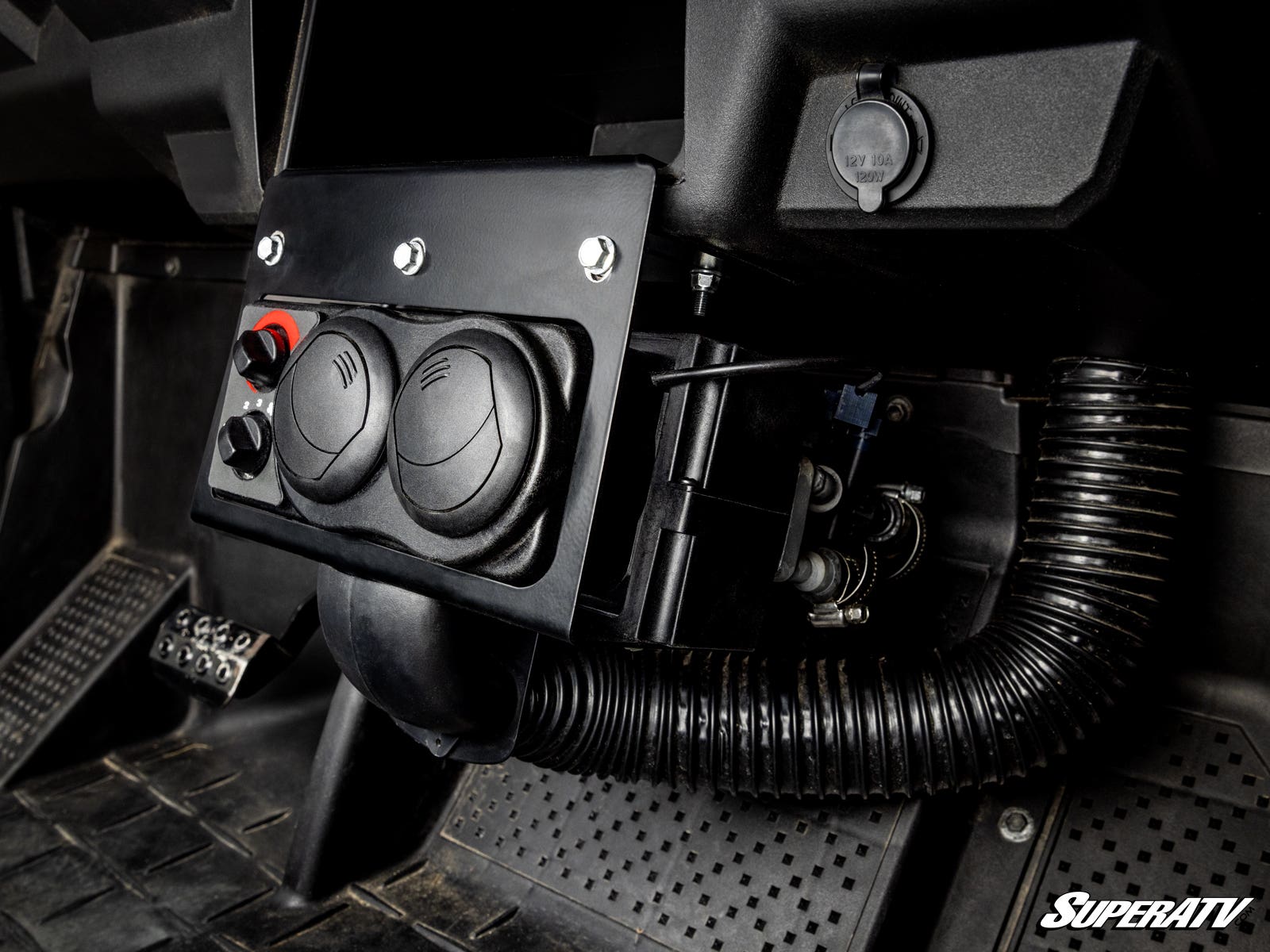

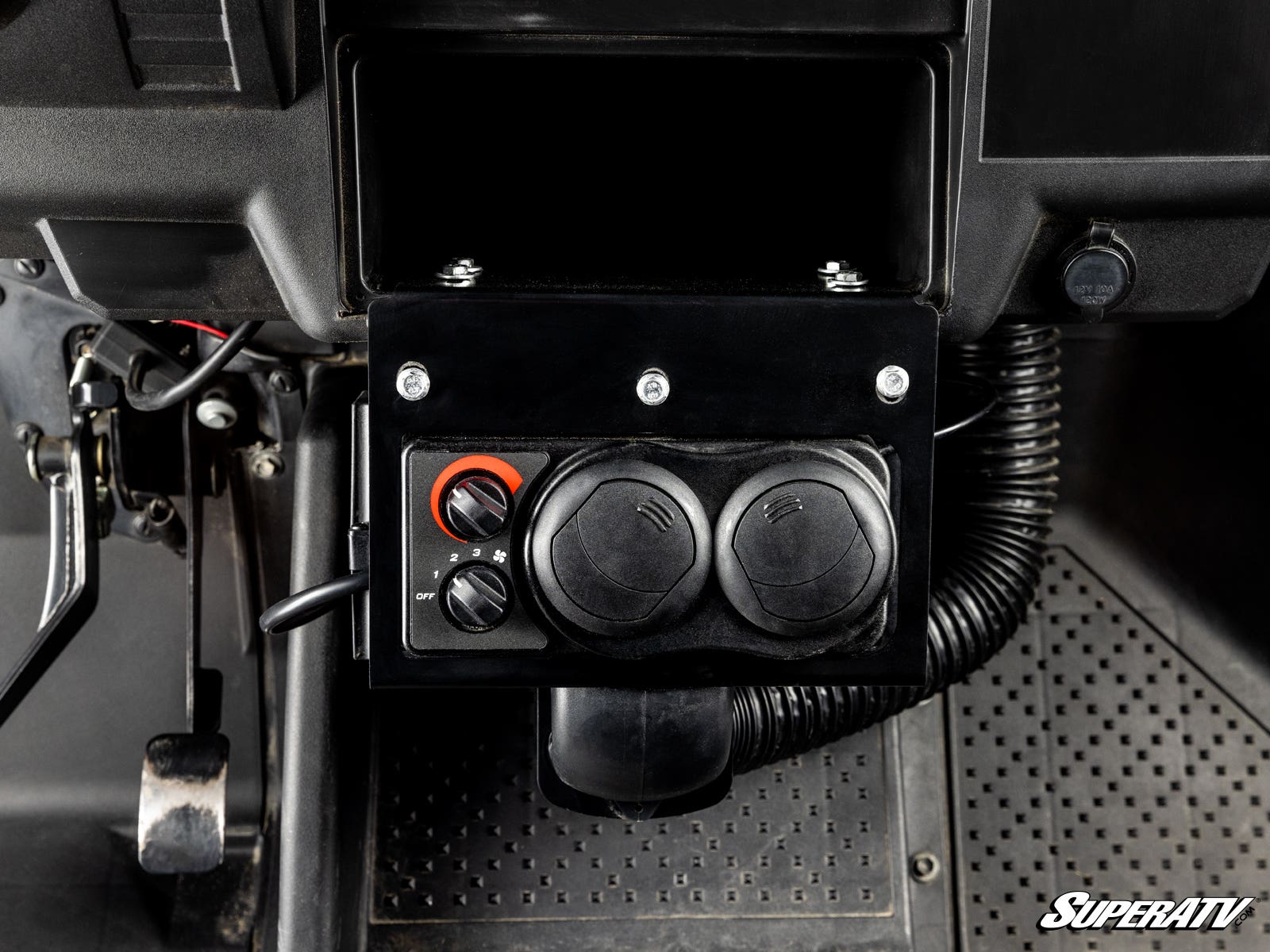

- Mounts below the dash
- Capable of 14,600 BTU at 135 CFM

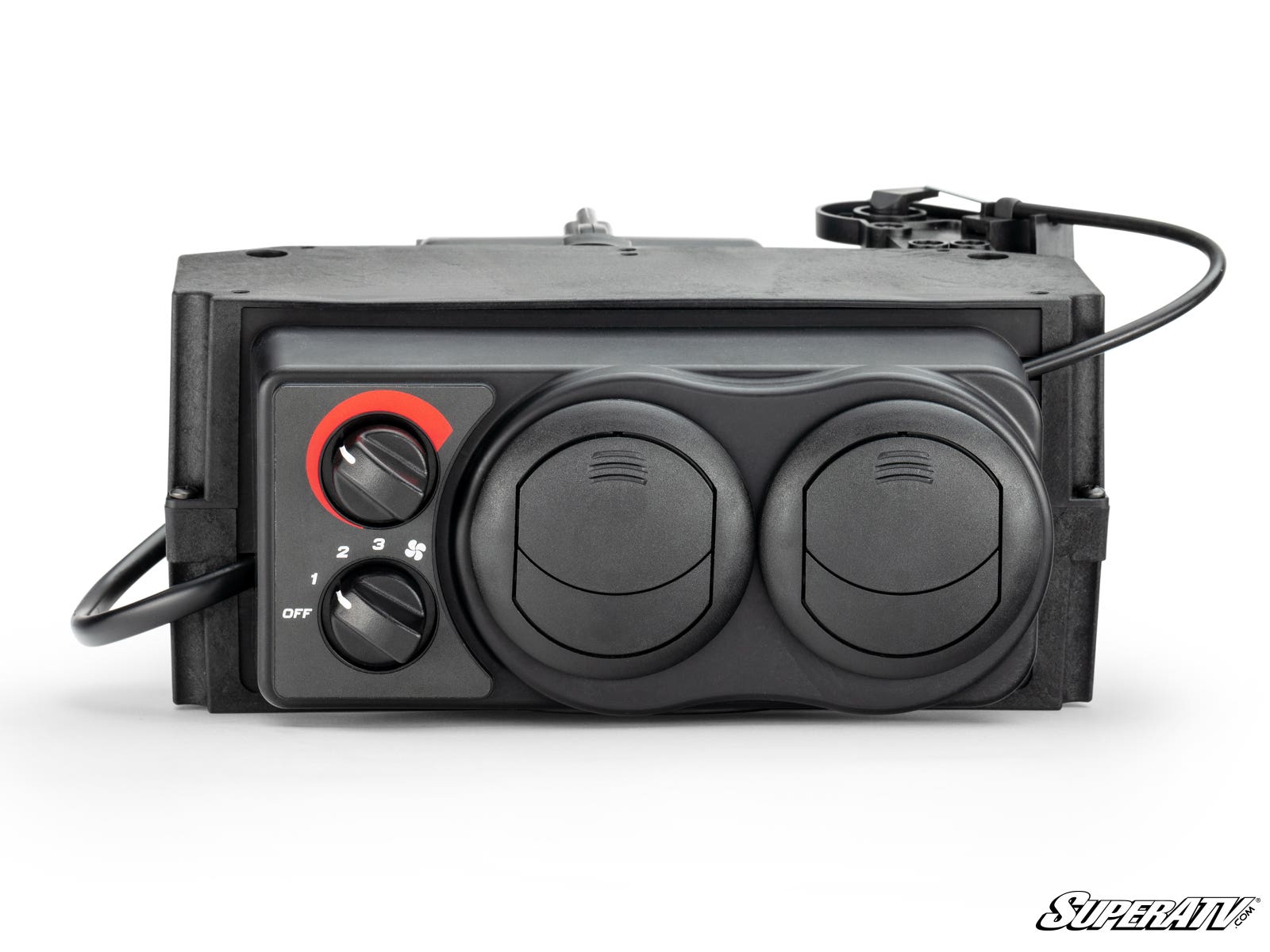

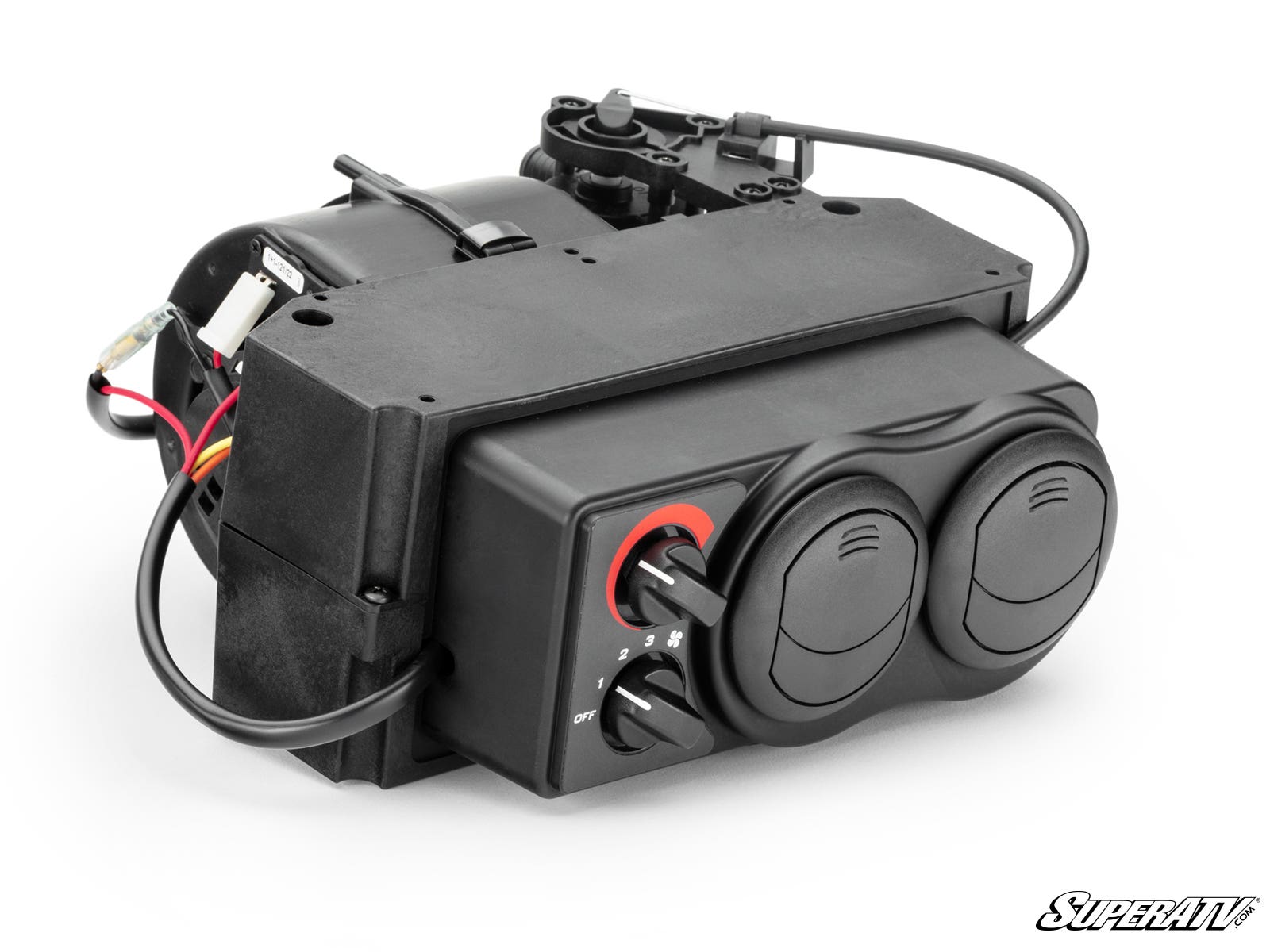

- Adjustable temperature and fan speeds
- 360° adjustable vents
- Defrost hoses and vents included, routed through the dash
- High-grade radiator hoses rated from -40°F to 285°F
- Built-in shutoff valve
- Heater control box measures 10" x 4.5" x 11.75"
- Includes hoses, clamps, hole saws and hose pliers
- Optional quick-start flow valve and idle flow pump
Built To Solve: A Cold Cab on the Yamaha Viking
- Cold winter rides and chores that cut the season short
- Snow, ice and fog on the windshield
- Slow warm-up on cold mornings, solved with the optional flow valve and idle pump
Best For: Viking Owners Who Ride and Work Through Winter
- Farm, ranch and property owners using the Viking year-round
- Hunters heading out on cold mornings
- Viking VI owners hauling a full crew
- Owners with doors and front and rear windshields installed
Specifications
- Heat source: engine coolant
- Mounting: below the dash
- Output: capable of 14,600 BTU at 135 CFM
- Current draw: 3.4 amps at 13.7 volts
- Heater control box: 10" x 4.5" x 11.75"
- Hose rating: -40°F to 285°F
- Manufacturer Part Number: HTR-Y-VIK
Fitment
Fits the following Yamaha Viking models:
- Yamaha Viking, EPS: 2014+
- Yamaha Viking EPS SE: 2015+
- Yamaha Viking EPS Ranch Edition: 2018+
- Yamaha Viking VI, VI EPS: 2015+
- Yamaha Viking VI EPS Ranch Edition: 2016+
- Yamaha Viking VI EPS SE: 2015-2016
Fitment is not guaranteed on models not listed.
FAQ
How much heat does this Viking cab heater put out?
SuperATV rates the heater as capable of 14,600 BTU at 135 CFM. It draws heat from the engine coolant, like a car heater, so it keeps putting out hot air as long as the engine runs.
Does it defrost the windshield?
Yes. The kit includes defrost vents and hoses that route through the dash to keep the windshield clear of snow, ice and fog.
Which Viking models does it fit?
SuperATV lists Yamaha Viking, EPS: 2014+; Yamaha Viking EPS SE: 2015+; Yamaha Viking EPS Ranch Edition: 2018+; Yamaha Viking VI, VI EPS: 2015+; Yamaha Viking VI EPS Ranch Edition: 2016+; Yamaha Viking VI EPS SE: 2015-2016.
Is drilling required?
Yes. Installation requires drilling through plastic and the firewall, and SuperATV includes the bits you need.
Quick-start flow valve or idle flow pump: which one do I need?
The quick-start flow valve sends all engine coolant to the heater core at low engine temps and cuts warm-up time roughly in half, then opens on its own once the engine is warm. The idle flow pump actively circulates coolant so you get heat in about 30 seconds, even at idle or slow speeds. SuperATV recommends combining them for the fastest heat.
Why SuperATV
SuperATV builds this heater kit around the Viking: every kit comes with the hoses, clamps, hole saws, hose pliers and instructions for a straightforward install. The heater is backed by SuperATV's 1-year limited warranty against manufacturing defects to the original purchaser.
Make Your Viking a Year-Round Machine
Confirm your Viking model in the fitment list, choose your heater package, and pair it with a windshield, roof and doors to seal the cab.
