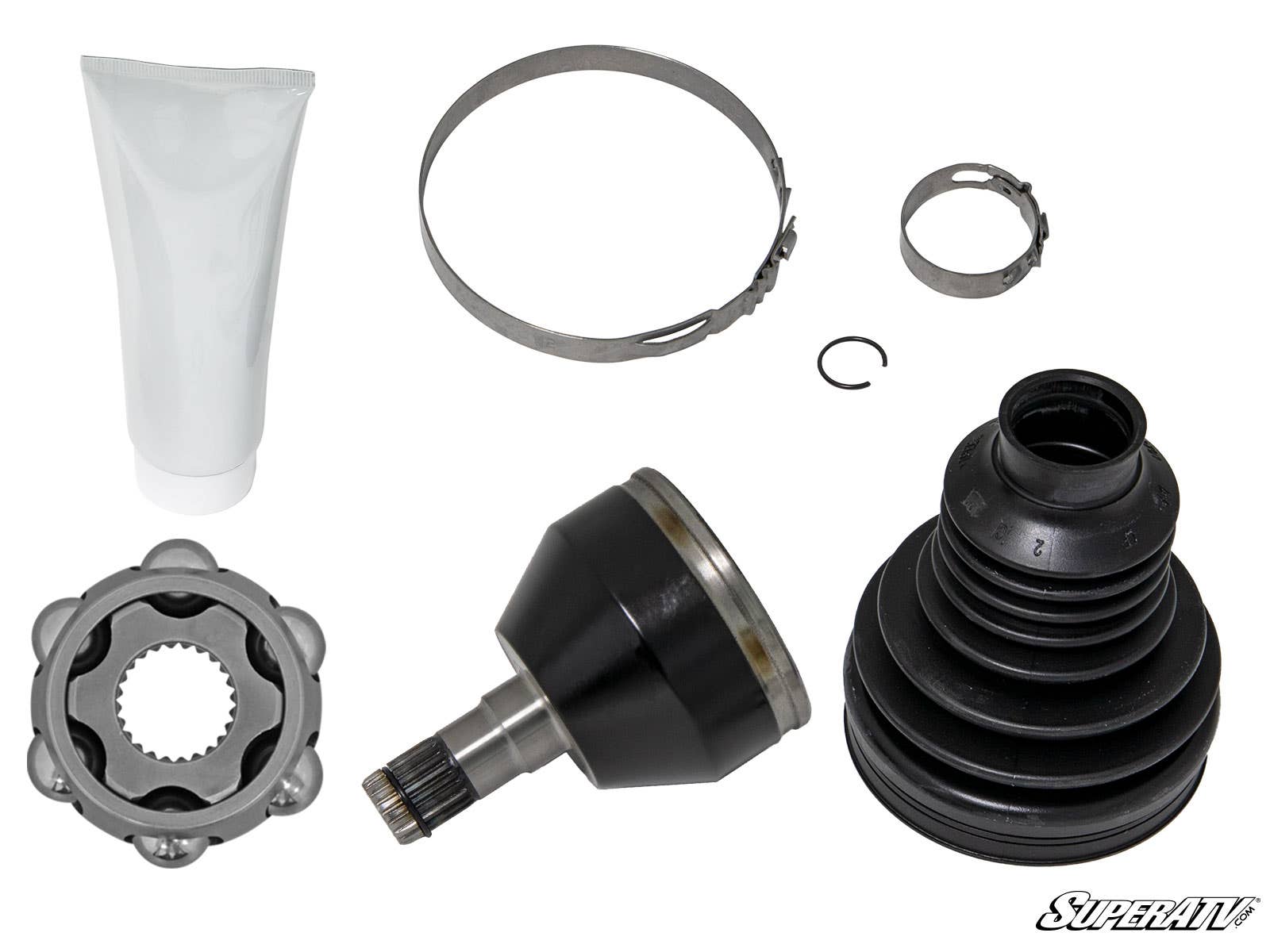

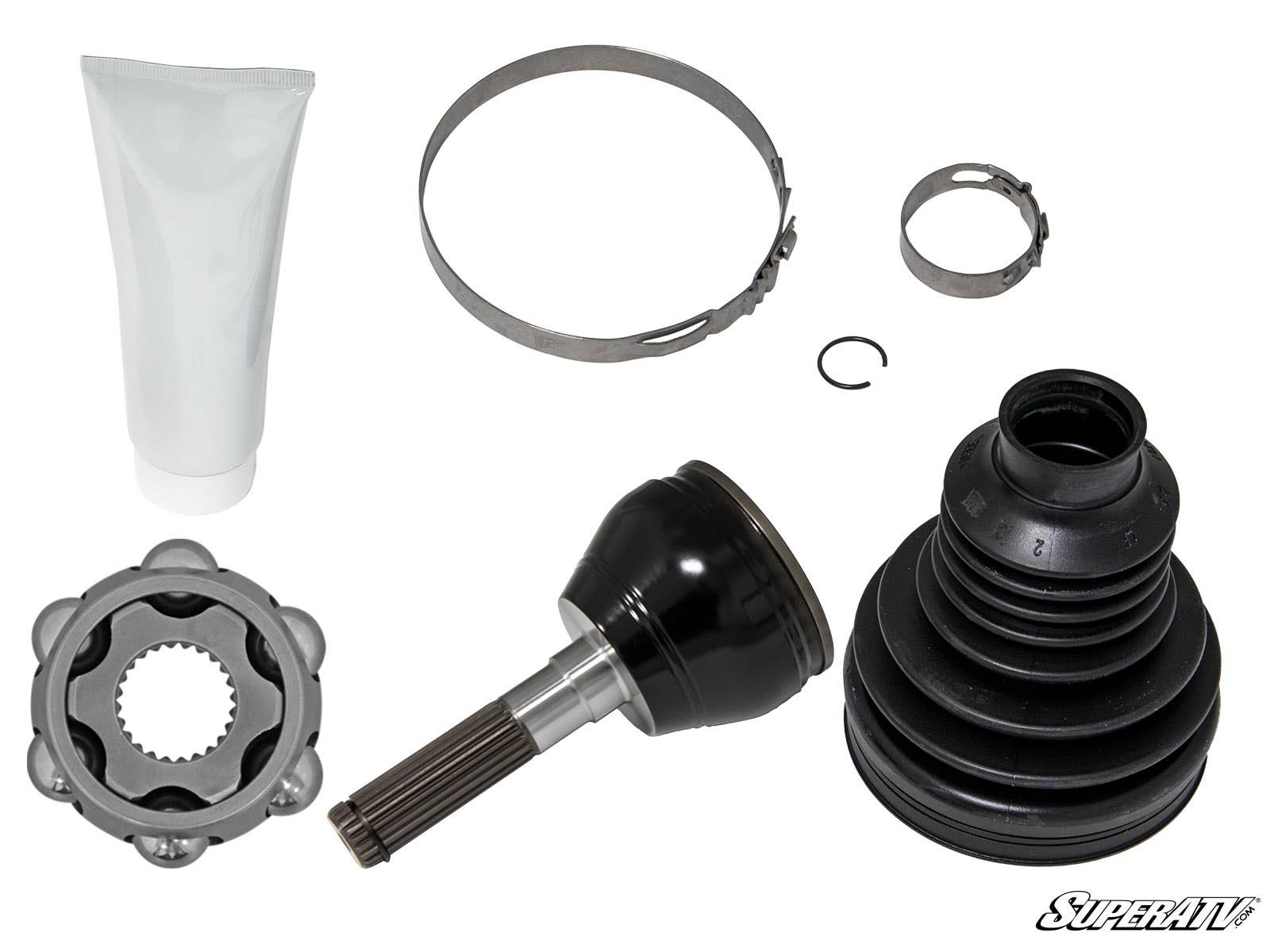

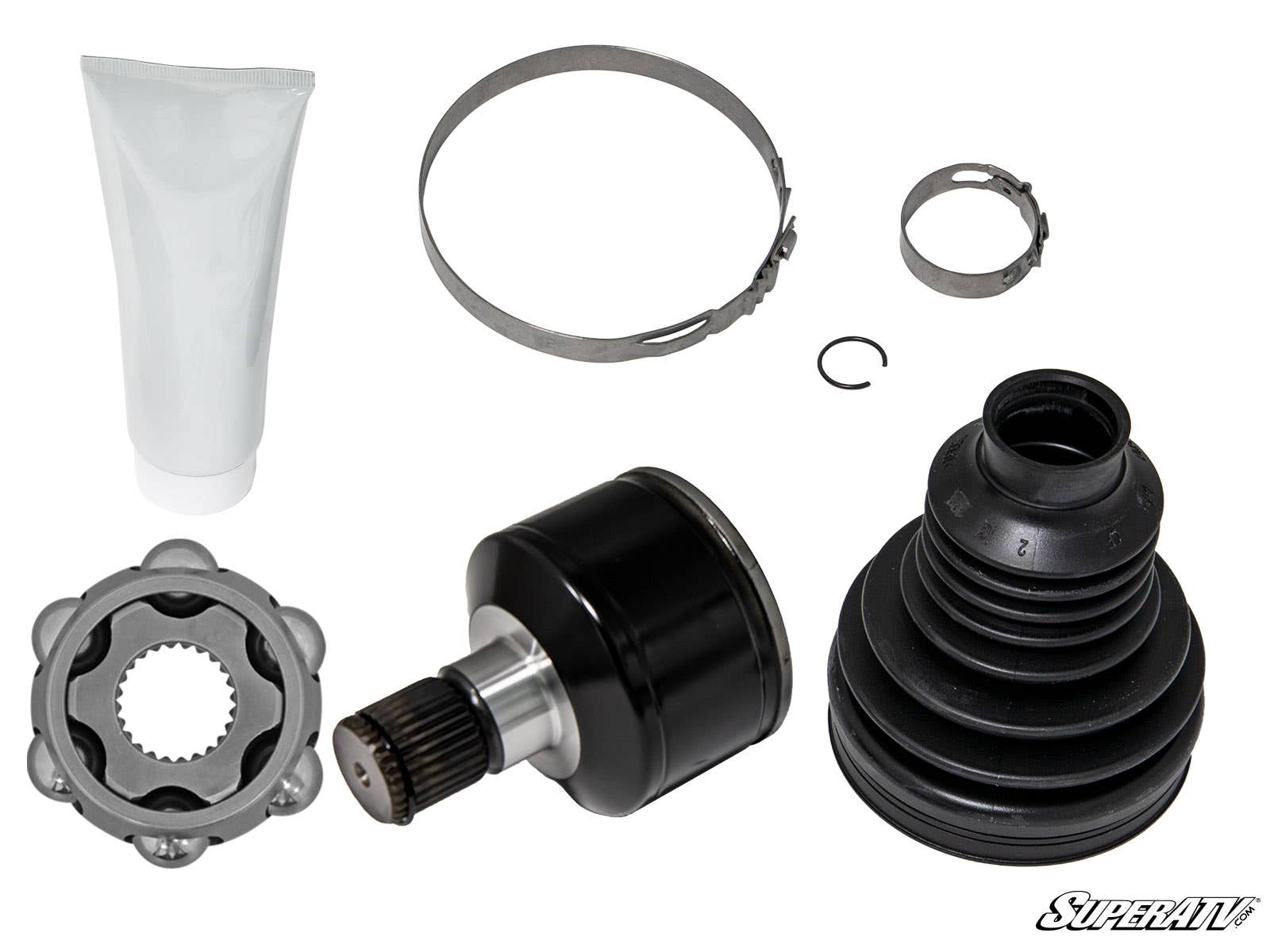

SuperATV X300 Can-Am Maverick X3 Replacement CV Joint Kit. Replacement CV joints for Can-Am Maverick X3 X300 axles, stock and big lift, sold one CV end per kit and matched to your axle part number. SuperATV builds each kit for its own X300 axles, so the fit matches the shaft it rides on.
Every SuperATV X300 axle takes a specific inner and outer CV joint kit. Find the part number printed on your axle shaft, look it up in the Fitment table below, and order the kit for the end you are rebuilding. Pair it with the matching boot kit if the old boot is torn.
This X300 CV joint kit rebuilds one end of a SuperATV X300 axle on a Can-Am X3. Every X300 X3 axle uses CVKW-C-002 as the Maverick X3 outer CV joint; rears also use CVKW-C-001 as the inner CV joint. Can-Am X3 CV joint replacement, or any X3 CV joint repair on an X300 axle, comes down to these two. Each can am cv joint kit is one CV end, so this cv joint replacement kit beats buying a whole axle when one outer CV joint fails. Other cv joint kit buyers should confirm their axle brand first.
Key Features
- Maximized CV size for strength
- High articulation angles
- 4340 chromoly with a proprietary heat treatment
- Precision-engineered cage and housing for reduced friction and a smooth range of motion
- High-strength, flexible TPEE boot
- Synthetic grease to keep CVs cool
Built To Solve: Worn CV Joints on X300 Axles
- A clicking or binding CV joint does not always mean a whole new axle
- Rebuild one end of a SuperATV axle with a joint built for that axle
- Each kit is matched to one end of one SuperATV axle part number
Best For: Can-Am Owners Running SuperATV X300 Axles
- Owners of Can-Am Maverick X3 X300 axles, stock and big lift
- Riders rebuilding one end of an axle instead of buying a new one
- Shops keeping SuperATV axle service parts on hand
Specifications
- Brand: SuperATV
- Product line: X300 replacement CV joint kit
- CV material: 4340 chromoly with a proprietary heat treatment (per SuperATV)
- Boot: TPEE (thermoplastic elastomer)
- Sold: one CV joint kit per order (one CV end)
Fitment
- AXW07-001R0: inner CVKW-C-001, outer CVKW-C-002
- AXW07-002FL0: inner not offered, outer CVKW-C-002
- AXW07-003FR0: inner not offered, outer CVKW-C-002
- AXW07-004R0: inner CVKW-C-001, outer CVKW-C-002
- AXW07-005FL0: inner not offered, outer CVKW-C-002
- AXW07-006FR0: inner not offered, outer CVKW-C-002
- AXW-7-72-R-LK6-BT: inner CVKW-C-001, outer CVKW-C-002
- AXW-7-72-FL-LK6-BT: inner not offered, outer CVKW-C-002
- AXW-7-72-FR-LK6-BT: inner not offered, outer CVKW-C-002
Each line lists a SuperATV axle part number with the inner and outer kit it takes. Covers 2017-2026 vehicles fitted with these SuperATV axles. Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.
FAQ
Where do I find my axle part number?
SuperATV prints the part number on the axle shaft. Match it to the table in the Fitment section to see which inner and outer kit your axle uses.
Does one CV joint kit rebuild both ends of the axle?
No. Each kit is one CV end, inner or outer. The Fitment table lists the inner and outer kit for every axle.
Will this kit fit an OEM or other-brand axle?
SuperATV designs these kits for its X300 axles only. Match your SuperATV axle part number before ordering.
Do I need a new boot with the CV joint kit?
SuperATV supplies a boot with its CV joint kits. If you only need a boot on a healthy joint, order the matching SuperATV boot kit instead.
When should I replace the whole axle instead?
If the shaft is bent or twisted, or both ends are worn, a complete axle is usually the better fix. If one joint is worn and the shaft is straight, a CV joint kit is the cheaper repair.
Why SuperATV
SuperATV designs, engineers, manufactures and tests its axles and axle service parts in-house. Each kit is built for a specific SuperATV axle family, so the boot, clamps and grease match the CV joint they protect.
Rebuild Your X300 Axle
Order the inner and outer CV joint kits your axle needs, or browse complete SuperATV X300 axles if the shaft is damaged. Questions on fitment? Send us your axle part number.
