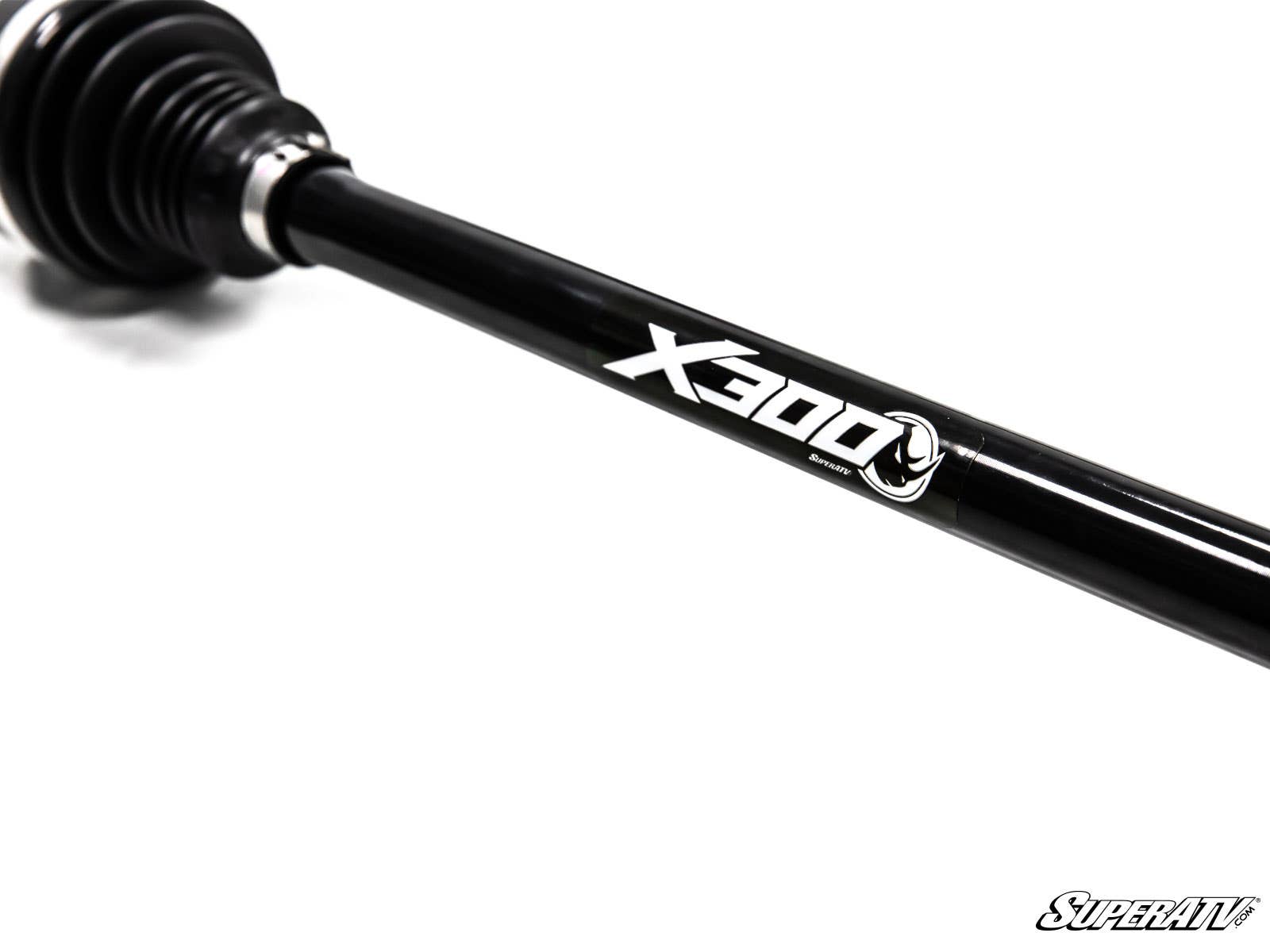

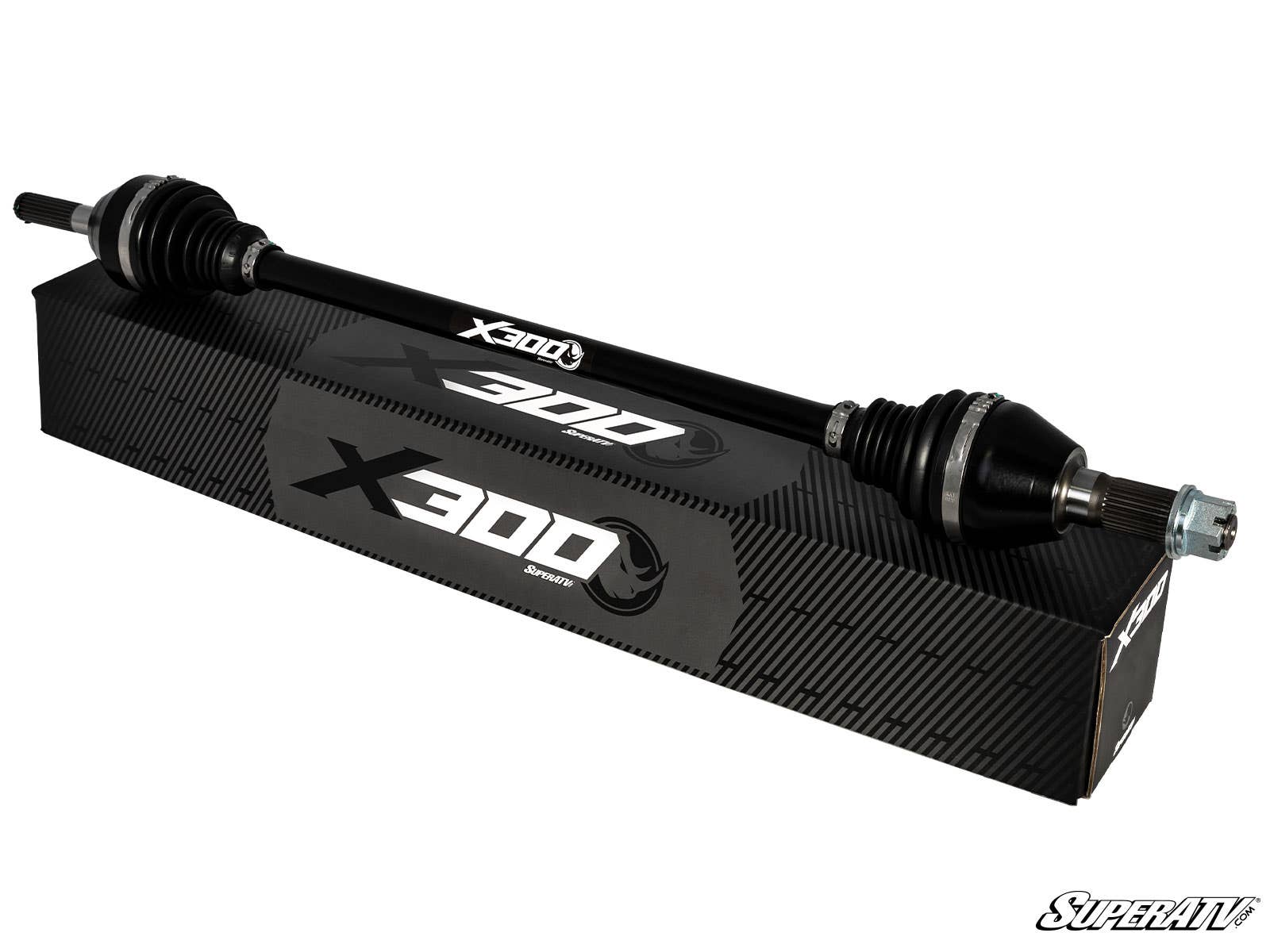

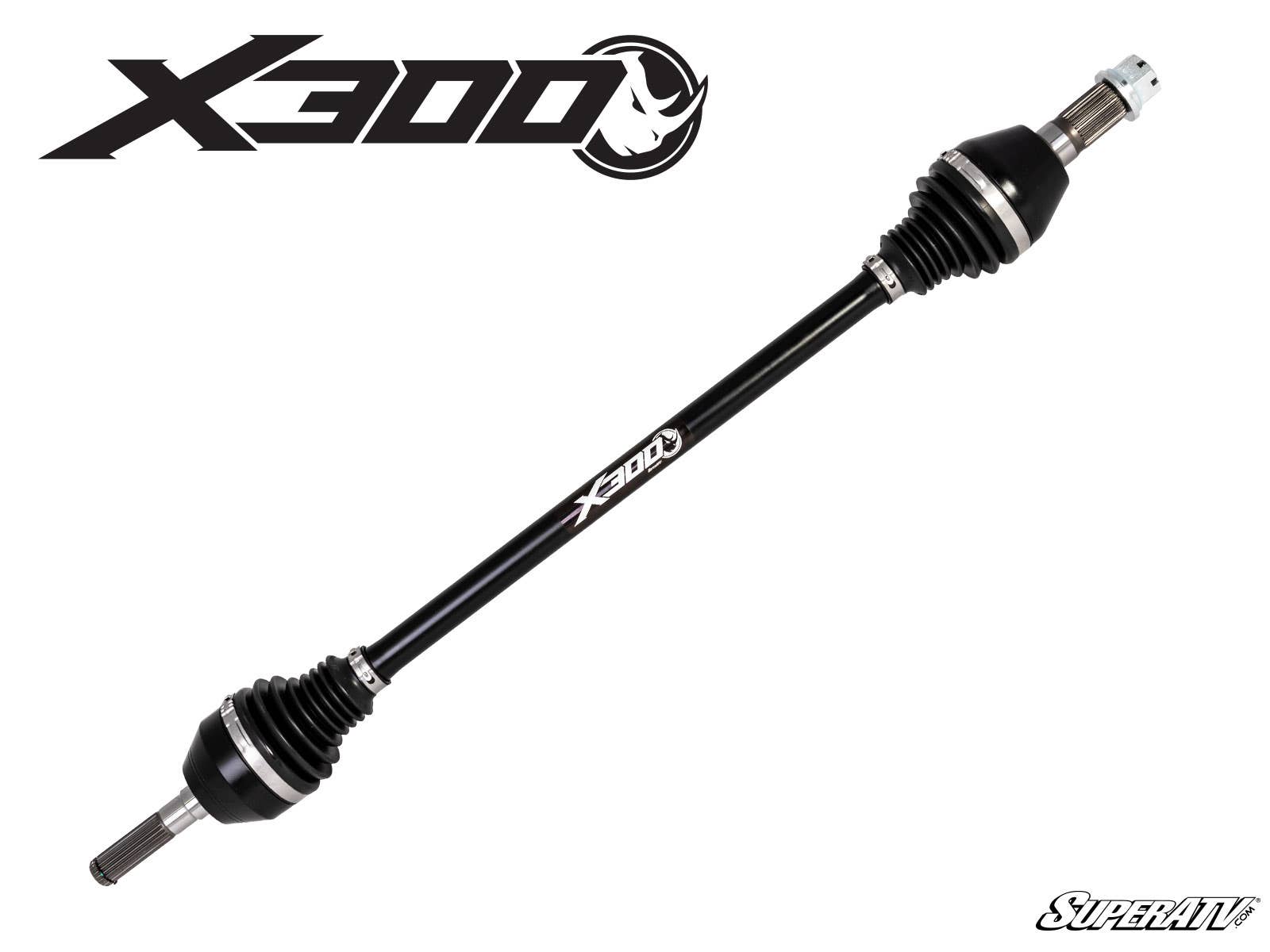

SuperATV X300 Heavy-Duty Axles are stock-length replacement axles for 2017 and newer Can-Am Maverick X3 models, 64 and 72 inch, two and four seat. They use a 300M alloy steel shaft with Flexshaft technology, CV components made of 300M and 4340 alloy steel, and a 3-year warranty.
Choose your axle position, then 64 or 72 inch width. Each axle is sold individually. They do not fit machines with Smart-Lok differentials or ABS.
This is the can am x3 axle for owners who keep breaking stock parts. Can am maverick x3 axles from the factory are a known weak point, and a can am x3 axle replacement in X300 steps up to 300M. Pick the maverick x3 axle by position: can am x3 front axles by side, or the can am maverick x3 rear axle. Riders asking for the best can am x3 axles or can am x3 heavy duty axles land here; these x3 x300 axles are the X3 version of SuperATV's x300 axles.
Key Features
- 300M alloy steel shaft
- CV components made of 300M and 4340 alloy steel
- Maximized CV, spider and cage size for strength
- Flexshaft technology: the shaft flexes to absorb impact
- Reduces strain on CVs and drivetrain components
- CVs packed with proprietary high-temp grease
- 3-year warranty, which SuperATV calls the industry's best axle warranty
Built To Solve: Broken Axles on a Can-Am Maverick X3
- Stock axles snapping under big tires and hard landings
- CV joints failing from heat and high angles
- Replacing broken axles with more stock-strength parts
Best For: 2017+ Can-Am Maverick X3 Owners
- Maverick X3 Turbo, Turbo R and RR owners
- Maverick X3 MAX owners
- 64 inch and 72 inch machines
- Owners replacing one corner or several
Specifications
- Brand: SuperATV
- Product line: X300 heavy-duty axle
- Shaft: 300M alloy steel with Flexshaft technology
- CV components: 300M and 4340 alloy steel
- Grease: proprietary high-temp
- Warranty: 3 years (manufacturing defects, original purchaser)
- Sold: individually
- Length: stock
- Widths: 64 inch, 72 inch
- Positions: front driver side, front passenger side, rear
- Manufacturer Part Numbers (64 inch): AXW07-002FL0, AXW07-003FR0, AXW07-001R0
- Manufacturer Part Numbers (72 inch): AXW07-005FL0, AXW07-006FR0, AXW07-004R0
Fitment
- Can-Am Maverick X3 900: 2018
- Can-Am Maverick X3 Turbo DS (standard): 2017+
- Can-Am Maverick X3 Turbo R DS (XDS): 2017+
- Can-Am Maverick X3 Turbo XRC: 2018-2021 (rear only)
- Can-Am Maverick X3 Turbo XMR: 2018+ (rear only)
- Can-Am Maverick X3 MAX Turbo DS (standard): 2017+
- Can-Am Maverick X3 MAX Turbo R DS (XDS): 2017+
- Can-Am Maverick X3 MAX Turbo RR XDS: 2020+
- Can-Am Maverick X3 Turbo R RS (XRS): 2017-2018, 2021+ (non Smart-Lok)
- Can-Am Maverick X3 Turbo RR XRS: 2020+ (rear only)
- Can-Am Maverick X3 Turbo R XRC, Turbo RR XRC, Turbo R XMR, Turbo RR XMR: rear only
- Can-Am Maverick X3 MAX Turbo R RS (XRS): 2017+
- Can-Am Maverick X3 MAX Turbo RR XRS: 2020+
- Can-Am Maverick X3 MAX Turbo RR XMR: 2020+ (rear only)
SuperATV lists front axles as currently unavailable for XRC, XMR and Turbo RR XRS models. Not compatible with anti-lock brake systems (ABS). Does not fit machines with Smart-Lok differentials. Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.
FAQ
Do they fit Smart-Lok machines?
No. SuperATV says these do not fit machines with Smart-Lok differentials.
Which width do I need?
64 inch machines are the DS and XDS models; 72 inch machines are the XRS, XRC and XMR models. Check the fitment list for your exact trim.
Do they work with ABS?
No. SuperATV lists them as not compatible with anti-lock brake systems.
Are they sold as a pair?
No. Each axle position is a separate part, sold individually. Order only the positions you need.
How do X300 axles compare to Rhino 2.0?
X300 uses a 300M alloy steel shaft and 300M/4340 CV components with a 3-year warranty. Rhino 2.0 uses 4340 chromoly with an 18-month warranty and costs less. We list both for the Maverick X3.
What warranty do X300 axles carry?
SuperATV backs each X300 axle with a 3-year warranty against manufacturing defects to the original purchaser.
Why SuperATV X300
SuperATV designs, engineers and tests its X300 axles in-house as the step above its Rhino 2.0 line. X300 swaps Rhino 2.0's 4340 chromoly shaft for 300M alloy steel and builds the CVs from 300M and 4340, and every X300 axle carries a 3-year warranty against manufacturing defects to the original purchaser, double the 18 months on Rhino 2.0.
Complete Your Maverick X3 Driveline
If one X3 axle has failed, check the others for the same wear before you ride again. Pair your X300 axles with the matching X300 boot or CV joint kit for future service, and confirm your year and model against the fitment list.
