SuperATV Rhino Brand Polaris Replacement CV Joint Kit. Replacement CV joints for Polaris Ranger, General XP 1000 and RZR Pro XP Rhino Brand axles, sold one CV end per kit and matched to your axle part number. SuperATV builds each kit for its own Rhino Brand axles, so the fit matches the shaft it rides on.
Every SuperATV Rhino Brand axle takes a specific inner and outer CV joint kit. Find the part number printed on your axle shaft, look it up in the Fitment table below, and order the kit for the end you are rebuilding. Pair it with the matching boot kit if the old boot is torn.

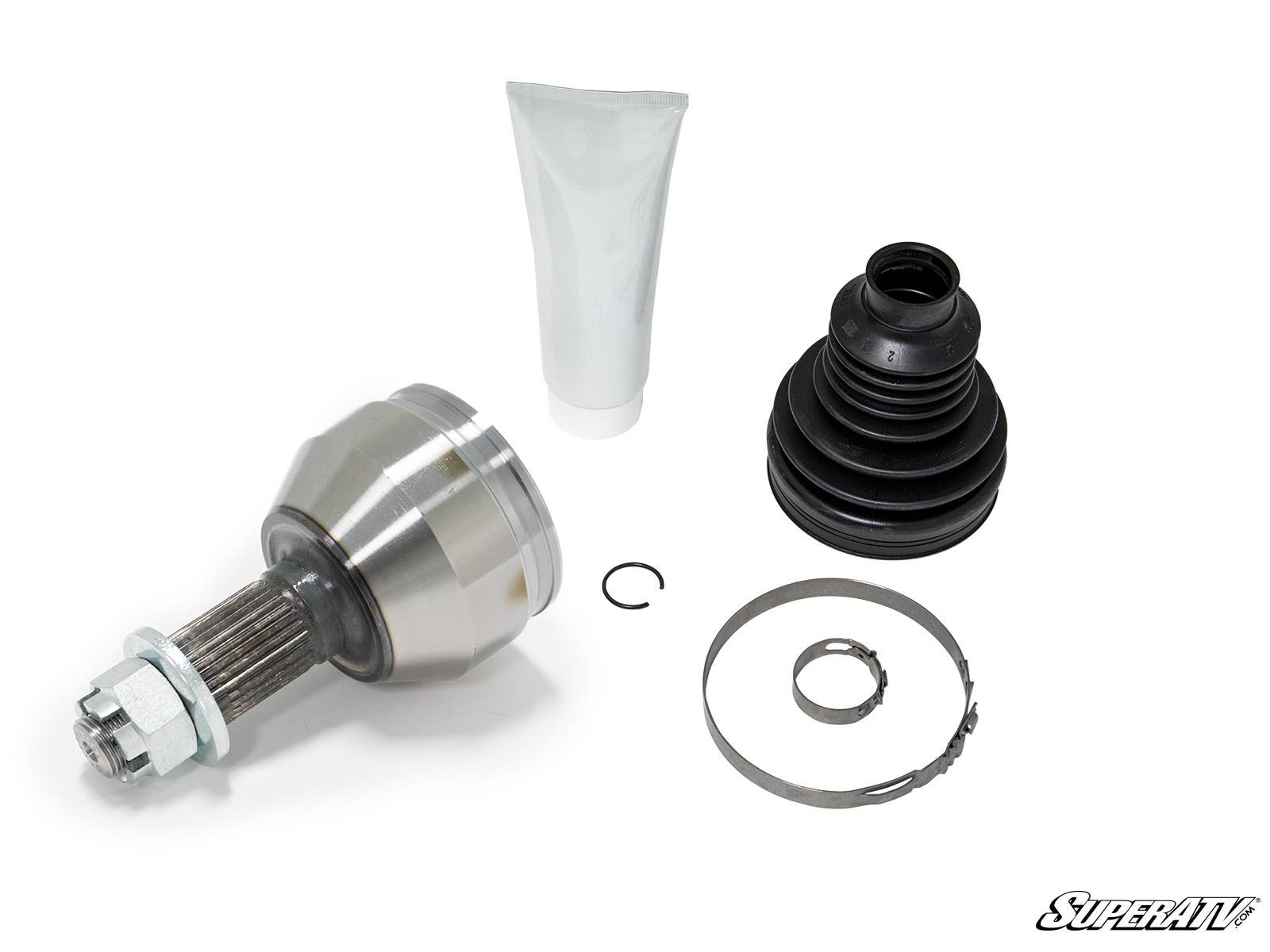

This Polaris CV joint kit rebuilds one end of a SuperATV Rhino Brand axle. Polaris CV joints for the Ranger, General and RZR Pro XP are matched by axle part number below: the Polaris Ranger CV joint and Polaris General CV joint, plus the RZR Pro XP CV joint for Rhino Brand Pro XP axles. Each cv joint kit is one CV end, an inner CV joint or an outer CV joint, so Polaris Ranger CV joint replacement, or finding a CV joint for Polaris Ranger axles, starts with your axle number.
Key Features
- High-articulation chromoly CV joint
- Precision-engineered cage and housing for reduced friction and a smooth range of motion
- Proprietary heat treatment
- Puncture-resistant TPEE boot
Built To Solve: Worn CV Joints on Rhino Brand Axles
- A clicking or binding CV joint does not always mean a whole new axle
- Rebuild one end of a SuperATV axle with a joint built for that axle
- Each kit is matched to one end of one SuperATV axle part number
Best For: Polaris Owners Running SuperATV Rhino Brand Axles
- Owners of Polaris Ranger, General XP 1000 and RZR Pro XP Rhino Brand axles
- Riders rebuilding one end of an axle instead of buying a new one
- Shops keeping SuperATV axle service parts on hand
Specifications
- Brand: SuperATV
- Product line: Rhino Brand replacement CV joint kit
- CV material: chromoly with a proprietary heat treatment (per SuperATV)
- Boot: TPEE (thermoplastic elastomer)
- Sold: one CV joint kit per order (one CV end)
Fitment
- 1AX-1-78-R-0-DT: inner CVK-P-001, outer CVK-P-004
- 1AX-1-86-F-0-DT: inner CVK-P-001, outer CVK-P-016
- 1AX-1-86-R-0-BT: inner CVK-P-005, outer CVK-P-016
- 1AX-1-94-R-0-DT: inner CVK-P-012, outer CVK-P-004
- 1AX-1-98-F-0-DT: inner CVK-P-003, outer not offered
Each line lists a SuperATV axle part number with the inner and outer kit it takes. Covers 2015-2026 vehicles fitted with these SuperATV axles. Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.
FAQ
Where do I find my axle part number?
SuperATV prints the part number on the axle shaft. Match it to the table in the Fitment section to see which inner and outer kit your axle uses.
Does one CV joint kit rebuild both ends of the axle?
No. Each kit is one CV end, inner or outer. The Fitment table lists the inner and outer kit for every axle.
Will this kit fit an OEM or other-brand axle?
SuperATV designs these kits for its Rhino Brand axles only. Match your SuperATV axle part number before ordering.
Do I need a new boot with the CV joint kit?
SuperATV supplies a boot with its CV joint kits. If you only need a boot on a healthy joint, order the matching SuperATV boot kit instead.
When should I replace the whole axle instead?
If the shaft is bent or twisted, or both ends are worn, a complete axle is usually the better fix. If one joint is worn and the shaft is straight, a CV joint kit is the cheaper repair.
Why SuperATV
SuperATV designs, engineers, manufactures and tests its axles and axle service parts in-house. Each kit is built for a specific SuperATV axle family, so the boot, clamps and grease match the CV joint they protect.
Rebuild Your Rhino Brand Axle
Order the inner and outer CV joint kits your axle needs, or browse complete SuperATV Rhino Brand axles if the shaft is damaged. Questions on fitment? Send us your axle part number.
