SuperATV Rhino Brand Honda Axle Boot Kit. Replacement CV boots, bands, clips and grease for Honda Pioneer 500, 700, 1000 and Talon 1000R Rhino Brand axles, sold one CV end per kit and matched to your axle part number. SuperATV builds each kit for its own Rhino Brand axles, so the fit matches the joint it protects.
Every SuperATV Rhino Brand axle takes a specific inner and outer boot kit. Find the part number printed on your axle shaft, look it up in the Fitment table below, and order the kit for the end you are rebuilding.
This is the Honda Pioneer CV boot kit for SuperATV Rhino Brand axles. Pioneer 1000 CV boot, Pioneer 700 CV boot and Honda Talon CV boot replacements are matched by axle part number below. A torn CV boot lets dirt in fast; a cv boot kit is the cheap fix before the joint fails. Each axle boot kit covers one CV end, so a full cv boot replacement usually takes an inner CV boot and an outer CV boot.
Key Features
- Available in rubber or thermoplastic elastomer (TPEE)

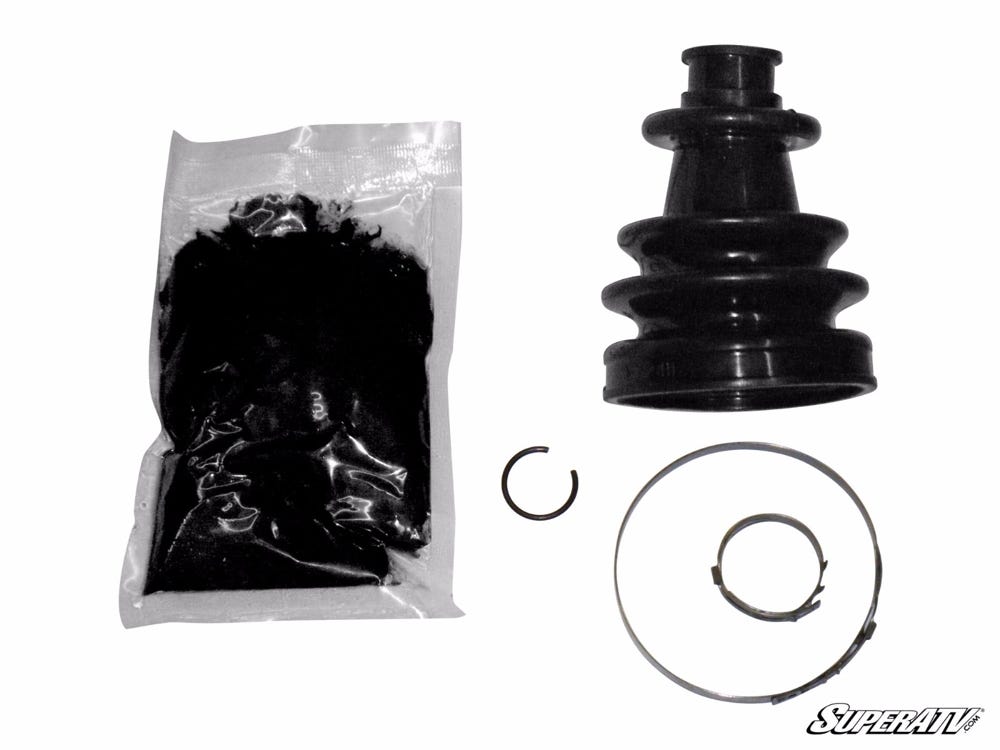

- Clip, bands and grease included
- Easy to install
- Designed to work with Rhino Brand axles only
Built To Solve: Torn CV Boots on Rhino Brand Axles
- A split boot lets dirt and water into the CV joint and throws out the grease
- Replacing the boot early saves the joint, and the axle, from wearing out
- Each kit is matched to one end of one SuperATV axle part number, so there is no guessing on size
Best For: Honda Owners Running SuperATV Rhino Brand Axles
- Owners of Honda Pioneer 500, 700, 1000 and Talon 1000R Rhino Brand axles
- Riders rebuilding one end of an axle instead of buying a new one
- Shops keeping SuperATV axle service parts on hand
Specifications
- Brand: SuperATV
- Product line: Rhino Brand replacement boot kit
- Boot material: rubber or TPEE (thermoplastic elastomer)
- Contents: boot, bands, clips and grease (per SuperATV)
- Sold: one boot kit per order (one CV end)
Fitment
- 3-8-FR-0-DT: inner BK-001, outer not offered
- 3-8-FL-0-DT: inner BK-001, outer not offered
- 3-49-FL-0-DT: inner BK-002, outer BK-002
- 3-49-FR-0-DT: inner BK-002, outer BK-002
- 3-49-R-0-DT: inner BK-002, outer BK-002
- 3-37-FL-0-DT: inner BK-002, outer BK-002
- 3-37-FR-0-DT: inner BK-002, outer BK-002
- 3-37-R-0-DT: inner BK00-002, outer BK-002
- 3-64-F-0-DT: inner BK00-004, outer BK-001-R
- 3-64-RR-LK6-DT: inner BK00-004, outer BK-001-R
- 1AX-3-83-F-0-DT: inner BK00-001, outer BK00-003
Each line lists a SuperATV axle part number with the inner and outer kit it takes. Covers 2014-2026 vehicles fitted with these SuperATV axles. Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.
FAQ
Where do I find my axle part number?
SuperATV prints the part number on the axle shaft. Match it to the table in the Fitment section to see which inner and outer kit your axle uses.
Does one boot kit cover both ends of the axle?
No. Each kit covers one CV end. A full rebuild of one axle usually takes one inner kit and one outer kit; the Fitment table lists both for every axle.
Will this kit fit an OEM or other-brand axle?
SuperATV designs these kits for its Rhino Brand axles only. Match your SuperATV axle part number before ordering.
What comes in the boot kit?
Per SuperATV, each kit includes the boot, bands or clips, and fresh grease for one CV end.
Should I replace the boot or the whole CV joint?
If the boot is torn but the joint still runs smooth and quiet, a new boot, fresh grease and new bands are usually enough. If the joint clicks, binds or has play, replace the CV joint or the axle.
Why SuperATV
SuperATV designs, engineers, manufactures and tests its axles and axle service parts in-house. Each kit is built for a specific SuperATV axle family, so the boot, clamps and grease match the CV joint they protect.
Rebuild Your Rhino Brand Axle
Order the inner and outer boot kits your axle needs, or browse complete SuperATV Rhino Brand axles if the shaft is damaged. Questions on fitment? Send us your axle part number.
