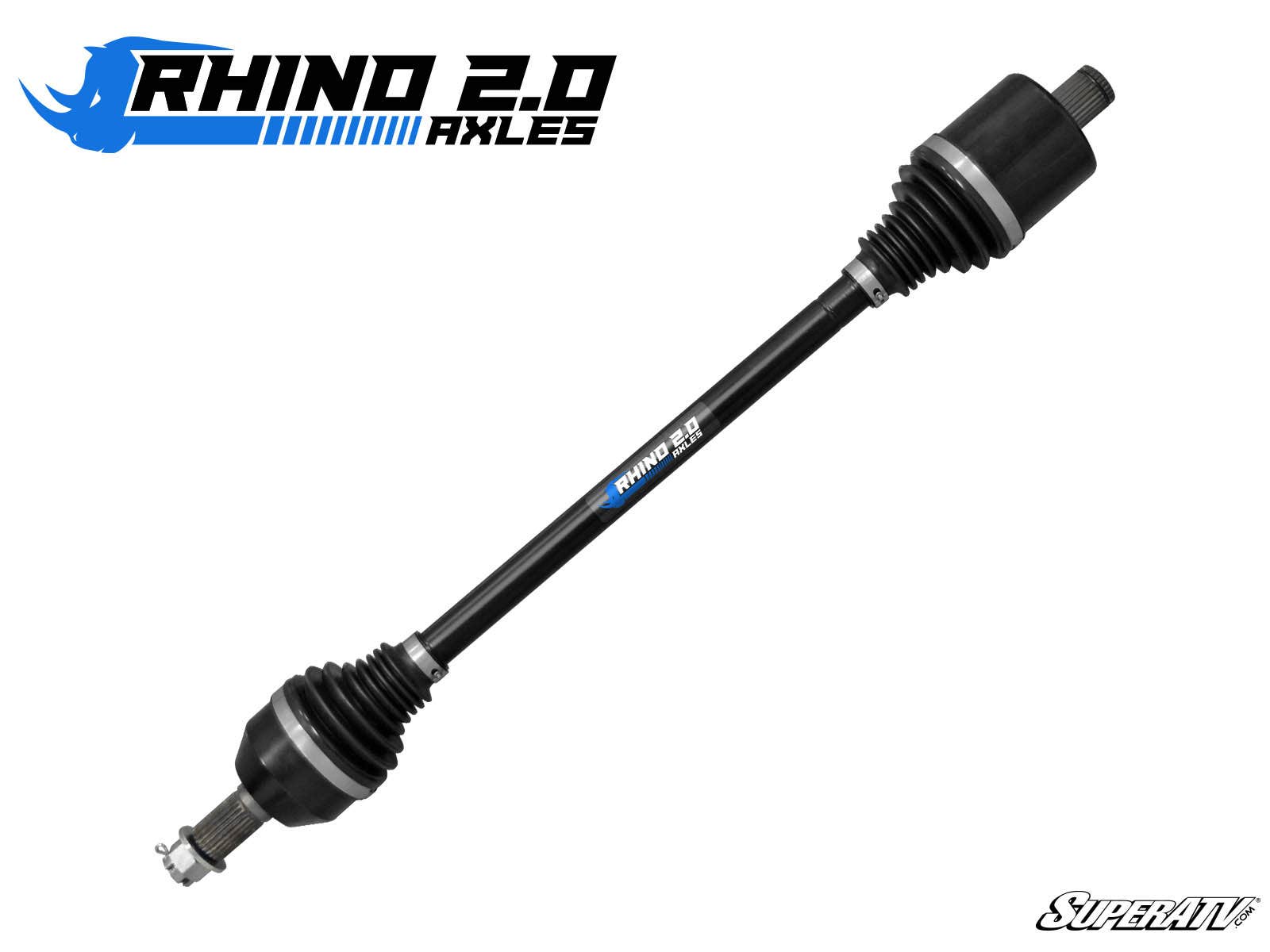

SuperATV Rhino 2.0 axles are heavy-duty front and rear replacements for the 2011-2014 Polaris RZR XP 900 and 2012-2014 RZR XP 4 900. Nearly two times stronger than stock, they let you hit harder trails with the pedal floored. As SuperATV puts it, they roll where stock snaps.
Between high articulation angles and all-chromoly construction, Rhino 2.0 axles are built to take your RZR anywhere. They are sold individually in three versions: Front, Rear (Stock Height), and Rear (With 3-5 inch Lift Kit) for machines running a 3" to 5" lift.
Whether you call it an RZR 900 XP axle or a RZR XP 900 axle, these RZR 900 XP axles are the 2011-2014 platform, not the later RZR 900. Polaris RZR 900 XP axles here include the RZR 900 XP front axle and both rear versions, and they also serve as RZR XP 4 900 axles. Owners of 2012 RZR 900 XP axles or 2013 RZR 900 XP axles get the same parts. Each RZR CV axle is a Polaris RZR axle from SuperATV's Rhino 2.0 line, a common pick when riders compare the best RZR axles.
Key Features
- Nearly two times stronger than stock, per SuperATV
- 4340 chromoly steel, end to end
- Proprietary heat treatment for strength and longevity

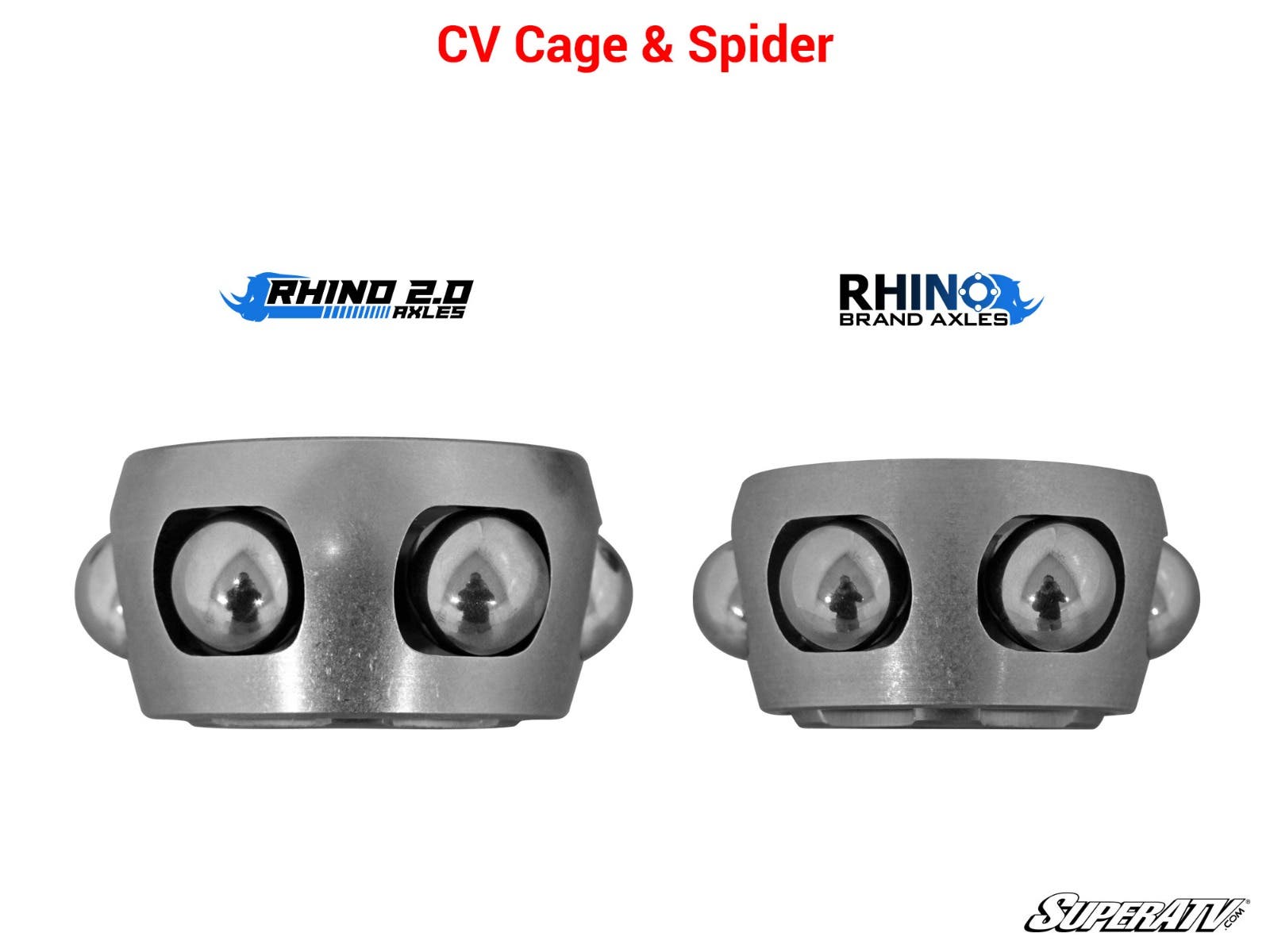

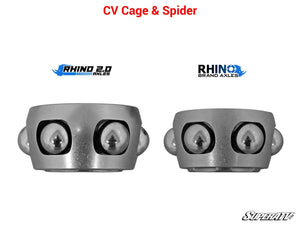

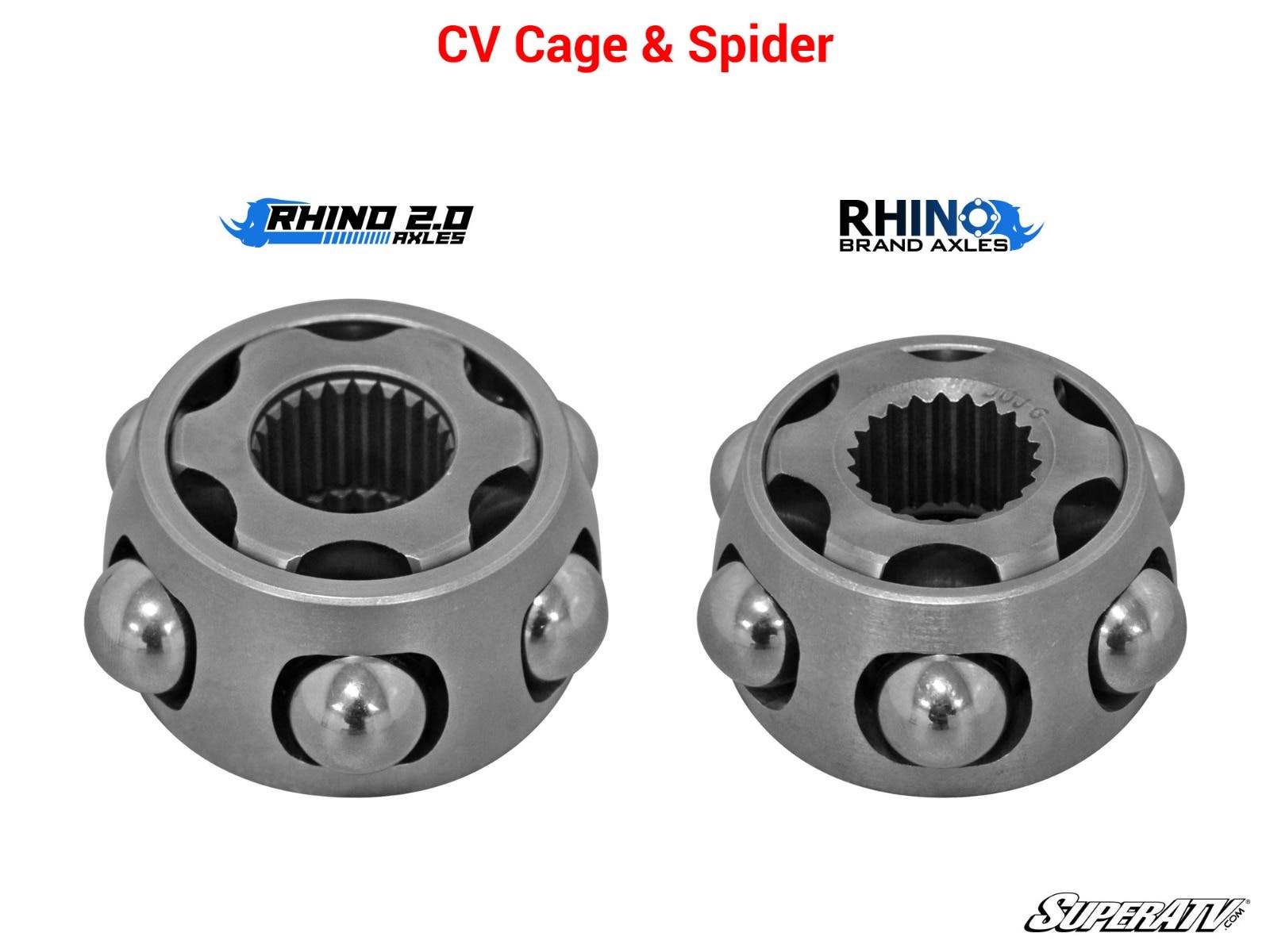

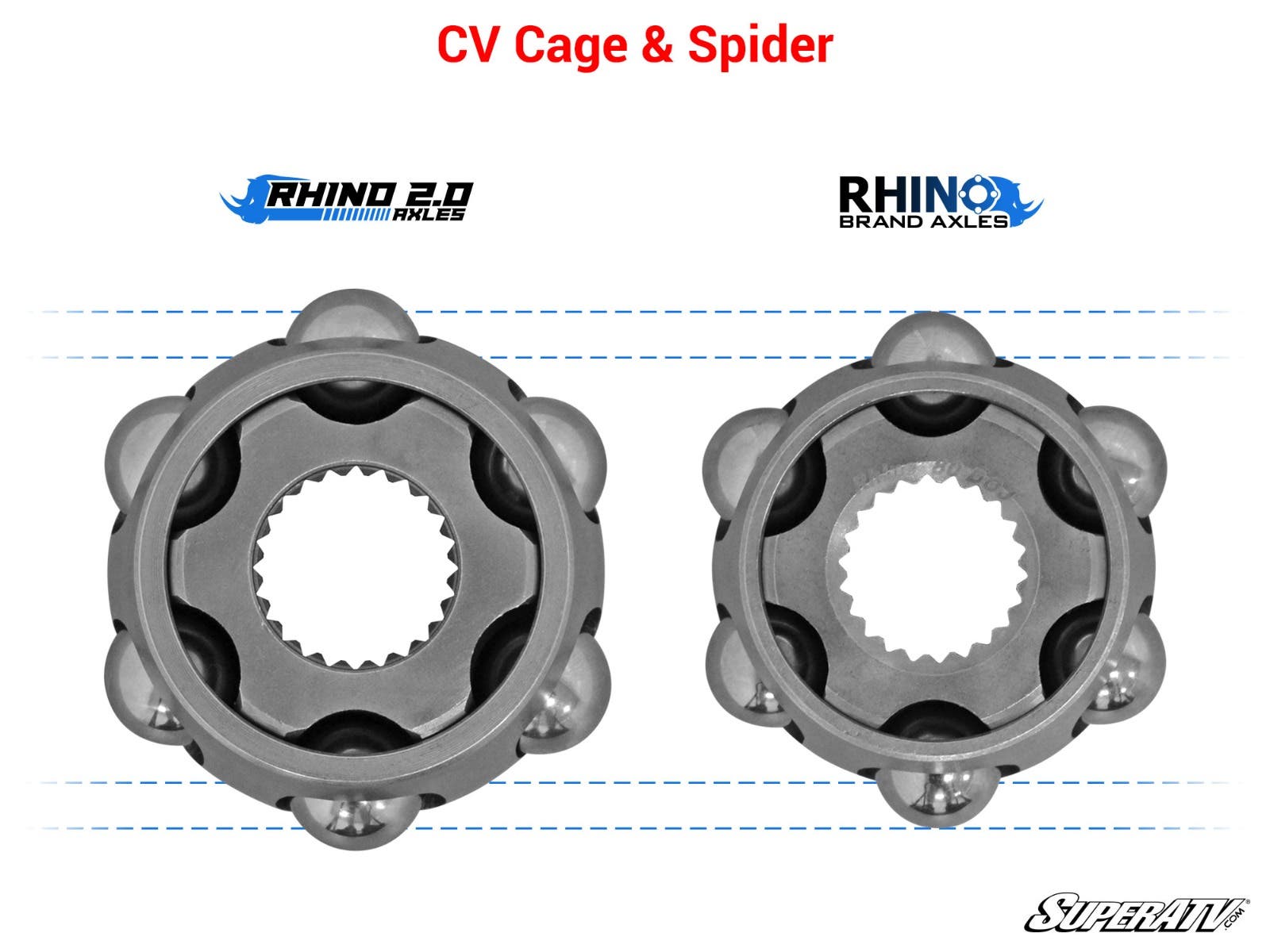

- A massive 4mm increase in shaft size, with larger CV joints
- Operates at high CV angles and runs cool
- Puncture-resistant CV boots
- Field and lab tested for strength and endurance
- Industry-leading 18-month warranty
Built To Solve: Snapped and Worn Stock Axles on the RZR XP 900
- Stock axles snapping under hard throttle on rough trails
- CVs wearing out at high articulation angles
- Torn boots letting dirt into the CV
- Lifted XP 900s that need a longer rear axle
Best For: RZR XP 900 and XP 4 900 Owners Who Ride Hard
- 2011-2014 Polaris RZR XP 900 owners
- 2012-2014 RZR XP 4 900 owners
- Riders running a 3" to 5" lift kit (choose the lift kit rear)
- Not for the 2015+ RZR 900 or RZR S 900
- Not for ABS-equipped machines
Specifications
- Brand: SuperATV
- Product line: Rhino 2.0 Heavy-Duty Axle
- Material: 4340 chromoly steel, proprietary heat treatment
- Strength: nearly 2x stock (per SuperATV)
- Shaft size: 4mm larger than stock
- Warranty: 18 months
- Sold: individually, front or rear
- Replaces Polaris OE front axle number: 1332825
- Replaces Polaris OE rear axle numbers: 1332826, 1332960
- Manufacturer Part Number (front): AX01-014F0
- Manufacturer Part Number (rear): AX01-019R0 (stock height), AX01-018R2 (3-5 inch lift kit)
Fitment
- 2011-2014 Polaris RZR XP 900
- 2012-2014 Polaris RZR XP 4 900
Not compatible with Anti-Lock Brake Systems (ABS). Choose the Rear (With 3-5 inch Lift Kit) axle only if your machine has a 3" to 5" lift. Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.
FAQ
Why do RZR XP 900 axles break?
Stock axles tend to fail when you lay on the gas and push the RZR XP 900's power to the ground on hard trails. Rhino 2.0 axles are 4340 chromoly with a 4mm larger shaft and are rated by SuperATV at nearly twice the strength of stock.
What makes Rhino 2.0 stronger than stock?
SuperATV combines end-to-end 4340 chromoly, a proprietary heat treatment, larger shafts and larger CV joints. The CVs run cool at high articulation angles and the boots are puncture resistant.
Do they fit the RZR XP 4 900?
Yes. SuperATV lists the 2011-2014 RZR XP 900 and the 2012-2014 RZR XP 4 900.
Do they work with ABS?
No. SuperATV lists these axles as not compatible with Anti-Lock Brake Systems (ABS).
Which OEM part numbers do they replace?
SuperATV lists front 1332825 and rear 1332826 and 1332960.
Which rear axle do I need?
Choose Rear (Stock Height) for a stock machine, or Rear (With 3-5 inch Lift Kit) if your RZR XP 900 has a 3" to 5" lift.
Why SuperATV
SuperATV designs, engineers, manufactures and tests its Rhino 2.0 axles in-house, using CAD analysis, lab testing and real-world trail testing before release. Every Rhino 2.0 axle is backed by SuperATV's 18-month warranty, longer than the one-year norm SuperATV cites for the industry.
Complete Your RZR XP 900 Driveline Upgrade
When one RZR XP 900 axle fails, the others have usually seen the same abuse, so decide whether you need the front axle, the rear axle or both. Confirm your model and year against the fitment list, check the OEM part number on your old axle, and make sure the machine does not have ABS.
