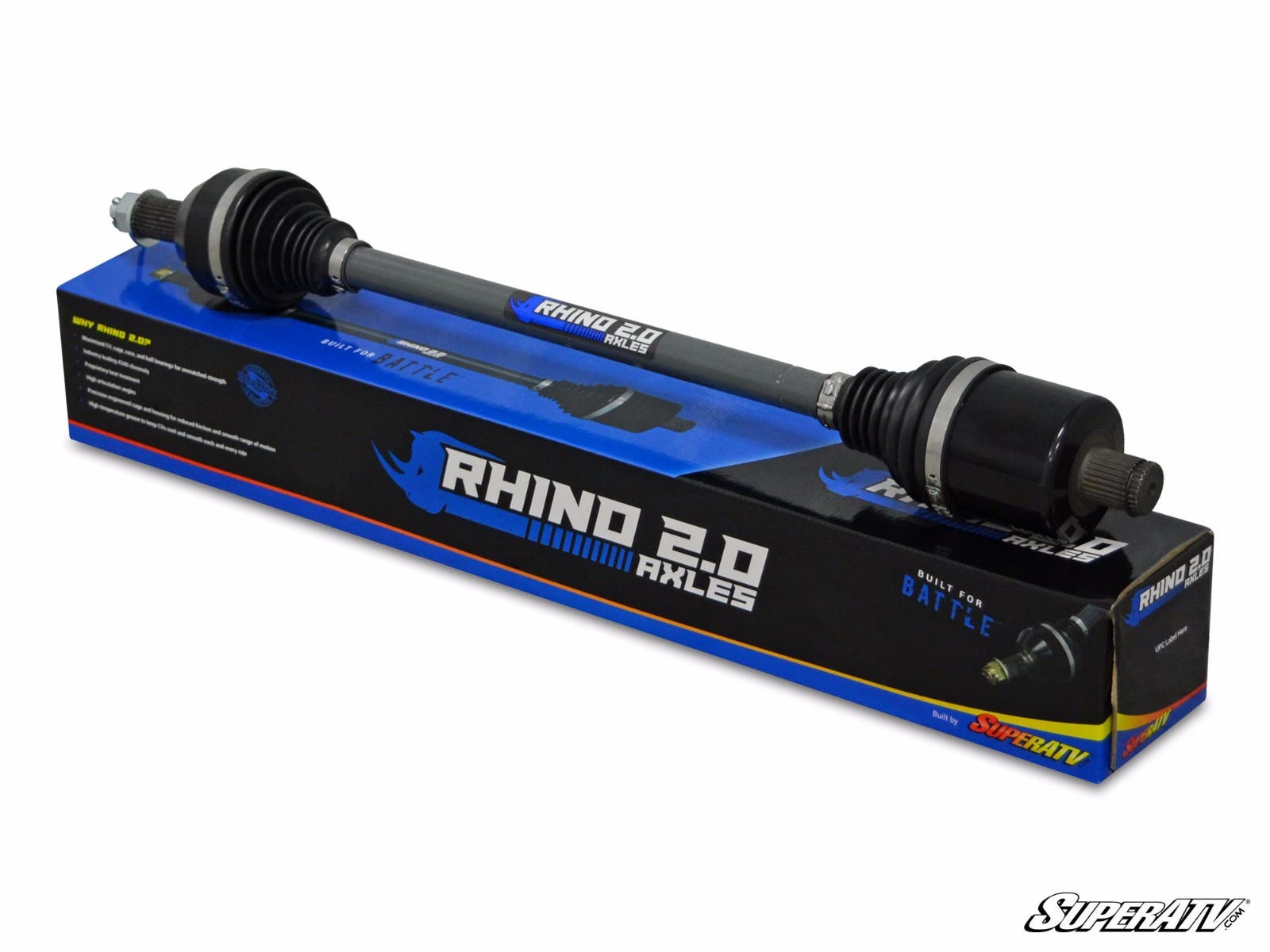

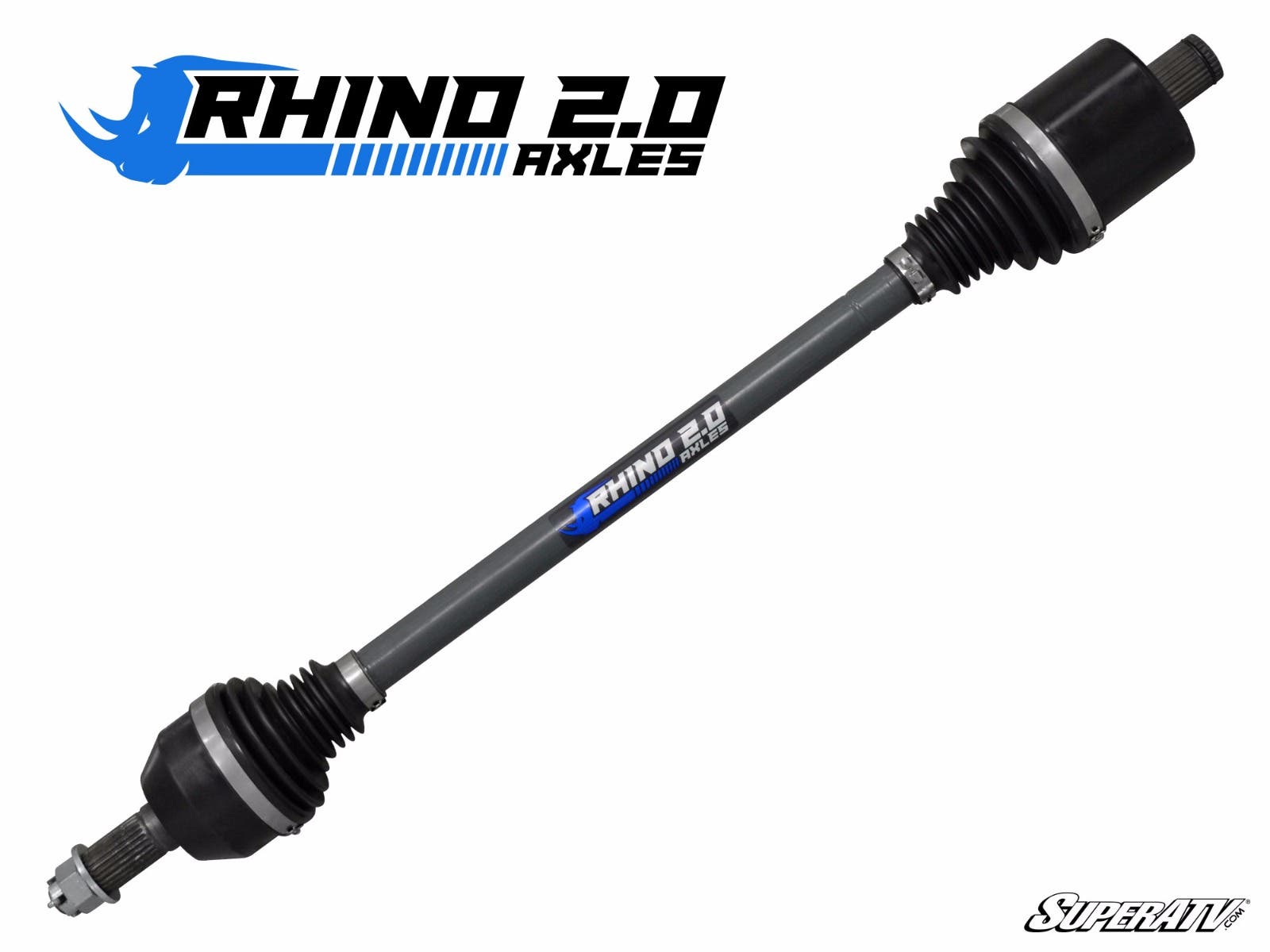

SuperATV Rhino 2.0 axles are heavy-duty front and rear replacements made specifically for the 2009-2014 Polaris RZR S 800, also listed by SuperATV for the 2010-2014 RZR 4 800. The S 800 rolls through ditches and over logs easily, at least until you blow an axle. Rhino 2.0 axles are nearly two times stronger than stock and keep you moving forward.
Tip to tip, Rhino 2.0 uses an all-chromoly construction with bigger shafts and CV joints, and the joints stay cool even at high articulation angles. SuperATV also notes they are built to break before your expensive differential does. They are sold individually: choose Front or Rear.
These RZR 800S axles (also searched as RZR 800 S axles or Polaris RZR 800S axles) are sold by position: the RZR 800S front axle and the RZR 800S rear axle. Owners of 2013 RZR 800S axles, including anyone shopping a 2013 RZR 800S front axle, get the same parts across 2009-2014. As Rhino axles RZR 800 S owners can order by position, they are a Polaris RZR CV axle replacement in chromoly, and SuperATV positions Rhino 2.0 among the strongest RZR axles in the heavy-duty market.
Key Features
- Nearly two times stronger than stock, per SuperATV
- 4340 chromoly steel, end to end
- Proprietary heat treatment for strength and longevity
- A massive 4mm increase in shaft size, with larger CV joints
- Operates at high CV angles and runs cool
- Puncture-resistant CV boots
- Field and lab tested for strength and endurance
- Industry-leading 18-month warranty
- Built to break before the differential does, per SuperATV
Built To Solve: Blown Axles on the RZR S 800
- Stock axles blowing out in ditches, logs and rough trails
- CVs wearing out at high articulation angles
- Torn boots letting dirt into the CV
- Wanting a stronger axle without risking the differential
Best For: RZR S 800 Owners Who Ride Hard
- 2009-2014 Polaris RZR S 800 owners
- 2010-2014 RZR 4 800 owners whose OE rear matches the numbers below
- Not for the standard RZR 800
- Not for ABS-equipped machines
Specifications
- Brand: SuperATV
- Product line: Rhino 2.0 Heavy-Duty Axle
- Material: 4340 chromoly steel, proprietary heat treatment
- Strength: nearly 2x stock (per SuperATV)
- Shaft size: 4mm larger than stock
- Warranty: 18 months
- Sold: individually, front or rear
- Replaces Polaris OE front axle number: 1332637
- Replaces Polaris OE rear axle numbers: 1332947, 1333756
- Manufacturer Part Number (front): AX01-012F0S1
- Manufacturer Part Number (rear): AX01-026R-0#AB
Fitment
- 2009-2014 Polaris RZR S 800
- 2010-2014 Polaris RZR 4 800
Not compatible with Anti-Lock Brake Systems (ABS). SuperATV also sells a separate RZR 4 800 Rhino 2.0 listing that shows a different rear OEM number (1332883), so match the number on your old axle before ordering. Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.
FAQ
Why do RZR S 800 axles break?
Stock axles tend to fail when you lay on the gas and push the RZR S 800's power to the ground on hard trails. Rhino 2.0 axles are 4340 chromoly with a 4mm larger shaft and are rated by SuperATV at nearly twice the strength of stock.
What makes Rhino 2.0 stronger than stock?
SuperATV combines end-to-end 4340 chromoly, a proprietary heat treatment, larger shafts and larger CV joints. The CVs run cool at high articulation angles and the boots are puncture resistant.
Do they fit the RZR 4 800?
SuperATV lists the 2010-2014 RZR 4 800 on this axle. Its separate RZR 4 800 listing shows rear OEM 1332883, while this one shows 1332947 and 1333756, so check the number on your old rear axle.
Do they work with ABS?
No. SuperATV lists these axles as not compatible with Anti-Lock Brake Systems (ABS).
Which OEM part numbers do they replace?
SuperATV lists front 1332637 and rear 1332947 and 1333756.
What warranty do they carry?
SuperATV backs Rhino 2.0 axles with an 18-month warranty, beating the 12-month norm SuperATV cites for the industry.
Why SuperATV
SuperATV designs, engineers, manufactures and tests its Rhino 2.0 axles in-house, using CAD analysis, lab testing and real-world trail testing before release. Every Rhino 2.0 axle is backed by SuperATV's 18-month warranty, longer than the one-year norm SuperATV cites for the industry.
Complete Your RZR S 800 Driveline Upgrade
When one RZR S 800 axle fails, the others have usually seen the same abuse, so decide whether you need the front axle, the rear axle or both. Confirm your model and year against the fitment list, check the OEM part number on your old axle, and make sure the machine does not have ABS.
