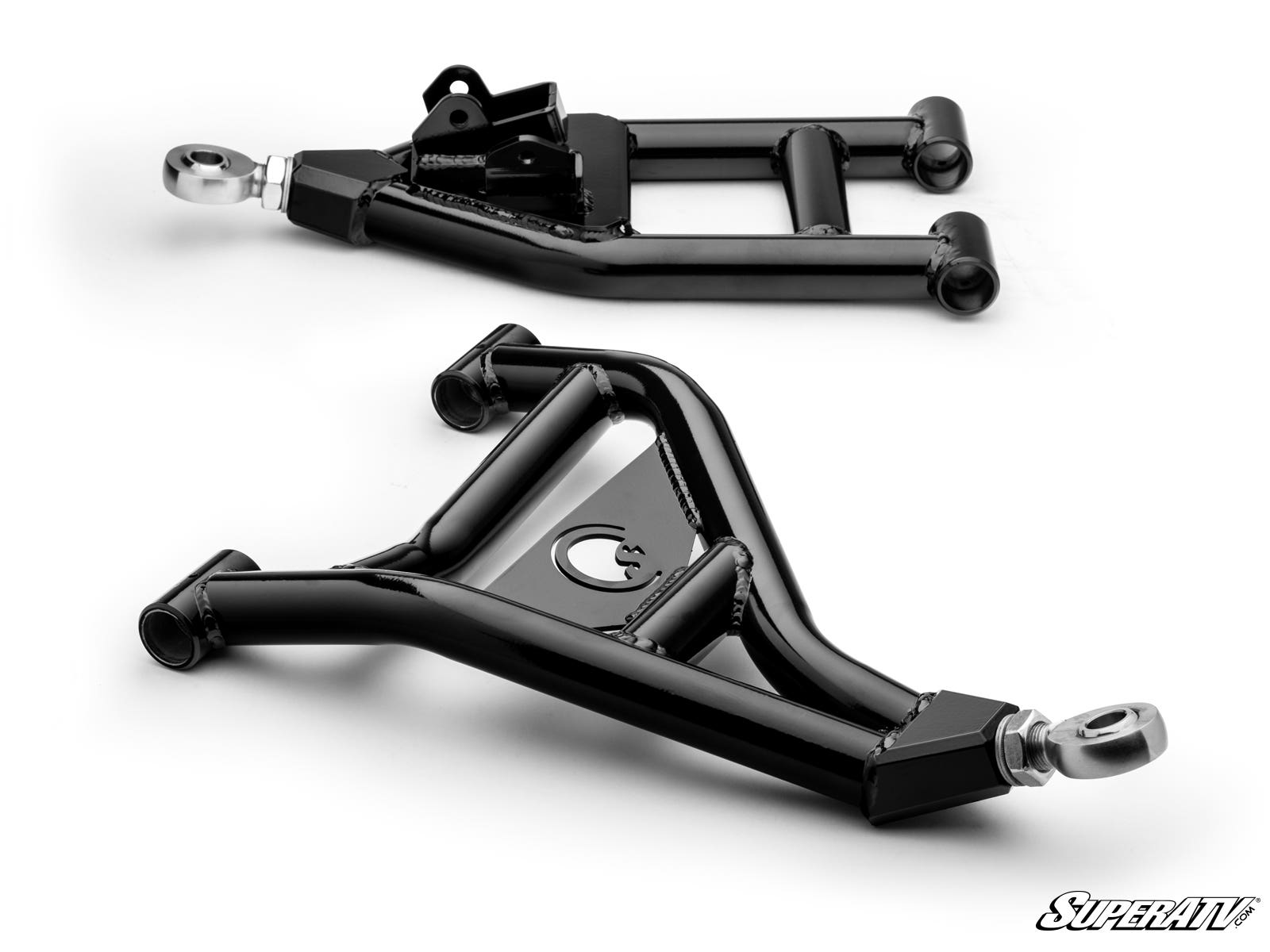

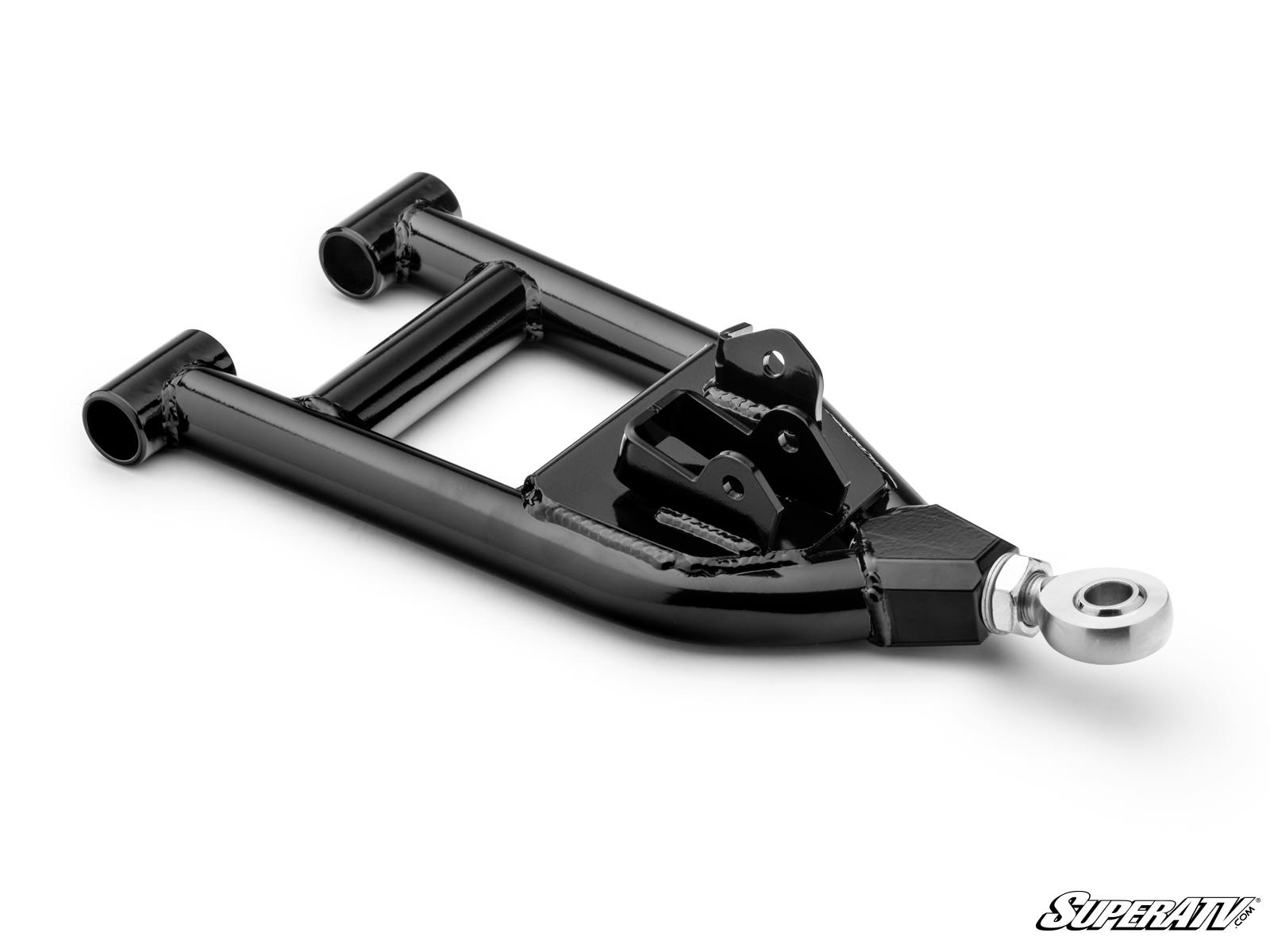

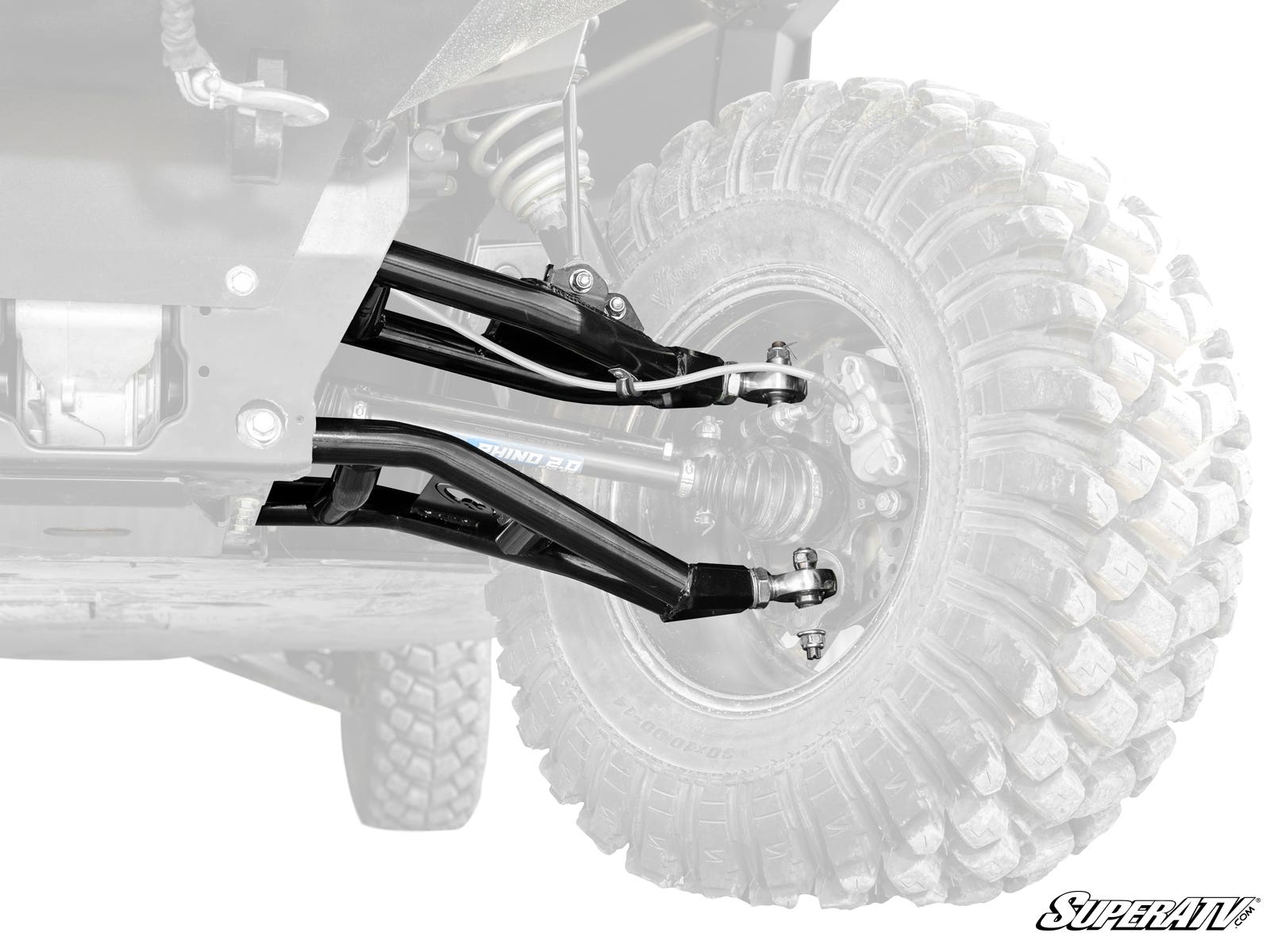

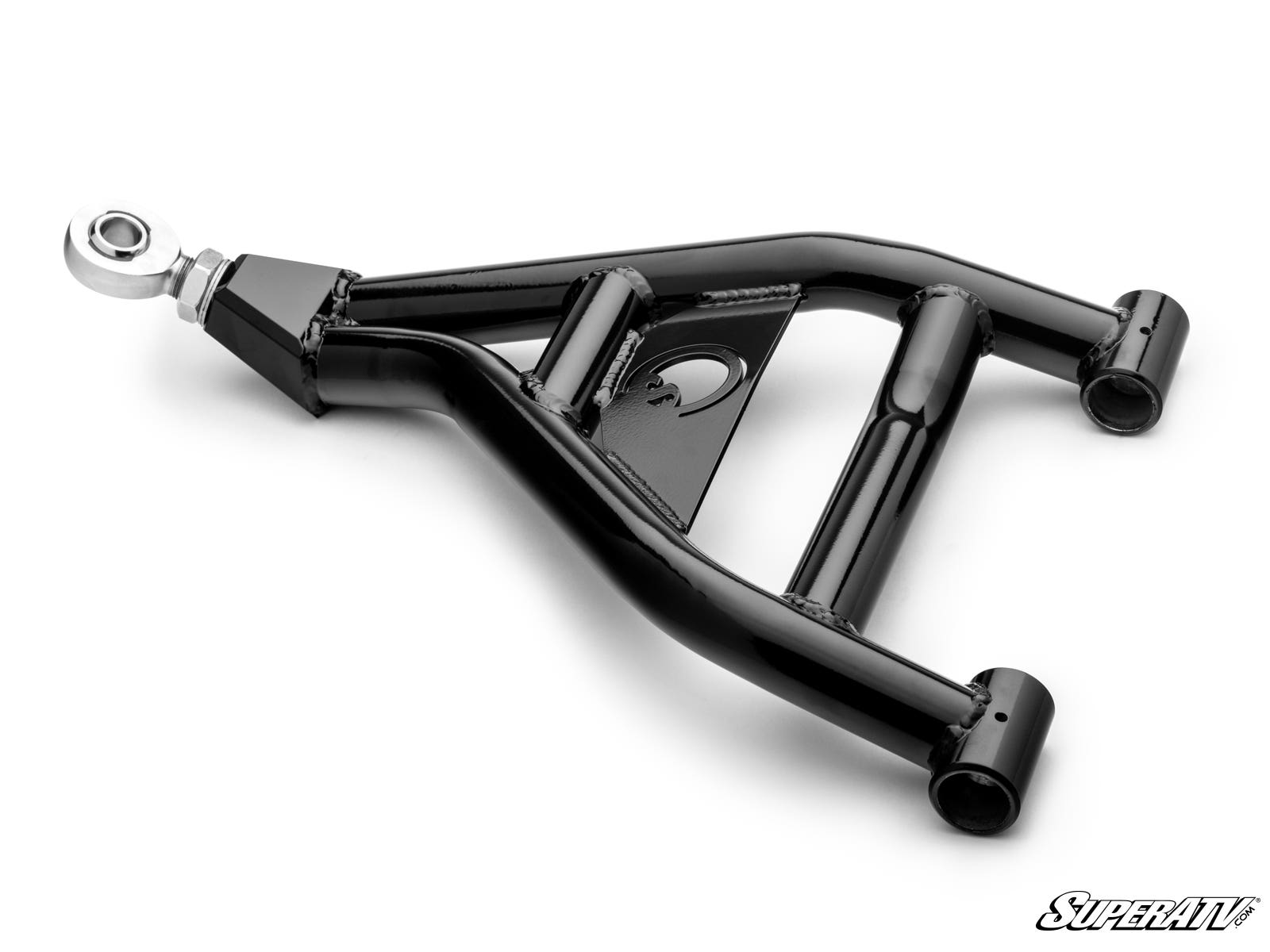

SuperATV Polaris Ranger XP 1000 Atlas Pro Heim Joint 2" Forward A-Arms give your Polaris Ranger XP 1000 a 2-inch forward offset. Built from 1.5-inch x .138-inch wall DOM tubing that is stronger than the stock arms, they make room for up to 33-inch tires, and a UV-resistant powder coat finish keeps them looking good after hard rides on trails, farm roads and washouts.

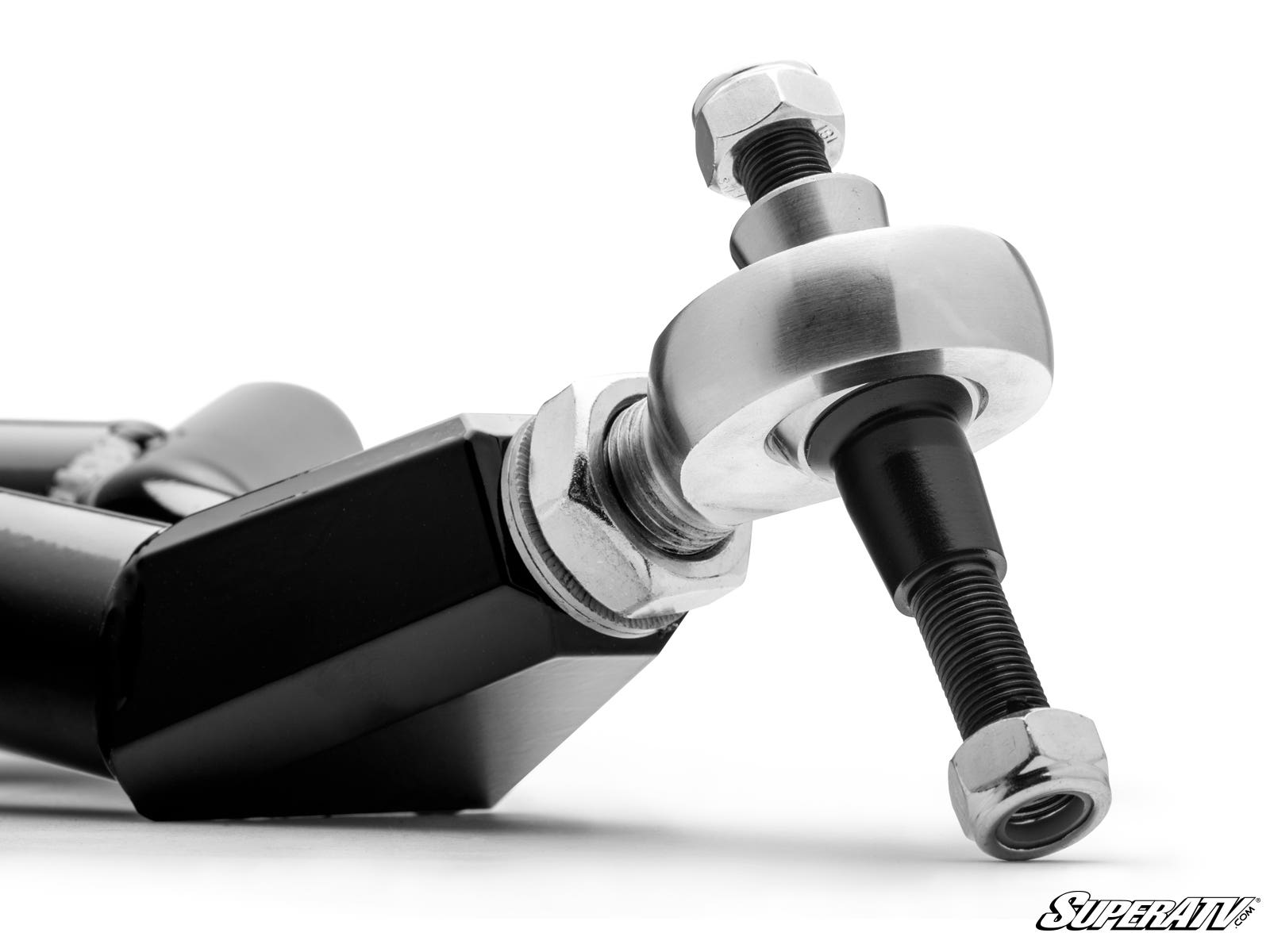

Massive 7/8-inch chromoly heim joints replace the ball joints for precise articulation and adjustable camber.
This SuperATV Atlas Pro Heim Joint set is built specifically for the Polaris Ranger XP 1000 models listed below, so the geometry matches your machine.
Key Features
- Adds 2" of forward offset
- Fits up to 33" tires
- Made with 1.5" x .138" wall steel DOM tubing
- 0.5" larger than stock
- 0.25" larger than SuperATV's standard High-Clearance 2" Forward Offset A-Arms
- Adjustable camber

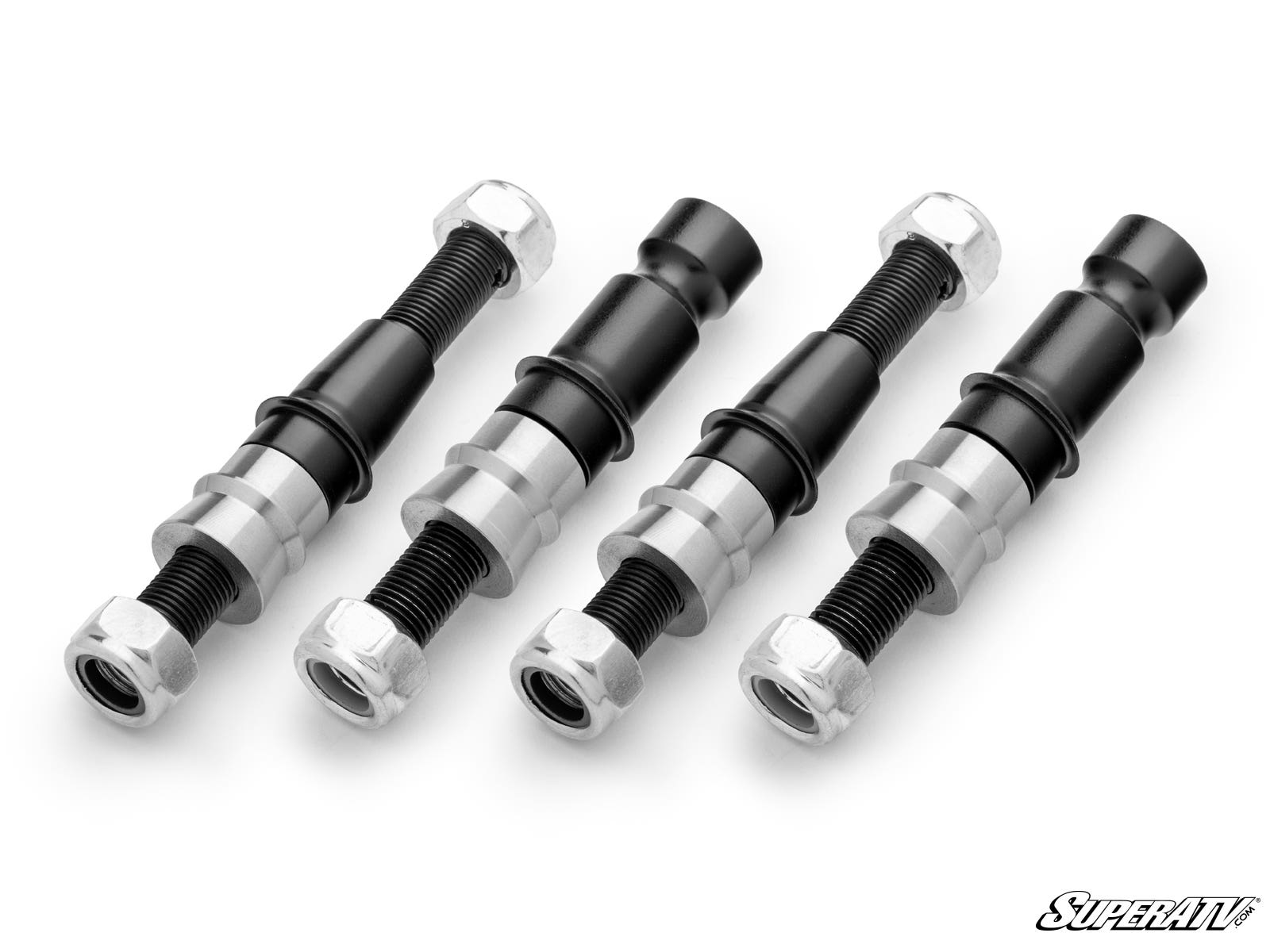

- Beefy 7/8" chromoly steel upper and lower heim joints
- Does not include bushings - compatible with OEM or SuperATV bushings
- UV-resistant powder coat finish
- Backed by a lifetime warranty
- Heavy-duty tie rods included where listed under Included in the specifications below
Built To Solve: Stock Arms Holding Your Ranger XP 1000 Back
- Stock arms that leave no room for bigger tires
- Low-hanging arms that catch rocks, stumps and ruts
- Thin stock tubing that bends on hard hits
- Camber that drifts out of spec after a lift or bigger tires
Best For: Polaris Ranger XP 1000 Owners
- Polaris Ranger XP 1000 owners (2021+)
- Mud and rock builds that want heim joints instead of ball joints
- Riders who want a lifetime warranty on their suspension arms
Specifications
- Offset: 2-inch forward
- Maximum tire size: 33-inch tires
- Tubing: 1.5-inch x .138-inch wall DOM steel
- Joints: 7/8-inch chromoly upper and lower heim joints with adjustable camber
- Bushings: not included
- Finish: UV-resistant powder coat
- Warranty: lifetime warranty on the A-arms against manufacturing defects to the original purchaser; ball joints and tie rod ends are wear items and are not covered by the lifetime warranty
- Manufacturer Part Number: AA-P-RAN1KOHC-004-02
- Included: four 2-inch offset Atlas Pro A-arms with 7/8-inch chromoly upper and lower heim joints, a heavy-duty solid steel tie rod assembly, steering stops, bump stops and the required hardware. Anything not listed here, such as axles or tie rods unless noted, is not included.
Fitment
- Polaris Ranger 1000 (2021+)
- Polaris Ranger 1000 Crew (2021+)
- Polaris Ranger XP 1000 (2021+)
- Polaris Ranger XP 1000 Crew (2021+)
- Polaris Ranger XP 1000 Big Game Edition (2021+)
- Polaris Ranger XP 1000 Big Game Edition Crew (2021+)
- Polaris Ranger XP 1000 High Lifter Edition (2021+)
- Polaris Ranger XP 1000 High Lifter Edition Crew (2021+)
- Polaris Ranger XP 1000 NorthStar Edition (2021+)
- Polaris Ranger XP 1000 NorthStar Edition Crew (2021+)
- Polaris Ranger XP 1000 Texas Edition (2021+)
- Polaris Ranger XP 1000 Texas Edition Crew (2021+)
- Polaris Ranger XP 1000 Trail Boss (2021+)
- Polaris Ranger XP 1000 Trail Boss Crew (2021+)
- Polaris Ranger XP 1000 Waterfowl Edition (2021+)
- Polaris Ranger XP 1000 Waterfowl Edition Crew (2021+)
SuperATV lists these applications by model and year. Fitment is not guaranteed on models or years not listed above; confirm your exact model before ordering.
FAQ
Which machines does this fit?
The Polaris Ranger XP 1000 models and years listed in the fitment section above (2021+). Confirm your exact model before ordering.
What tire size will these A-arms clear?
Up to 33-inch tires, per SuperATV.
What does the offset do?
The 2-inch forward offset moves the wheel forward, which lengthens the wheelbase for stability and opens up room for larger tires.
Are bushings included?
No. Bushings are not included, so plan to reuse your OEM bushings or order new ones.
Do these use ball joints?
No. They use 7/8-inch chromoly upper and lower heim joints, which are included.
What warranty do they carry?
SuperATV backs the A-arms with a lifetime warranty against manufacturing defects to the original purchaser. Ball joints and tie rod ends are wear items and are not covered by the lifetime warranty.
Why SuperATV
SuperATV designs and tests its A-arms in-house, publishes model-specific install instructions and backs the arms with a lifetime warranty against manufacturing defects. Dunes 2 Dezert SXS ships SuperATV suspension parts nationwide.
Upgrade Your Ranger XP 1000 Suspension
Confirm your Polaris Ranger XP 1000 model and year above, choose your options and add the A-arms to your cart.
