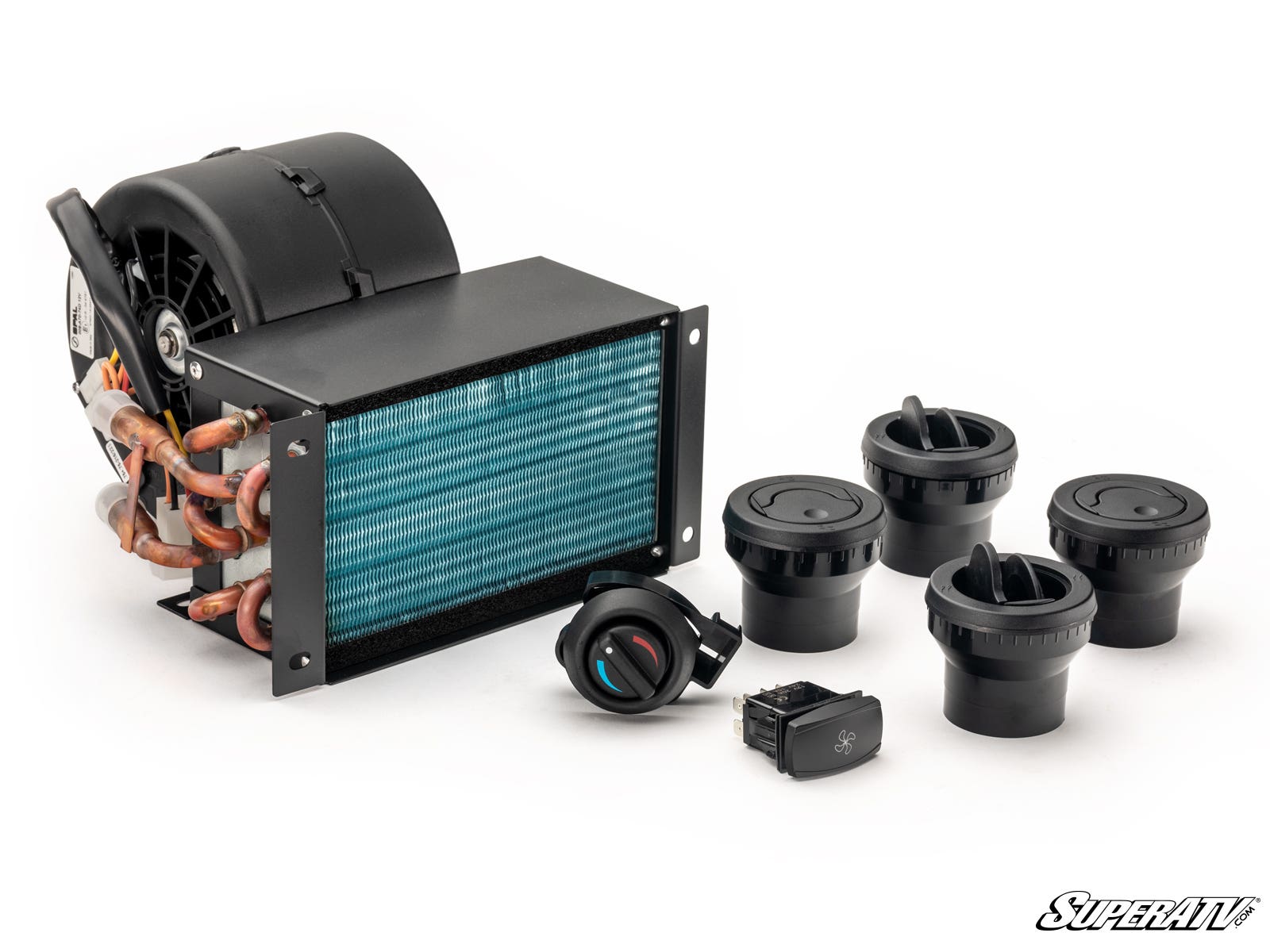

The SuperATV Polaris General XP 1000 in-dash heater mounts inside the dash and draws heat from the engine to warm the cab and clear the windshield. It is rated at 20,000 BTU at 135 CFM with multiple fan settings, so you can work through cold mornings without piling on layers.
Choose a front heater, a second-row heater for the General XP 4 1000, or both, with or without a grille cover. Add a quick-start flow valve or idle flow pump for faster heat.
Key Features

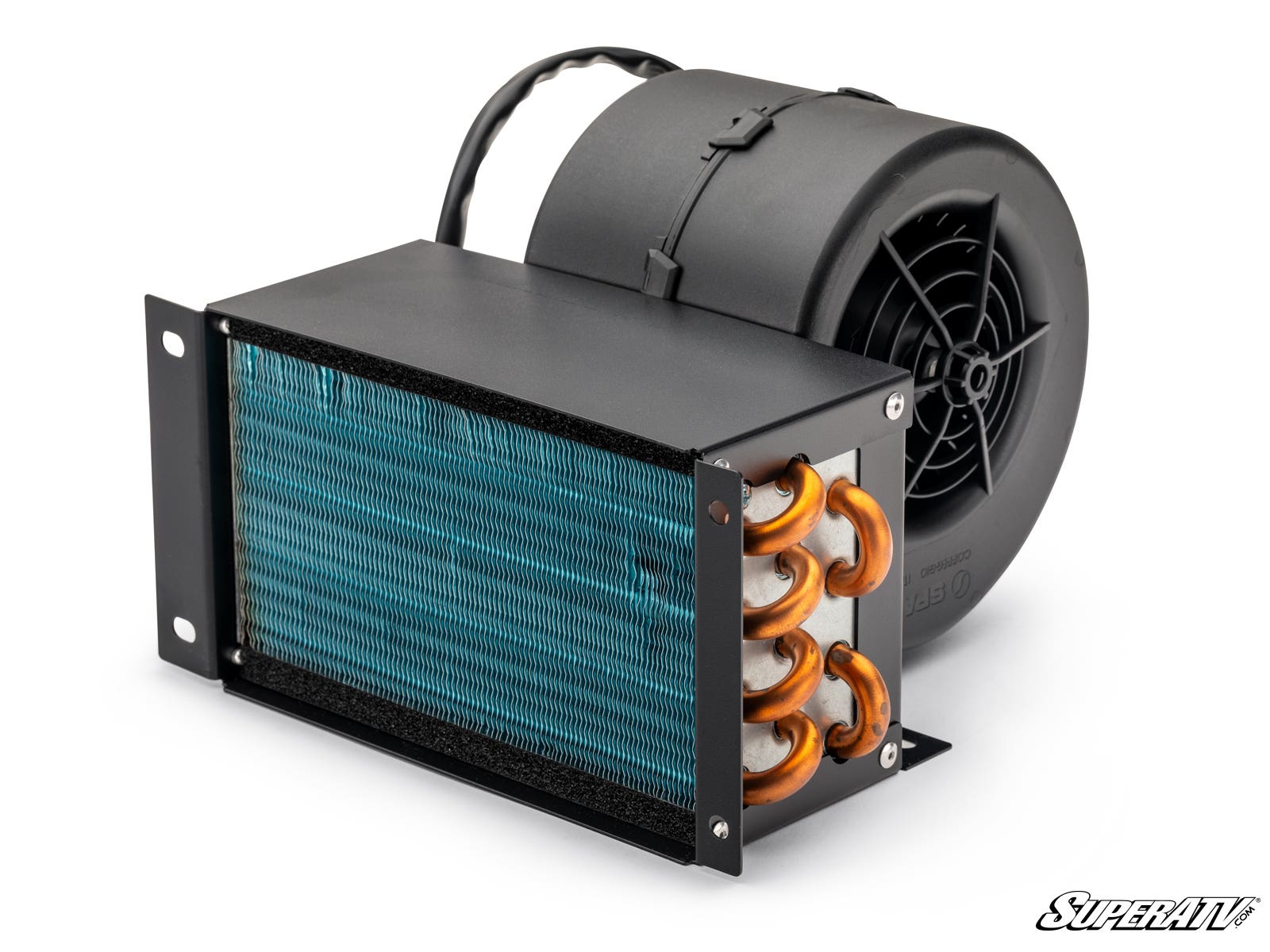

- Front heater mounts inside the dash
- Capable of 20,000 BTU at 135 CFM

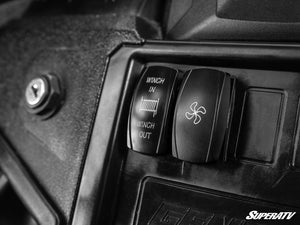

- Adjustable fan speeds

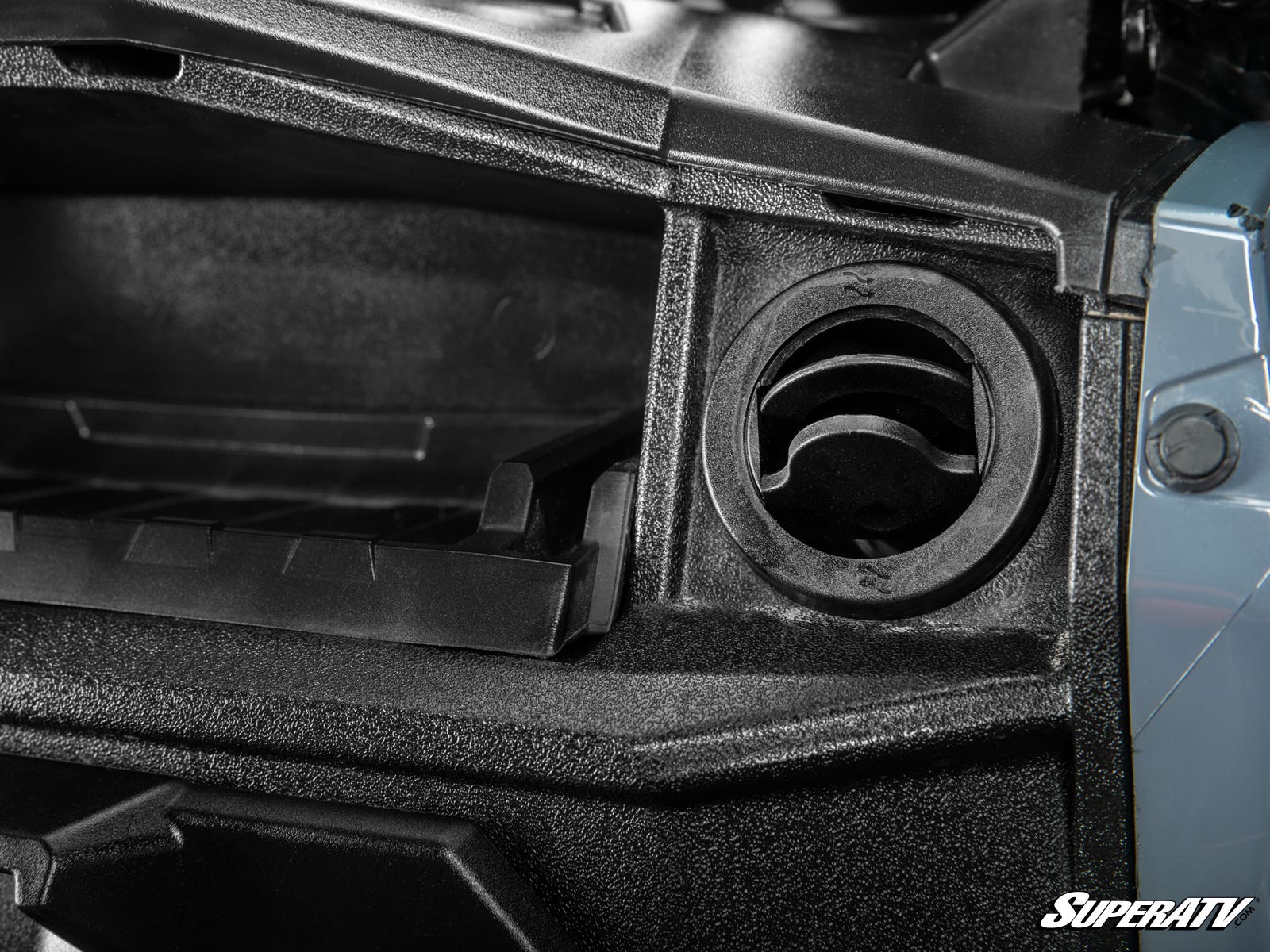

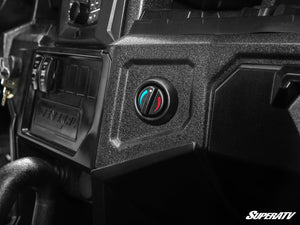

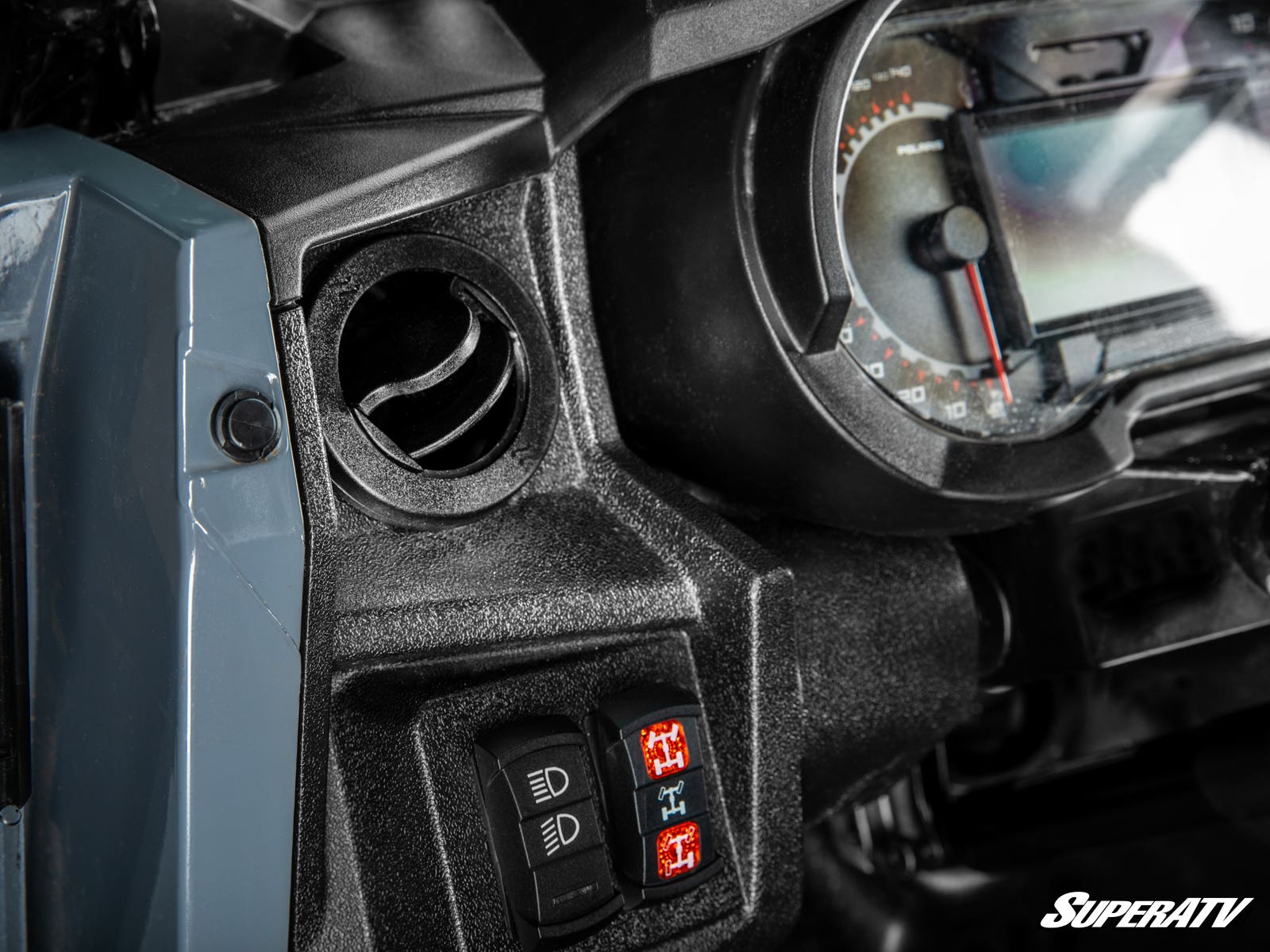

- 360° adjustable vents

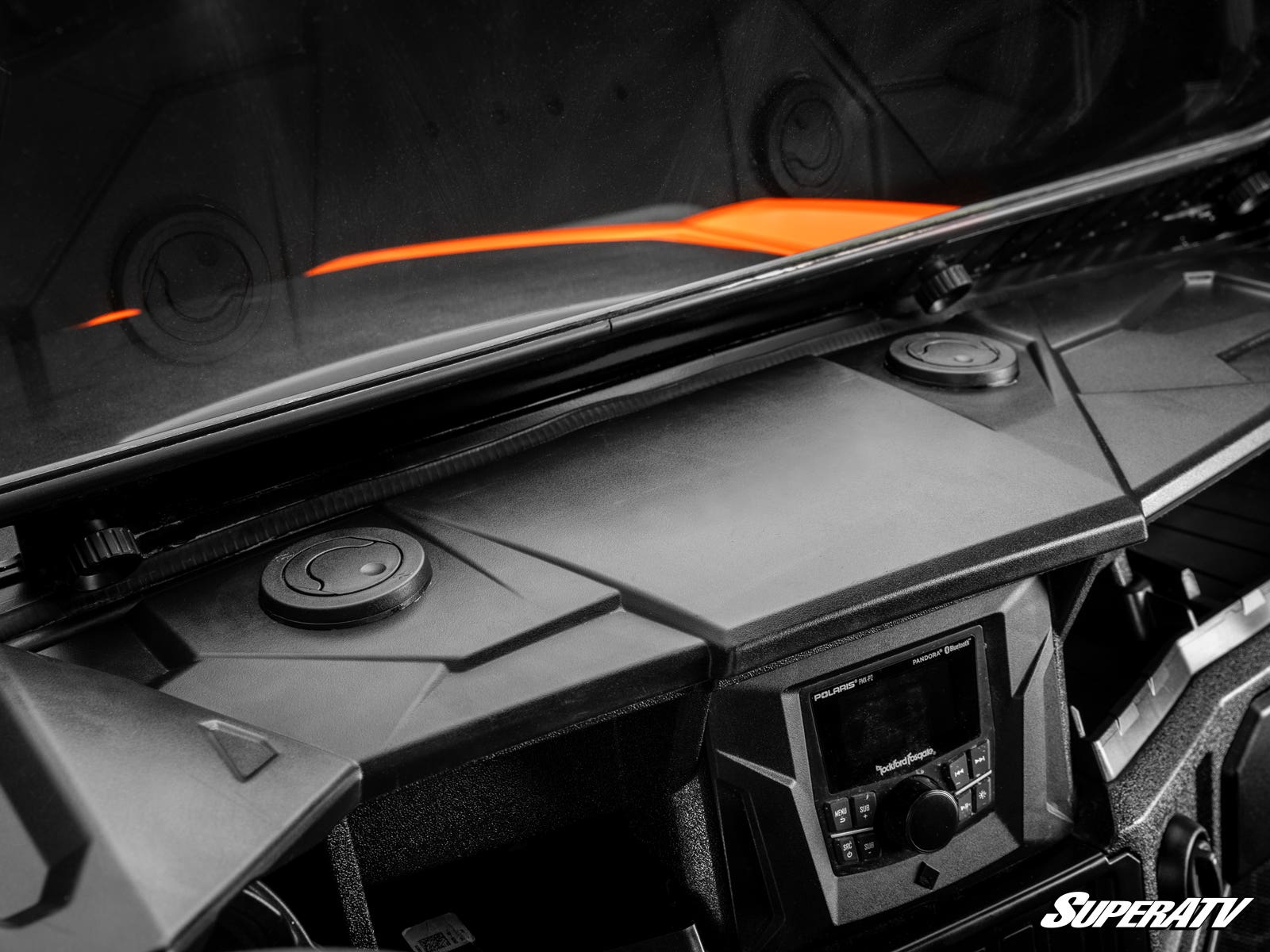

- Defrost hoses and vents included
- High-grade radiator hoses rated from -40°F to 285°F
- IP67 rating
- Built-in shutoff valve

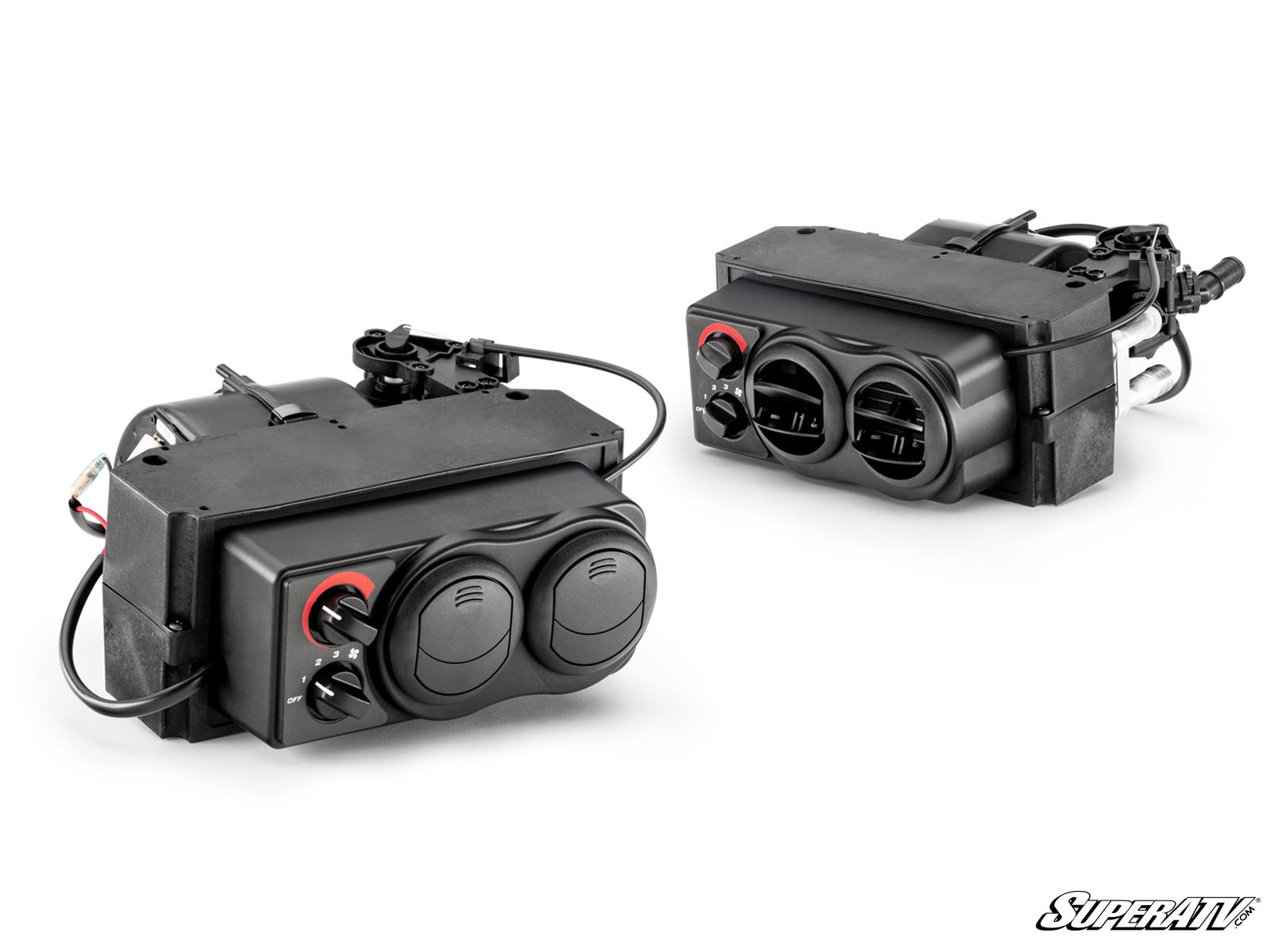

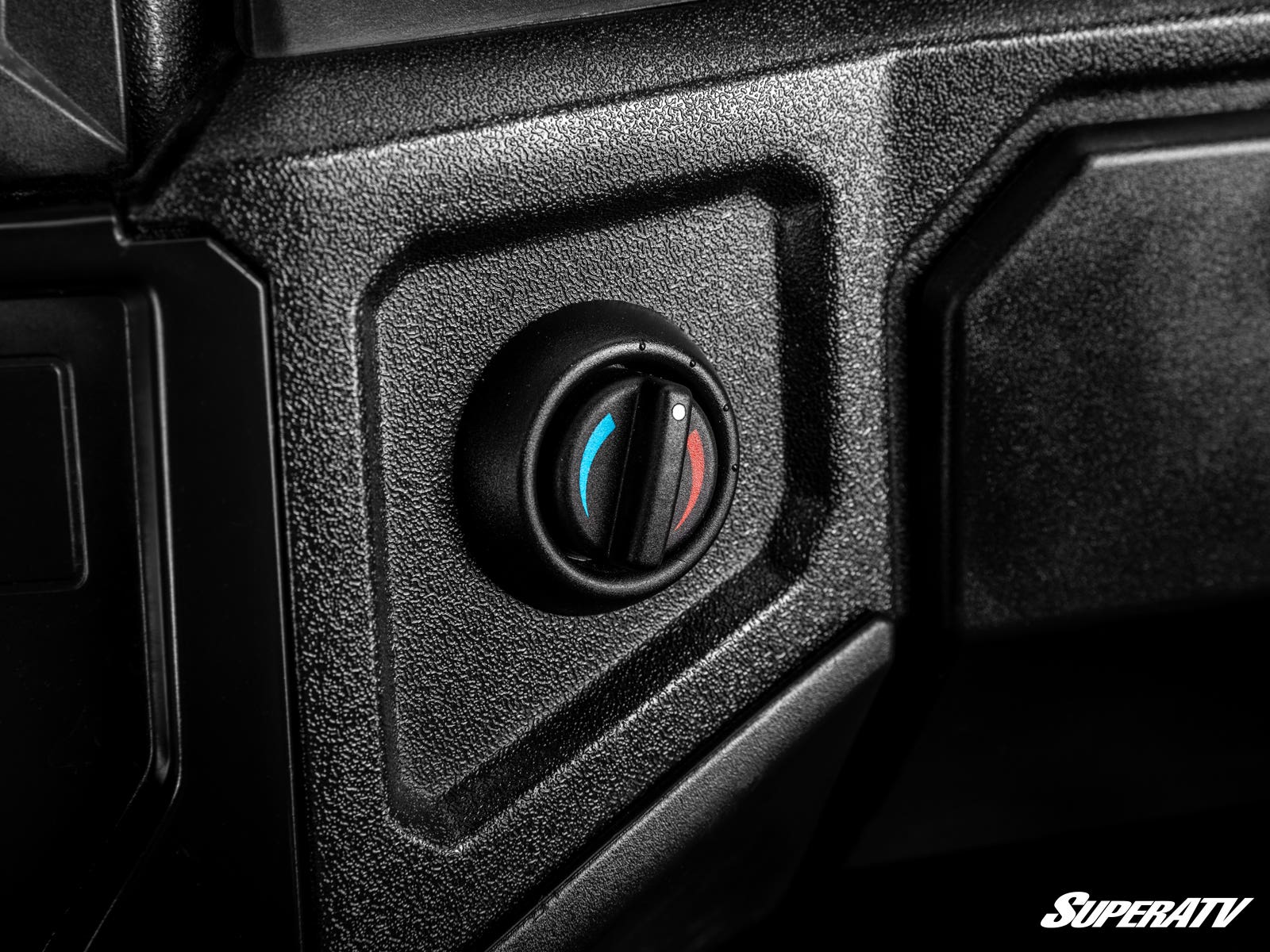

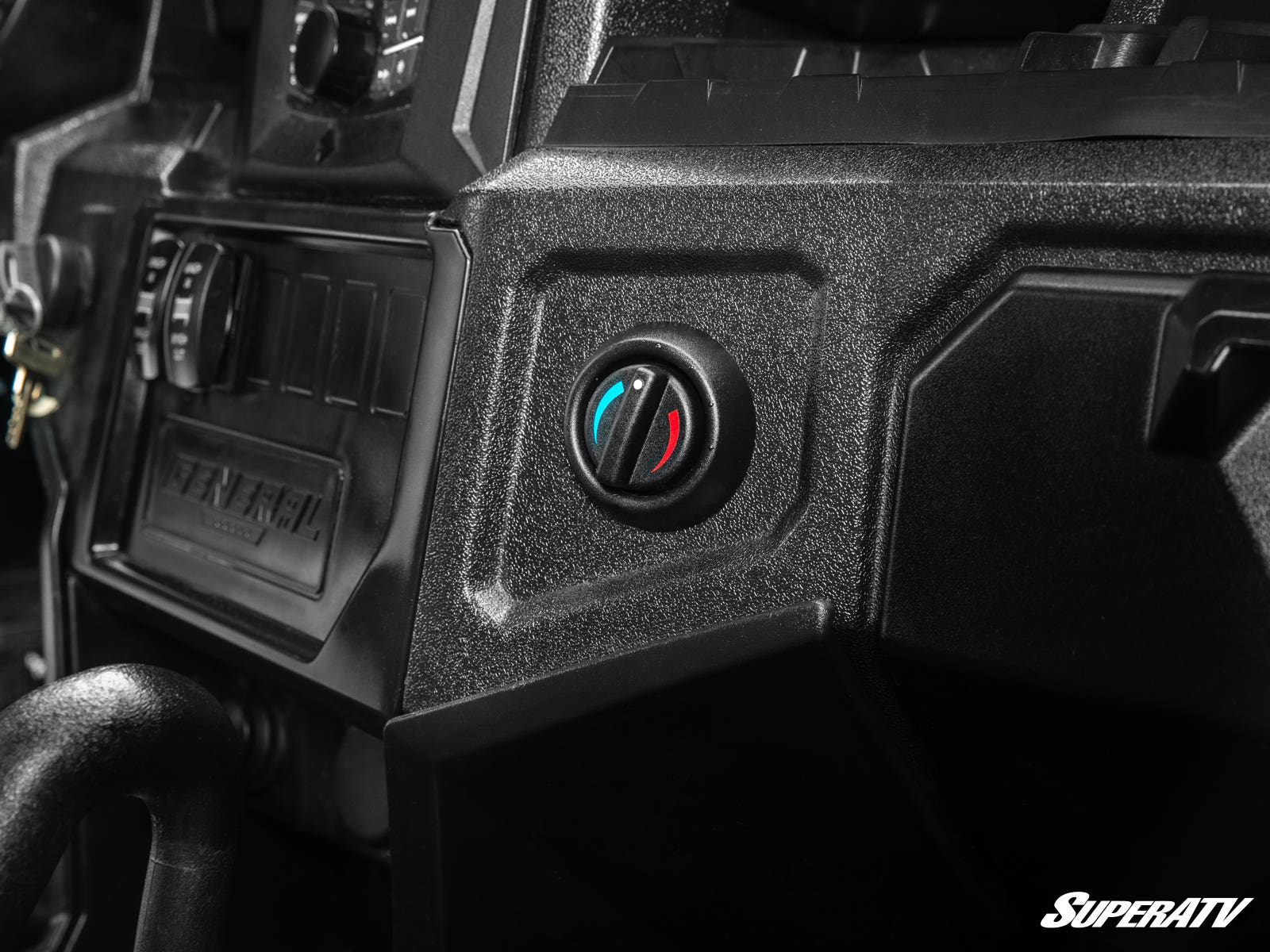

- Optional second-row heater for the General XP 4 1000, rated at 14,600 BTU, with its own temperature and fan controls
- Optional grille cover to warm the coolant faster in freezing weather
- Optional quick-start flow valve and idle flow pump
Built To Solve: A Cold Cab and Frosted Windshield on the General XP 1000
- Cold mornings that slow down work and chores
- Scraping a frosted windshield before you can head out
- Rear-seat passengers in a General XP 4 1000 left out of the heat
- Slow warm-up in freezing weather, solved with the optional grille cover, flow valve and idle pump
Best For: General XP 1000 Owners Who Work and Ride Through Winter
- Farm, ranch and property owners using the General every day of the year
- Contractors heading to cold job sites
- Snow plow operators who need a clear windshield
- General XP 4 1000 crews carrying rear-seat passengers (choose a Front and Rear package)
- Owners with a windshield, roof and doors installed
Specifications
- Heat source: engine coolant
- Front heater mounting: in dash
- Front heater output: capable of 20,000 BTU at 135 CFM
- Front heater current draw: 5.2 amps at 13.6 volts
- Second-row heater output: capable of 14,600 BTU at 135 CFM
- Second-row heater current draw: 3.4 amps at 13.7 volts
- Second-row heater control box: 10" x 4.5" x 11.75"
- Hose rating: -40°F to 285°F
- Rating: IP67 (front heater)
- Manufacturer Part Number: HTR-P-GEN1K-ID (front heater), HTR-P-GEN4 (second-row heater)
Fitment
Fits the following Polaris General XP 1000 models:
- Polaris General XP 1000: 2020+
- Polaris General XP 4 1000: 2020+
Not compatible with models that have an in-dash subwoofer. Rear (2nd Row) packages are for 4-seat General XP 4 1000 models only. Do not run the grille cover above freezing, because it can overheat the machine. Fitment is not guaranteed on models not listed.
FAQ
How much heat does this General XP 1000 in-dash heater put out?
SuperATV rates the front in-dash heater as capable of 20,000 BTU at 135 CFM. It draws heat from the engine coolant, so it keeps putting out hot air as long as the engine is running.
Does it defrost the windshield?

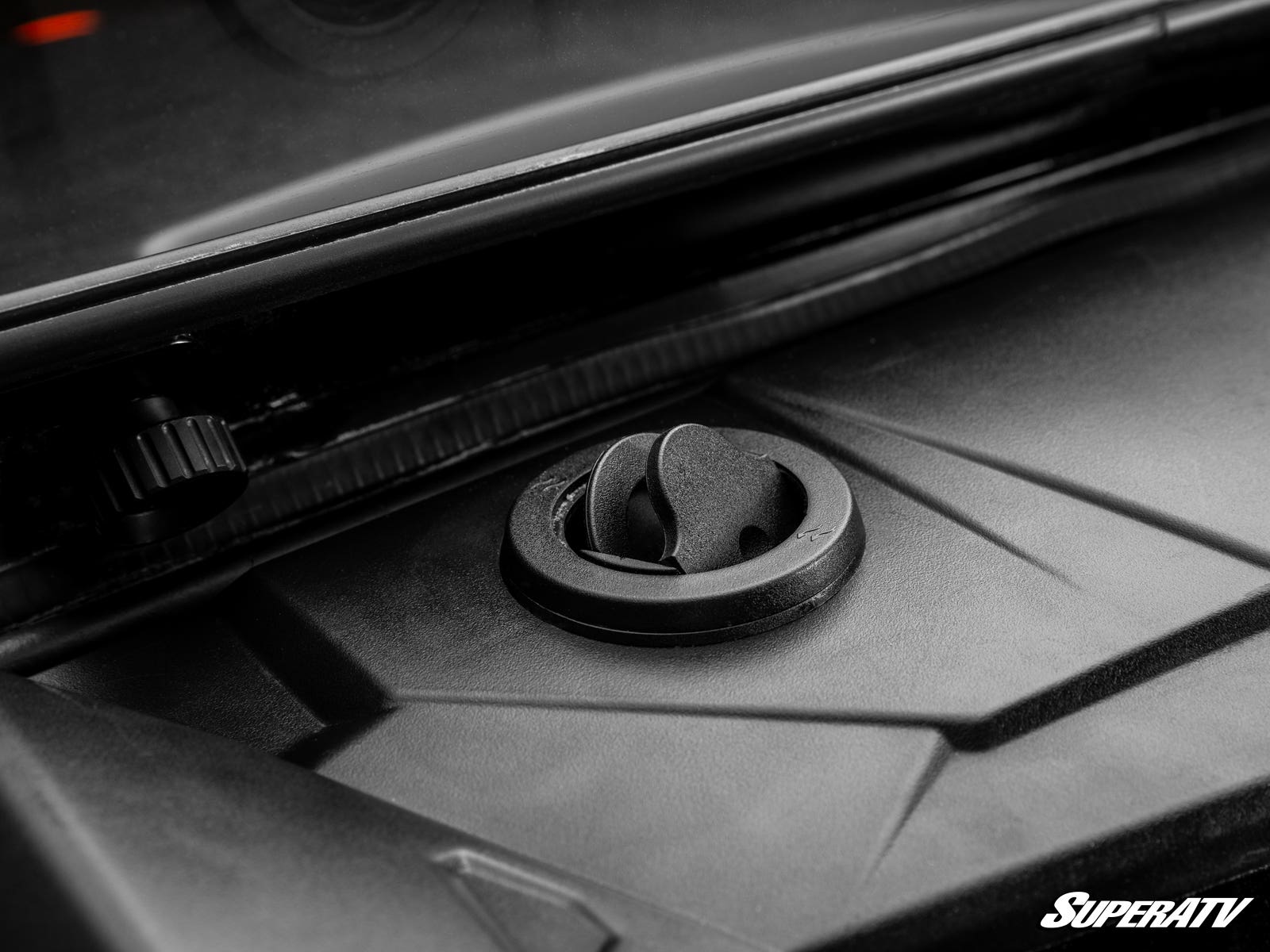

Yes. The kit includes the vents and hoses to send heat to the windshield, so you can clear frost without a scraper.
Which General XP 1000 models does it fit?
SuperATV lists Polaris General XP 1000: 2020+; Polaris General XP 4 1000: 2020+. Not compatible with models that have an in-dash subwoofer. Rear (2nd Row) packages are for the 4-seat General XP 4 1000 only.
What does the second-row heater add?

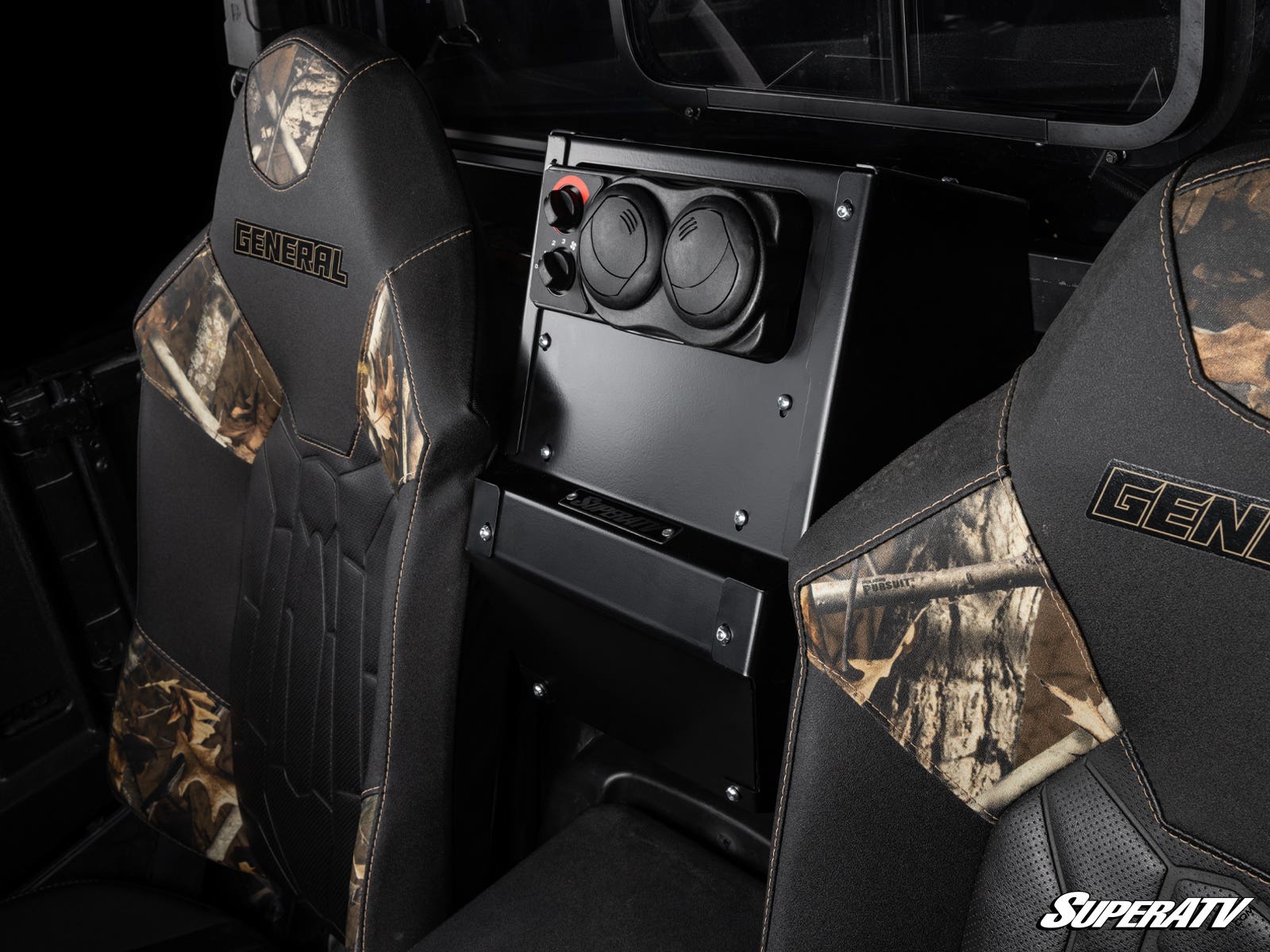

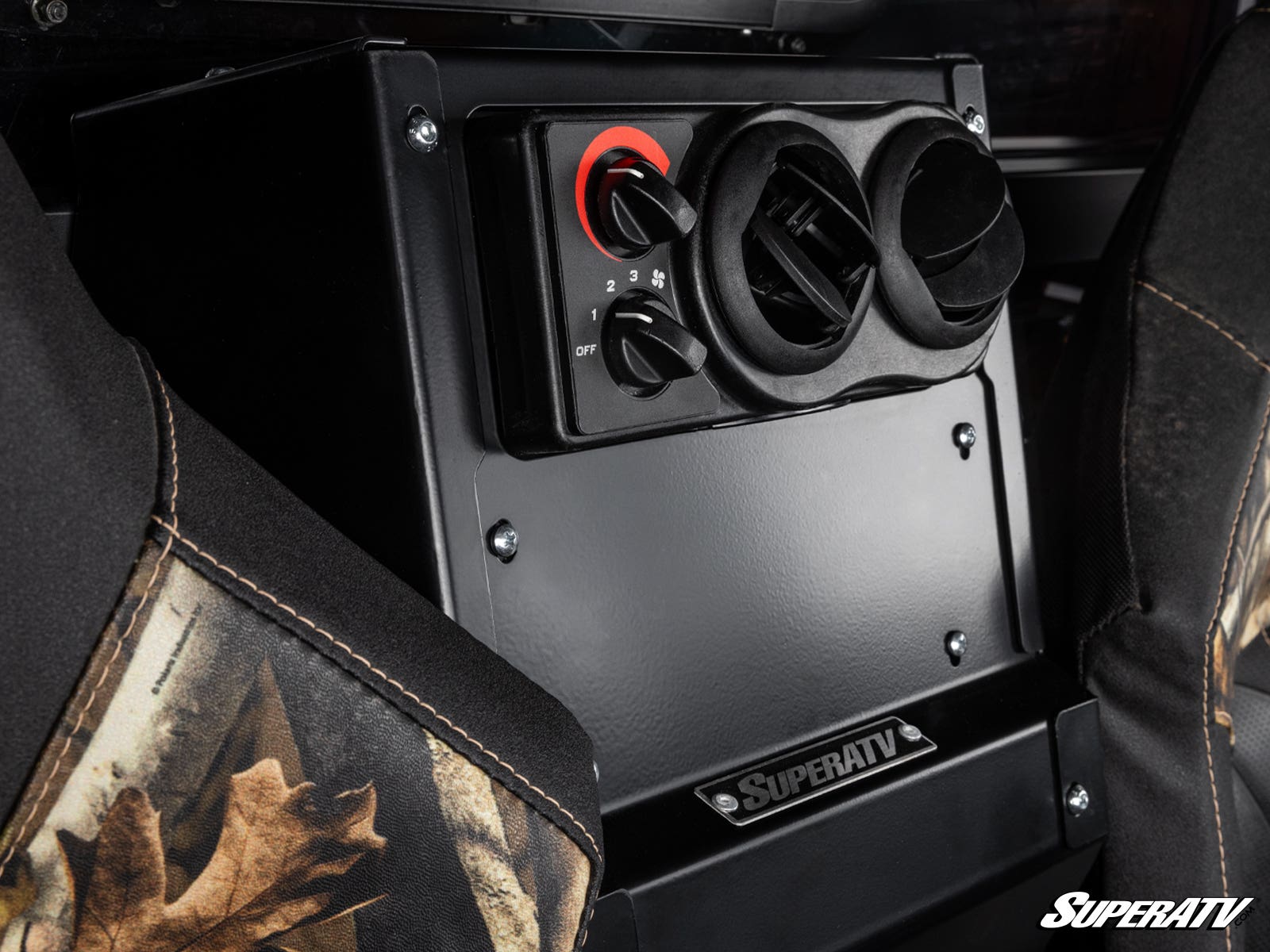

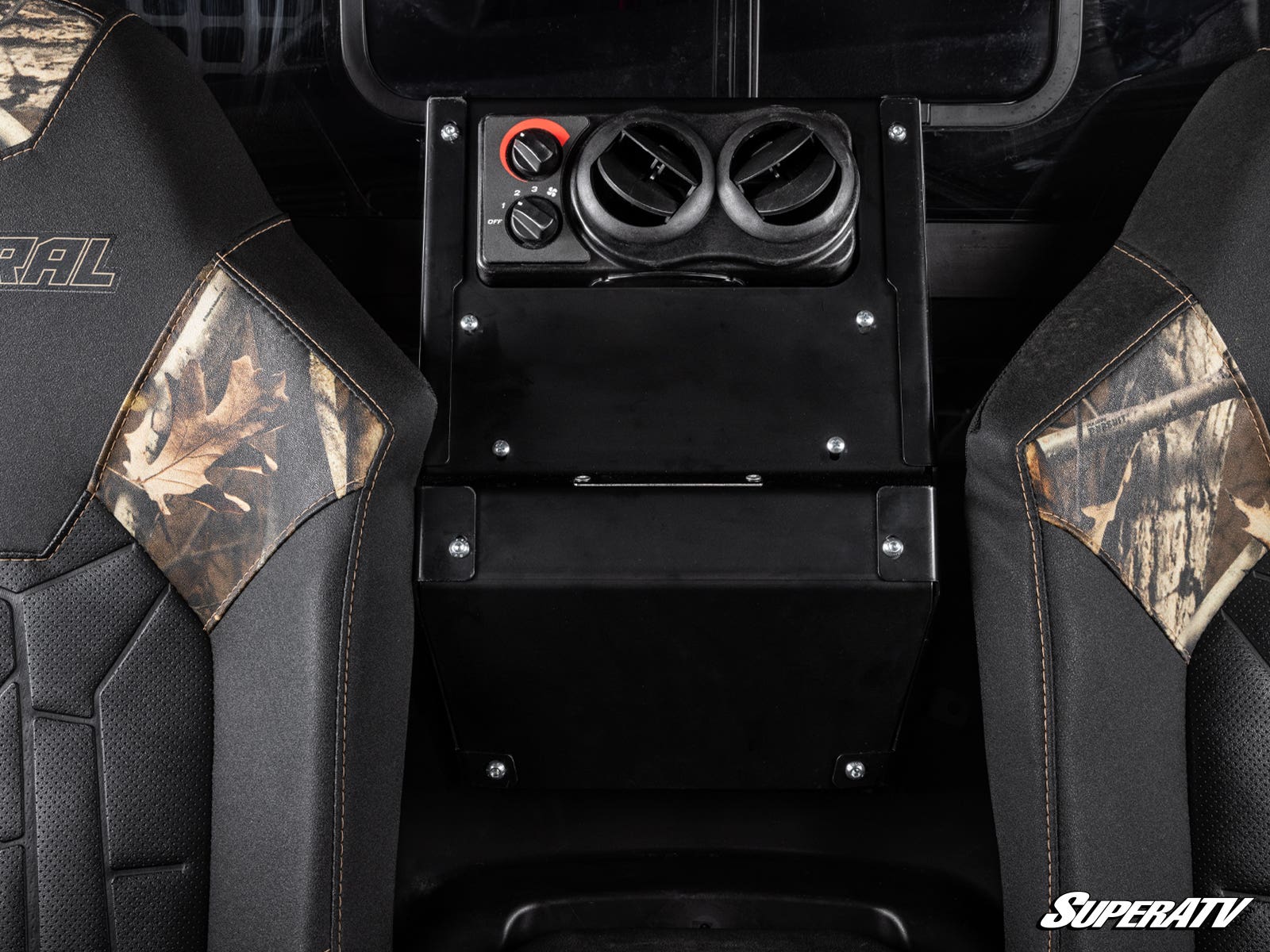

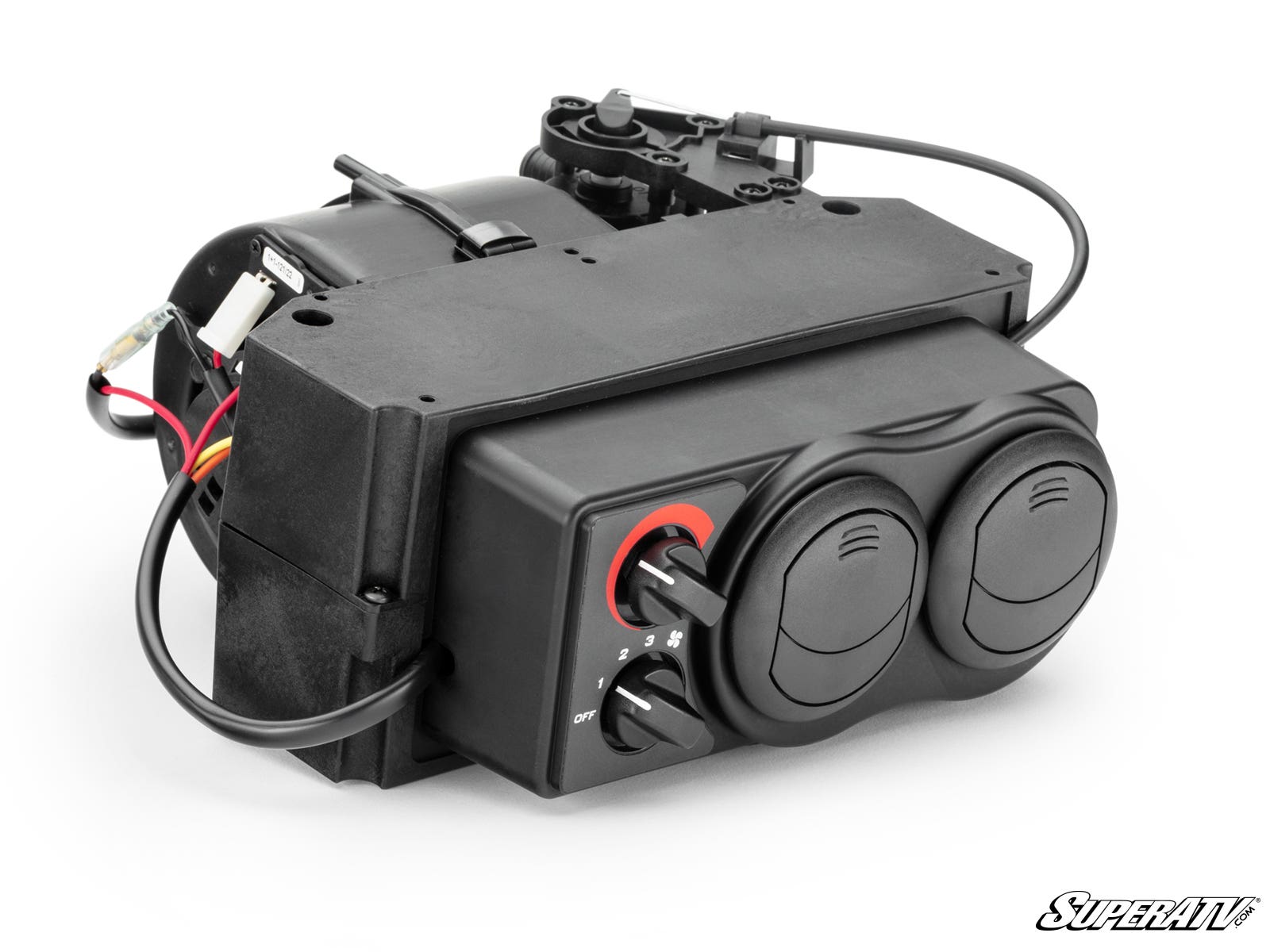

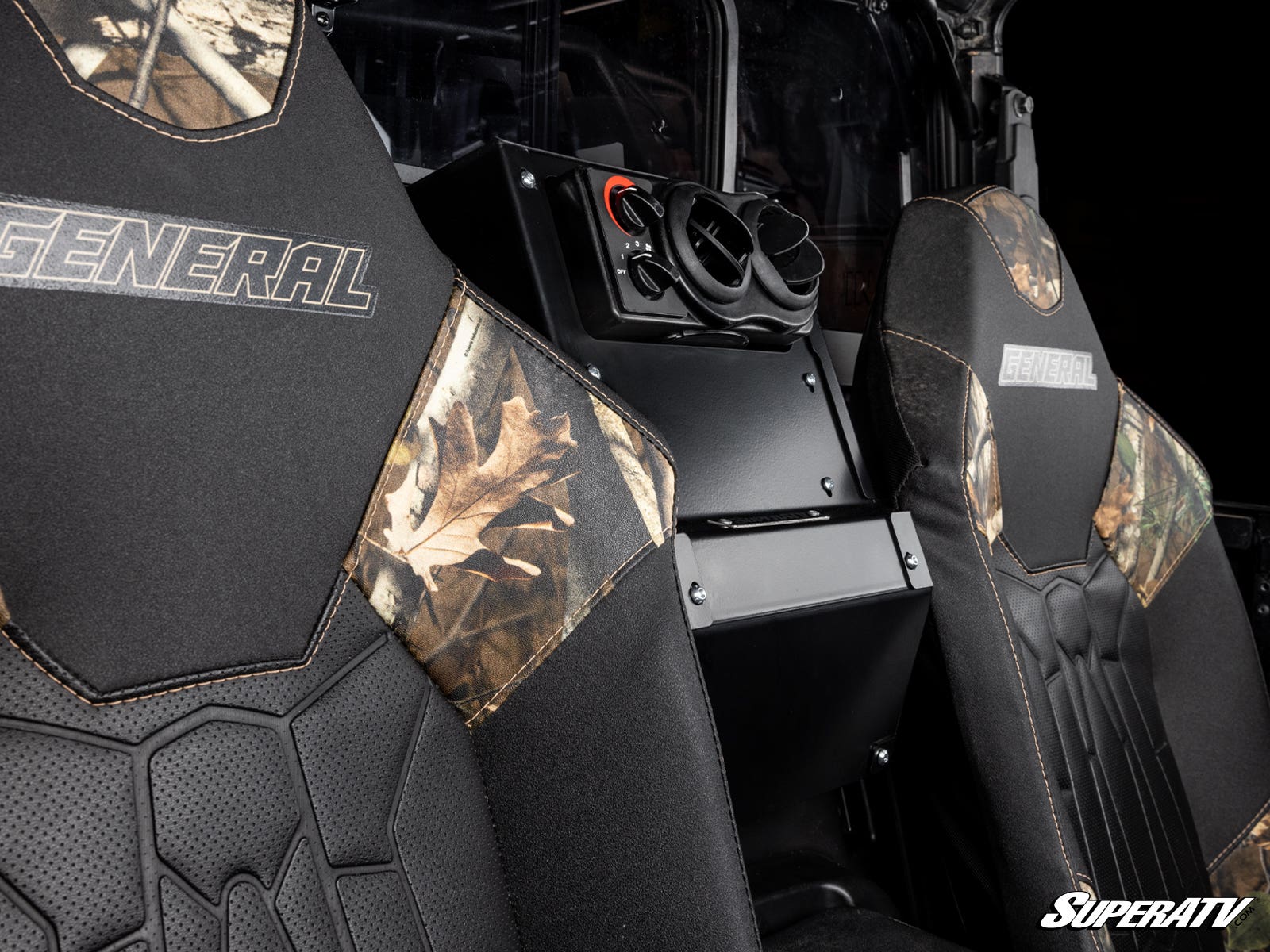

The second-row heater mounts in a steel housing between the rear seats of the General XP 4 1000, with its own temperature and fan controls. It is rated at 14,600 BTU at 135 CFM, and its tubing routes from the front through the rear firewall.
What does the grille cover do?

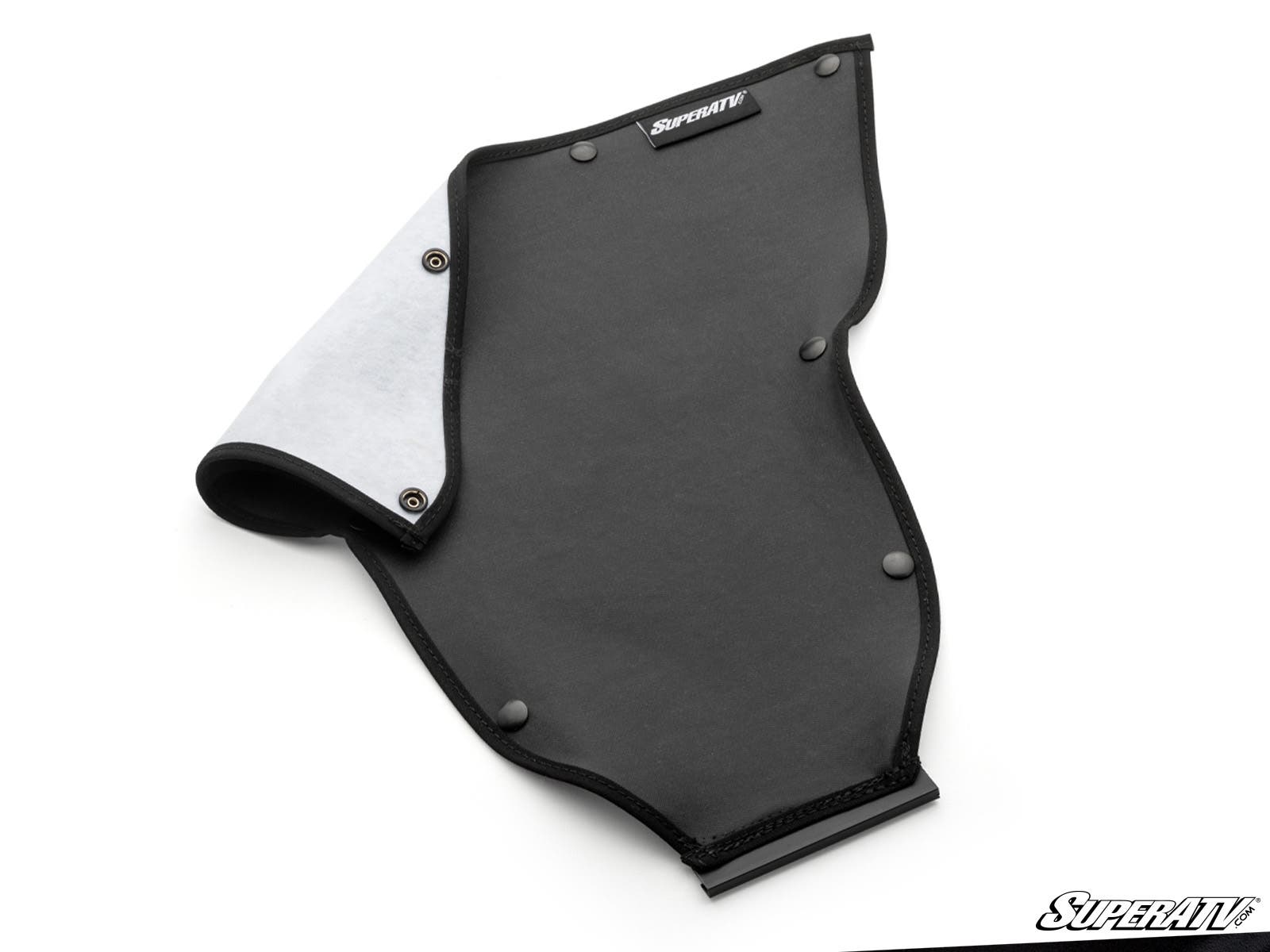

The grille cover blocks airflow through the radiator so the coolant, and your heater, warm up faster on freezing rides. Remove it when temperatures are above freezing.
Quick-start flow valve or idle flow pump: which one do I need?

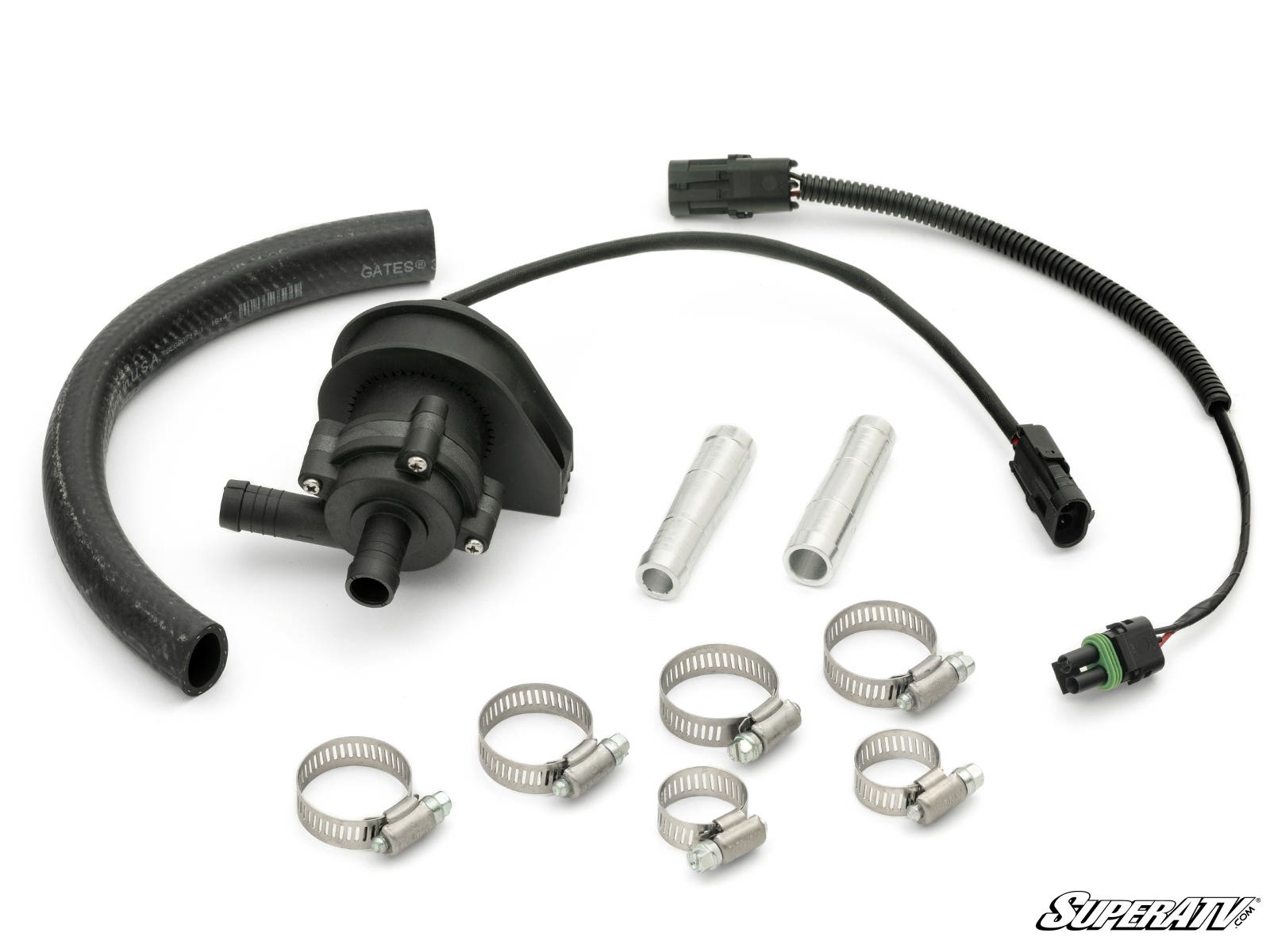

The quick-start flow valve sends all engine coolant to the heater core at low engine temps and cuts warm-up time roughly in half, then opens on its own once the engine is warm. The idle flow pump actively circulates coolant so you get heat in about 30 seconds, even at idle or slow speeds. SuperATV recommends combining them for the fastest heat.
Install Video
Watch SuperATV's official install walkthrough: How to install the SuperATV cab heater in a Polaris General.
Why SuperATV
SuperATV designs this in-dash heater around the General XP 1000 so it sits inside the dash with the defrost hoses out of sight, and every kit ships with hoses, tubing, clamps, hose pliers and instructions. The heater is backed by SuperATV's 1-year limited warranty against manufacturing defects to the original purchaser.
Make Your General XP 1000 a Year-Round Work Machine
Confirm your General XP 1000 model in the fitment list, choose the heater package that matches your seating, and pair it with a windshield, roof and doors to seal the cab.
