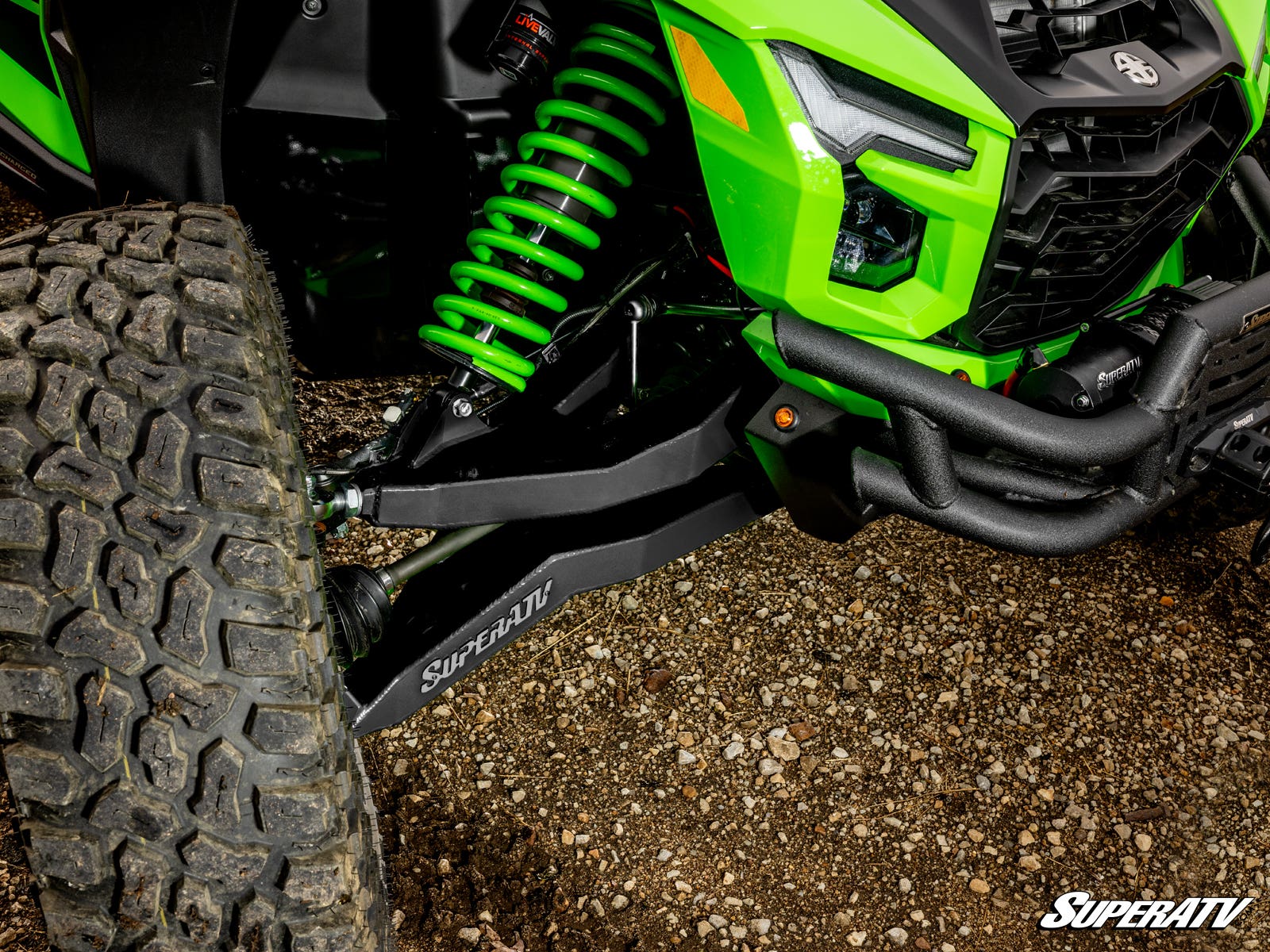

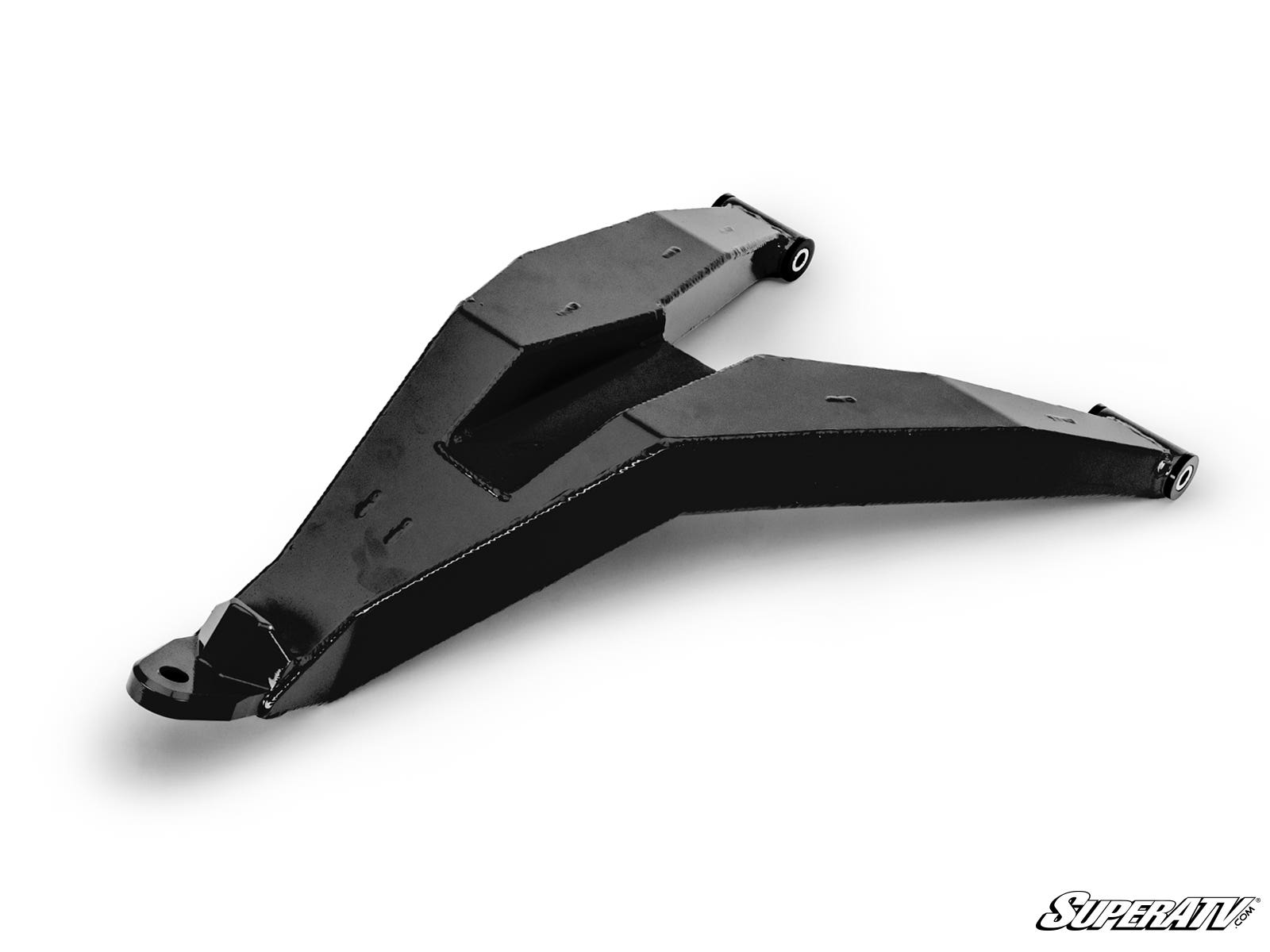

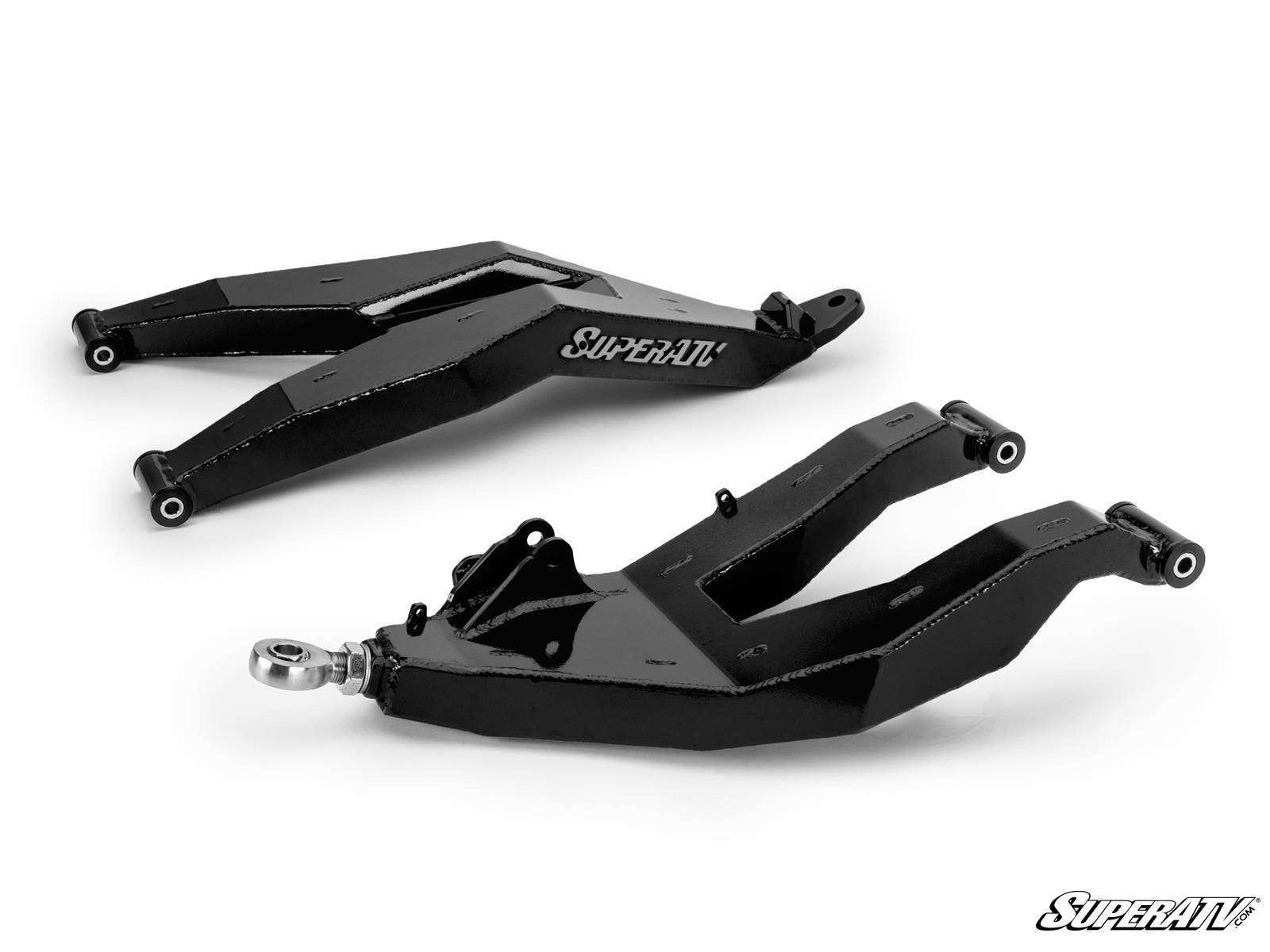

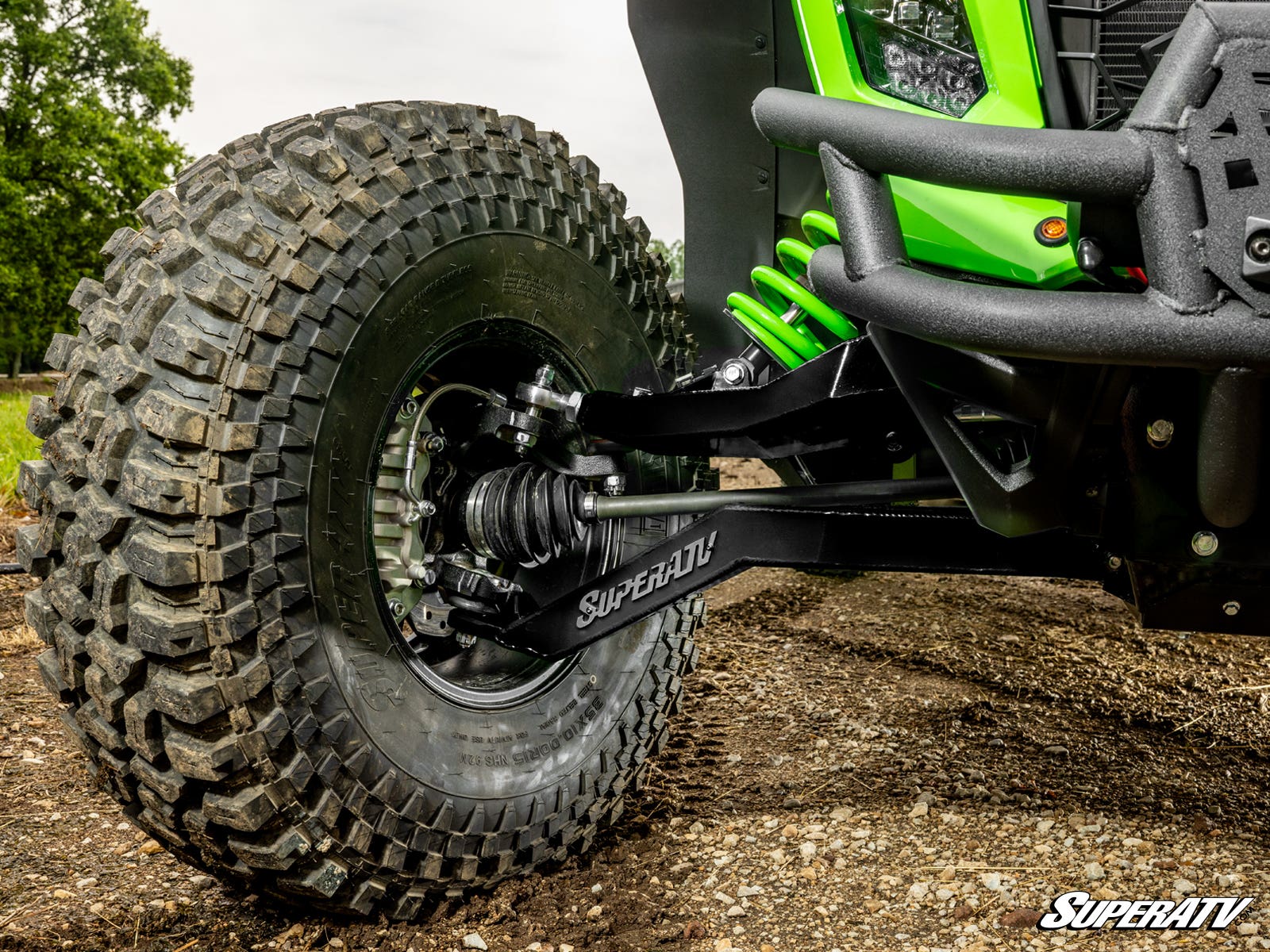

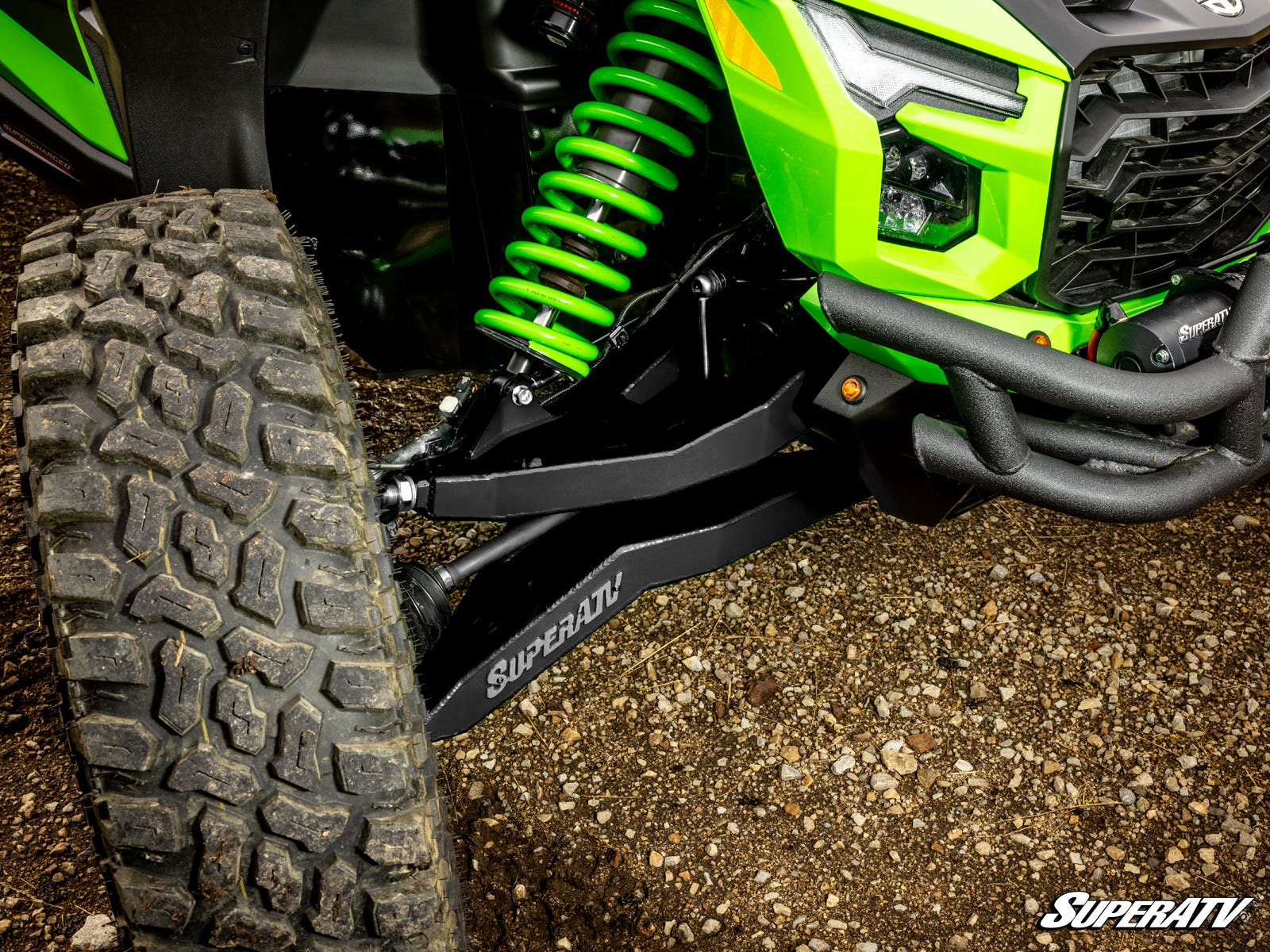

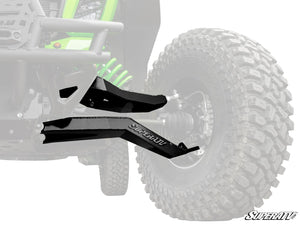

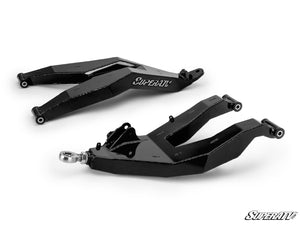

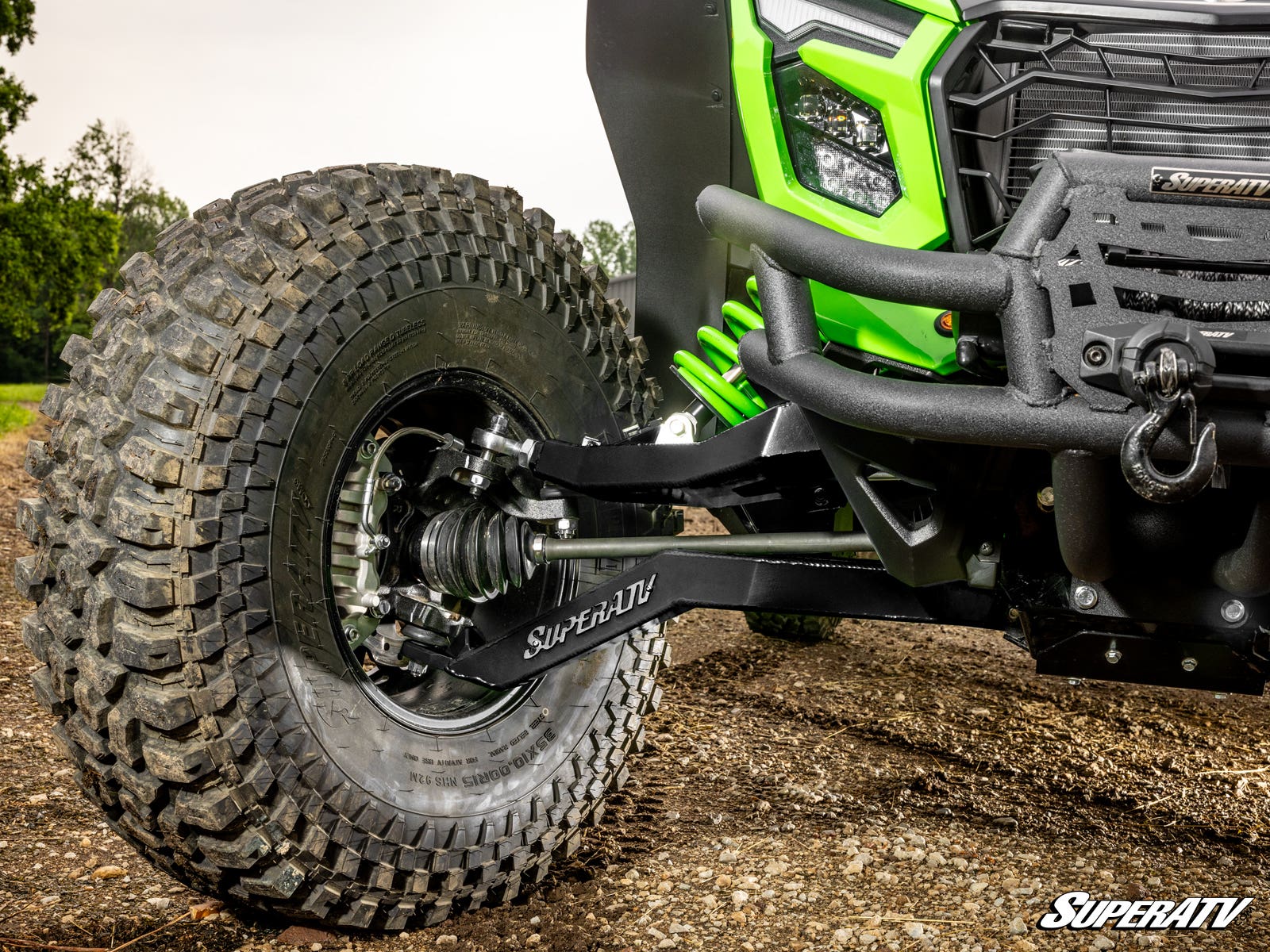

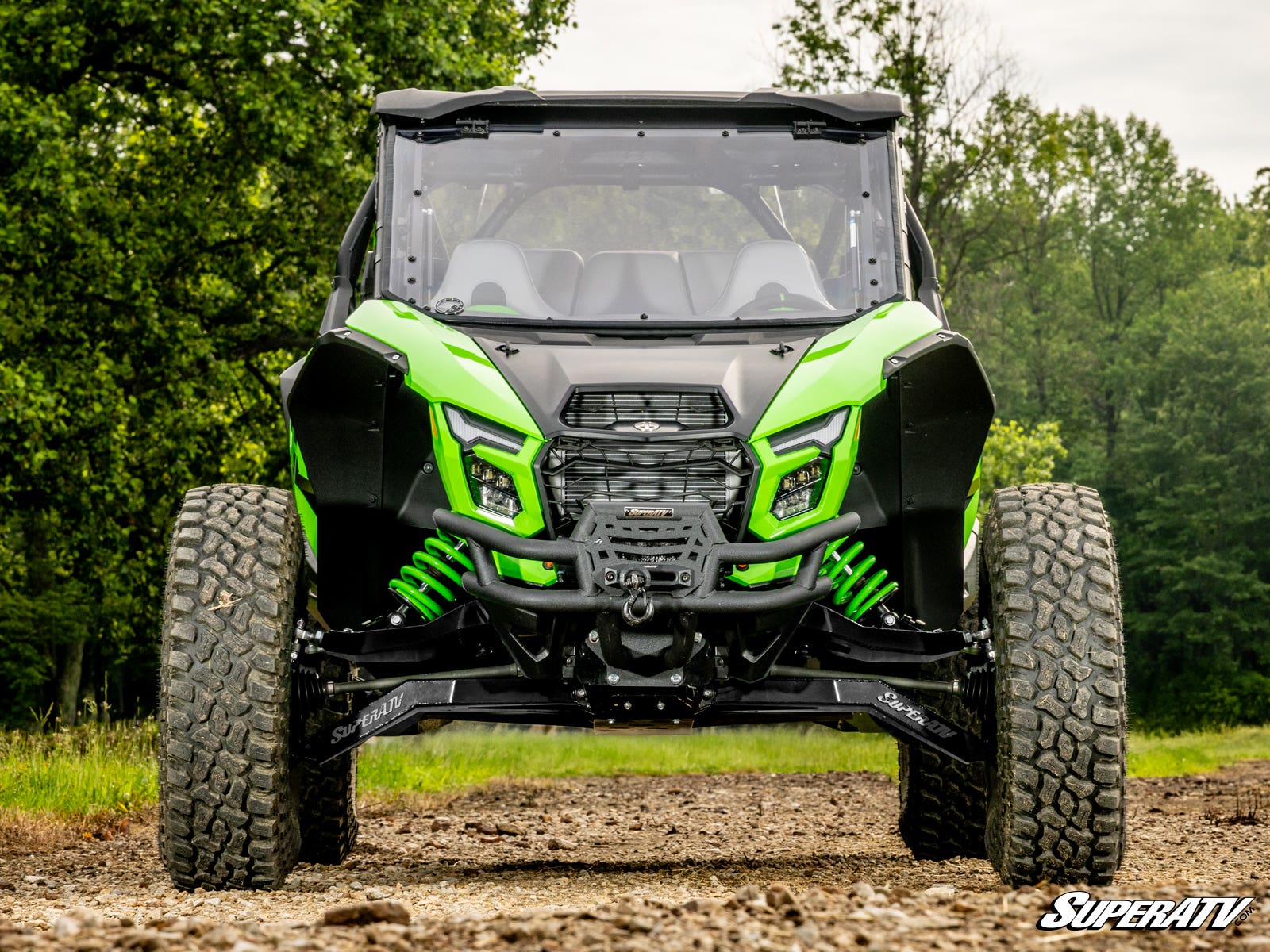

The SuperATV Kawasaki Teryx H2 Sidewinder A-Arms add ground clearance, stability and a 1.25-inch forward offset so the 2026+ Teryx4 H2 and Teryx5 H2 can run up to 40-inch tires without a lift. They use a 1.75-inch high-clearance bend, a tapered rectangular design and a lifetime warranty.

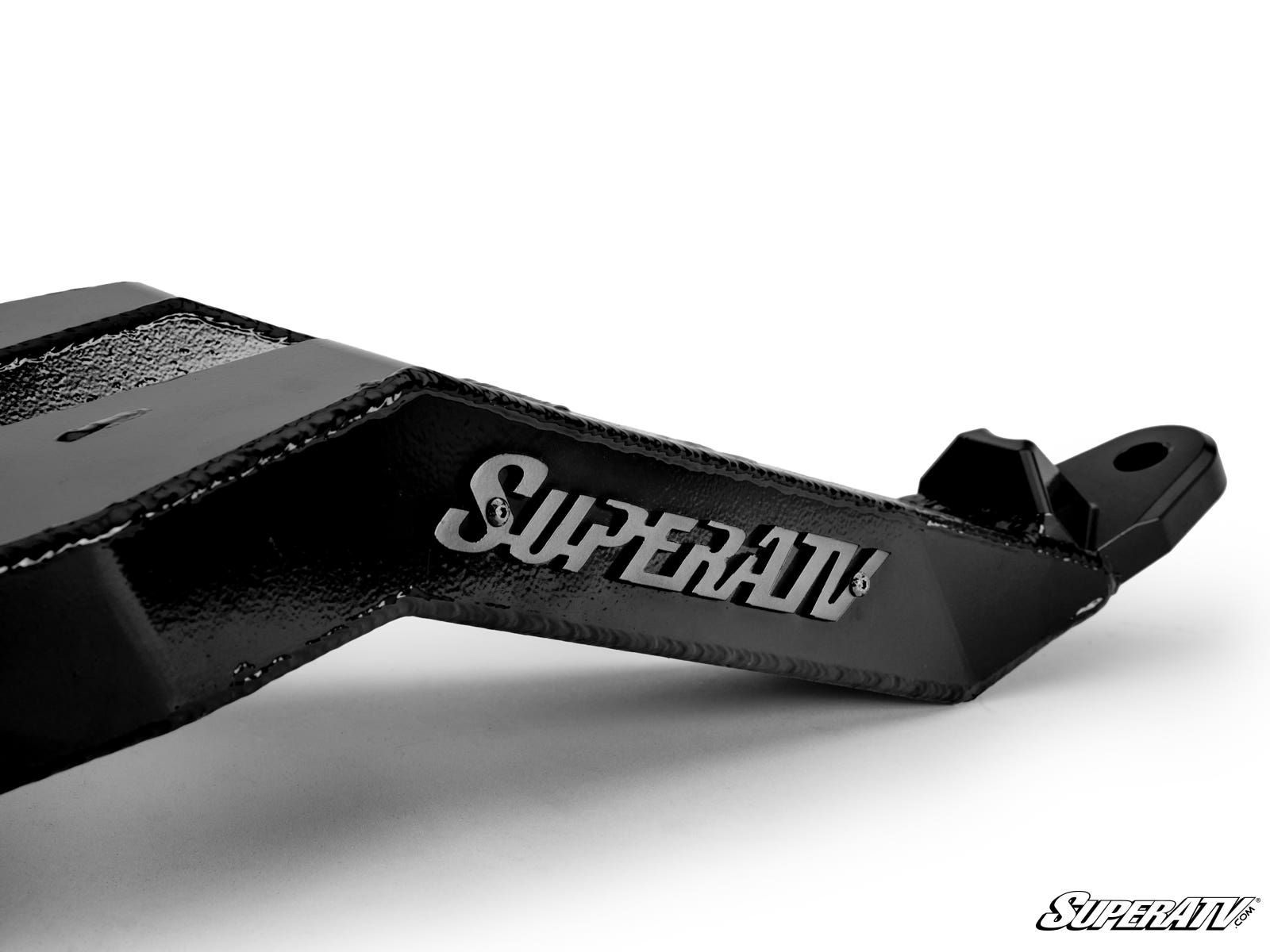

SuperATV uses 5 mm material where strength matters most and 3.5 mm in non-structural areas, hand welds every arm and finishes them in powder coat. Upper arms carry 7/8-inch heim joints for simple camber changes when you add bigger tires or a lift. Bushings are not included; the arms take OEM bushings, or order them with SuperATV's UHMW bushing kit.
Key Features

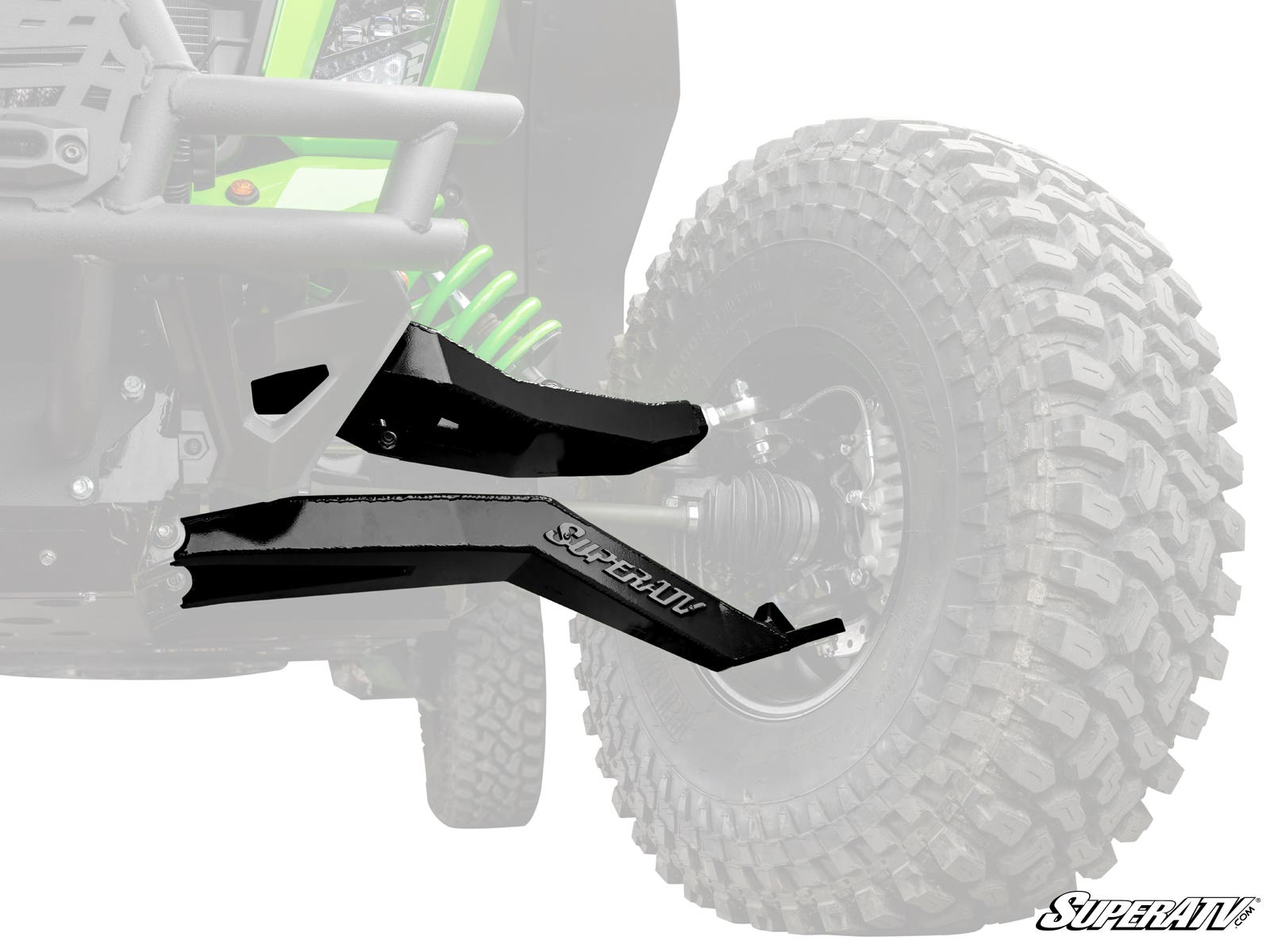

- 1.25-inch forward offset

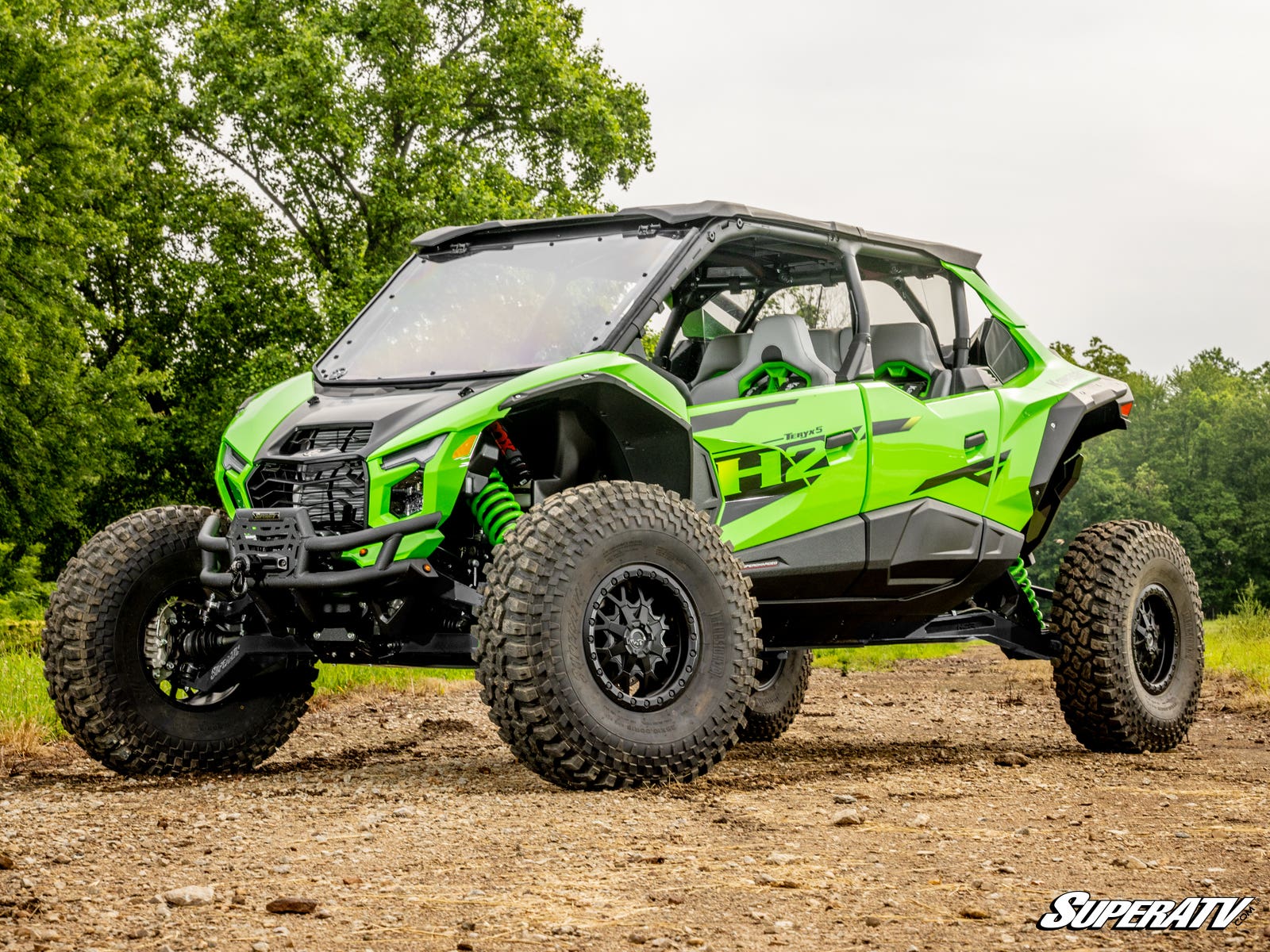

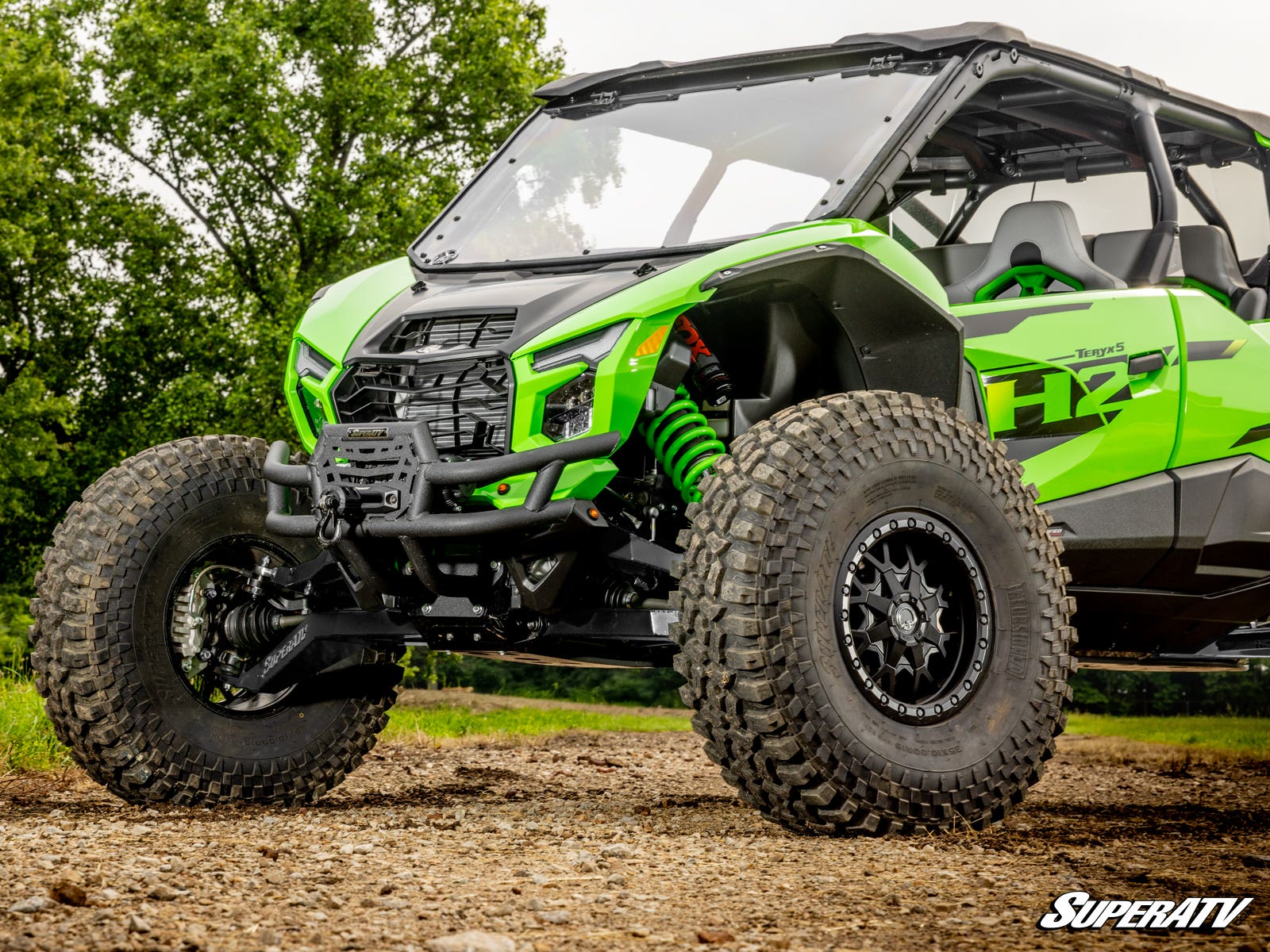

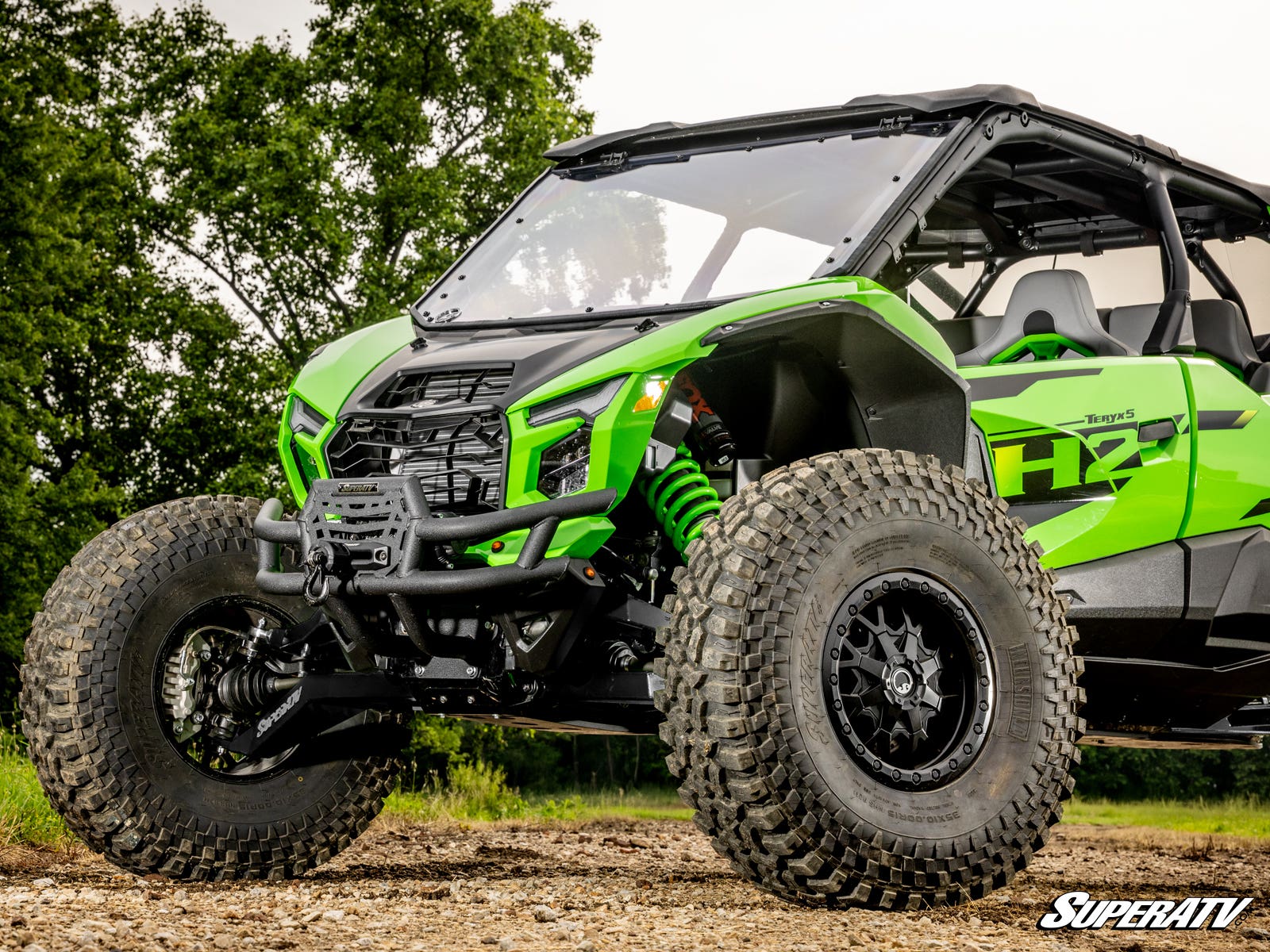

- Run tires up to 40 inches without a lift

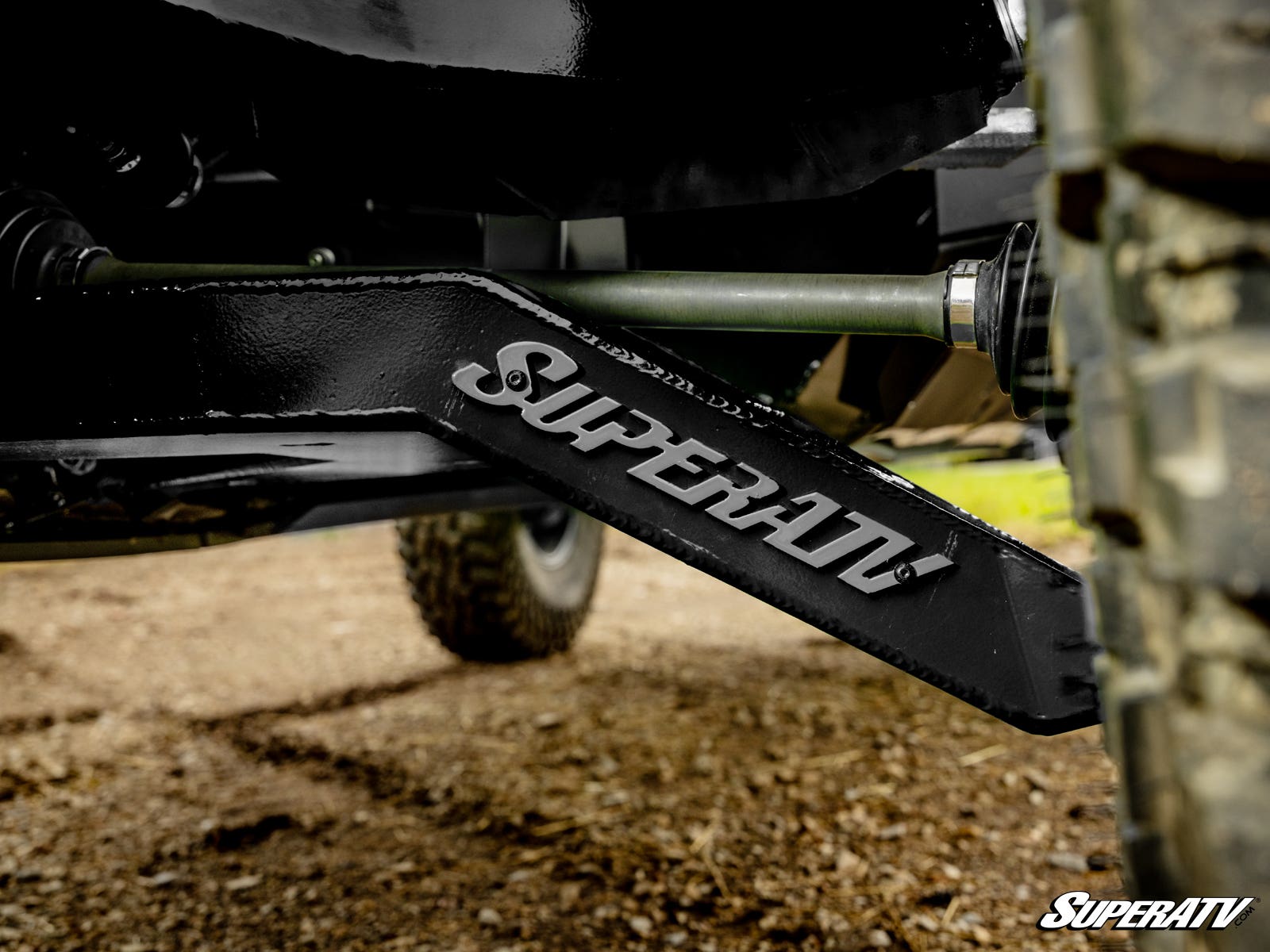

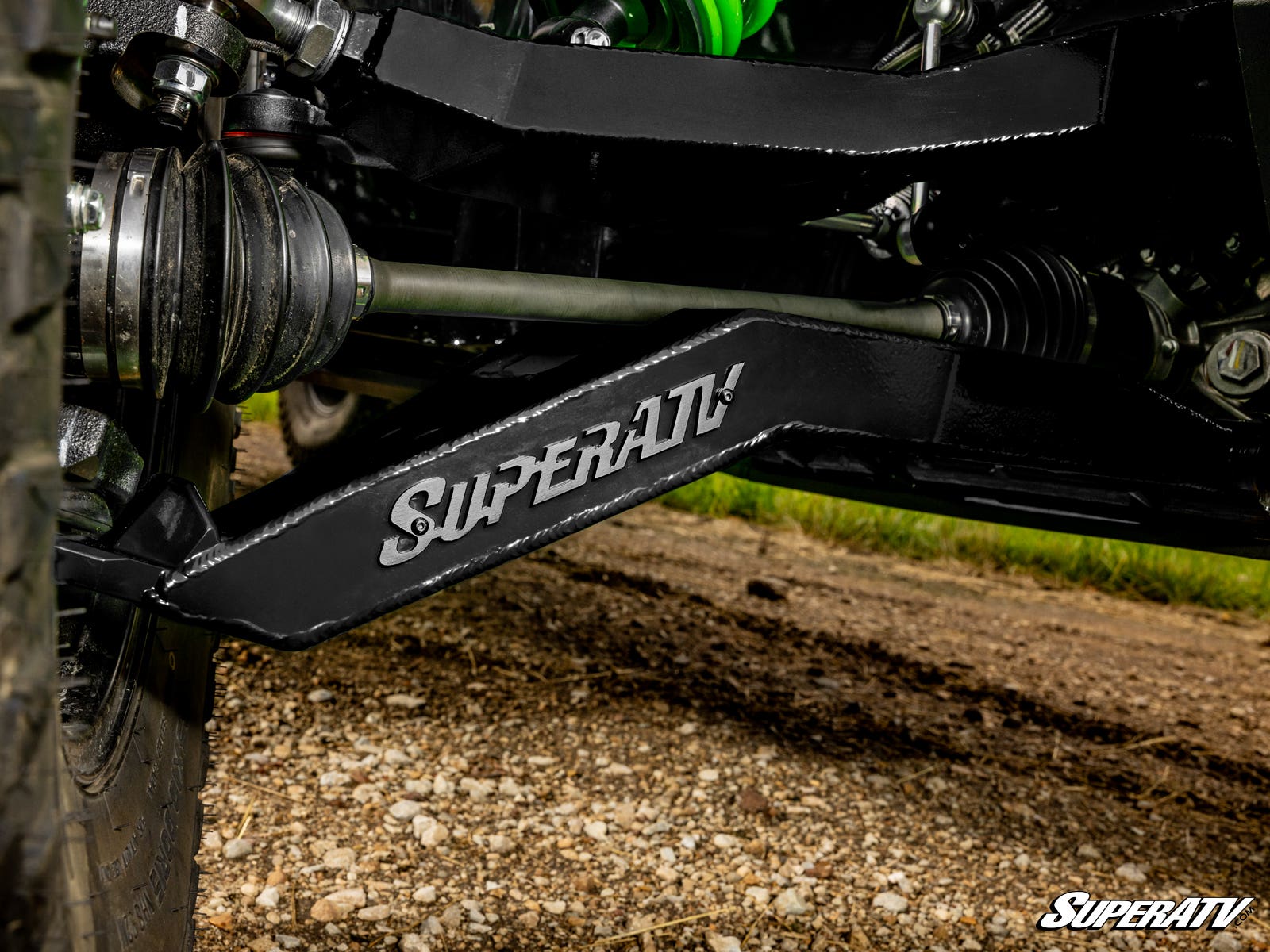

- 1.75-inch high-clearance bend

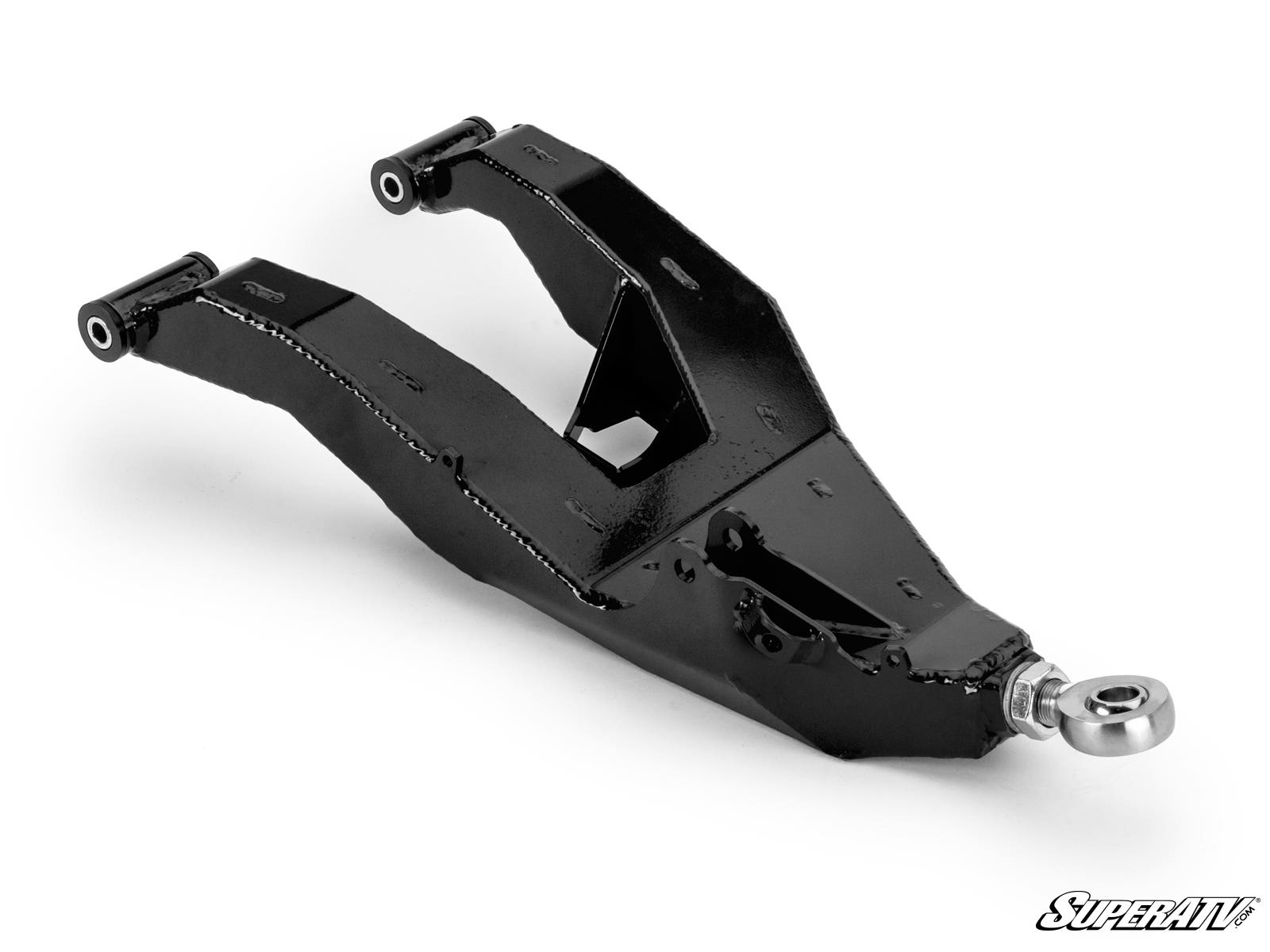

- 7/8-inch upper heim joints for camber adjustment
- 5 mm material in high-stress areas, 3.5 mm elsewhere
- Hand welded and powder coated
- Compatible with OEM bushings (UHMW kit optional)
- Lifetime warranty
Built To Solve: Clearance and Tire Size Limits on the Teryx H2
- Stock A-arms dragging on rocks and ledges
- No room to run tires bigger than stock
- Camber thrown off by bigger tires or a lift
- Stock arms that bend under hard hits
Best For: Teryx H2 Owners Going to Bigger Tires
- Teryx4 H2, Teryx4 H2 Deluxe eS and Teryx5 H2 Deluxe eS owners
- Riders moving to 35 to 40-inch tires
- Rock crawlers and hard trail riders who need clearance
- Owners who want adjustable camber at the upper arm
Specifications
- Forward offset: 1.25 inches
- High-clearance bend: 1.75 inches
- Max tire size: up to 40 inches without a lift
- Upper heim joints: 7/8 inch
- Material: 5 mm in structural areas, 3.5 mm in non-structural areas
- Finish: powder coat
- Bushings: not included (OEM compatible); UHMW kit optional
- Colors: black or green
- Warranty: lifetime
- Manufacturer Part Numbers: AA-K-H2-OHC-02 (black), AA-K-H2-OHC-12 (green); add -K1 for the bushing kit bundle
Fitment

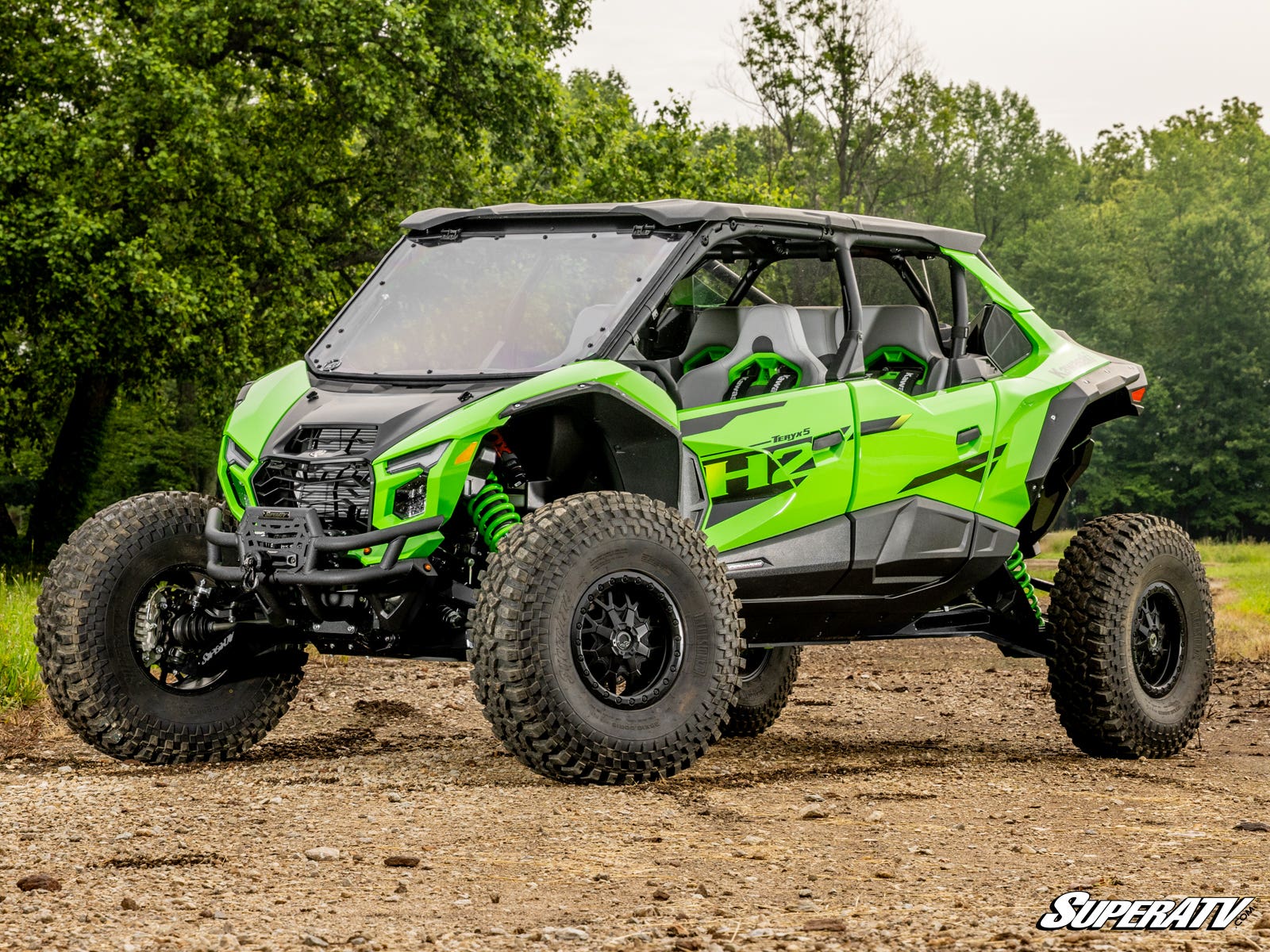

- Kawasaki Teryx4 H2 (2026+)
- Kawasaki Teryx4 H2 Deluxe eS (2026+)
- Kawasaki Teryx5 H2 Deluxe eS (2026+)
Fitment is not guaranteed on models, trims or years not listed above, or on machines with modified chassis or aftermarket parts in the way; confirm your exact model before ordering.
FAQ
How big a tire can I run with these A-arms?
SuperATV says the 1.25-inch forward offset lets you run tires up to 40 inches without a lift.
Do they come with bushings?
No. They work with OEM bushings, or you can order them with SuperATV's UHMW bushing kit.
Can I adjust camber?
Yes. The upper A-arms use 7/8-inch heim joints for camber adjustment.
What warranty do they have?
SuperATV backs the Sidewinder A-arms with a lifetime warranty.
Do they fit the Teryx5 H2?
Yes. The Teryx5 H2 Deluxe eS (2026+) is listed with the Teryx4 H2 models.
Why choose these over stock A-arms?
They add a high-clearance bend, a forward offset for bigger tires and heim-joint camber adjustment that stock arms do not have.
Why SuperATV
SuperATV designs, tests and builds its UTV parts in-house and backs this part with a 1-year limited warranty against manufacturing defects. Dunes 2 Dezert SXS ships SuperATV parts nationwide, so you get vehicle-specific fitment without hunting across sites.
Build Your Kawasaki Teryx H2 Suspension Upgrade
Choose black or green and decide whether to add the UHMW bushing kit, then plan for matching axles and tires. Add A-arm guards and a skid plate if you ride rocky terrain.
