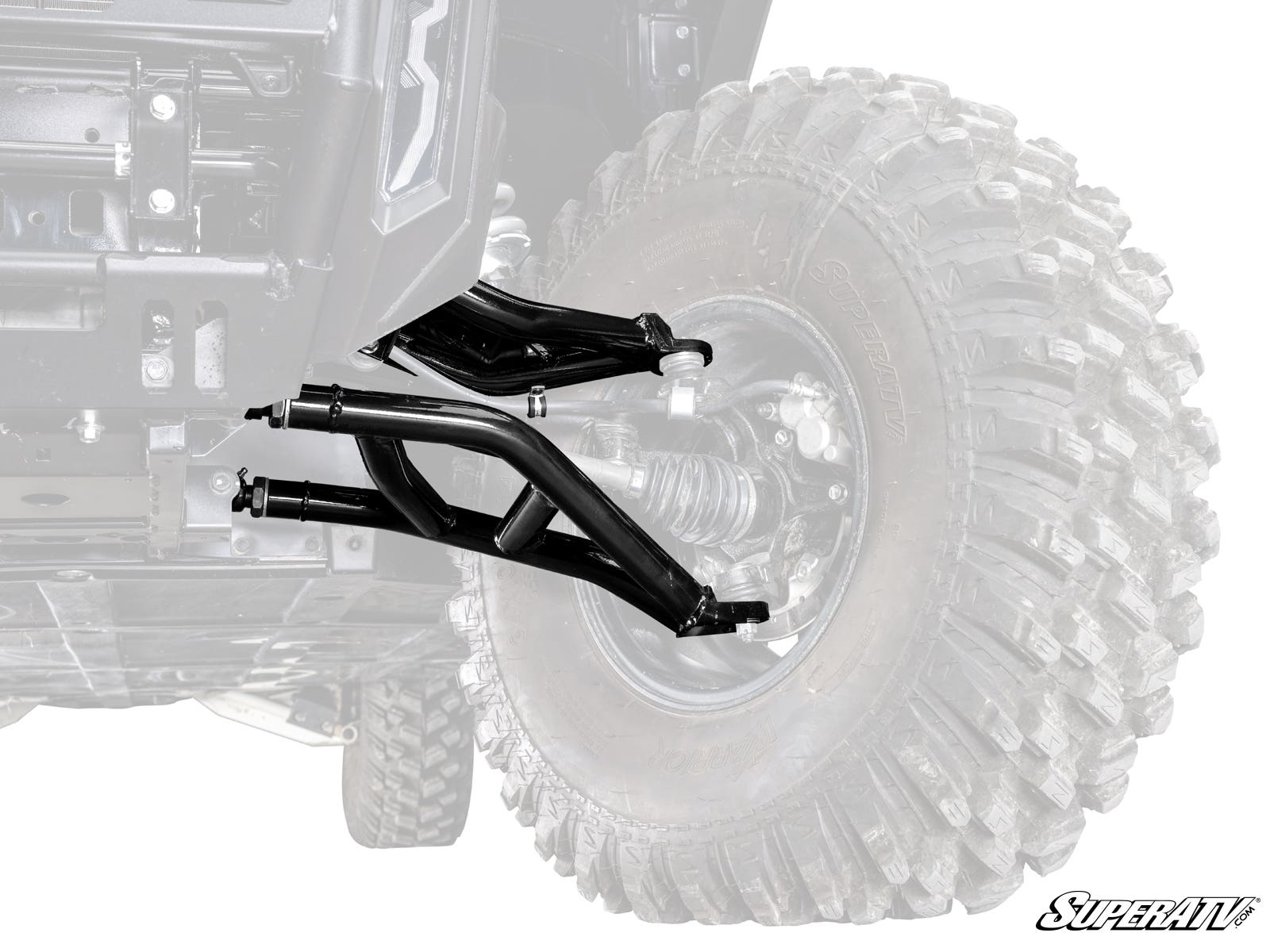

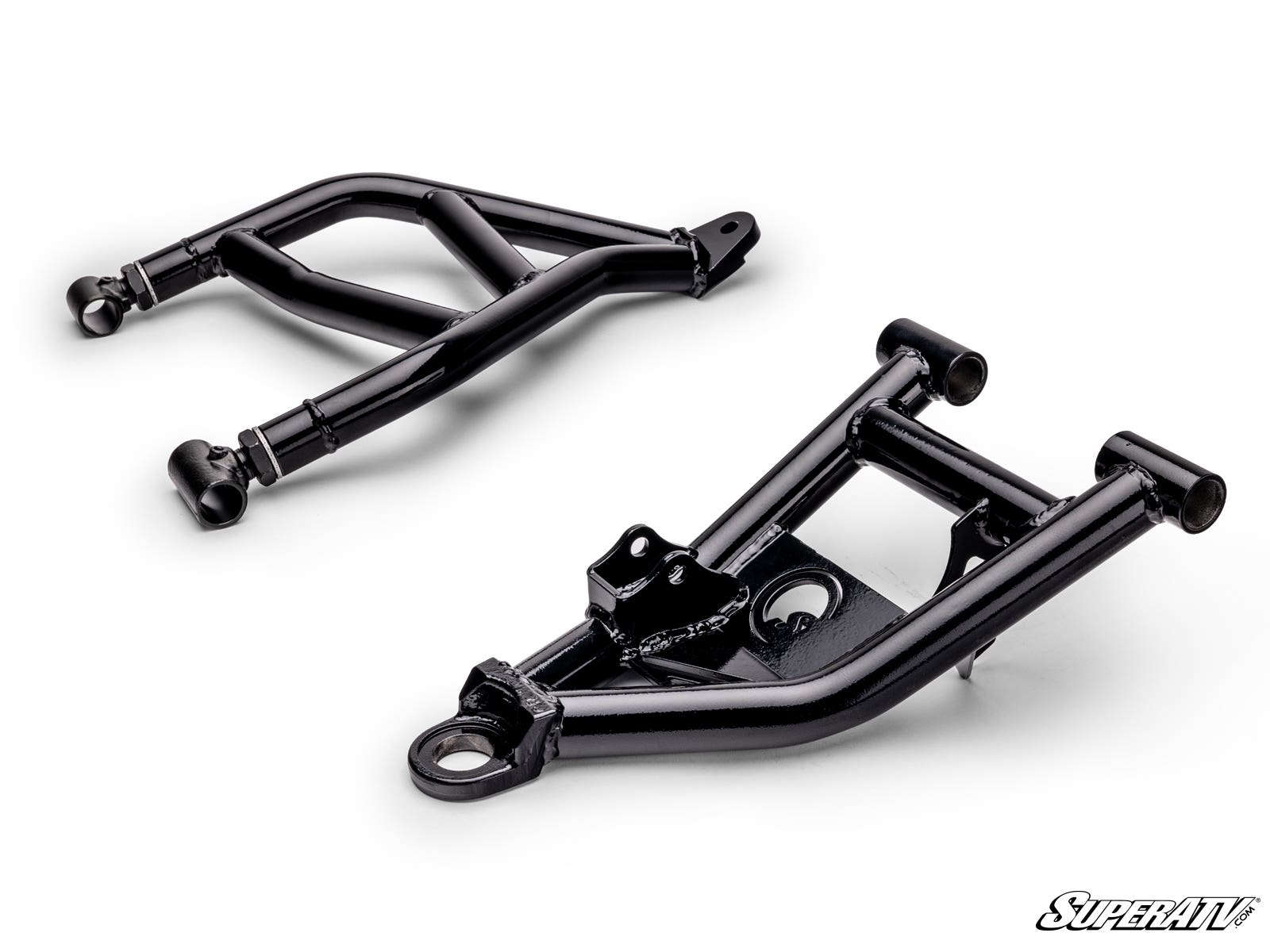

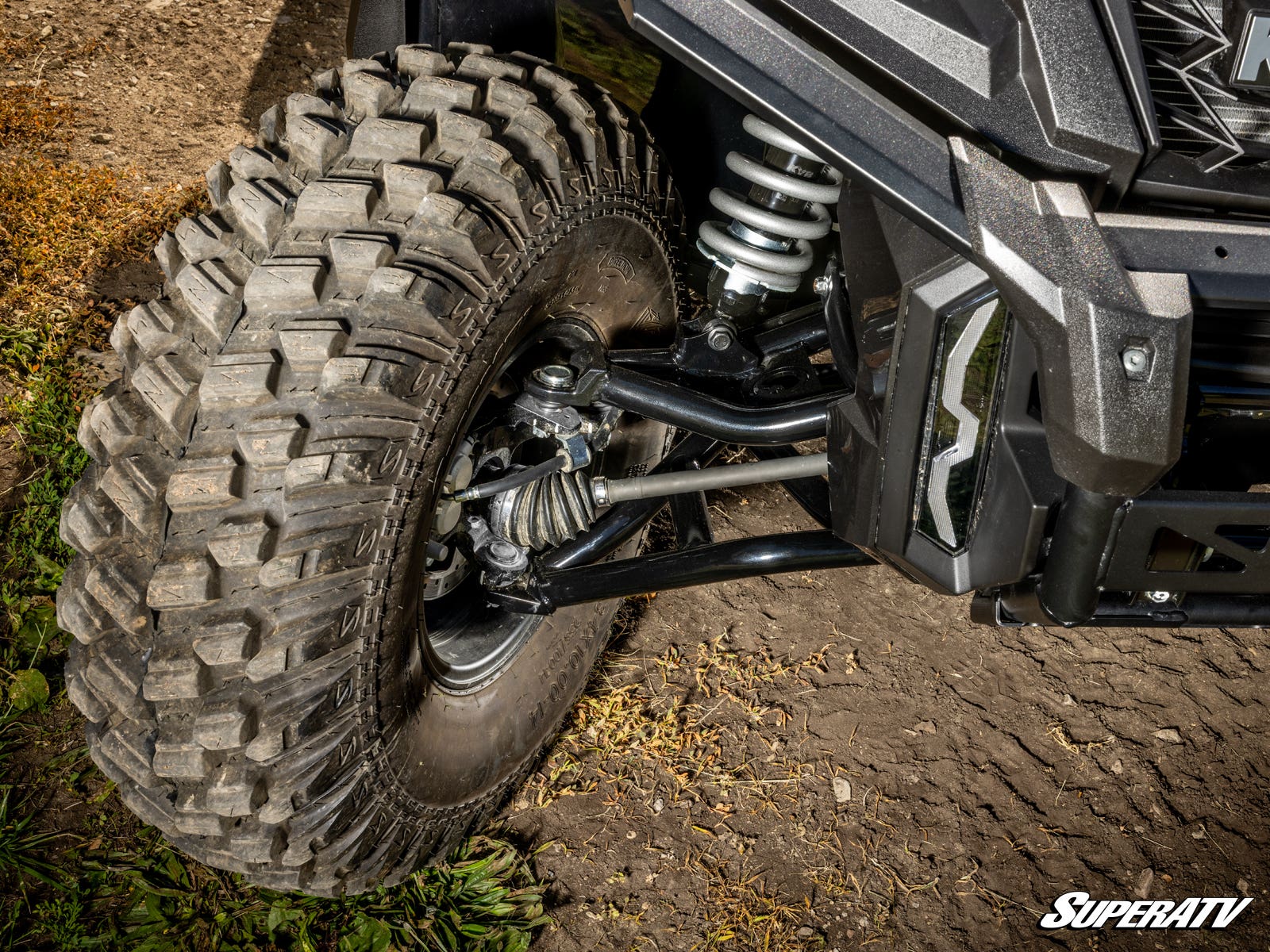

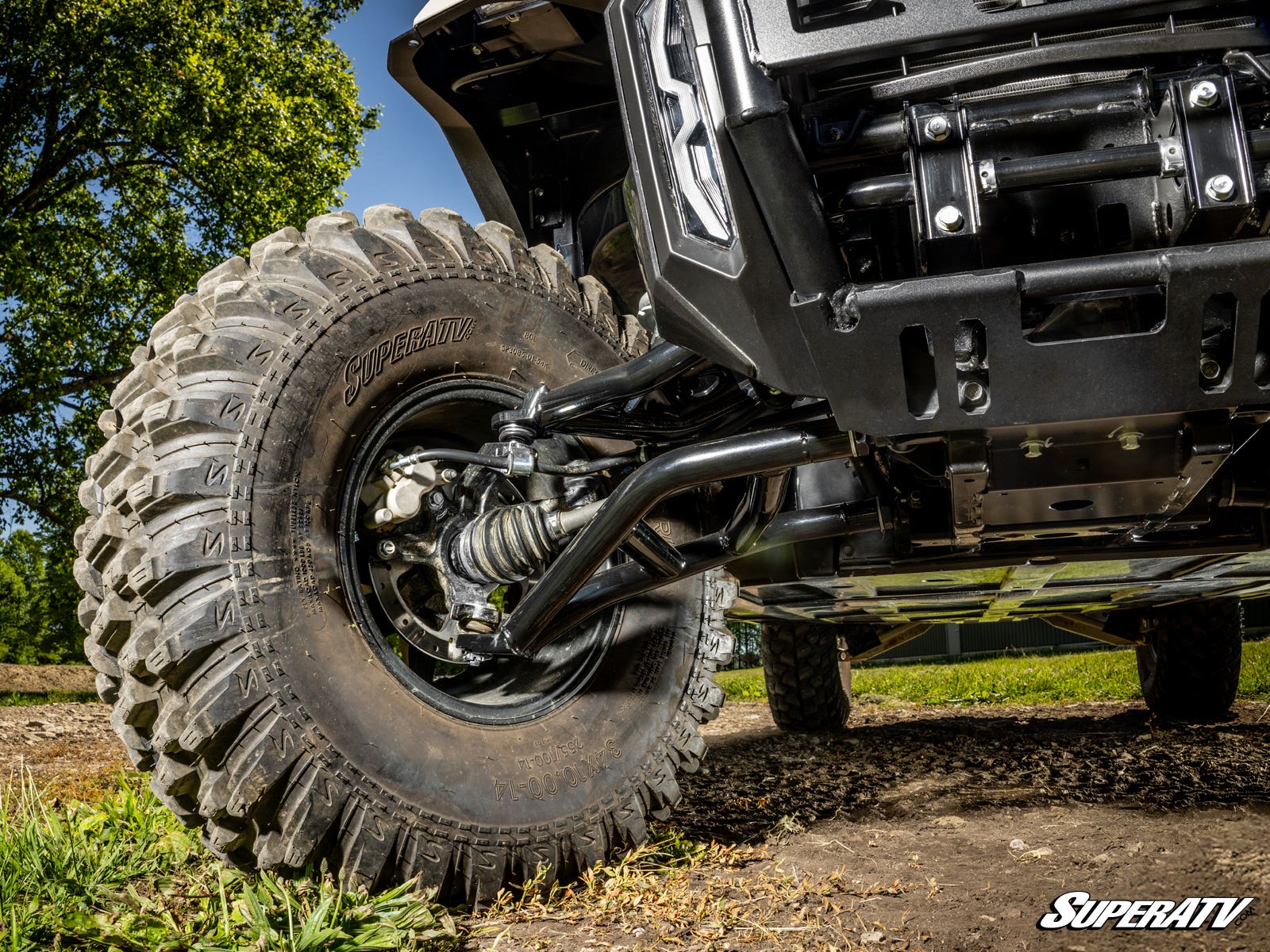

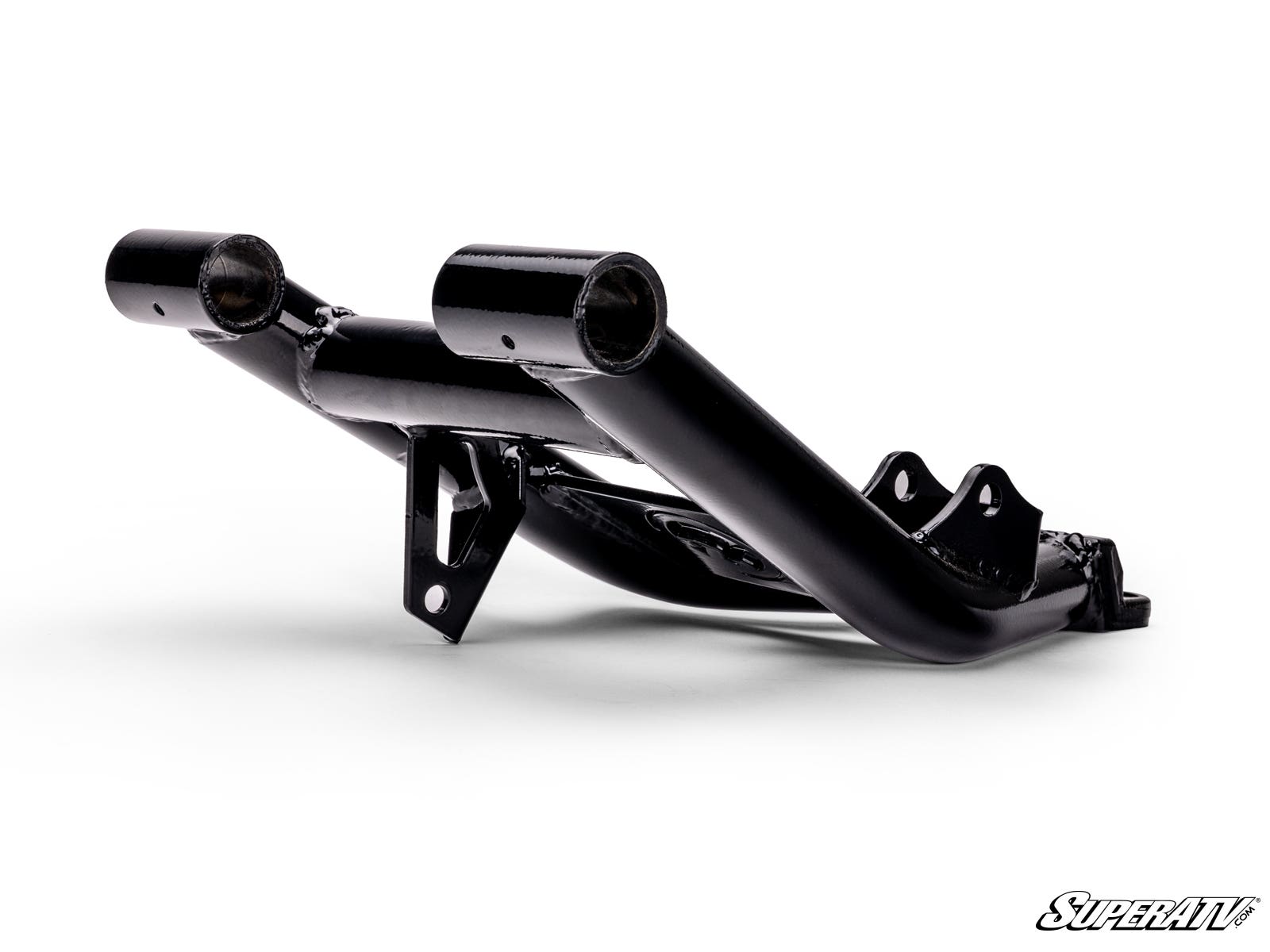

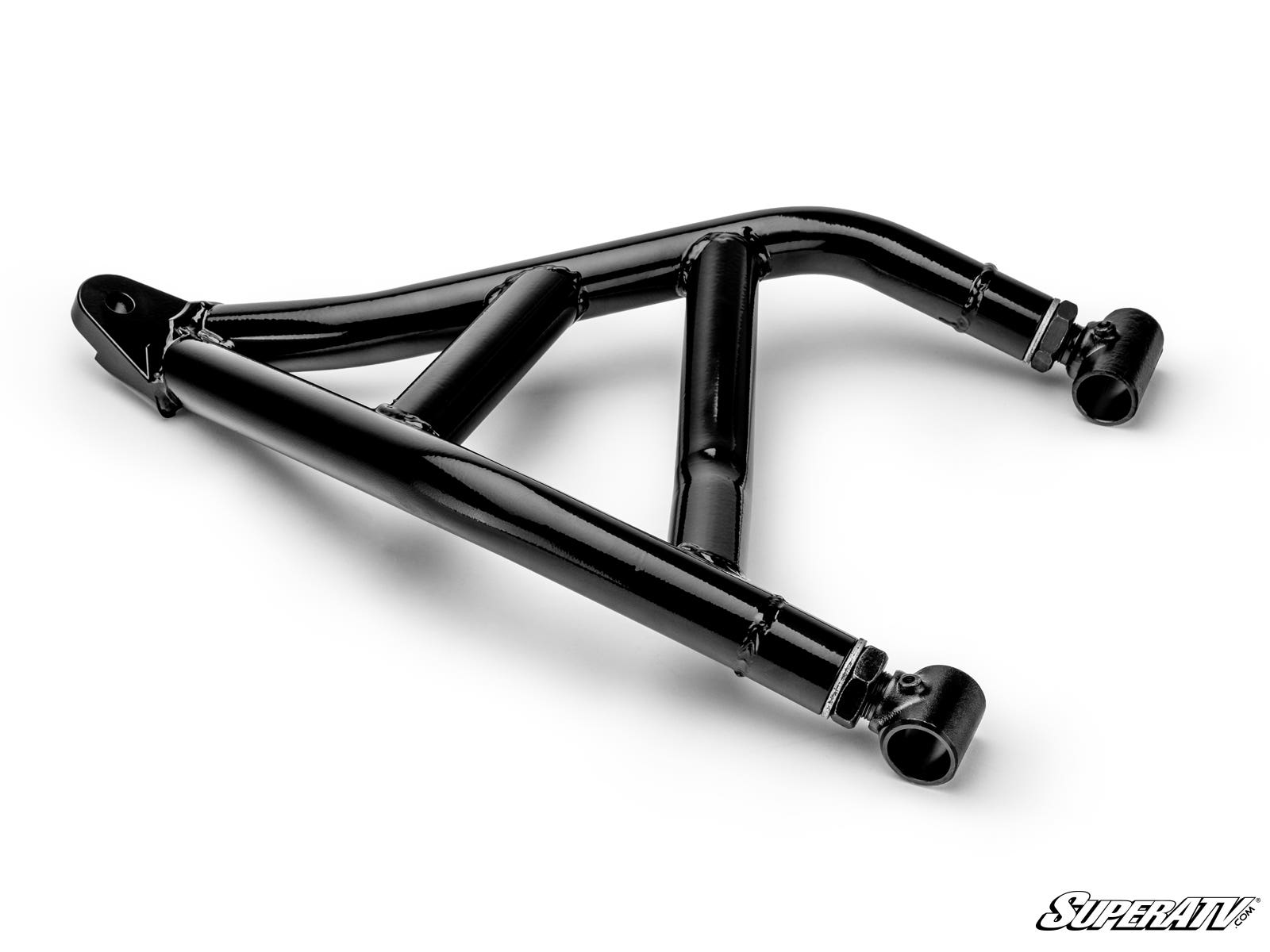

The SuperATV Kawasaki Ridge Atlas Pro 1.5" Forward Offset A-Arms give the 2024+ Ridge and Ridge Crew a 1.25-inch high-clearance bend and room for up to 34-inch tires on stock wheels. They are built from 1.5-inch tubing with 1/4-inch walls on structural tubes and are backed by a lifetime warranty.
Adjustable pivot blocks let you dial in camber after a lift or bigger tires, and the arms arrive preset to factory specs. A steering stop kit is included to prevent contact at full lock. Order them bare to reuse your stock ball joints, or with standard or heavy-duty 4340 ball joints installed free, and add the UHMW bushing kit if you want.
Key Features
- 1.5-inch forward offset
- 1.25-inch high-clearance design
- Run up to 34-inch tires on stock wheels
- 1.5-inch diameter tubing, 0.25 inch larger than stock
- 1/4-inch walls on structural tubes
- Adjustable pivot blocks for camber
- Steering stop kit included
- Lifetime warranty
Built To Solve: Clearance and Tire Size on the Kawasaki Ridge
- Stock A-arms catching on rocks and stumps
- No room for bigger tires on a stock Ridge
- Camber drift after a lift or heavy accessories
- Tire contact at full steering lock with bigger tires
Best For: Kawasaki Ridge and Ridge Crew Owners Running Bigger Tires
- 2024+ Ridge, Ridge Limited, Ridge XR and Ranch Edition owners (HVAC trims listed)

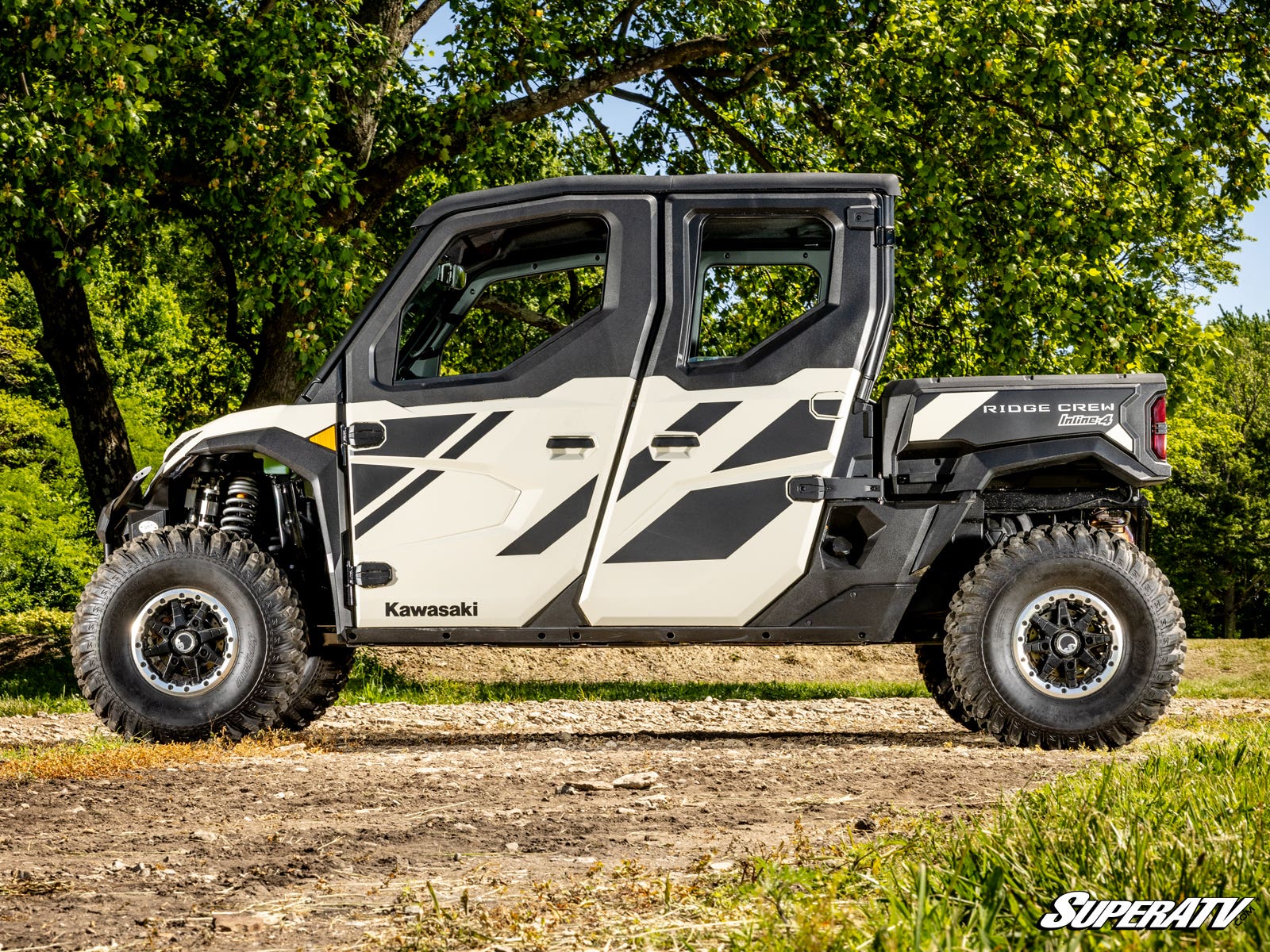

- 2025+ Ridge Crew and Ridge Crew XR owners
- Owners moving to 32 to 34-inch tires on stock wheels
- Work and trail users who want stronger arms than stock
Specifications
- Forward offset: 1.5 inches
- High clearance: 1.25 inches
- Max tire size: 34 inches on stock wheels
- Tubing: 1.5-inch diameter, 1/4-inch walls on structural tubes
- Camber: adjustable pivot blocks, preset to factory spec
- Included: steering stop kit
- Bushings: not included (OEM compatible); UHMW kit optional
- Ball joint options: reuse stock, standard duty or heavy-duty 4340 preinstalled
- Finish: UV-resistant powder coat
- Warranty: lifetime
- Manufacturer Part Number (bare arms): AA-K-RID-OHC-02
Fitment
- Kawasaki Ridge HVAC, Limited, Limited HVAC, Ranch Edition and XR HVAC (2024+)
- Kawasaki Ridge HVAC Camo and XR Deluxe HVAC (2025+)
- Kawasaki Ridge Crew HVAC, HVAC Camo, XR, XR HVAC and XR Limited HVAC (2025+)
Fitment is not guaranteed on models, trims or years not listed above, or on machines with modified chassis or aftermarket parts in the way; confirm your exact model before ordering.
FAQ
How big a tire fits with these A-arms?
SuperATV says the 1.5-inch forward offset makes room for up to 34-inch tires on stock wheels.
Do I have to reuse my stock ball joints?
Only if you choose the bare arms. You can order standard or heavy-duty 4340 ball joints preinstalled.
Can I adjust camber?
Yes. Adjustable pivot blocks let you dial in camber; the arms ship preset to factory specs.
Do they fit the Ridge Crew?
Yes. 2025+ Ridge Crew HVAC, HVAC Camo, XR, XR HVAC and XR Limited HVAC are listed.
Are bushings included?
No. They work with OEM bushings or SuperATV's optional UHMW bushing kit.
Why Atlas Pro over stock arms?
Atlas Pro uses 1.5-inch tubing with thick structural walls, a forward offset and a high-clearance bend that stock Ridge arms do not have.
Why SuperATV
SuperATV designs, tests and builds its UTV parts in-house and backs this part with a 1-year limited warranty against manufacturing defects. Dunes 2 Dezert SXS ships SuperATV parts nationwide, so you get vehicle-specific fitment without hunting across sites.
Plan Your Kawasaki Ridge Suspension Upgrade
Pick your ball joint and bushing options, confirm your Ridge or Ridge Crew trim in the fitment list, and plan for axles that match your new tire size.
