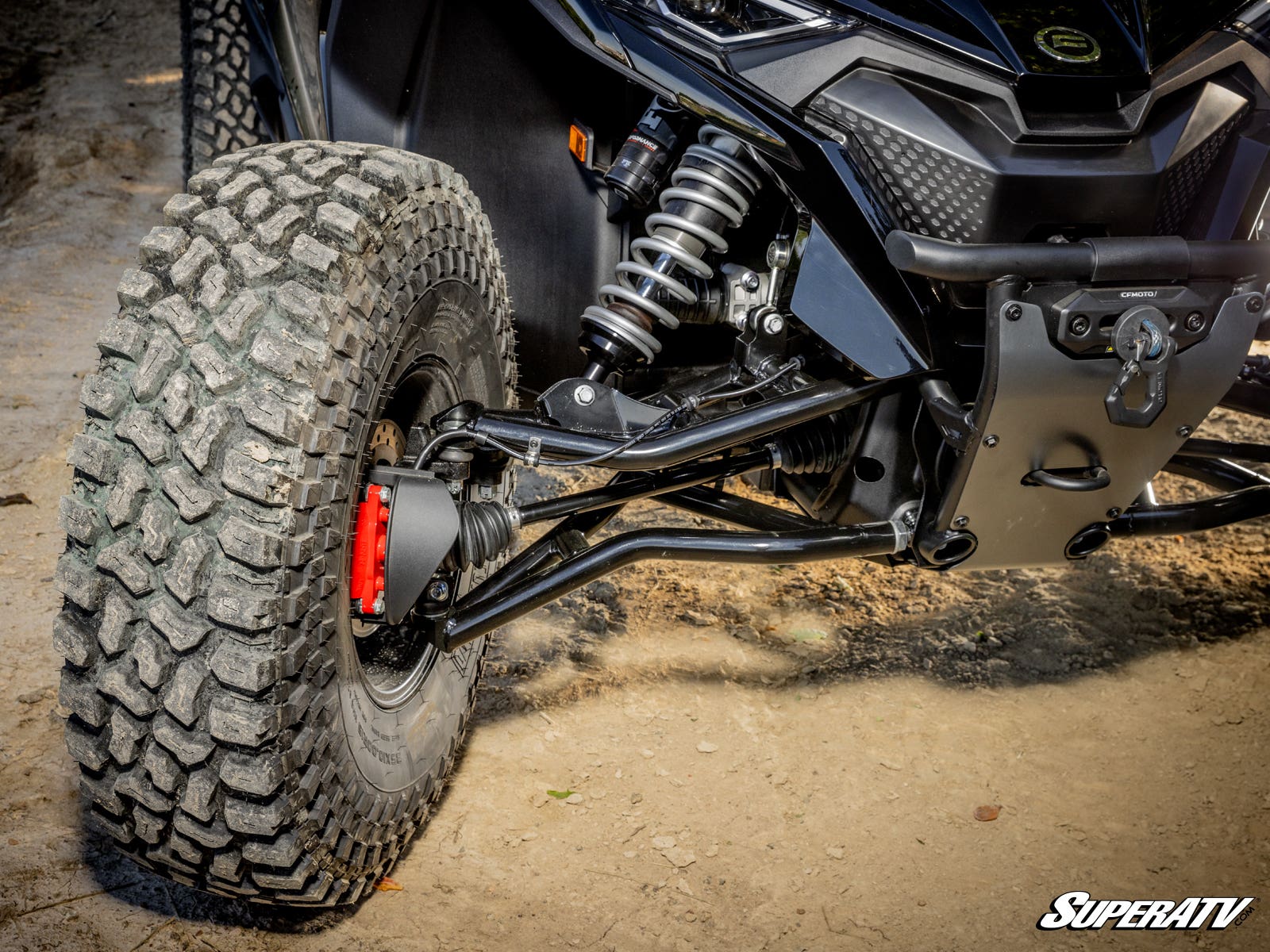

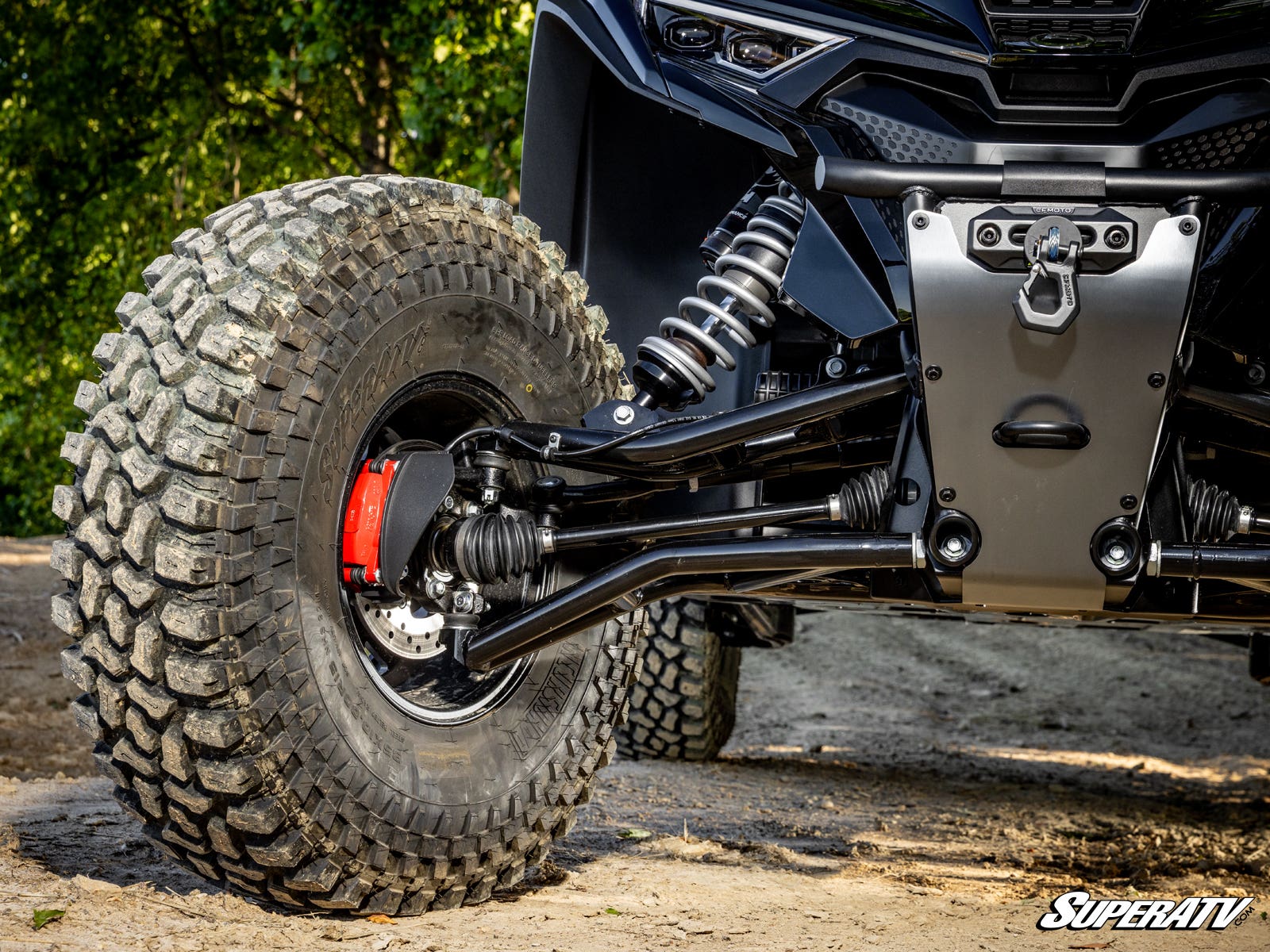

The SuperATV CFMOTO ZForce Z10 Atlas Pro 1.5" Forward Offset A-Arms add stability, 1.5 inches of extra ground clearance and room for bigger tires on the 2026+ ZForce Z10 and Z10-4. Run up to 32-inch tires on stock wheels, or 35-inch tires on wheels with 3.5 inches of backspacing or less, all without a lift.
SuperATV calls these the biggest, thickest tubes you can get on a Z10 A-arm: 1.5-inch steel tubing with 1/4-inch walls on structural sections. Adjustable pivot blocks let you fine-tune camber and ship preset to factory spec. Order bare arms to reuse stock ball joints, or with standard, heavy-duty 4340, Super Duty 300M or Keller ball joints installed, plus an optional UHMW bushing kit.
Key Features

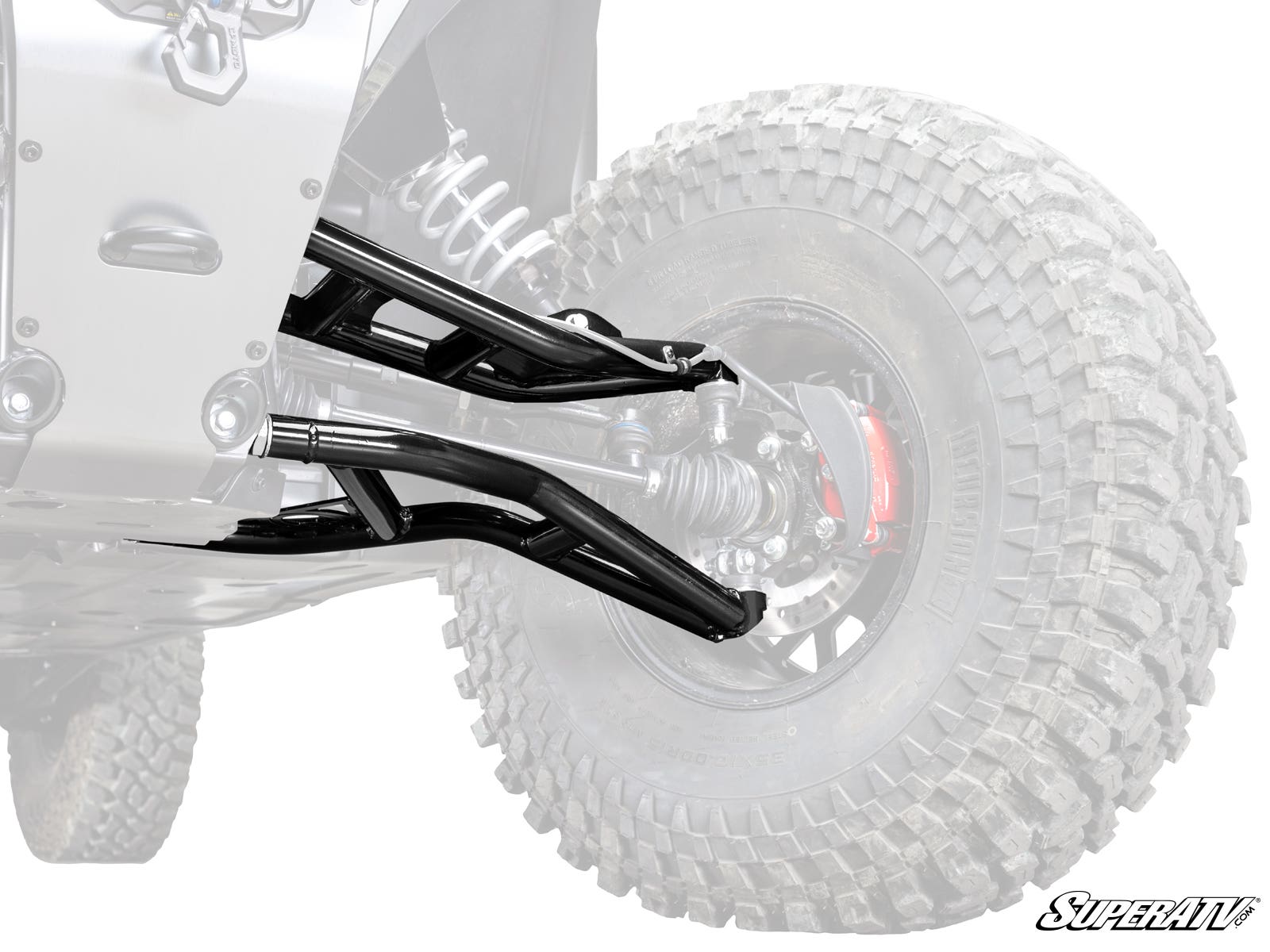

- 1.5-inch forward offset

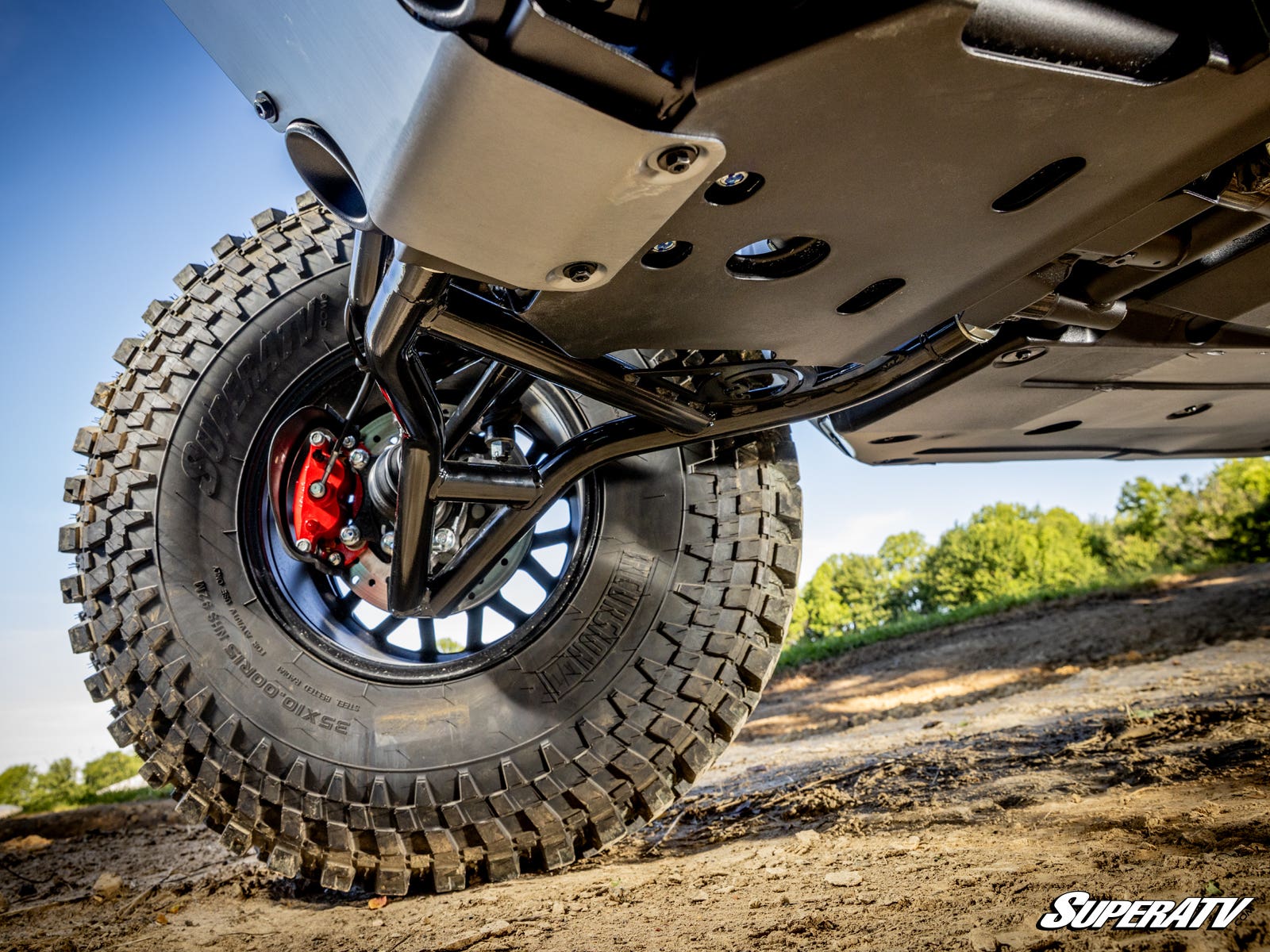

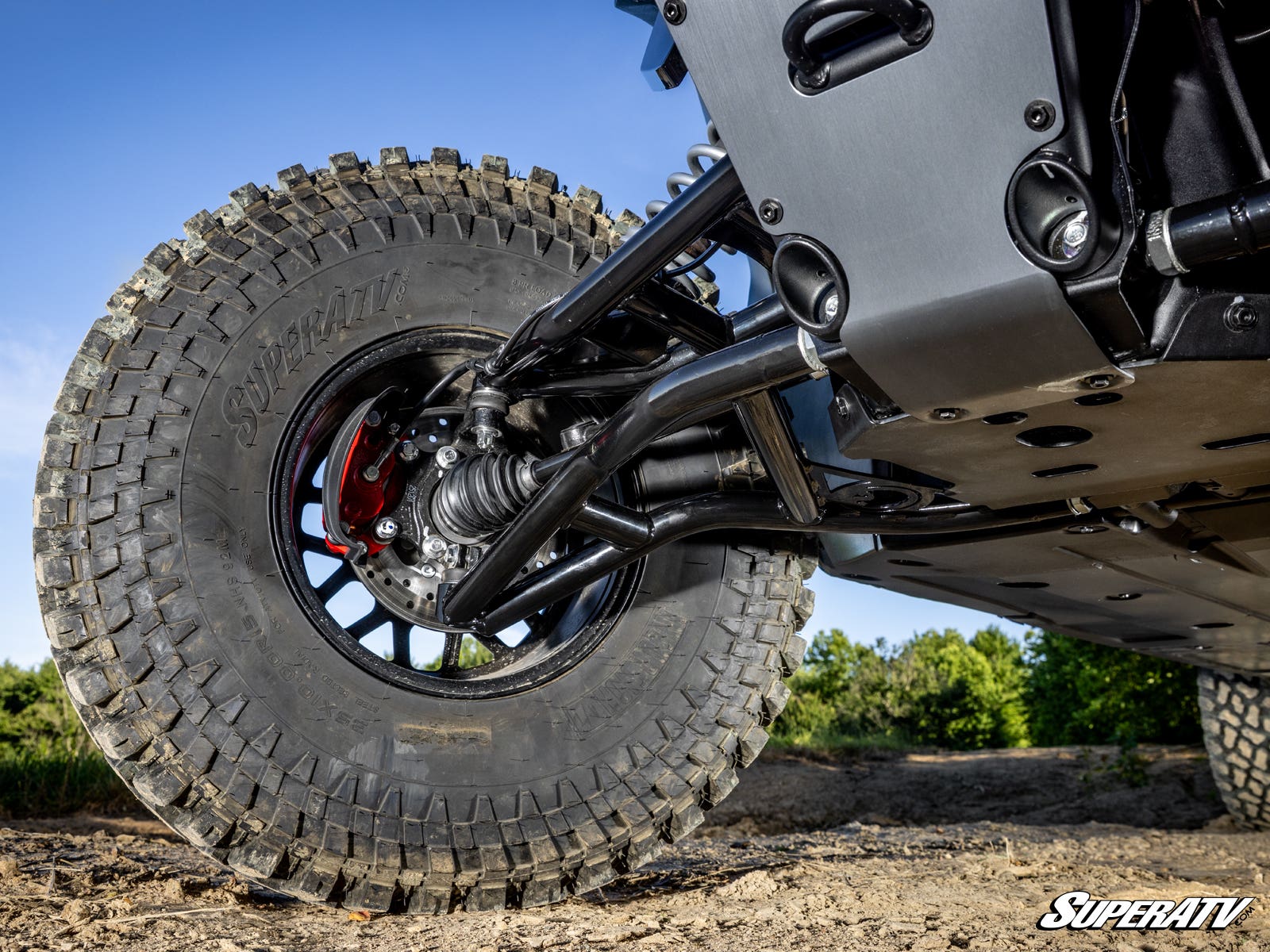

- High-clearance bend adds 1.5 inches of ground clearance

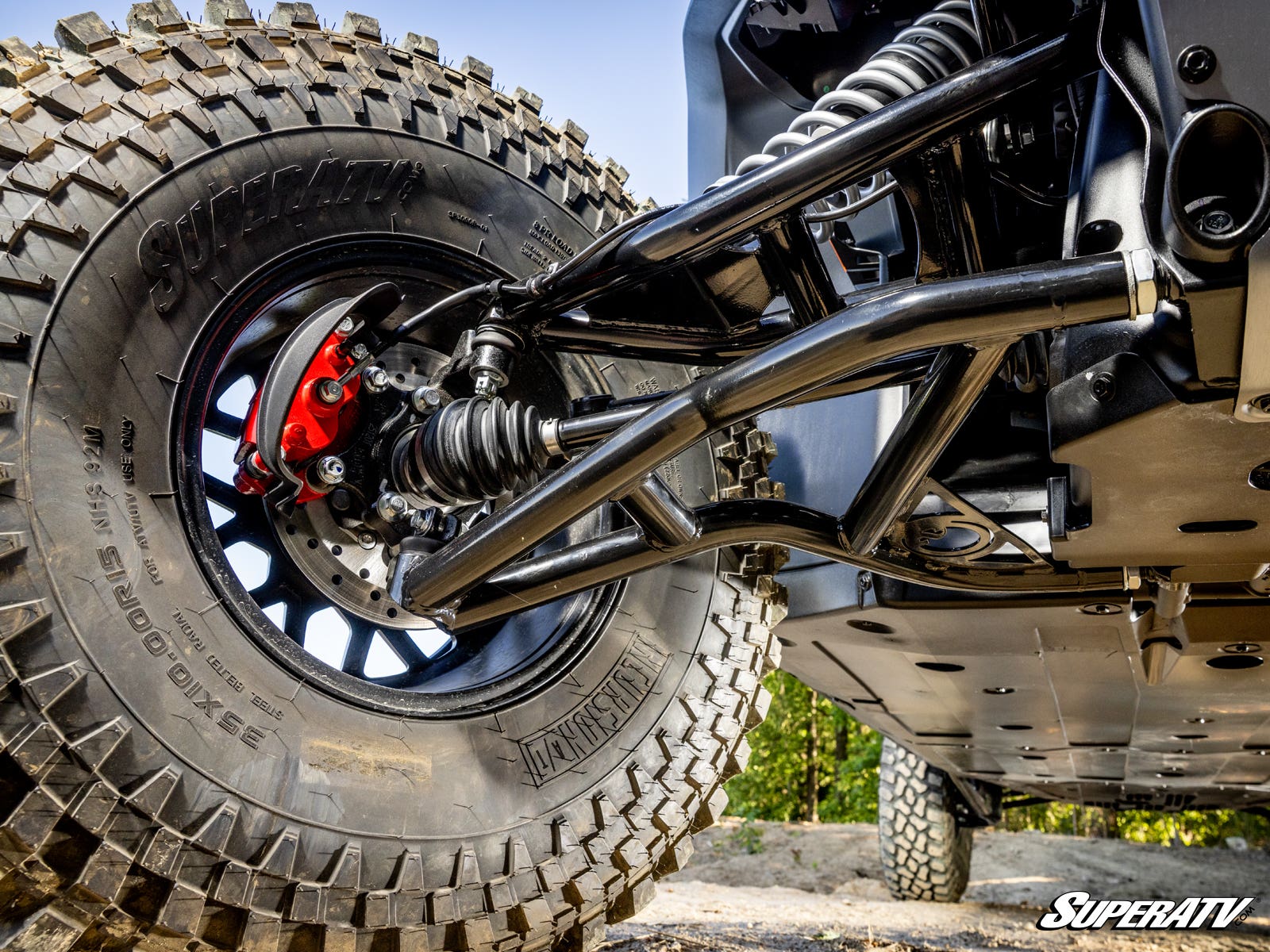

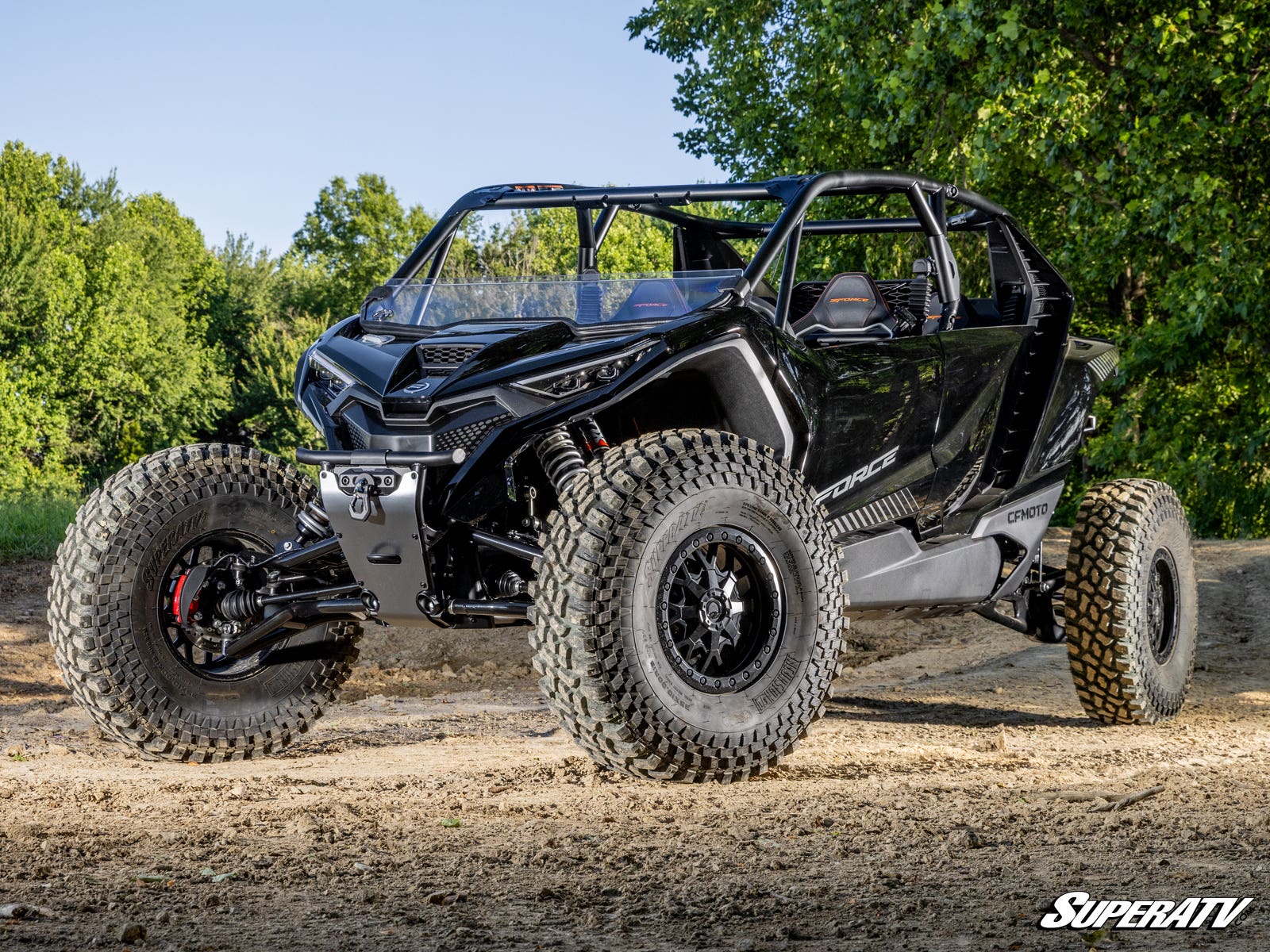

- Up to 32-inch tires on stock wheels; 35-inch with 3.5-inch or less backspacing

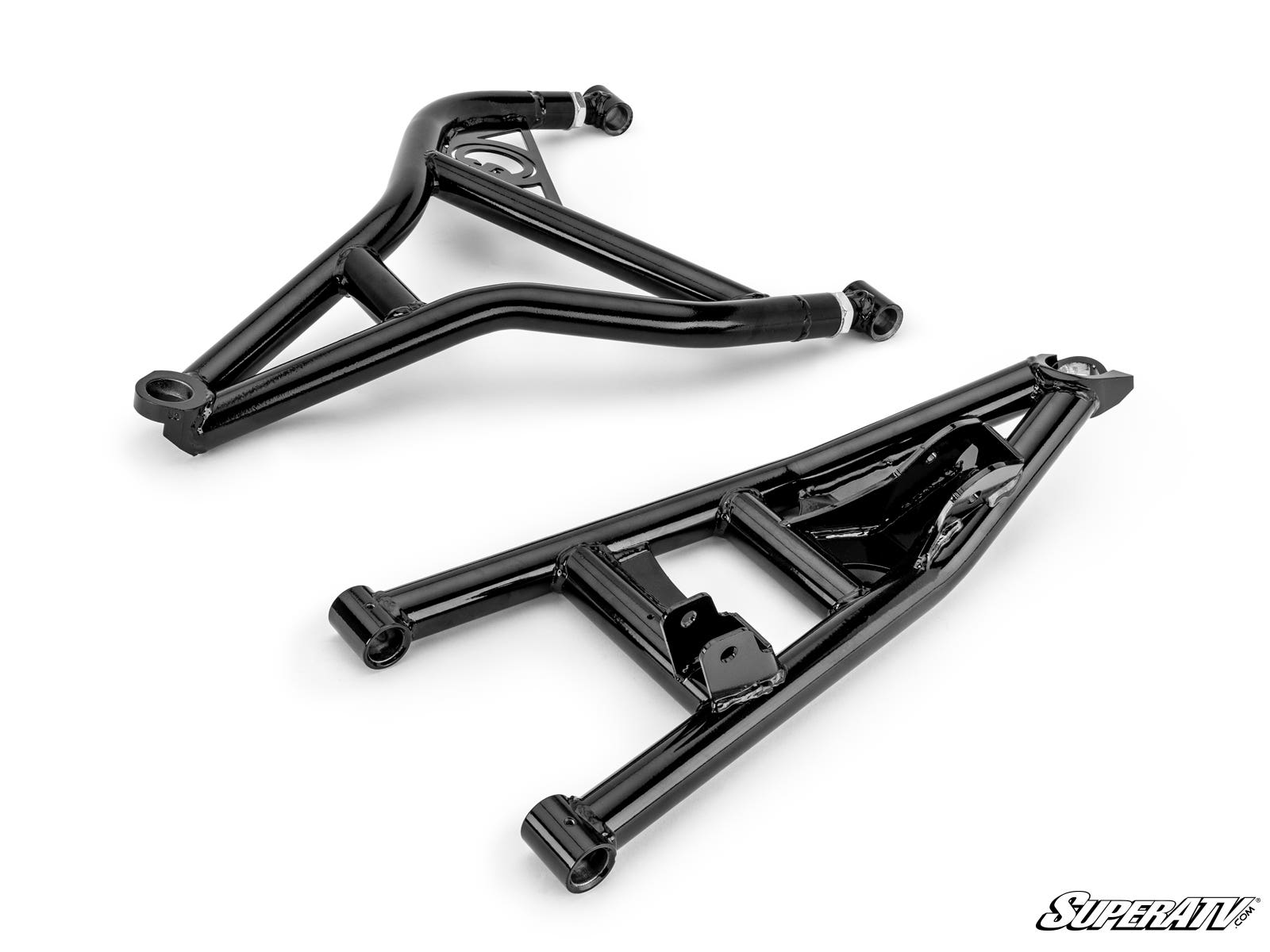

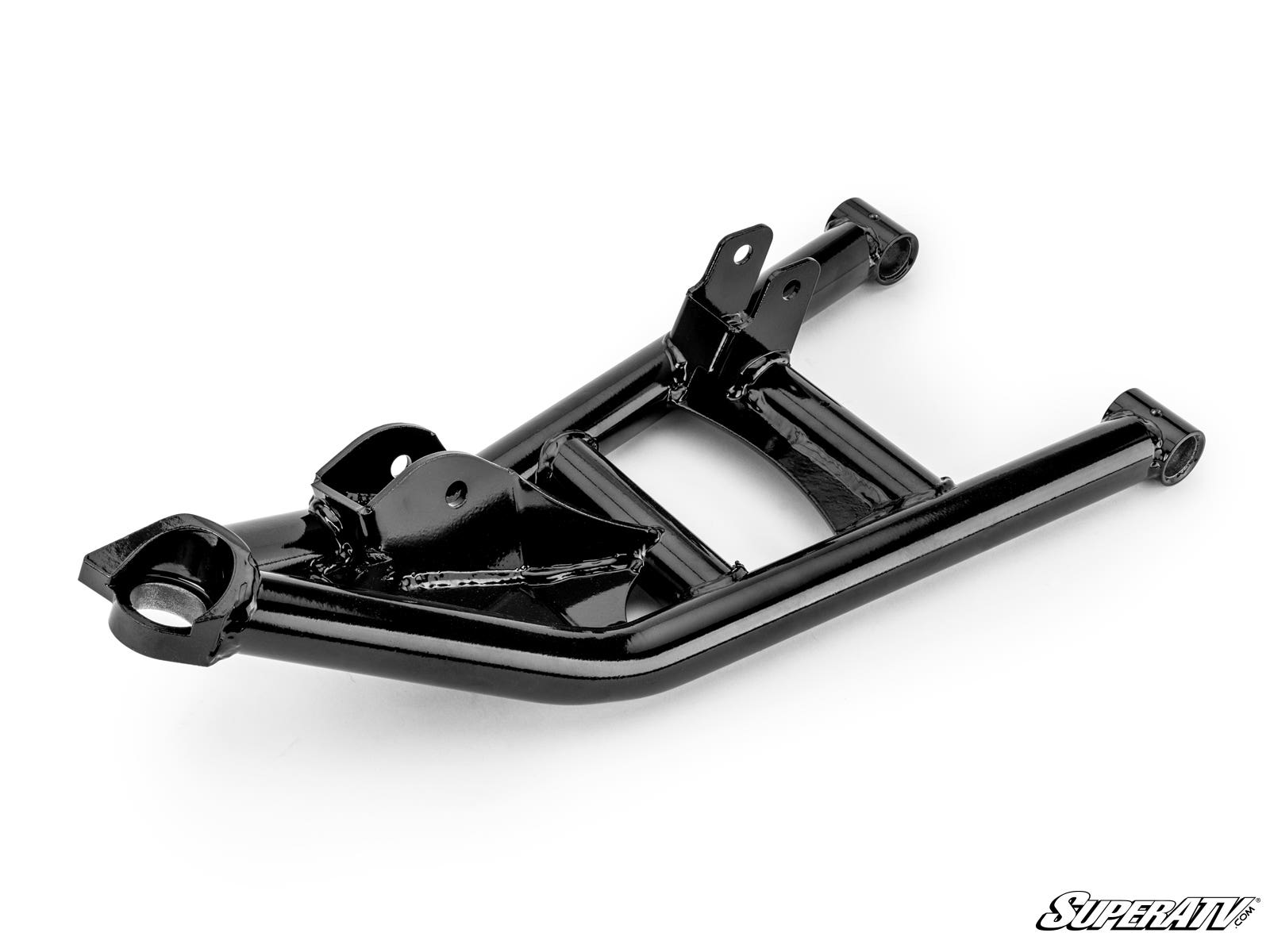

- 1.5-inch diameter steel tubing
- 1/4-inch walls on structural tubes

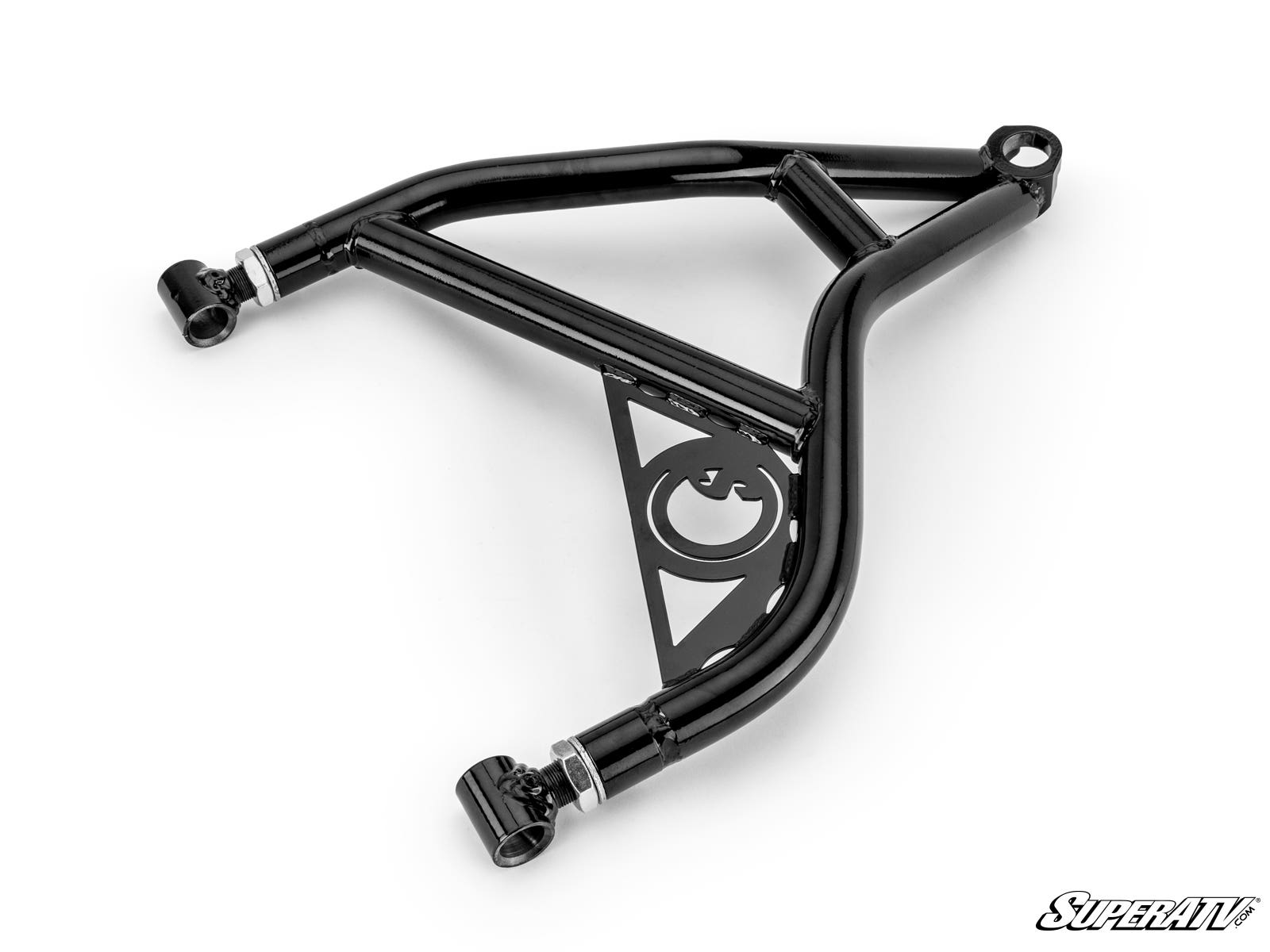

- Adjustable pivot blocks for camber
- UV-resistant powder coat
- Lifetime warranty
Built To Solve: Clearance, Stability and Tire Size on the CFMOTO Z10
- Stock A-arms hanging up on obstacles
- Limited tire size on stock wheels
- Camber changes after adding tires or accessories
- Arms that flex under heavy loads and hard hits
Best For: CFMOTO ZForce Z10 and Z10-4 Owners Upsizing Tires
- 2026+ ZForce Z10 and Z10-4 owners
- Riders moving to 32-inch tires on stock wheels or 35-inch on low-backspacing wheels
- Owners who want ball joints preinstalled
- Riders who want camber adjustability without a lift
Specifications
- Forward offset: 1.5 inches
- Added ground clearance: 1.5 inches
- Tire size: 32 inches on stock wheels; 35 inches with 3.5-inch or less backspacing
- Tubing: 1.5-inch diameter steel, 1/4-inch walls on structural tubes
- Camber: adjustable pivot blocks, preset to factory spec
- Bushings: not included (OEM compatible); UHMW kit optional
- Ball joint options: reuse stock, standard, heavy-duty 4340, Super Duty 300M or Keller
- Finish: UV-resistant powder coat
- Warranty: lifetime
- Manufacturer Part Number (bare arms): AA-CF-Z10-OHC-02
Fitment
- CFMOTO ZForce Z10 (2026+)
- CFMOTO ZForce Z10-4 (2026+)
Fitment is not guaranteed on models, trims or years not listed above, or on machines with modified chassis or aftermarket parts in the way; confirm your exact model before ordering.
FAQ
What tire size can I run?
Up to 32-inch tires on stock wheels, or 35-inch tires on wheels with no more than 3.5 inches of backspacing, without a lift.
How much clearance do they add?
SuperATV says the high-clearance bends add 1.5 inches of ground clearance.
Which ball joint option should I choose?
Choose reuse-existing to keep your stock joints, or have SuperATV install standard, heavy-duty 4340, Super Duty 300M or Keller ball joints for you.
Do they fit the Z10-4?
Yes. The ZForce Z10 and Z10-4 (2026+) are both listed.
Are bushings included?
No. Use your OEM bushings or add SuperATV's UHMW bushing kit.
Why upgrade from stock Z10 arms?
Atlas Pro arms add forward offset, high clearance and thicker tubing than stock, plus camber adjustment.
Why SuperATV
SuperATV designs, tests and builds its UTV parts in-house and backs this part with a 1-year limited warranty against manufacturing defects. Dunes 2 Dezert SXS ships SuperATV parts nationwide, so you get vehicle-specific fitment without hunting across sites.
Upgrade Your CFMOTO ZForce Z10 Suspension
Select your ball joint and bushing options, confirm your Z10 or Z10-4 in the fitment list, and plan your tire and wheel backspacing around the 32 or 35-inch limits. The UHMW A-arm bushing kit makes the upgrade complete.
