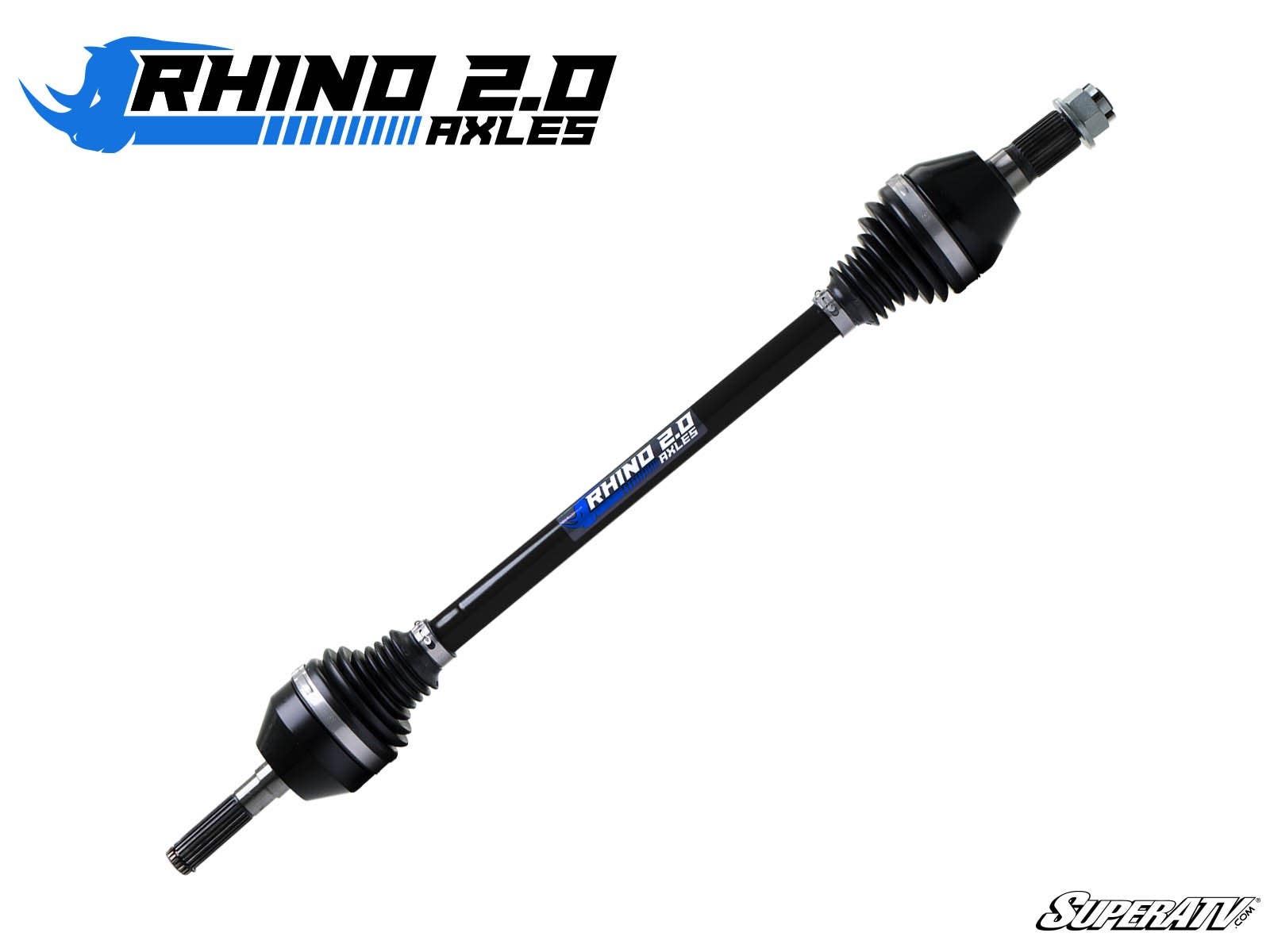

SuperATV Rhino 2.0 Heavy-Duty Axles are stock-length replacement axles for the 2016+ Can-Am Defender HD10, Defender MAX HD10, Defender Pro HD10 and HD10 6x6. SuperATV rates them nearly two times stronger than stock, with a 4mm larger shaft and oversized CV joints that run at high angles without overheating.
Heat-treated 4340 chromoly from end to end handles bigger tires, heavy loads, plowing and hard trail use. Choose your axle position, then your Defender model and year; each axle is sold individually.
These defender hd10 axles are the stock-length can am defender axles SuperATV builds for every HD10 trim. Whether you need a defender hd10 front axle, a defender hd10 rear axle, defender max hd10 axles for the crew cab or defender hd10 6x6 axles including the mid position, this listing covers it. They are the rhino 2.0 axles can am defender owners choose as heavy duty defender hd10 axles, so if you searched can am defender hd10 axles or rhino 2.0 defender hd10 axles, match your model and year below.
Key Features
- Nearly 2 times stronger than stock, per SuperATV

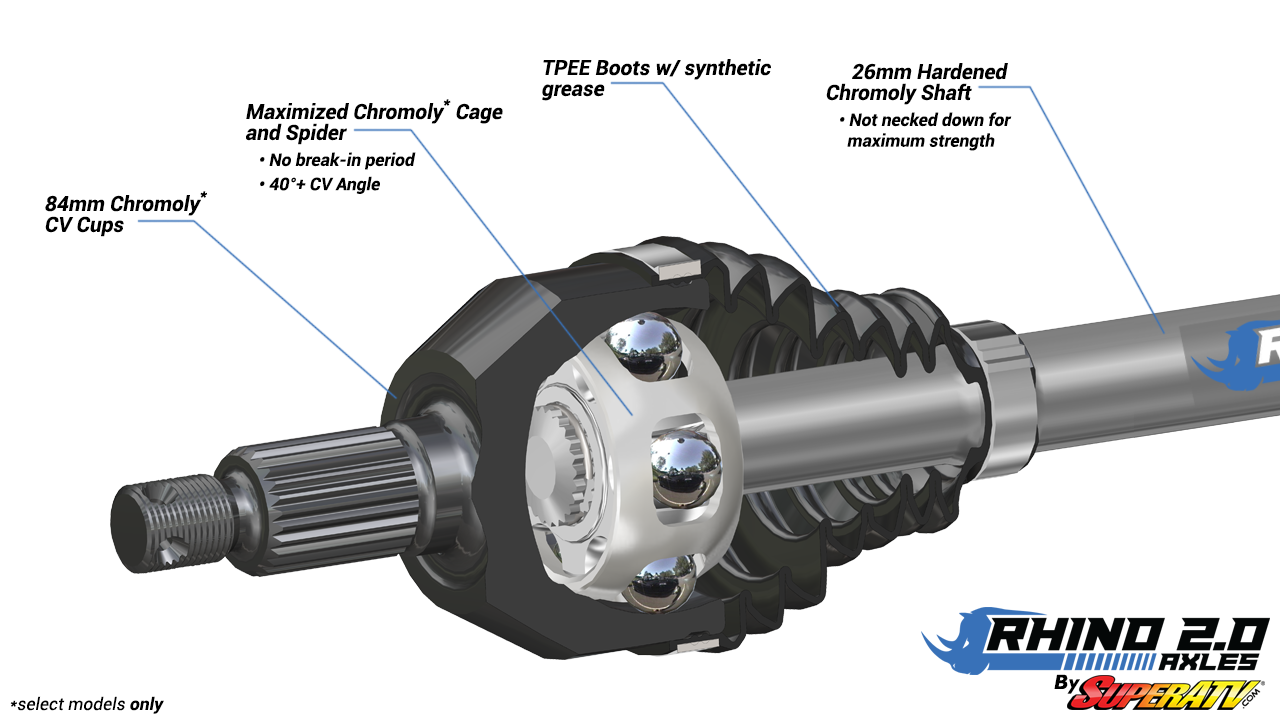

- A massive 4mm increase in shaft size
- 4340 chromoly steel with a proprietary heat treatment

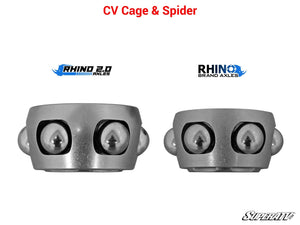

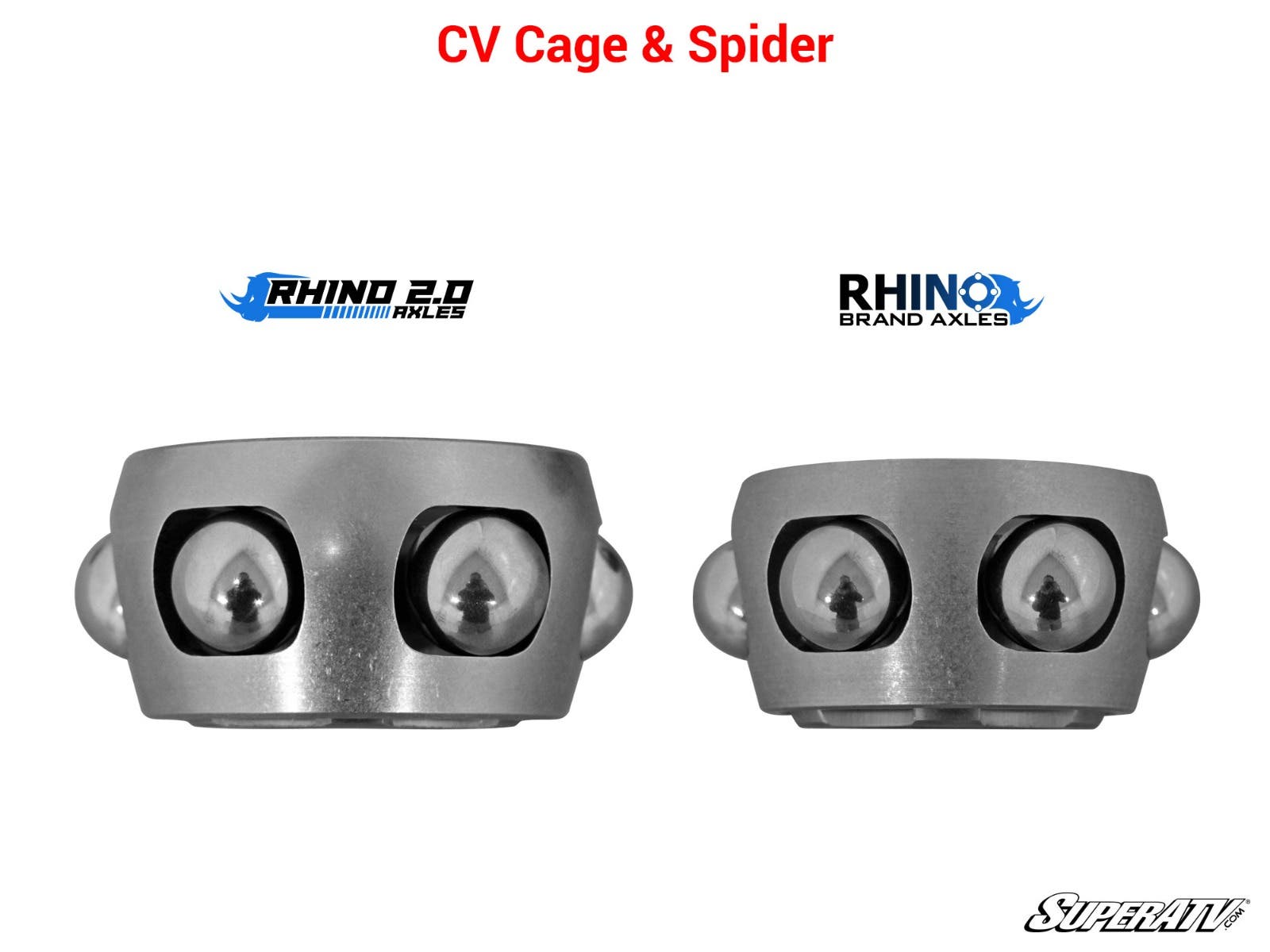

- Oversized CV joints that run cool at high angles
- Front driver, front passenger, mid (6x6) and rear positions
- Field and lab tested for strength and endurance
- Industry-leading 18-month warranty
Built To Solve: Stock Axles Failing on a Hard-Working Defender HD10
- Stock axles breaking under bigger tires or heavy loads
- CVs overheating while plowing or towing
- Axle failures miles from the truck on a weekend ride
- Replacing a broken OE axle with another stock part
Best For: Defender HD10, MAX HD10, Pro HD10 and 6x6 Owners
- Defender HD10, DPS, XT, XTP, XT Cab, XMR, Mossy Oak and Limited owners
- Defender MAX HD10, DPS, XT, XT Cab, XMR, Limited and Lone Star owners
- Defender Pro HD10 and Pro Lone Star owners
- Defender HD10 6x6 and 6x6 Limited owners, including the mid axle
- Stock-height machines (see our HD10 lift and long travel listings for modified suspension)
Specifications
- Brand: SuperATV
- Product line: Rhino 2.0 Heavy-Duty Axle
- Material: 4340 chromoly steel, proprietary heat treatment
- Strength: nearly 2x stock (per SuperATV)
- Warranty: 18 months
- Shaft size: 4mm larger than stock
- Length: stock
- Positions: front driver side, front passenger side, mid (6x6) and rear (varies by year and model)
- Sold: individually
- Replaces OEM front: 705401801, 705401936, 705401802, 705401937, 705402408, 705402407, 705402420, 705402449
- Replaces OEM mid: 705502831
- Replaces OEM rear: 705502406, 705502478, 705502479, 705502451, 705502642, 705503051, 705502831, 705502850
Fitment
- Can-Am Defender HD 10: 2016+
- Can-Am Defender HD 10 6x6: 2020+
- Can-Am Defender HD 10 6x6 Limited: 2022+
- Can-Am Defender HD 10 DPS: 2016+
- Can-Am Defender HD 10 Limited: 2020+
- Can-Am Defender HD 10 Mossy Oak: 2018+
- Can-Am Defender HD 10 XMR: 2018+
- Can-Am Defender HD 10 XT: 2016+
- Can-Am Defender HD 10 XT Cab: 2016-2021
- Can-Am Defender HD 10 XTP: 2018-2019, 2021+
- Can-Am Defender MAX HD 10 DPS: 2017+
- Can-Am Defender MAX HD 10 Limited: 2020+
- Can-Am Defender MAX HD 10 Lone Star Edition: 2018+
- Can-Am Defender MAX HD 10 XMR: 2019+
- Can-Am Defender MAX HD 10 XT: 2017+
- Can-Am Defender MAX HD 10 XT Cab: 2020-2021
- Can-Am Defender Pro HD 10: 2020+
- Can-Am Defender Pro HD 10 Lone Star: 2021+
Stock-length axles. Replaces OEM front 705401801, 705401936, 705401802, 705401937, 705402408, 705402407, 705402420, 705402449; mid 705502831; rear 705502406, 705502478, 705502479, 705502451, 705502642, 705503051, 705502831, 705502850. Each position, trim and year range uses its own part, so pick your exact model and year in the Model option. Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.
FAQ
Why are there so many options?
SuperATV builds a different axle by position, trim, cab size and year range. Pick your axle position, then your exact Defender model and year in the Model option.
Do these fit a lifted Defender HD10?
No. These are stock length. For SuperATV's 6" or Atlas Pro lift, see our Defender HD10 Big Lift Kit listing; for long travel, see our Defender HD10 Long Travel listing.
Do they fit the Defender HD10 6x6?
Yes. SuperATV lists the 2020+ HD10 6x6 and 2022+ 6x6 Limited, including front, mid and rear positions.
Which OEM part numbers do they replace?
SuperATV lists OEM front 705401801, 705401936, 705401802, 705401937, 705402408, 705402407, 705402420, 705402449; mid 705502831; and rear 705502406, 705502478, 705502479, 705502451, 705502642, 705503051, 705502831, 705502850.
How much stronger are they than stock?
SuperATV rates them nearly two times stronger than stock, with a shaft 4mm larger than stock.
What warranty do they carry?
SuperATV backs Rhino 2.0 axles with an 18-month warranty, longer than the one-year norm SuperATV cites for the industry.
Why SuperATV
SuperATV designs, engineers, manufactures and tests its Rhino 2.0 axles in-house, using CAD analysis, lab testing and real-world trail testing before release. Every Rhino 2.0 axle is backed by SuperATV's 18-month warranty, longer than the one-year norm SuperATV cites for the industry.
Complete Your Defender HD10 Driveline
When one Defender HD10 axle fails, the others have usually seen the same abuse, so decide which positions you need. Confirm your model, year and variant against the fitment list.
