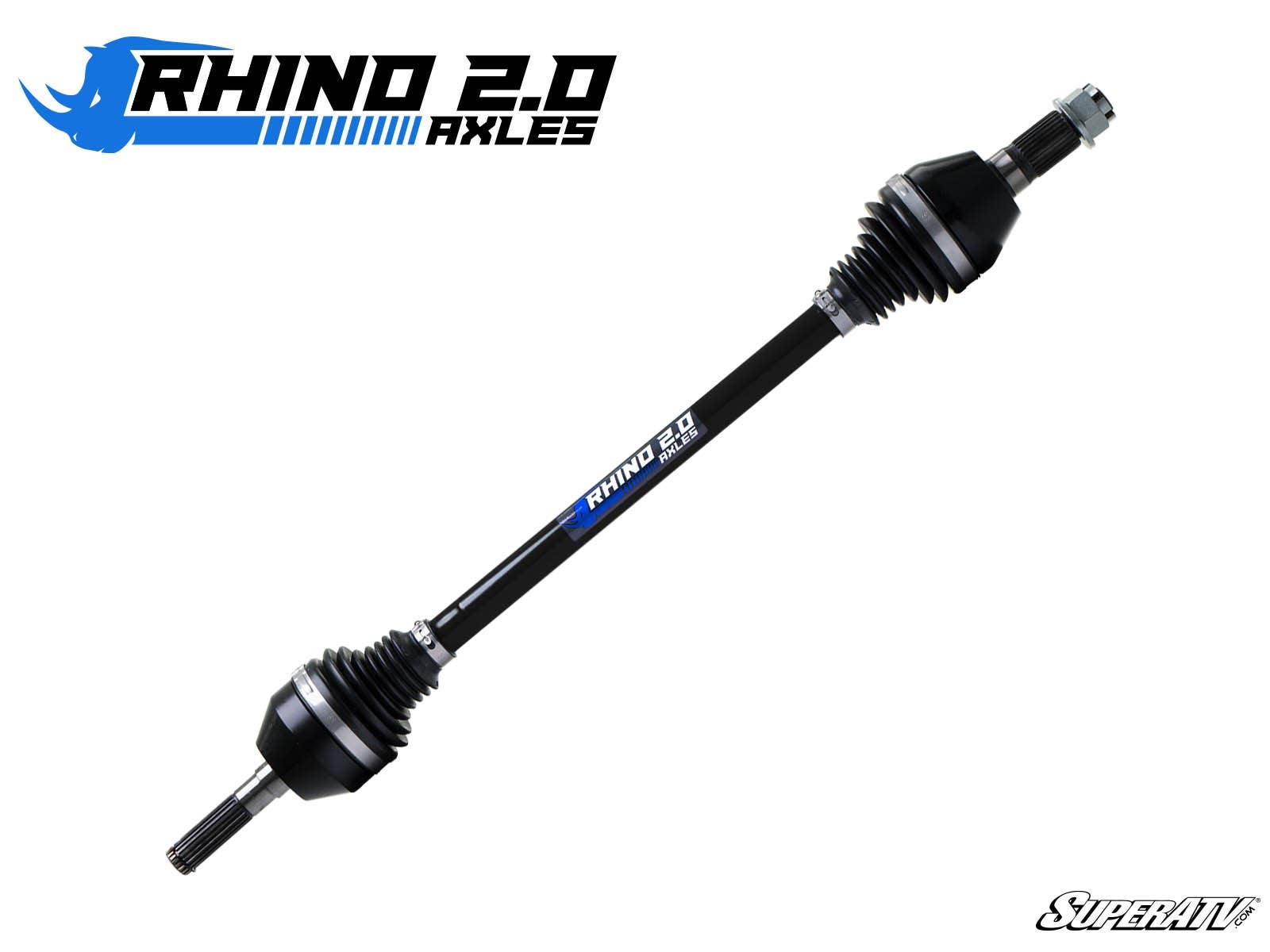

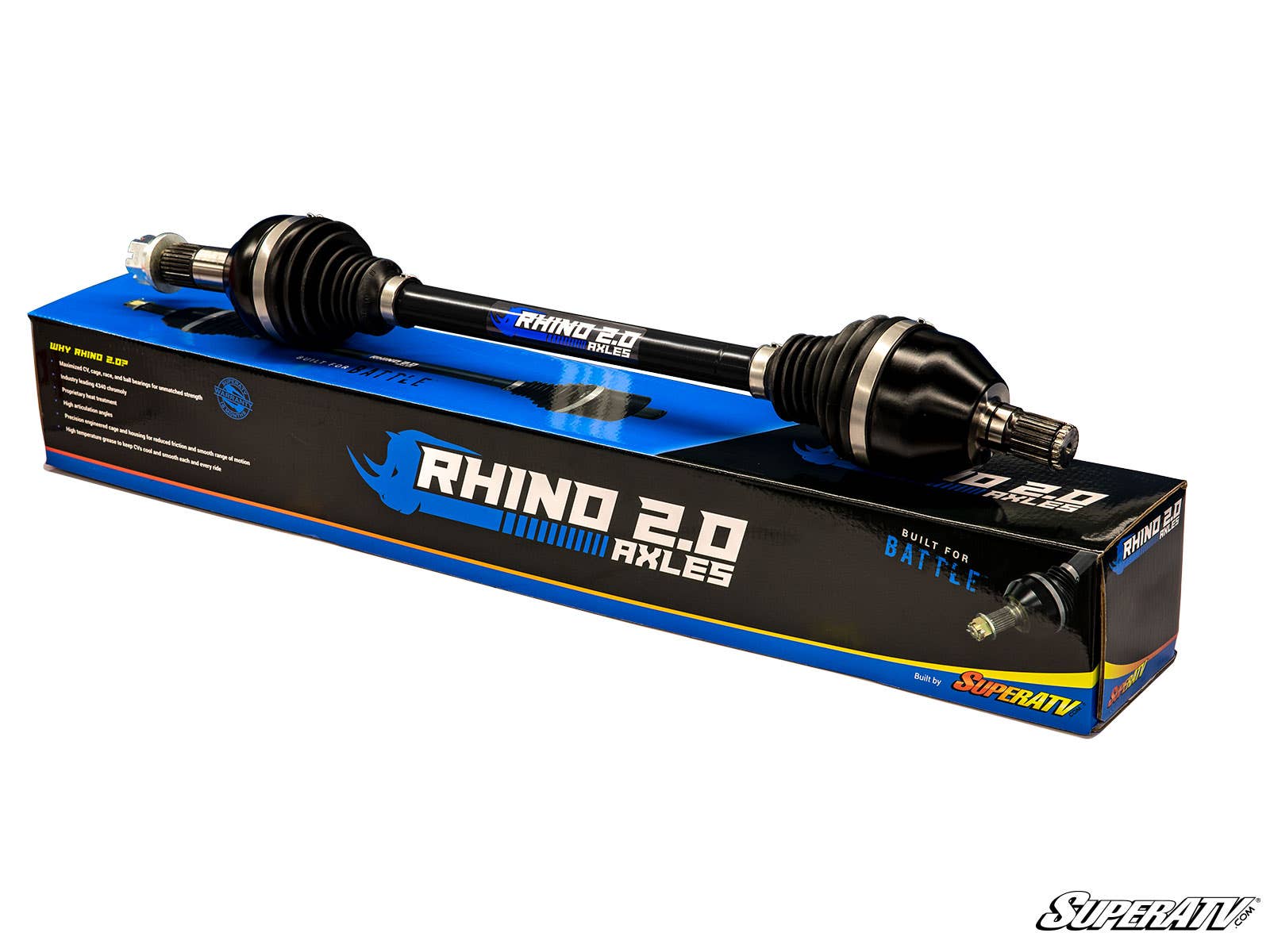

SuperATV Rhino 2.0 Big Lift Kit Axles are extended-length front and rear axles for Can-Am Commander 800, 1000, 1000R and MAX models running SuperATV's 6" lift kit. A big lift puts stock-length axles at angles they were never built for. SuperATV rates these nearly two times stronger than stock and pairs them with its own 6" Commander lift.

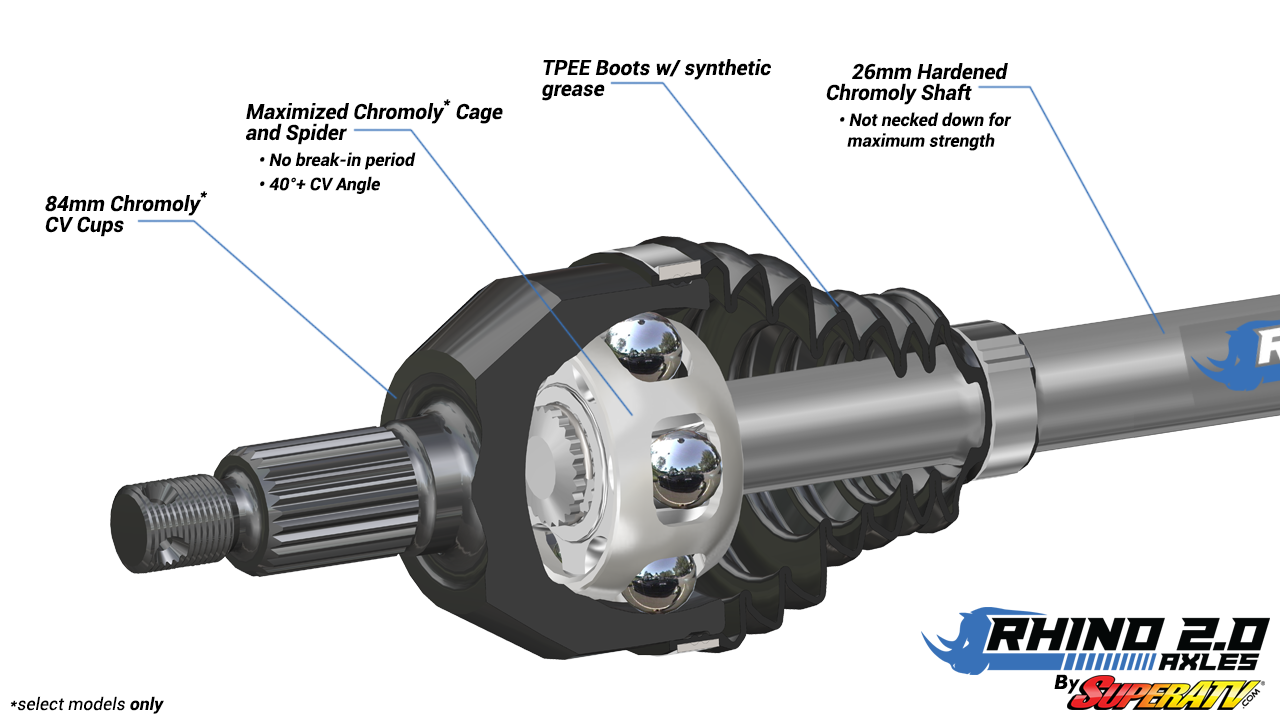

End-to-end chromoly steel, oversized CV and shaft components and a best-in-class heat treatment make up the Rhino 2.0 formula. Pick your axle position, year and sub model; each axle is sold individually.
If you are shopping can am commander axles for a lifted machine, these are the commander lift kit axles SuperATV matches to its kit. As can am commander lift kit axles they cover commander 1000 lift kit axles, commander 800 lift kit axles and commander 1000r lift axles, plus commander max lift kit axles for the four-seat MAX. Owners asking about the best axles for can am commander builds on a lift get a commander 6 inch lift axles set built in chromoly, and these can am commander rhino axles are the Rhino 2.0 version.
Key Features
- Extended length to match SuperATV's 6" Commander lift kit
- Nearly 2 times stronger than stock, per SuperATV
- 4340 chromoly steel, end to end
- Proprietary heat treatment for strength and longevity

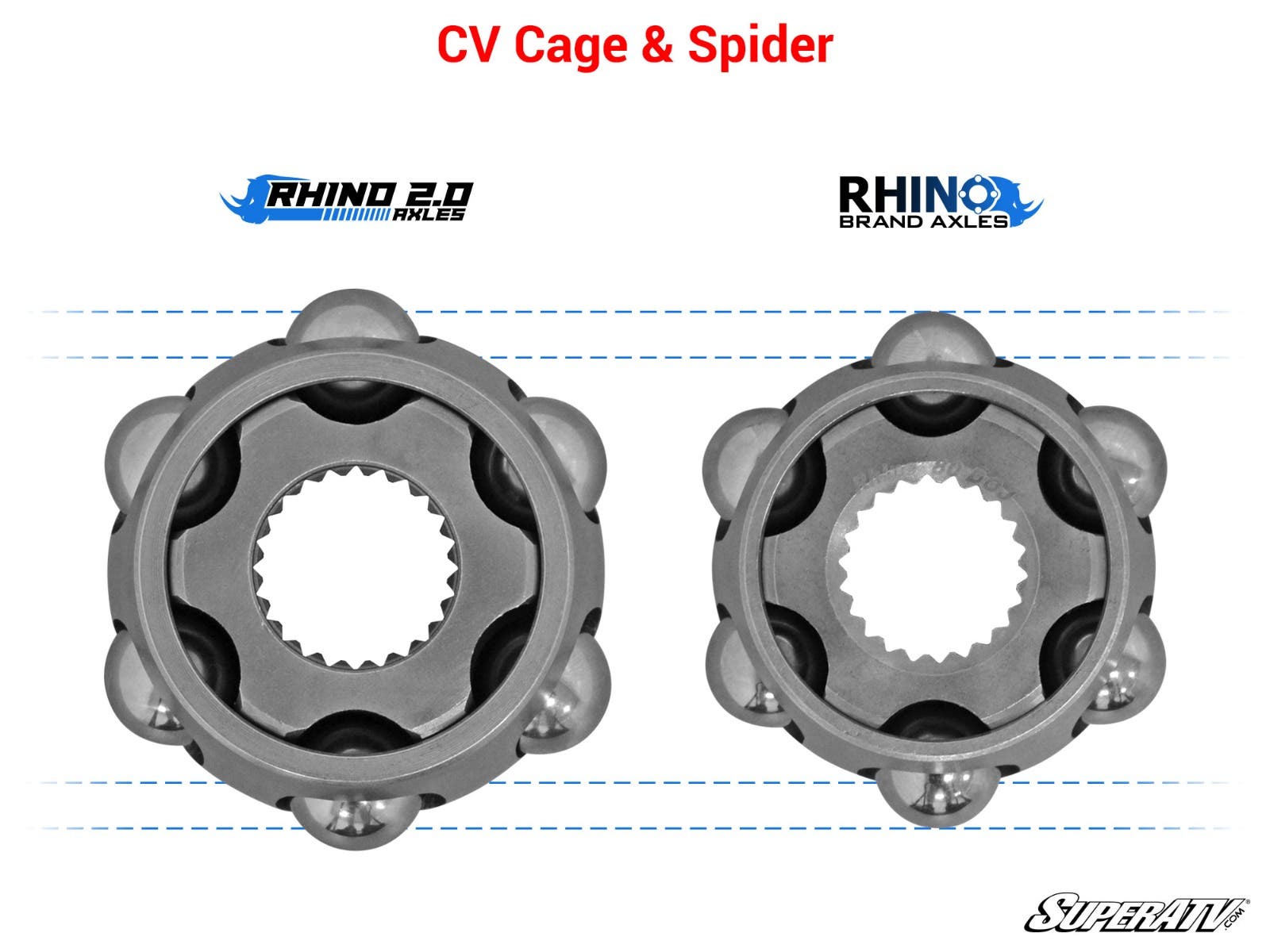

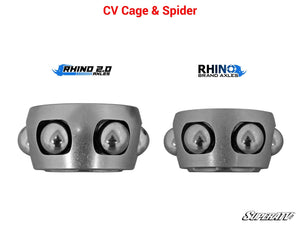

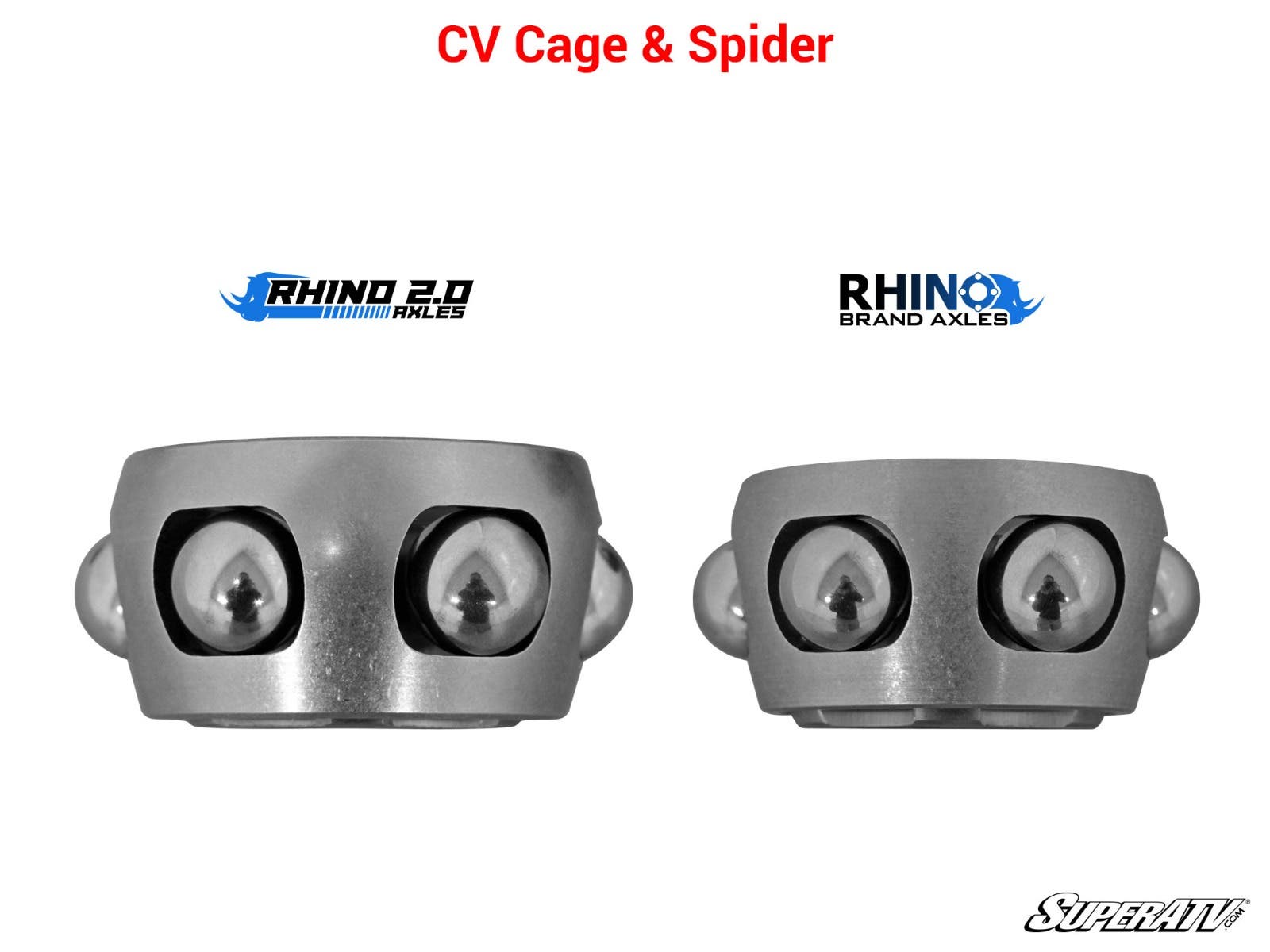

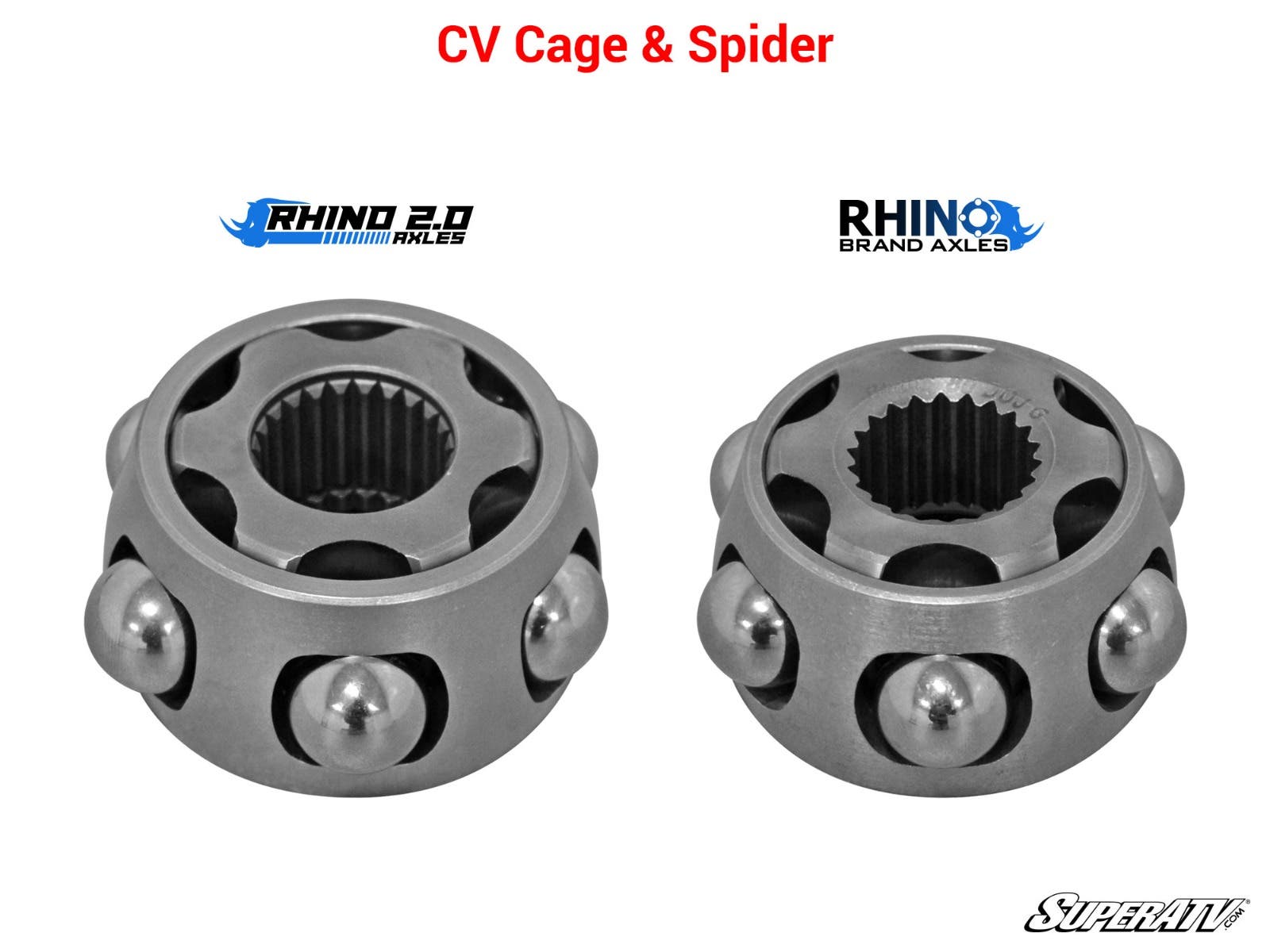

- Larger CV and shaft components that run cooler at high angles
- Field and lab tested for strength and endurance
- Industry-leading 18-month warranty
Built To Solve: Stock-Length Axles on a Lifted Commander
- Stock axles running out of length and angle on a 6" lift
- CV joints overheating at steep lifted angles
- Weaker aftermarket axles failing on big-lift builds
- Replacing a broken axle with another stock-length part
Best For: Commander Owners Running SuperATV's 6" Lift Kit
- Can-Am Commander 800 and 1000 (2011-2020) on SuperATV's 6" lift
- Commander 1000R DPS, XT and XT-P (2021+) and XMR 1000 (2022+)
- Commander MAX 1000R DPS, XT and XT-P (2021+)
- Not for stock-height machines or other brands' lift kits
- Not for ABS-equipped machines
Specifications
- Brand: SuperATV
- Product line: Rhino 2.0 Heavy-Duty Axle
- Material: 4340 chromoly steel, proprietary heat treatment
- Strength: nearly 2x stock (per SuperATV)
- Warranty: 18 months
- Length: extended for SuperATV's 6" Commander lift kit
- Positions: front, front driver side, front passenger side, rear (varies by year and model)
- Sold: individually
Fitment
- Can-Am Commander 800: 2011-2020
- Can-Am Commander 1000: 2011-2020
- Can-Am Commander 1000R DPS: 2021+
- Can-Am Commander XMR 1000: 2022+
- Can-Am Commander XT 1000R: 2021+
- Can-Am Commander XT-P 1000R: 2021+
- Can-Am Commander MAX 1000R DPS: 2021+
- Can-Am Commander MAX XT 1000R: 2021+
- Can-Am Commander MAX XT-P 1000R: 2021+
Not compatible with Anti-Lock Brake Systems (ABS). Only works with SuperATV's Can-Am Commander 6" Lift Kit. SuperATV does not publish OEM cross-reference numbers for these axles. Choose the variant that matches your axle position, year and sub model. Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.
FAQ
Do these fit a stock-height Commander?
No. SuperATV says they only work with its Can-Am Commander 6" Lift Kit. For a stock-height machine, see our Can-Am Commander Rhino 2.0 listing.
Which models do they cover?
Commander 800 and 1000 (2011-2020), 1000R DPS, XT and XT-P (2021+), XMR 1000 (2022+), and the MAX 1000R DPS, XT and XT-P (2021+).
Why are some fronts listed by side?
On several years SuperATV builds separate driver-side and passenger-side front axles, so pick the side you need. Some newer models use a single front part.
How much stronger are they than stock?
SuperATV rates them nearly two times stronger than stock.
Do they work with ABS?
No. SuperATV lists these axles as not compatible with Anti-Lock Brake Systems (ABS).
What warranty do they carry?
SuperATV backs Rhino 2.0 axles with an 18-month warranty, longer than the one-year norm SuperATV cites for the industry.
Why SuperATV
SuperATV designs, engineers, manufactures and tests its Rhino 2.0 axles in-house, using CAD analysis, lab testing and real-world trail testing before release. Every Rhino 2.0 axle is backed by SuperATV's 18-month warranty, longer than the one-year norm SuperATV cites for the industry.
Complete Your Lifted Commander Driveline
When one Commander axle fails, the others have usually seen the same abuse, so decide which positions you need. Confirm your model, year and variant against the fitment list and that you are running SuperATV's 6" Commander lift kit, and make sure the machine does not have ABS.
