SmartWire Backup / Reverse Light Kit for Polaris Xpedition (2024+)

The SmartWire Backup / Reverse Light Kit for Polaris Xpedition (2024-current) is a plug-and-play reverse lighting control system designed for fast installation and reliable operation. Unlike traditional aftermarket lighting kits that require cutting wires, installing switches, or complicated wiring, this system connects directly to the vehicle’s diagnostic CAN port to communicate with the ECU.

By reading ECU signals in real time, the SmartWire controller automatically activates reverse lights the moment the vehicle is shifted into reverse. The system eliminates manual switches and complicated wiring while delivering precise and dependable operation.

This base kit includes the SmartWire controller and wiring harness only. Lights are not included, allowing riders to connect their preferred reverse lighting setup.

Key Benefits

• True plug-and-play installation using the vehicle’s diagnostic CAN port
• No wire cutting, splicing, or complex installation required
• Automatically activates reverse lights when the vehicle shifts into reverse
• ECU-driven system ensures accurate and reliable operation
• Clean factory-style installation without switches or added wiring
• Controller-only design allows use of your own reverse lights

Manual Override Mode

Need additional lighting without shifting into reverse?

The SmartWire system includes a built-in manual override mode that allows you to activate the reverse lights when needed.

• Shift the vehicle into neutral
• Press and hold the brake pedal for two seconds
• Reverse lights will automatically activate

To turn them off, simply repeat the same process.

No switches. No extra wiring. Completely integrated into the vehicle’s control system.

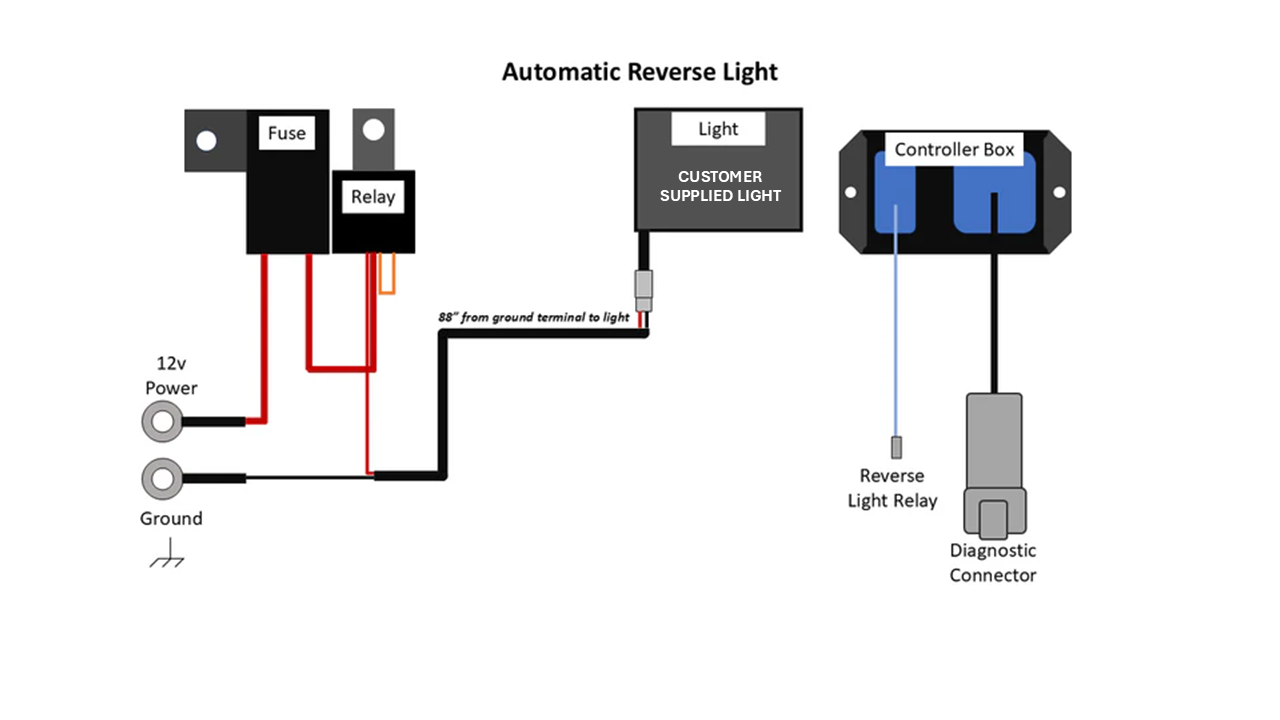

System Overview

The SmartWire system provides a smarter approach to reverse lighting. Instead of tapping into factory wiring or installing manual switches, the controller reads vehicle data directly from the ECU through the CAN network.

This results in:

• Faster installation
• Cleaner wiring setups
• Automatic reverse light activation
• Reliable ECU-based operation

What’s Included

SmartWire Controller
Plug-and-Play Wiring Harness

Important: Lights are NOT included with this kit.
Customers can install their own reverse lighting solution compatible with the SmartWire controller.

Fitment

• Polaris Xpedition
  Model Years: 2024 – Current

Frequently Asked Questions

Does this kit include reverse lights?
No. This product includes the SmartWire controller and wiring harness only. Reverse lights must be purchased separately.

Is installation difficult?
No. The system connects directly to the vehicle’s diagnostic CAN port and does not require cutting or splicing wires.

Do the lights automatically activate?
Yes. The controller reads ECU signals and automatically activates reverse lights when the vehicle shifts into reverse.

Can I manually activate the lights?
Yes. The manual override feature allows activation by shifting to neutral and holding the brake pedal for two seconds.

Upgrade your Polaris Xpedition reverse lighting system with the SmartWire plug-and-play controller for simple installation and reliable ECU-controlled performance.

Shop Polaris Xpedition accessories and lighting upgrades at Dunes 2 Dezert SXS.
