RPM Powersports Can-Am X3 Big Core Intercooler Upgrade Kit (2020-2026)

Sale price $1,049.95

Shipping calculated at checkout

Intercooler Finish
Silicone Color

In stock

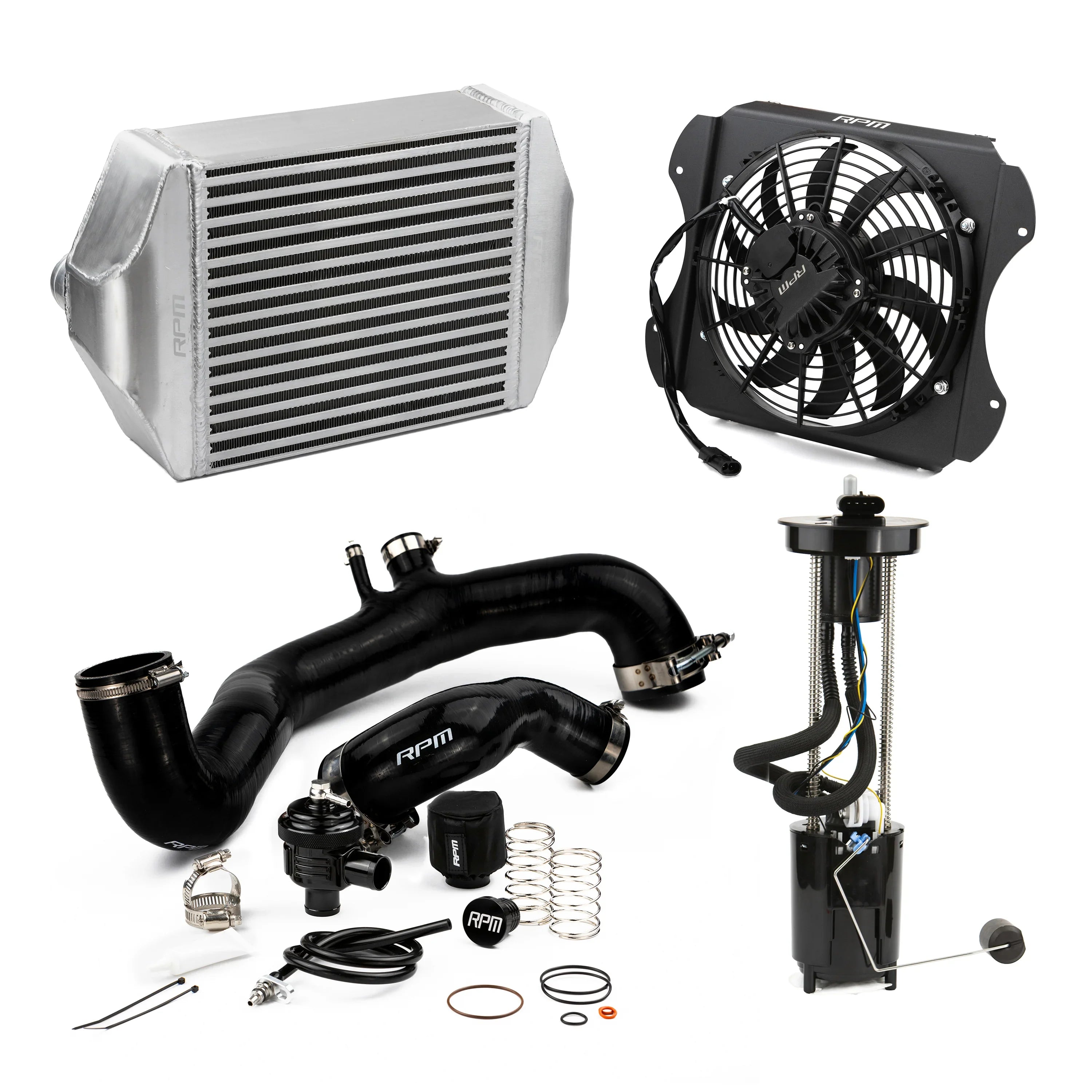

The RPM Powersports big core intercooler upgrade kit converts a 2020-2026 120HP Can-Am Maverick X3 to 190+ HP intercooled performance, with a 12" x 11" x 4" bar-and-plate intercooler, brushless fan and sealed shroud, silicone charge tubes, a billet BOV and a high-pressure fuel pump assembly.

This x3 120hp intercooler kit is the step from the base 120HP engine to an intercooled tune. The x3 big core intercooler has 30% more core volume than stock and held intake air temps up to 40°F cooler in RPM's desert testing, so the engine stays in peak boost longer on 91 octane with less knock risk. It is the can am x3 intercooler kit and x3 intercooler upgrade that makes x3 120hp to 190hp reliable.

The x3 intercooler fan is a high-CFM soft-start brushless unit in an EPDM-sealed shroud. The x3 silicone charge tubes replace the kinked factory plastic, and the x3 bov kit adds a billet valve with a 25 mm port and a second manifold reference port. Every rpm x3 intercooler kit uses the same can am x3 intercooler core RPM sells on its own as its maverick x3 intercooler upgrade.


Key Features

  • 12" x 11" x 4" bar-and-plate big core intercooler, 30% more core volume than stock
  • Up to 40°F lower intake air temps in RPM desert testing
  • High-CFM soft-start brushless fan with EPDM-sealed shroud
  • 4-ply silicone primary and secondary charge tubes, 30% larger volume
  • CNC-machined billet blow-off valve
  • 25 mm BOV port plus secondary manifold reference port
  • Stainless T-bolt clamps for turbo, intercooler and throttle body
  • High-pressure fuel pump assembly included
  • Polished or black intercooler; black, blue, red, orange or green silicone

Built To Solve: Taking a 120HP Can-Am X3 to Intercooled Power

  • No intercooler on the base 120HP X3, limiting tune potential
  • Heat soak and knock risk on pump gas
  • Kinked factory plastic charge tubes
  • No BOV to protect the turbo on throttle lift
  • Stock fuel pump limits

Best For: 2020-2026 120HP Maverick X3 Owners Ready for More Power

  • Owners stepping up to an intercooled ECU tune
  • Dune and desert riders who need cooling headroom
  • Riders on 91 octane pump gas
  • 2017-2019 owners should choose RPM's early-model kit instead

Specifications

  • Brand: RPM Powersports
  • Intercooler: 12" x 11" x 4" bar and plate, polished or black
  • Fan: brushless, soft start, EPDM-sealed shroud
  • Charge tubes: 4-ply silicone, black, blue, red, orange or green
  • BOV: CNC billet with 25 mm port
  • Fuel: high-pressure fuel pump assembly
  • Tune: not included; an intercooled ECU tune is required for 190+ HP

Fitment

Fits 2020-2026 Can-Am Maverick X3 120HP models, 2-seat and MAX, per RPM Powersports. Not for 2017-2019 models. Fitment is not guaranteed on applications not listed here; confirm your model before ordering.


FAQ

How much power does the X3 big core kit support?

RPM rates it for converting a 120HP X3 to 190+ HP with an intercooled ECU tune.

Is a tune included?

No. The kit provides the hardware; an intercooled ECU tune is needed to reach the rated power.

Does it fit a 2018 X3?

No. This kit is for 2020-2026 models. RPM sells a separate kit for 2017-2019.

How much cooler does it run?

RPM measured up to 40°F lower intake air temperatures in desert conditions.

Is cutting required?

No. It is a direct drop-in replacement with no cutting or plastic modification.

How is this different from the 220HP kit?

The 220HP Max Power kit adds a tune, clutch kit, catch can and cat delete; this kit covers the intercooler, charge tubes, BOV and fuel pump.


Why RPM Powersports

RPM Powersports engineers its X3 intercoolers, charge tubes and BOVs in-house and tests them in desert heat.


Build an Intercooled Can-Am X3

Choose your intercooler finish and silicone color and order the RPM X3 big core kit from Dunes 2 Dezert SXS.
