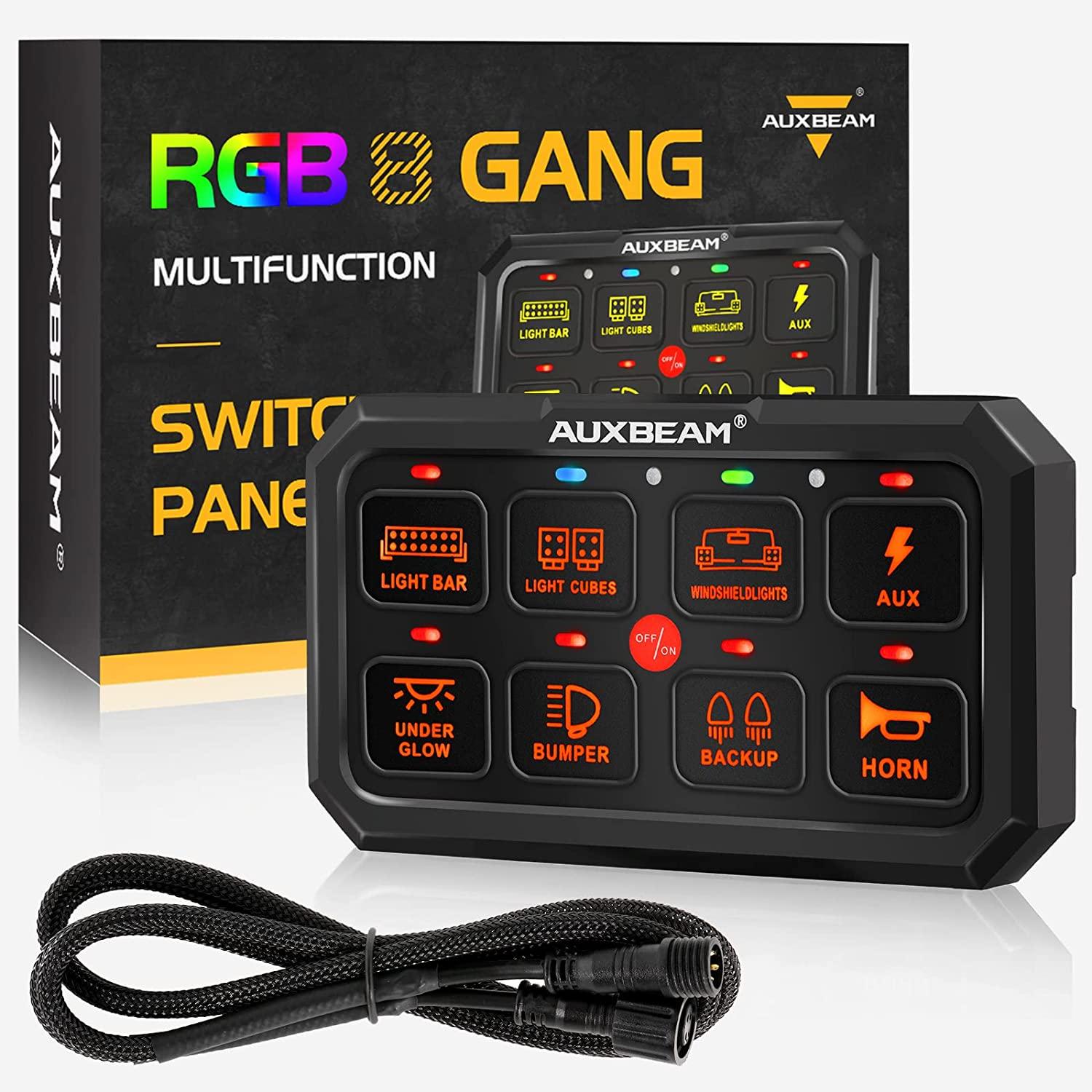

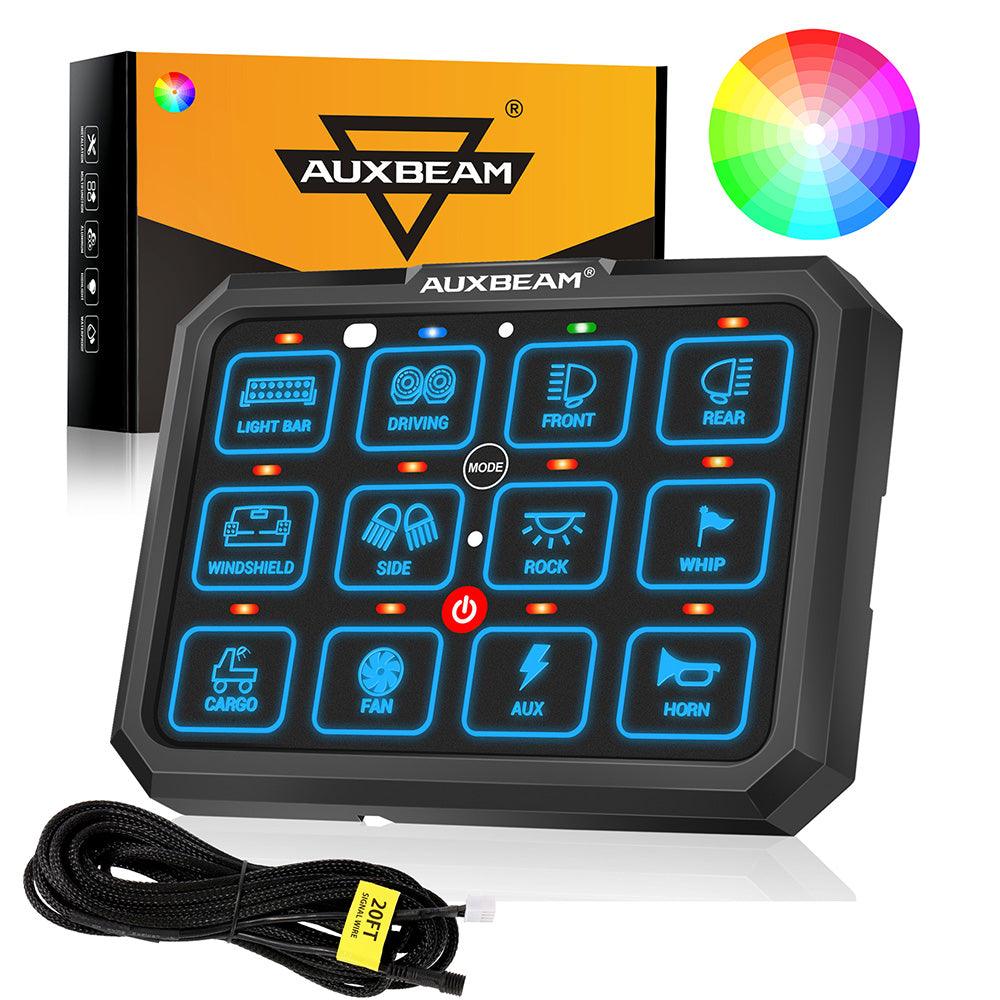

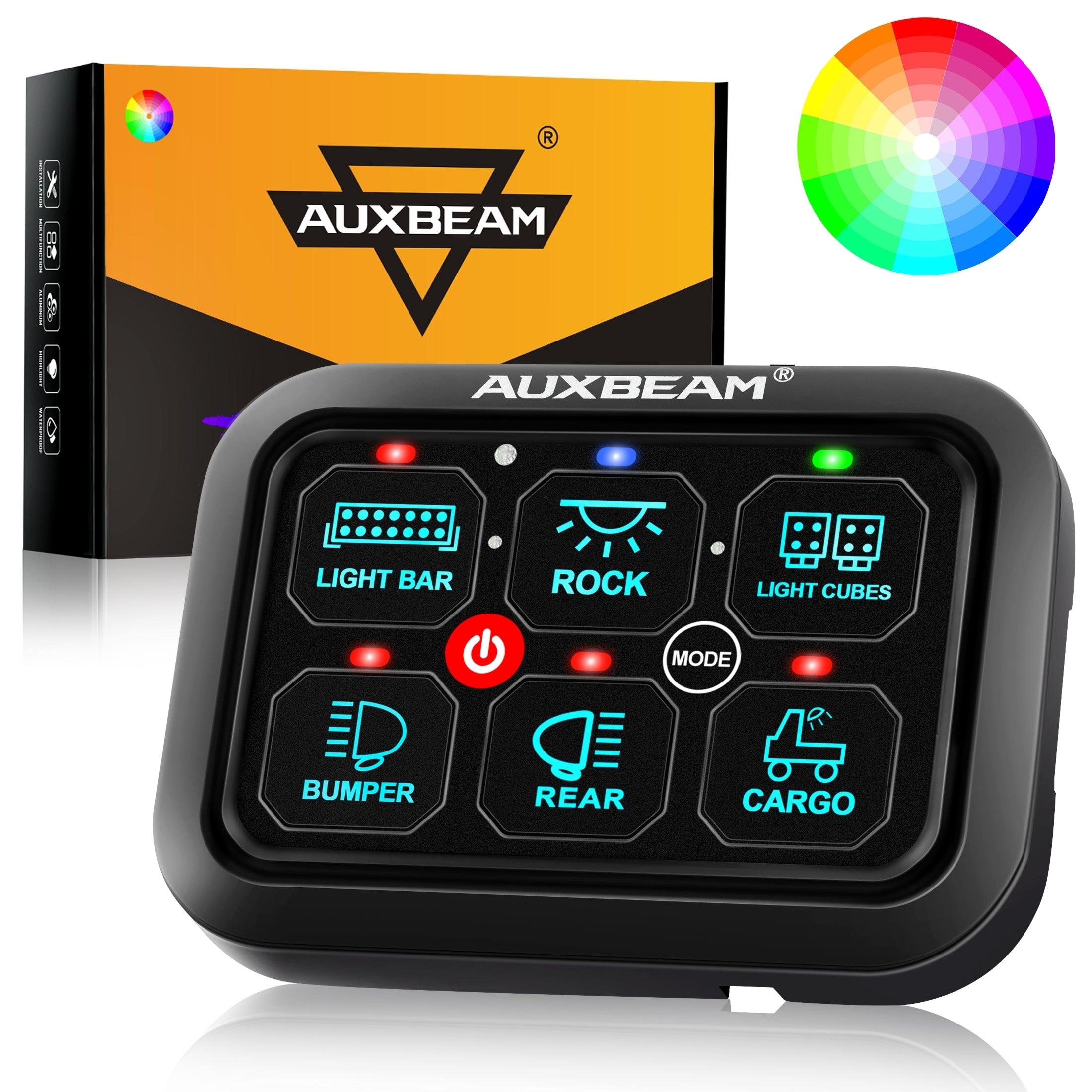

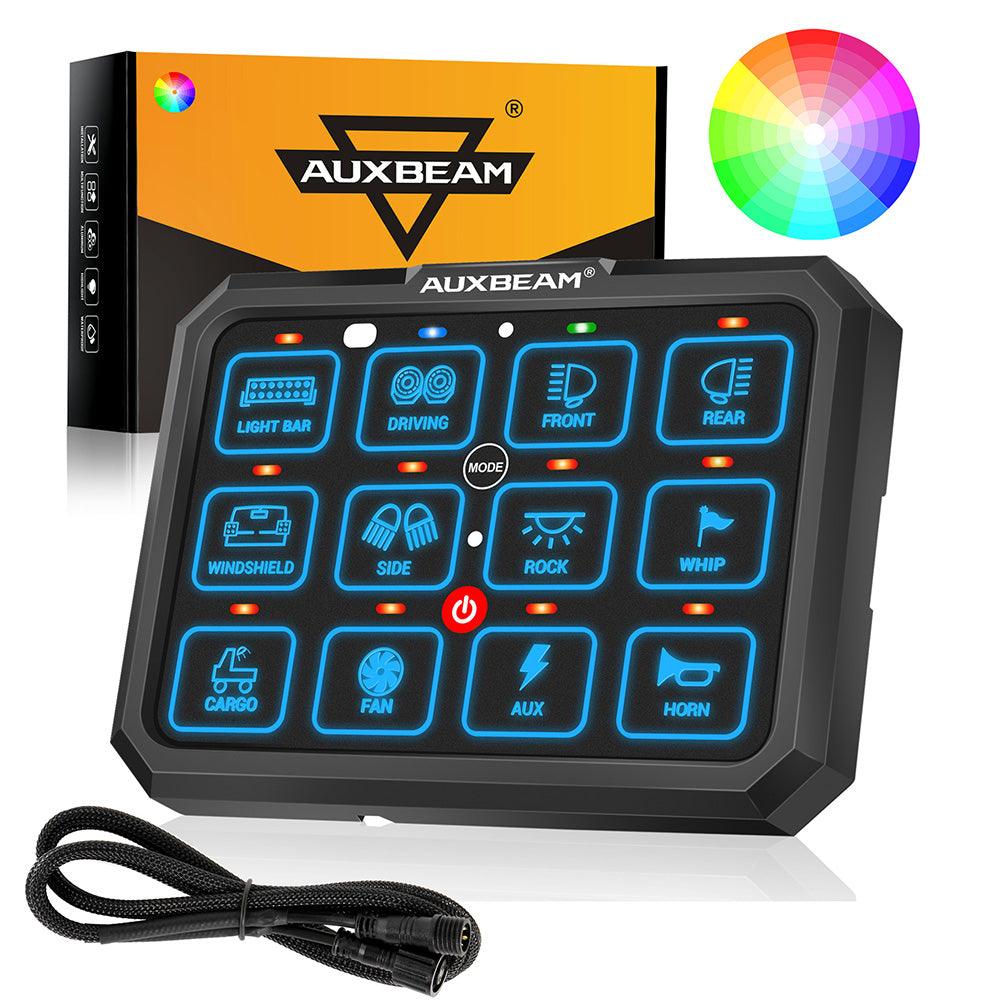

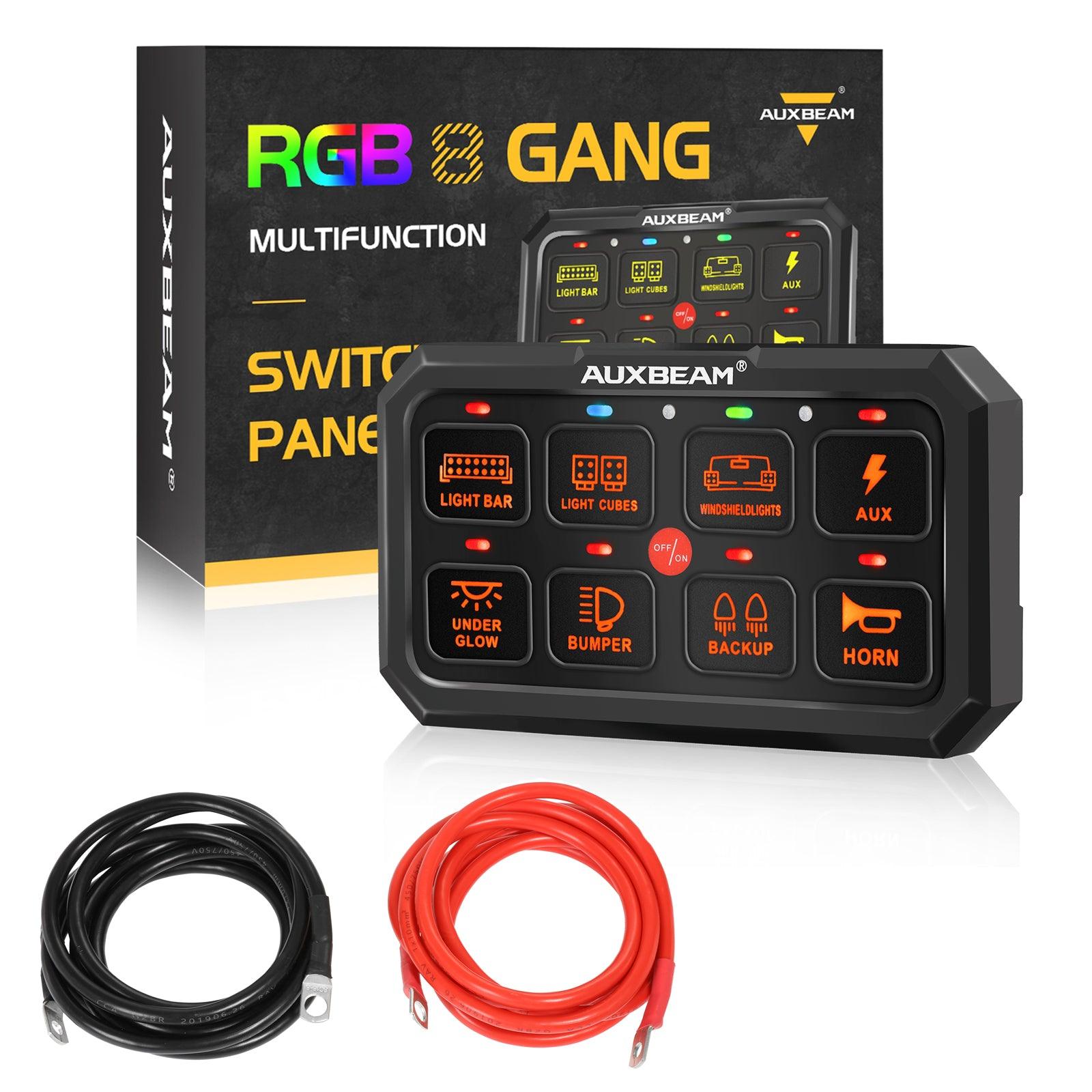

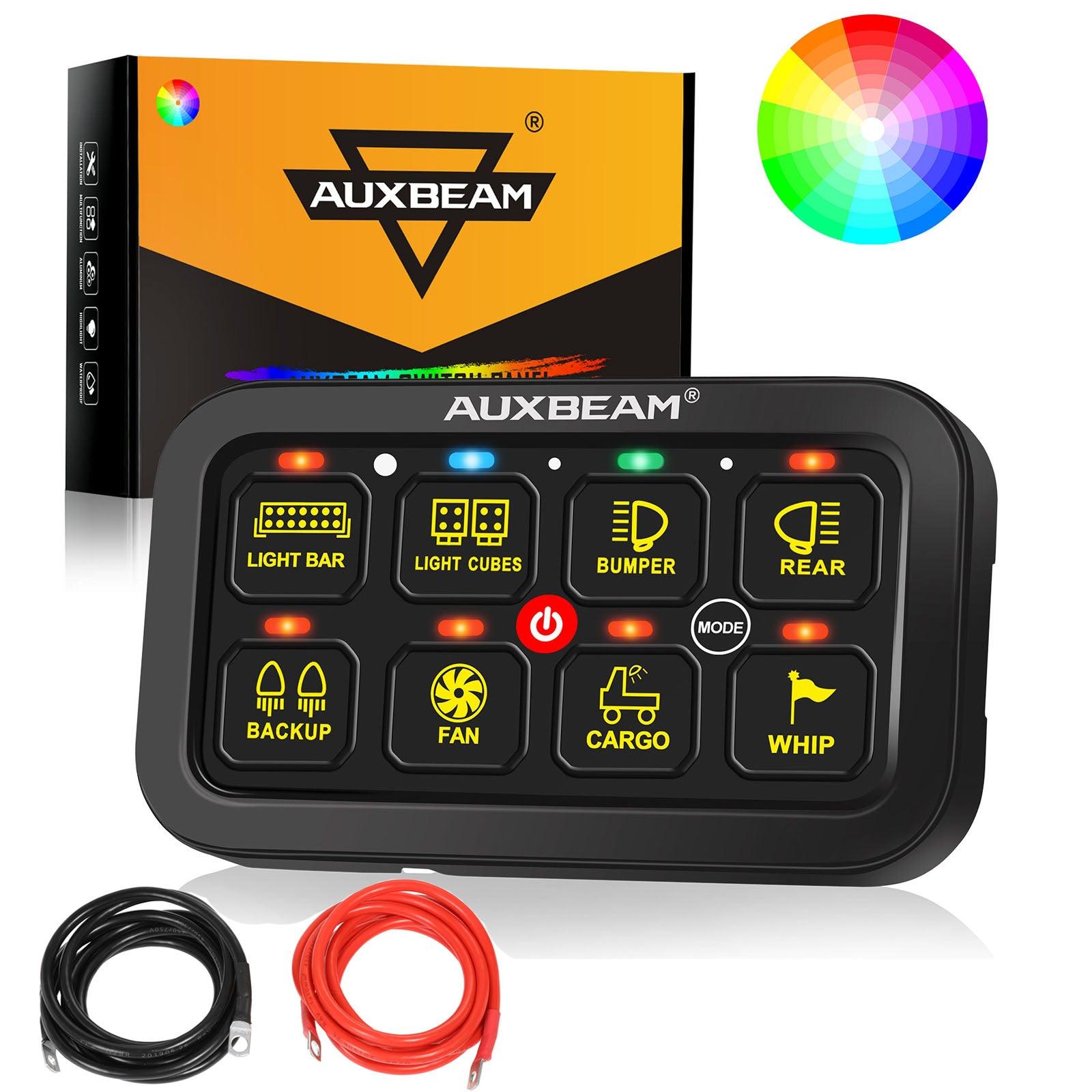

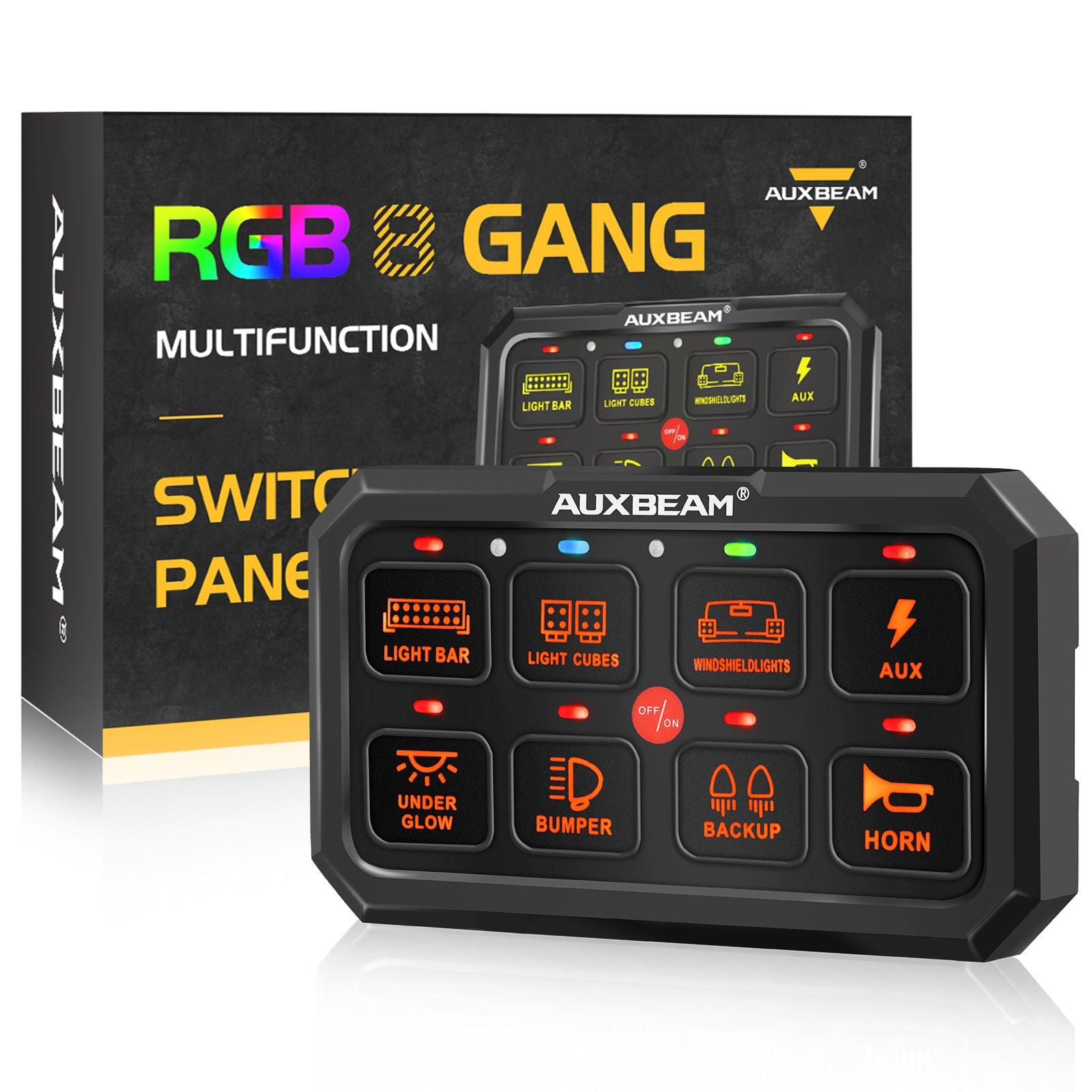

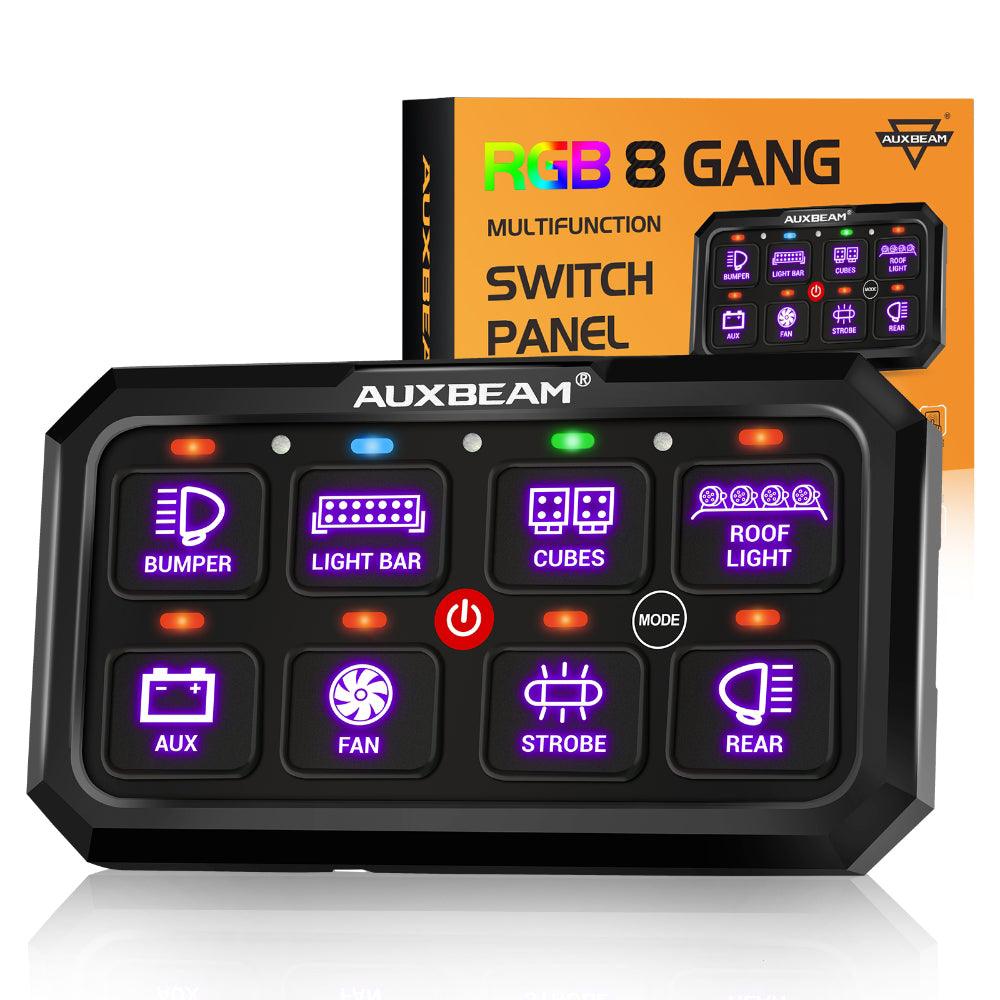

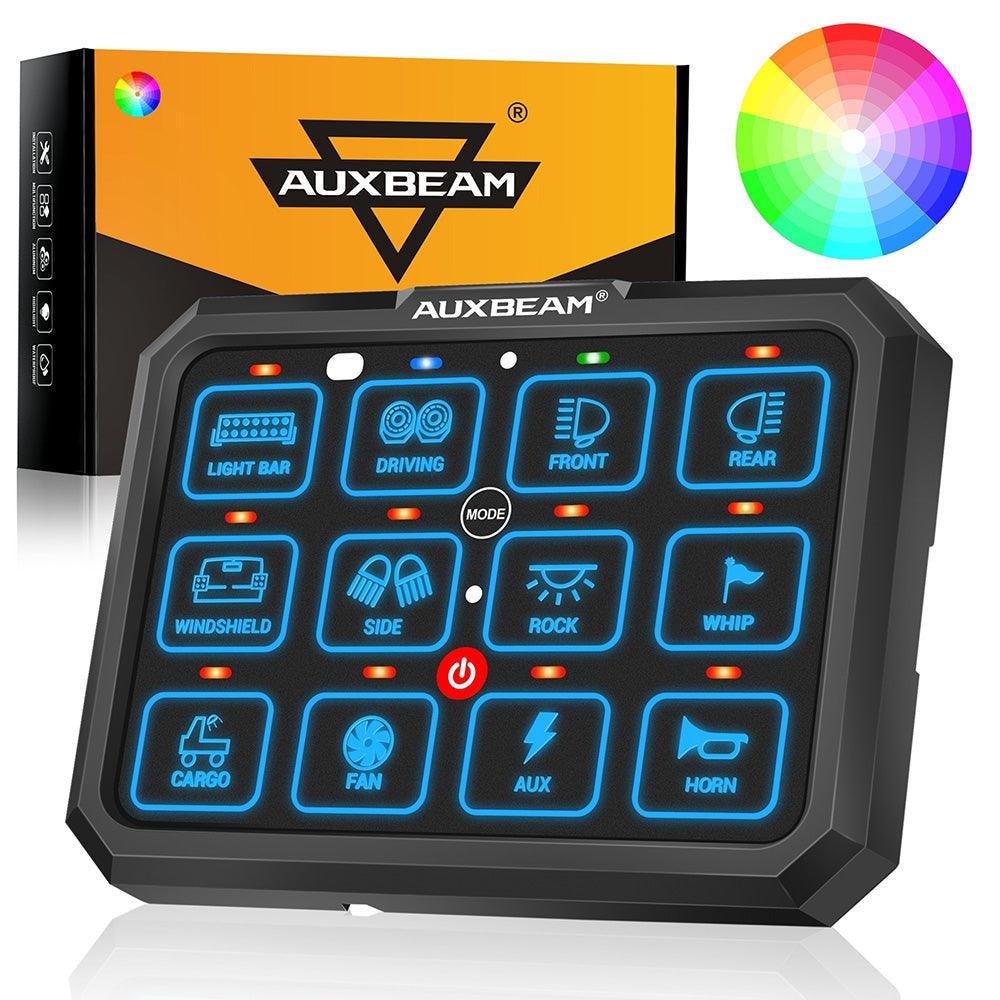

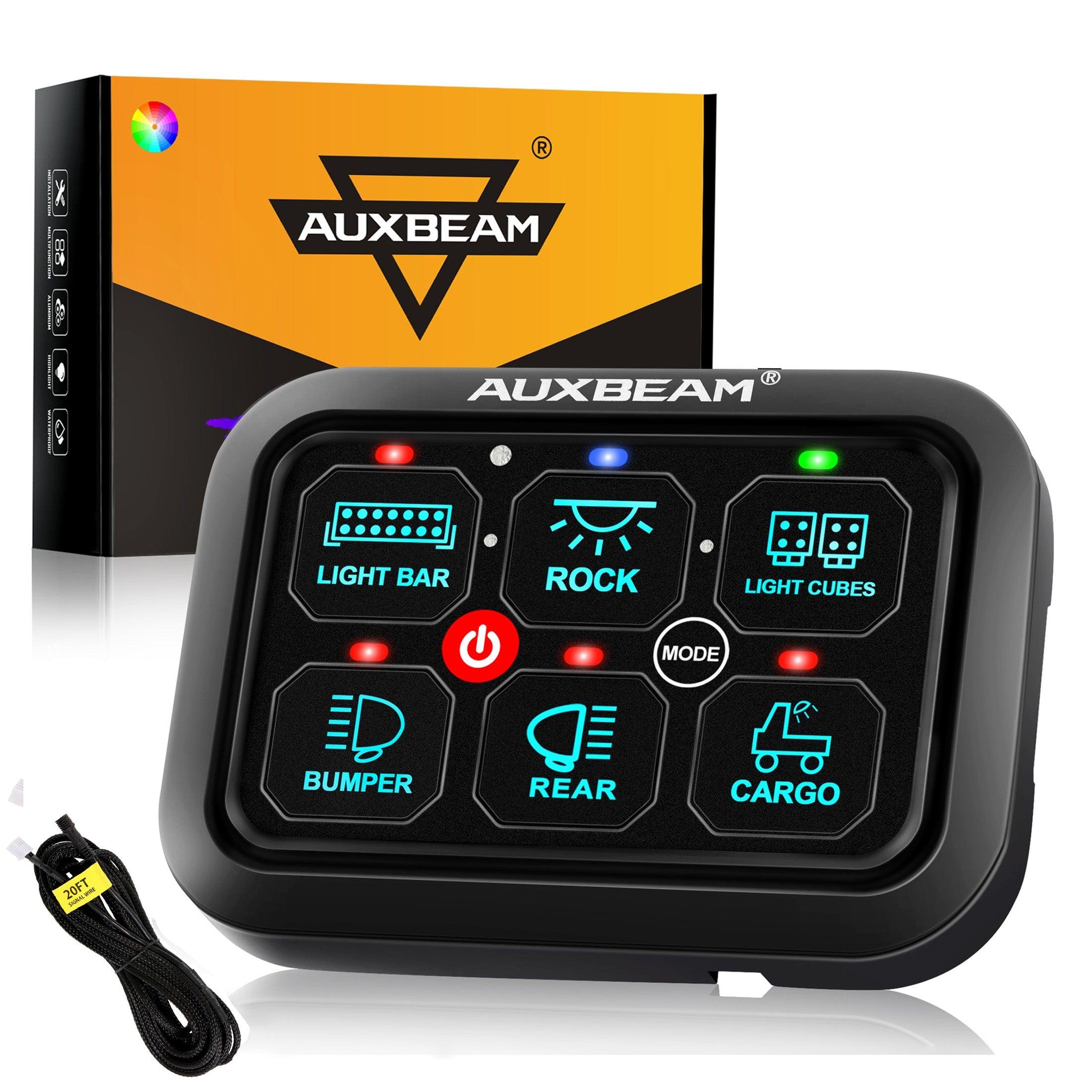

Auxbeam RGB Series LED Switch Panel – 6, 8, or 12 Gang Models
Modular Control. Rugged Design. Universal Fit.

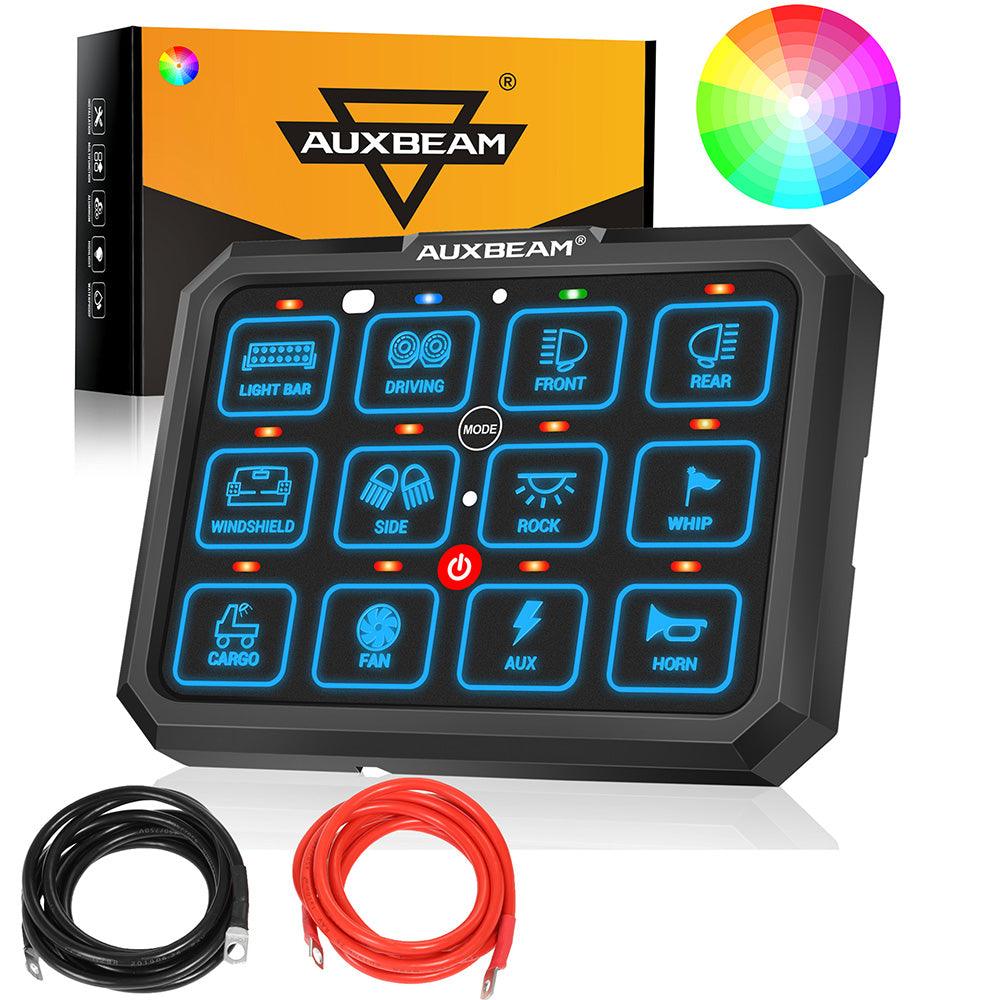

Customize and command your vehicle’s accessories with the Auxbeam RGB Switch Panel System, available in 6, 8, or 12-gang configurations. Designed for off-roaders, overlanders, and professionals, this switch panel offers full programmability with RGB backlighting, three functional modes, and IP65 waterproofing—backed by plug-and-play ease and universal compatibility.
🔧 Model Options:

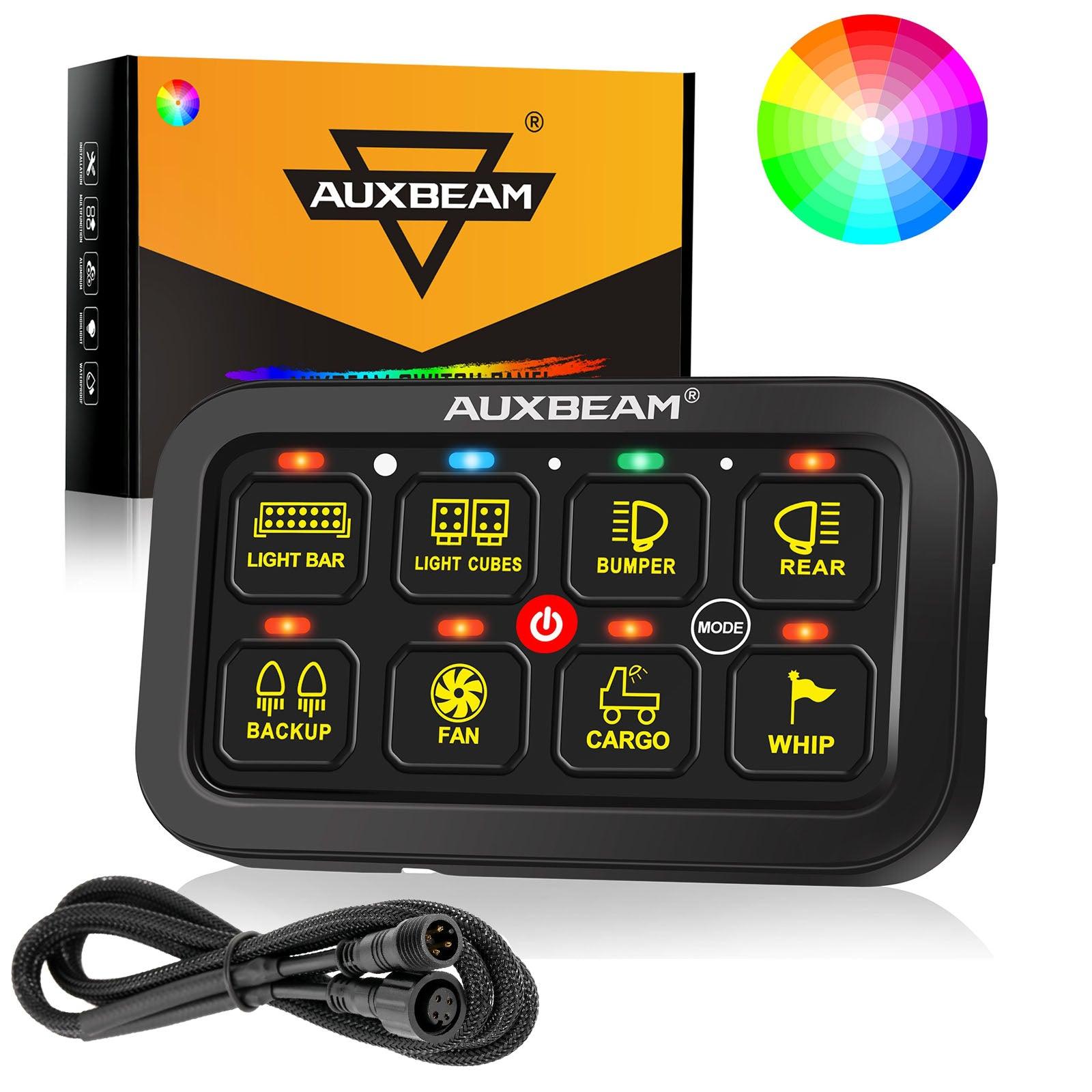

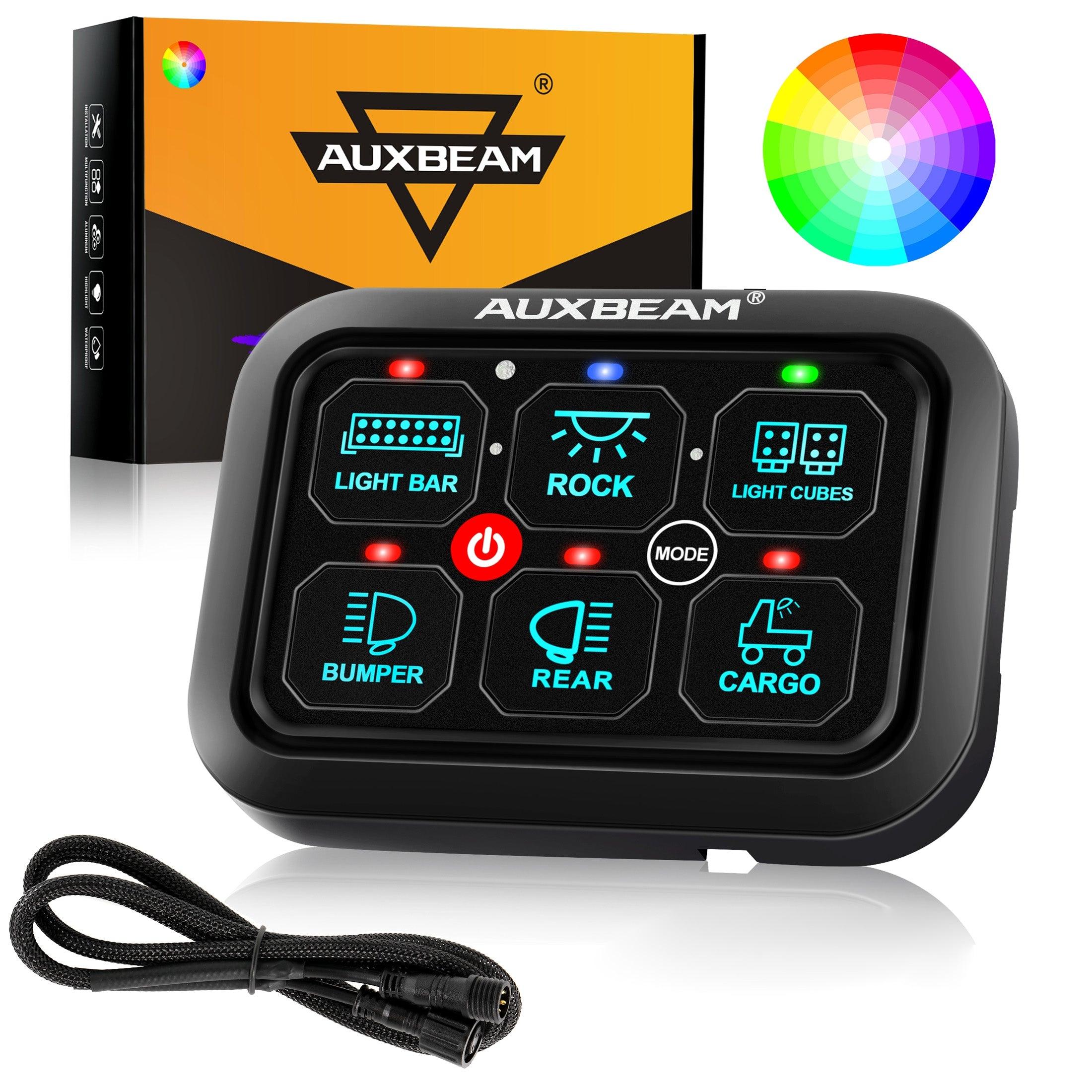

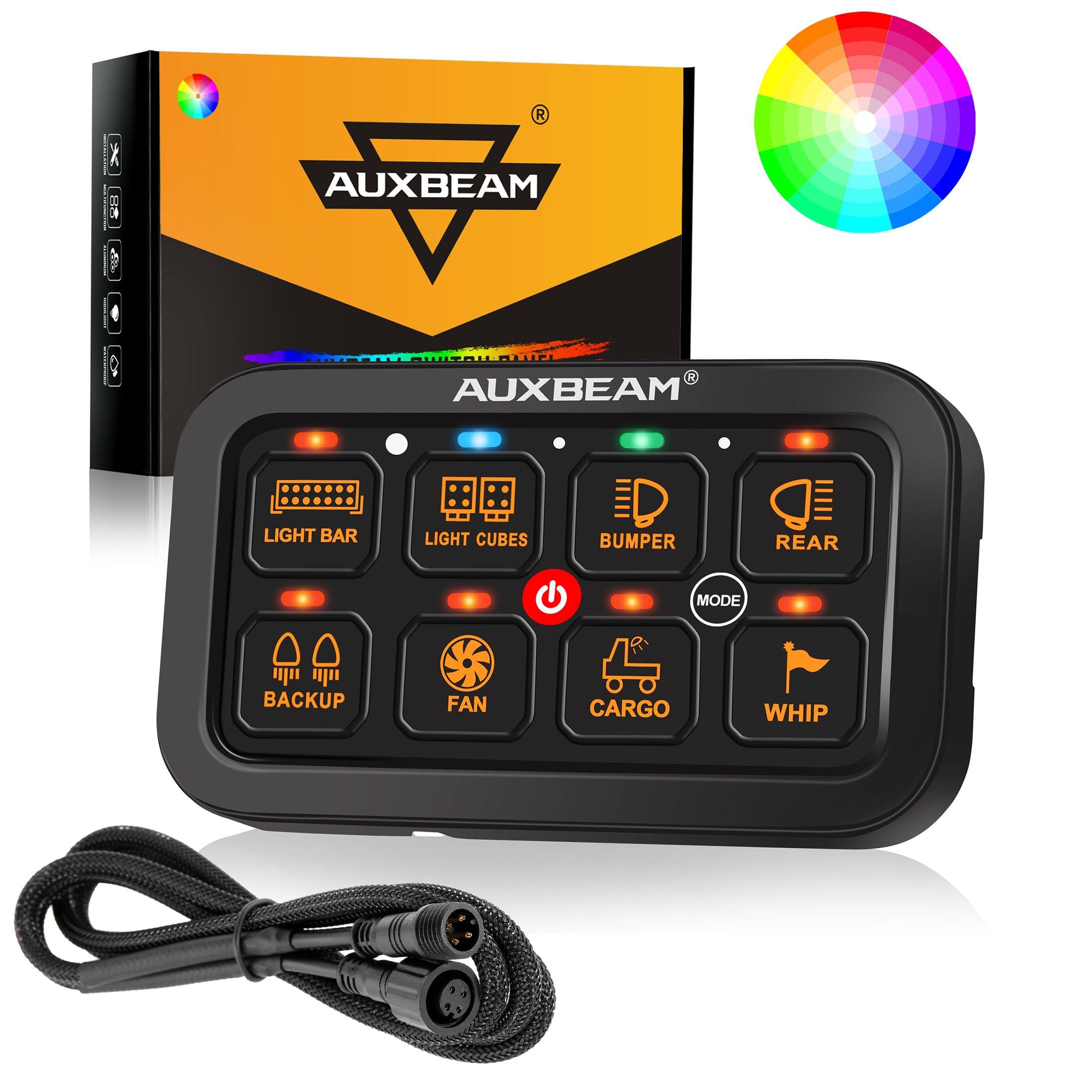

- RA60 / RA80: One-sided outlet, compact design

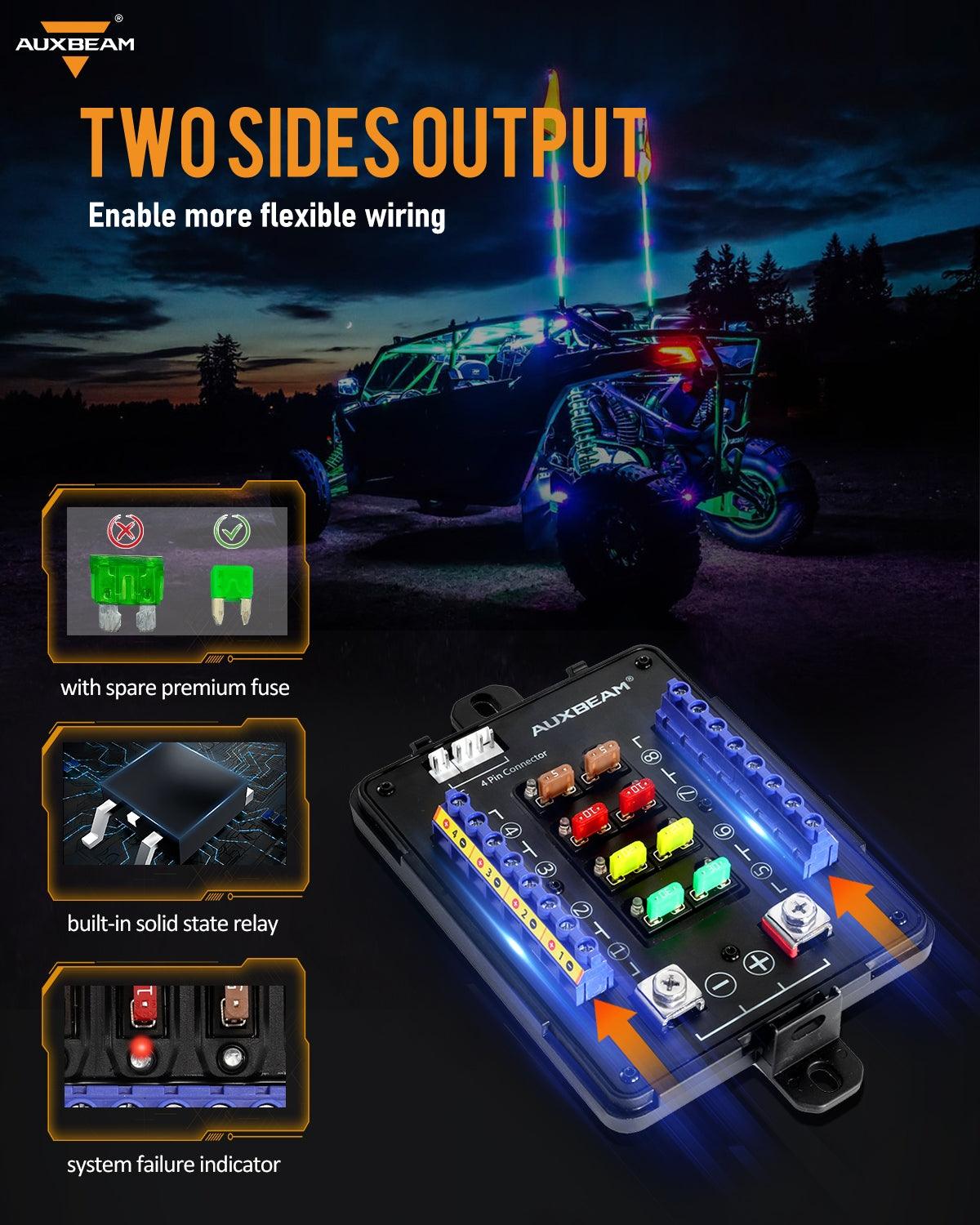

- RB80: Two-sided outlet, space-saving cable routing

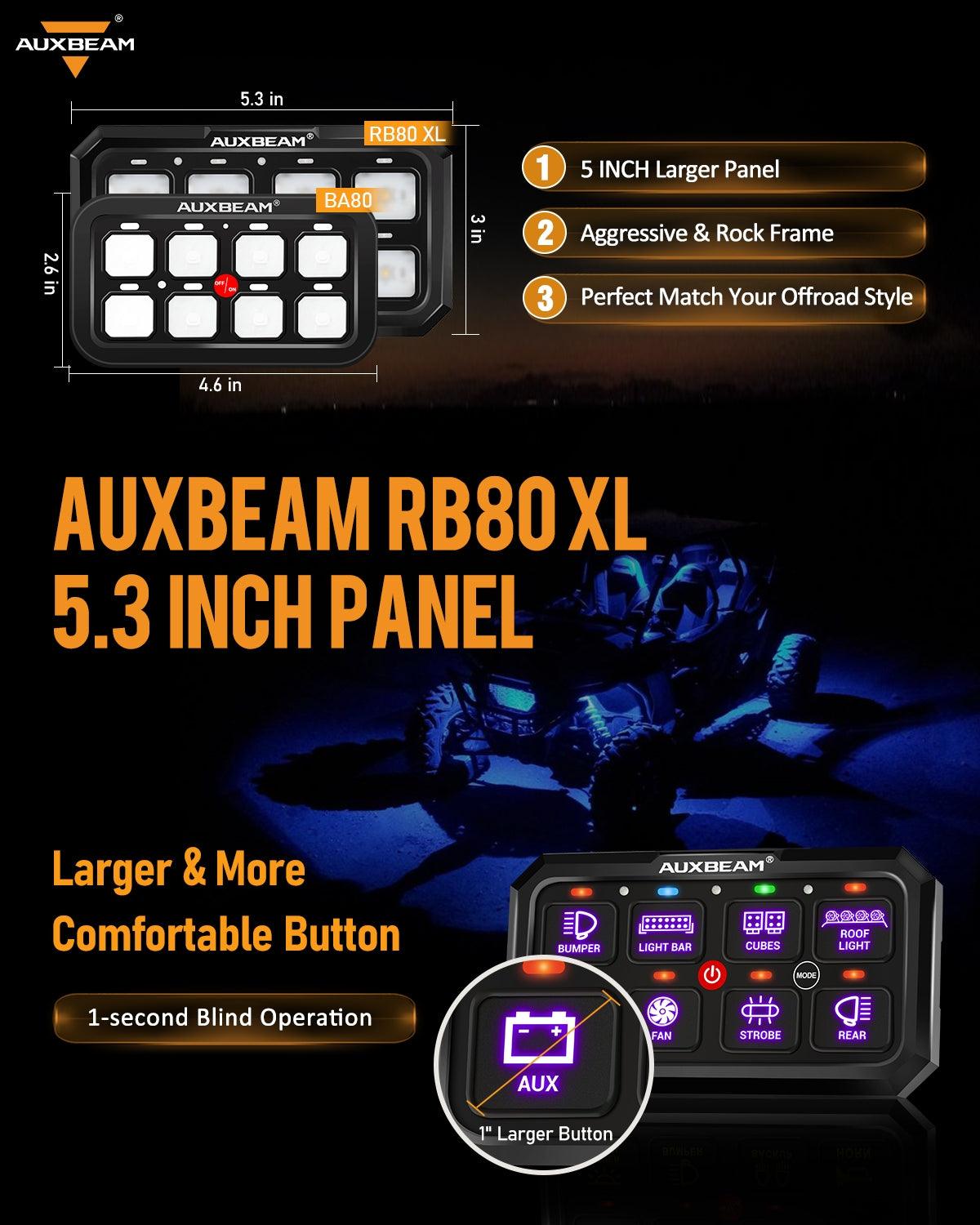

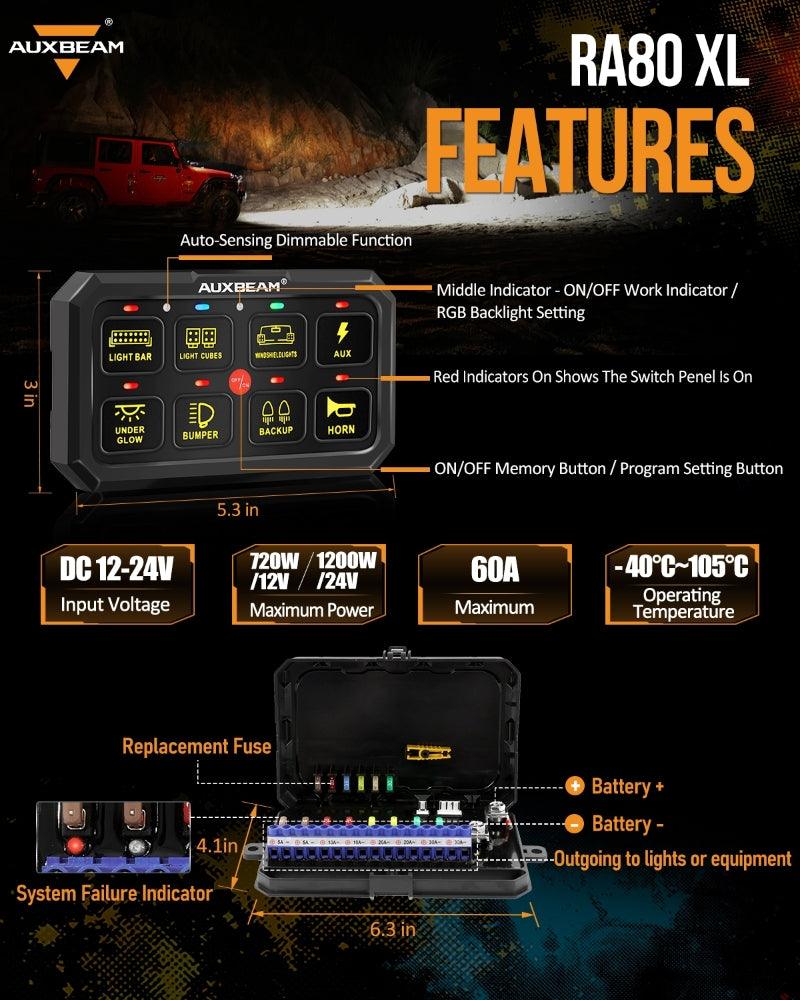

- RA80 XL / RB80 XL: XL-sized 5” panel with 1” buttons for easier access

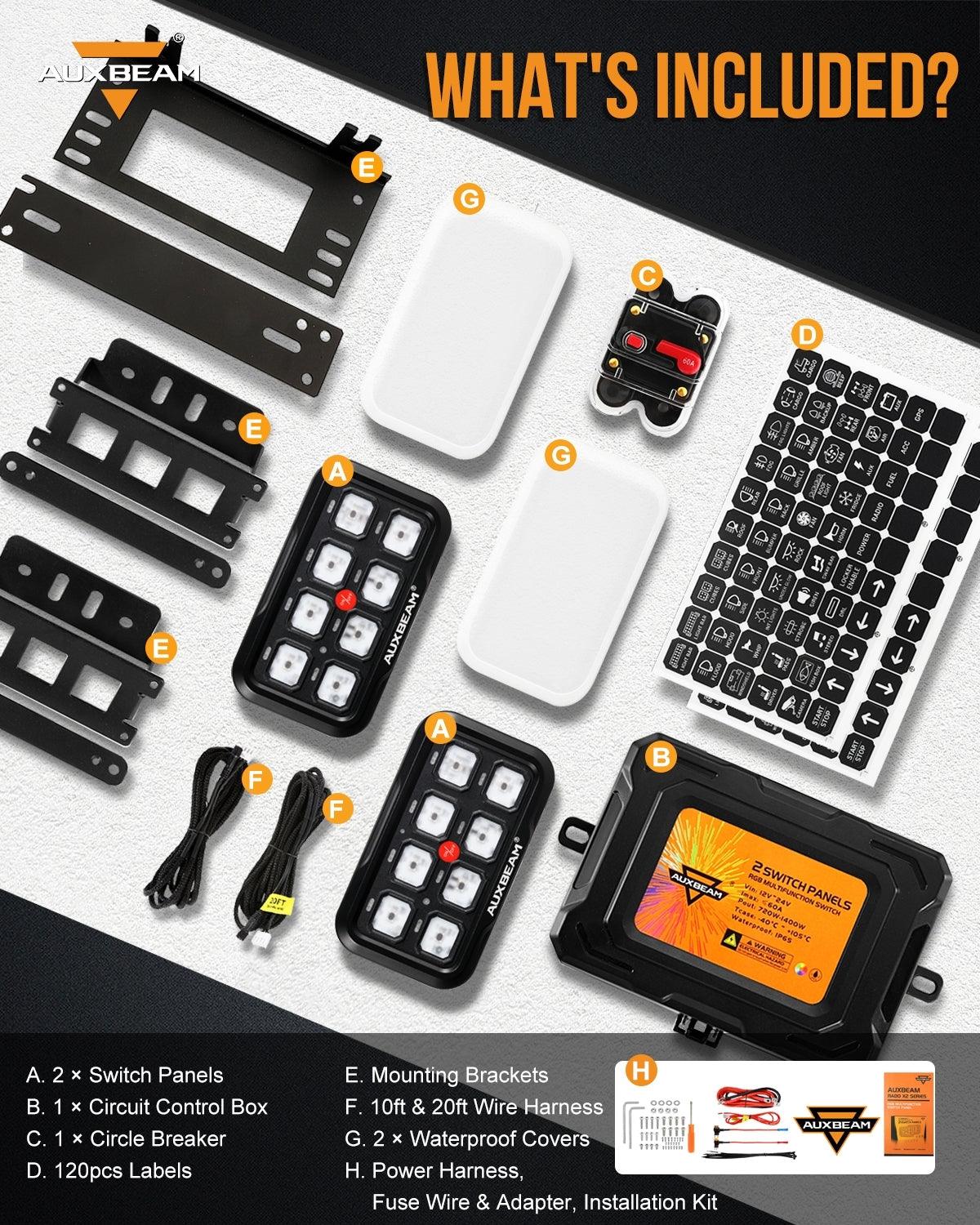

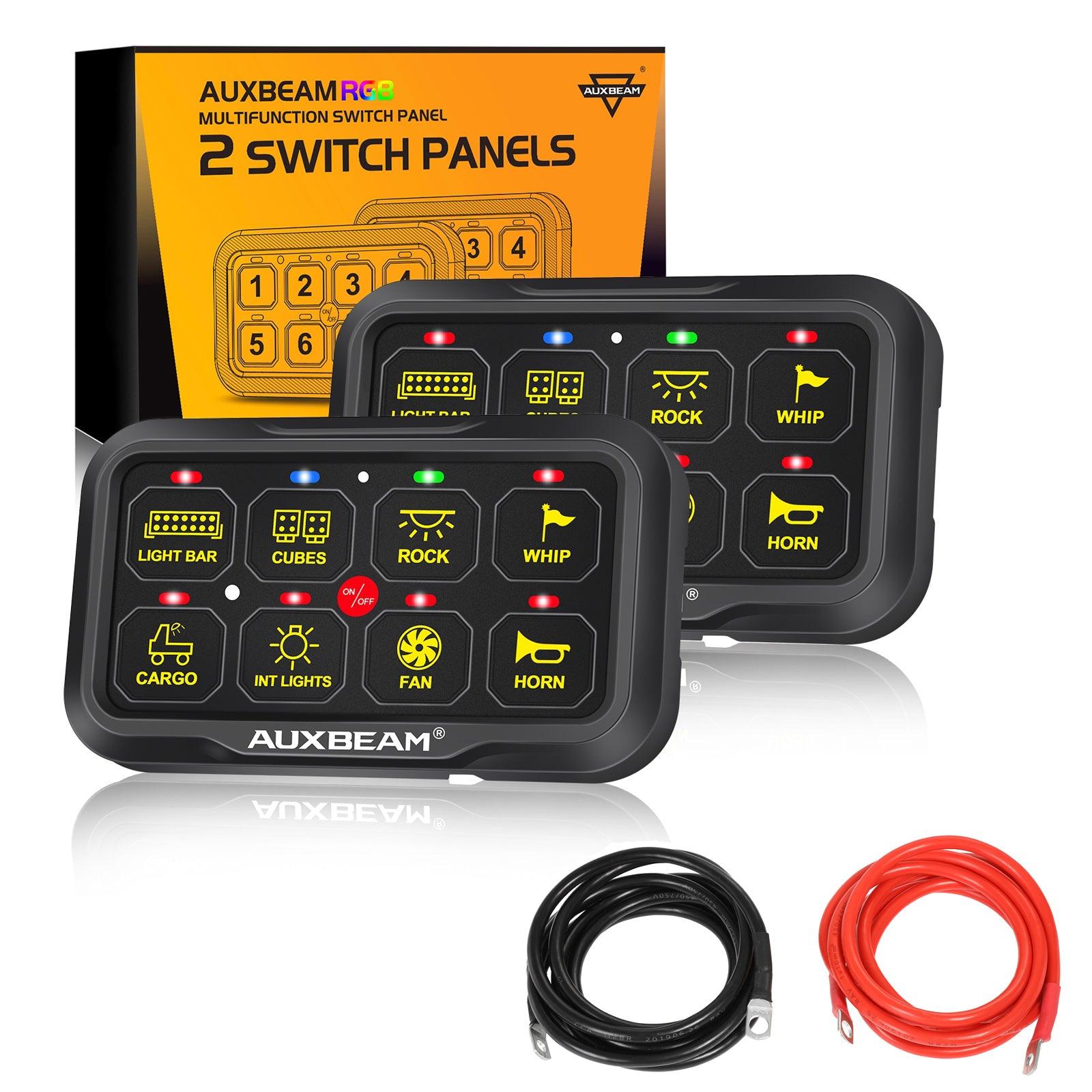

- RA80 X2: Dual-panel operation with synchronized control between two panels
🌟 Key Features:
-

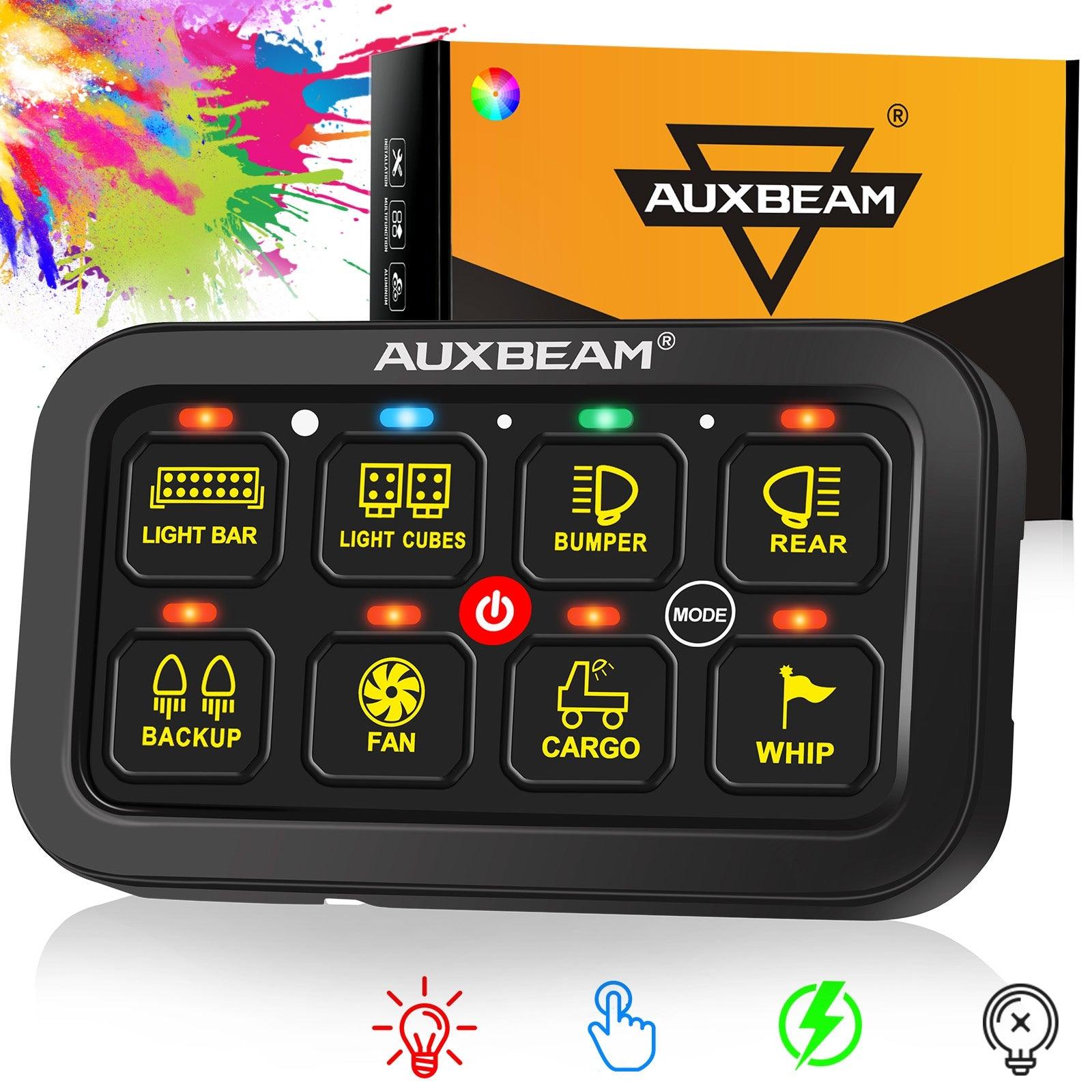

3 Mode Switch Functionality (All Models)
- 🔴 Toggle (RED): Constant on/off (ideal for lights, pumps)
- 🔵 Momentary (BLUE): Press and hold (ideal for horns, winches)
- 🟢 Pulsed (GREEN): Flashing mode for strobes, beacons
-

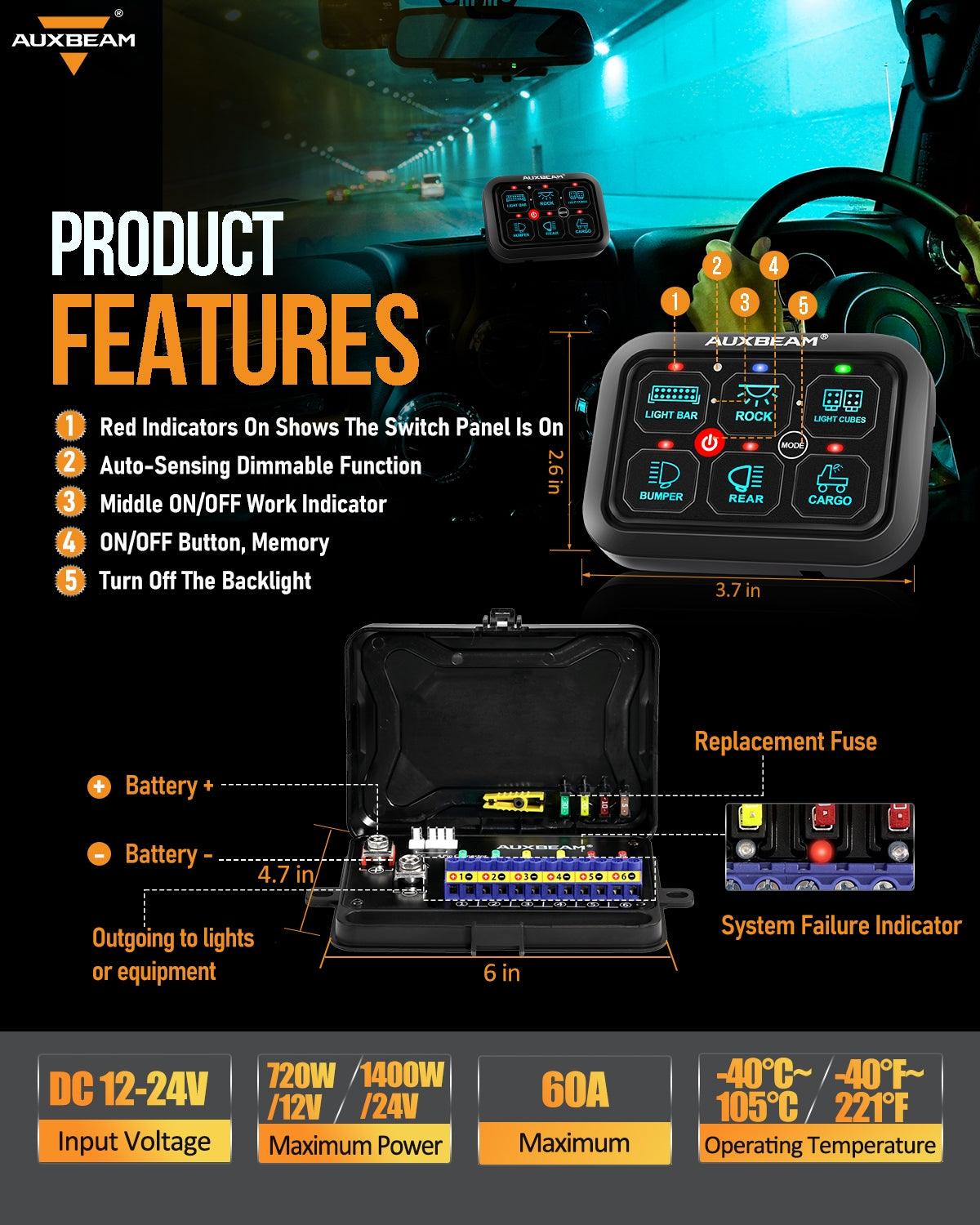

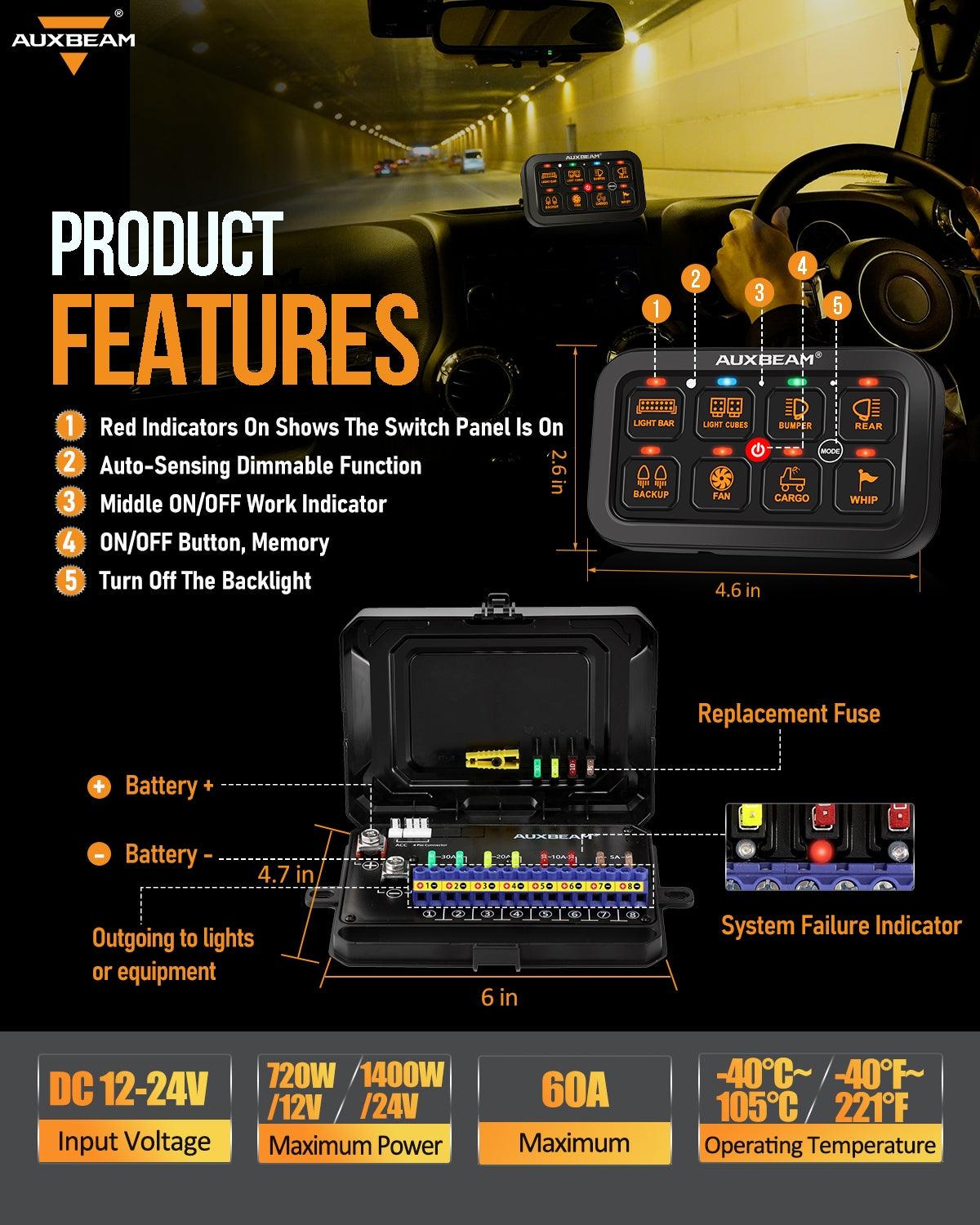

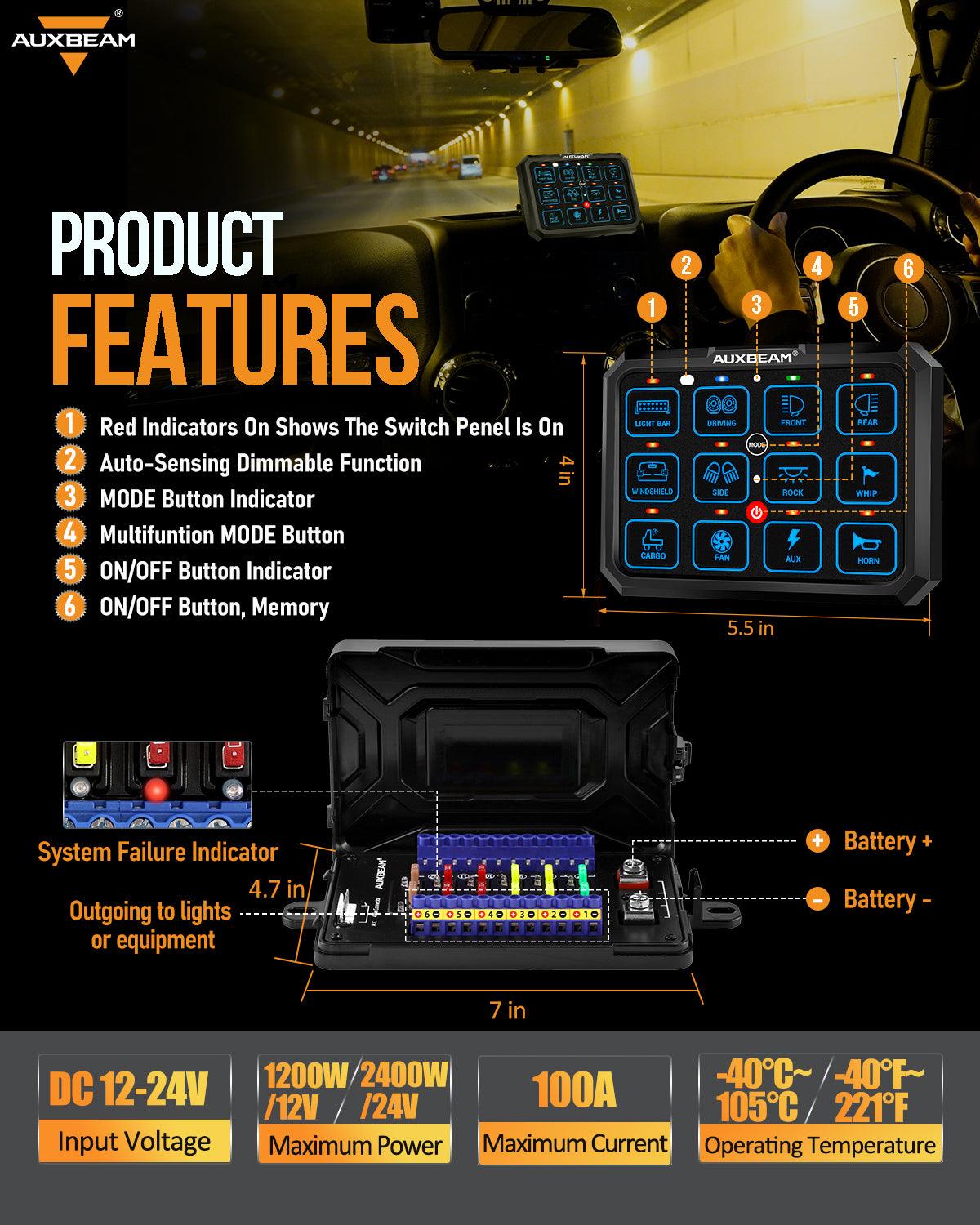

RGB Backlighting
- Adjustable color & brightness to match dash aesthetics
- Auto-dimming backlight based on ambient lighting
- Quick “mode” button to disable backlighting during daytime
-
IP65 Waterproof & Rugged Build
- Sealed housing and tactile buttons for dust, water, and shock resistance
- Built-in reverse polarity, over-voltage, and over-current protection
- Operating Temp: -40°C to +105°C
-
DIY Customization
- Includes 60+ universal switch labels for clear accessory ID
- Universal fit for UTVs, SUVs, trucks, SxS, boats, RVs, emergency vehicles, etc.
- Install on dash, overhead, or console using included dual mounting brackets
🧰 Extension & Wiring Upgrades:
-
3.94ft 4-Pin Aviation Cable
- Carries power and video signal for CCTV integration
- EMI/RFI-shielded for clean signal transmission
-

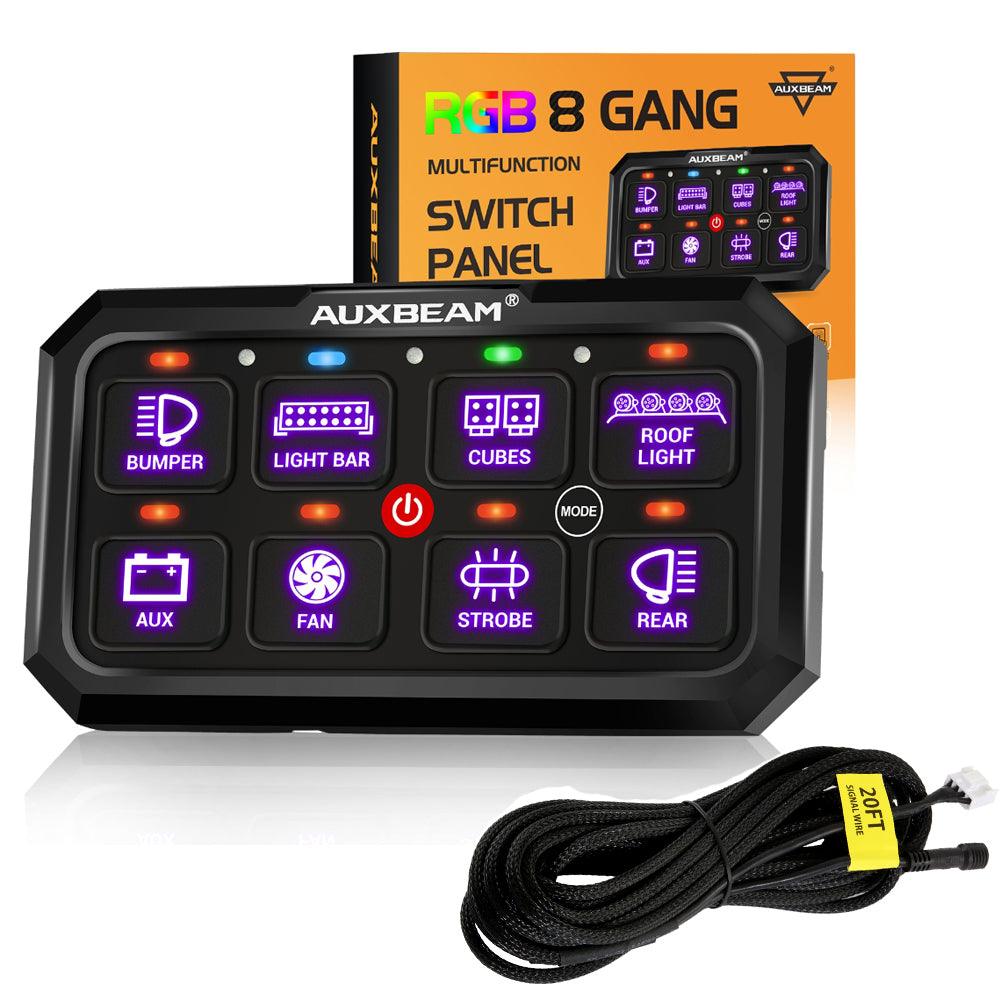

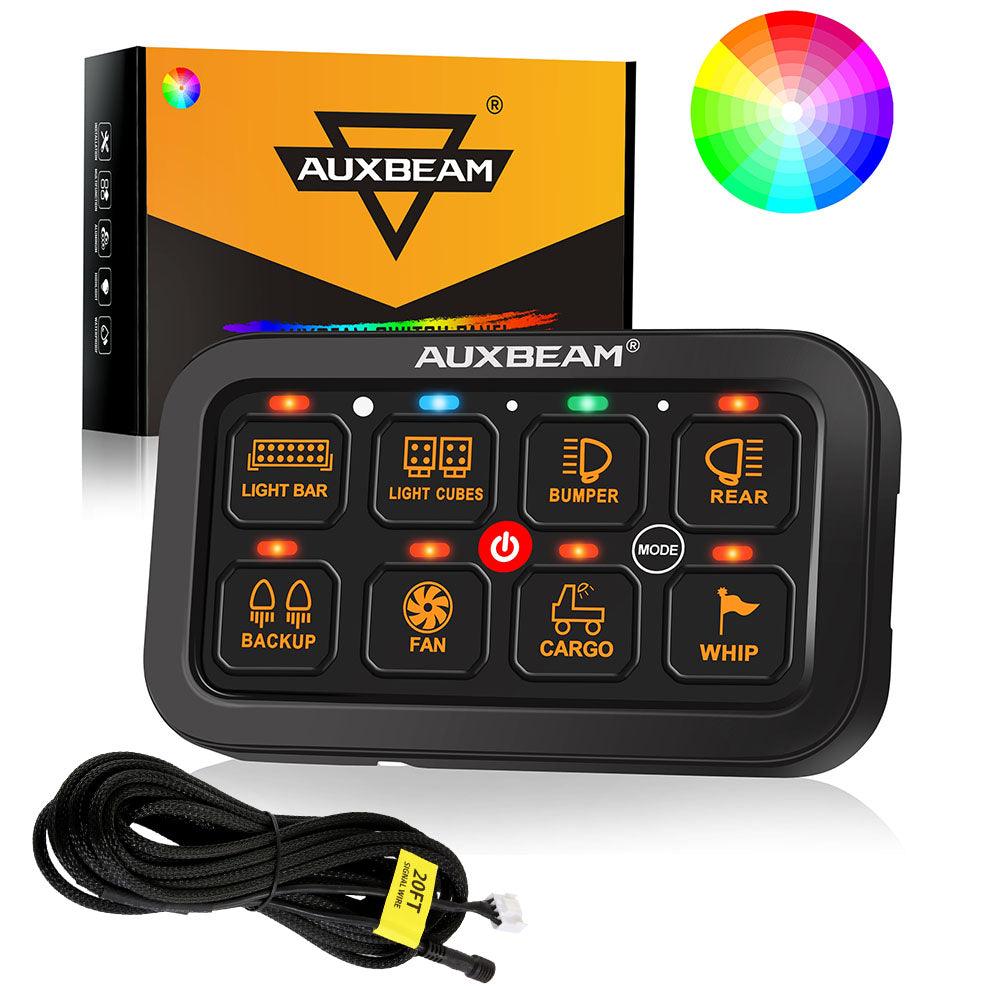

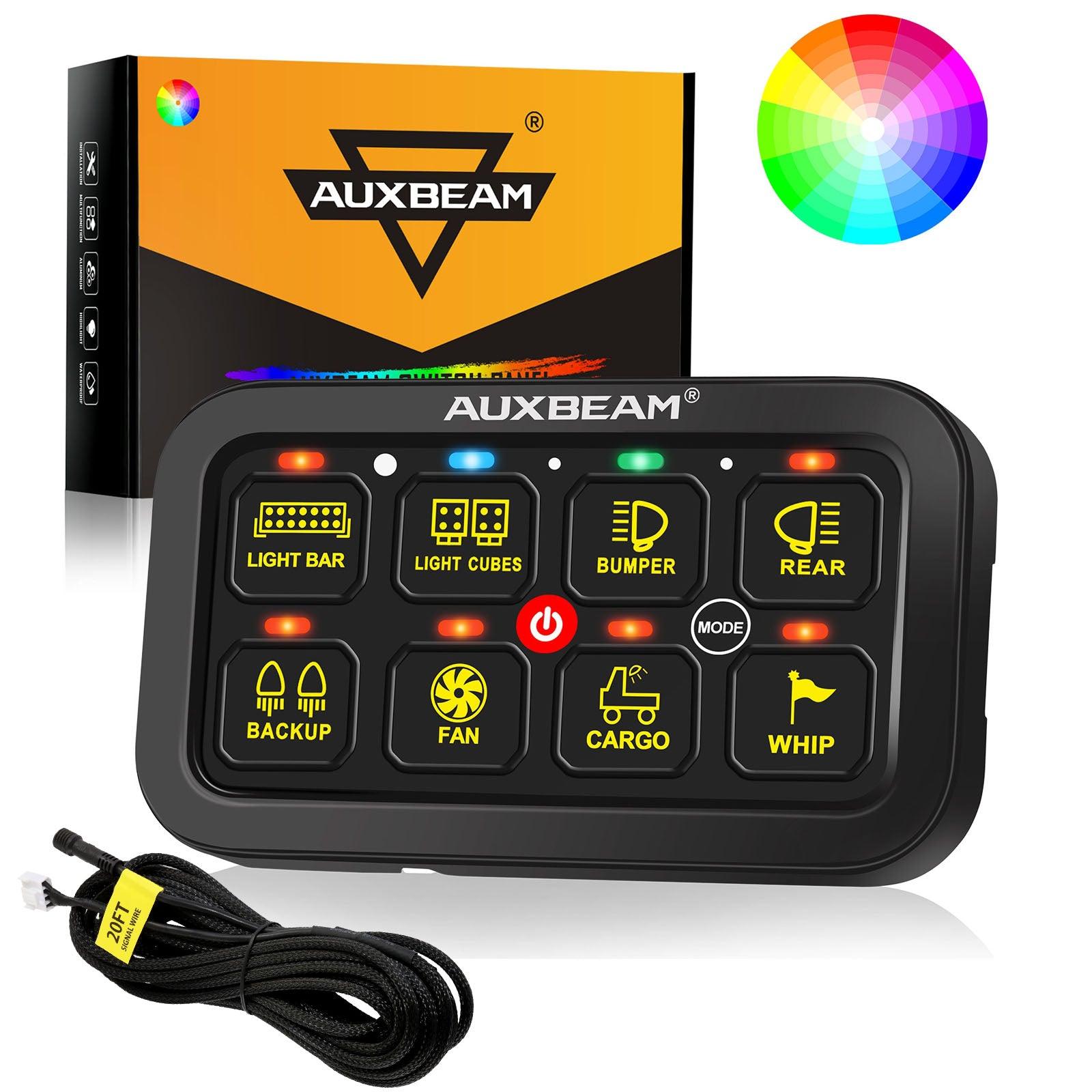

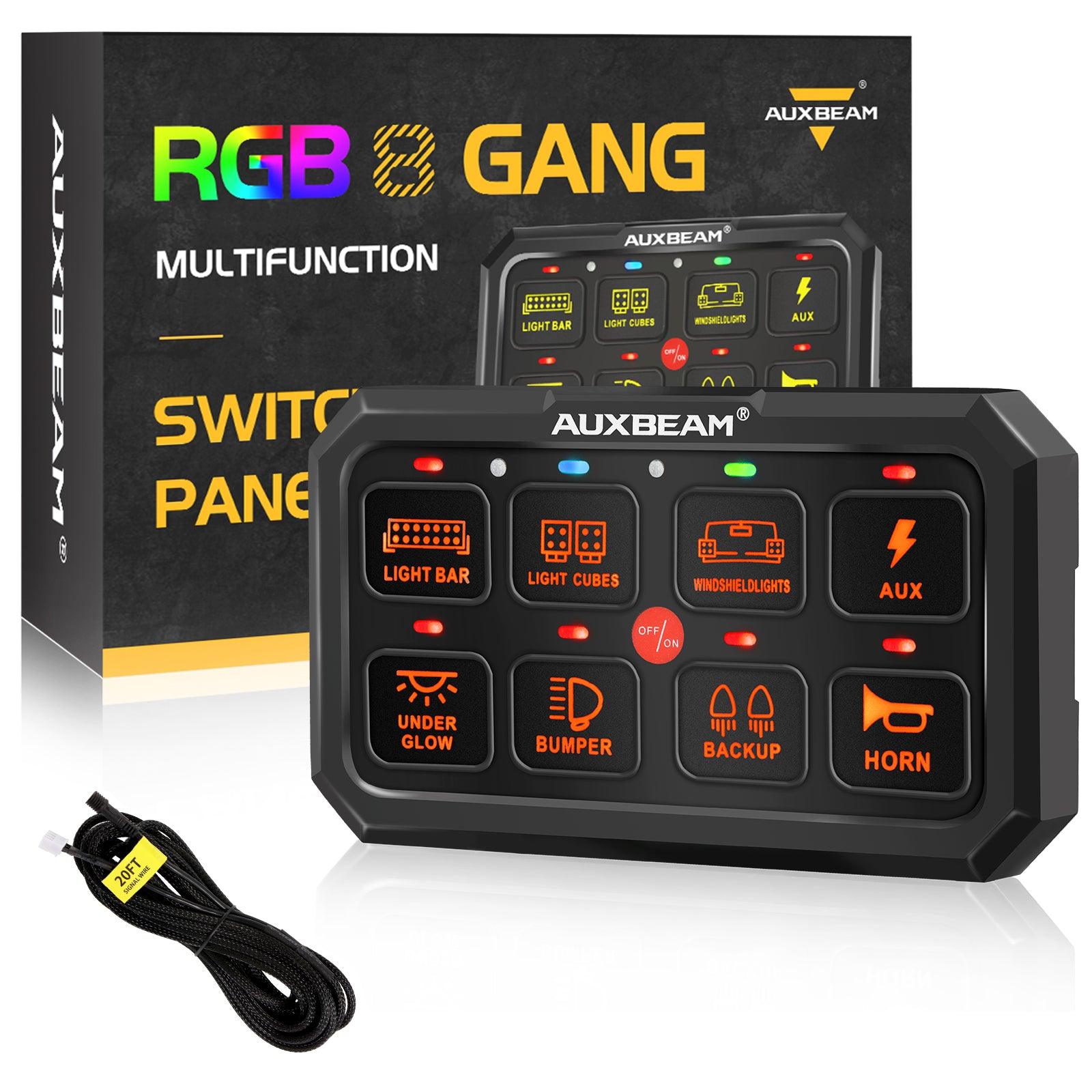

20ft Extension Cable
- Heavy-duty wire to extend your switch panel wiring
- Plug-and-play; no cutting or splicing required
- Compatible with 12–24V systems and CCTV/rearview setups
-

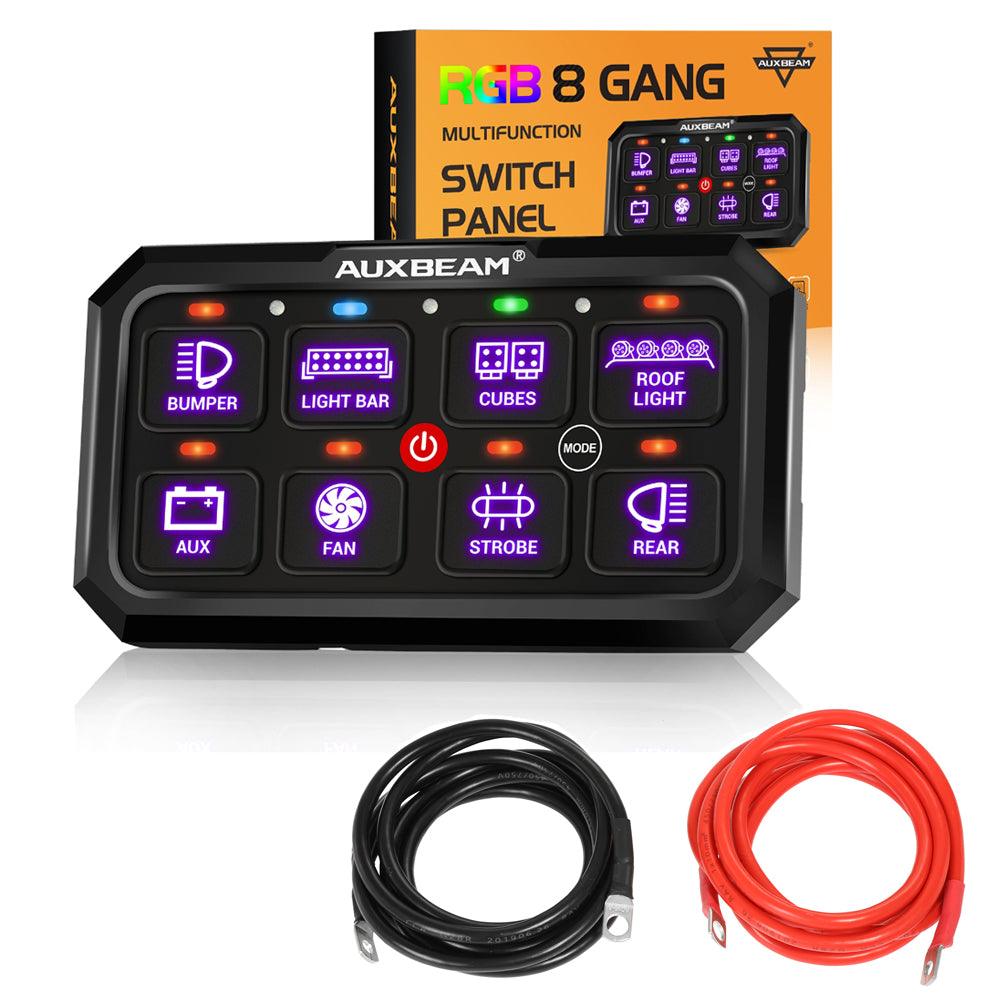

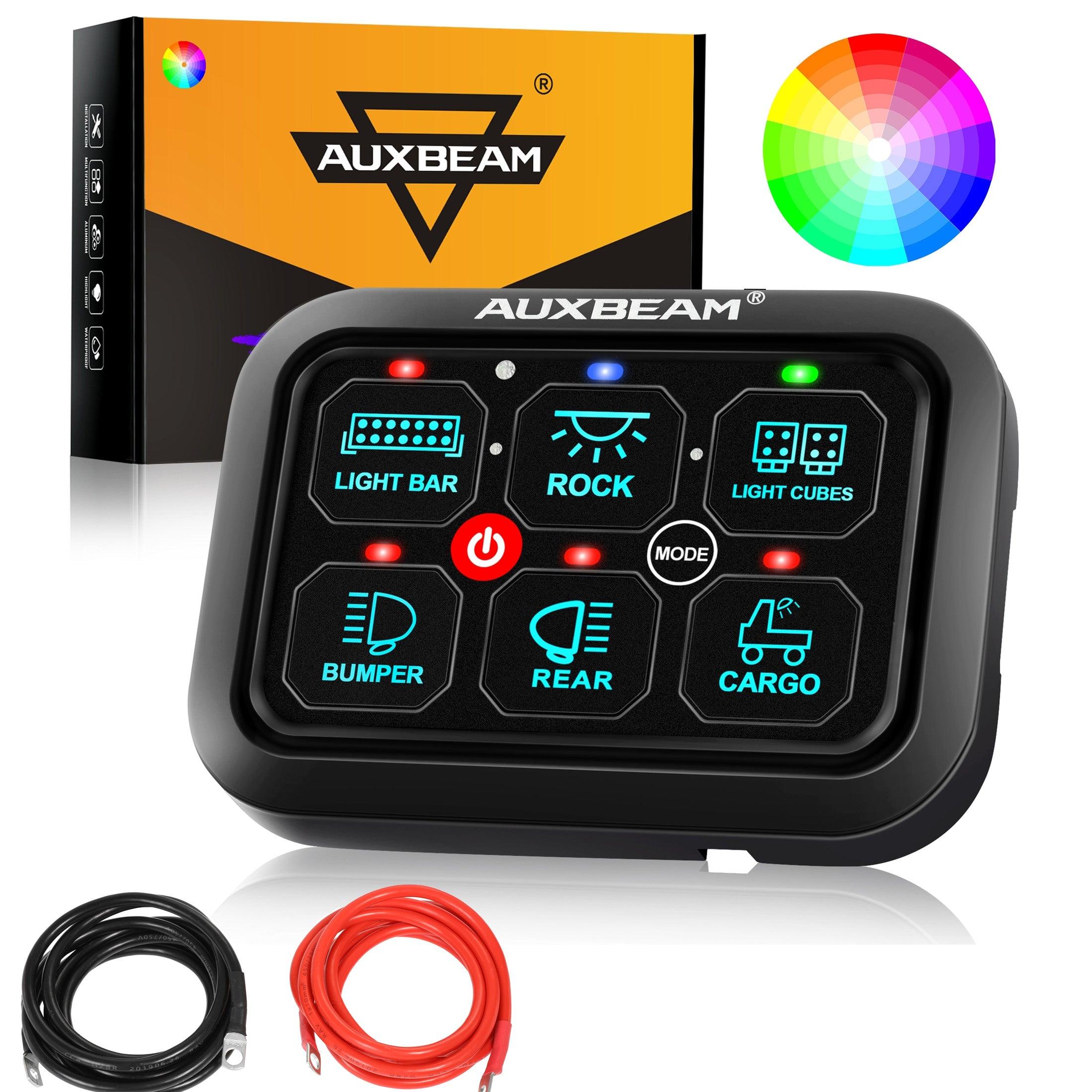

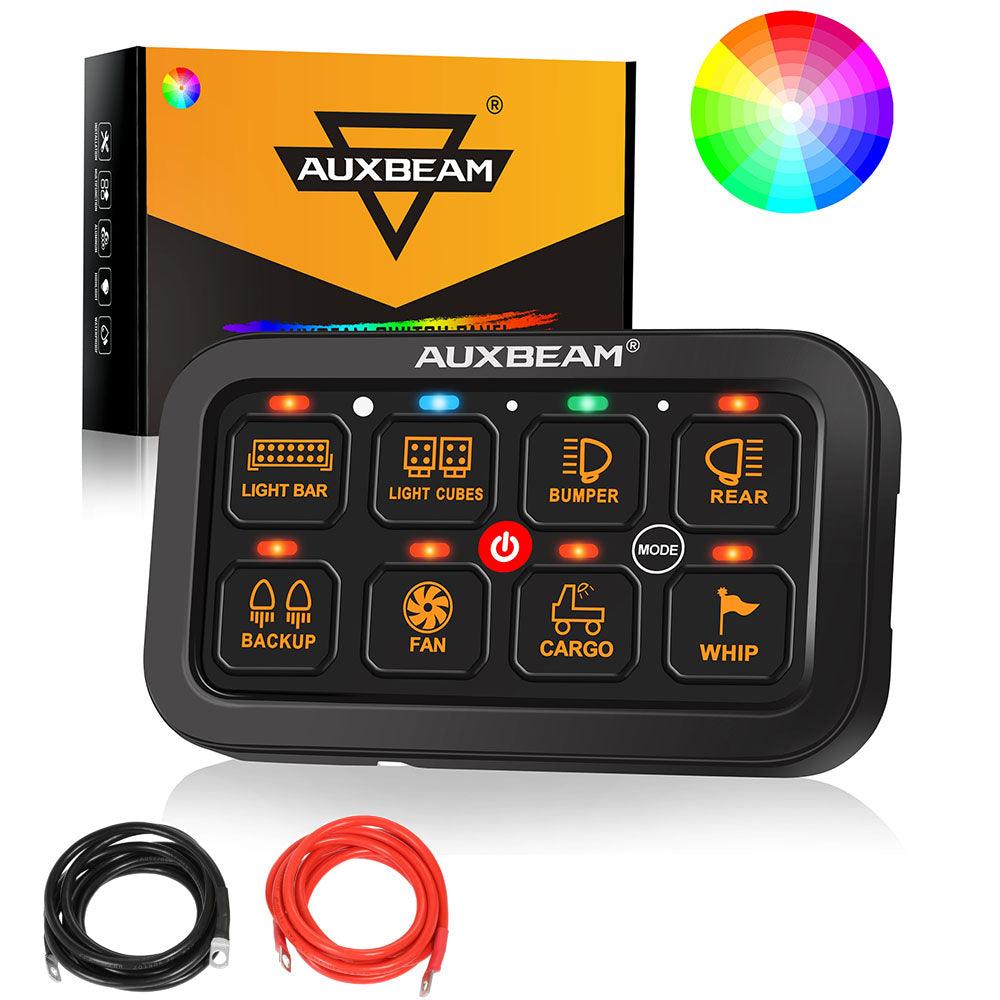

7ft Heavy Gauge Electric Wire
- 7AWG tinned copper with lugs and heat shrink tubing
- Red/Black dual wire for power delivery in harsh environments

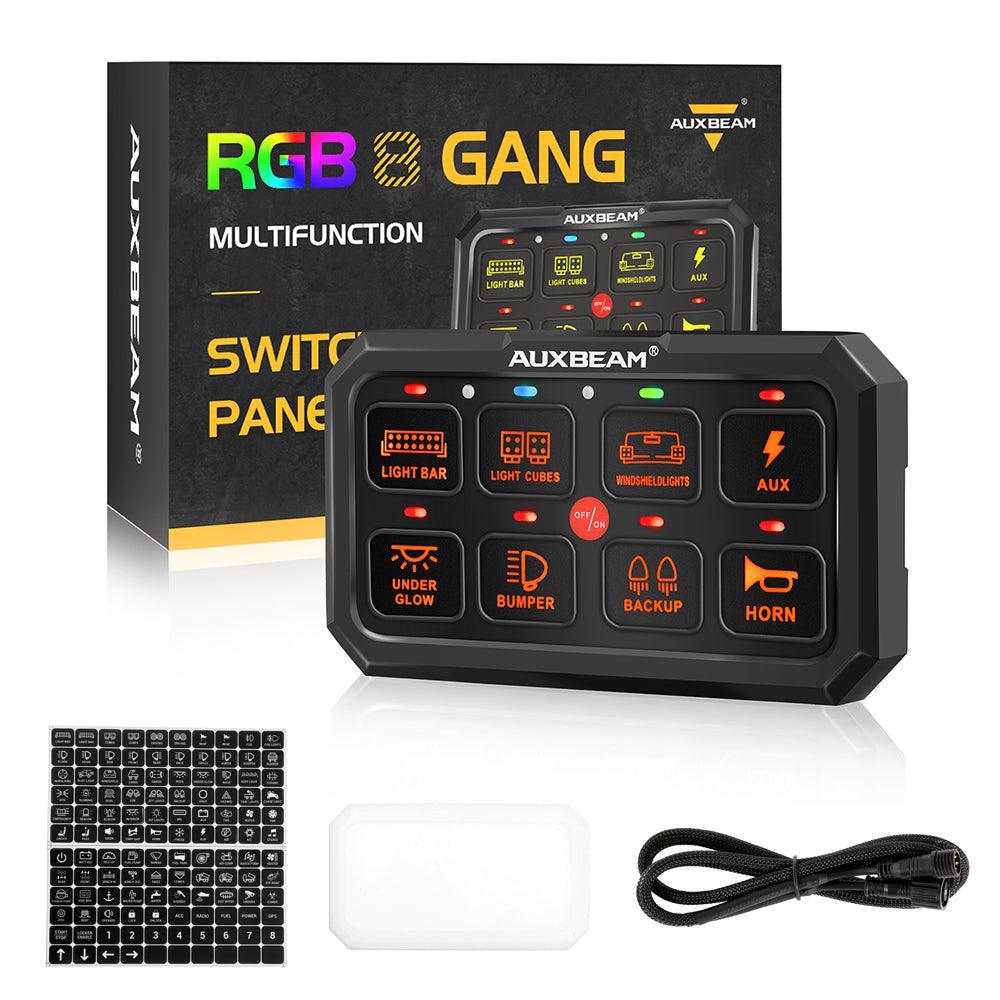

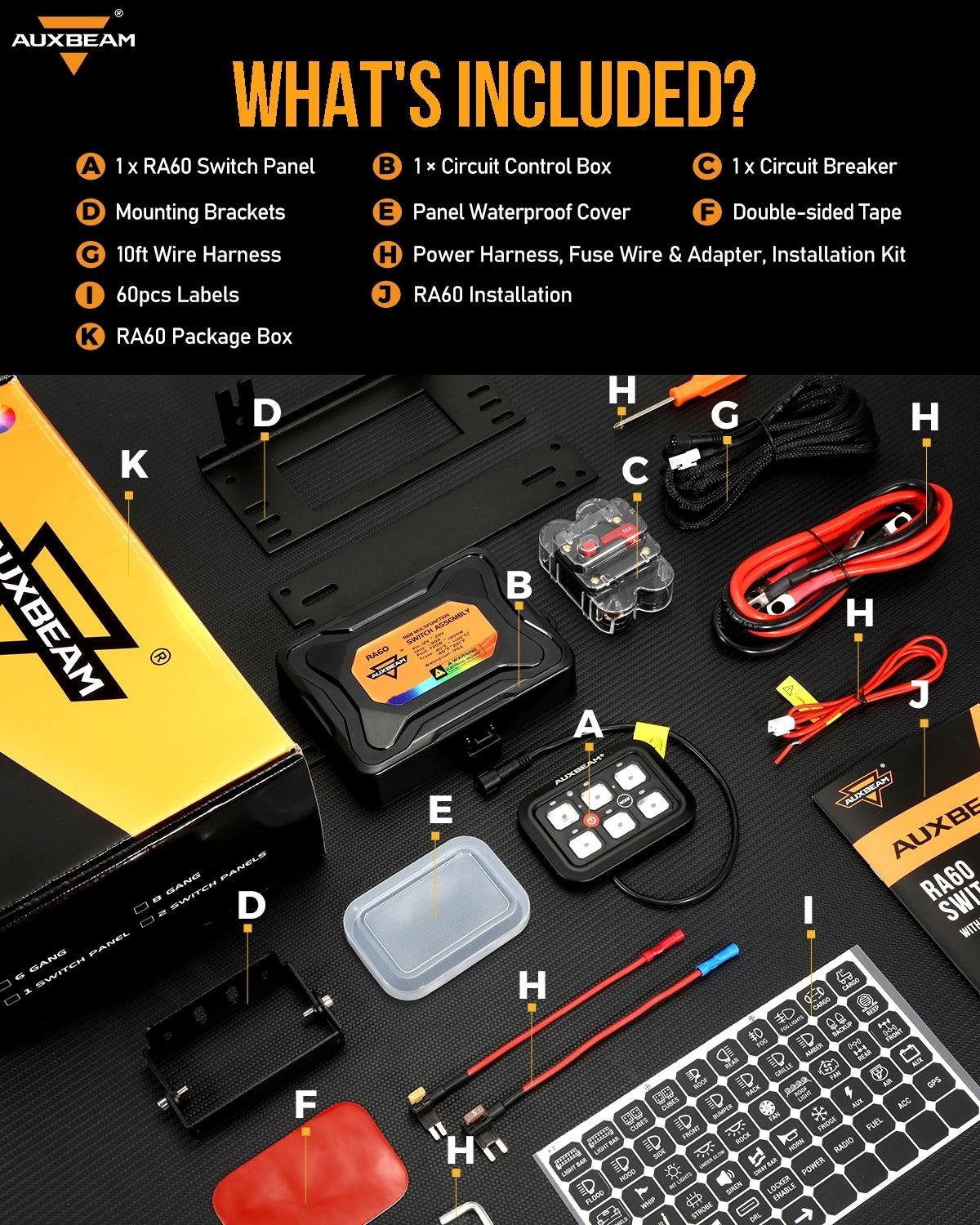

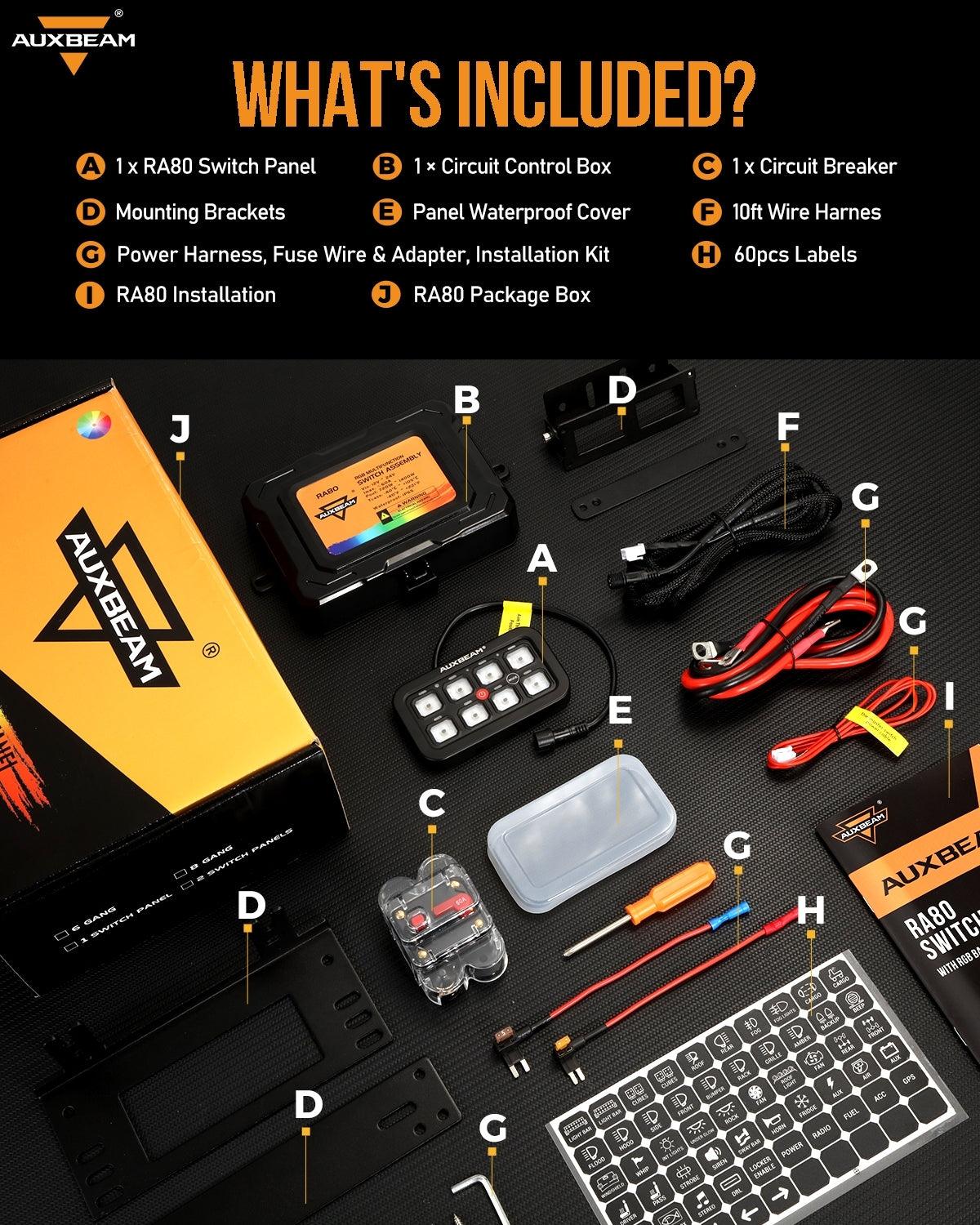

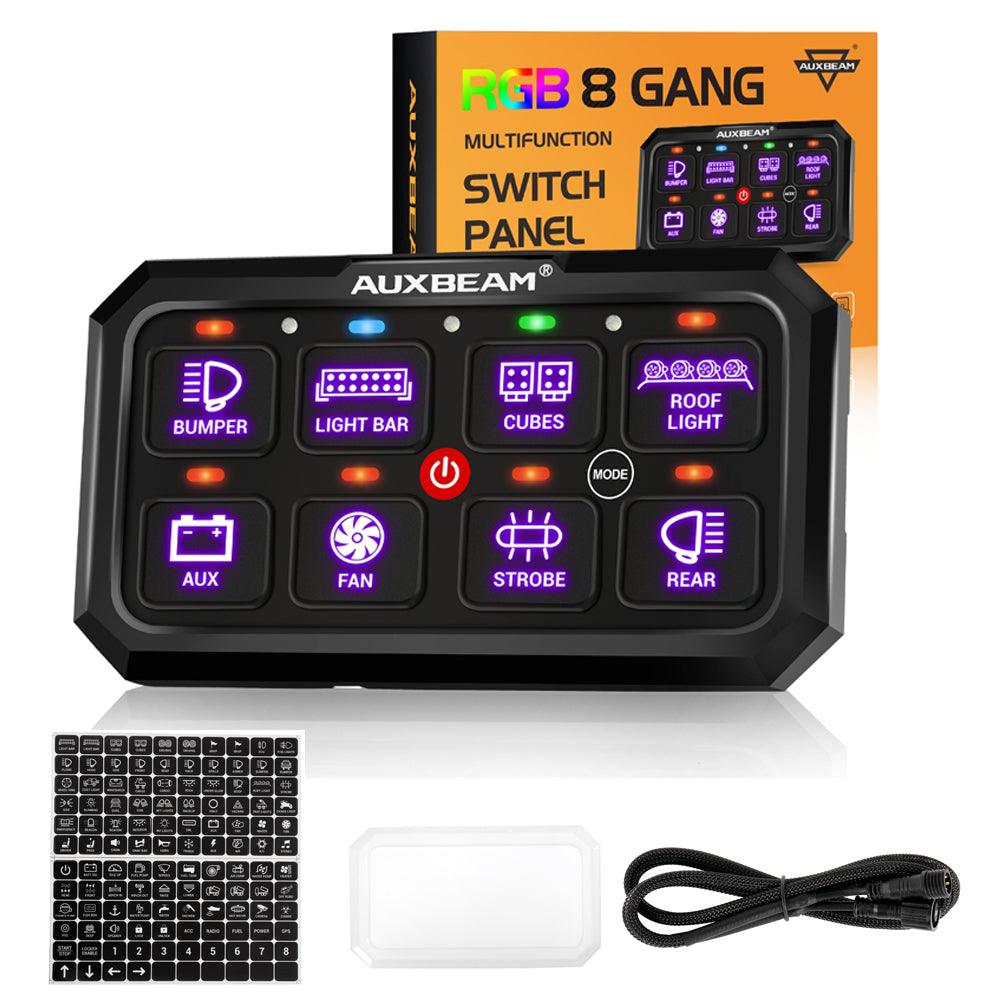

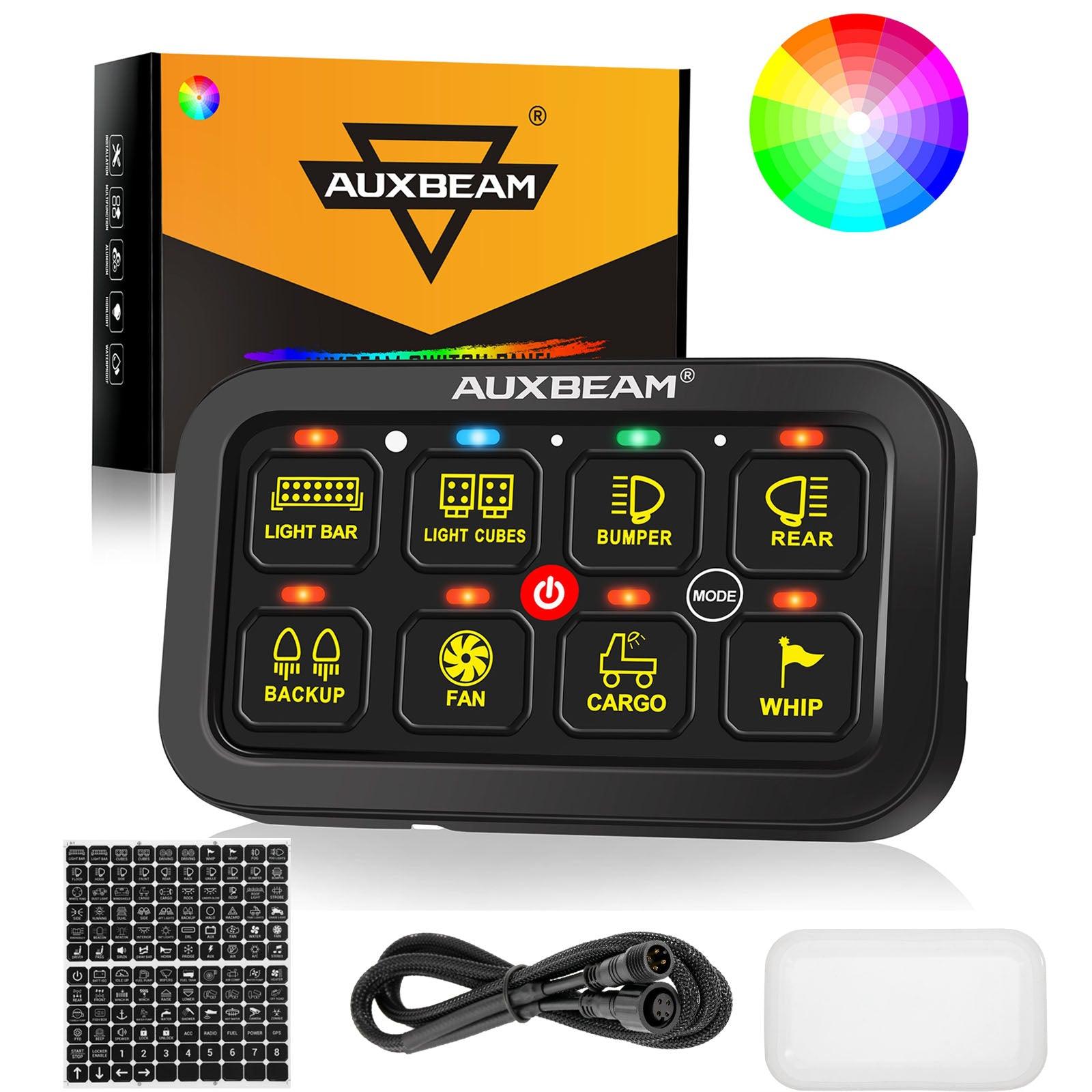

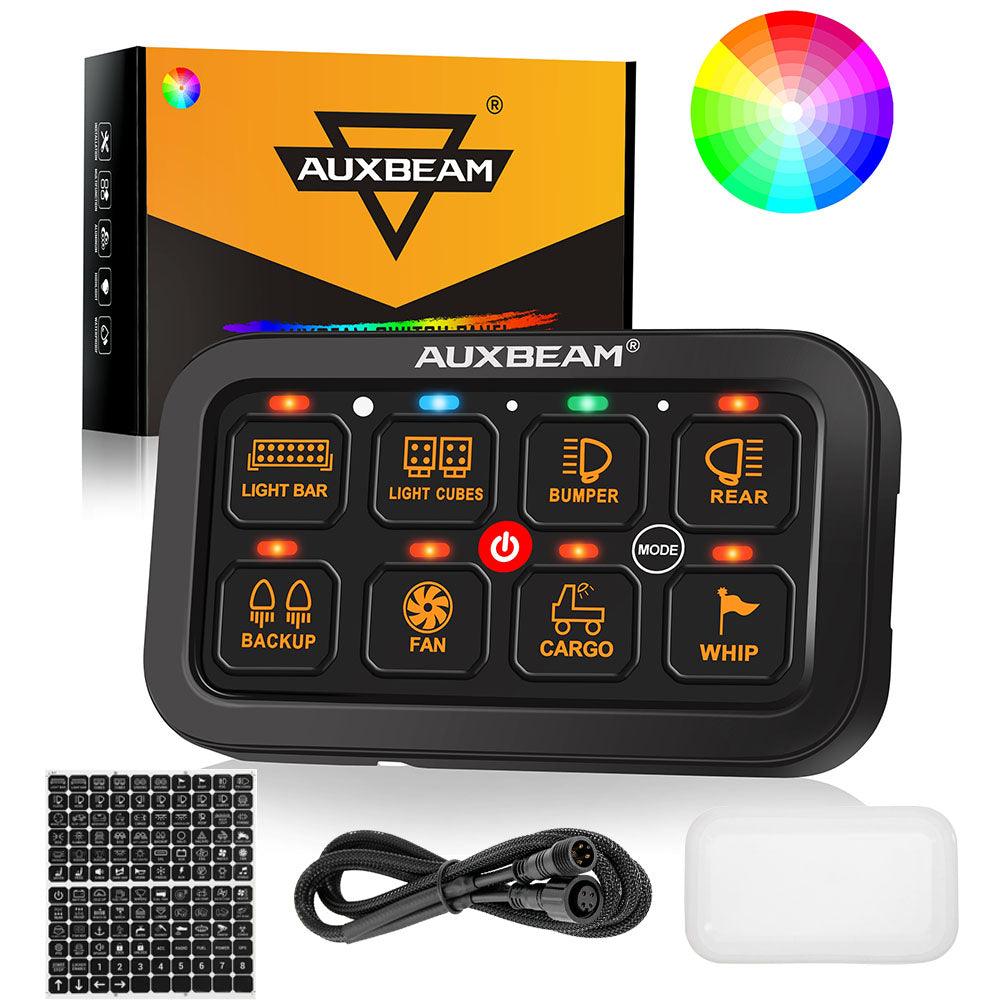

✅ What's in the Box:

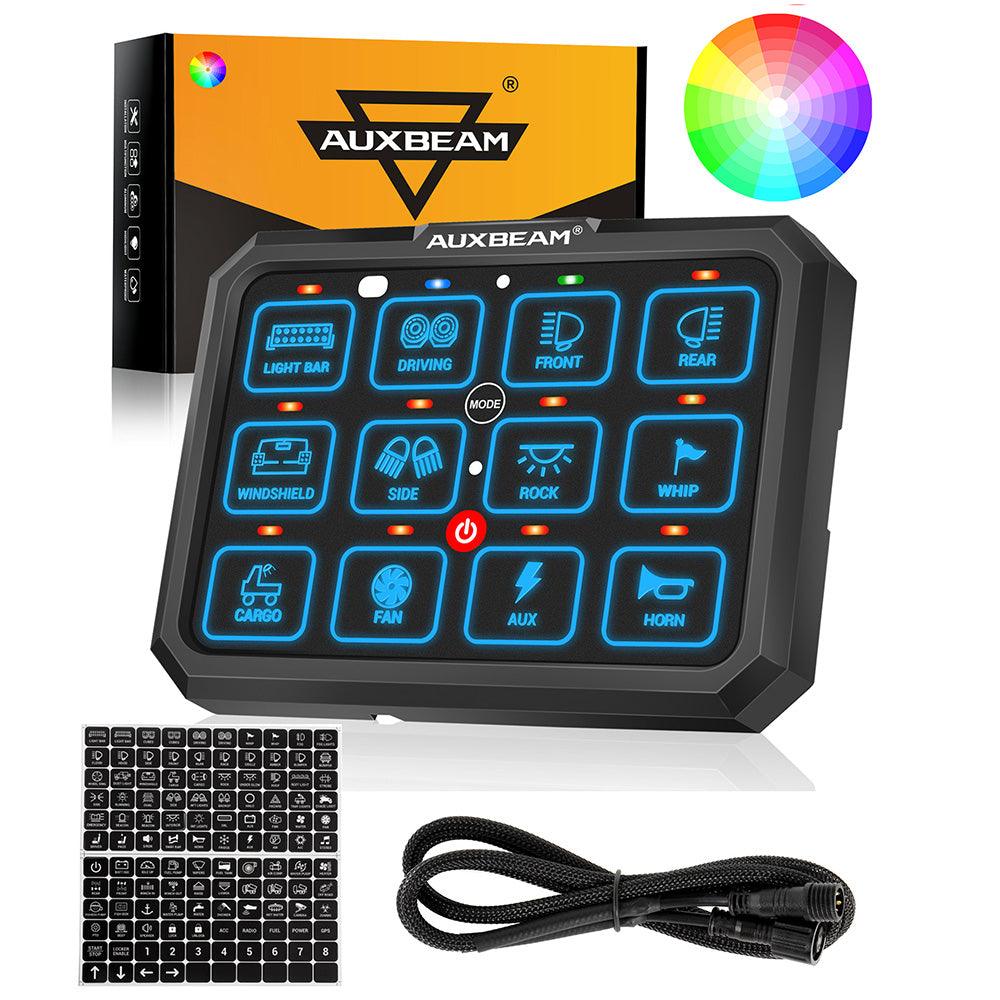

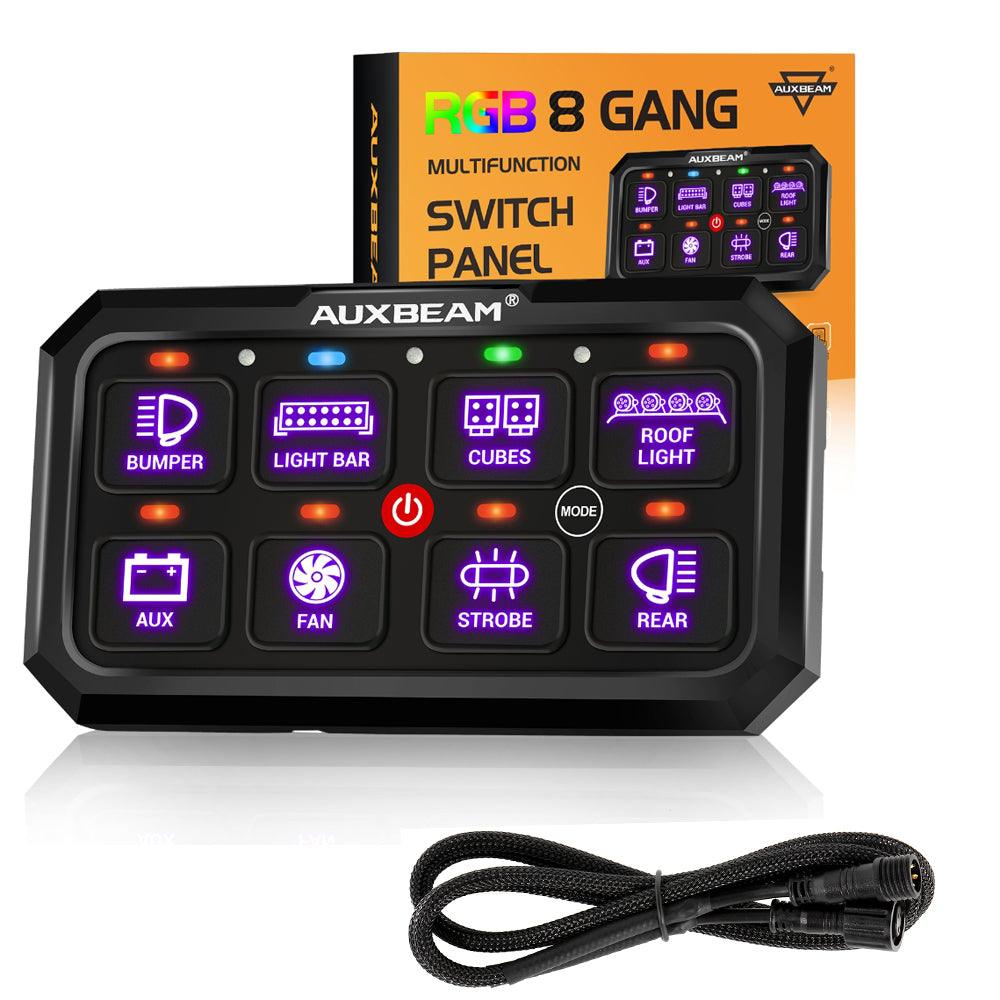

- (1) Switch Panel (Choose 6, 8, or 12 Gang Model)
- (1) Complete Plug & Play Wiring Harness
- (1) Set of Universal Stickers (60+ Labels)
- (1) Waterproof Silicone Cover
- (2) Mounting Brackets + Screws
- (1) User Manual & Installation Guide
- Optional: Extension Cables (3.94ft or 20ft)

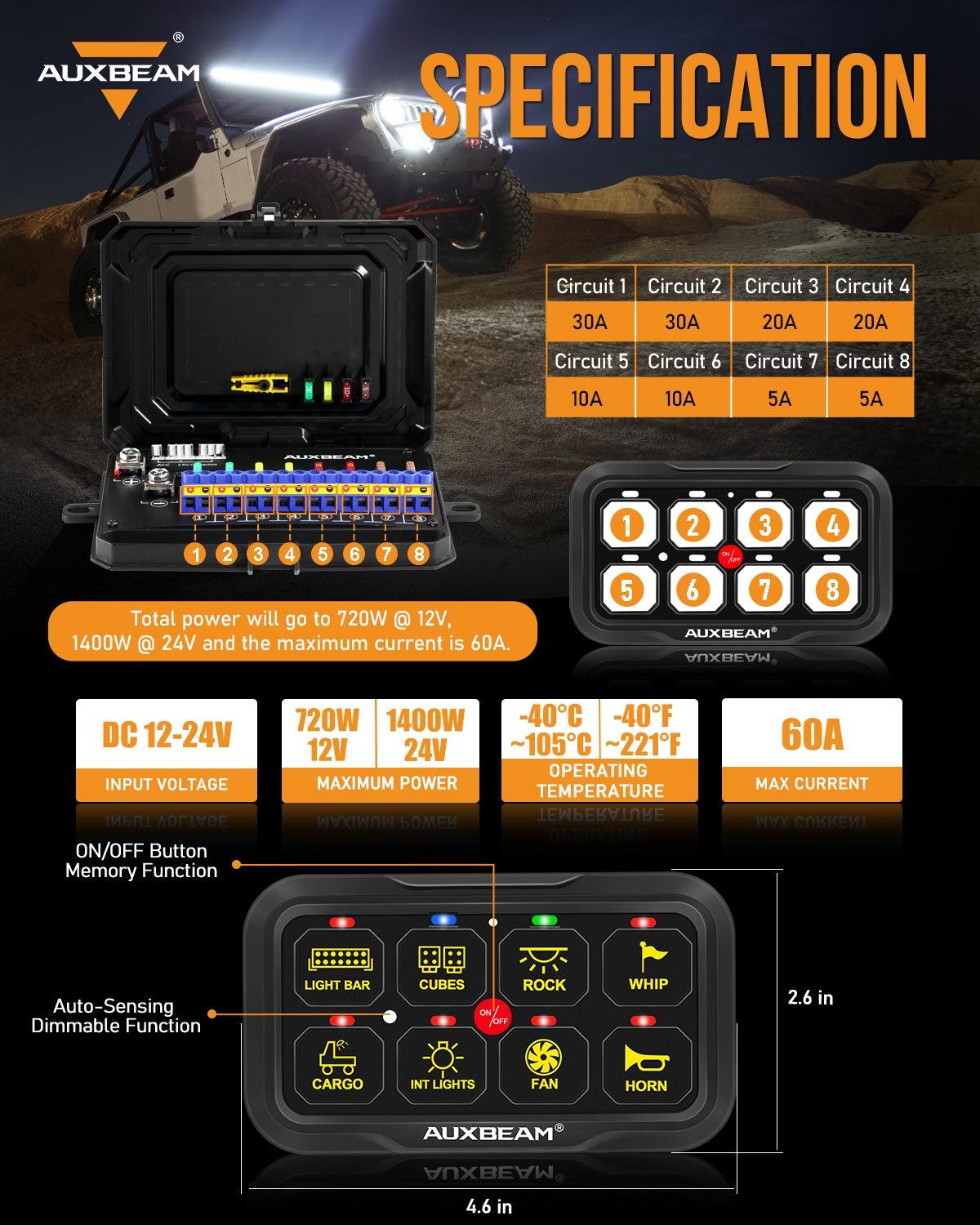

🔌 Compatibility:
- Voltage: 12V – 24V DC
- Max Current: 60A
-

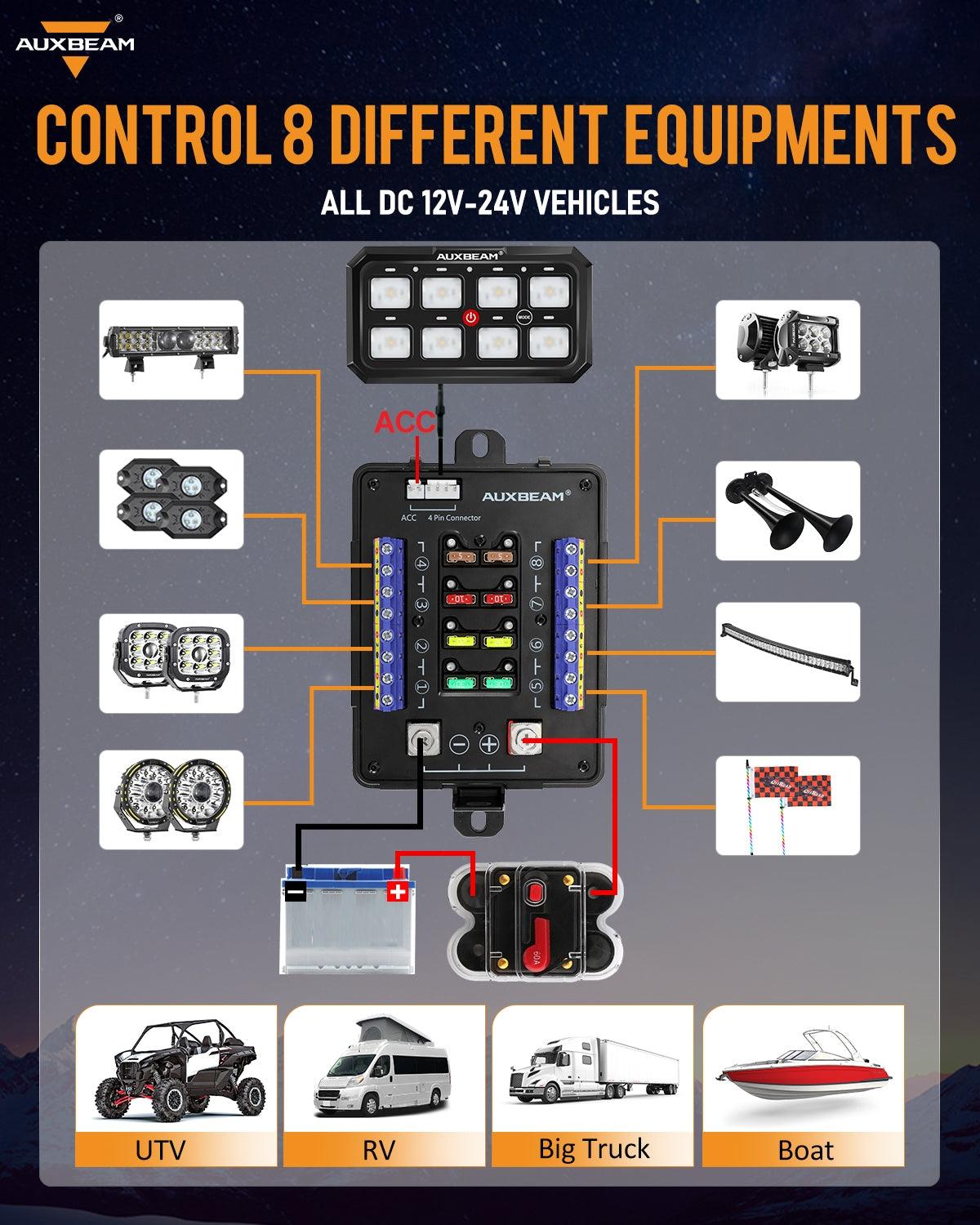

Applications:
Trucks, Jeeps, UTVs, ATVs, Side-by-Sides, Boats, RVs, Emergency Vehicles, Heavy Machinery
About Auxbeam Switch Panel Installation Video
RA60: https://auxbeam.com/RA60VIDEO
RA80: https://auxbeam.com/RA80VIDEO
RB80: https://auxbeam.com/RB80VIDEO
RA80 XL: https://auxbeam.com/RA80-XLVIDEO
RB80 XL: https://auxbeam.com/RB80-XLVIDEO
RA80 X2: https://auxbeam.com/RA80-X2VIDEO
