Metal FX Rampage 6R Beadlock Satin Black Gloss Ring 15" Wheel 6x5.5
Shipping calculated at checkout
In stock

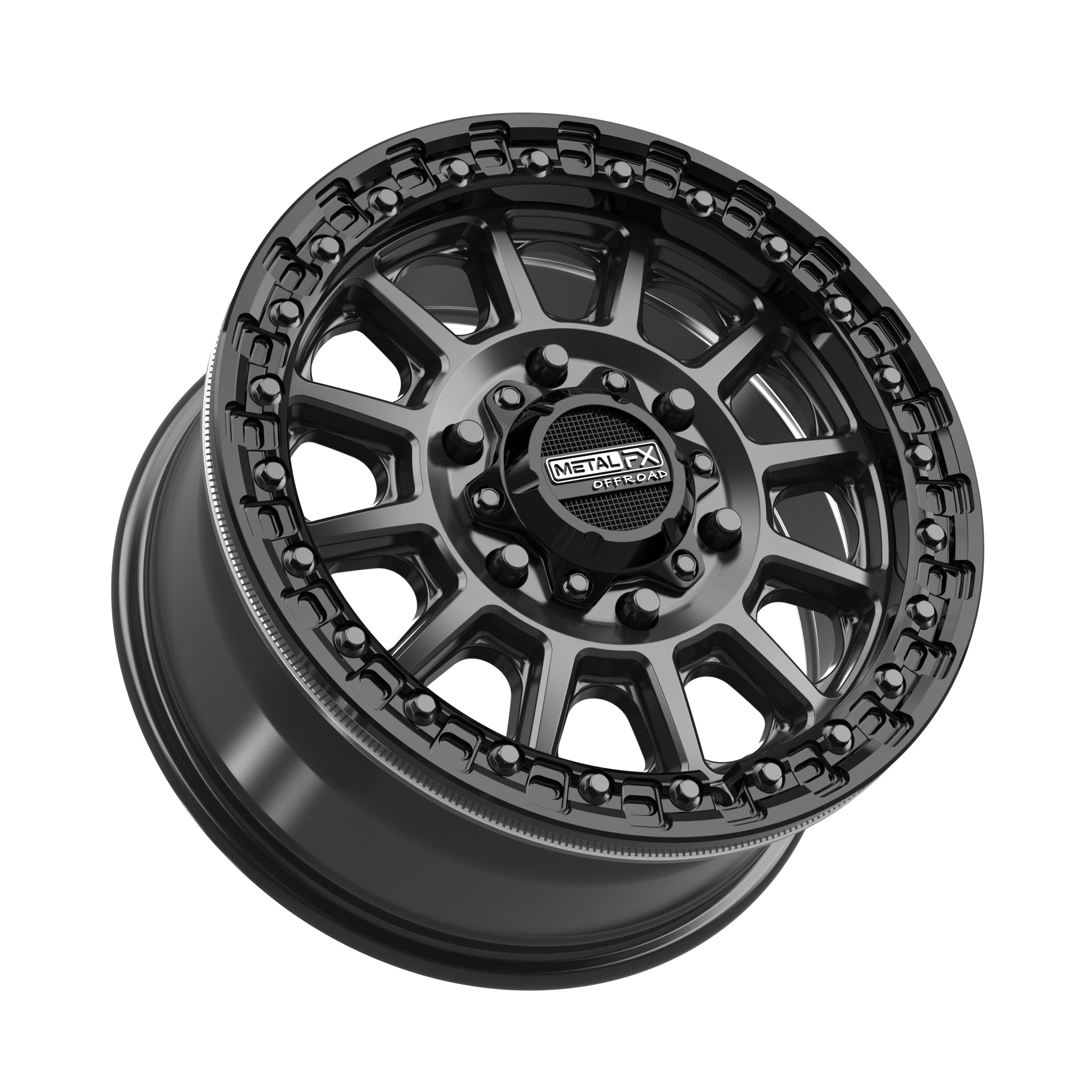

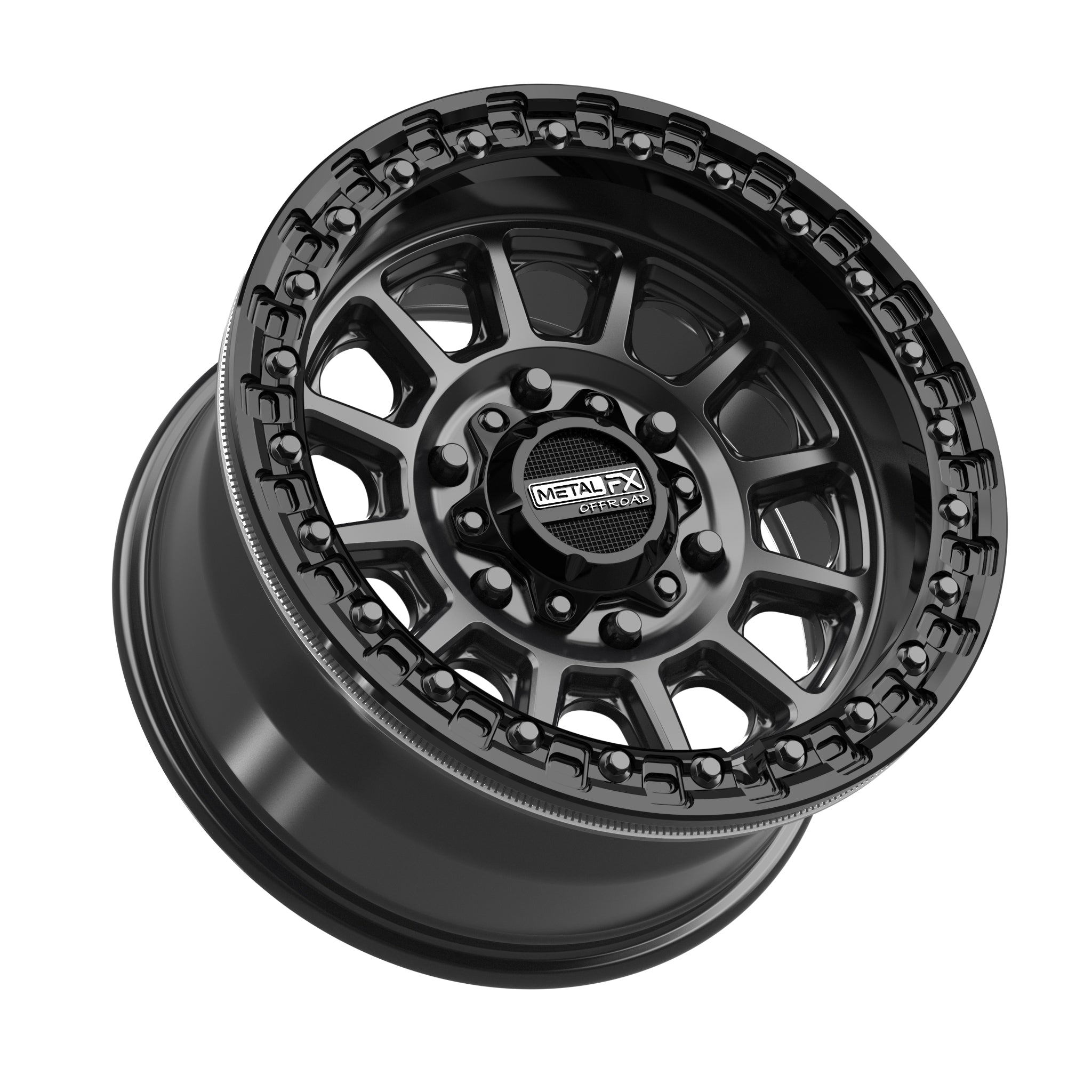

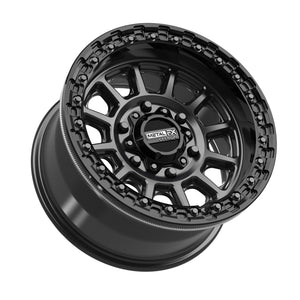

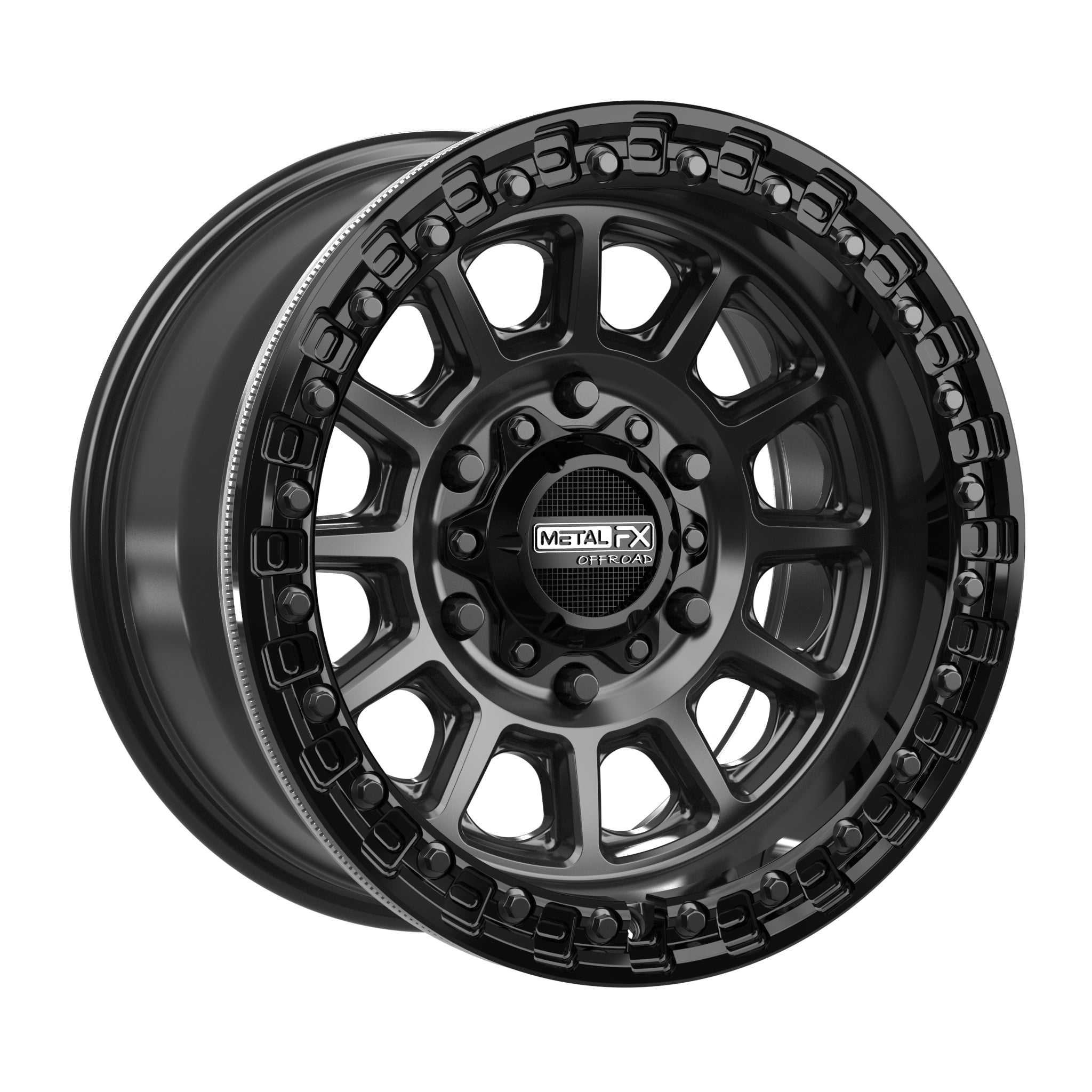

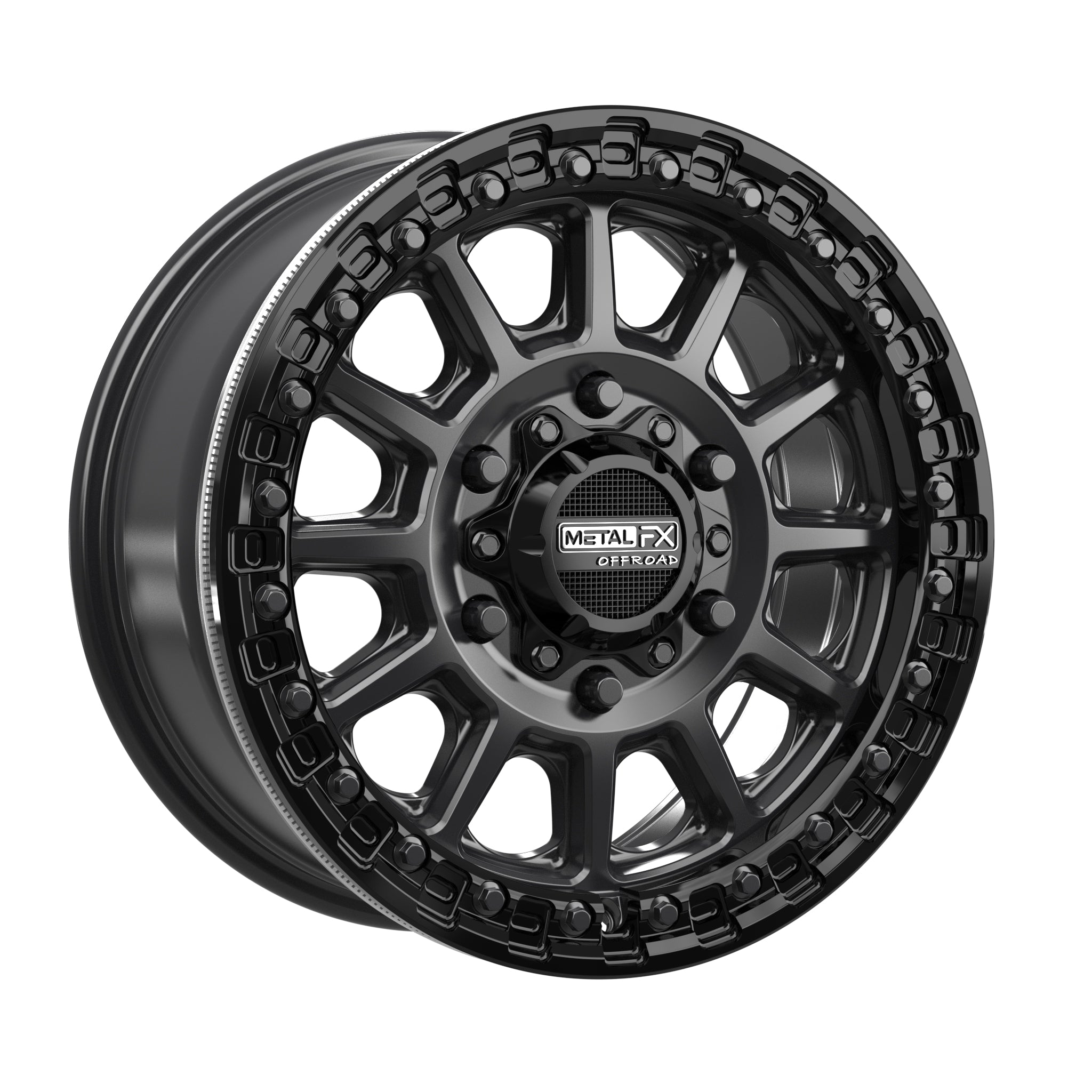

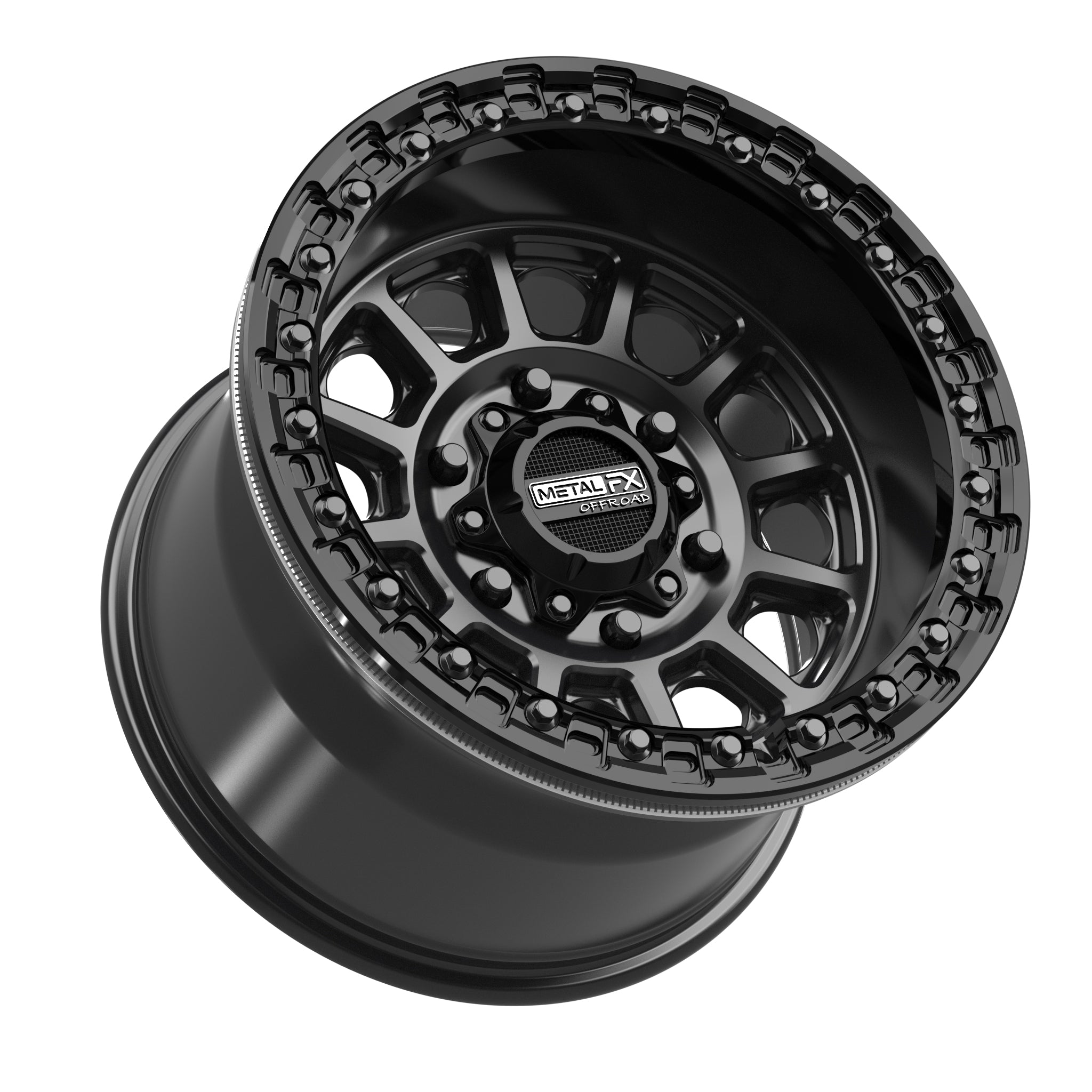

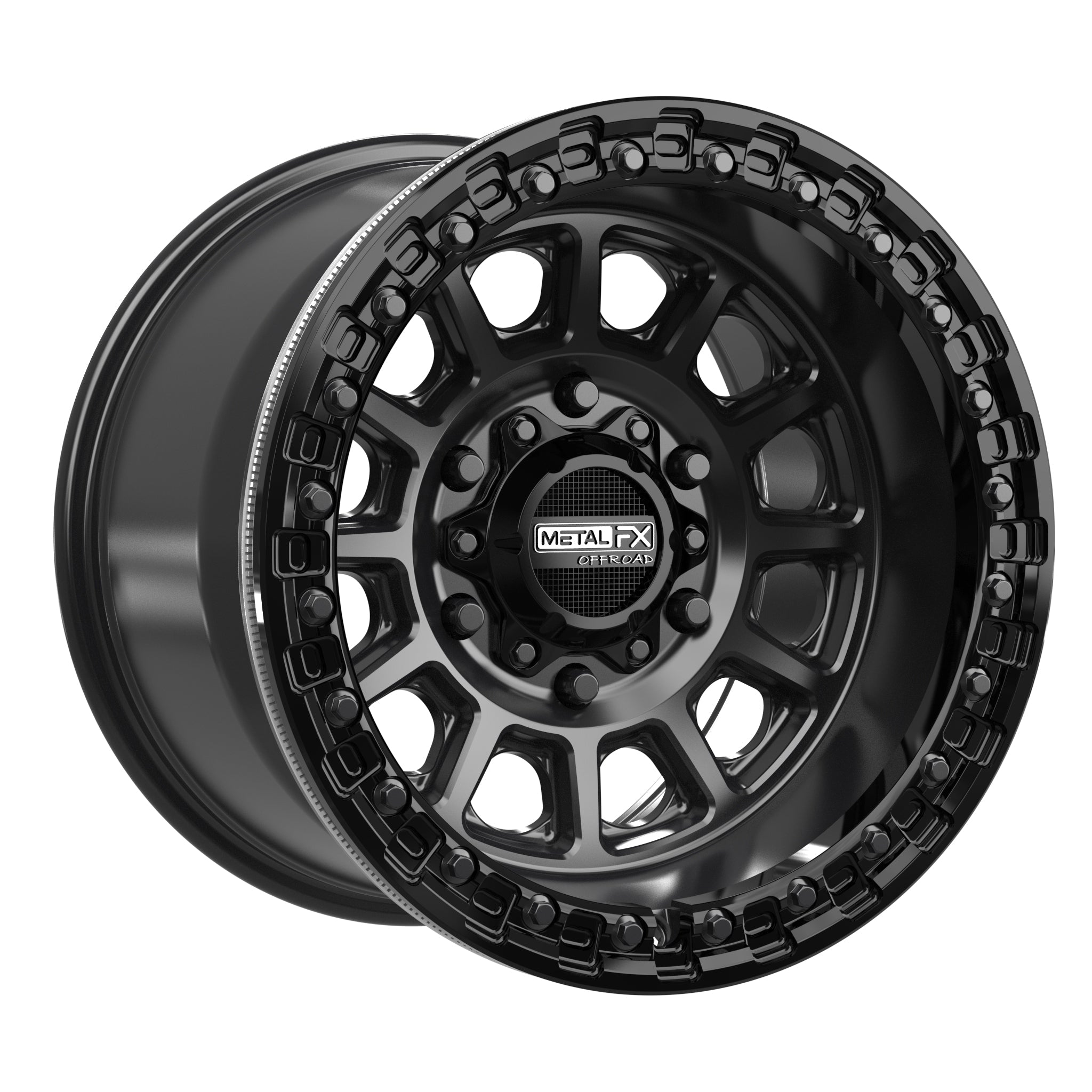

The Metal FX Rampage 6R Beadlock in Satin Black w/ Gloss Black Ring is a true beadlock UTV wheel for the Can-Am Maverick R, built on a 6x139.7 (6x5.5) bolt pattern in 15x7, 15x8 and 15x10. It is finished with a satin black wheel and a gloss black beadlock ring.
Running lower tire pressure for traction means a tire is more likely to unseat. The Rampage 6R uses a functional beadlock ring that clamps the outer bead to the wheel, so you can air down for dunes, desert and rocks with the bead held in place. If you are shopping Maverick R wheels and want true beadlock hardware rather than a simulated ring, this is one of the Metal FX UTV wheels built for that job. Among beadlock wheels UTV owners run on the Maverick R, the Rampage 6R pairs a cast A356-T6 wheel with a forged 6061-T6 ring.
Key Features
- True beadlock: a functional ring mechanically clamps the tire's outer bead
- 6x139.7 (6x5.5) 6-lug bolt pattern
- Sizes: 15x7 (+38mm, 5+2), 15x8 (+0mm, 4+4) and 15x10 (+0mm, 5+5)
- Satin Black w/ Gloss Black Ring finish
- A356-T6 cast aluminum wheel with a 6061-T6 forged aluminum beadlock ring
Built To Solve: Tires Unseating at Low Pressure on the Can-Am Maverick R
- Tires rolling off the bead when aired down for traction
- Stock wheels without beadlock hardware for low-pressure riding
- A 6-lug Maverick R build that needs a wheel matched to its 6x5.5 hub
- Can-Am Maverick beadlock wheels built for other Maverick models that do not match the Maverick R's 6x5.5 hub
- Choosing a width without knowing the offset and backspacing
Best For: Can-Am Maverick R Owners Who Air Down
- Maverick R and Maverick R Max owners shopping UTV beadlock wheels and beadlock UTV wheels for a 6x5.5 hub
- Owners comparing 6x5.5 beadlock wheels and other 6x5.5 beadlocks who need a 15-inch UTV fitment, not a truck wheel
- Riders shopping beadlock wheels UTV owners use for dunes, desert and rocks
- Owners comparing Can-Am Maverick R wheels, 6 lug, for a beadlock build
- Builders choosing between 15x7 UTV beadlock wheels and 15x10 UTV beadlock wheels, or the 15x8 in between, for their tire size
- Polaris RZR Pro R and Turbo R owners should look at the 5-lug Rampage R instead
Specifications
- Finish: Satin Black w/ Gloss Black Ring
- Type: true beadlock
- Sizes: 15x7 (+38mm, 5+2), 15x8 (+0mm, 4+4) and 15x10 (+0mm, 5+5)
- Bolt pattern: 6x139.7 (6x5.5)
- Center bore: 78.1mm
- Construction: A356-T6 cast aluminum wheel with a 6061-T6 forged aluminum beadlock ring
- Lug nuts: acorn-style, sold separately
- Manufacturer Part Numbers: 78814 (15x7), 78830 (15x8), 78846 (15x10)
Fitment
The Rampage 6R uses the 6-lug 6x139.7 (6x5.5) pattern of the Can-Am Maverick R. These Can-Am Maverick R wheels fit:
- Can-Am Maverick R
- Can-Am Maverick R Max
Fitment is not guaranteed on applications not listed here. Confirm overall vehicle width with your chosen tires before ordering.
FAQ
Will the Metal FX Rampage 6R Beadlock fit my Can-Am Maverick R?
Yes. The Rampage 6R uses the Maverick R's 6x139.7 (6x5.5) bolt pattern. The Maverick R Max shares the Maverick R platform. Confirm overall width with your chosen tires before ordering.
What sizes and offsets does the Rampage 6R Beadlock come in?
In Satin Black w/ Gloss Black Ring: 15x7 (+38mm, 5+2), 15x8 (+0mm, 4+4) and 15x10 (+0mm, 5+5). Center bore is 78.1mm.
Is the Rampage 6R a true beadlock?
Yes. It uses a functional beadlock ring that mechanically clamps the tire's outer bead to the wheel, which helps keep the tire seated at lower tire pressures.
What is the Maverick R bolt pattern?
The Maverick R uses a 6-lug 6x139.7 pattern, also written 6x5.5, with a 78.1mm center bore on the Rampage 6R. Other Can-Am Maverick models use a different pattern, so a 4-lug Maverick wheel will not fit.
Should I run the 15x7, 15x8 or 15x10?
The 15x7 sits at +38mm (5+2), which tucks the wheel in the most; the 15x8 and 15x10 sit at +0mm and widen the stance, with the 15x10 the widest. Check overall width against your tires and how you plan to use the machine.
What do I need to install the Rampage 6R Beadlock?
The Rampage 6R takes acorn-style lug nuts, sold separately. On the Maverick R, the Valor Offroad 12x1.5 6-lug kit fits. Metal FX also states that the mud scrapers must be removed before installing these wheels to avoid damage.
Why Metal FX
Metal FX wheels are built around specific bolt patterns, and Metal FX UTV wheels come in a 4-lug line, an R line for Polaris's 5-lug platforms and a 6R line for the Can-Am Maverick R. The Rampage 6R Beadlock is a cast A356-T6 aluminum wheel with a forged 6061-T6 beadlock ring. It also comes in Gloss Black Contrast Cut, Gloss Silver Machined and Smoked Bronze w/ Gloss Black Ring. Satin Black w/ Gloss Black Ring pairs a low-sheen wheel with a glossy ring for a subtle two-tone look.
Complete Your Can-Am Maverick R Wheel Setup
Pick your width, then match a tire size and check overall width before you order the Rampage 6R Beadlock Satin Black w/ Gloss Black Ring. Add an acorn-style lug kit, such as the Valor Offroad 12x1.5 6-lug kit for the Maverick R, and plan to remove the mud scrapers at install.
