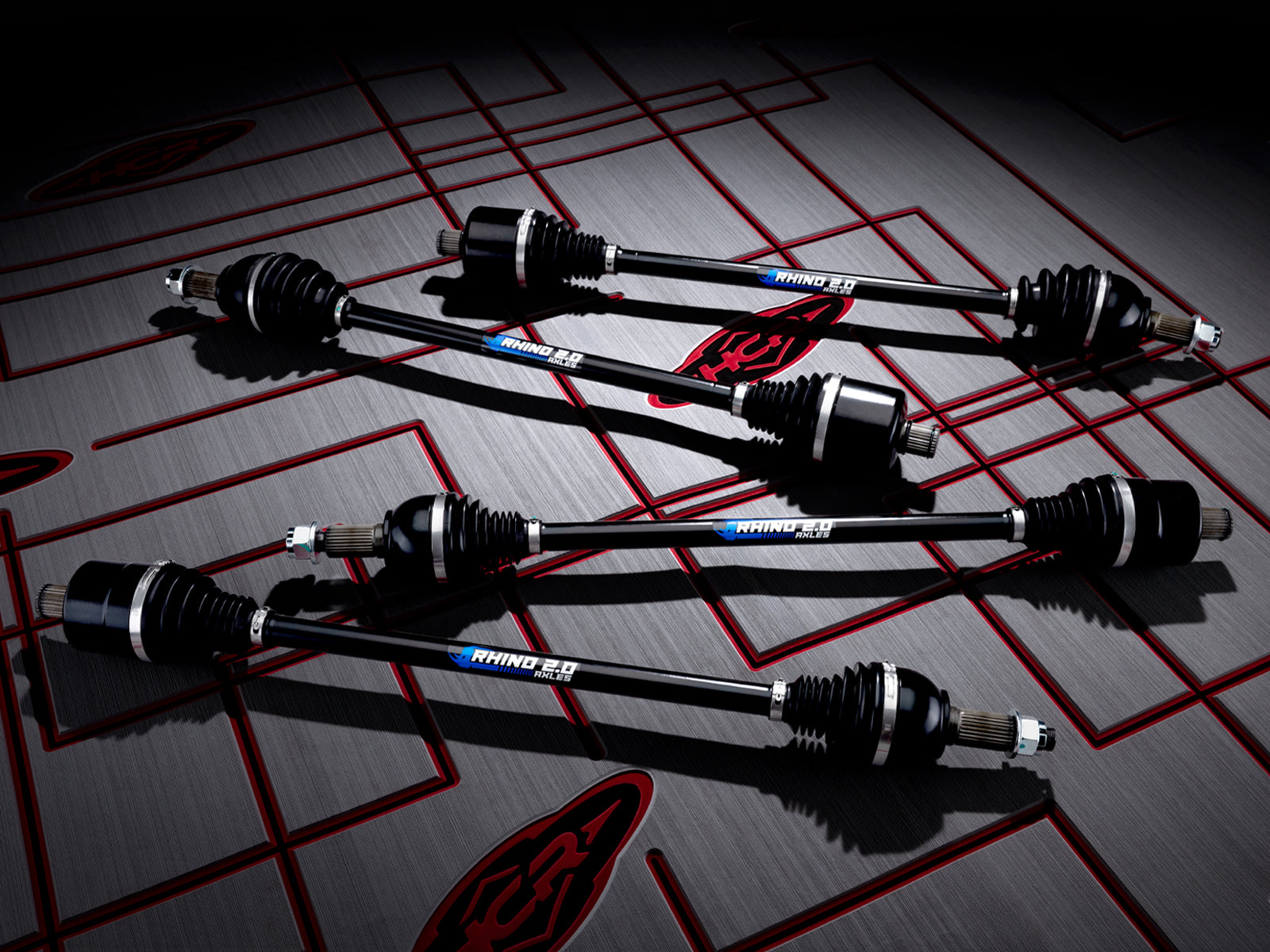

These SuperATV Rhino 2.0 mid-travel axles are the replacement axles for the HCR Racing Mid-Travel Kit for the Polaris Xpedition. HCR states they are made for this kit and compatible with it only, so they are not a substitute for stock axles on an unmodified Xpedition. Rhino 2.0 axles are built to the kit's lengths from end-to-end 4340 chromoly steel, with oversized CV joints made to run at extreme angles.
If an axle breaks on your HCR-equipped Xpedition, this is the direct replacement for the XPD-05400 kit. Choose Front or Rear. Each axle is sold individually.
Key Features
- End-to-end 4340 chromoly steel construction
- Larger-diameter shaft and oversized CV joints for high articulation angles and lower heat
- Lengths matched to the HCR XPD-05400 mid-travel kit
- Fits XP, XP 5, ADV and ADV 5 models
- Lab- and field-tested by SuperATV
- 18-month warranty
Built To Solve: Broken Axles on the HCR Mid-Travel Kit for the Polaris Xpedition
- Broken axles on an Xpedition running HCR's mid-travel suspension
- Axles that do not match the geometry of the HCR mid-travel kit
- CV joints running hot or wearing fast at full droop and full compression
- Trail-side breakdowns from axles that are not built for long suspension travel
Best For: Xpedition Owners Running HCR Mid-Travel Suspension
- Xpedition owners who already run the HCR XPD-05400 kit
- Riders replacing a broken or worn kit axle with a matched part
- Hard-use desert, dune, trail and work riders who see big suspension travel
- Not for a stock-suspension Xpedition: choose the stock-length Rhino 2.0 axles for the Xpedition instead
Specifications
- Brand: SuperATV (sold through HCR Racing)
- Product line: Rhino 2.0
- Material: 4340 chromoly steel, end to end
- Front axle face-to-face length: 31.02 in extended, 29.06 in compressed
- Rear axle face-to-face length: 31.30 in extended, 29.29 in compressed
- Includes: (1) Rhino 2.0 axle per order
- Warranty: 18 months
- Required kit: HCR Racing XPD-05400
Fitment
- Polaris Xpedition ADV and ADV 5: NorthStar, Premium, Ultimate (2024+)
- Polaris Xpedition XP and XP 5: NorthStar, Premium, Ultimate (2024+)
Requires the HCR Racing XPD-05400 mid-travel kit. Fitment is not guaranteed on applications not listed above, so confirm your model, year and kit before ordering.
FAQ
Why do I need special axles for the HCR mid-travel kit on my Xpedition?
The HCR kit changes the Xpedition's suspension geometry and travel, so the axles have to match the kit. HCR specifies these Rhino 2.0 axles, built to the kit's lengths, for that setup.
What makes Rhino 2.0 axles stronger?
They use end-to-end 4340 chromoly steel, a larger-diameter shaft and oversized CV joints made to work at extreme angles and run cooler.
Do these fit both the Xpedition XP and ADV?
Yes. HCR lists the 2024+ Xpedition XP, XP 5, ADV and ADV 5 in NorthStar, Premium and Ultimate trims, with the HCR XPD-05400 mid-travel kit installed.
Do these fit a machine without the HCR kit?
No. HCR states these axles are compatible with its XPD-05400 kit only. A stock-suspension Xpedition needs standard-length axles.
Are the axles sold individually?
Yes. Each order is one Rhino 2.0 axle. Choose Front or Rear.
How do these compare to stock axles?
Stock axles are made for stock suspension. These Rhino 2.0 axles are built to the HCR kit's lengths, use chromoly steel throughout and carry an 18-month warranty.
Why SuperATV
SuperATV designs and tests Rhino 2.0 axles in house, in the lab and on the trail, and HCR Racing specifies them for its suspension kits. Every Rhino 2.0 axle is backed by an 18-month warranty.
Finish Your HCR Mid-Travel Xpedition Build
Order the front axle, the rear axle or both to match the corners you are servicing, and confirm your Xpedition is running the HCR XPD-05400 kit before you buy. While the suspension is apart, check the HCR kit's ball joints, tie rods and bushings so a worn part does not load your new Rhino 2.0 axles.
