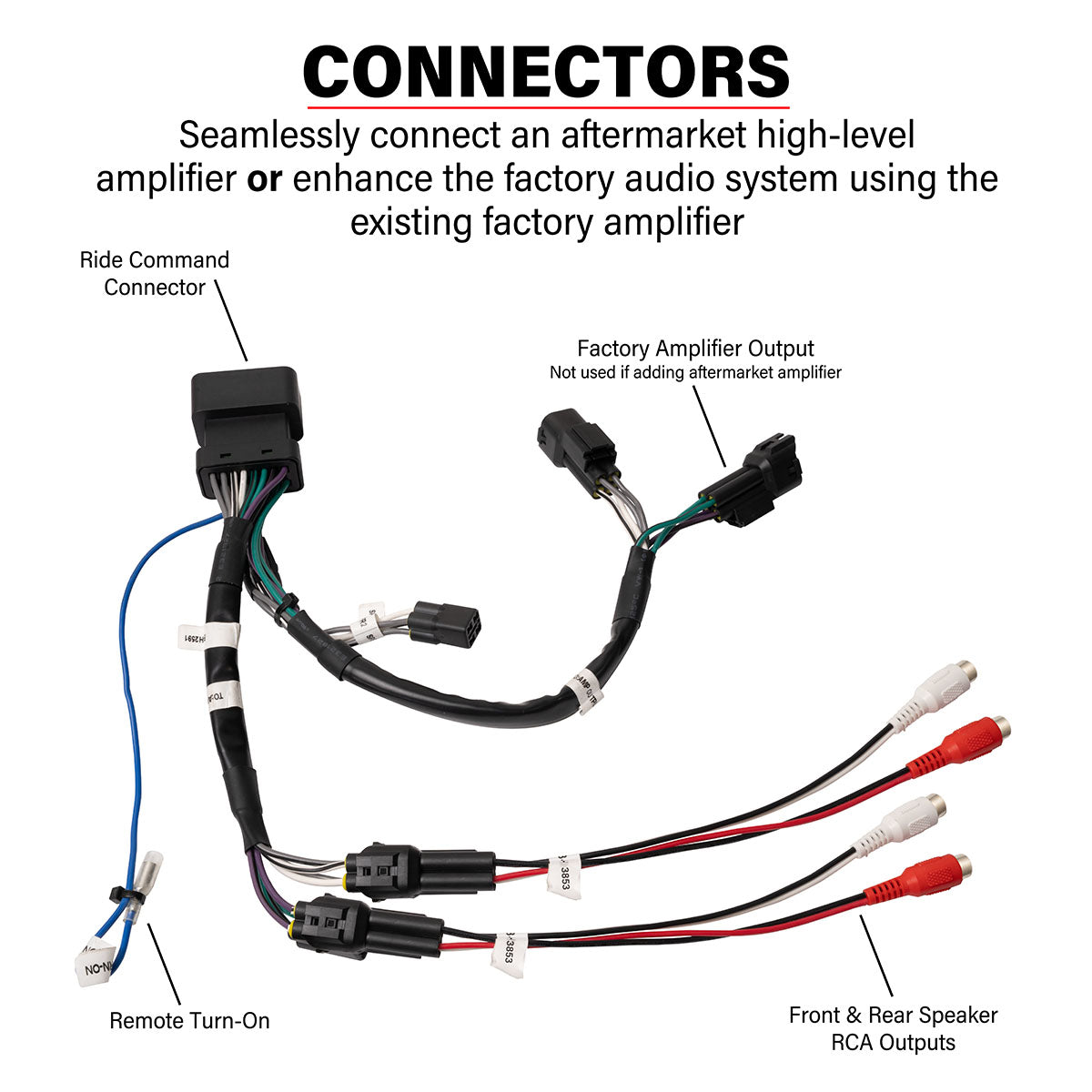

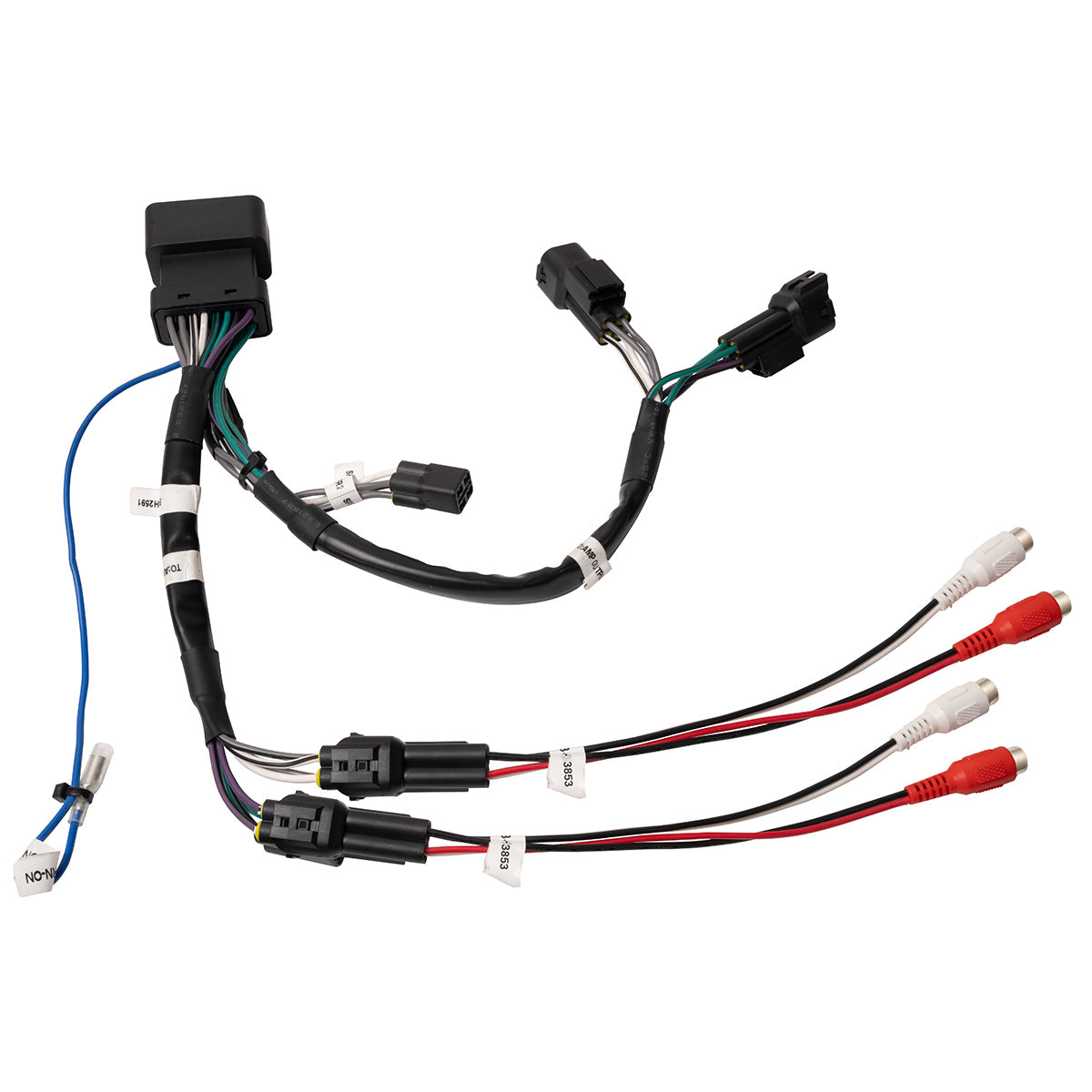

The SSV Works Ride Command RCA output harness lets 2020-2026 Polaris RZR Pro, Pro XP, Pro S and Turbo R owners add an aftermarket amplifier to factory Ride Command audio. It uses a watertight 17-pin connector and an "Amp Input" pigtail with a high-level RCA output. It is the harness only: the amplifier, speakers and speaker wiring are sold separately.
For machines that already have factory audio wiring run, an "Amp Output" pass-through pigtail lets the factory wiring plug into the harness so it can be reused for the new amplifier and speakers. Steering wheel audio controls stay functional if equipped.
This is the starting point for a Ride Command stereo or Ride Command audio build when you want more power than factory sound: a Ride Command speaker upgrade, a Polaris Ride Command stereo upgrade, or a full RZR Pro XP audio and RZR Pro XP stereo build. This SSV Works RCA harness works as a Ride Command RCA harness and RZR Pro amp harness, so think of it as the Ride Command amp connection for your RZR Ride Command system.
Key Features
- Watertight 17-pin connector harness for factory Ride Command
- "Amp Input" pigtail provides a high-level RCA output to an aftermarket amplifier
- "Amp Output" pass-through pigtail lets existing factory audio wiring be reused (optional)
- Retains steering wheel audio controls, if equipped
- Use with front and rear speaker amplifiers; subwoofer installs use the separate B-H3457 low-level harness
Built To Solve: Adding An Amplifier To RZR Pro Ride Command Audio
- Factory Ride Command audio that runs out of volume and clarity at speed
- No clean way to get a signal from Ride Command to an aftermarket amplifier
- Re-running speaker wire when factory audio wiring is already in the machine
Best For: RZR Pro, Pro XP, Pro S And Turbo R Owners Expanding Ride Command Sound
- Owners adding an aftermarket amplifier and speakers to factory Ride Command
- Builders starting a custom system from scratch on a Ride Command machine
- Machines with factory audio already wired that want to reuse that wiring
Specifications
- Type: Ride Command front and rear speaker RCA output harness
- Connector: watertight 17-pin
- Output: high-level RCA via the "Amp Input" pigtail
- Pass-through: "Amp Output" pigtail (use optional)
- Steering wheel audio controls: retained, if equipped
- Manufacturer Part Number: 250-HRZ56-RCA4
What's Included
- Ride Command front and rear speaker RCA output harness with 17-pin connector, "Amp Input" pigtail and "Amp Output" pass-through pigtail
SSV Works does not publish an itemized box list for this harness; the product is the harness assembly described above.
Not included: amplifier, speakers, speaker wire, RCA patch cables and the B-H3457 subwoofer harness. Requires factory Ride Command. This harness does not make sound on its own; an amplifier is required.
Fitment
SSV Works lists 2020-2026 Polaris RZR Pro, Pro XP, Pro S and Turbo R models equipped with factory Ride Command. SSV Works lists the "RZR Pro" rather than naming the Pro R separately; Pro R owners should contact us to confirm before ordering.
Not for machines without factory Ride Command. Fitment is not guaranteed on unlisted applications.
FAQ
Is the RCA output line-level or high-level?
High-level. SSV Works says the "Amp Input" pigtail provides a high-level RCA output for adding an aftermarket amplifier. For a dedicated subwoofer amplifier, SSV Works points to its separate B-H3457 low-level RCA output harness instead.
Does this harness include an amplifier or speakers?
No. It is the harness only. You supply the amplifier, speakers and speaker wiring; it is the connection between factory Ride Command and your amplifier.
Which RZR models does it fit?
SSV Works lists 2020-2026 Polaris RZR Pro, Pro XP, Pro S and Turbo R models equipped with factory Ride Command. Machines without Ride Command are not covered.
What does the Amp Output pass-through pigtail do?
On machines that already have factory audio wiring run, the factory wiring plugs into the harness so you can reuse it for your new amplifier and speakers instead of running new wire. SSV Works notes that using the Amp Output pigtail is not required.

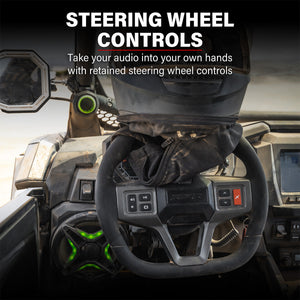

Will I keep my steering wheel audio controls?
Yes. SSV Works says the harness keeps steering wheel audio controls working, if your machine is equipped with them.
Speaker harness or subwoofer harness: which do I need?
Use this front and rear speaker harness to feed an amplifier that powers speakers. For a subwoofer install, SSV Works recommends its low-level RCA output harness to connect a dedicated sub amp.
Why SSV Works
SSV Works has built purpose-made UTV audio since 2006, engineering weatherproof speakers, enclosures, dash kits and complete systems for the dust, water and vibration of off-road riding rather than adapting car or marine gear.
Pair This Ride Command Harness With The Right Amplifier
This harness is the signal connection, not a sound system. Confirm your RZR has factory Ride Command, choose an amplifier with RCA inputs and the speakers it will power, and add the separate low-level harness if you are also installing a subwoofer amplifier. Order from Dunes 2 Dezert SXS.
