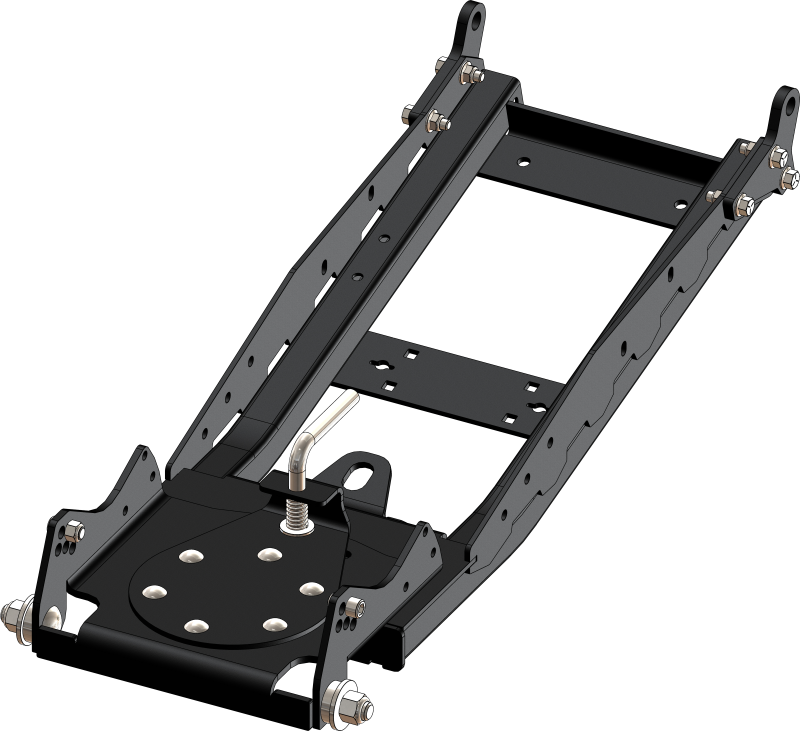

The KFI Pro 2.0 UTV push tube is the frame that connects a KFI blade to the plow mount on your UTV, with 30-plus inches of lift and 25 degrees of blade angle. It is KFI's current square-tube design: 2.5 inches longer than the old round tube, made in the USA, and it works with all KFI plow blades.
Every KFI UTV plow uses three pieces: a vehicle-specific mount, this push tube and a blade. Pick the mount for your machine, add a blade, and use a winch to raise the plow.
This KFI push tube is the plow push tube for UTV setups across the KFI line, so a UTV snow plow push tube search or UTV plow push tube search lands on the same part: the middle piece of every KFI UTV snow plow kit or UTV plow kit. KFI plow parts and other UTV snow plow accessories and UTV snow plow parts like this keep a KFI snow plow or KFI UTV plow working on UTV snow plows of every size; they are sold separately from the push tube, blade and mount, so you add only the UTV plow accessories your setup needs.
Key Features
- Front mount design with 30-plus inches of lift height
- Heavy-duty 1-1/2-inch 12-gauge square steel tubing
- 1/4-inch thick, 1-1/2-inch diameter grade 50 pivot bushings
- 6-inch diameter injection-molded POM rotator bushing
- Easy-pull pin blade angle adjustment: 3 positions that rotate the blade up to 25 degrees
- 6 five-degree blade pitch adjustments and a multi-position lift bracket
- Bead blasted, powder coated black; hardware and instructions included
- Made in the USA with a 2-year KFI warranty
Built To Solve: Connecting a KFI Blade to Your UTV Plow Mount
- No way to attach a plow blade to the mount on your machine
- Blades that cannot angle or pitch for the job
- A worn or bent push tube from an older plow setup
Best For: UTV Owners Building a KFI Plow
- UTV owners building a complete KFI plow: mount, push tube, blade
- Owners upgrading from the discontinued round 105635 tube to the square Pro 2.0 tube
- Owners who want leveling kits, track extensions and actuators to bolt on easily
Specifications
- Product type: UTV plow push tube (Pro 2.0, square tube)
- Brand: KFI
- Tubing: 1-1/2-inch 12-gauge square steel
- Pivot bushings: 1/4-inch thick, 1-1/2-inch diameter grade 50
- Rotator bushing: 6-inch POM
- Blade angle: 3 positions, up to 25 degrees
- Blade pitch: 6 positions in 5-degree steps
- Lift height: 30-plus inches
- Finish: bead blasted, black powder coat
- Warranty: 2 years (KFI)
- Country of origin: USA
- Manufacturer Part Number: 106300
Fitment
Works with:
- All KFI plow blades (Pro-S steel and Pro-Poly)
- KFI vehicle-specific UTV front plow mounts
- KFI Pro 2.0 accessories: leveling kits 106320 / 106322 / 106324 / 106326, 2-inch forward kit 106340, track extension 106330, actuator brackets 106305
The push tube pins to your vehicle-specific KFI plow mount, sold separately with the blade and winch. Modified machines may need a KFI leveling kit to keep the blade level. Fitment is not guaranteed on unlisted setups.
FAQ
What do I need with the push tube?
A KFI plow mount for your UTV, a KFI blade, and a winch to lift the plow. A plow pulley or strap helps the winch line.
Does it fit every KFI blade?
Yes. KFI says the Pro 2.0 tube works with all KFI plows.
How is it different from the old round tube?
The Pro 2.0 is square tube, 2.5 inches longer, and built for easier installation of KFI plow accessories. The round 105635 tube is discontinued.
How far does the blade angle?
Three angle positions rotate the blade up to 25 degrees, and the pitch adjusts in six 5-degree steps.
Can I add power angle later?
Yes. Add the KFI 106305 actuator bracket kit and ACT203 actuator to angle the blade from the seat.
Why KFI
KFI (Kappers Fabricating) designs and builds winch mounts, plow mounts and complete UTV plow systems in the USA, sells replacement parts for its plows, and publishes installation instructions for its parts.
