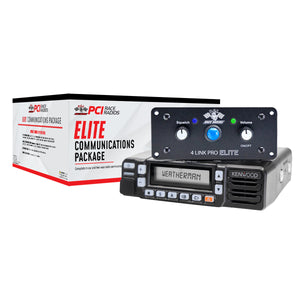

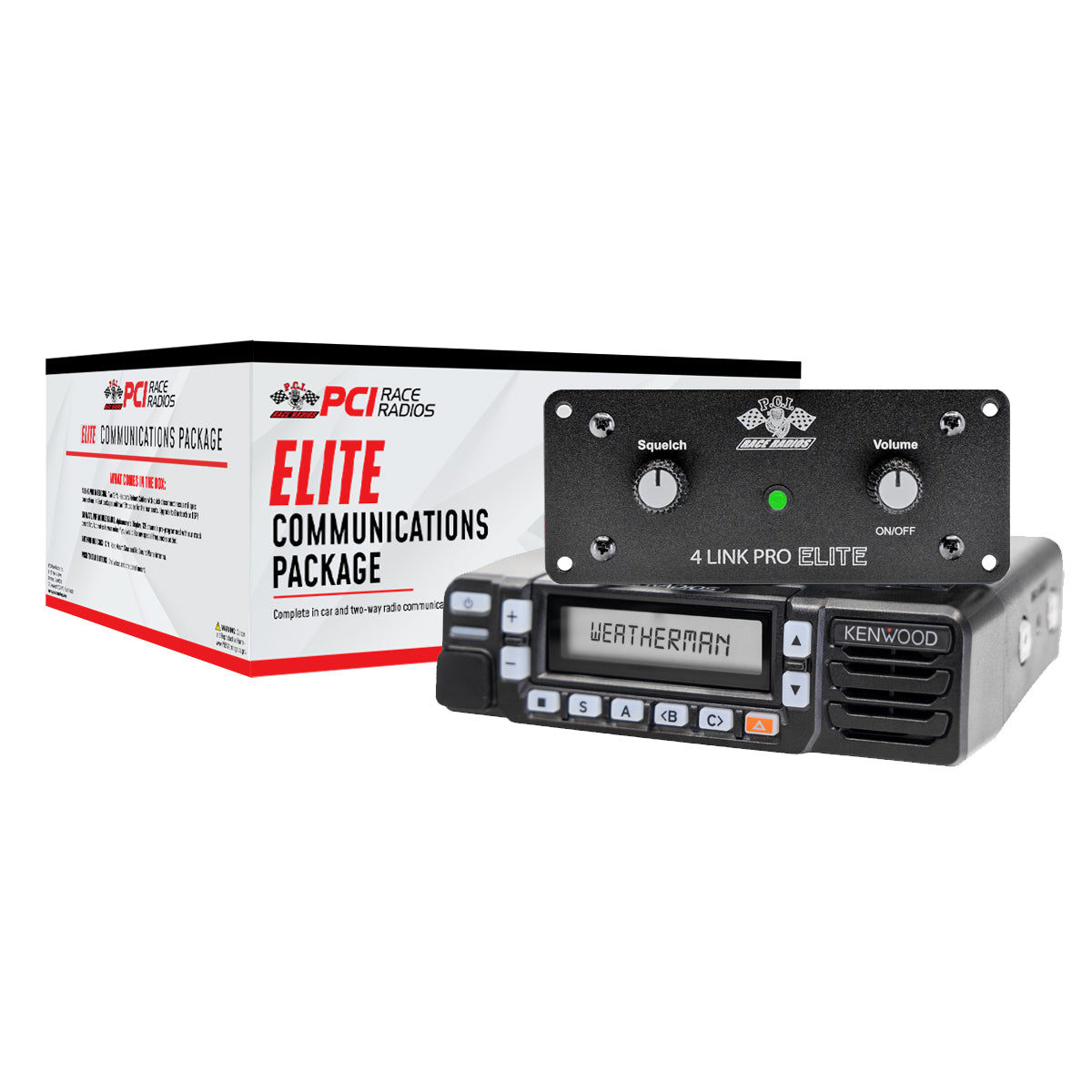

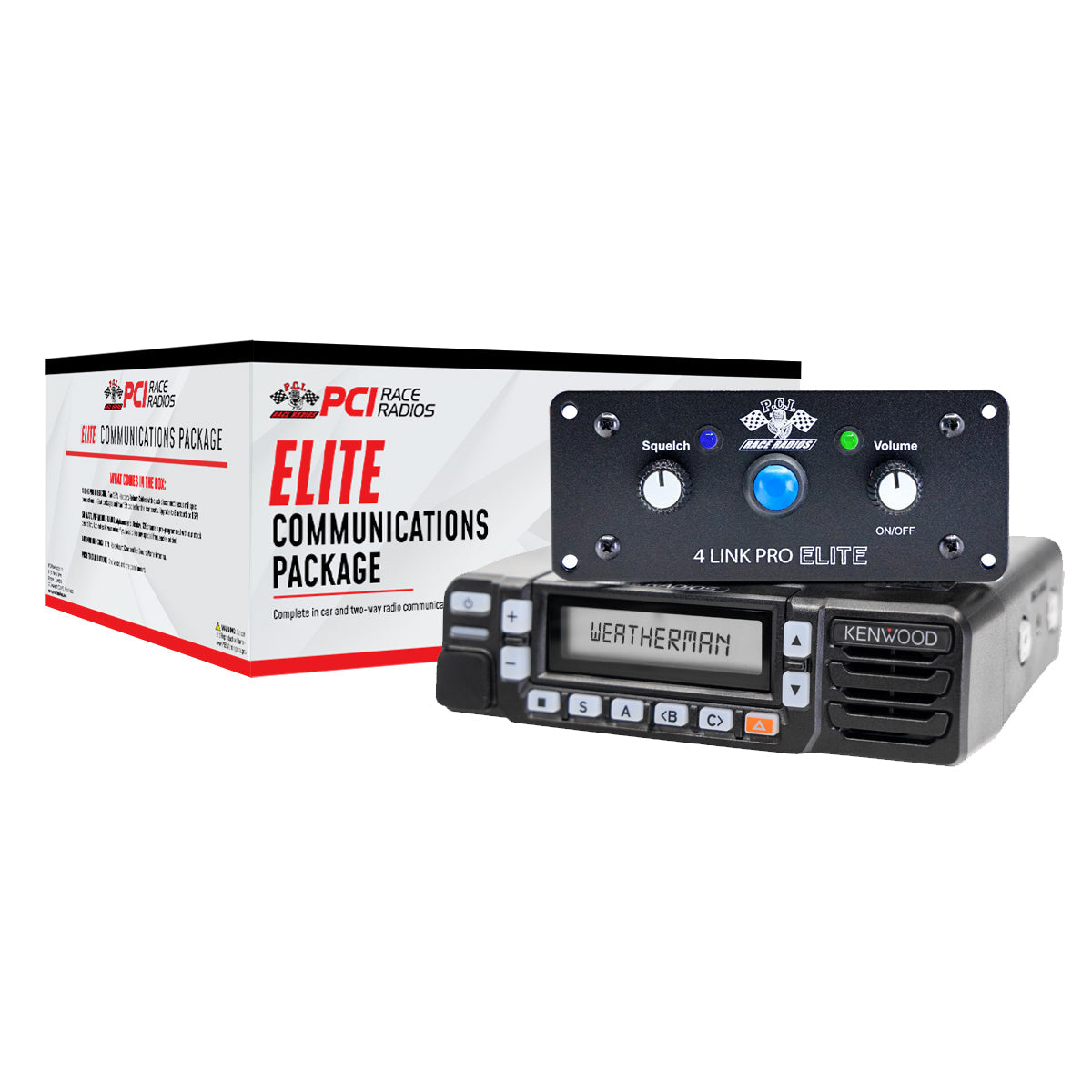

PCI Elite Communications Package

The PCI Elite Communications Package is a complete off-road communication system designed to keep you connected with your passengers and your group—without ever needing to raise your voice. Built for UTVs and high-performance vehicles, this system combines clear intercom communication, two-way radio capability, and optional Bluetooth and DSP upgrades for a fully customizable experience.

The Elite Intercom uses voice-activated communication, automatically lowering music when you speak and bringing it back once you're done. Whether you're cruising trails or pushing your machine to the limit, this system ensures smooth, uninterrupted communication.

🚨 PLEASE NOTE: Headsets & helmet wiring kits are sold separately and must be added to complete your setup.

Features & Benefits

• Complete intercom + radio communication system
• Hands-free passenger communication
• Voice-activated mic with auto music volume adjustment
• Push-To-Talk (PTT) for vehicle-to-vehicle communication
• High-quality audio for music and voice
• Expandable system with multiple add-ons
• Designed for UTVs, off-road, and racing applications
• Includes essential components for quick setup

Bluetooth Upgrade (Optional)

Add Bluetooth for wireless convenience:

• Stream music directly to your headset or helmet kit
• Answer and end calls hands-free
• Play, pause, and control audio from the intercom
• No wires required

DSP Technology (Optional Upgrade)

Digital Signal Processing (DSP) eliminates background noise and isolates your voice:

• Removes engine, wind, and exhaust noise
• Ideal for loud vehicles (V8s, modified exhausts, open cabs)
• One-touch activation on the intercom

Radio Communication (PTT)

Stay connected with your group:

• Push-To-Talk buttons included
• Communicate instantly with other vehicles
• Music automatically lowers during transmissions
• Ensures you never miss important communication

Radio Options

Icom F5021

• 50W output @ 13.8V
• 128 channels
• 14A draw during transmit (15A fuse recommended)

Kenwood NX-1700 (Recommended Upgrade)

• 50W output @ 13.8V
• 260 channels
• 13A draw during transmit (15A fuse recommended)
• IP54 rated
• Superior RF noise filtering
• Ideal for dual stator UTVs and power-limited setups

GMRS Upgrade Option

• Upgrade to Midland GMRS MXT500 at no additional charge
• Not compatible with Icom or Kenwood brackets

What’s Included

• Elite Plus Intercom
• Icom F5021 or Kenwood NX-1700 Mobile Radio
• (2) 12ft Elite Intercom Cables

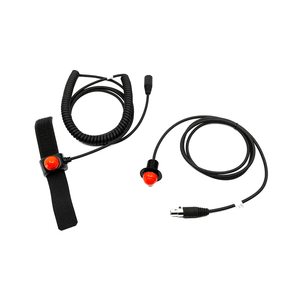

• Panel Mount PTT (female)
• Velcro Mount PTT (female)
• Phone audio input cable (Standard & DSP units only)
• 17ft Hole Mount Coax Cable

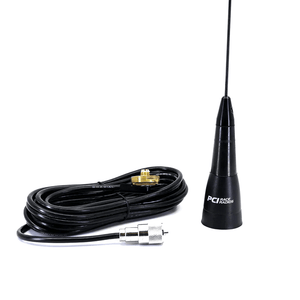

• Stealth No Ground Plane Antenna
• KLF-2 Line Filter
• Basic U-Bracket for mounting

Optional Add-Ons & Upgrades

• 4 Link Pro Elite Intercom with Bluetooth and/or DSP
• Kenwood NX-1700 Mobile Radio upgrade
• (2) 16ft Elite Intercom Cables
• (2 or 4) Elite Over-the-Head Headsets
• (2 or 4) Elite Helmet Wiring Kits
• (2 or 4) Elite G2 Headsets

Technical Specifications

• Elite Intercom Power Draw: 2.6A (5A fuse recommended)

Radios:

• Icom F5021: 50W @ 13.8V / 128 channels / 14A transmit
• Kenwood NX-1700: 50W @ 13.8V / 260 channels / 13A transmit / IP54 rated

Audio Components:

• Elite Headset: 150Ω mic / 300Ω 50mm high fidelity speakers
• Elite Helmet Wiring Kit: 150Ω mic / 32Ω 36mm high fidelity speakers
• Elite G2 Headset: 150Ω mic / 180Ω high fidelity speakers

Compatibility

• Works with PCI Elite headsets and helmet wiring kits
• Compatible with PCI 4 Link Pro Elite & Comlink systems

Warranty

• 5-Year Manufacturer Warranty on intercom
• 2-Year Warranty on radios and cables

Installation

• Designed for UTV and off-road applications
• Includes mounting bracket and antenna system
• Compatible with additional mounting solutions for clean installs

FAQ

Does this package include headsets?

No. Headsets and helmet kits are sold separately and must be added.

Can I talk to other vehicles?

Yes. The included radio and PTT system allows group communication.

What is DSP and do I need it?

DSP removes background noise and is highly recommended for loud vehicles or open cabs.

Can I stream music?

Yes. With the Bluetooth upgrade, you can stream music and take calls wirelessly.

Which radio should I choose?

• Icom: Great all-around option
• Kenwood: Best for dual stator machines and cleaner signal performance

Important Notice

⚠️ California Proposition 65 Warning:
Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Upgrade your off-road communication today with the PCI Elite Communications Package from Dunes 2 Dezert SXS and stay connected, in control, and ready for every ride.
