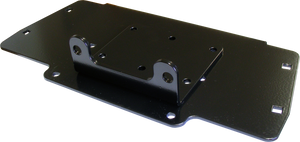

The KFI Kubota RTV400/500/520 winch mount gives your machine a vehicle-specific way to mount a winch, so winter work and recovery jobs get done without improvised brackets. It is listed for Kubota RTV400/500/520 models (2008-2021); check the fitment list below against your exact model and year before you order.
If you are shopping for a Kubota RTV winch mount or Kubota RTV500 winch mount, this is the KFI part made for that machine. It is sold as the winch mount only, so plan the matching components listed below.
Key Features

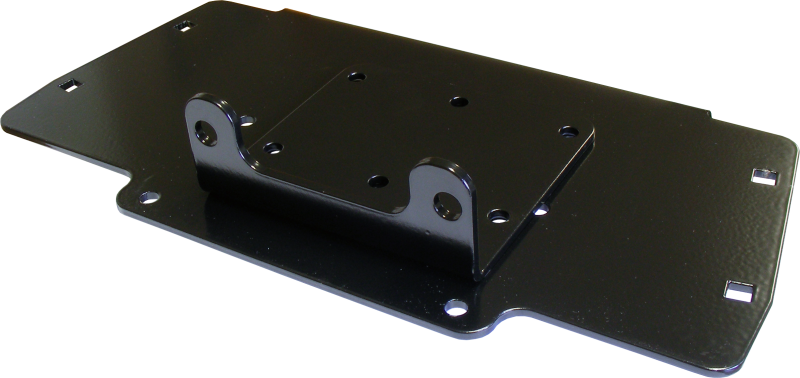

- Replacement winch mount plate built from 3/16 in. steel
- Powder coated black, with the steel bead blasted before coating
- Fairlead bracket, carriage bolts and mini-rocker switch hardware included
- Accepts the standard wide UTV, standard ATV and 2-hole winch patterns listed by KFI
Built To Solve: Kubota RTV400/500/520 Winch Mount Needs
- No solid factory point to bolt a winch to
- Getting stuck in snow, mud or a ditch with no way to self-recover
- Needing a winch to lift and lower a UTV plow blade
- Winch hardware that does not line up with the vehicle frame
Best For: Kubota RTV400/500/520 Owners Working Through Winter
- Kubota RTV400/500/520 owners adding a winch for self-recovery, hauling or raising a snow plow
- Riders building a winter setup around the Kubota RTV400/500/520
- Owners who have confirmed their exact model, trim and year against the fitment list below
Specifications
- Product type: Winch mount
- Brand: KFI
- Included: 1 replacement winch mount plate; 1 fairlead bracket; 4 carriage bolts, 3/8 x 1 in, with washers and nylock nuts; 1 mini-rocker switch hardware kit
- Made in the USA (per the manufacturer)
- Manufacturer Part Number: 100800
Fitment
- Kubota RTV400Ci (2012-2020)
- Kubota RTV500 (2020-2021)
- Kubota RTV520 (2021-2022 (per KFI application data))
Installation note: KFI notes some wider winches may need slight plastic trimming to clear the motor and clutch.
Fitment is taken from KFI data for this part. Fitment is not guaranteed on unlisted models, trims or years.
FAQ
Is a winch included?
No. The winch, and the roller fairlead unless stated in the included parts, are sold separately.
Can I use the winch to lift a snow plow on my Kubota RTV400/500/520?
Yes, a winch is the common way to raise a UTV plow. Add a plow fairlead pulley so the cable runs straight and does not wear against the bumper.
Which Kubota RTV400/500/520 models and years does it fit?
It is listed for: Kubota RTV400Ci (2012-2020); Kubota RTV500 (2020-2021); Kubota RTV520 (2021-2022 (per KFI application data)). Confirm your exact model and year before ordering.
Is installation difficult?
The part bolts on with the included hardware. KFI notes some wider winches may need slight plastic trimming to clear the motor and clutch. KFI publishes installation instructions for this part, available on this page.
Do I need anything else for my Kubota RTV400/500/520 winter setup?
Many owners pair this with a matching snow plow, winch, windshield, roof or track system; the related products below are matched to the same machine.
Why KFI
KFI designs and builds winch mounts, plow mounts and UTV plow systems, and publishes installation instructions for its mounts.
Complete Your Kubota RTV400/500/520 Winter Setup
Before ordering this KFI winch mount, confirm your Kubota RTV400/500/520 model and year against the fitment list above. Confirm your winch bolt pattern against the mount before you order, and add a roller fairlead and plow pulley if you will use the winch to lift a plow. Browse UTV track systems to keep the machine moving in deep snow. Order from Dunes 2 Dezert SXS and we will ship it to you.
