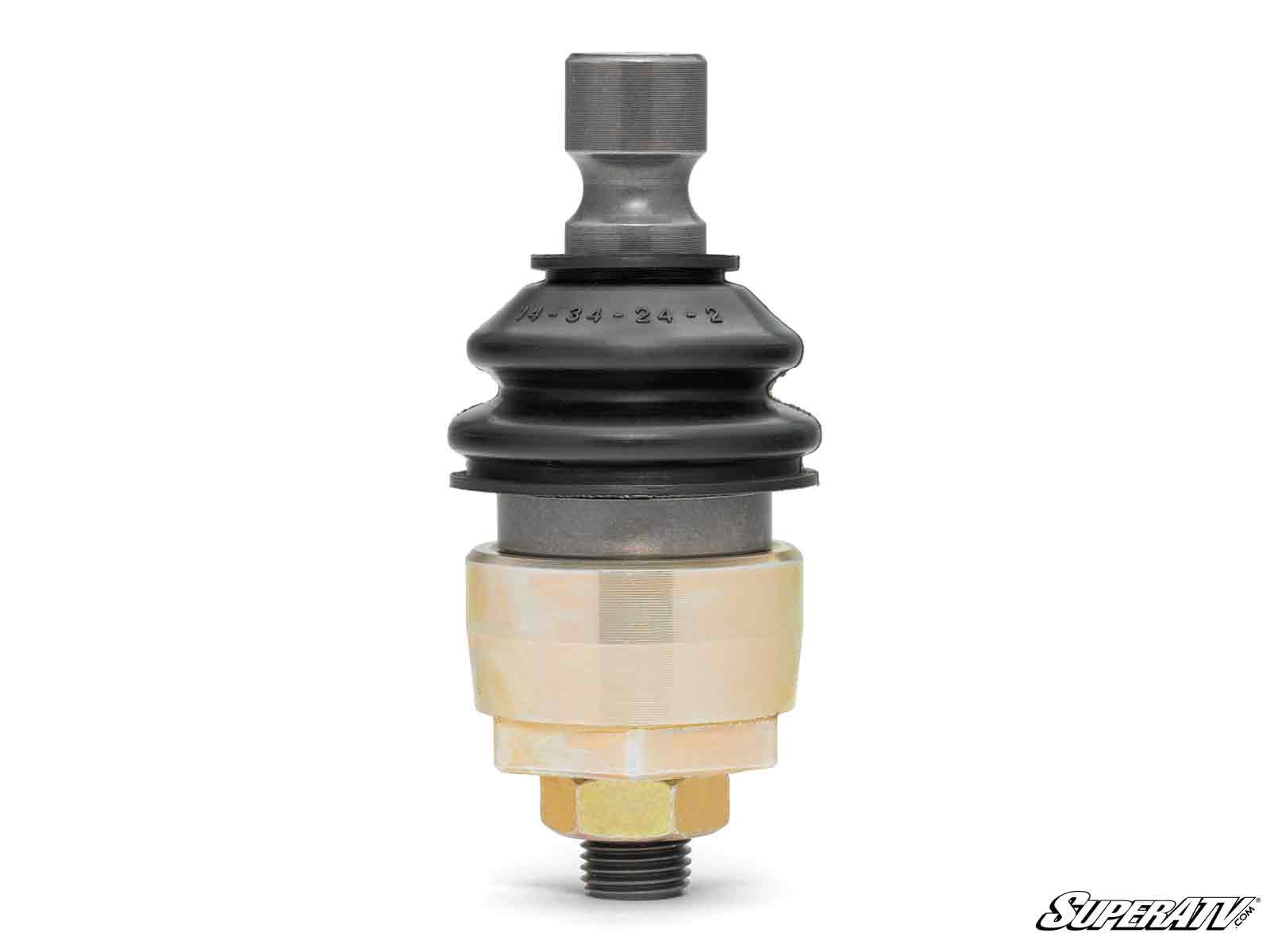

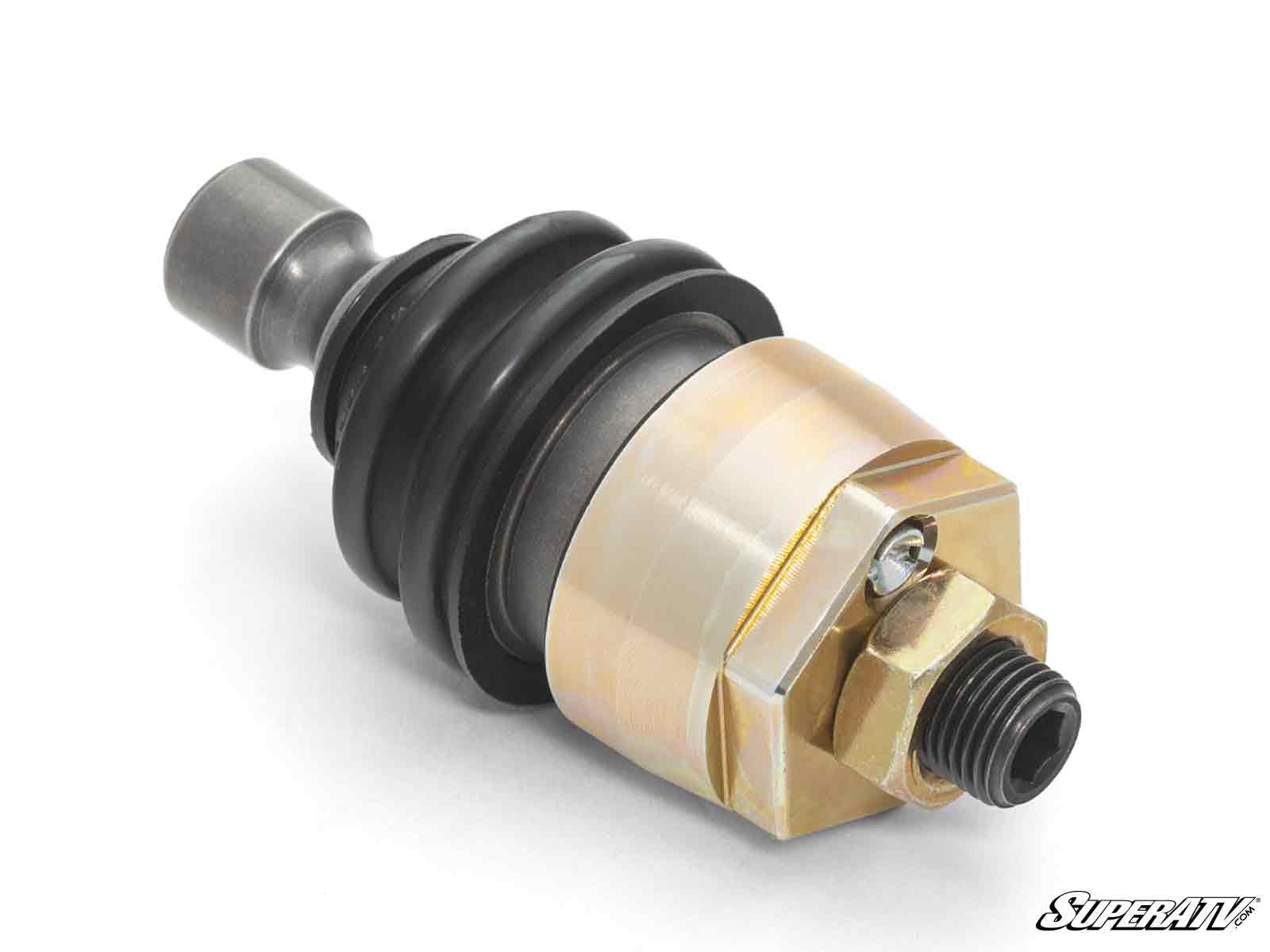

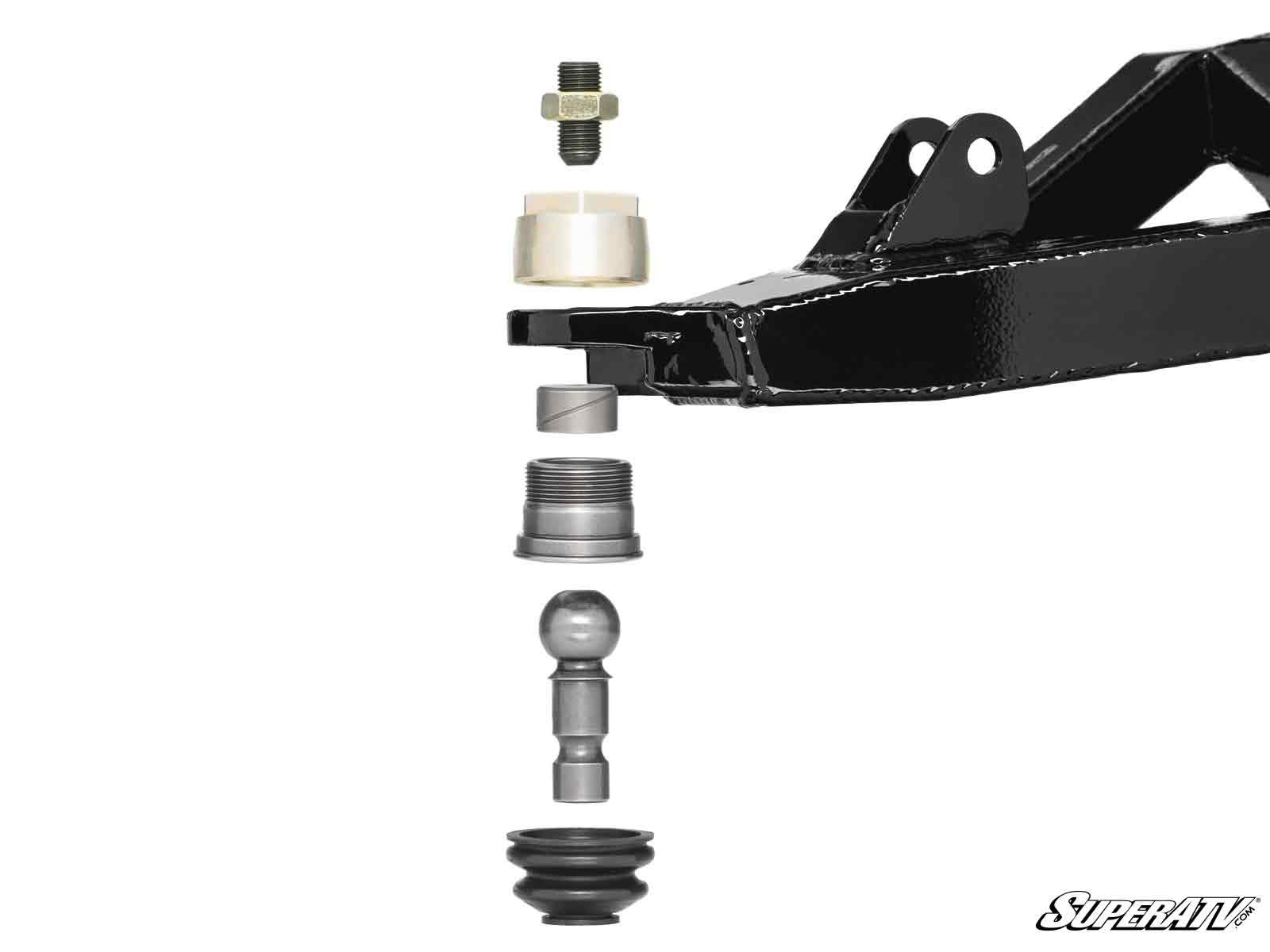

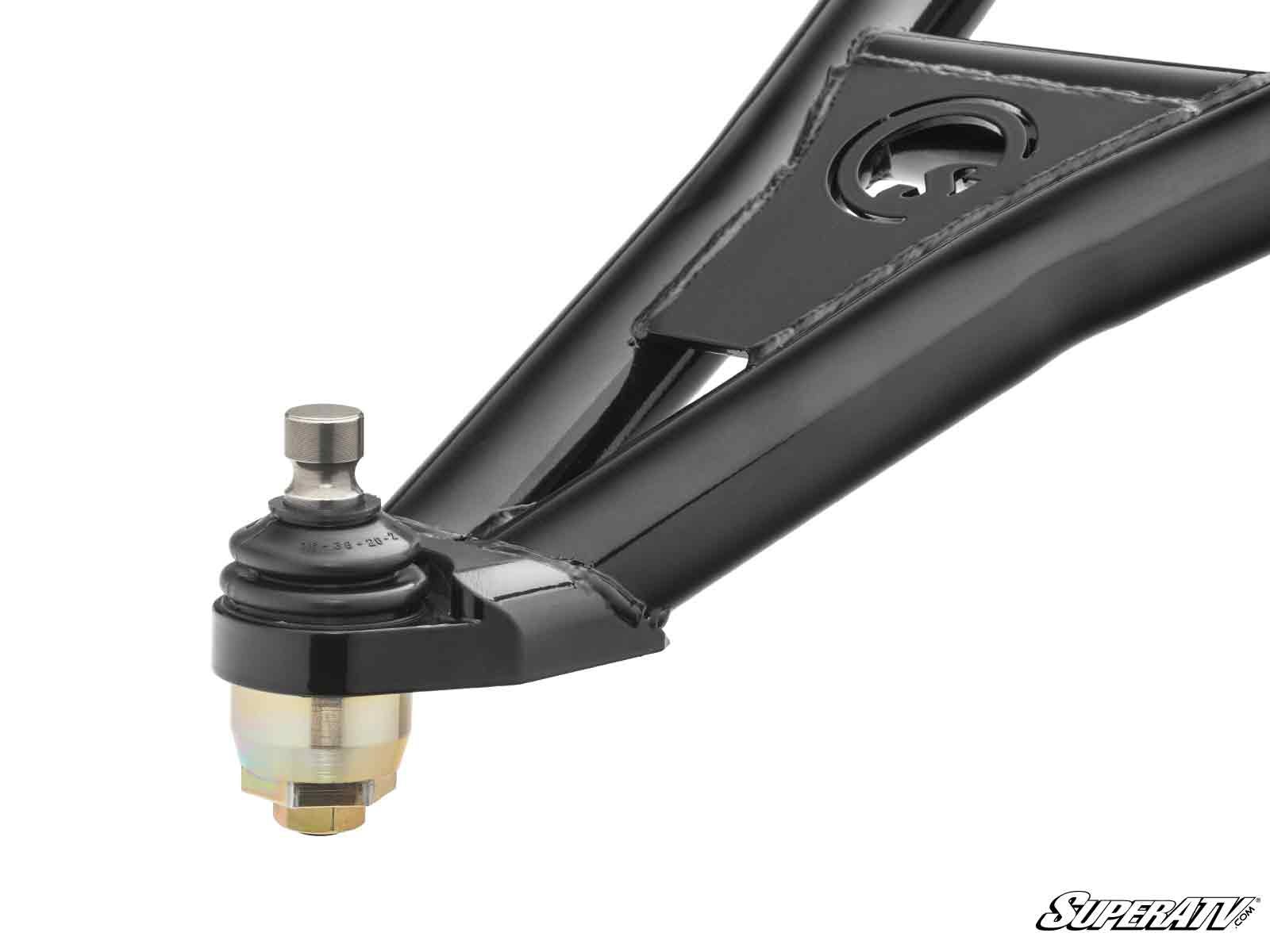

Polaris RZR Pro XP ball joints fail at the snap ring, not the joint itself. That thin clip is the only thing holding a factory joint in the A-arm, and it deforms or shears under hard landings and the extra leverage of bigger tires. Keller ball joints remove it entirely — the two-piece housing threads into the arm like a nut and bolt. Hardened 4340 chromoly, greaseable, adjustable and rebuildable.
Todd Keller's original threaded design, covering the Pro XP and Pro XP 4 from 2020 onward. On this machine the same joint serves both positions, so you simply choose how many you need.
Key Features
- Two-piece threaded housing eliminates the OEM snap ring
- 4340 hardened chromoly steel housings and studs
- Adjustable and greaseable for correct stud articulation over years of service
- Rebuildable — a worn joint is serviced, not replaced
- One joint fits both upper and lower positions on this platform
- Backed by a lifetime warranty
- Made in USA
Built To Solve: RZR Pro XP Ball Joint Pull-Out and Snap Ring Failure
- Snap ring shearing and letting the joint separate from the A-arm
- Clunking or knocking from the front end over rough ground and whoops
- Play in the wheel when rocked top-to-bottom on a jack
- Repeat OEM joint failures on a Pro XP running a lift or oversized tires
- Torn boots admitting water and grit so the joint wears from the inside
- Replacing the same joint often enough that it has become routine maintenance
Best For: Lifted and Big-Tire RZR Pro XP Builds
- Pro XP and Pro XP 4 owners running larger tires or added lift
- Desert and dune riders loading the front end hard on landings
- Riders who have already replaced a factory joint more than once
- Pro XP 4 owners carrying more weight through the front end
- Anyone rebuilding a front end who wants to do it once
If your A-arms are already machined for oversized housings, the Mega Keller version for this platform is the stronger option and requires that modification.
Specifications
- Material: 4340 hardened chromoly steel, stud and housing
- Design: two-piece threaded housing, no snap ring
- Serviceability: adjustable, greaseable and rebuildable
- A-arm modification: not required
- Positions: one joint serves both upper and lower on this platform
- Warranty: lifetime
- Manufacturer Part Number: BJK-P-TSPR#PRO (one joint), BJK-P-TSPR-K-2#PRO (two joints), BJK-P-TSPR-K-4#PRO (four joints)
Fitment
- Polaris RZR Pro XP: 2020 onward
- Polaris RZR Pro XP 4: 2020 onward
Both the two-seat and four-seat Pro XP are covered. Coverage begins in 2020 and remains open on current machines. Fitment is not guaranteed on applications not listed above.
FAQ
Why do RZR Pro XP ball joints pull out of the A-arm?
The factory joint is retained by a snap ring seated in a groove. Hard landings and the extra leverage of bigger tires can deform or shear that ring, and once it goes the joint has nothing holding it. Keller joints thread into the A-arm instead, so there is no clip to fail.
Do I need different joints for the upper and lower positions?

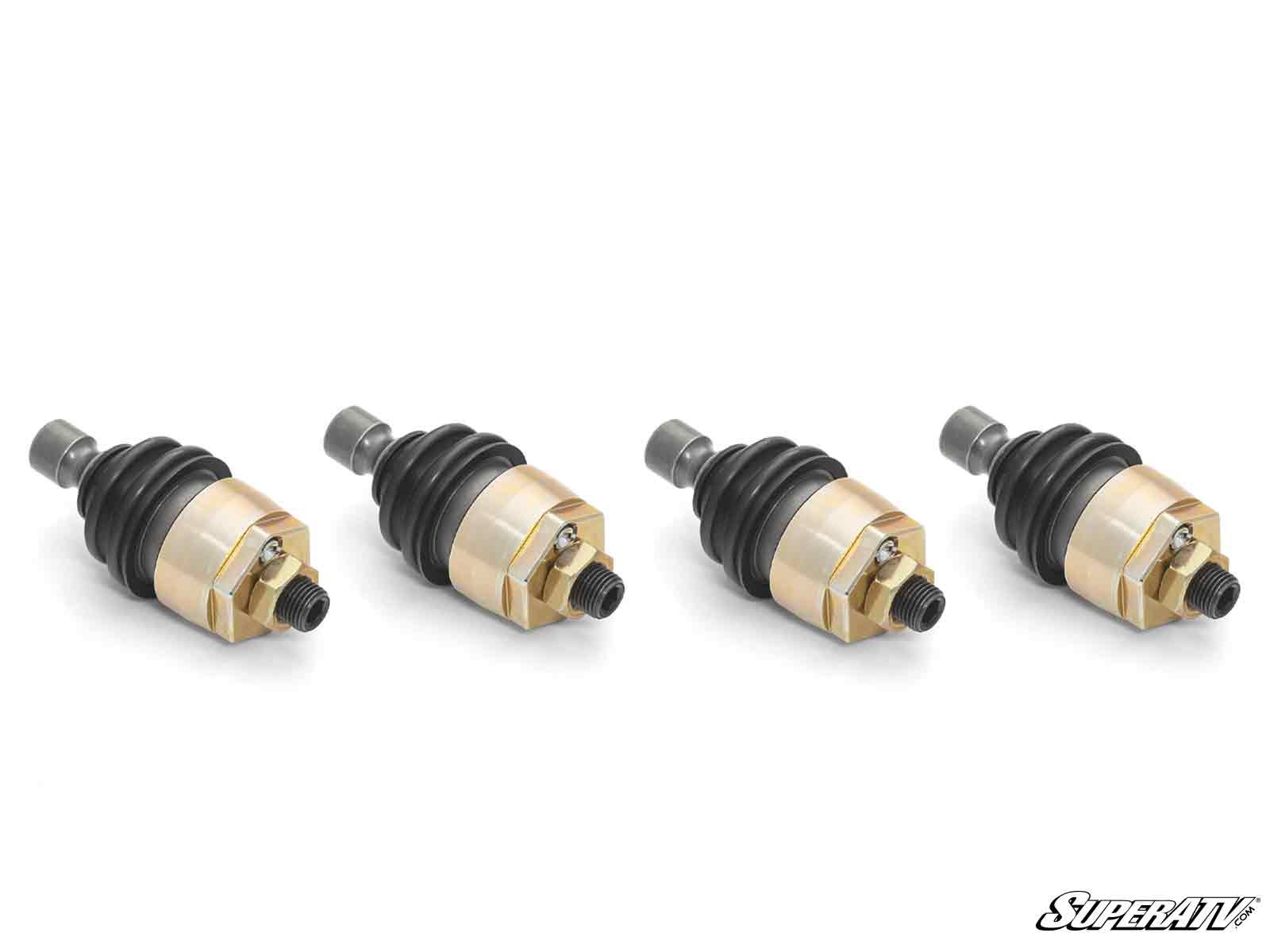

No. On the Pro XP the same Keller joint serves both positions, which is why this product is sold by quantity rather than by upper and lower. Choose one, two, or a set of four for a complete front end.
Do these fit the four-seat Pro XP 4?
Yes. Both the Pro XP and the Pro XP 4 are covered from 2020 onward.
Do Keller ball joints require A-arm modification?
Standard Keller joints do not — they thread into the factory arm as supplied. The Mega version uses an oversized housing and does require machined A-arms, which is the main reason to pick one over the other.
How many should I buy?
Ball joints wear as a set. Replacing a single failure is fine, but on a high-hour machine most riders do all four at once so the front end is consistent and they are not back under it in a month.
Can these be rebuilt instead of replaced?
Yes. They grease and adjust, and the Keller ball joint rebuild kit for Polaris services them with a new cup, boot and pin when the internals eventually wear.
Why Keller
Todd Keller designed the two-piece threaded ball joint to fix the one part of a stock front end that keeps failing, and SuperATV now builds and backs the line. The design has barely changed because it does not need to: thread the housing in like a nut and bolt, use a chromoly stud, and make the whole assembly serviceable so a worn joint gets rebuilt rather than binned.
Complete Your RZR Pro XP Front End Rebuild
Before ordering, decide whether you are replacing a single failure or refreshing all four corners — the set of four covers a complete front end. If the boots are torn but the joints are sound, the Keller boot replacement kit is the cheaper fix. If the joints are worn but the housings are good, the Keller rebuild kit for Polaris services them. Riders doing a full front end usually look at tie rods and A-arm bushings while everything is apart.
Installation Video
Official SuperATV installation walkthrough with Todd Keller: How To Install Keller Ball Joints
