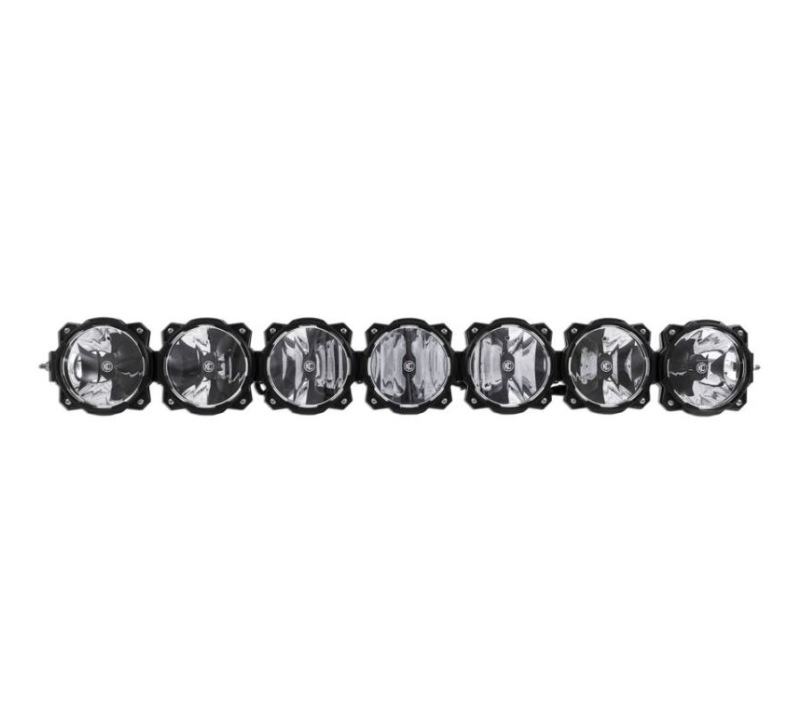

KC HiLiTES 45" Gravity® Pro6 7-Light LED Light Bar | Tube Center Support

The KC HiLiTES 45" Gravity® Pro6 7-Light LED Light Bar is a race-proven off-road lighting system engineered for riders and drivers who demand elite nighttime visibility, modular adjustability, and unmatched durability. Featuring KC’s patented Infinity Ring™ System and advanced Gravity® LED G6 optics, this premium light bar delivers exceptional beam control and powerful output for UTVs, trucks, Jeeps, and off-road builds.

Built for serious off-road performance, the Pro6 system combines customizable beam patterns, expandable modular design, and industry-leading lighting technology into one of the most advanced LED light bars available today.

Race-Proven Performance Meets Modular Design

Whether you're blasting through desert terrain, crawling technical trails, or building the ultimate overland setup, the KC Gravity® Pro6 delivers the lighting performance and reliability trusted by off-road racers worldwide.

Key Features

• Patented Gravity® LED G6 optical inserts
• Innovative Infinity Ring™ adjustable linking system
• Easily converts between straight and radius configurations
• Modular, expandable design
• High-output LED performance with low amp draw
• Combination Driving and Wide-40 beam optics included
• Heavy-duty aluminum construction
• IP68 waterproof and dustproof rating
• Universal end-mount system for versatile installation

Gravity® LED G6 Optics

KC’s patented Gravity® G6 LED optics provide exceptional brightness, efficiency, and beam clarity for maximum nighttime visibility.

Included Beam Pattern Combination

• Driving Beam: Excellent forward visibility and distance
• Wide-40 Beam: Enhanced peripheral lighting and trail coverage

This combo setup delivers balanced illumination for both high-speed and technical off-road driving.

Infinity Ring™ Adjustable System

The patented Infinity Ring™ System allows you to configure the Pro6 light bar in either a straight or curved radius setup in seconds.

Benefits Include:

• Adjustable beam direction
• Expandable modular widths
• Race-proven strength and flexibility
• Easy customization for different vehicles and applications

Built for Extreme Off-Road Conditions

Inspired by endurance racing and tested in harsh environments around the world, the Pro6 is engineered to survive vibration, mud, dust, water, and extreme weather conditions.

Specifications

• Size: 45”
• Configuration: 7-Light LED Bar
• Total Wattage: 149.52W
• Total Amp Draw: 12.46A
• Voltage: 9V–36V
• Total Lumens: 17,556 lm
• Beam Distance: 704 meters
• Light Temperature: 5000K
• Beam Pattern: Combo (Driving + Wide-40)
• Lens Color: Clear
• LED Color: White
• Housing Material: Aluminum Alloy
• Finish: Black
• IP Rating: IP68 Waterproof/Dustproof

Dimensions

• Width: 45.625”
• Height: 6.06”
• Depth: 3.33”

What’s Included

• KC HiLiTES 45” Gravity® Pro6 7-Light LED Light Bar
• Tube Center Support (Designed for Can-Am applications)
• Deluxe Plug-and-Play Wiring Harness
• Illuminated 30A LED Switch
• 7 KC Pro6 Protective Light Covers

Vehicle Compatibility

Compatible with vehicle-specific mounting kits including:

• Can-Am Maverick R
• Can-Am Maverick X3
• Segway Villain
• Universal UTV, Truck, Jeep, and SUV applications

(Vehicle-specific mounting brackets sold separately where applicable.)

Why Choose the KC Gravity® Pro6?

🔥 Massive Light Output

17,556 lumens of powerful, race-ready illumination.

🛠 Adjustable Modular Design

Straight or curved setup with expandable linking capability.

💪 Built for Abuse

Race-tested construction built for harsh off-road environments.

🌙 Superior Trail Visibility

Driving and Wide-40 combo optics maximize distance and side coverage.

⚡ Plug-and-Play Installation

Includes deluxe wiring harness and illuminated switch.

FAQ

Can this light bar be configured as curved or straight?

Yes, the Infinity Ring™ System allows quick conversion between straight and radius configurations.

What beam pattern is included?

The bar includes a combination of Driving and Wide-40 beam optics.

Is the wiring harness included?

Yes, a deluxe plug-and-play harness with illuminated LED switch is included.

Is this waterproof?

Yes, the Pro6 carries an IP68 waterproof and dustproof rating.

Upgrade your off-road lighting setup with the KC HiLiTES 45" Gravity® Pro6 7-Light LED Light Bar from Dunes 2 Dezert SXS and dominate the trail with race-proven performance and unmatched visibility.
