Polaris RZR XP Turbo Duner Mid-Travel Kit | HCR Racing

Upgrade your 2016–2021 Polaris RZR XP Turbo with HCR Racing’s Duner mid-travel suspension kit. It adds 3 inches per side, improves ground clearance by 1.25 inches and retains the OEM shocks. The complete RZR suspension kit combines HCR arms, trailing arms, radius rods, axles, a shock tower and installation hardware.

RZR XP Turbo Mid-Travel Kit Features

Part #: RZR-05810

Features:

• Adds 3” to each side

• Improves ground clearance by 1.25”

• HCR custom alloy boasts 30% more strength than chromoly

• TIG-welded by hand for strength and aesthetics

• Internal angled catacomb design for optimal force distribution

• Laser-cut construction for precise fit and finish

• CNC-cut chromoly mounting points for increased integrity

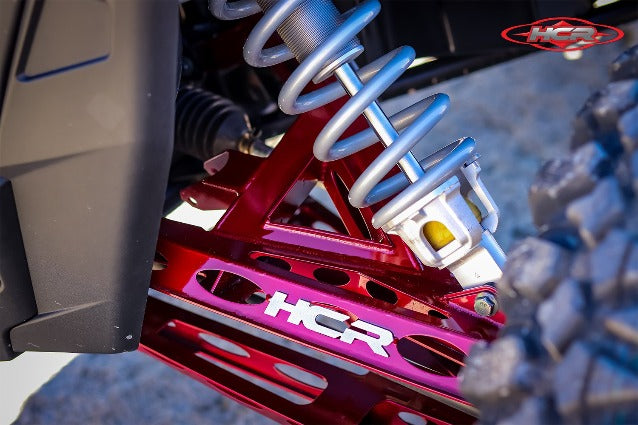

• Shock tower reduces compound leverage to achieve a better motion ratio

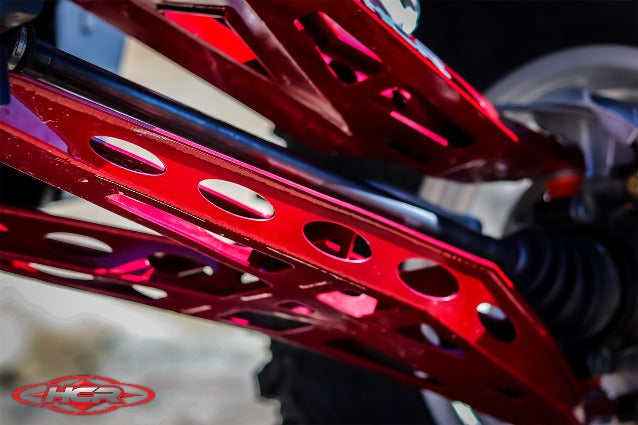

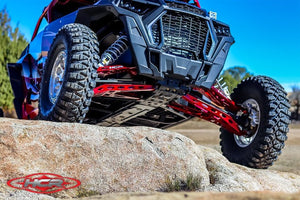

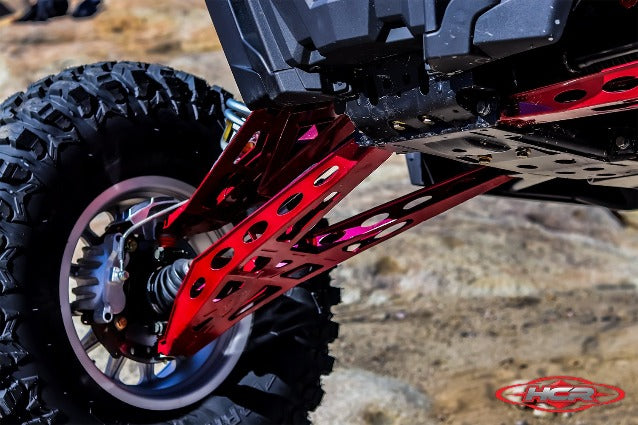

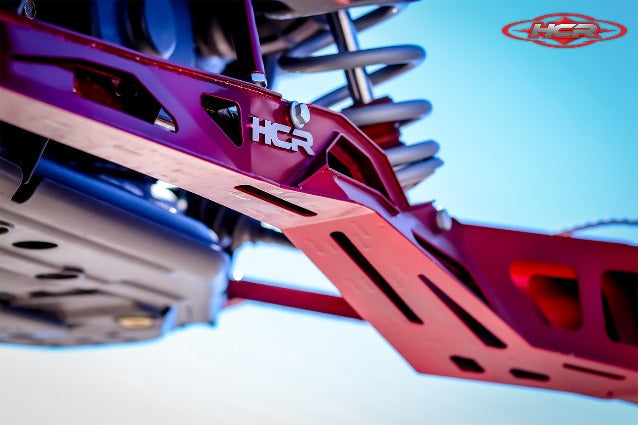

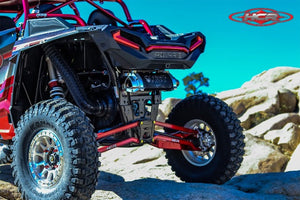

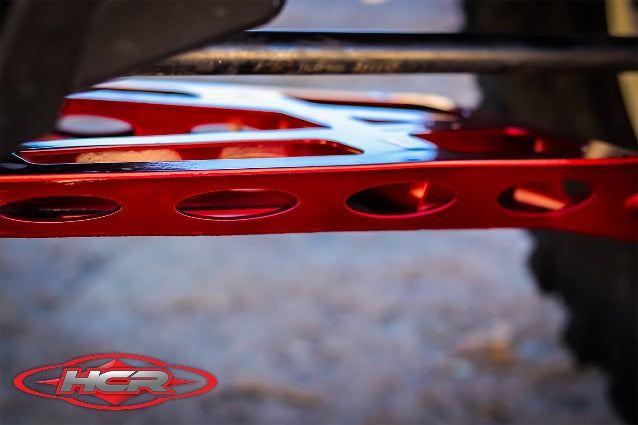

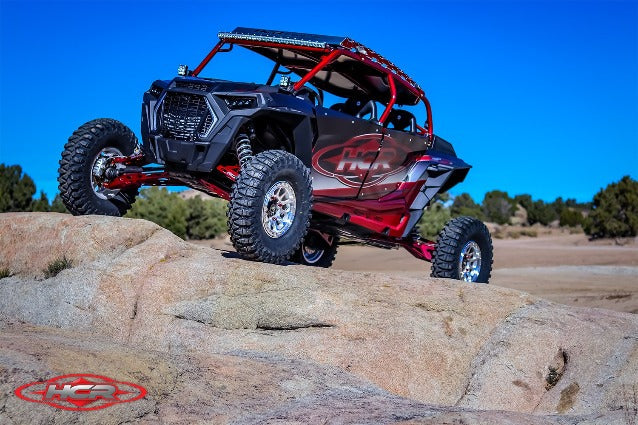

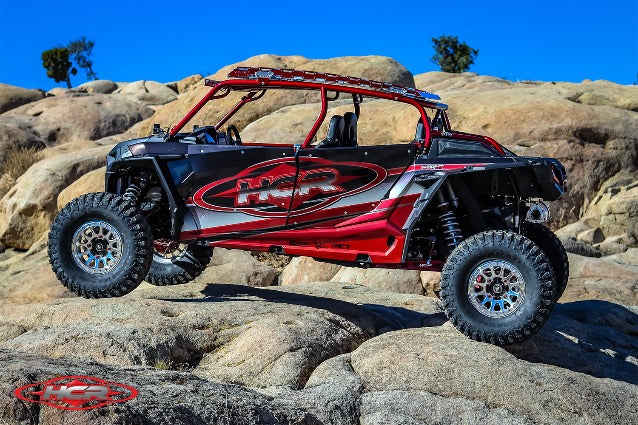

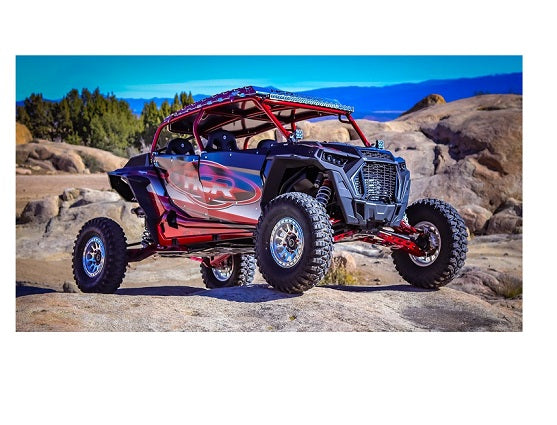

HCR Racing’s Duner Mid-Travel Suspension Kit for the Polaris RZR XP Turbo increases your machine’s total width by 3 inches on both sides while reusing OEM shocks. The bent A-arm design adds 1.25 inches of ground clearance. Your machine will be stronger and more reliable, and you’ll see improved ride quality, stability, and control across terrains.

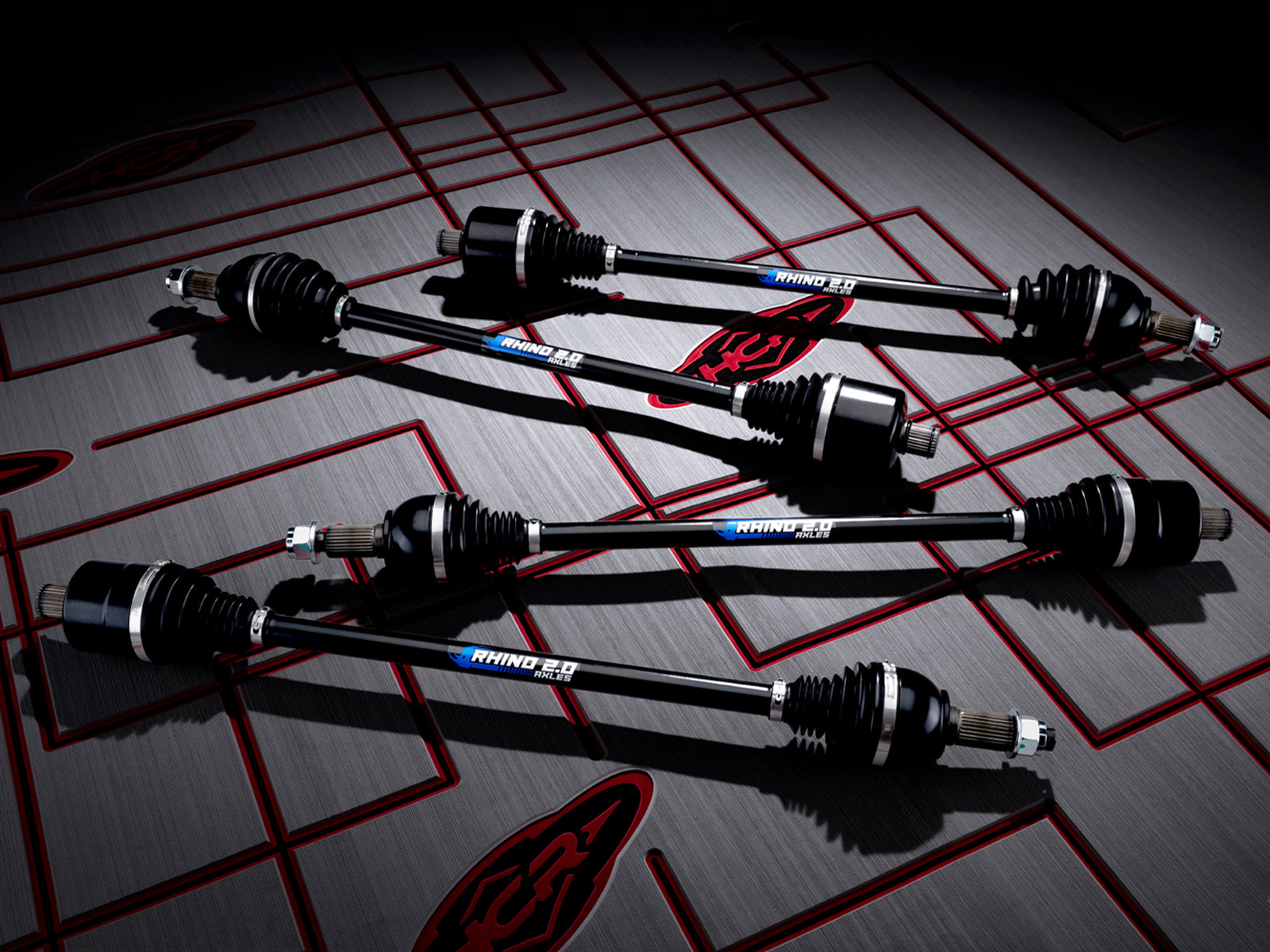

Rhino 2.0 Axles:

• Uses 4340 chromoly steel bars, CVs, and components

• Trusted by thousands of riders

• 18-month warranty

HCR Radius Rods

This suspension upgrade includes HCR’s mid-travel high-clearance radius rods. Their impressive strength is ideal for performance applications.

HCR High-Clearance Billet Aluminum Radius Rods

• 7075 billet aluminum construction

• Black anodized finish

• 5/8-18 right-hand thread heim joints

• Bolt-on replacement

Kit Includes:

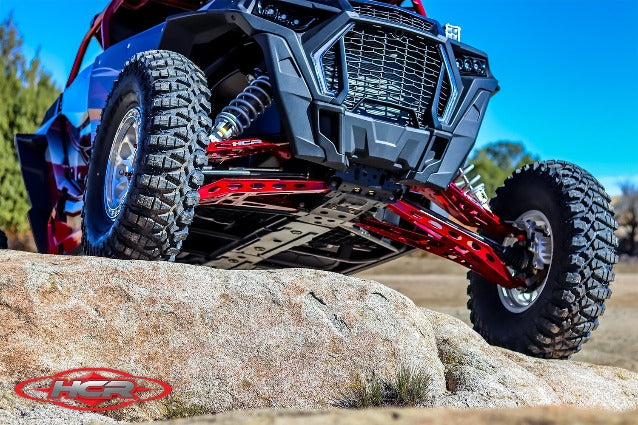

• 4 front A-arms (2 upper, 2 lower)

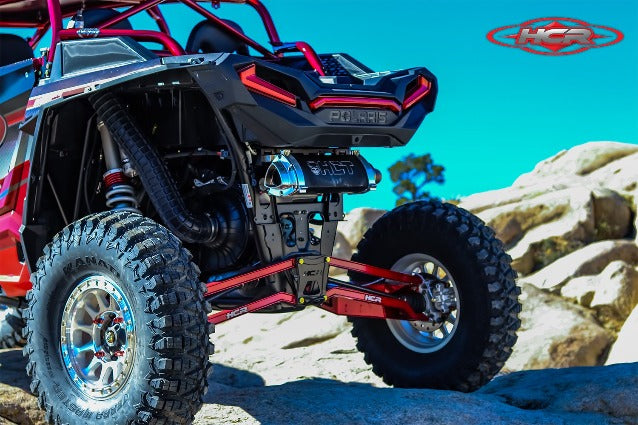

• 2 rear trailing arms

• Tie rod extensions

• Shock tower

• 4 axles

• High-clearance radius rods

• Hardware

Fitment:

Polaris RZR XP Turbo : 2016-2021
Polaris RZR XP 4 Turbo : 2016-2021

Notes:

• HCR high-clearance radius rods are recommended for trail riders and rock crawlers

• A 4+3 offset is recommended with this kit

• Must reuse or replace OEM trailing arm radial bearings, shocks, front ball joints, crush sleeves, wear plates, mounting bolts, and other hardware

• HCR kits are made to order. Quality takes time

Built To Solve: RZR XP 4 Turbo Long Travel Kits Selection

Key Features

• Matches the listed vehicle and suspension configuration
• Clarifies current manufacturer options before ordering
• Helps avoid incompatible standard-travel and long-travel combinations

Best For: RZR XP 4 Turbo Owners Confirming Fitment

• Owners replacing or upgrading the listed component
• HCR suspension customers matching companion parts to their kit
• Buyers verifying year, model, and suspension setup before checkout

Specifications

• Brand: HCR Racing
• Product Type: Long Travel Kits
• SKU: RZR-05810-KTS07-RW
• SKU: RZR-05810-XTS07-RW
• SKU: RZR-05820-KTS07-RW
• SKU: RZR-05820-XTS07-RW
• SKU: RZR-05810-KTS07-01
• SKU: RZR-05810-XTS07-01
• SKU: RZR-05820-KTS07-01
• SKU: RZR-05820-XTS07-01
• SKU: RZR-05810-KTS07-12
• SKU: RZR-05810-XTS07-12
• SKU: RZR-05820-KTS07-12
• SKU: RZR-05820-XTS07-12

FAQ

Does this long travel kits fit every RZR XP 4 Turbo?

No. Confirm the listed year, model, submodel, and suspension configuration before ordering.

What should I verify before ordering?

Check the vehicle year, exact model, suspension width, and selected product options.

Are all available options shown?

The selectable variants reflect the current manufacturer catalog data for this listing.

Is installation hardware included?

Included hardware varies by product. Review the key features and contact Dunes 2 Dezert SXS for an exact contents check.

Is professional installation recommended?

Professional installation is recommended when suspension geometry, alignment, or safety-critical fasteners are involved.

Where can I get fitment help?

Contact Dunes 2 Dezert SXS with your vehicle year, model, and current suspension setup.
